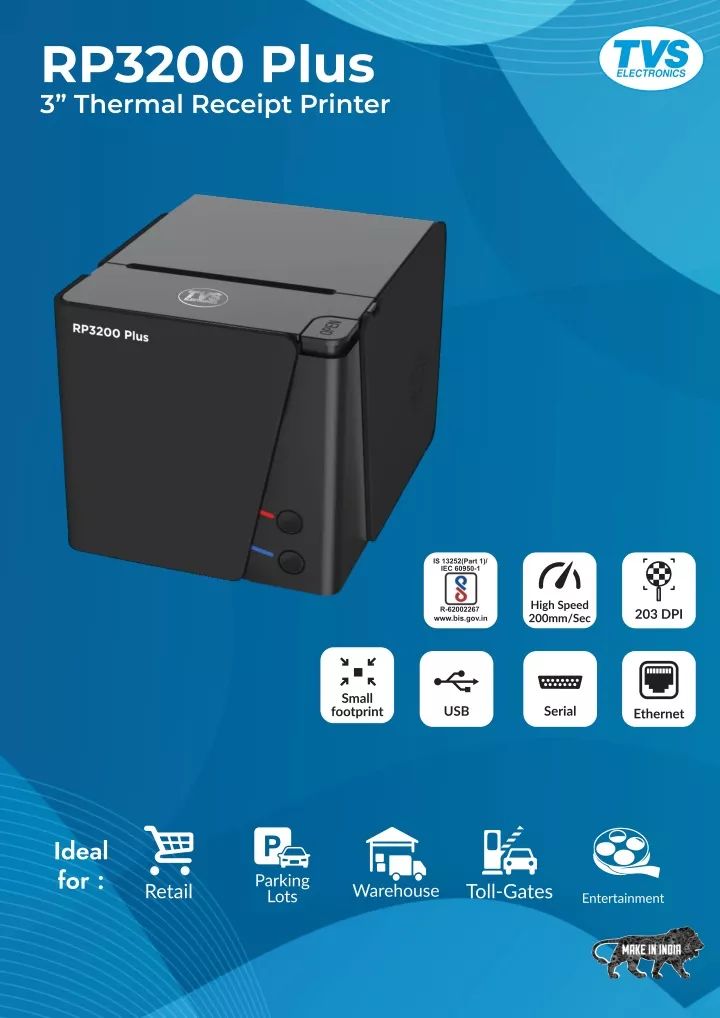

Thermal Printer

Shop the best quality, user-friendly and portable, superior printing speed with lower power consumption Thermal Printer for Billing. Used in leading retail outlets, cafes, grocery stores, ticketing outlets, kiosks, etc. Place your order now! https://www.tvs-e.in/thermal-receipt-printers/

bronsonarmer
Download Presentation

Thermal Printer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

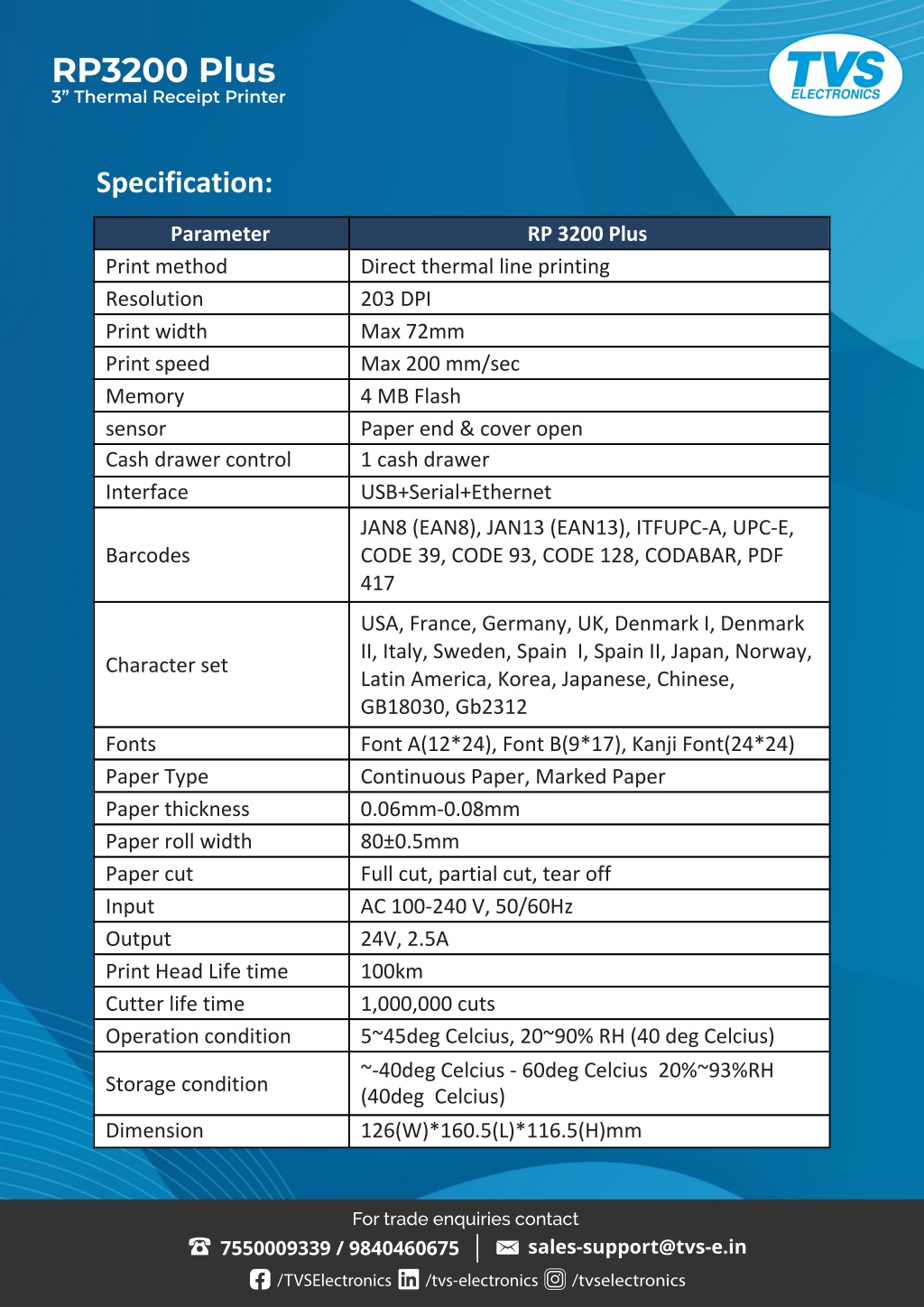

  1. Specification: Parameter RP 3200 Plus Print method Resolution Print width Print speed Memory sensor Cash drawer control Interface Direct thermal line printing 203 DPI Max 72mm Max 200 mm/sec 4 MB Flash Paper end & cover open 1 cash drawer USB+Serial+Ethernet JAN8 (EAN8), JAN13 (EAN13), ITFUPC-A, UPC-E, CODE 39, CODE 93, CODE 128, CODABAR, PDF 417 Barcodes USA, France, Germany, UK, Denmark I, Denmark II, Italy, Sweden, Spain I, Spain II, Japan, Norway, Latin America, Korea, Japanese, Chinese, GB18030, Gb2312 Character set Fonts Paper Type Paper thickness Paper roll width Paper cut Input Output Print Head Life time Cutter life time Operation condition Font A(12*24), Font B(9*17), Kanji Font(24*24) Continuous Paper, Marked Paper 0.06mm-0.08mm 80±0.5mm Full cut, partial cut, tear off AC 100-240 V, 50/60Hz 24V, 2.5A 100km 1,000,000 cuts 5~45deg Celcius, 20~90% RH (40 deg Celcius) ~-40deg Celcius - 60deg Celcius 20%~93%RH (40deg Celcius) Storage condition Dimension 126(W)*160.5(L)*116.5(H)mm For trade enquiries contact sales-support@tvs-e.in 7550009339 / 9840460675 /tvselectronics /TVSElectronics /tvs-electronics
