Presentation Transcript
the five generations

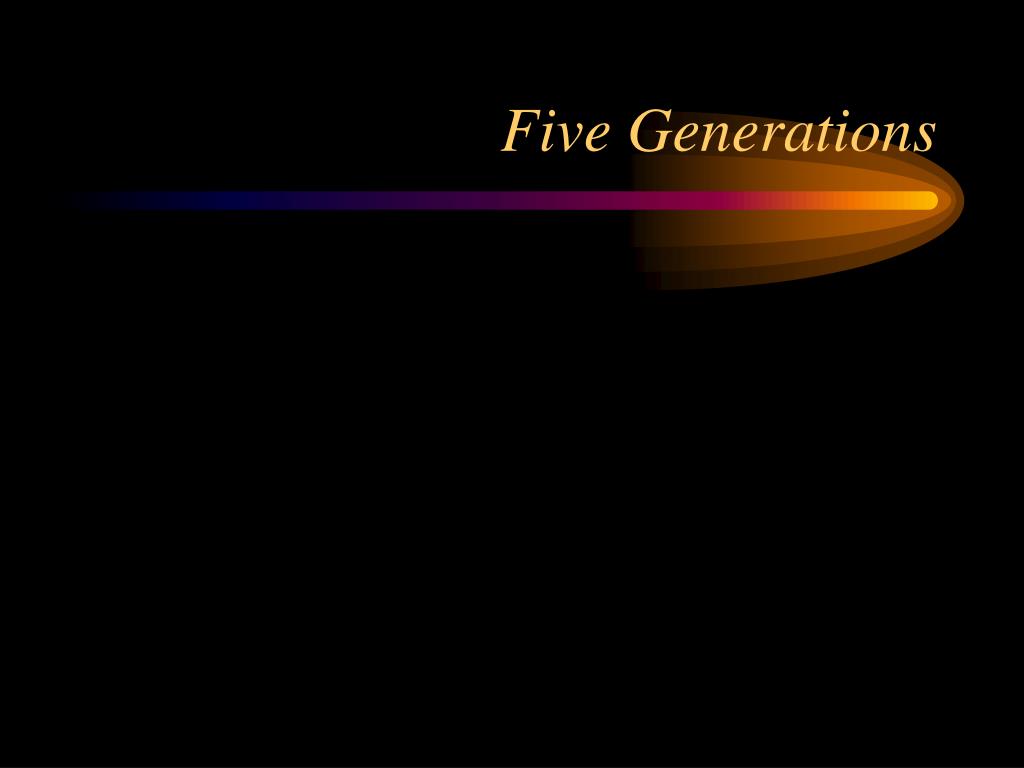

The five generations
  • We generally count five "generations" of programming languages
  • The generations aren't formally defined
  • Each generation represents technological advances
  • "Advances" may just reflect changing preferences
  • Don't take the distinctions too seriously
    • but they do provide a good framework for discussion
first generation
First generation
  • Key concept: Language designs were based directly on available hardware
  • Efficiency was everything
  • Language names are acronyms and are typically spelled with all capital letters
1g primitive data types

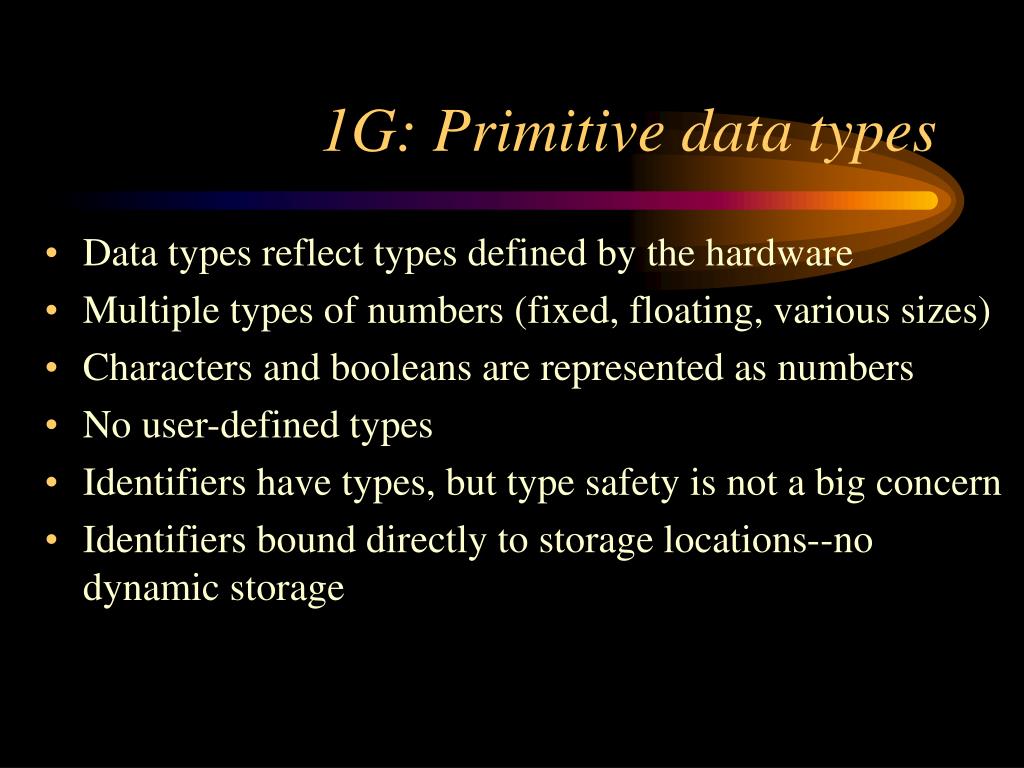

1G: Primitive data types
  • Data types reflect types defined by the hardware
  • Multiple types of numbers (fixed, floating, various sizes)
  • Characters and booleans are represented as numbers
  • No user-defined types
  • Identifiers have types, but type safety is not a big concern
  • Identifiers bound directly to storage locations--no dynamic storage
1g data structures

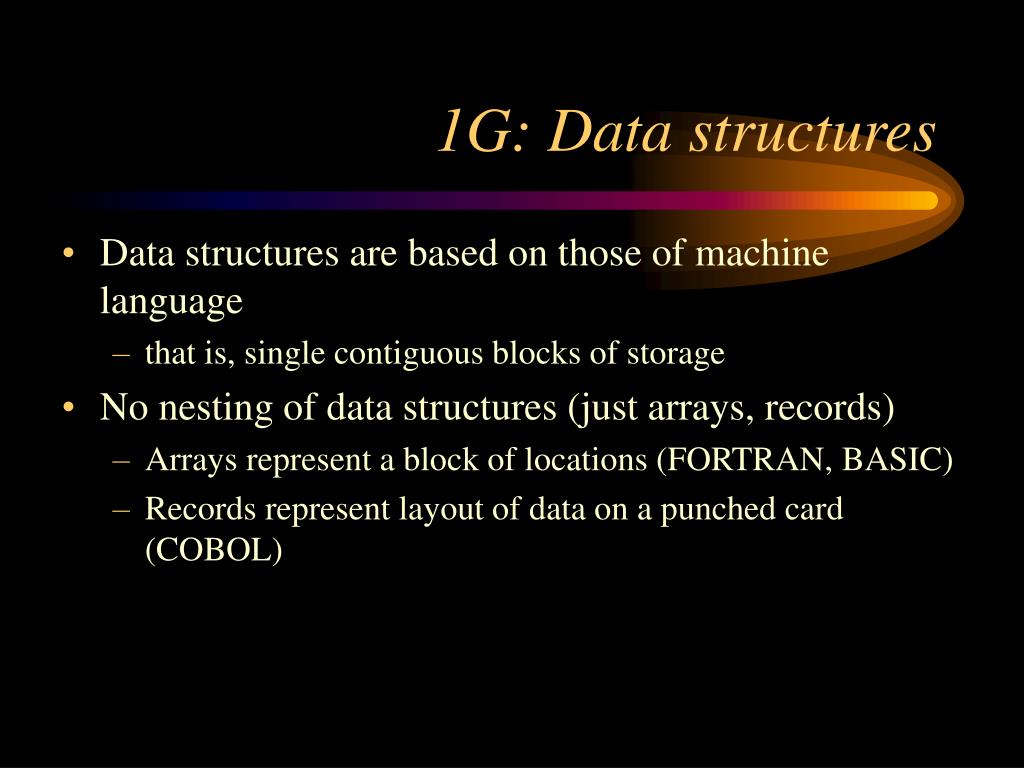

1G: Data structures
  • Data structures are based on those of machine language
    • that is, single contiguous blocks of storage
  • No nesting of data structures (just arrays, records)
    • Arrays represent a block of locations (FORTRAN, BASIC)
    • Records represent layout of data on a punched card (COBOL)
1g control structures
1G: Control structures
  • Control structures are based on those of machine language
    • Multiple kinds of GOTOs
    • Little nesting of control structures (exception: DO loops in FORTRAN)
    • No recursion (exception: BASIC)
    • A single way to pass parameters (usually by reference)
1g syntax
1G: Syntax
  • One statement per line (line = punched card), fixed columns
  • Hardware doesn't yet support lowercase characters
  • Pre-BNF, so syntax is irregular and inconsistent
  • Keywords not reserved, but context-dependent
  • Scopes are disjoint (because the is only enough memory to compile one subprogram at a time)
second generation

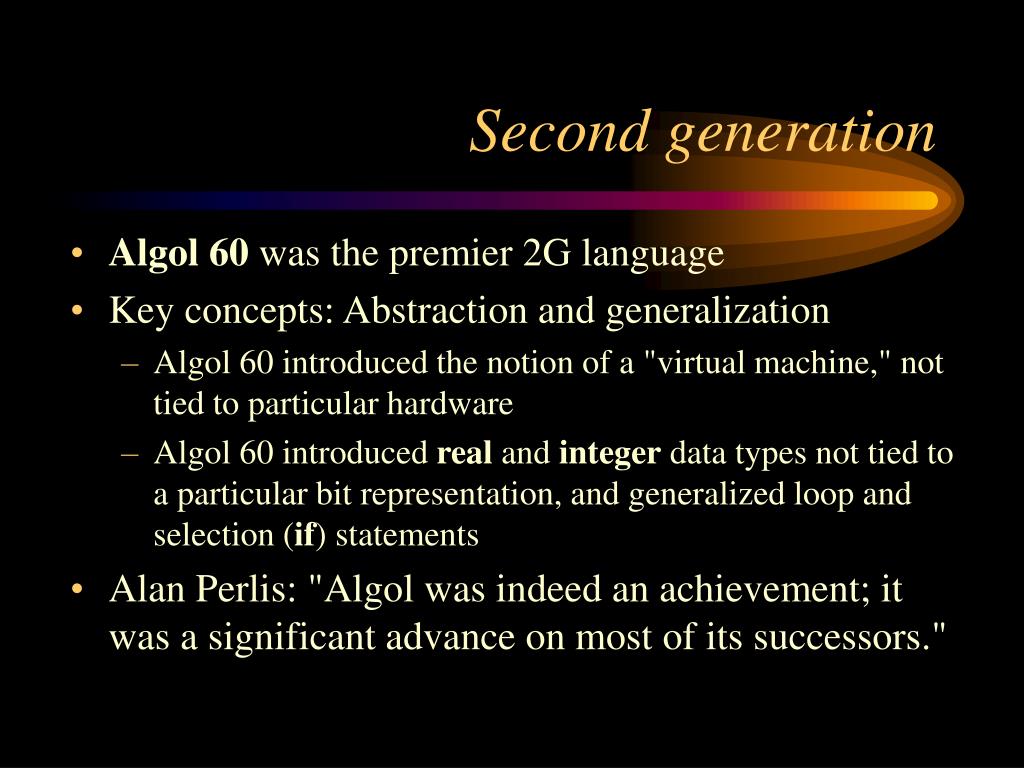

Second generation
  • Algol 60 was the premier 2G language
  • Key concepts: Abstraction and generalization
    • Algol 60 introduced the notion of a "virtual machine," not tied to particular hardware
    • Algol 60 introduced real and integer data types not tied to a particular bit representation, and generalized loop and selection (if) statements
  • Alan Perlis: "Algol was indeed an achievement; it was a significant advance on most of its successors."
2g data structures
2G: Data structures
  • Machine independence seen as a valid concern
  • Simplification and abstraction of numeric types (real, integer)
  • Arrays with user-defined lower bounds (not just 1)
  • Dynamic (expandable) arrays
  • Booleans introduced, but still not characters
    • Strings could be used for output only
  • Strong typing
2g control structures
2G: Control structures
  • True hierarchical (nested) control structures
  • Generalized control structures
    • Often overly complex and baroque (e.g. for, switch)
  • "Blocks" provide fine control over nesting, scopes
  • Could pass parameters by value (good idea)
  • Could pass parameters by name (bad idea)
2g syntax
2G: Syntax
  • BNF used to simplify and regularize syntax
  • Free-format programs (not line-oriented)
  • Indentation used to show hierarchical structure of program
  • Typically used reserved keywords rather than keyword-in-context
  • Lowercase letters used (but not supported by hardware)
third generation
Third generation
  • Example: Pascal
  • Key concepts: Simplicity and generality
    • More but simpler control structures
    • Expanded and generalized data types
3g data structures
3G: Data Structures
  • Recognition that not everything is a number
  • Language support for strings (or at least characters)
  • New data types introduced:
    • sets
    • subranges
    • enumeration types
  • User-defined data types
  • Hierarchical nesting of data types
  • User-controllable memory allocation
3g control structures
3G: Control structures
  • More but simpler control structures
    • three kinds of loop replace Algol's single for loop
  • Case statements introduced
    • called "switch" in C, Java
  • Simpler control structures can be more efficient as well as easier to understand
  • "Call by name" parameter transmission was discarded
  • No significant improvements over Algol 60
first generation features of c
First generation features of C
  • Efficiency is primary concern
  • Based on PDP-7 hardware
  • "Flat" program space--no nested scopes or functions
    • This weakness leads to need for make
  • Some first generation syntax ("=" for assignment)
second generation features of c
Second generation features of C
  • Abstractions of numeric types, pointers
  • Pointer and array abstractions are lower-level than some machine hardware
    • Wrong abstraction level can hinder optimization
  • Seen on a button: "C combines the flexibility of assembly language with the power of assembly language"
third generation features of c
Third generation features of C
  • Hierarchical data structures (if not programs)
  • Support for strings (sort of), and enumeration types (almost)
  • User-controllable memory allocation
  • Bottom line: C mixes characteristics of three generations
fourth generation

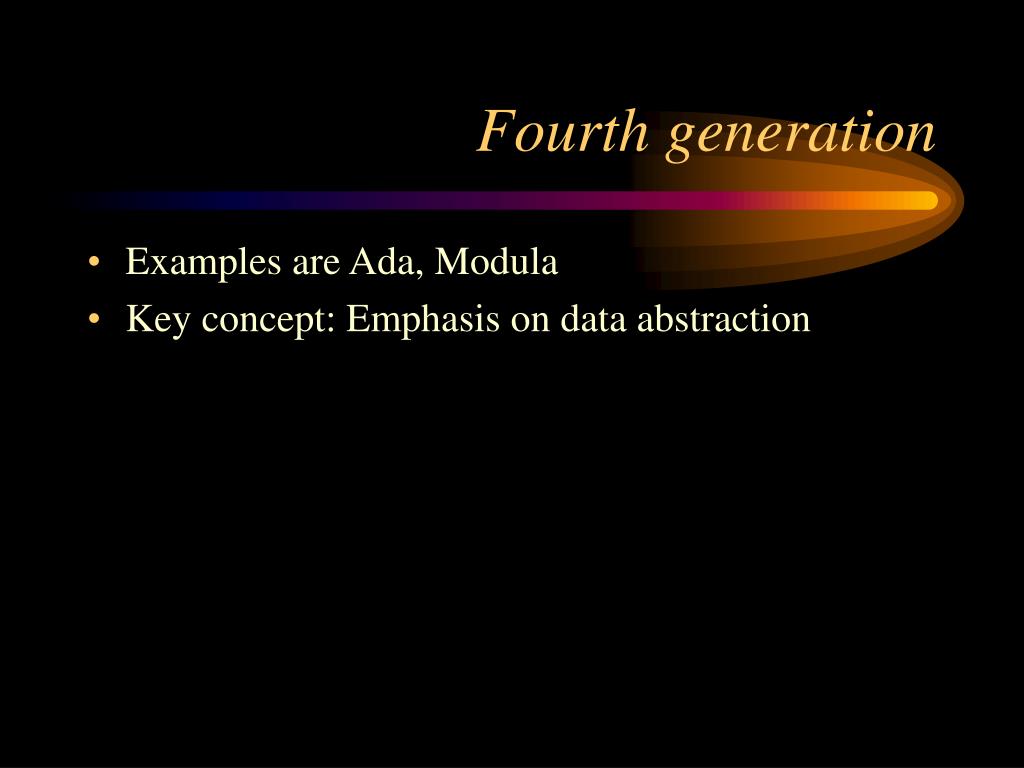

Fourth generation
  • Examples are Ada, Modula
  • Key concept: Emphasis on data abstraction
4g data structures
4G: Data structures
  • Separation of specification and definition
    • Other programmers and program parts can access the specification, not the code
    • This gives better support for information hiding
    • But this leads to duplication, which is error-prone
  • Name access by mutual consent
  • Generic or polymorphic subprograms
  • Exceptions (errors) attain the status of a data type
4g control structures
4G: Control structures
  • Concurrent programming, that is, multiple communicating processes
  • Protected or synchronized types
  • Functions can be overloaded (operators, too)
  • Exception handlers result in a new flow of control
4g syntax
4G: Syntax
  • Fully bracketed control structures replace begin...end or {...}
  • Examples:
    • if...end if;
    • loop...end loop;
    • function foo ( ) ... end foo;
fifth generation i
Fifth generation, I
  • Key concept: No general agreement on what 5G is
  • Prolog was the basis of the Japanese "Fifth-Generation Project"
    • The Fifth-Generation Project was not a success
  • O-O languages are now the dominant paradigm
    • They are the de facto fifth generation
  • But logic programming has a prior claim to the name
  • Functional programming is also a contender for 5G
fifth generation ii
Fifth generation, II
  • O-O languages are Simula 67, Smalltalk, Java
  • Yes, the first O-O language appeared in 1967!
  • Almost all surviving languages now have O-O extensions
    • C has Objective C, C++
    • Pascal has Object Pascal
    • Ada has Ada 95
    • There are O-O versions of FORTRAN, BASIC, Prolog, etc.
fifth generation iii
Fifth generation, III
  • Fifth generation (Smalltalk, Java)
  • Key concept: Object orientation
  • Three essential features:
    • Abstract data types (grouping of data and methods)
    • Inheritance (of types and methods, with overriding)
    • Messages (dynamic binding to methods)
5g data structures
5G: Data structures
  • Everything (or almost everything) is an object
  • All behaviors (methods) are encapsulated within objects
  • Objects are arranged in a hierarchy
  • But object space is still "flat," with little or no nesting
    • Java's inner classes are too little, too late
  • Data and methods are inherited
  • Data and methods can be overridden
5g control structures

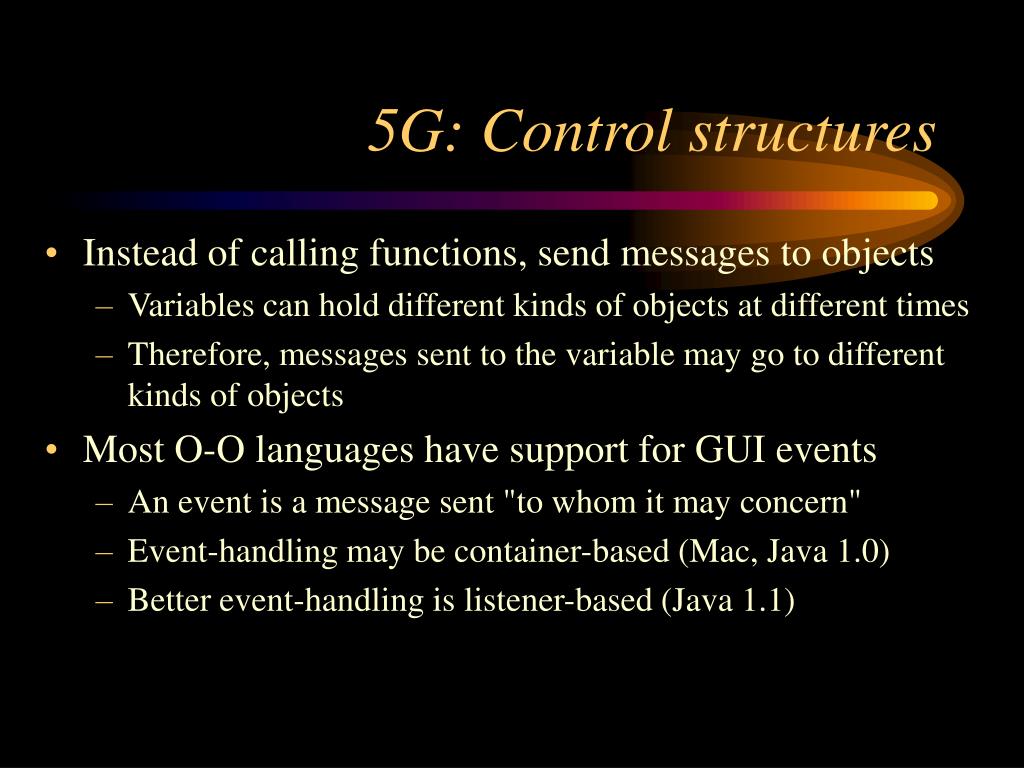

5G: Control structures
  • Instead of calling functions, send messages to objects
    • Variables can hold different kinds of objects at different times
    • Therefore, messages sent to the variable may go to different kinds of objects
  • Most O-O languages have support for GUI events
    • An event is a message sent "to whom it may concern"
    • Event-handling may be container-based (Mac, Java 1.0)
    • Better event-handling is listener-based (Java 1.1)
5g syntax
5G: Syntax
  • First support for international alphabets
  • No other improvements in syntax
  • In fact, Java syntax is a throwback to the C era
advantages of o o languages

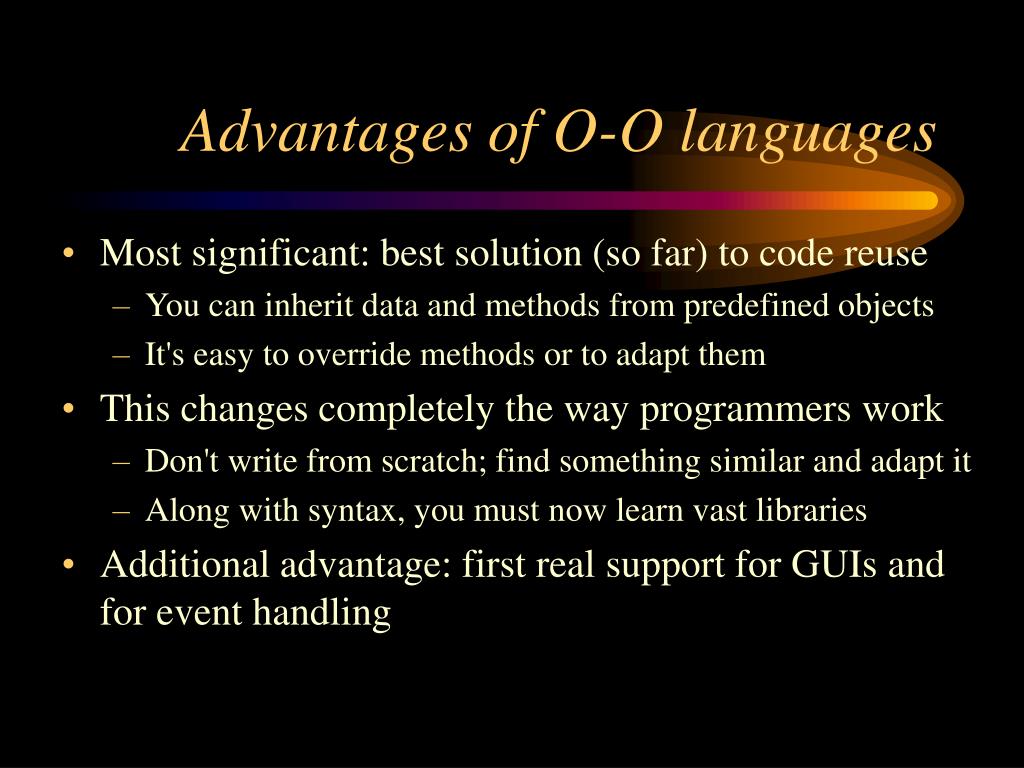

Advantages of O-O languages
  • Most significant: best solution (so far) to code reuse
    • You can inherit data and methods from predefined objects
    • It's easy to override methods or to adapt them
  • This changes completely the way programmers work
    • Don't write from scratch; find something similar and adapt it
    • Along with syntax, you must now learn vast libraries
  • Additional advantage: first real support for GUIs and for event handling
summary data structures
Summary: Data structures
  • First generation: Flat (non-nested) blocks of storage
  • Second generation: Generalized numbers, strong typing
  • Third generation: New data types, user-defined data structures, dynamic memory allocation
  • Fourth generation: Non-lexical control of data access
  • Fifth generation: Objects encapsulate their methods
summary control structures
Summary: Control structures
  • First generation: Based on machine instructions, with heavy use of GOTOs
  • Second generation: Machine independent, nested, but jack-of-all-trades
  • Third generation: More but simpler control structures
  • Fourth generation: Concurrent programming, exception handling
  • Fifth generation: Messages to objects, event handling
summary syntax
Summary: Syntax
  • First generation: Line-oriented, inconsistent syntax, disjoint scopes
  • Second generation: Free form, uniform syntax, nested scopes
  • Third generation: No advances
  • Fourth generation: Fully bracketed control structures
  • Fifth generation: No advances, some losses
but wait there s more
But wait...there's more!
  • Simula 67 was the first true O-O language
    • This shows that it takes time to get good ideas into mainstream languages
  • Logic languages (Prolog) and purely functional languages (ML) still have some very good ideas
  • Giant, all-inclusive languages (PL/I, Algol 68) are not the answer
  • Finally, don't take this classification scheme too seriously!
