earthquake swarms

Earthquake swarms

Ge 277, 2012

Thomas Ader

outline
Outline
  • Presentation of swarms
  • Analysis of the 2000 swarm in Vogtland/NW Bohemia:

Indications for a successively triggered rupture growth underlying the 2000 earthquake swarm in Vogtland/NW Bohemia, S. Hainzl & T. Fischer, JGR 2002

definition of swarms
Definition of swarms ?
  • Large number of earthquakes clustered strongly in space and time
  • Not characterized by a dominant earthquake
  • No law comparable to the Omori law: no exact definition of swarms can be formulated
examples

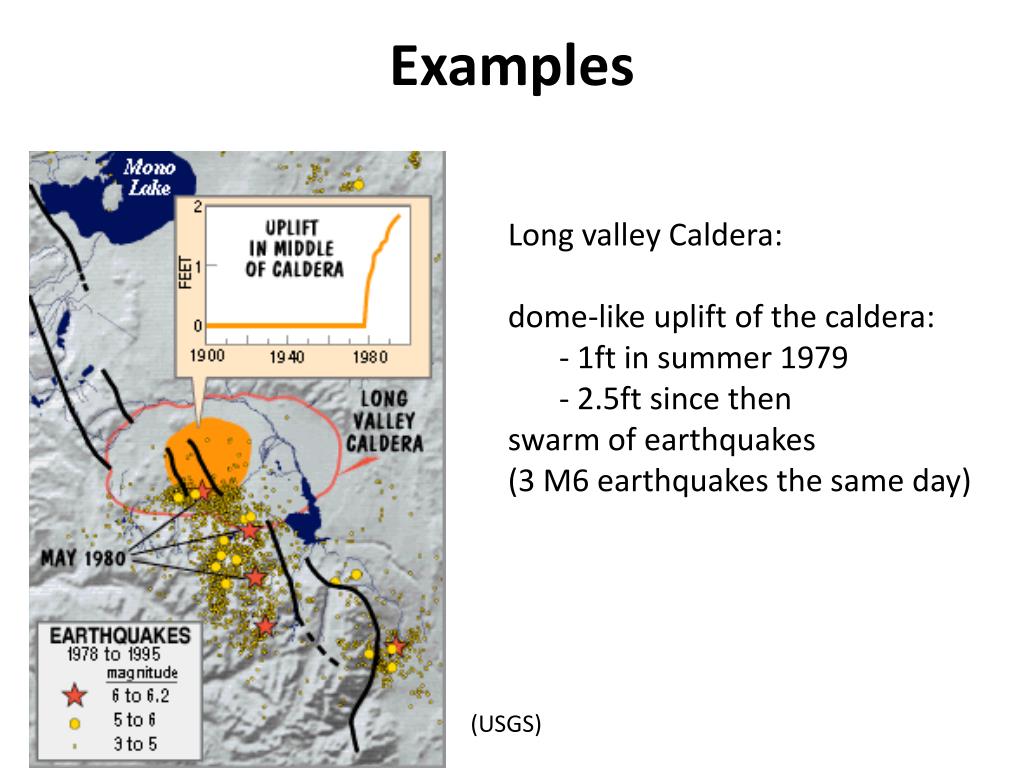

Examples

Long valley Caldera:

dome-like uplift of the caldera:

- 1ft in summer 1979

- 2.5ft since then

swarm of earthquakes

(3 M6 earthquakes the same day)

(USGS)

examples1

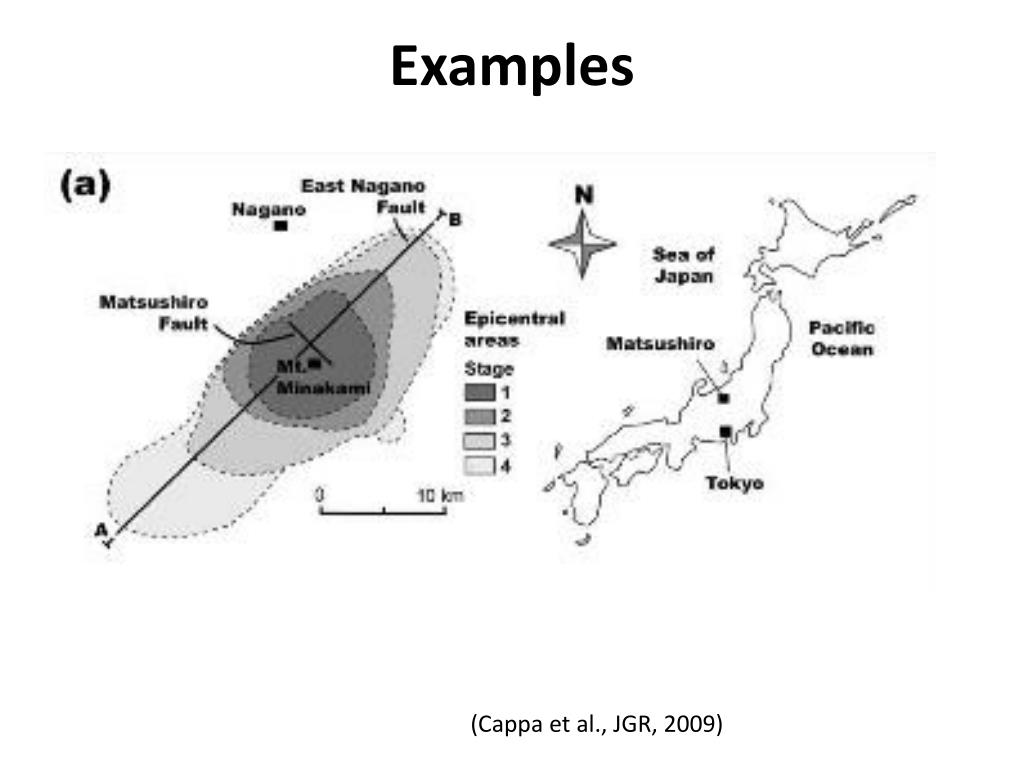

Examples

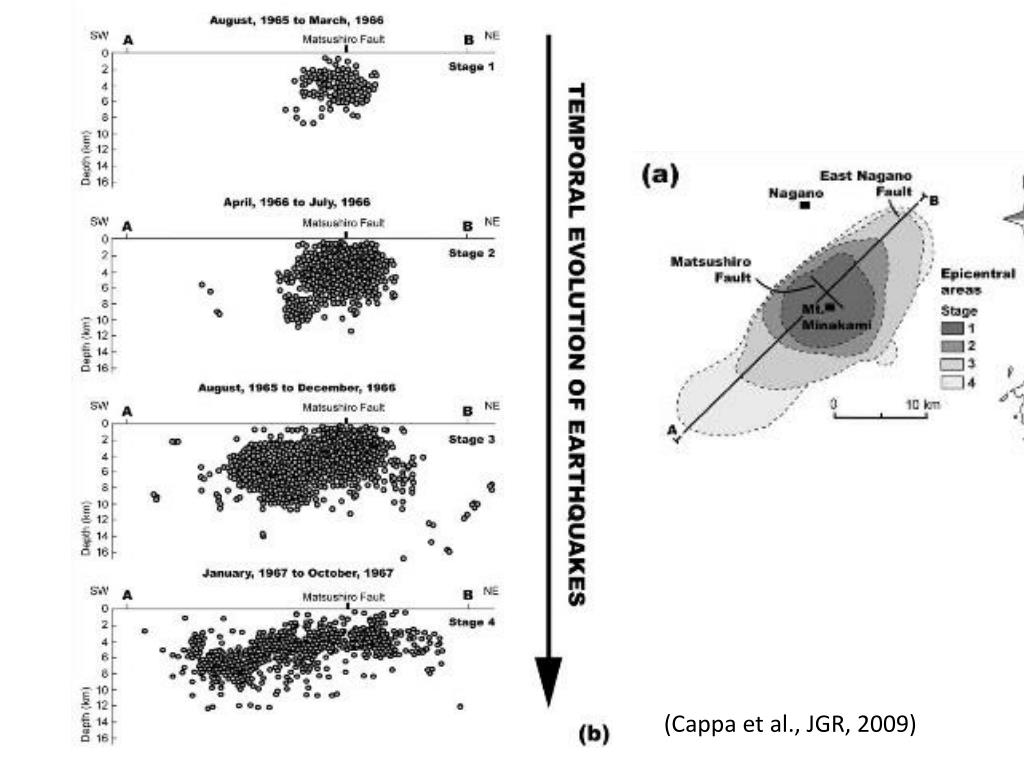

(Cappa et al., JGR, 2009)

slide7

- surface rupture

- local uplift of about 75cm

- outflows of deep origin brine water (i.e., NaCl) saturated with CO2

swarms

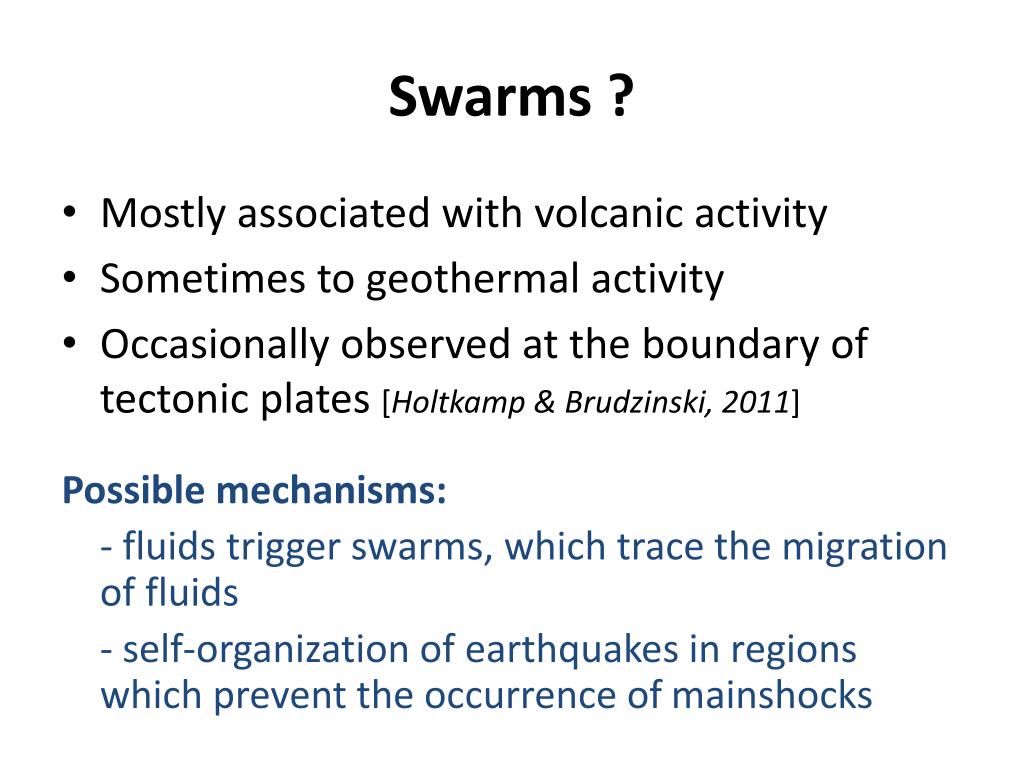

Swarms ?
  • Mostly associated with volcanic activity
  • Sometimes to geothermal activity
  • Occasionally observed at the boundary of tectonic plates [Holtkamp & Brudzinski, 2011]
  • Possible mechanisms:
  • - fluids trigger swarms, which trace the migration of fluids
  • - self-organization of earthquakes in regions which prevent the occurrence of mainshocks
2000 earthquake swarm in bohemia

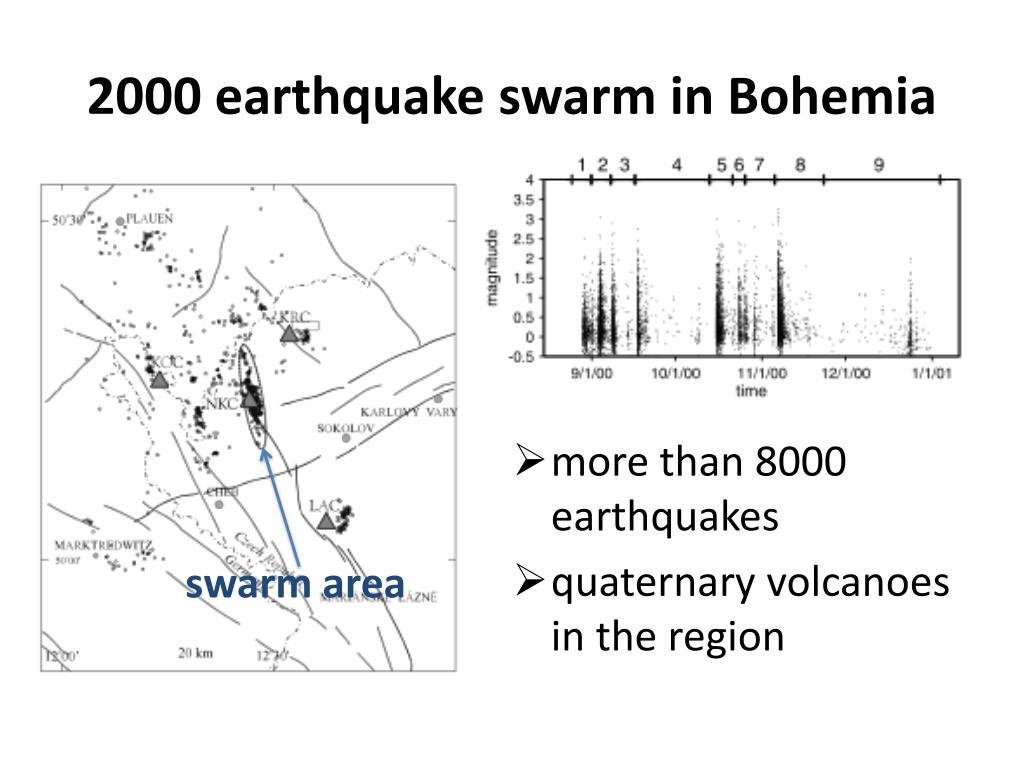

2000 earthquake swarm in Bohemia
  • more than 8000 earthquakes
  • quaternary volcanoes in the region
  • swarm area
b value
b-value
  • Usually:
  • - for swarms 1<b<1.5
  • - for tectonic plate boudaries0.7<b<1.1
  • Decrease of b-value: earthquakes tend to become larger
b value1

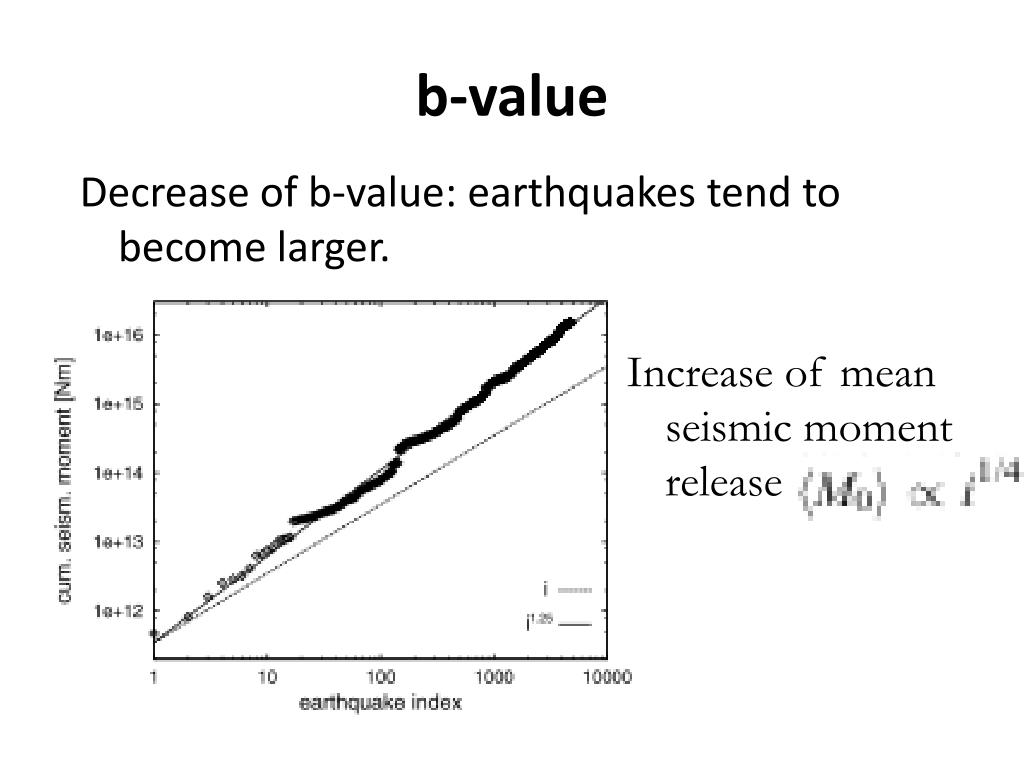

b-value
  • Decrease of b-value: earthquakes tend to become larger.
  • Increase of mean seismic moment release
why do the b value increase
Why do the b-value increase ?

Increase of the Coulomb failure stress:

- shear stress increase

- pore pressure rise

  • 2 possible scenarios:

- successive stress accumulation due to propagating rupture front

- gradual inflow of fluids in the seismogenic zone.

interevent time distribution

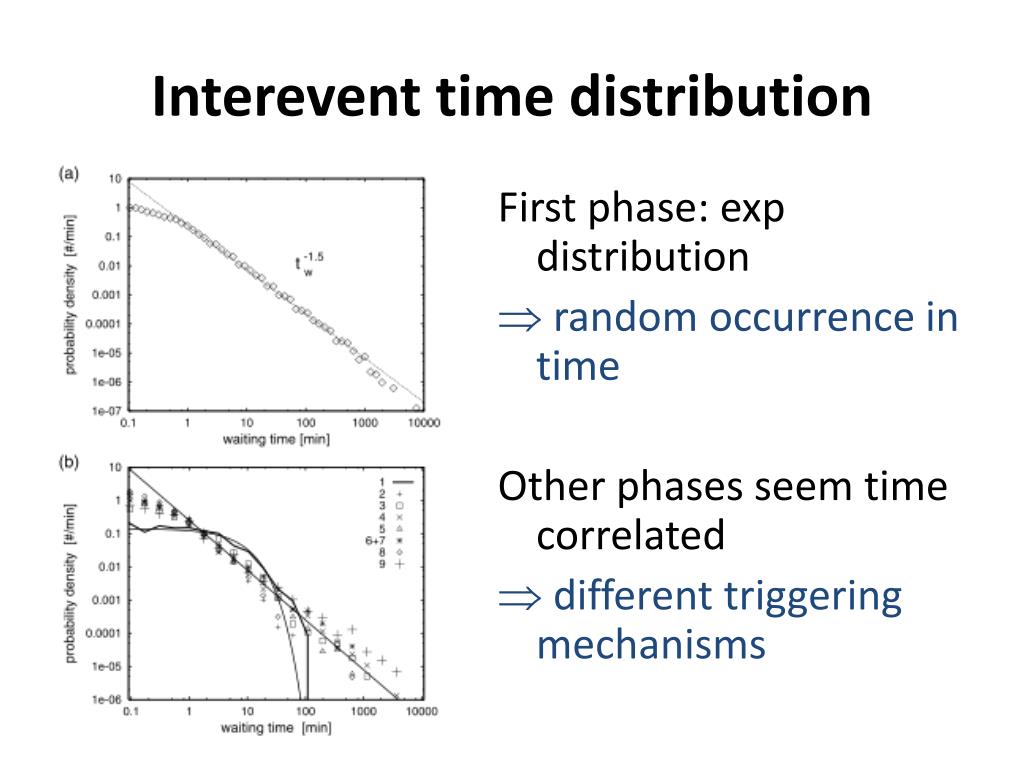

Interevent time distribution

First phase: exp distribution

  • random occurrence in time

Other phases seem time correlated

  • different triggering mechanisms
spatial migration in fault plane
Spatial migration in fault plane

No specific organization of the migration

spatiotemporal analysis

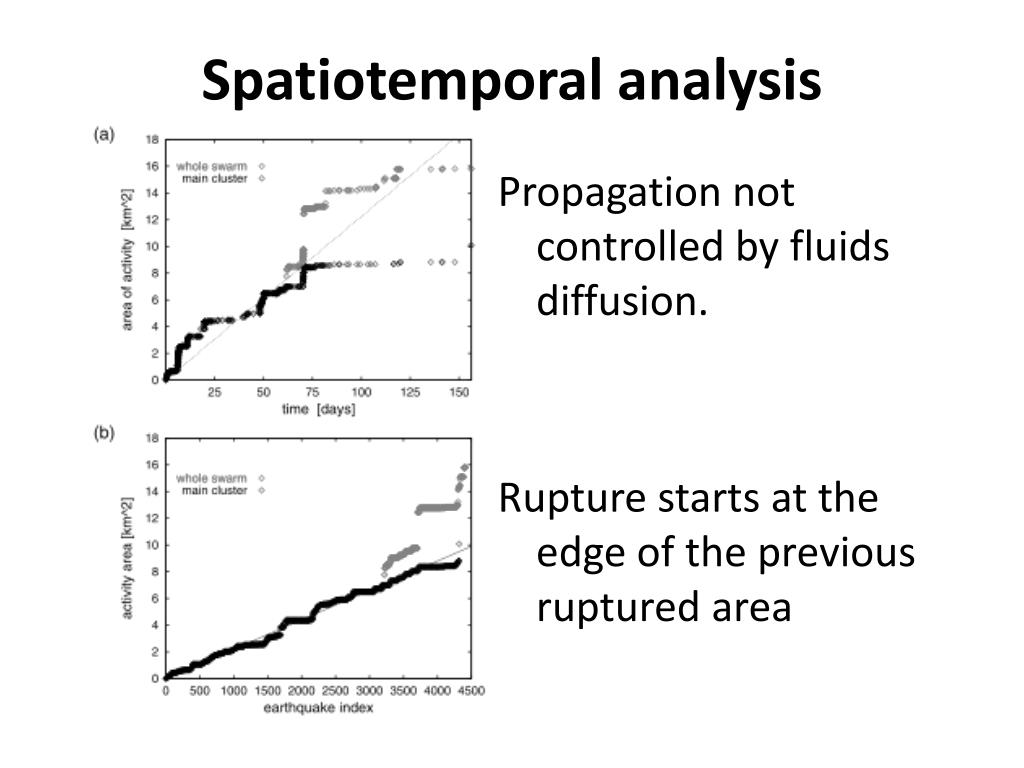

Spatiotemporal analysis

Propagation not controlled by fluids diffusion.

Rupture starts at the edge of the previous ruptured area

spatiotemporal analysis1
Spatiotemporal analysis

Moment-radius relationship:

Rupture starts at the edge of the previous ruptured area

comparison with tectonic earthquakes
Comparison with tectonic earthquakes

The swarms appears to behave like a single large earthquake that would develop slowly.

slowly developing rupture
Slowly developing rupture

new earthquake triggering

cumulated slip

fault length

conclusions of the study
Conclusions of the study
  • Intrusion of fluids probably initiated the swarm seismicity
  • Swarm evolution then influenced by earthquakes and stress transfer (locally induced fluid flows ?).
  • Cumulative behavior of the swarm activity  single large earthquake that ruptures the fault segment at once.
discussion which mechanism s

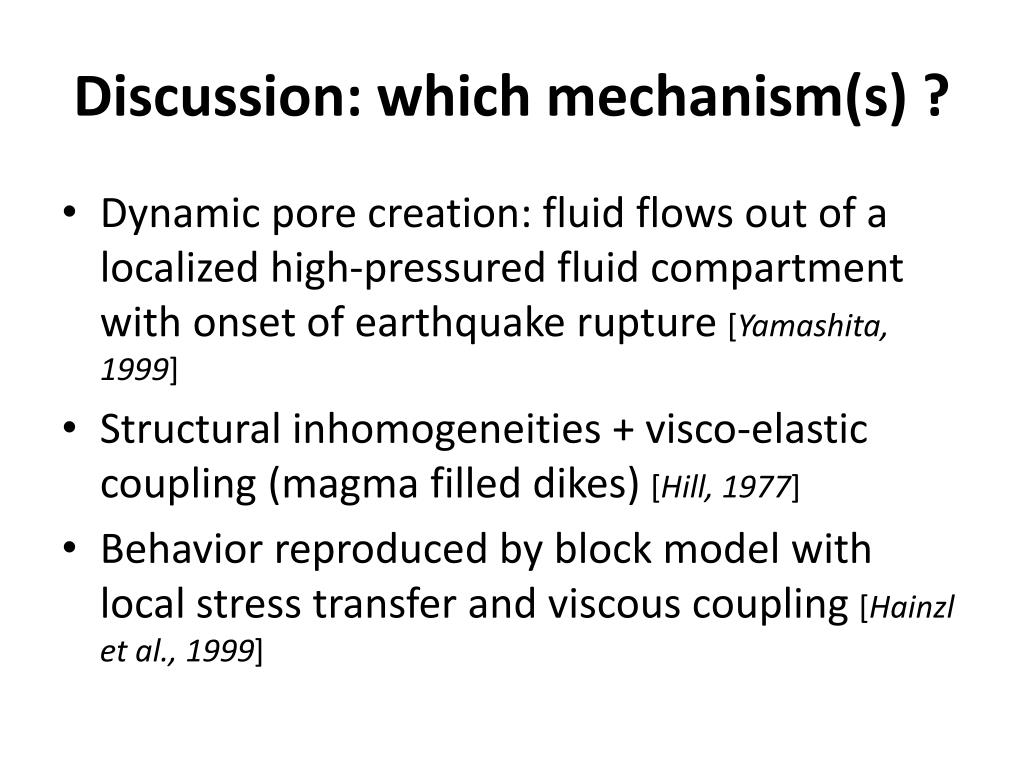

Discussion: which mechanism(s) ?
  • Dynamic pore creation: fluid flows out of a localized high-pressured fluid compartment with onset of earthquake rupture [Yamashita, 1999]
  • Structural inhomogeneities + visco-elastic coupling (magma filled dikes) [Hill, 1977]
  • Behavior reproduced by block model with local stress transfer and viscous coupling [Hainzl et al., 1999]
references
References
  • USGS website (Long Valley Caldera): http://pubs.usgs.gov/fs/fs108-96/
  • Modeling crustal deformation and rupture processes related to upwelling of deep CO2-rich fluids during the 1965 – 1967 Matsushiro earthquake swarm in Japan, F. Cappa,J. Rutqvist, and K. Yamamoto, JGR, 114, 2009
  • Indications for a successively triggered rupture growth underlying the 2000 earthquake swarm in Vogtland/NW Bohemia, S. Hainzl & T. Fischer, JGR, 107, 2002
  • Pore creation due to fault slip in a fluid-permeated fault zone and its effect on seismicity: Generation mechanism of earthquake swarm, T.Yamashita, Pure Appl. Geophys., 155, 625 – 647, 1999.
  • Similar power laws for foreshock and aftershock sequences in a spring-block model for earthquakes, S.Hainzl, G. Zoller, and J. Kurths, JGR, 104, 7243 – 7254, 1999.
  • Earthquake swarms in circum-Pacific subduction zones, S.G. Holtkamp, M.R. Brudzinski, Earth and Planetary Science Letters, 305, 215-225, 2011
