1 / 31

Administração e Optimização de Bases de Dados

Administração e Optimização de Bases de Dados. Enquadramento Programa Bibliografia Planeamento teóricas e laboratórios Avaliação Corpo docente. Enquadramento. Cadeiras de gestão de dados e tratamento de informação DEI 2007/08 : BD (3º ano LEIC e LERCI) GTI (1º ano MEIC/SIE)

brit
Download Presentation

Administração e Optimização de Bases de Dados

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

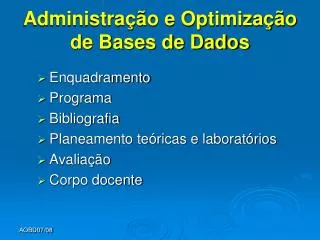

  1. Administração e Optimização de Bases de Dados • Enquadramento • Programa • Bibliografia • Planeamento teóricas e laboratórios • Avaliação • Corpo docente

  2. Enquadramento Cadeiras de gestão de dados e tratamento de informação DEI 2007/08 : • BD (3º ano LEIC e LERCI) • GTI (1º ano MEIC/SIE) • SAD (1º ano MEIC e MERC) • AOBD (1º ano MEIC/TSI e MERC)

  3. Bibliografia • Database System Concepts, Silberchatz, Korth, Sudarshan 5ª edição, McGraw Hill, 2005 • Database Management Systems, Raghu Ramakrishnan, Johannes Gehrke 3ª edição, Mc Graw Hill, 2002 • Database Tuning: Principles, Experiments, and Troubleshooting Techniques, Dennis Shasha & Philippe Bonnet, Morgan Kaufmann, 2003.

  4. Programa (1) • Armazenamento e Sistema de Ficheiros: cap 11 (Silb), 9 (Raghu) • Técnicas de indexação (B+tree e hash-based) – cap 12 (Silb), 10 e 11 (Raghu) • Processamento de interrogações – cap 13(Silb), 12 e 13 (Raghu), • Optimização de interrogações – cap 14 (Silb), 15 (Raghu) • Gestão de Transações – cap 15 (Silb), 16 (Raghu) • Controlo de Concorrência – cap 16(Silb), 17 (Raghu) • Gestão de Recuperação – cap 17(Silb), 18 (Raghu)

  5. Programa (2) • Principios de tuning • Lock tuning • Log tuning • Storage tuning • OS tuning • Index tuning • Query processing tuning • API tuning (Shasha & Bonnet e alguns capítulos do Raghu e/ou Silberchatz)

  6. Planeamento • Aulas teóricas: 1H30 • Matéria (slides baseados no livro e artigos) • Aulas laboratóro: 1H30 • SQLServer 2005 • Material de apoio adicional: livros on-line e guias de laboratório

  7. Avaliação • Exame (52%): • Nota mínima: 9,5v • Mini-projectos (48%): • Grupos de 3 pessoas • Exercícios “de papel e lápis” e/ou com SQLServer 2005. • Nota mínima: 9,5v

  8. Corpo docente • Helena Galhardas (responsável) • Pável Calado • Bruno Martins (laboratórios)

  9. Chapter 1: Introduction • Purpose of database systems • Data abstraction levels • Data models • SQL :Data Definition Language and Data Manipulation Language • Transaction management • Database users • DBMS structure • Typical database architectures

  10. Database management systems (DBMS) • Collection of interrelated data and a set of programs to access the data • DBMS contains relevant information about a particular enterprise • DBMS provides an environment that is both convenient and efficient to use. • Database applications: • Banking: all transactions • Airlines: reservations, schedules • Universities: registration, grades • Sales: customers, products, purchases • Manufacturing: production, inventory, orders, supply chain • Human resources: employee records, salaries, tax deductions

  11. DBMS vs File Systems (1) • In the early days, database applications were built on top of file systems • Drawbacks of using file systems to store data: • Data redundancy and inconsistency: Multiple file formats, duplication of information in different files • Difficulty in accessing data: Need to write a new program to carry out each new task • Data isolation: Multiple files and formats • Integrity problems: Integrity constraints (e.g. account balance > 0) become part of program code; Hard to add new constraints or change existing ones

  12. DBMS vs File Systems (2) • Drawbacks of using file systems (cont.) • Atomicity of updates • Failures may leave database in an inconsistent state with partial updates carried out • E.g. transfer of funds from one account to another should either complete or not happen at all • Concurrent access by multiple users • Concurrent access needed for performance • Uncontrolled concurrent accesses can lead to inconsistencies • E.g. two people reading a balance and updating it at the same time • Security problems …. DBMS offer solutions to all the above problems!

  13. Why use a DBMS? • Data independence and efficient access • Reduced application development time. • Data integrity and security. • Uniform data administration. • Concurrent access, recovery from crashes.

  14. Levels of data abstraction (1) Physical level: describes how data are stored. Logical level: describes data stored in the database, and the relationships among the data. View level: application programs hide details of data types. Views can also hide information (e.g., salary) for security purposes.

  15. Levels of data abstraction (2)

  16. Data Models • A collection of conceptual tools for describing: • data • data relationships • data semantics • data constraints Ex: • Entity-Relationship model, UML class diagram • Relational model • Other models: • semi-structured data models (XML used to represent sstr. data) • older models: network model and hierarchical model

  17. Entity-Relationship Model Example of schema in the entity-relationship model

  18. A Sample Relational Database

  19. Data Independence • Applications insulated from how data is structured and stored. Logical data independence:Protection from changes in the logicalstructure of data. CustomerPublic(customer-id, customer-name) CustomerPrivate(customer-id, salary) Physical data independence:Protection from changes in the physical structure of data. • One of the most important benefits of using a DBMS!

  20. Instances and Schemas Schema: the logical structure of the database, a description of a particular collection of data, using a given data model • Analogous to type information of a variable in a program • Physical schema: database design at the physical level • Logical schema: database design at the logical level Instance: the actual content of the database at a particular point in time • Analogous to the value of a variable

  21. Example External schema (View): CustomerPublic (customer-id, customer-name) Logical schema: Customer(customer-id, customer-name, customer-street, customer-age) Account(account-number, balance) Depositor(account-number, customer-id) Physical schema: • Relations stored as unordered files. • Index on first column of Customer.

  22. SQL: Structured Query Language • A DBMS provides: • a Data Definition Language (DDL) • a Data Manipulation Language (DML) as part of a single DB language: SQL • Most widely used declarative query language • Procedural – user specifies what data is required and how to get those data • Declarative – user specifies what data is required without specifying how to get those data

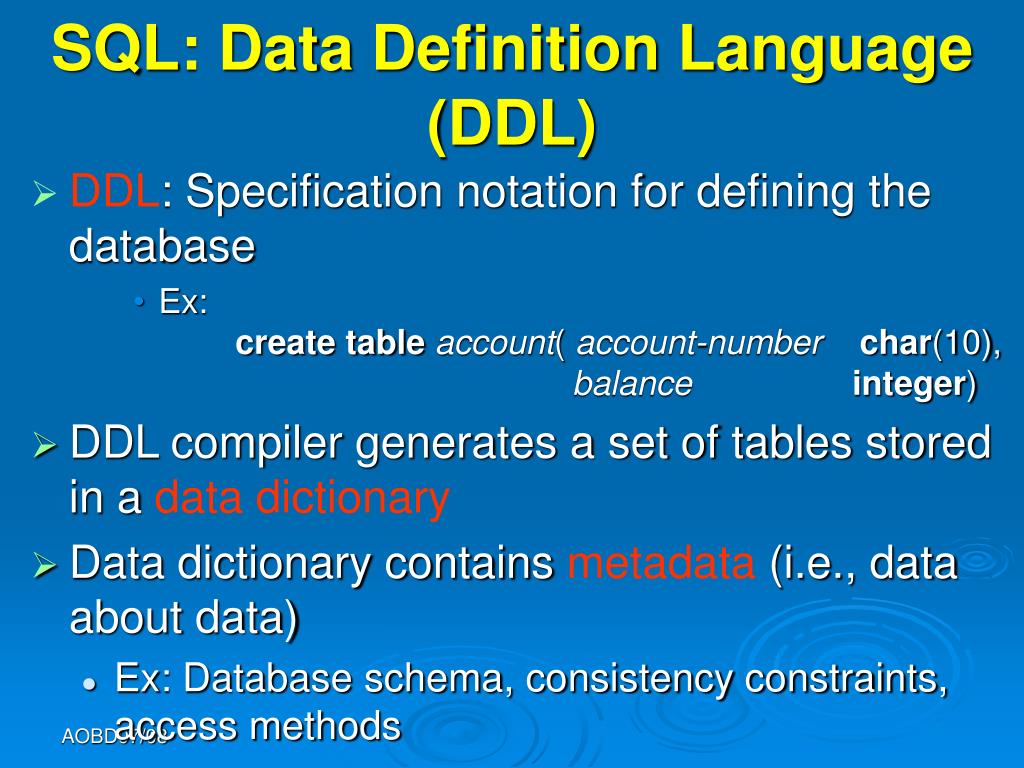

  23. SQL: Data Definition Language (DDL) • DDL: Specification notation for defining the database • Ex: create tableaccount( account-numberchar(10), balanceinteger) • DDL compiler generates a set of tables stored in a data dictionary • Data dictionary contains metadata (i.e., data about data) • Ex: Database schema, consistency constraints, access methods

  24. SQL: Data Manipulation Language (DML) • Language for accessing and manipulating data • Ex: find the name of the customer with customer-id 192-83-7465selectcustomer.customer-namefromcustomerwherecustomer.customer-id = ‘192-83-7465’

  25. Transaction Management • A transaction is a collection of operations that performs a single logical function in a database application • Ex: funds transfer includes withdraw from account A and deposit into account B • Transaction management component ensures that the database remains in a consistent (correct) state despite system failures (e.g., power failures and operating system crashes) and transaction failures. • Transactions must be atomic, consistent, isolated and durable/persistent

  26. Database Users (1) • Users are differentiated by the way they expect to interact with the system Application programmers: interact with system through DML calls Sophisticated users: form requests in a database query language Naïve/End users: invoke one of the permanent application programs that have been written previously • E.g. people accessing database over the web, bank tellers, clerical staff

  27. Database Users (2) • Database administrators Coordinates all the activities of the database system; has a good understanding of the enterprise’s information resources and needs. Duties include: • Schema definition • Storage structure and access method definition • Schema and physical organization modification • Granting user authority to access the database • Specifying integrity constraints • Acting as liaison with users • Monitoring performance, tuning the system and responding to changes in requirements

  28. Overall DBMS Structure

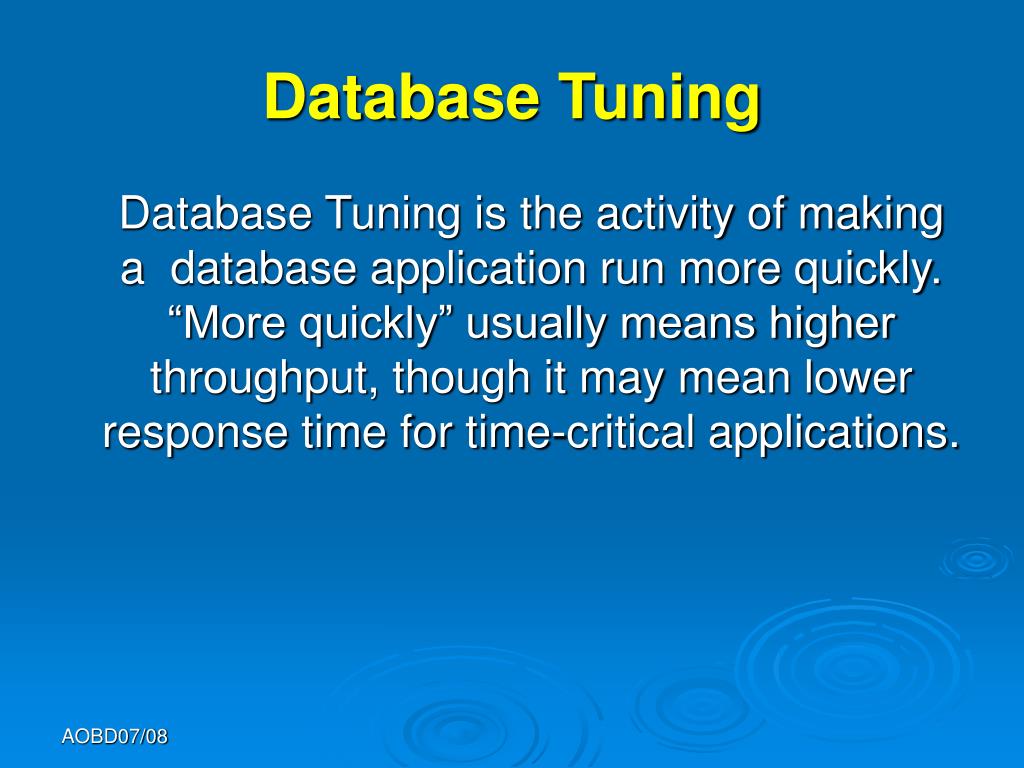

  29. Database Tuning Database Tuning is the activity of making a database application run more quickly. “More quickly” usually means higher throughput, though it may mean lower response time for time-critical applications.

  30. ApplicationProgrammer(e.g., business analyst, Data architect) Application SophisticatedApplicationProgrammer(e.g., SAP admin) QueryProcessor Indexes Storage Subsystem Concurrency Control Recovery DBA,Tuner Operating System Hardware[Processor(s), Disk(s), Memory]

  31. Next lecture • Ch 11: Storage and File Structure
