  1. ECEN5553 Telecom SystemsDr. George Scheets Week #5Read[7c] "How can the Internet have too many routes and not enough addresses?"[8a] "The Cognitive Net is Coming"[8b] "The Internet of Things"[9a] "Browse at your Own Risk"[9b] "The Data Brokers: Selling Your Personal Information"[10a] "Internet QoS: Pieces of the Puzzle"[10b] "Innovation on the Web Lives and Dies with Net Neutrality"Exam #1 Lecture 16, 24 September (Live) No later than 1 October (Remote DL)Outline 8 October 2014, Lecture 22 (Live) No later than 15 October (Remote DL)

  2. OutlinesReceiveddue 8 October (local)15 October (remote) 22 %

  3. Exam #1 (90 points) • Friday, 24 September (Local)Remote Distant Learners, no later than 1 October • Work 3 of 4 pages • Closed Book & Notes • Calculators & phones are NOT allowed...Set up numerical problem for full credit • Most equations are provided (on 5th page) • Approximately 40% of upcoming exam will be lifted from the Fall 2013 Exam #1 • Anything in the notes, on Power Point, or in reading assignments is fair game

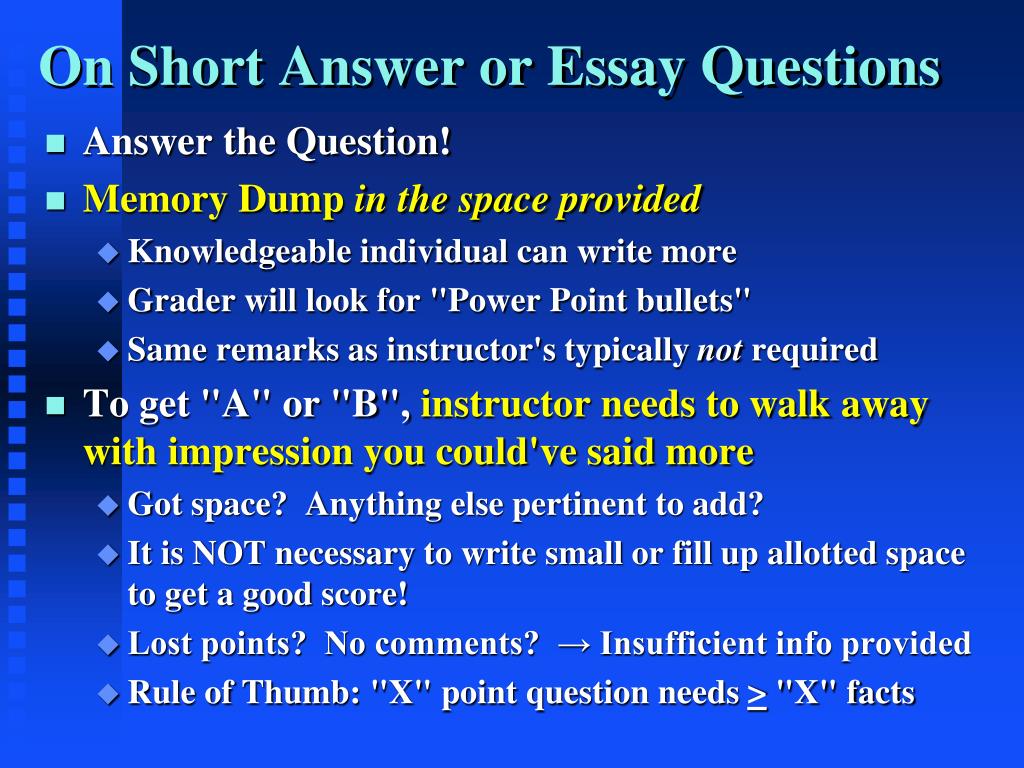

  4. On Short Answer or Essay Questions • Answer the Question! • Memory Dump in the space provided • Knowledgeable individual can write more • Grader will look for "Power Point bullets" • Same remarks as instructor's typically not required • To get "A" or "B", instructor needs to walk away with impression you could've said more • Got space? Anything else pertinent to add? • It is NOT necessary to write small or fill up allotted space to get a good score! • Lost points? No comments? → Insufficient info provided • Rule of Thumb: "X" point question needs > "X" facts

  5. The Internet • VAST collection of interconnected networks • Key Building Block:Routers running IP (Layer 3) • Router link speeds range up to 100 Gbps • Hierarchical Alpha-Numeric Namesusername@machine.institution.domain

  6. AT&T 1997 Internet Backbone

  7. UUNET 1998 Internet Backbone

  8. Washington D.C. Area - 2000

  9. OSU 2009 Internet Connectivity

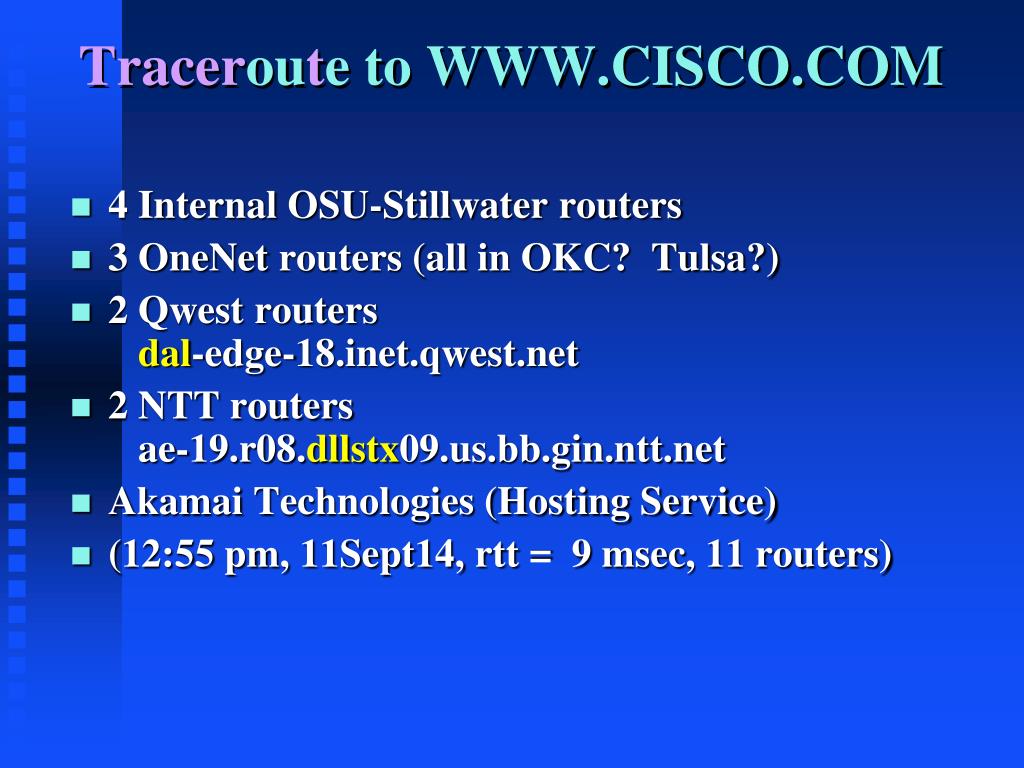

  10. Traceroute to WWW.CISCO.COM • 4 Internal OSU-Stillwater routers • 3OneNet routers (all in OKC? Tulsa?) • 2 Qwest routersdal-edge-18.inet.qwest.net • 2 NTT routersae-19.r08.dllstx09.us.bb.gin.ntt.net • Akamai Technologies (Hosting Service) • (12:55 pm, 11Sept14, rtt = 9 msec, 11 routers)

  11. Traceroute to WWW.TULSA.COM • 4 Internal OSU-Stillwater routers • 3OneNet routers (Tulsa?) • 5 Cogent Communications routers • te4-4.1052.ccr01.tul01.atlas.cogentco.com • be2128.ccr21.den01.atlas.cogentco.com • be2126.ccr21.slc01.atlas.cogentco.com • 2 Ace Data Center routers (Hosting Service) • ve15.ar05.prov.acedc.net • End server (198.57.177.235) probably in Provo, Utah area • (1:20 pm, 11Sept14, rtt = 60 msec, 14 routers)

  12. ISP Routes Sometimes Roundabout Launched 13 September 2014, 2 miles from OSU campus • 1 Scheets' home router • 4 AT&T routers • adsl-70-233-159-254.dsl.okcyok.sbcglobal.net • ggr3.dlstx.ip.att.net • 4 Cogent Communications routers • Be2032.ccr22.dfw01.atlat.cogentco.com • te0-0-2-1.rcr12.okc01.atlas.cogentco.com • 3 ONENET routers • OKC? • 3 Oklahoma State routers • (12:30 pm, 11Sept14, rtt= 84 msec, 15 routers)

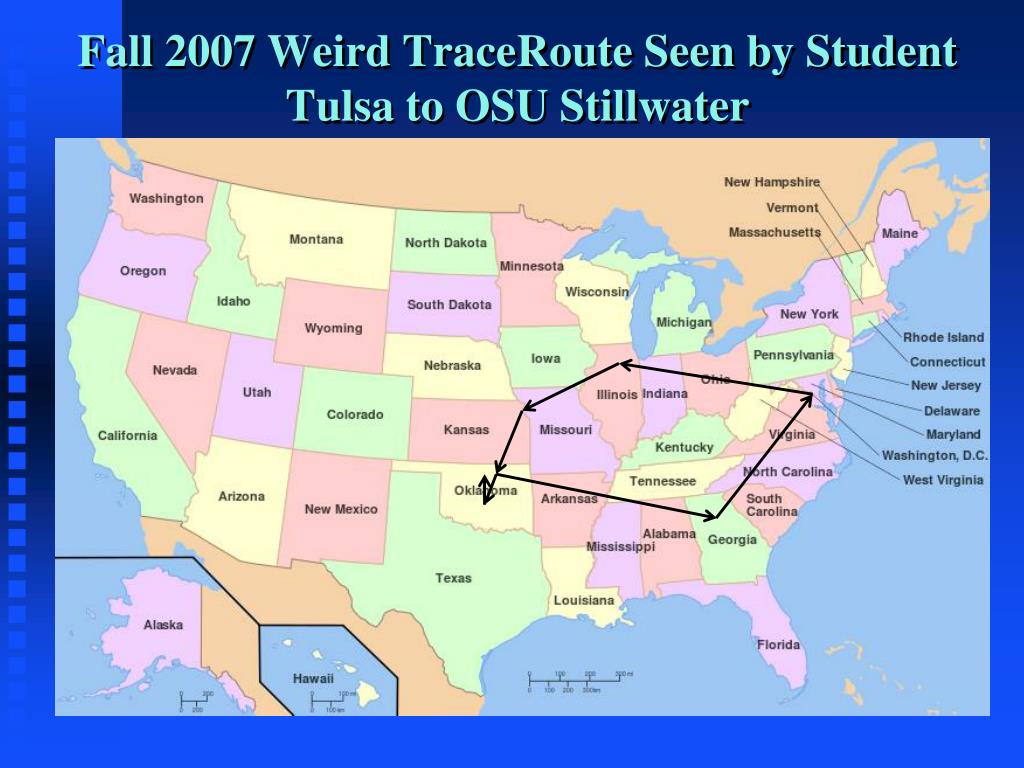

  13. Fall 2007 Weird TraceRoute Seen by StudentTulsa to OSU Stillwater • Tracert launched from Tulsa, hitAtlantaWashington, D.C.IllinoisKansas CityTulsaOklahoma CityOSU Stillwater

  14. Internet Service Provider Backbone Trunks Access Line Router Switched Network, full duplex trunks. Access lines attach to corporate routers & routers of other ISP's.

  15. OSU Backbone Trunks Access Line Router Access lines attach to Ethernet switches, Onenet and other routers.

  16. ISO OSI Seven Layer Model • Layer 7 Application • Layer 6 Presentation Windows API • Layer 5 SessionWindows TCP • Layer 4 Transport Windows TCP • Layer 3 NetworkWindows IP • Layer 2 Data Link PC NIC • Layer 1 Physical PC NIC

  17. Internet Protocal v4 (20 Bytes) 4 Bytes TOS TTL Source Address Destination Address

  18. Microsoft's Tracert

  19. 802.3 Ethernet Packet Format Bytes: 7 1 6 6 2 MAC Destination Address MAC Source Address 20 20 6-1460 4 IPv4 TCP Data + Padding CRC

  20. IPv4 Header • Contains two addresses • 4B Source Address • 4B Destination Address • 4B = 32b = 4.295 G potential addresses • Example address • 10001011 01001110 01000010 11010011 • Dotted Decimal Format simplifies • x.x.x.x • Treat each byte as Base2 number, write in Base10 • Above number simplifies to 139.78.66.211

  21. IP Header • Alpha-numeric name simplifies further • es302.ceat.okstate.edu • Domain Name Servers convert to numerical • All OSU Stillwater addresses are of form • 139.78.0.0 to 139.78.255.255 • IP addresses & alpha-numeric names are effectively backwards • 139.78.66.211 mapped to es302.ceat.okstate.edu

  22. IP vs Ethernet Addresses • Ethernet has a flat address space • Similar to Social Security Number • Adjacent #'s nearby or on other side of globe? • Huge look up tables required to avoid flooding • Need 70.37 trillion entries • IP has a hierarchical address space • Packet delivery similar to Mail delivery • Adjacent IP addresses frequently nearby • Reduces size of look up tables • Don't need 4.295 billion entries

  23. ISP Router Overload Source: 1 October 2007 Network World Fall 2011 Level3 BGP entries 375,550 IPv4 7,210 IPv6 Peak Traffic 8.0 Tbps IPv4 500 Mbps IPv6

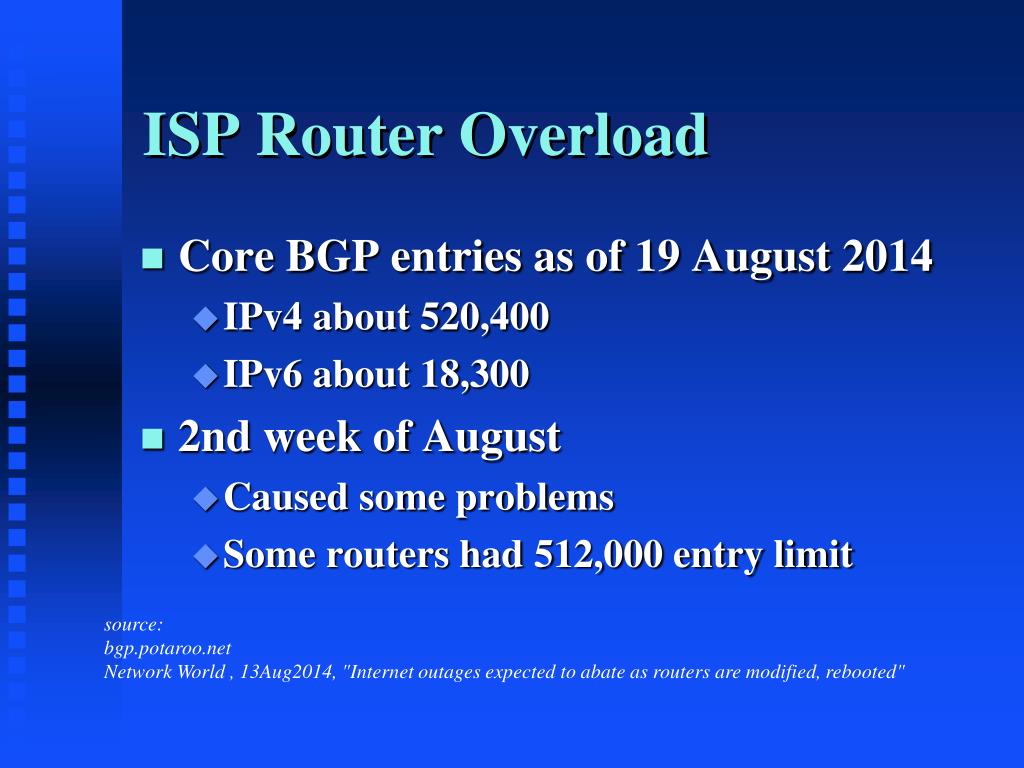

  24. ISP Router Overload • Core BGP entries as of 19 August 2014 • IPv4 about 520,400 • IPv6 about 18,300 • 2nd week of August • Caused some problems • Some routers had 512,000 entry limit source: bgp.potaroo.net Network World , 13Aug2014, "Internet outages expected to abate as routers are modified, rebooted"

  25. TCP Header 4 Bytes Source Port Destination Port Sequence Number ACK Number Window Checksum

  26. Wireshark Packet Capture • This interaction starts with a click on a Firefox bookmark to a distance calculator. Firefox then triggers a query to an OSU Domain Name Server asking for the IPv4 address of www.indo.com. This is next followed by a TCP 3 way handshake to open logical connections, an HTTP request to download the distance calculator page, and the beginning of the file transfer.

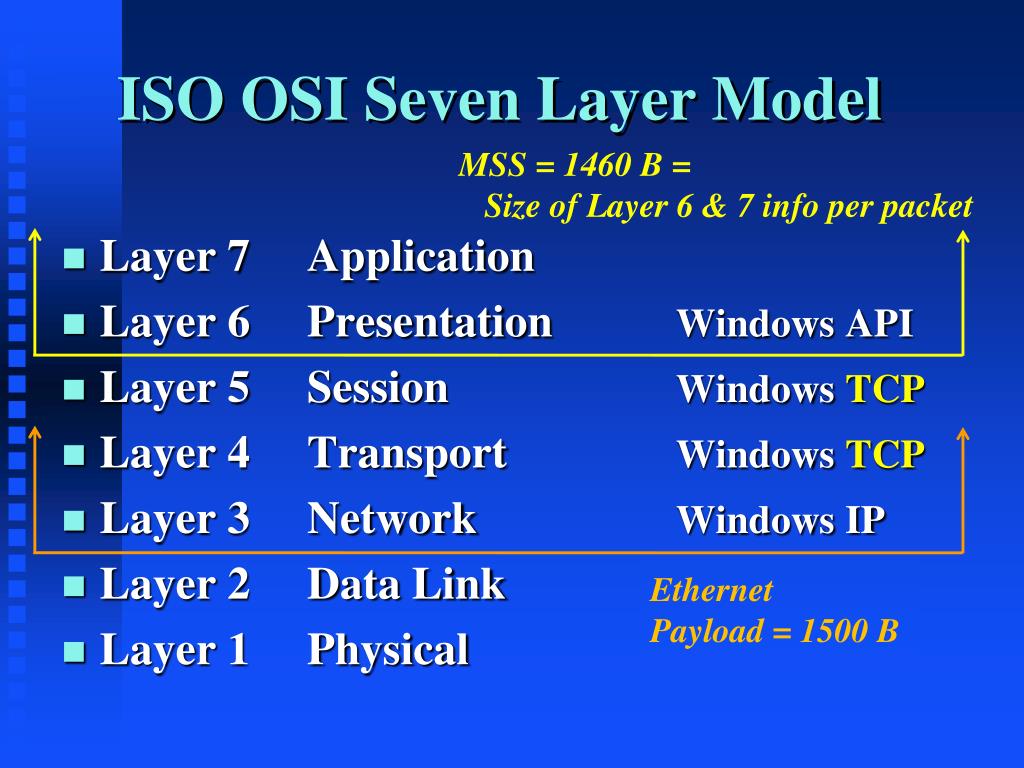

  27. ISO OSI Seven Layer Model MSS = 1460 B = Size of Layer 6 & 7 info per packet • Layer 7 Application • Layer 6 Presentation Windows API • Layer 5 Session Windows TCP • Layer 4 Transport Windows TCP • Layer 3 Network Windows IP • Layer 2 Data Link PC NIC • Layer 1 Physical PC NIC Ethernet Payload = 1500 B

  28. TCP Window Size (Layer 4) Effects End-to-End Throughput • Suppose • Window Size (set by PC) = 64 KB • Microsoft Windows XP • Maximum Segment Size = 1 KB • Server can send < 64 unACK'd packets PC Server 3,000 Km

  29. Throughput on 64 Kbps Line PC Server Packet #1 3,000 Km, 64 Kbps line • NPD = Prop Delay / Packet inject time • Prop Delay = distance / EM energy speed = 3,000,000 m / 200,000,000 m/sec = 0.015 seconds • Packet inject time = 8,376 bits / 64 Kbits/sec = 0.1309 seconds (7B PPP, 20B IPv4, 20B TCP) • NPD = 0.015 / 0.1309 = 0.1146 • Front end of packet arrives at far side prior to back end being transmitted.

  30. Throughput on 64 Kbps Line PC Server #1 Packet #2 #1 ACK • At this instant in time... • 2nd unACK'd packet is being transmitted • ACK for #1 enroute back to server • TCP+IP+Layer 2 → 47 bytes if PPP • When ACK#1 arrives at server, only packet #2 is unacknowledged. • Will 64 packet unACK'd limit be reached? • No. At most, 1 packet likely unACK'd. 3,000 Km, 64 Kbps line

  31. Throughput on 45 Mbps Line PC Server #3 #2 #1 3,000 Km, 45 Mbps line • NPD = Prop Delay / Packet inject time • Prop Delay = distance / EM energy speed = 3,000,000 m / 200,000,000 m/sec = 0.015 seconds • Packet inject time = 8,376 bits / 45 Mbits/sec = 186.1 μseconds (PPP, IPv4, TCP overhead) • NPD = 0.015 / 0.0001861 = 80.60 • 80.60 average sized packets will fit back-to-back on this line

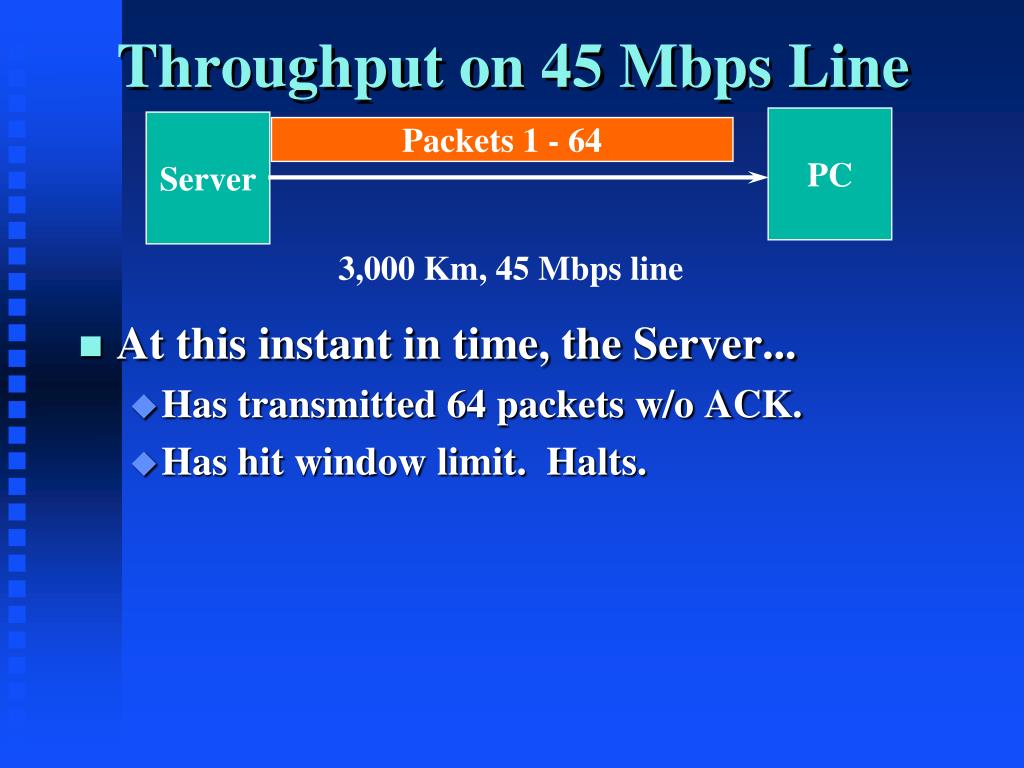

  32. Throughput on 45 Mbps Line PC Server Packets 1 - 64 • At this instant in time, the Server... • Has transmitted 64 packets w/o ACK. • Has hit window limit. Halts. 3,000 Km, 45 Mbps line

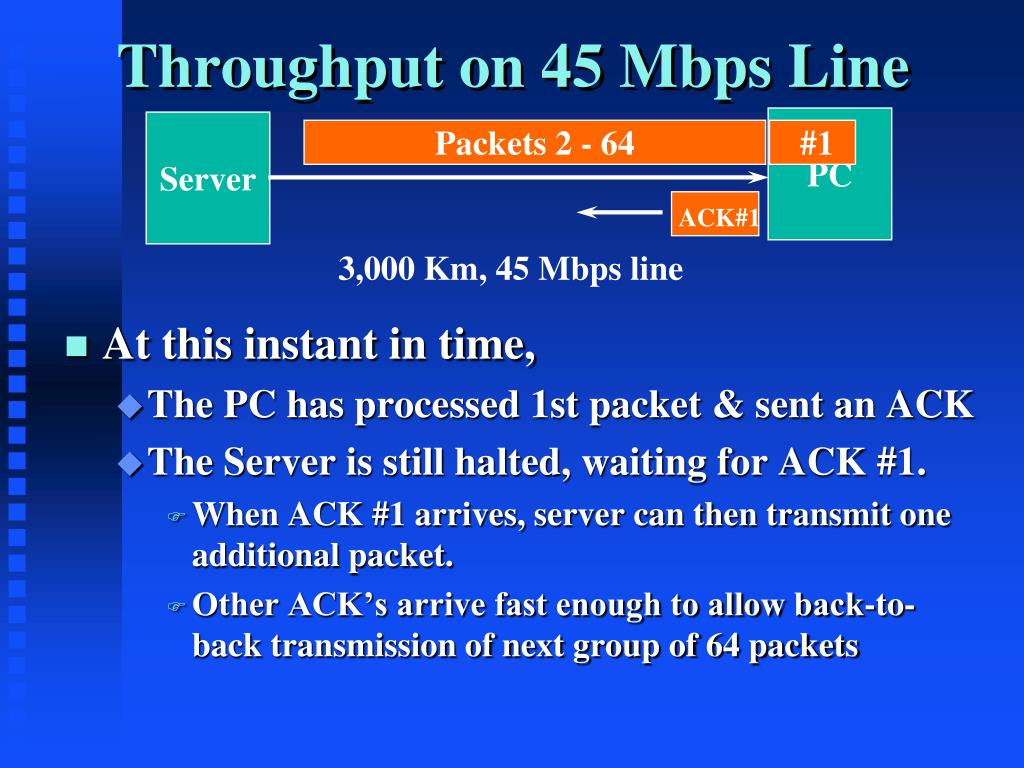

  33. Throughput on 45 Mbps Line PC Server Packets 2 - 64 #1 ACK#1 • At this instant in time, • The PC has processed 1st packet & sent an ACK • The Server is still halted, waiting for ACK #1. • When ACK #1 arrives, server can then transmit one additional packet. • Other ACK’s arrive fast enough to allow back-to-back transmission of next group of 64 packets 3,000 Km, 45 Mbps line

  34. Can Estimate Throughput with a Time Line to = 0 t1 t2 t3 time • to: Leading edge of 1st packet injected • t1: Trailing edge of 64th packet injected • t1 = (64*1047B)(8b/B)/(45 Mb/sec) = 11.91 msec • t2: Leading edge of 1st packet hits far side • 15 msec (propagation delay) • If ACK injected right away... • t3: ...ACK arrives at server at t = 30 msec • Process Repeats...

  35. Can Estimate Throughput with a Time Line to = 0 11.91 15.00 30.00 time (msec) • This system can transmit • 64(1,047) = 67,008 B = 536,064 bits • Every 30 msec (one round trip time) • Estimated throughput = 536,064/0.03 = 17.89 Mbps • Actual throughput a bit lower • 1st ACK not transmitted until packet #1 fully received... • ... and processed by PC • 65th packet not transmitted until ACK #1 fully received... • ... and processed by Server

  36. Can Estimate Throughput with a Time Line to = 0 11.91 15.00 30.00 time (msec) • Need to be able to fill the pipe for 1 RTT • 30 msec in our example • 45 Mbps * .030 sec = 1.35 M b = 168,750 B = 168,750/1,047 = 161.2 packets • Window Size needs to be = 161.2 segments*1,000 bytes/segment = 161,200 B • Actually would need another segment or two to cover source & sink processing

  37. TCP Header 4 Bytes Source Port Destination Port Sequence Number ACK Number Window Checksum

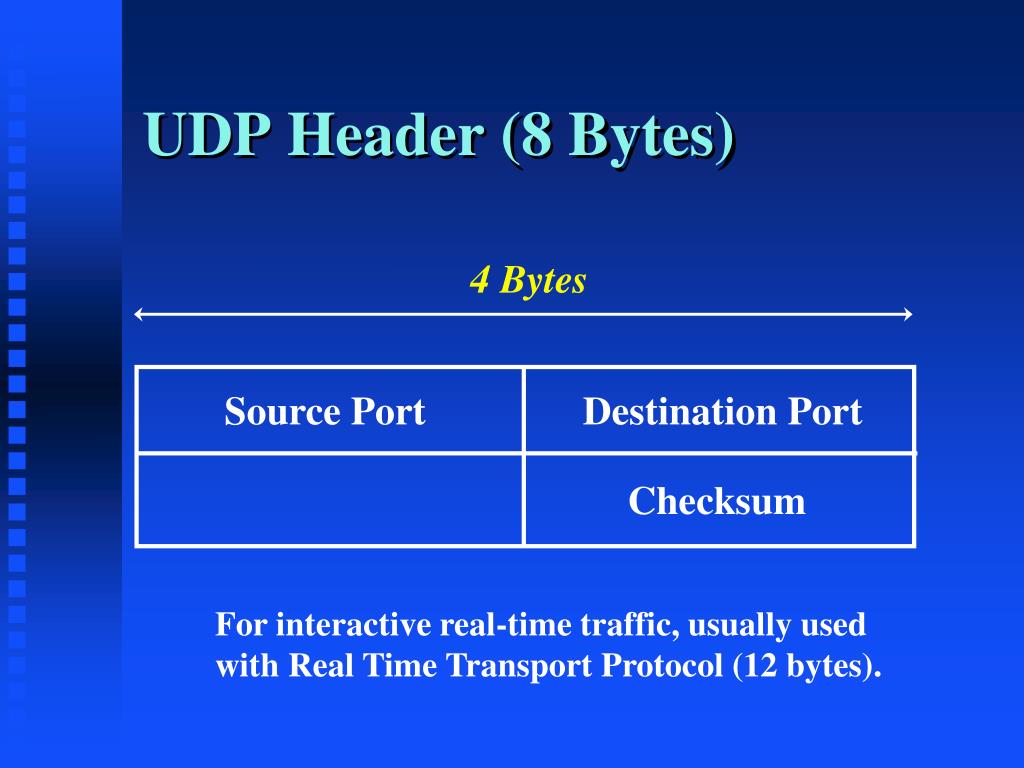

  38. UDP Header (8 Bytes) 4 Bytes Source Port Destination Port Checksum For interactive real-time traffic, usually used with Real Time Transport Protocol (12 bytes).

  39. Virtual Circuits • Routing decisions made once when circuit is set up • Concerned switches have internal Look-Up tables updated • All packets part of info transfer follow the same path • Allows option of setting aside switch resources (buffer space, bandwidth) for specific traffic flows • MPLS, Frame Relay, ATM, & Carrier Ethernet use VC’s

  40. Datagrams • IP uses Datagrams • Routing Tables updated independently of individual traffic flows • Routers continuously talking with each other • Packets may follow different paths • Routers get no advance warning of specific packet flows.

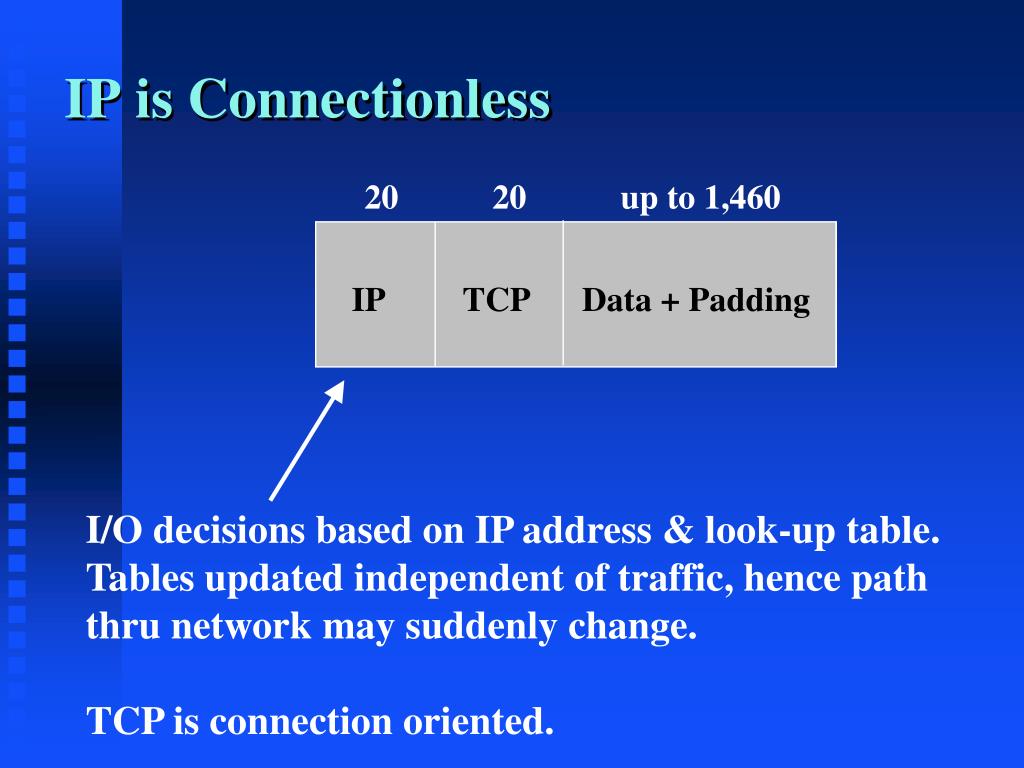

  41. IP is Connectionless 20 20 up to 1,460 IP TCP Data + Padding I/O decisions based on IP address & look-up table. Tables updated independent of traffic, hence path thru network may suddenly change. TCP is connection oriented.

  42. TCP, UDP, and IP • 30+ year old Protocols Designed for dataOne Priority & “Best Effort” servicesNo QoS GuaranteesAvailable bandwidth depends on other users • TCP (Layer 4 & 5) provides reliable transfer • UDP (Layer 4 & 5) unreliable transfer • IP at Layer 3 • Arbitrary Protocols at Layers 1 & 2

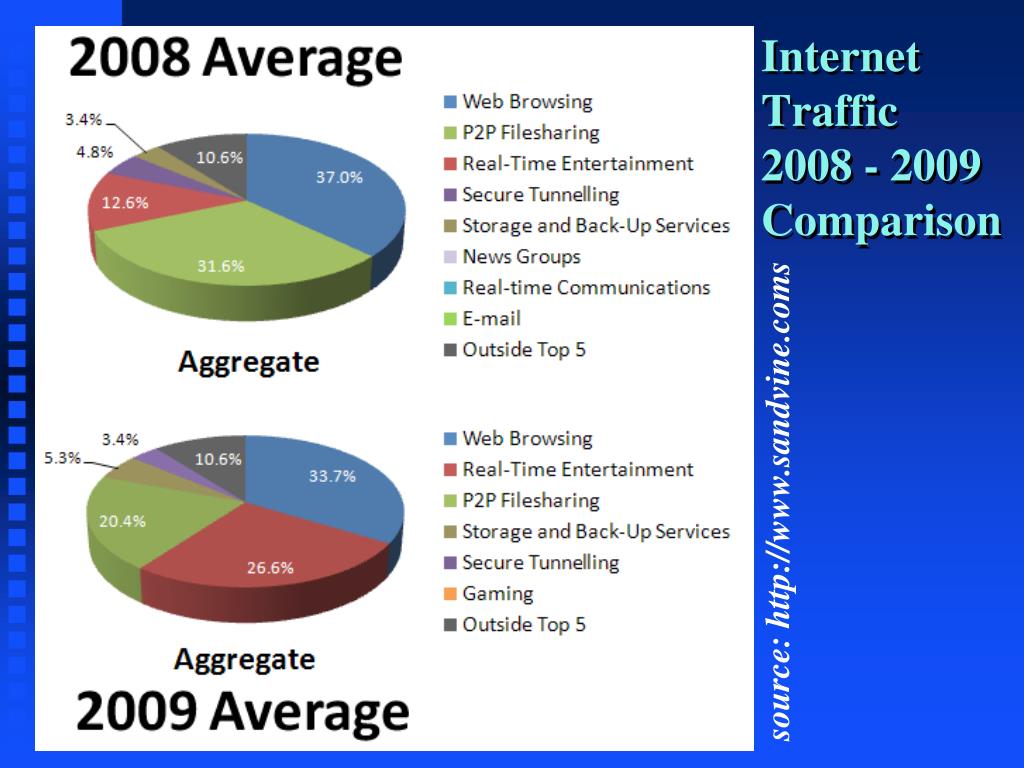

  43. InternetTraffic2008 - 2009 Comparison source: http://www.sandvine.coms

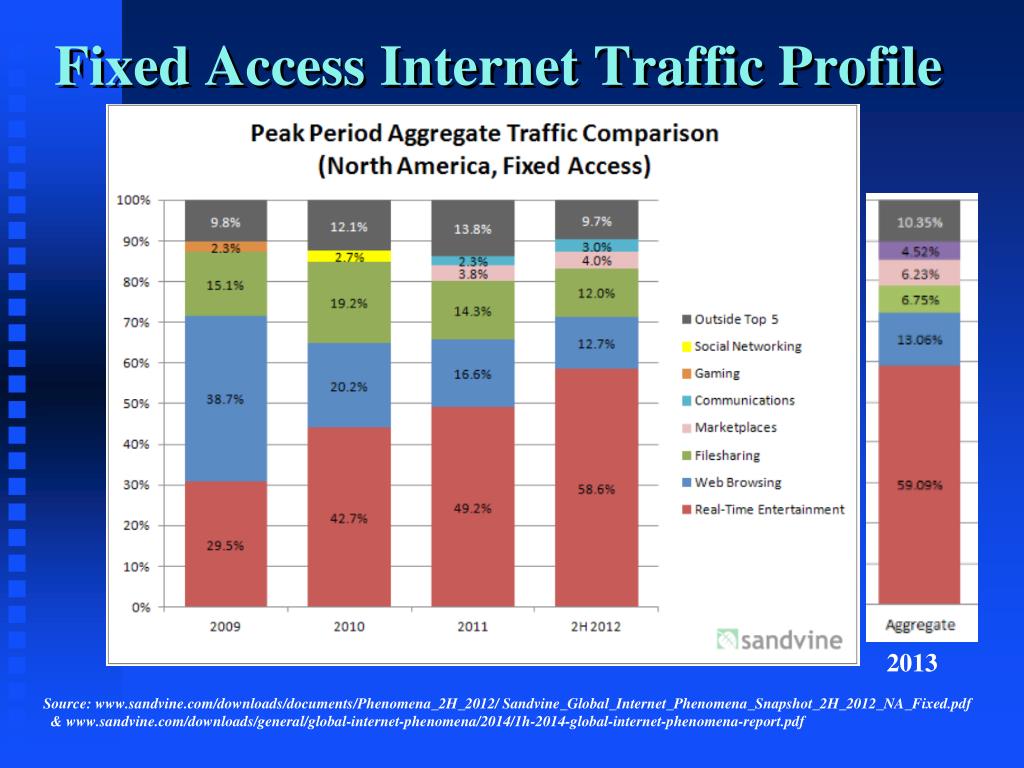

  44. Fixed Access Internet Traffic Profile 2013 Source: www.sandvine.com/downloads/documents/Phenomena_2H_2012/ Sandvine_Global_Internet_Phenomena_Snapshot_2H_2012_NA_Fixed.pdf & www.sandvine.com/downloads/general/global-internet-phenomena/2014/1h-2014-global-internet-phenomena-report.pdf

  45. 2012 Mobile Access Internet Traffic Profile http://www.sandvine.com/downloads/documents/Phenomena_2H_2012/ Sandvine_Global_Internet_Phenomena_Snapshot_2H_2012_NA_Mobile.pdf

  46. 2013 Mobile Access Internet Traffic Profile source: www.sandvine.com/downloads/general/global-internet-phenomena/2014/1h-2014-global-internet-phenomena-report.pdf

  47. Internet Traffic Growth source: "The Road to 100G Deployment", IEEE Communications Magazine, March 2010

  48. Internet Traffic Growth source: www.cisco.com/c/en/us/solutions/collateral/service-provider/visual-networking-index-vni/VNI_Hyperconnectivity_WP.html

  49. Combining the Figures

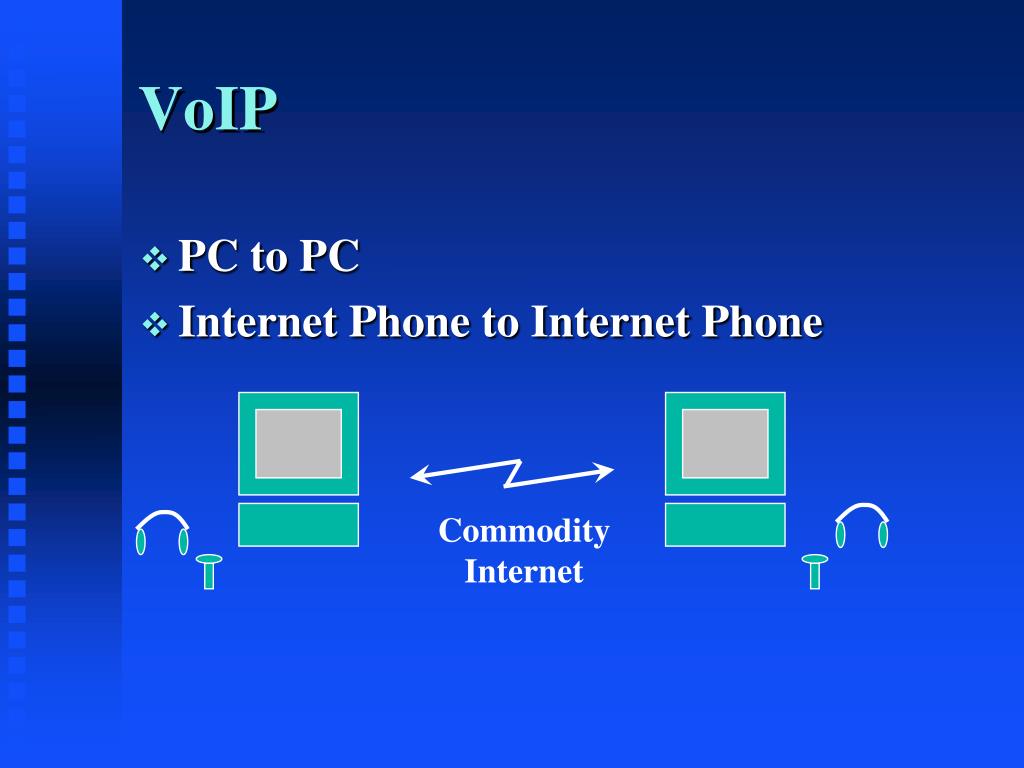

  50. VoIP • PC to PC • Internet Phone to Internet Phone Commodity Internet
