1. All about the text block This diagram shows a server with connectors leading to other computers. Notice the position of the word “Server.” For this shape, the text’s default position is under the shape itself. But what if you want to change that position for the text? For example, can you move the word “Server” so that it’s above the shape itself, and not below it? Yes, it is possible to reposition text that’s associated with a shape. But before you learn how, let’s find out what a shape’s text block is. Let’s talk about text positioning

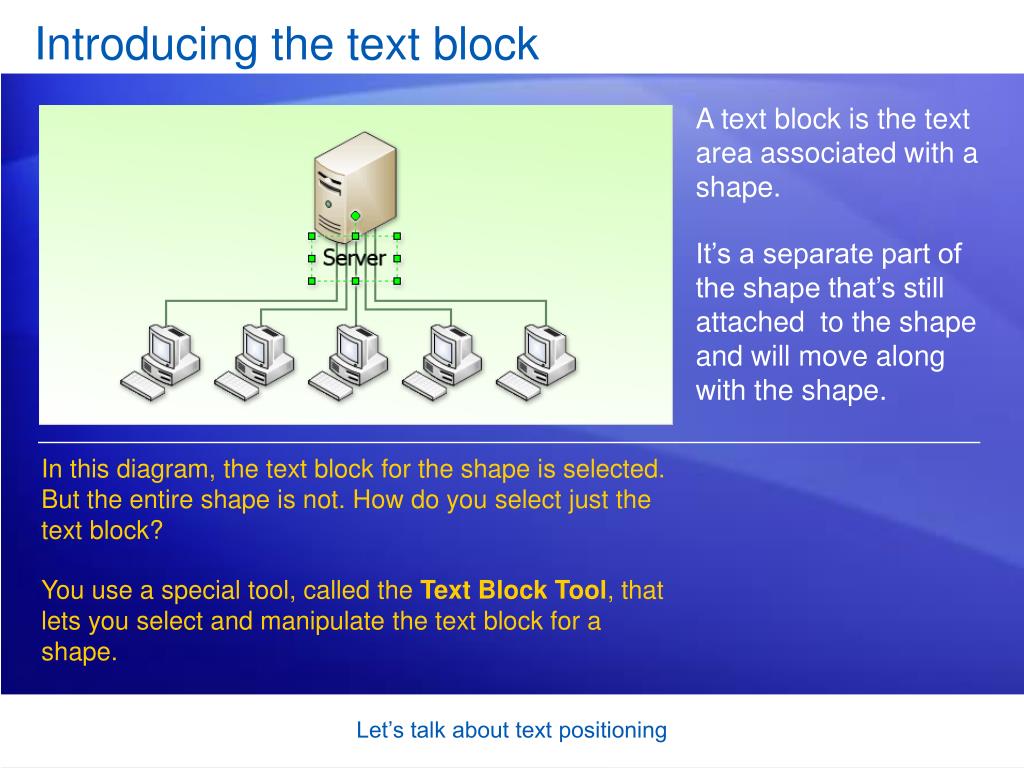

2. Introducing the text block A text block is the text area associated with a shape. It’s a separate part of the shape that’s still attached to the shape and will move along with the shape. In this diagram, the text block for the shape is selected. But the entire shape is not. How do you select just the text block? You use a special tool, called the Text Block Tool, that lets you select and manipulate the text block for a shape. Let’s talk about text positioning

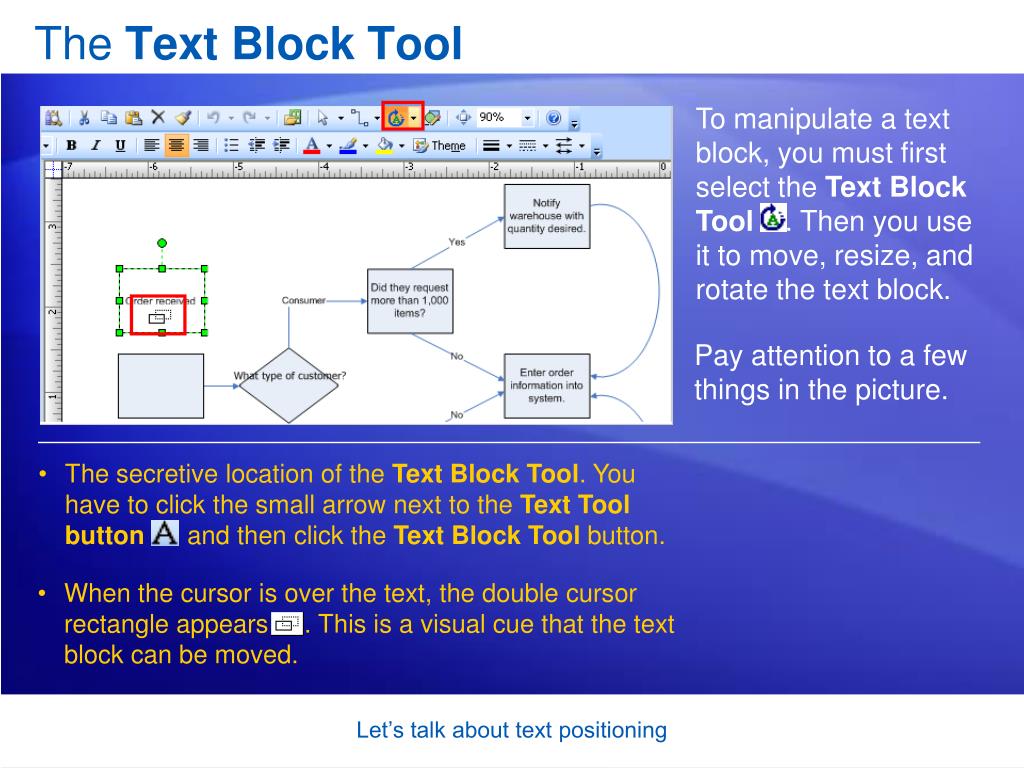

3. The Text Block Tool To manipulate a text block, you must first select the Text Block Tool . Then you use it to move, resize, and rotate the text block. Pay attention to a few things in the picture. • The secretive location of the Text Block Tool. You have to click the small arrow next to the Text Tool button and then click the Text Block Tool button. • When the cursor is over the text, the double cursor rectangle appears . This is a visual cue that the text block can be moved. Let’s talk about text positioning

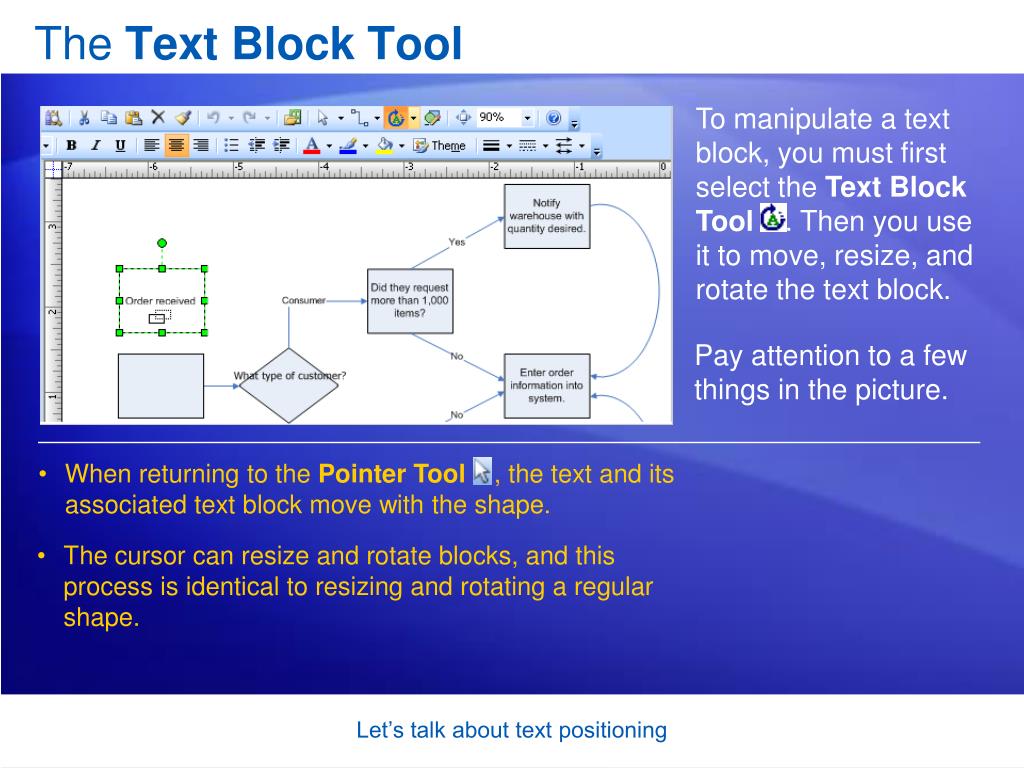

4. The Text Block Tool To manipulate a text block, you must first select the Text Block Tool . Then you use it to move, resize, and rotate the text block. Pay attention to a few things in the picture. • When returning to the Pointer Tool , the text and its associated text block move with the shape. • The cursor can resize and rotate blocks, and this process is identical to resizing and rotating a regular shape. Let’s talk about text positioning

5. Don’t forget When you’re done with the Text Block Tool, it’s important to switch back to the regular Text Tool and then switch back to the Pointer Tool as well. Although the Text Block Tool is handy, you probably won’t use it as often as the regular old Text Tool. Furthermore, you don’t want to leave the Text Tool active because the only thing you can do with that tool is make text. It doesn’t let you select anything. Let’s talk about text positioning

6. Mystery #1: Text on a curve Many people ask if it’s possible to put the baseline of text on a curve in Visio. As you just learned, text for a shape is contained within a text block. The keyword here is block—a rectangular area that the text is confined to. Unfortunately the base of the block cannot be sculpted or morphed into a curve. Let’s talk about text positioning

7. Mystery #1: Text on a curve Given that text blocks are always block-like, continuous text on a curve is not a quick and easy task in Visio. But you can approximate this with a little extra work. Just make separate text-only shapes for each word, and then rotate each word so that the words appear to follow the curve. A word may be too long, in which case you might have to modify the curve or make separate text-only shapes for each letter in that word. Let’s talk about text positioning

8. Mystery #2: Text and shapes that aren’t square The next mystery: Can text stay confined to a shape that isn’t rectangular—for example, automatically stay within the confines of a circle or a diamond? Sort of. The text can stay within the confines of these shapes, but it is not automatic. You need to use other manual methods, like resizing the text block, or you can even make the text smaller or the shape itself bigger. Let’s talk about text positioning

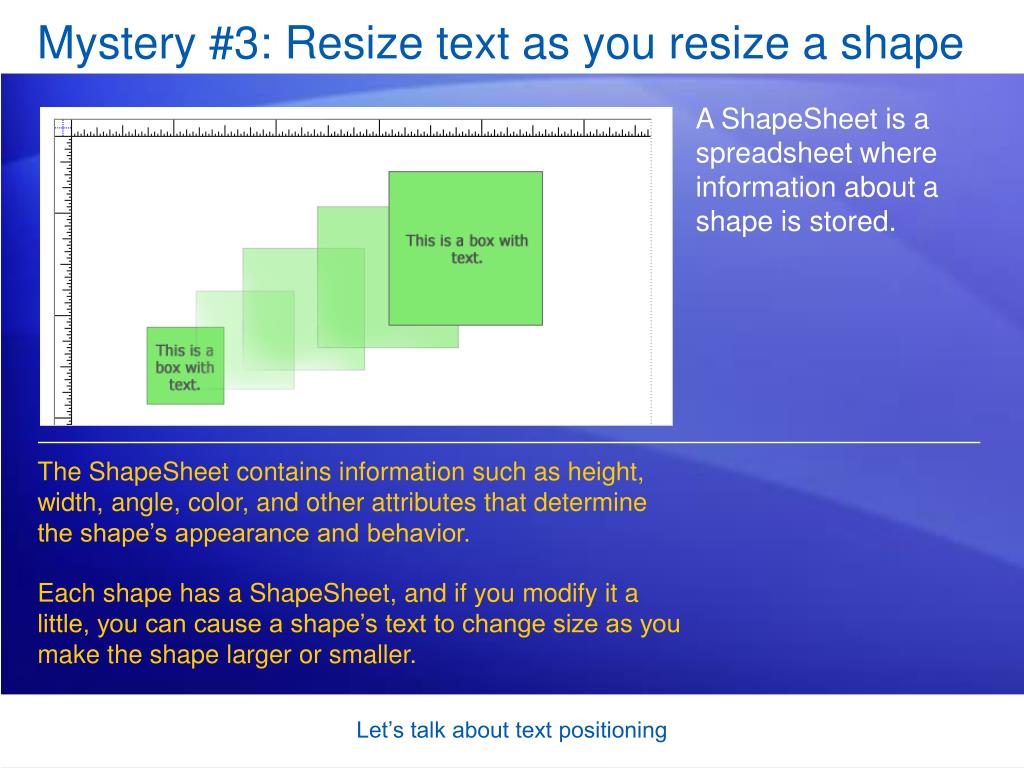

9. Mystery #3: Resize text as you resize a shape Another common question is: Can you resize text as you resize a shape? By default, no. However, with a little extra work you can do this for some shapes. It requires modifying the ShapeSheet for the shape you want to resize. What is a ShapeSheet? Let’s talk about text positioning
