Federated Network Performance Monitoring for the Grid

1. Federated Network Performance Monitoring for the Grid K. Kavoussanakis, EPCC, The University of Edinburgh A. Phipps, EPCC, The University ofEdinburgh C. Palansuriya, EPCC, The University ofEdinburgh A. Trew, EPCC, The University ofEdinburgh A. Simpson, EPCC, The University ofEdinburgh R. Baxter, EPCC, The University ofEdinburgh GridNets 2006, 1st Oct 2006, San Jose, CA, USA

2. Outline • Network Performance Monitoring for EGEE • Users and Requirements • Architecture • EGEE Network Performance Monitoring Diagnostic Tool • Future Work & Conclusions C. Palansuriya, Federated NPM for the Grid

3. EGEE Large scale heterogeneous e-Science infrastructure ~ 200 sites in 40 countries ~ 25 000 CPUs > 10 PB storage > 35 000 jobs per day > 100 Virtual Organizations C. Palansuriya, Federated NPM for the Grid

4. EGEE Network Services Development • Network Performance Monitoring (NPM) • Scale and heterogeneity of EGEE fabric is such that it necessary to use and support the existing different NPM frameworks. • Aim to standardise access to NPM across different network domains and frameworks leading to a federated approach • Developed a reference implementation of world’s first single-point, single interface access to NPM data from heterogeneous frameworks C. Palansuriya, Federated NPM for the Grid

5. Users of NPM C. Palansuriya, Federated NPM for the Grid

6. Some Client NM-WG NM-WG NM-WG NM-WG NM-WG Backbone Perfmonit Backbone PiPEs Backbone PerfSONAR End-site Home-grown End-site e2emonit Access to data • GGF Network Measurements Working Group (NM-WG) the basis for standardisation • XML schemas to request and share NPM data EGEE NPM pursues a federated approach to Network Monitoring • Interoperability pursued through adoption of NM-WG • EGEE should not and cannot aim to enforce the uptake of a specific NPM framework across the diverse EGEE fabric or the associated networks • The NM-WG interface has been adopted; many networks are publishing through it. C. Palansuriya, Federated NPM for the Grid

7. Middleware Programmatic interface to Web services Databases Info for 100 paths returned in 0.2s Map Compute/Storage Element with Network Monitoring Points Raw, historical data for 24 hrs Mainly end-to-end data Operation Centres NOCs and GOCs Web-based GUI Interface to define alarms On-demand & historical data Backbone & end-to-end data NOCs Which tool gathered the results Per hop data/ability to zoom in GOCs High-level statistics, e.g., end-to-end throughput NPM User Requirements C. Palansuriya, Federated NPM for the Grid

8. Some Client Data from: • GÉANT • Abilene • ESNet Soon to provide LCG data Single point of contact Standard interface Insulation from framework interface changes NM-WG NM-WG NM-WG NM-WG NM-WG Backbone Perfmonit Backbone PiPEs Backbone perfSONAR End-site Home-grown End-site e2emonit NPM Architecture and Deployment C. Palansuriya, Federated NPM for the Grid

9. NPM DT Scenario (1) • Step 1: Access the NPM Diagnostic Tool. • Accessed using a standard web browser. • individually authorised to use. • Please mail us for access! • The intended user is a NOC or GOC operator C. Palansuriya, Federated NPM for the Grid

10. NPM DT Scenario (2) • Step 2: Select a Time. • Problem occurred within the past two days. • Enters an appropriate time range for the period • Presses the Set button to confirm C. Palansuriya, Federated NPM for the Grid

11. NPM DT Scenario (3) • Step 3: Select a Path. • Problem between UEDIN and CNRS. • Selects e2emonit sites at UEDIN and CNRS • Adds the path • Selects “Find Data For This Query” C. Palansuriya, Federated NPM for the Grid

12. NPM DT Scenario (4) • Step 4: Select a Metric. • The end-user experienced throughput problems. • Several possibly relevant metrics to choose from • Decides to look at the Achievable Bandwidth C. Palansuriya, Federated NPM for the Grid

13. NPM DT Scenario (5) • Step 5: Select a Statistic. • If necessary, choose a statistic to be applied. • An interval can be applied; e.g., an hourly mean over the past two days. • Just wants a general overview of measurements • Elects to retrieve raw data (Statistic check-box not checked). C. Palansuriya, Federated NPM for the Grid

14. NPM DT Scenario (6) • Step 6: Select a View. • Currently Data Table and Time Plot views are available. • Wants an overview of how the Achievable Bandwidth has changed over time • Selects the Time Plot. • Query entry is complete • Selects Submit Query. C. Palansuriya, Federated NPM for the Grid

15. NPM DT Scenario (7) • Step 7: Examine results. • Achievable Bandwidth Vs Time • The parameters used to gather measurements are also shown • Here, the iperf tool was used to gather the achievable bandwidth information. C. Palansuriya, Federated NPM for the Grid

16. NPM Publisher C. Palansuriya, Federated NPM for the Grid

17. Future Work • Moving to NM-WG v2 • Gives us access to many more frameworks/NMPs through • perfSONAR • UK GridPP (project gridmon) • Improving Diagnostic Tool • Hardening • Features • Authentication and Authorisation • Collaboration with networks; what data will they restrict and is their method compatible to EGEE? C. Palansuriya, Federated NPM for the Grid

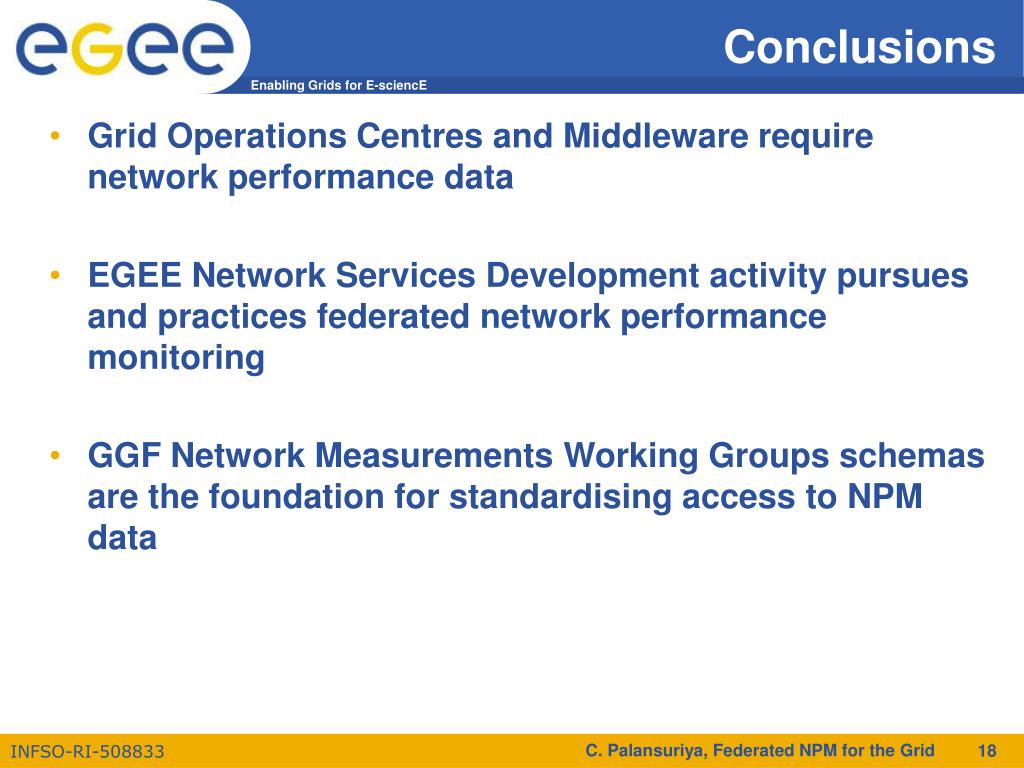

18. Conclusions • Grid Operations Centres and Middleware require network performance data • EGEE Network Services Development activity pursues and practices federated network performance monitoring • GGF Network Measurements Working Groups schemas are the foundation for standardising access to NPM data C. Palansuriya, Federated NPM for the Grid

19. Acknowledgements • EGEE is partly funded by the European Commission; contract no: INFSO-RI-508833 • EPCC is jointly funded by the UK Joint Information Systems Committee (JISC). • The following organisations participated in EGEE NPM: • EPCC, The University of Edinburgh • DANTE • CNRS • DFN • DL, CCLRC • GARR • The GÉANT, Abilene and ESNet data are provided through our collaboration with GÉANT2 and the perfSONAR projects. http://www.egee-npm.org/ C. Palansuriya, Federated NPM for the Grid
