IFMIF/EVEDA – RFQ LegnaroLocal Control SystemM. MontisINFN-LNLMonthly Collaboration Meeting - May 29, 2012
Introduction • STMS – Surface Temperature Monitor Surveillance • Hardware specifications for RFQ task • 1Wire/EPICS Integration IFMIF-EVEDA –INFN Legnaro LCS – Monthly Collaboration Meeting, Legnaro, March 02, 2012
STMS – Surface Temperature Monitor Surveillance • 1-wire system • 1-Wire is a device communications bus system designed by Dallas Semiconductor Corp. that provides low-speed data, signaling, and power over a single signal. It is typically used to communicate with small inexpensive devices such as digital thermometers and weather instruments. IFMIF-EVEDA –INFN Legnaro LCS – Monthly Collaboration Meeting, Legnaro, March 02, 2012
STMS – Surface Temperature Monitor Surveillance • Hardware solution for IFMIF RFQ test bench: • Network Interface: LinkHub-E ethernet interface • manage up to 4 sensor lines • Temperature sensors: T-String Temperature Sensor • 6 temperature sensors • total length: 2.44 m (8 ft) • temp range: -55/+125°C • accuracy: ±0.5°C in [-10,+85] °C • resolution: 12 bit • conversion time: up to 720 ms • No signal time propagation and communication problems will be affected in this configuration IFMIF-EVEDA –INFN Legnaro LCS – Monthly Collaboration Meeting, Legnaro, March 02, 2012
STMS – Surface Temperature Monitor Surveillance • Hardware solution for IFMIF RFQ test bench: • Mounting method: connection through Foamed Acrylic Tape • type: VST4110W • temperature resistance short term: 160°C • temperature resistance long term: 100°C • low temperature resistance: -40°C • Costs: • 1x LinkHub-E: already bought • 4x String-T temperature sensors: 300,00€ (without IVA) • 1x Foamed acrylic tape: 3,73€ IFMIF-EVEDA –INFN Legnaro LCS – Monthly Collaboration Meeting, Legnaro, March 02, 2012
STMS – Surface Temperature Monitor Surveillance • Previous software solution: • External shell script + OWFS (not the best choise) EPICS Environment External Scripts OWFS (One Wire FileSystem) LinkHubDevice Thermometer 4 Thermometer 3 Thermometer 2 Thermometer 1 IFMIF-EVEDA –INFN Legnaro LCS – Monthly Collaboration Meeting, Legnaro, March 02, 2012
STMS – Surface Temperature Monitor Surveillance • Previous software solution: • EPICS Driver Support (StreamDevice solution) EPICS Environment DS18B20 EPICS Driver LinkHubDevice Thermometer 4 Thermometer 3 Thermometer 2 Thermometer 1 IFMIF-EVEDA –INFN Legnaro LCS – Monthly Collaboration Meeting, Legnaro, March 02, 2012
STMS – Surface Temperature Monitor Surveillance • Previous software solution: • EPICS Driver Support (StreamDevice solution) EPICS Input/Output Controller (IOC) EPICS HMI EPICS Database EPICS Channel Access DS18B20 Stream Protocol File EPICS Asyn Interface LinkHubDevice TCP/IP Communication IFMIF-EVEDA –INFN Legnaro LCS – Monthly Collaboration Meeting, Legnaro, March 02, 2012
STMS – Surface Temperature Monitor Surveillance • EPICS Driver Support - screenshots: StreamDevice Protocol File EPICS Database IFMIF-EVEDA –INFN Legnaro LCS – Monthly Collaboration Meeting, Legnaro, March 02, 2012

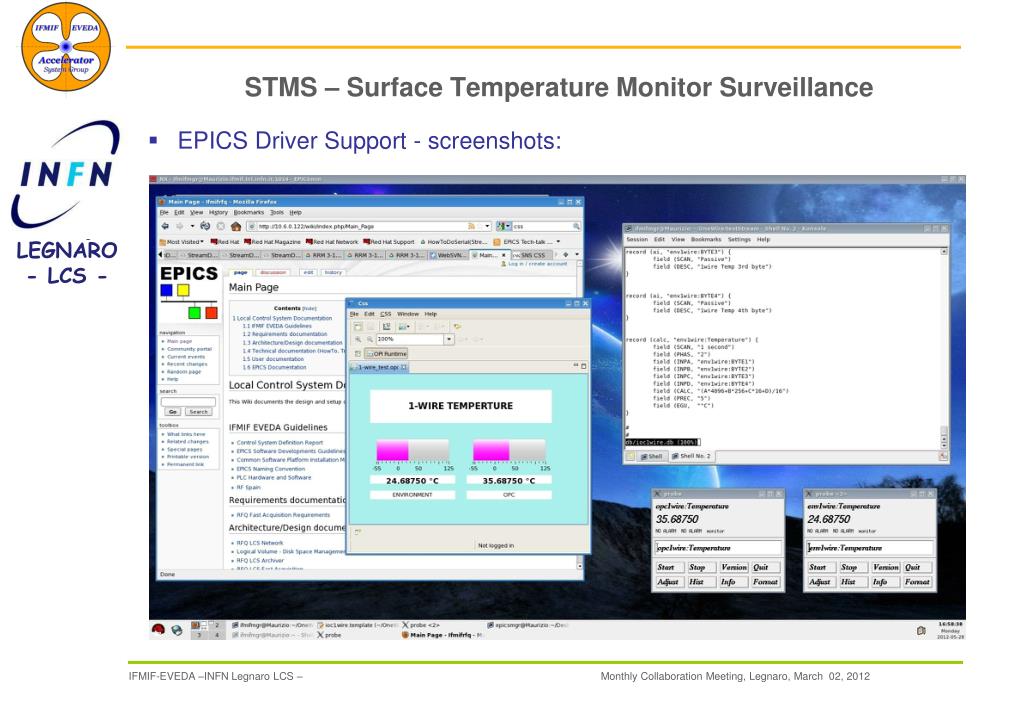

STMS – Surface Temperature Monitor Surveillance • EPICS Driver Support - screenshots: IFMIF-EVEDA –INFN Legnaro LCS – Monthly Collaboration Meeting, Legnaro, March 02, 2012
