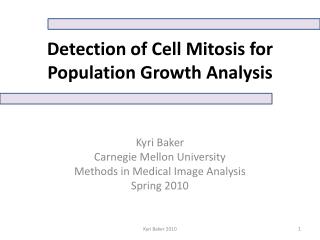

Detection of Cell Mitosis for Population Growth Analysis

Kyri Baker

Carnegie Mellon University

Methods in Medical Image Analysis

Spring 2010

Kyri Baker 2010

outline
Outline
  • Objective/goal of this project
  • Motivation
  • Steps to achieve this goal and difficulties encountered
  • Results and other methods
  • Questions

Kyri Baker 2010

objective
Objective
  • Detect stem cell mitosis (divisions)
  • Automatically monitor how cell population changes over time when injected with a growth hormone

Mitotic Event: Cell brightens, enlarges, and divides

Kyri Baker 2010

motivation
Motivation
  • Want to farm stem cells for use in tissue regeneration
  • Biologists culture groups of cells and monitor how they react to specific growth hormones
  • A sign of a good growth hormone is one that causes the lineage tree to be symmetric

Mitosis

Cell Lineage Tree

Mitosis

Kyri Baker 2010

the data
The Data
  • Hematopoietic stem cells from the bone marrow of adults
  • Dosed with a growth drug and chemicals to prevent clumping
  • Imaged every 30 seconds ≈ 11,000 frames

Frame 1 Frame 11,000

Kyri Baker 2010

how to detect mitosis
How to Detect Mitosis?
  • Many techniques can be experimented with

- In general, cells become brighter and rounder

- But illumination conditions can change, other cells can also be round

  • For certain: Cell area increases because another cell is being “born”!

 Meat of the algorithm: Monitor overall cell areas over time, and when the area of a cell starts to increase, mitosis is happening

 Challenge: How to accurately find the cell areas?

Kyri Baker 2010

step 1 preprocess image
Step 1: Preprocess Image

1. Import Image

2. Threshold Image

3. Apply Hough Transform for circle

detection

4. Set all pixels outside detected

circle to black

Kyri Baker 2010

step 2 correlation filter
Step 2: Correlation Filter
  • To refine the boundaries of cell nucleus and cell membrane
  • Used itkNormalizedCorrelationImageFilterwith an annulus mask
  • Cannot correlate with a template like:

- Cells touching looks like mitosis:

Mitosis Frames after Correlation Filter

Kyri Baker 2010

step 3 watershed image filter
Step 3: Watershed Image Filter
  • Find the areas of different cells

Mitotic Cell Non-Mitotic Cells

Larger Area

Mitotic Cell

Difficulties:False positives from image noise

Nucleus Area ≈ 90-120

Nucleus Area ≈ 60-90

Kyri Baker 2010

mini steps relabeler colorfilter
Mini Steps: Relabeler, ColorFilter
  • Order watershed areas from largest to smallest with itk::RelabelComponentImageFilter
  • For nice watershed output visualization used itk::Functor::ScalarToRGBPixelFunctor

Kyri Baker 2010

results
Results

Actual Mitosis

Algorithm Detected Mitosis

Number of

Mitotic Cells

Frame

  • Current best results were achieved with:
  • Lower intensity threshold = 120
  • Taking watershed regions with area > 120 pixels
  • Only keep as a true “mitotic event” if mitosis was detected over a series of 3 frames
  • or more

Kyri Baker 2010

other methods attempted
Other Methods Attempted
  • Subtracting previous frame to determine cell growth
    • Cells moved around too much, too many false positives
  • Monitoring overall summed area of all cells
    • Overall area calculation fluctuated too greatly, cannot determine exact instant of mitosis

Overall Cell

Area

Frame

Kyri Baker 2010

questions
Questions?
