    1. Demystifying Data-Driven and Pausible Clocking Schemes Robert Mullins Computer Architecture Group Computer Laboratory, University of Cambridge ASYNC 2007, 13th IEEE International Symposium on Asynchronous Circuits and Systems

    2. System-Timing: Emerging Challenges • Current shift is from complex monolithic designs to networks of energy efficient cores • Distinct block and system-level timing challenges • Network-level timing • Physically distributed • Activity may be sparse • Interconnect delay and power are significant • Significant variations in temperature, supply voltage and process parameters Higher-level control, timing and scheduling is naturally event-driven

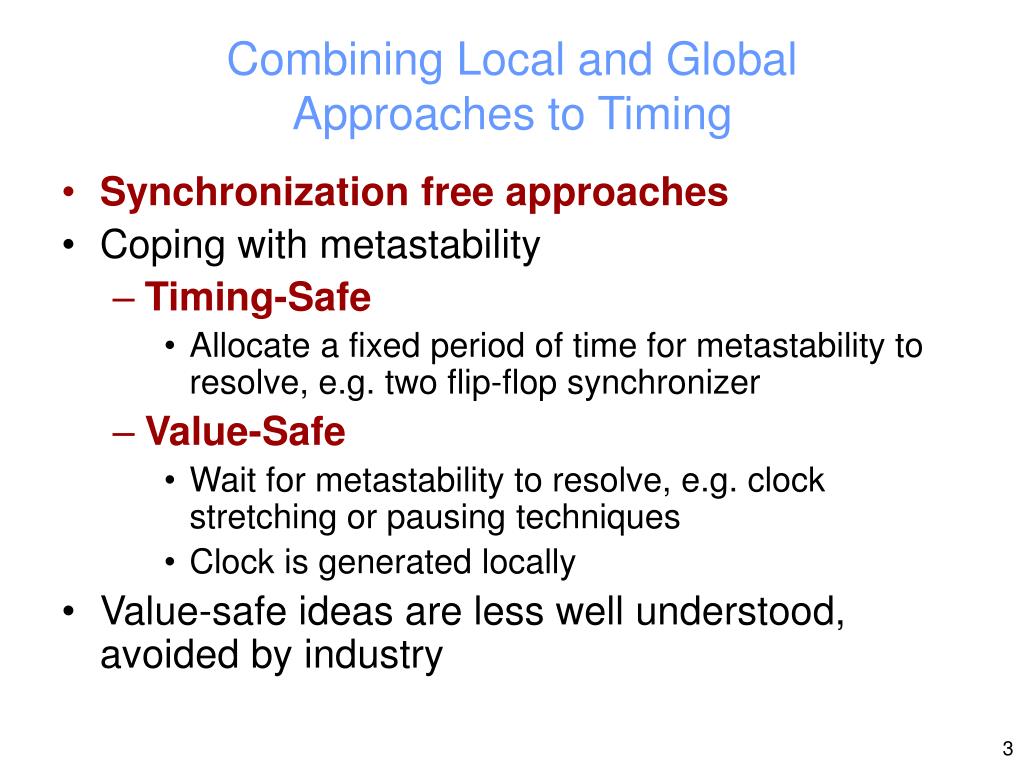

    3. Combining Local and Global Approaches to Timing • Synchronization free approaches • Coping with metastability • Timing-Safe • Allocate a fixed period of time for metastability to resolve, e.g. two flip-flop synchronizer • Value-Safe • Wait for metastability to resolve, e.g. clock stretching or pausing techniques • Clock is generated locally • Value-safe ideas are less well understood, avoided by industry

    4. Advantages of a value-safe approach • Efficiency • Synchronization delay is minimized • Opportunities for optimization • Robustness • Inherently robust, no trade-off against performance. • Only way to guarantee data is never lost, no MTBF. Could still have functional failures if we are delayed too long – don’t hit performance requirements • Transparency • Synchronous block is unaffected by clocking wrapper. • Less true for traditional synchronization and clock-gating approaches. • Simplicity and modularity • I aim to illustrate how simple these schemes are

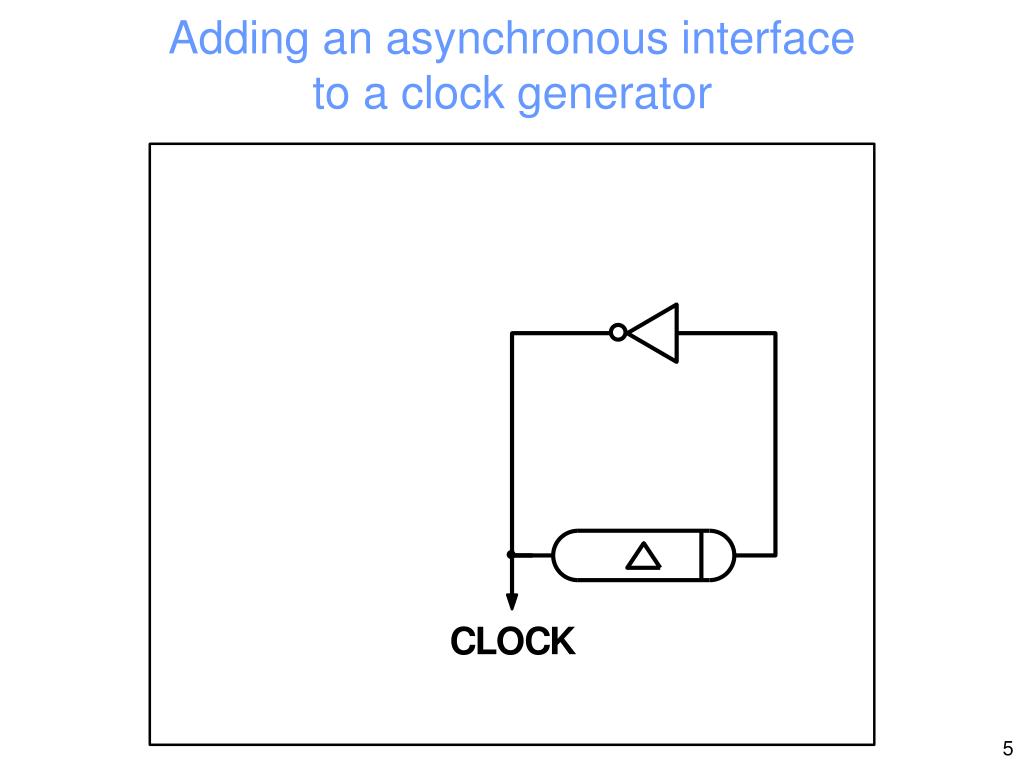

    5. Adding an asynchronous interface to a clock generator

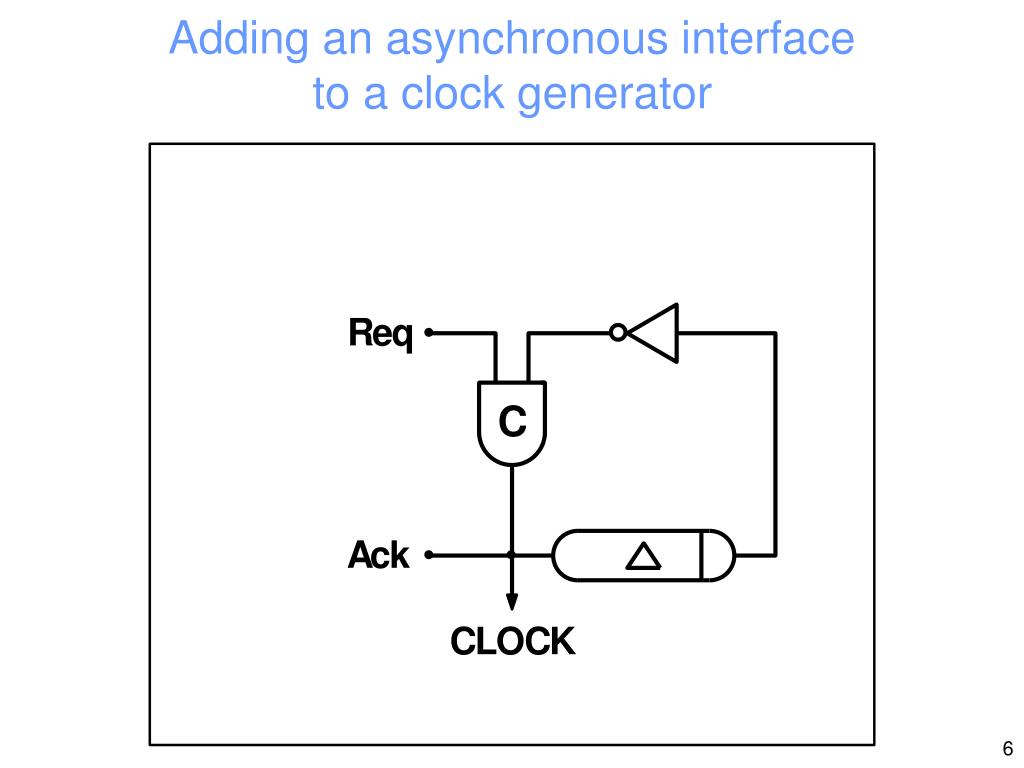

    6. Adding an asynchronous interface to a clock generator

    7. Adding an asynchronous interface to a clock generator

    8. Adding an asynchronous interface to a clock generator

    9. Input register driven by a pausible clock

    10. Data-Driven Clock Pausible Clock - May need to add a mechanism to ensure block receives enough clock edges, e.g. to flush pipeline - Need to add an explicit sleep mechanism if we want to halt clock generator during periods of inactivity Helps classify and understand existing techniques. In reality, the design space is a continuum

    11. Stretchable Clocks A type of data-driven clock • Rising clock edge is generated • Stretch signal may be asserted (synchronously) in response to clk+ • Low-phase of clock is stretched until some operation has completed and stretch signal is removed

    12. Stretchable Clocks

    13. Stretchable Clocks

    14. Stretchable Clocks

    15. Stretchable Clocks

    16. Stretchable Clocks

    17. Input Ports • Arbitrated Inputs • At most one input can be served per cycle • Synchronised Inputs • Cannot proceed until multiple inputs are ready • Sampled Inputs • Can progress with a variable number of data inputs(or none) • Need to also choose event to trigger sampling of inputs • Paper provides implementation details for each input port type for pausible and data-driven clock generators

    18. Output Ports • Scheduled • Ensure data is output on a particular clock cycle, stall until data is consumed • Registered • Addition of an output register allows next computation to proceed while data is consumed • Polled • Sample output port ready signal and take appropriate action. Clock period is only ever extended to allow metastability to resolve, not because output is blocked.

    19. A GALS Wrapper Example • Free running clock • Asynchronous input • we know nothing about when data will arrive • For simplicity, lets assume we can always accept new data • Registered output feeding asynchronous FIFO Simple to combine clock generator, input and output ports

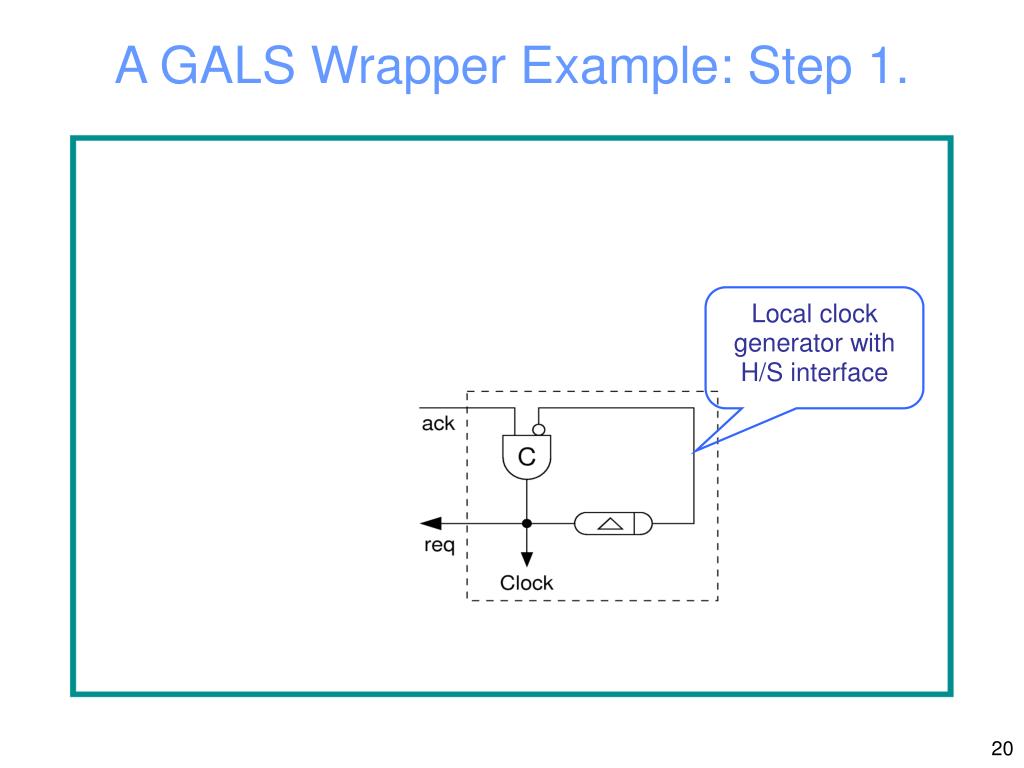

    20. A GALS Wrapper Example: Step 1. Local clock generator with H/S interface

    21. A GALS Wrapper Example: Step 2. Pausible Clock Template

    22. A GALS Wrapper Example: Step 3. Provide registered output port support (stretchable clock template)

    23. A GALS Wrapper Example: Step 4.

    24. Data-Driven Clocking for On-Chip Networks • Why is global synchrony limiting for on-chip networks? • Reconfigurable networks, adaptive low-voltage interconnect drivers, irregular topologies, …. • Problem with traditional synchronization techniques • Latency (could easily double best-case latency, our routers are single-cycle – support VCs < 30FO4) • Problems with fully-asynchronous implementations • Latency (for the router designs we have examined) • More difficult to speculate? Scheduling is expensive?

    25. Data-Driven Clocking for On-Chip Routers • Router should be clocked when one or more inputs are valid (or flits are buffered) • Elevator analogy… • Free running (paternoster) elevator • Chain of open compartments • Must synchronise before you jump on! • Traditional elevator (data-driven clock) • Wait for someone to arrive • Close doors, decide who is in and who is out • Metastability issue again (potentially painful!)

    26. Data-Driven Clock with Sampled Inputs Either admitted or locked out Incoming data Local Clock Generator Template Sample inputs when at least one input is ready (and clock is low) Assert Lock (Close Lift Doors)

    27. Clock Tree Insertion Delays • Delay from root to leaf of clock tree can be considerable (certainly non-zero!) • If every clock cycle is the same, this clockinsertion delay is not normally an issue • If we stretch the clock the insertion delay must be considered in our timing analysis (also true for clock gating in synchronous world) • Not difficult to handle, but can increase time required to admit new data

    28. Clock Tree Insertion Delays Can place logic here

    29. Clock Tree Insertion Delays • How do we handle multi-cycle insertion delays? • In practice, we would want to avoid very large synchronous blocks • Need to ensure we admit data on the correct clock cycle • Cannot cheat and promote data! We simply remember on which clock cycle data has been scheduled to be admitted

    30. Summary • Value-safe techniques are simple and robust • Powerful framework for composing synchronous sub-systems • Build efficient event-driven global communication and scheduling infrastructure? • Scope for supporting low-power techniques? (self-timed power-gating, DVFS support, timing-speculation…) • Scope for exploiting event-driven scheduling and clocking at system-level. • Synchronization costs are low enough to prompt use in on-chip network applications • More in the paper, aims to be a useful survey and hopefully fills some gaps too.

    31. Thank You!
