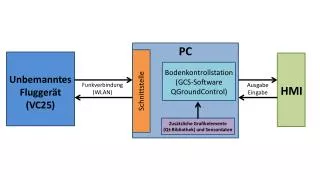

  1. PC Bodenkontrollstation (GCS-Software QGroundControl) Unbemanntes Fluggerät (VC25) Funkverbindung (WLAN) Ausgabe Eingabe HMI Schnittstelle Zusätzliche Grafikelemente (Qt-Bibliothek) und Sensordaten

  2. GUI EFIS Widget Temperatur classefis: publicQwidget { QLabel QPaintEvent() . . . }; Drehzahl Set-Methoden Qt-Klassenbibliothek Strom 18 Motoren
