Presentation Transcript

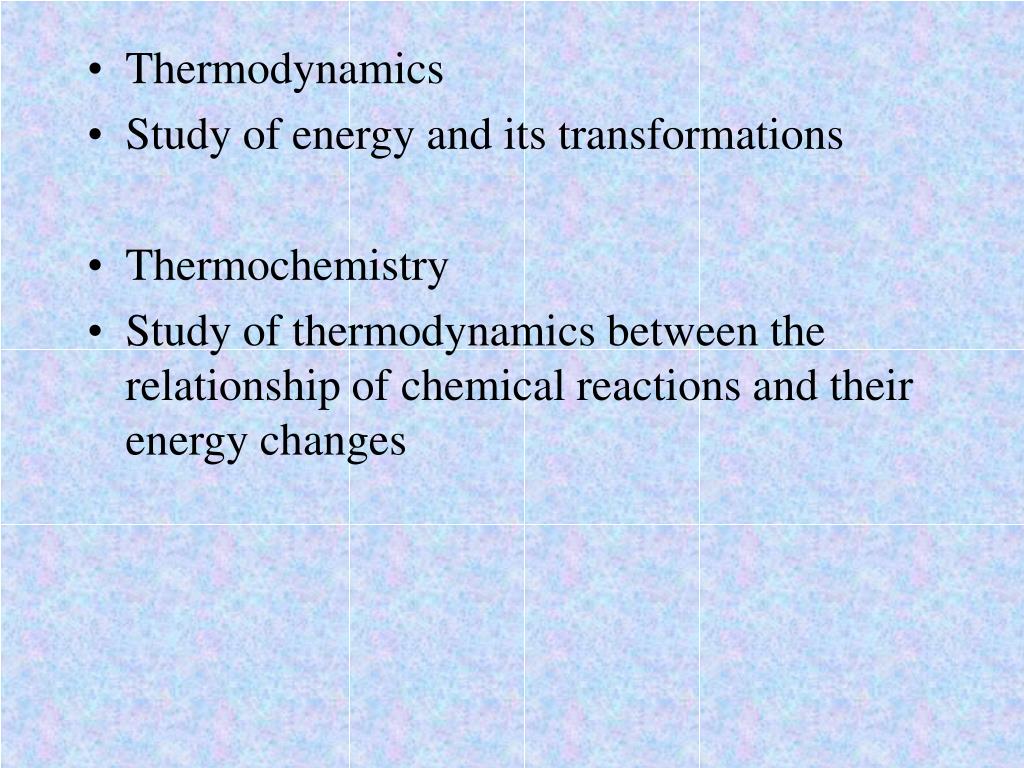

  • Thermodynamics

  • Study of energy and its transformations

  • Thermochemistry

  • Study of thermodynamics between the relationship of chemical reactions and their energy changes

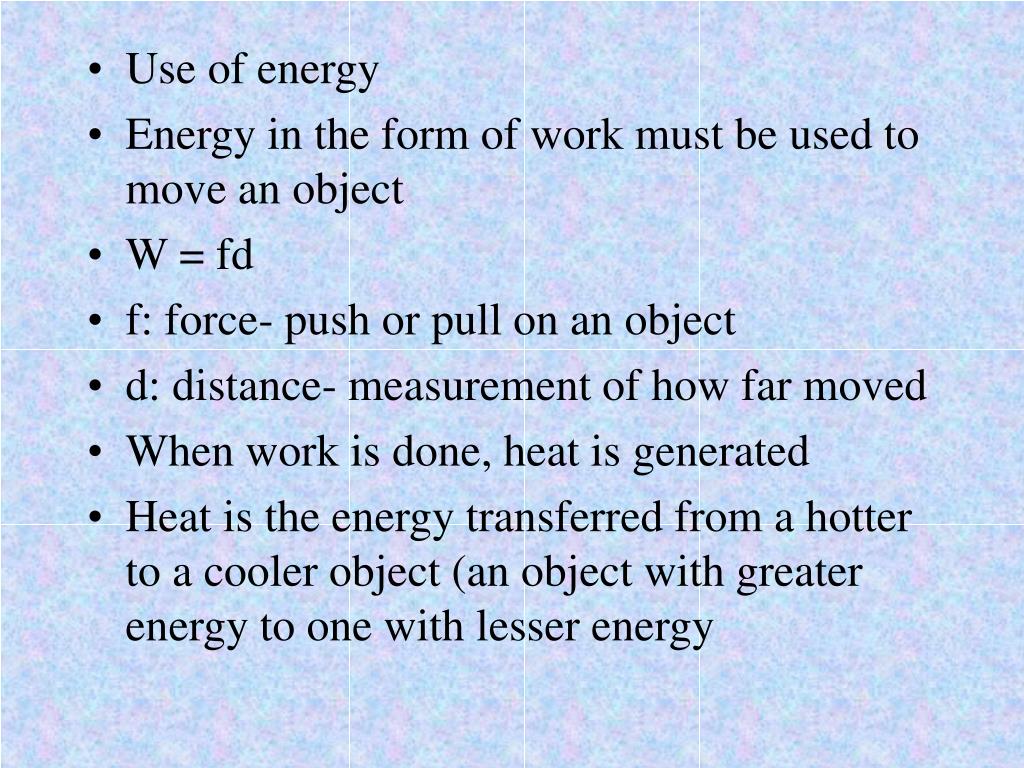

  • Use of energy

  • Energy in the form of work must be used to move an object

  • W = fd

  • f: force- push or pull on an object

  • d: distance- measurement of how far moved

  • When work is done, heat is generated

  • Heat is the energy transferred from a hotter to a cooler object (an object with greater energy to one with lesser energy

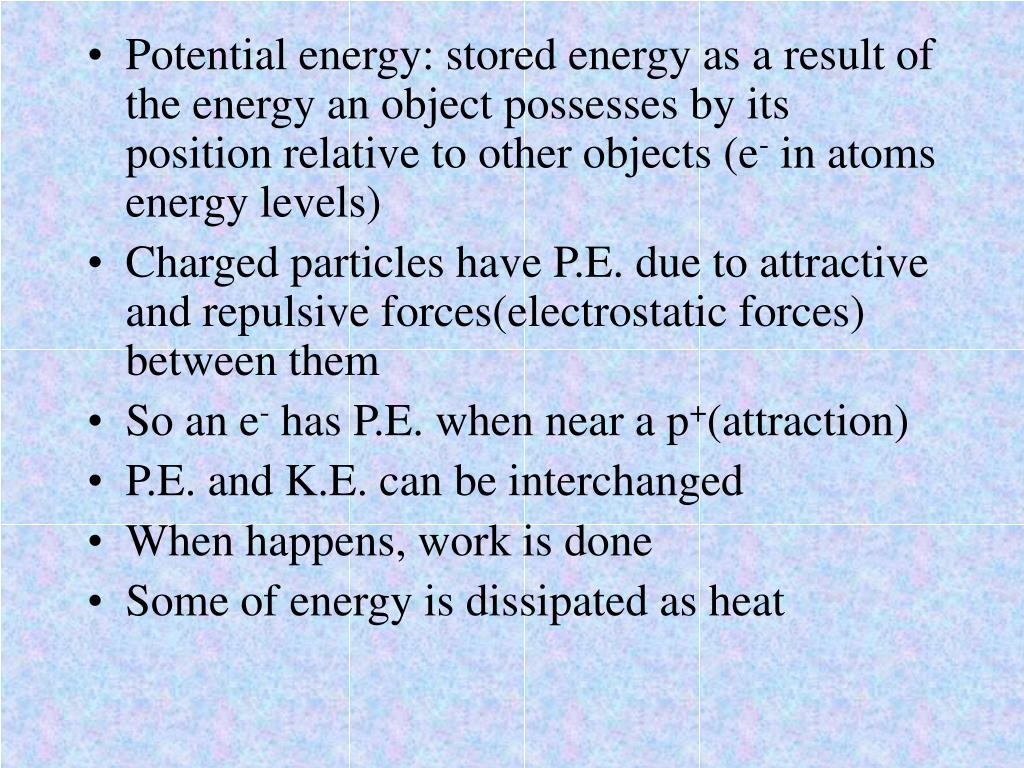

  • Potential energy: stored energy as a result of the energy an object possesses by its position relative to other objects (e- in atoms energy levels)

  • Charged particles have P.E. due to attractive and repulsive forces(electrostatic forces) between them

  • So an e- has P.E. when near a p+(attraction)

  • P.E. and K.E. can be interchanged

  • When happens, work is done

  • Some of energy is dissipated as heat


  • Need to relate these changes on the atomic or molecular scale

  • Chemical energy is due to P.E. stored in bonds of a substances atoms

  • Energy substances possess due to temperature (thermal energy) are due to K.E.

  • Heat is the transfer of thermal energy from substances with greater average K.E. to those with lower avg. K.E.

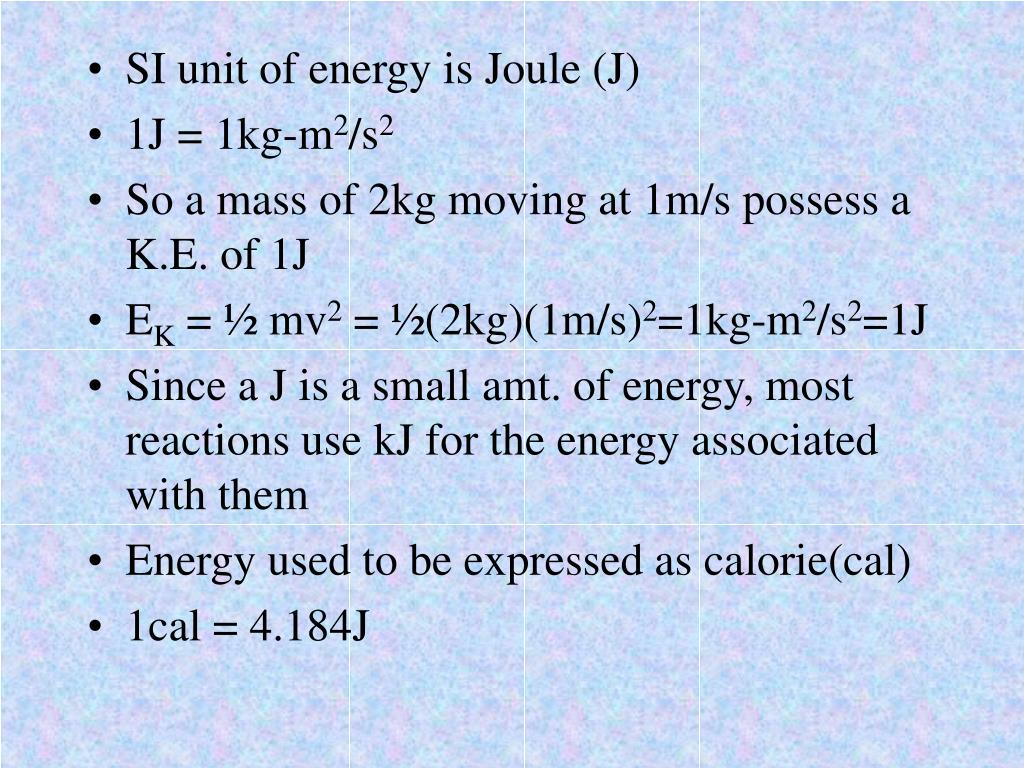

  • SI unit of energy is Joule (J) scale

  • 1J = 1kg-m2/s2

  • So a mass of 2kg moving at 1m/s possess a K.E. of 1J

  • EK = ½ mv2 = ½(2kg)(1m/s)2=1kg-m2/s2=1J

  • Since a J is a small amt. of energy, most reactions use kJ for the energy associated with them

  • Energy used to be expressed as calorie(cal)

  • 1cal = 4.184J

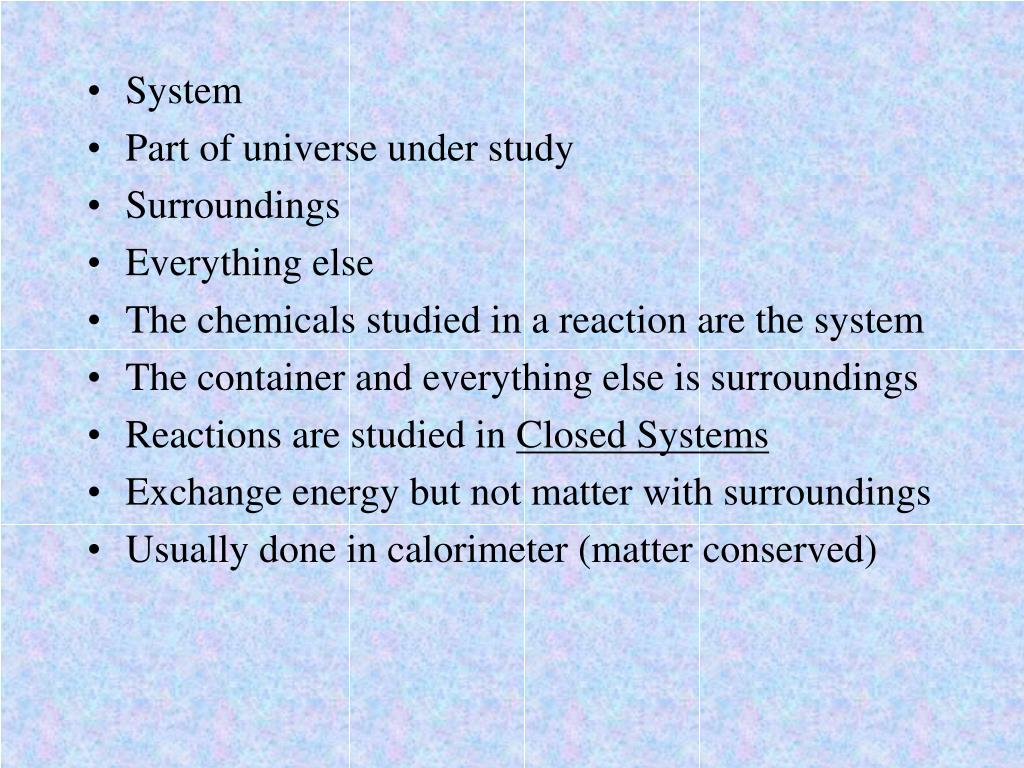

  • System scale

  • Part of universe under study

  • Surroundings

  • Everything else

  • The chemicals studied in a reaction are the system

  • The container and everything else is surroundings

  • Reactions are studied in Closed Systems

  • Exchange energy but not matter with surroundings

  • Usually done in calorimeter (matter conserved)

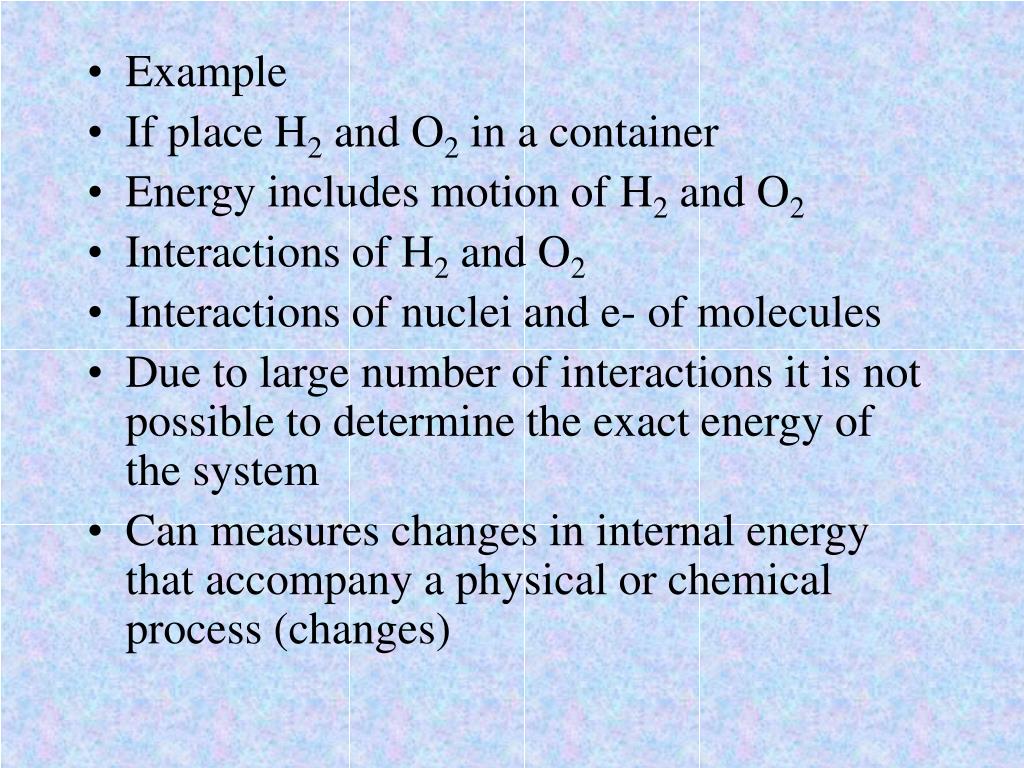

  • Example scale

  • If place H2 and O2 in a container

  • Energy includes motion of H2 and O2

  • Interactions of H2 and O2

  • Interactions of nuclei and e- of molecules

  • Due to large number of interactions it is not possible to determine the exact energy of the system

  • Can measures changes in internal energy that accompany a physical or chemical process (changes)

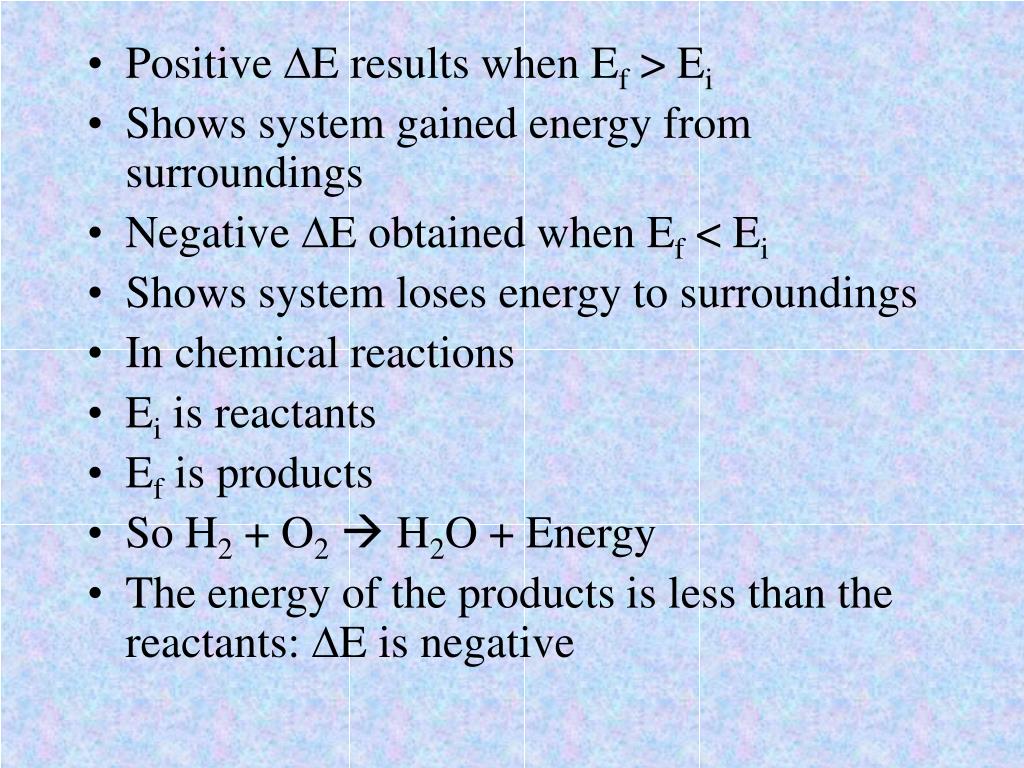

  • Positive of system at the completion of a process and that of the beginningDE results when Ef > Ei

  • Shows system gained energy from surroundings

  • Negative DE obtained when Ef < Ei

  • Shows system loses energy to surroundings

  • In chemical reactions

  • Ei is reactants

  • Ef is products

  • So H2 + O2 H2O + Energy

  • The energy of the products is less than the reactants: DE is negative

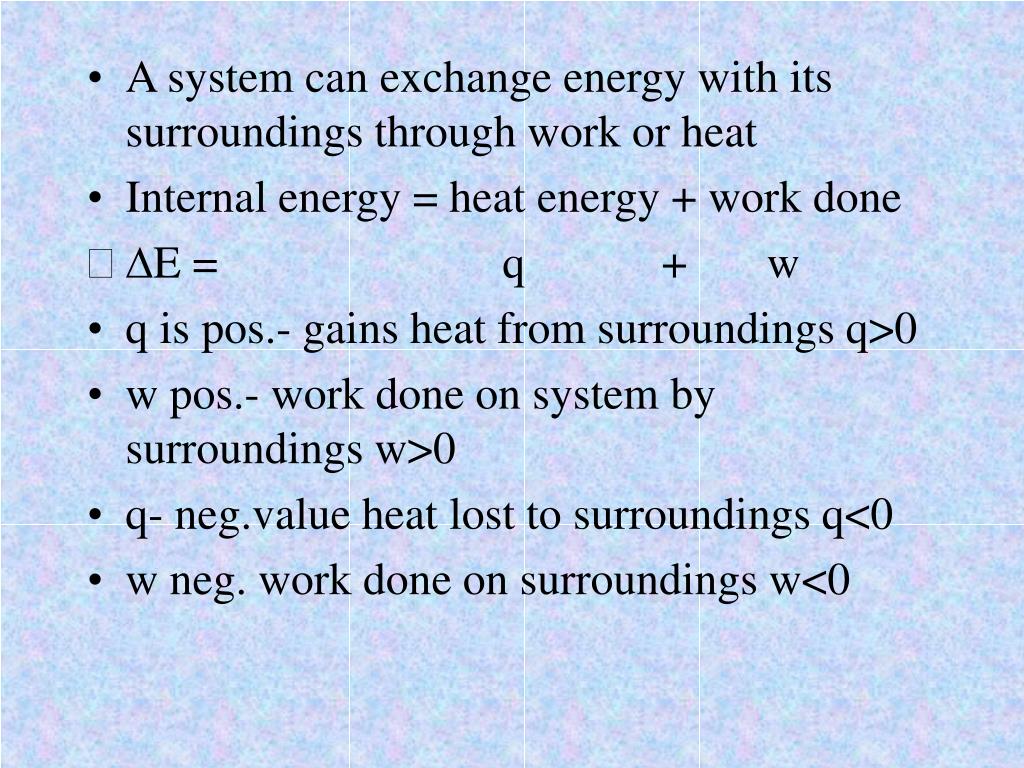

  • A system can exchange energy with its surroundings through work or heat

  • Internal energy = heat energy + work done

  • DE = q + w

  • q is pos.- gains heat from surroundings q>0

  • w pos.- work done on system by surroundings w>0

  • q- neg.value heat lost to surroundings q<0

  • w neg. work done on surroundings w<0

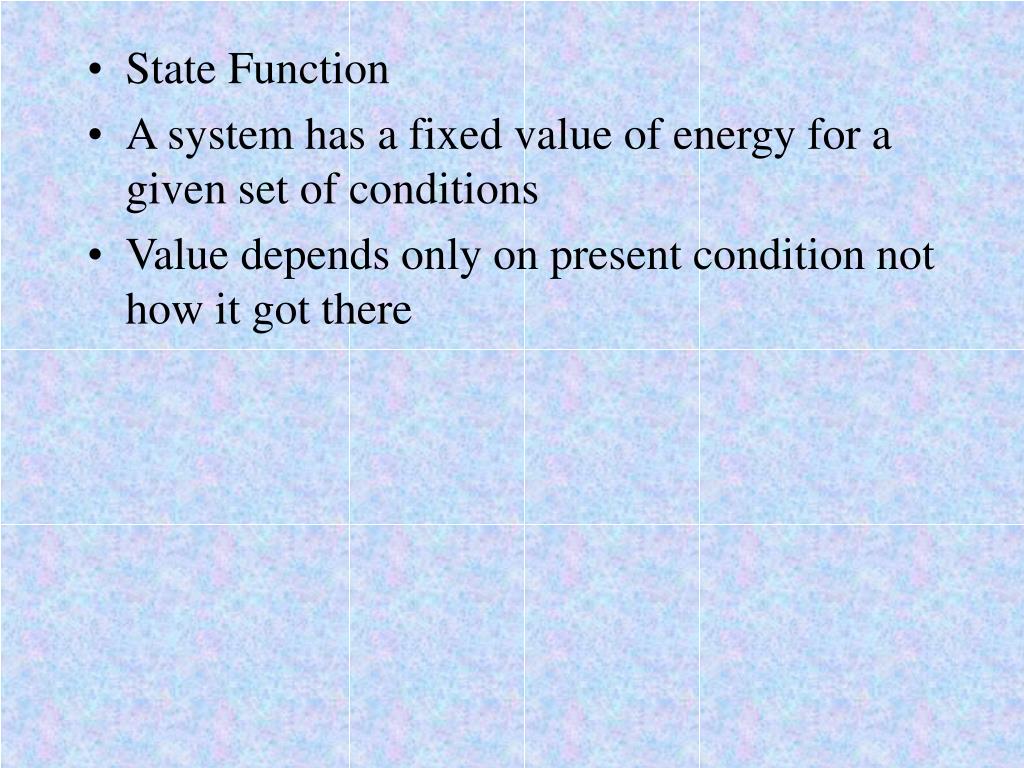

  • State Function work or heat

  • A system has a fixed value of energy for a given set of conditions

  • Value depends only on present condition not how it got there

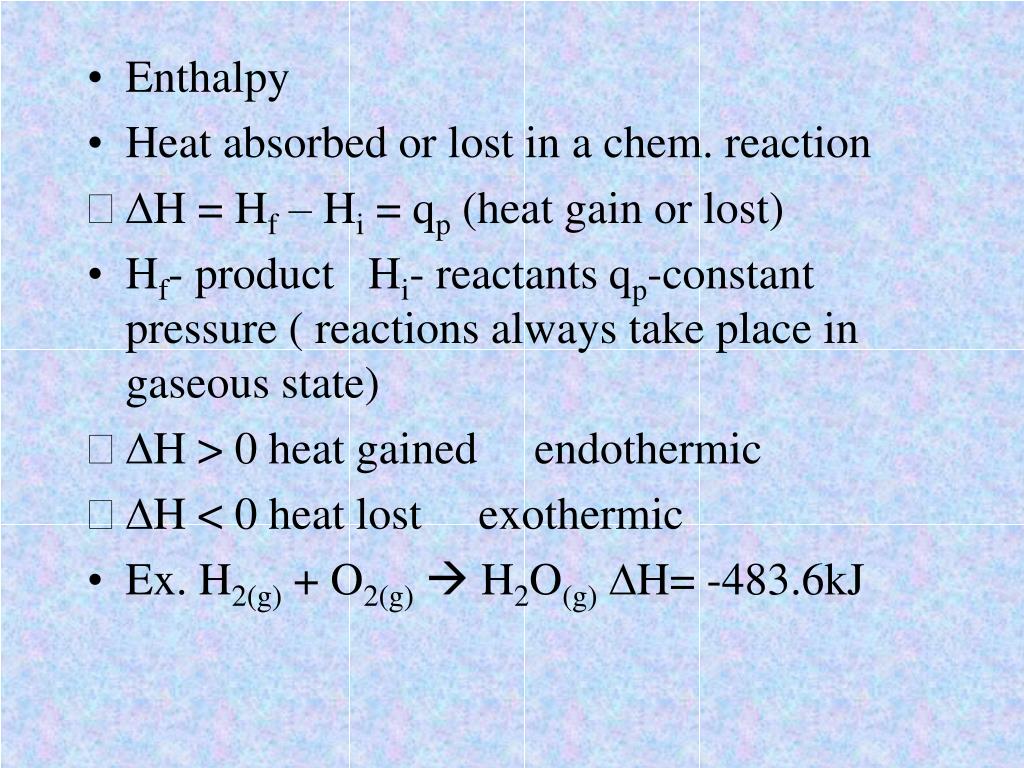

  • Enthalpy work or heat

  • Heat absorbed or lost in a chem. reaction

  • DH = Hf – Hi = qp (heat gain or lost)

  • Hf- product Hi- reactants qp-constant pressure ( reactions always take place in gaseous state)

  • DH > 0 heat gained endothermic

  • DH < 0 heat lost exothermic

  • Ex. H2(g) + O2(g) H2O(g)DH= -483.6kJ

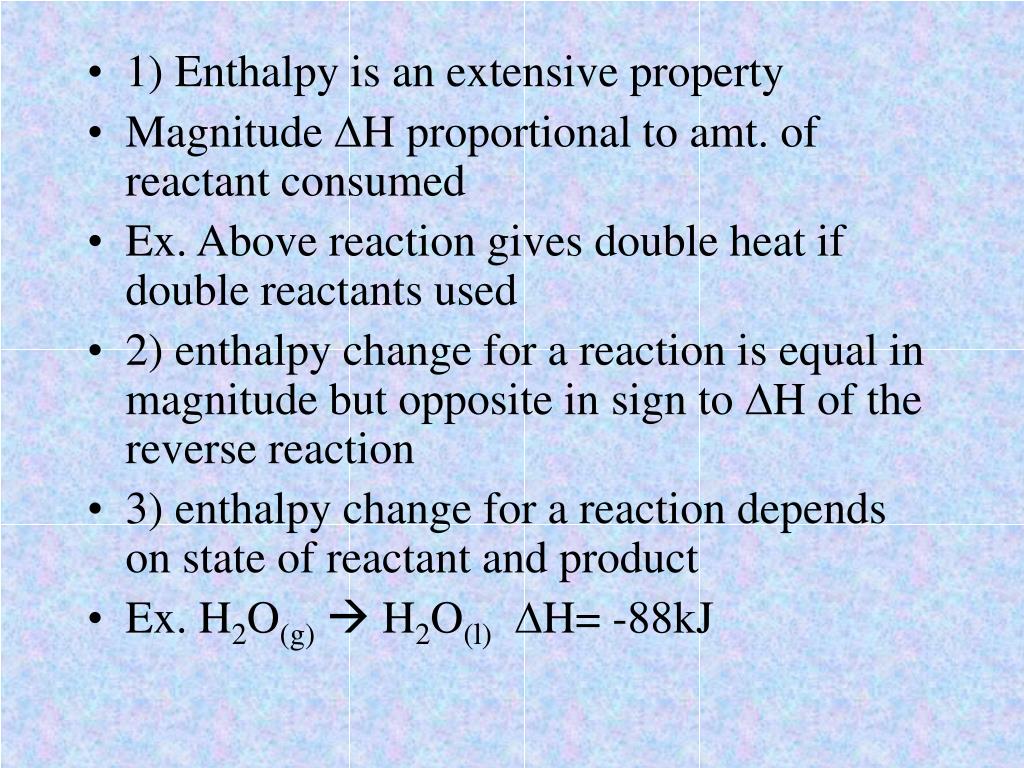

  • 1) Enthalpy is an extensive property work or heat

  • Magnitude DH proportional to amt. of reactant consumed

  • Ex. Above reaction gives double heat if double reactants used

  • 2) enthalpy change for a reaction is equal in magnitude but opposite in sign to DH of the reverse reaction

  • 3) enthalpy change for a reaction depends on state of reactant and product

  • Ex. H2O(g) H2O(l)DH= -88kJ

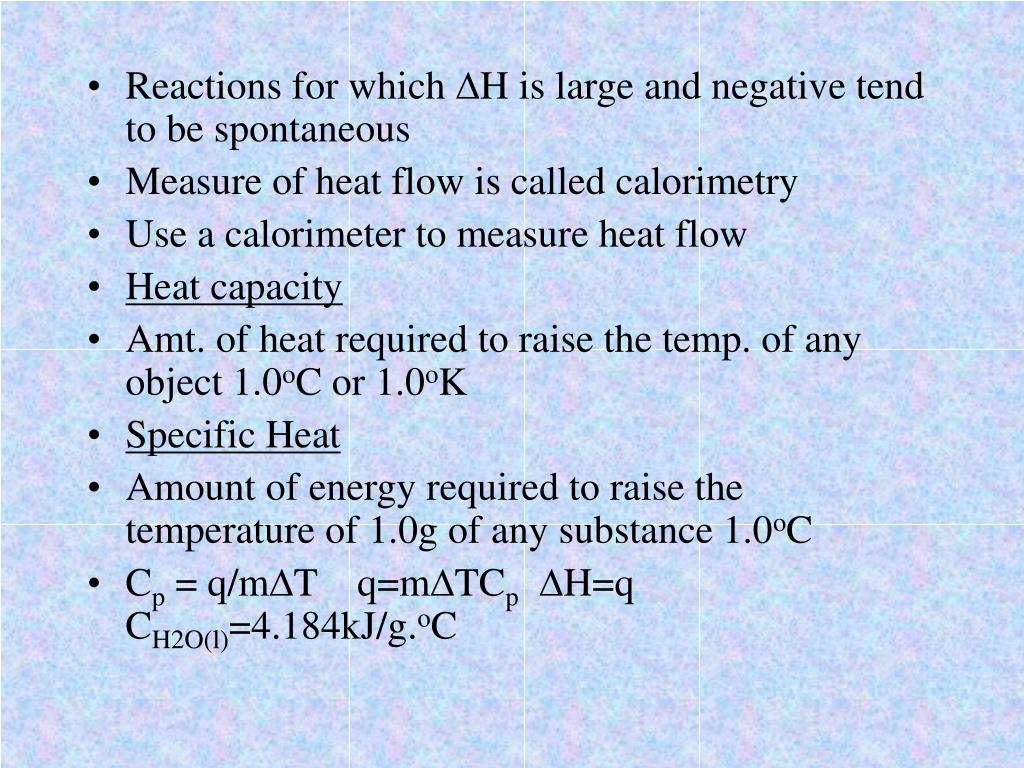

  • Reactions for which work or heatDH is large and negative tend to be spontaneous

  • Measure of heat flow is called calorimetry

  • Use a calorimeter to measure heat flow

  • Heat capacity

  • Amt. of heat required to raise the temp. of any object 1.0oC or 1.0oK

  • Specific Heat

  • Amount of energy required to raise the temperature of 1.0g of any substance 1.0oC

  • Cp = q/mDT q=mDTCpDH=q CH2O(l)=4.184kJ/g.oC

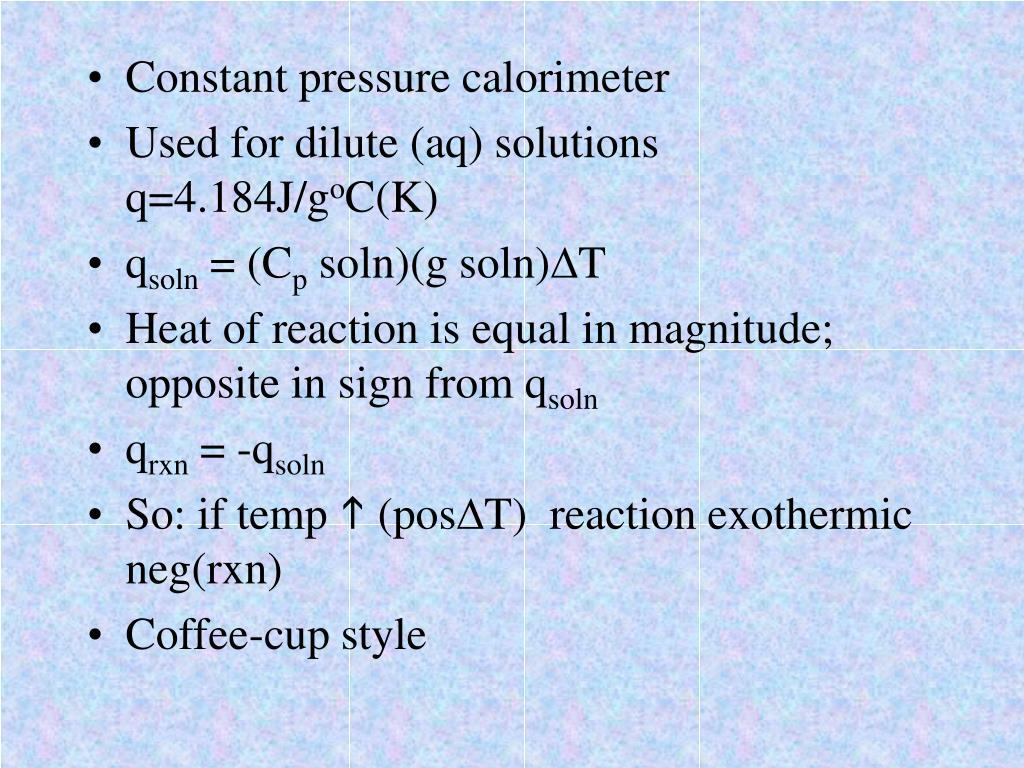

  • Constant pressure calorimeter work or heat

  • Used for dilute (aq) solutions q=4.184J/goC(K)

  • qsoln = (Cp soln)(g soln)DT

  • Heat of reaction is equal in magnitude; opposite in sign from qsoln

  • qrxn = -qsoln

  • So: if temp h (posDT) reaction exothermic neg(rxn)

  • Coffee-cup style


  • Bomb Calorimeter work or heat

  • Used for constant volume

  • More familiar

  • Ccalorimeter heat capacity must be known

  • Remember: has a measured amount of water

  • qrxn = -Ccalorimeter x DT


  • Hess’s Law work or heat

  • If a reaction is carried out in a series of steps, DH for the reaction will be equal to the sum of the enthalpy changes for the individual steps

  • Therefore we can calculate DH for a reaction by “adding” up known DH of reactions

  • Used to obtain energy changes that are difficult to measure or predetermine


  • Ex. work or heat

  • Calculate DH for :

  • 2C(s) + H2(g) C2H2(g) given the following:

  • Correct mols and divide so function of coefficients mols for wanted product is one

  • C2H2(g) + 5/2O2(g)  2CO2(g) + H2O(l) DH = -1299.6kJ

  • C(s) + O2(g) CO2(g)DH = -393.5kJ

  • H2(g) + 1/2O2(g)  H2O(l)DH = -285.9kJ

  • Rearrange the equations so similar to algebra:

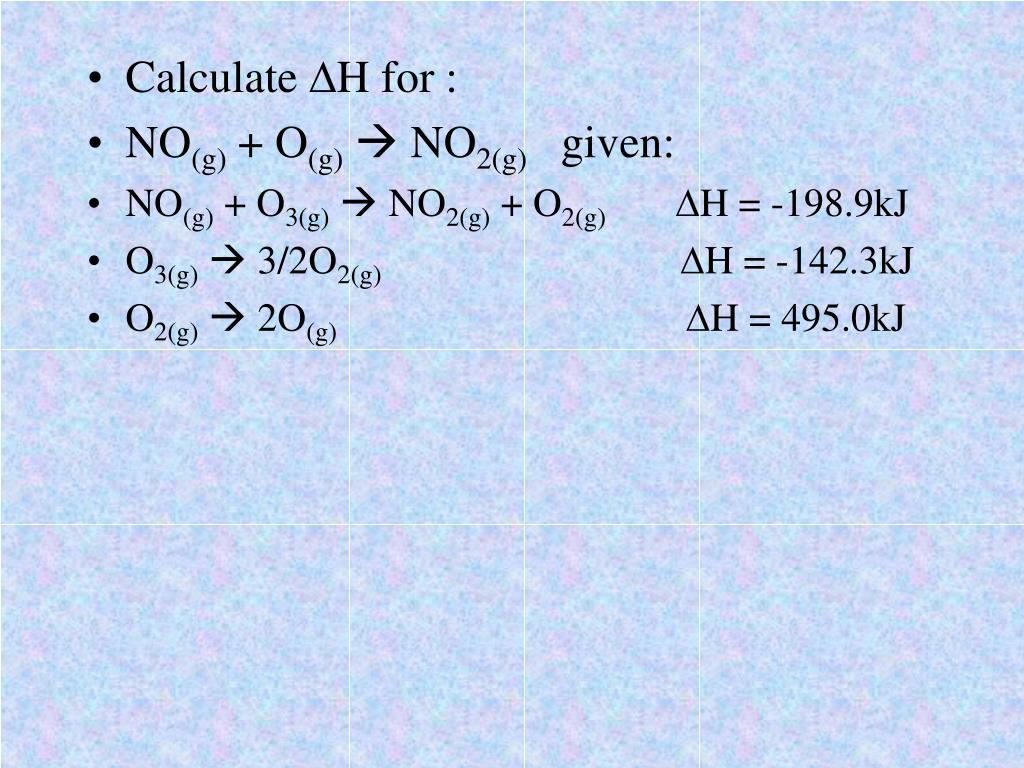

  • Calculate work or heatDH for :

  • NO(g) + O(g) NO2(g) given:

  • NO(g) + O3(g)  NO2(g) + O2(g) DH = -198.9kJ

  • O3(g)  3/2O2(g)DH = -142.3kJ

  • O2(g)  2O(g)DH = 495.0kJ

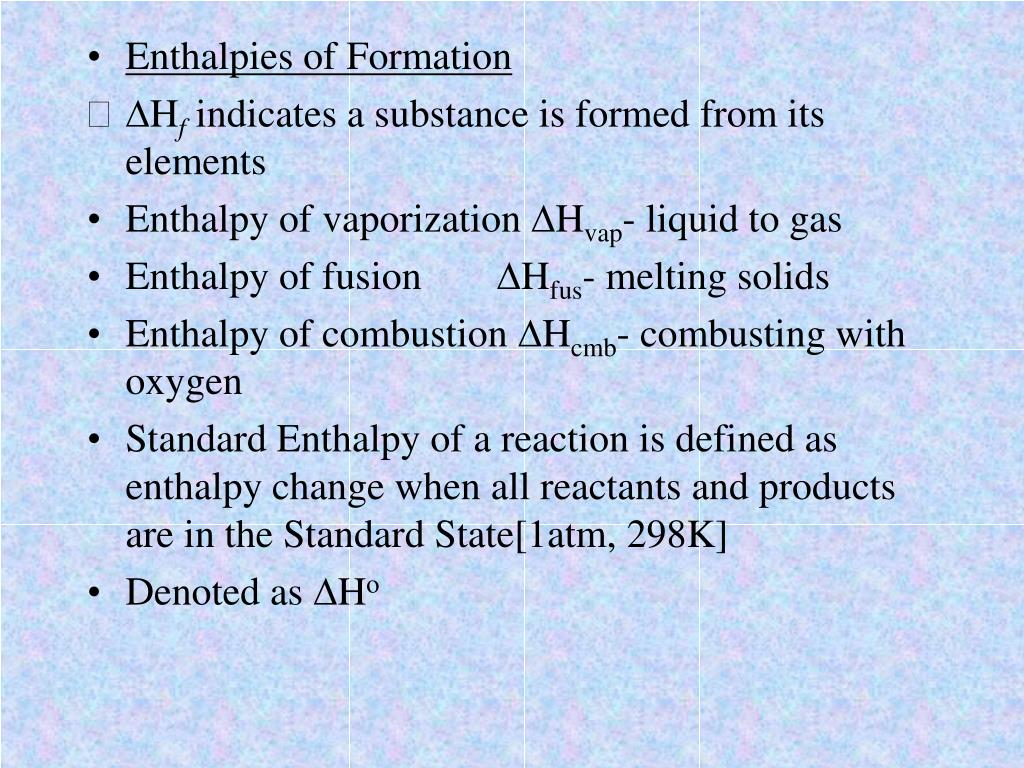

  • Enthalpies of Formation work or heat

  • DHf indicates a substance is formed from its elements

  • Enthalpy of vaporization DHvap- liquid to gas

  • Enthalpy of fusion DHfus- melting solids

  • Enthalpy of combustion DHcmb- combusting with oxygen

  • Standard Enthalpy of a reaction is defined as enthalpy change when all reactants and products are in the Standard State[1atm, 298K]

  • Denoted as DHo

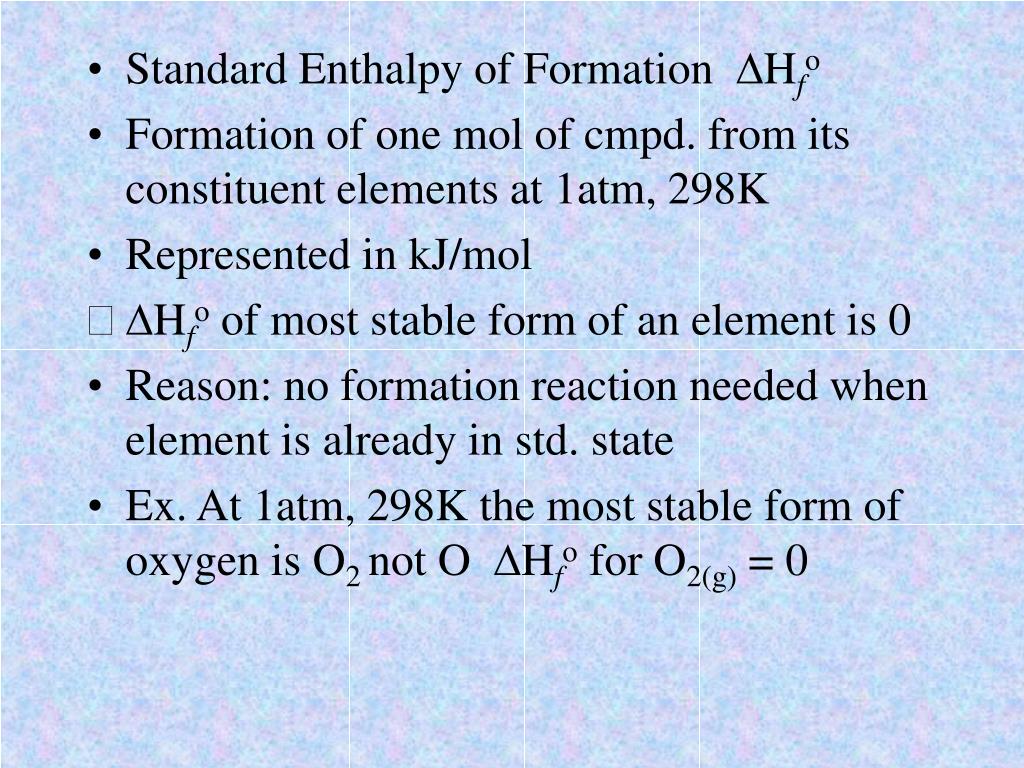

  • Standard Enthalpy of Formation work or heatDHfo

  • Formation of one mol of cmpd. from its constituent elements at 1atm, 298K

  • Represented in kJ/mol

  • DHfo of most stable form of an element is 0

  • Reason: no formation reaction needed when element is already in std. state

  • Ex. At 1atm, 298K the most stable form of oxygen is O2 not O DHfo for O2(g) = 0

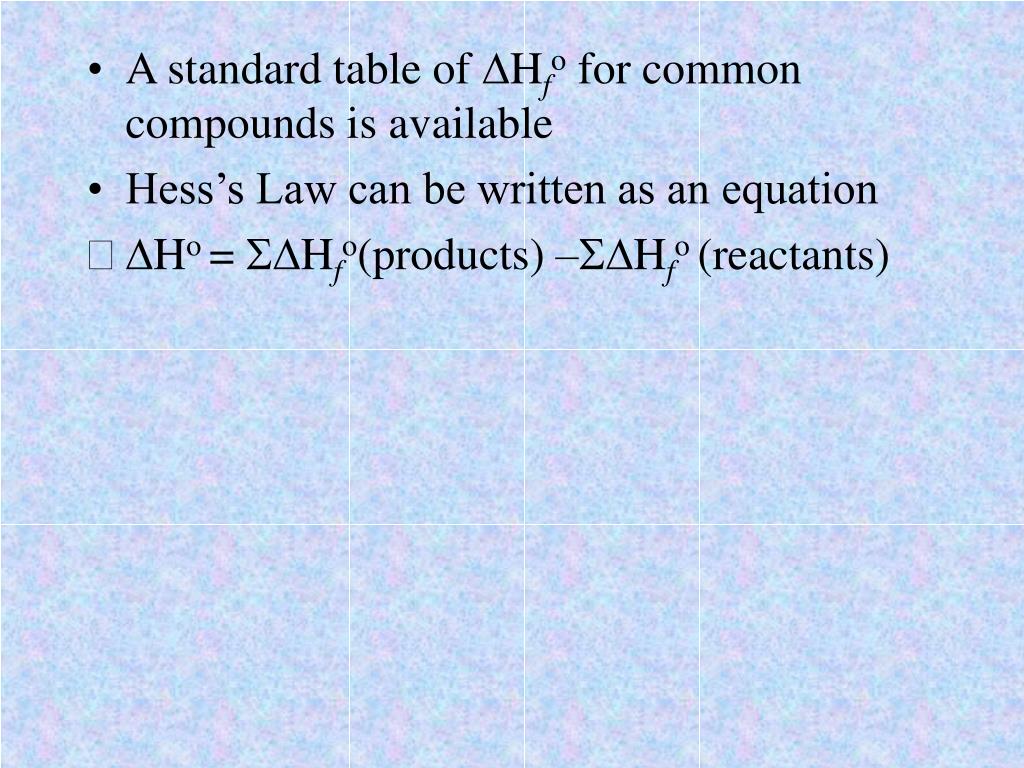

  • A standard table of work or heatDHfo for common compounds is available

  • Hess’s Law can be written as an equation

  • DHo = SDHfo(products) –SDHfo (reactants)

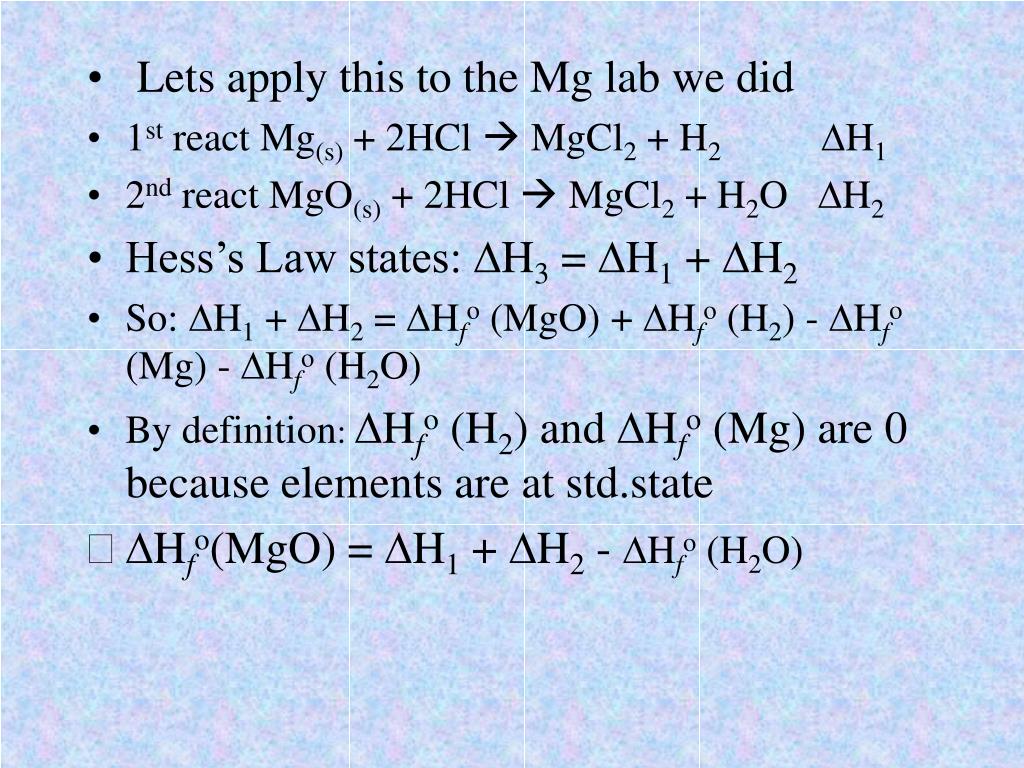

  • Lets apply this to the Mg lab we did work or heat

  • 1st react Mg(s) + 2HCl  MgCl2 + H2 DH1

  • 2nd react MgO(s) + 2HCl  MgCl2 + H2O DH2

  • Hess’s Law states: DH3 = DH1 + DH2

  • So: DH1 + DH2 = DHfo (MgO) + DHfo (H2) - DHfo (Mg) - DHfo (H2O)

  • By definition: DHfo (H2) and DHfo (Mg) are 0 because elements are at std.state

  • DHfo(MgO) = DH1 + DH2 - DHfo (H2O)

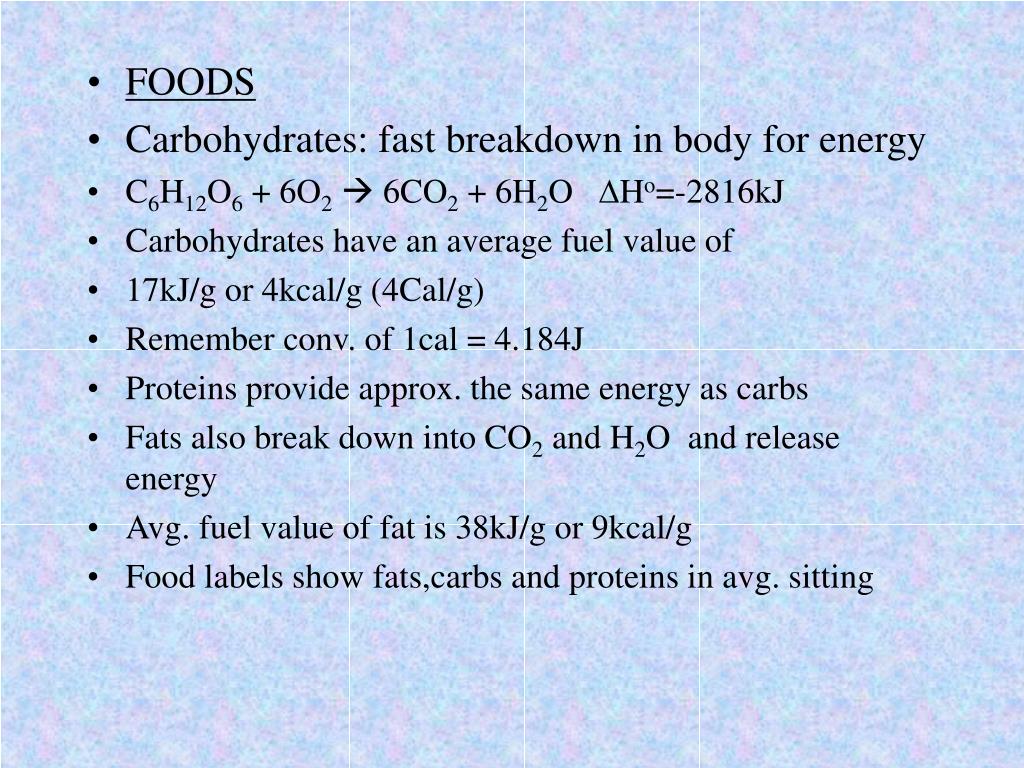

  • FOODS

  • Carbohydrates: fast breakdown in body for energy

  • C6H12O6 + 6O2 6CO2 + 6H2O DHo=-2816kJ

  • Carbohydrates have an average fuel value of

  • 17kJ/g or 4kcal/g (4Cal/g)

  • Remember conv. of 1cal = 4.184J

  • Proteins provide approx. the same energy as carbs

  • Fats also break down into CO2 and H2O and release energy

  • Avg. fuel value of fat is 38kJ/g or 9kcal/g

  • Food labels show fats,carbs and proteins in avg. sitting

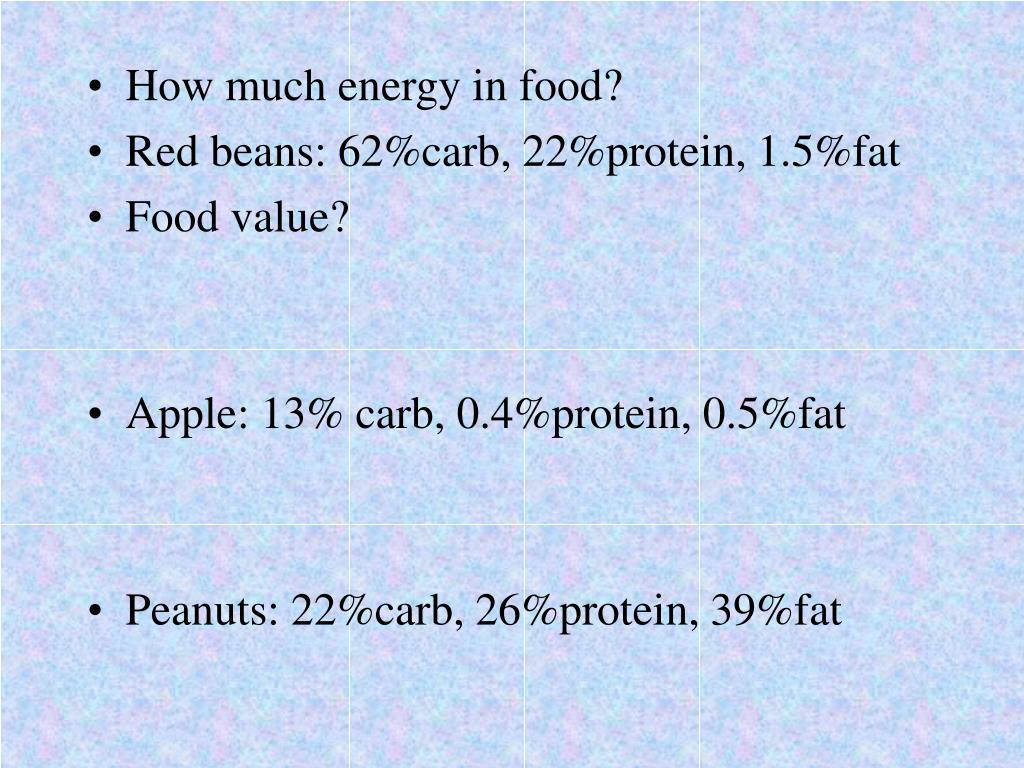

  • How much energy in food?

  • Red beans: 62%carb, 22%protein, 1.5%fat

  • Food value?

  • Apple: 13% carb, 0.4%protein, 0.5%fat

  • Peanuts: 22%carb, 26%protein, 39%fat

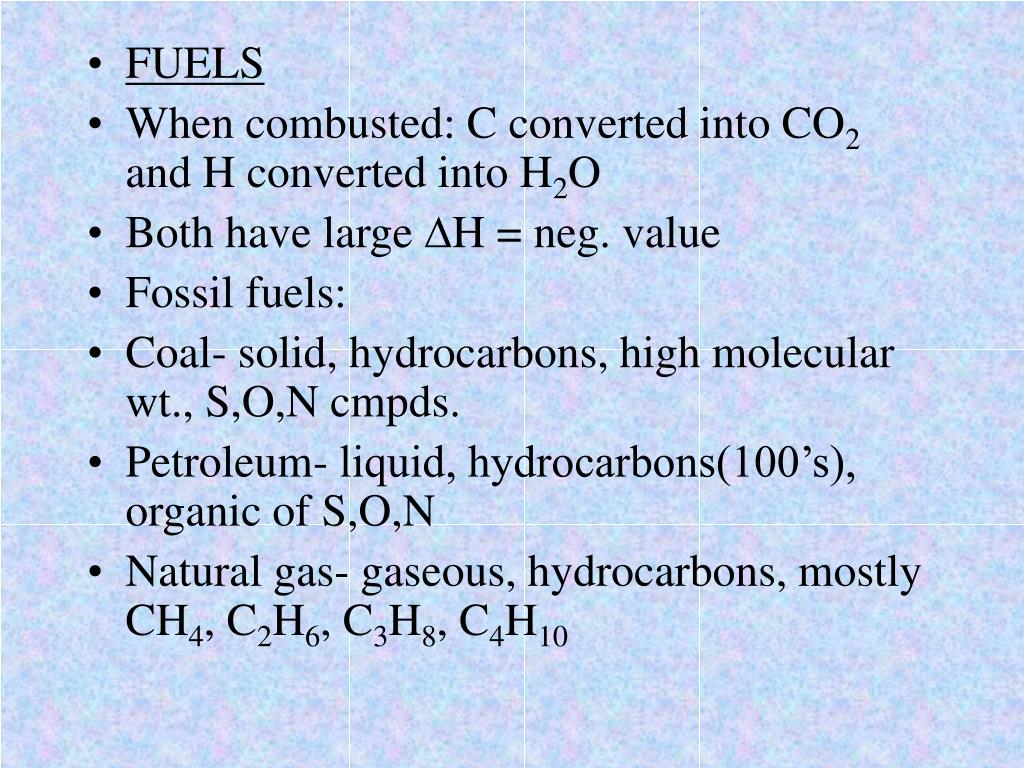

  • FUELS

  • When combusted: C converted into CO2 and H converted into H2O

  • Both have large DH = neg. value

  • Fossil fuels:

  • Coal- solid, hydrocarbons, high molecular wt., S,O,N cmpds.

  • Petroleum- liquid, hydrocarbons(100’s), organic of S,O,N

  • Natural gas- gaseous, hydrocarbons, mostly CH4, C2H6, C3H8, C4H10
