  1. Hydraulics And Wet Line Systems

  2. Truck Mounted Wet Line Systems

  3. What do you want your truck to do? • Dump? Or you could

  4. Run a live bottom • Or you could

  5. Haul a “Walking Floor”

  6. You could haul combinations • Exclusive

  7. We use the best components covered by factory warranty

  8. You deserve a professional system installation

  9. Professional installation

  10. Professional installation

  11. Professional installation.

  12. We offer a variety of cab controls

  13. Typical installation layout

  14. Typical layout contd.

  15. Make sure your next system is installed the right way, because • A good job reflects on the dealership that sells the truck. • A poor job can cost you even if it is not installed by your dealership. • Improperly installed or poor quality components can impact the new truck warranty. • Be sure it’s done right. Leave it up to professionals.

  16. PTO 489XQAHX-A3XK WLS TK4500 50 GAL TANK SADDLE MOUNT PRM TK5514J100-25 VAL WLS TKAHK1212 HOSE KIT PRM TK5100 PRM TK50143 ADAPTER PRM TK70157 FILTER # AW46 HYDRAULIC OIL GATG60144-1616 ADAPTER BUY BUTOP25 ¼ TEE BUY H3109X20X16 BUSH BUY 3 H3069X16 NIPPLE BUY 2 HBV125 VALVE BUY HK2917 HOSE CLAMP BUY BAV030C VALVE CON. GAT G25105-1616 FITTING GAT G95611-1616 COUP. GAT G95621-1616 COUP. GAT G60142-1616 FITTING PARTS BILL OF MATERIAL FOR WALKING FLOOR

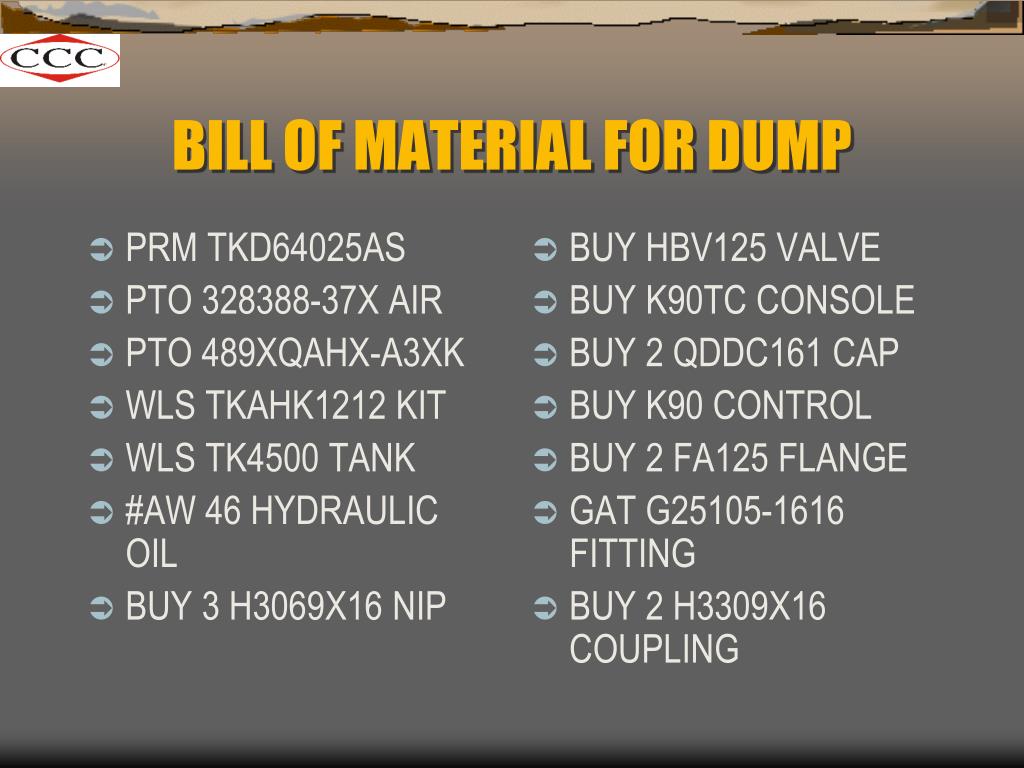

  17. PRM TKD64025AS PTO 328388-37X AIR PTO 489XQAHX-A3XK WLS TKAHK1212 KIT WLS TK4500 TANK #AW 46 HYDRAULIC OIL BUY 3 H3069X16 NIP BUY HBV125 VALVE BUY K90TC CONSOLE BUY 2 QDDC161 CAP BUY K90 CONTROL BUY 2 FA125 FLANGE GAT G25105-1616 FITTING BUY 2 H3309X16 COUPLING BILL OF MATERIAL FOR DUMP

  18. PTO 489XQAHX-A3XK PRM TKDG20ZLAS25/32 WLS TKAHK1212 WLS TK4000 50 GALLON UPRIGHT AW46 HYDRAULIC OIL GAT G25100-1616 FIT GAT G25105-1616 FIT GAT G25170-1616 FIT BUY 2 BUTOP25 TEE BUY3 H3069X16 NIP BUY2 HBV125 VALVE BUY K90TC CONSOL BUY 2 QDDC161 CAP BUY H5205X16 ADAP. BUY K90 CONTROL GAT 12 86625 HOSE GAT 86326 ADAPTER BILL OF MATERIAL FOR DUAL
