Presentation Transcript

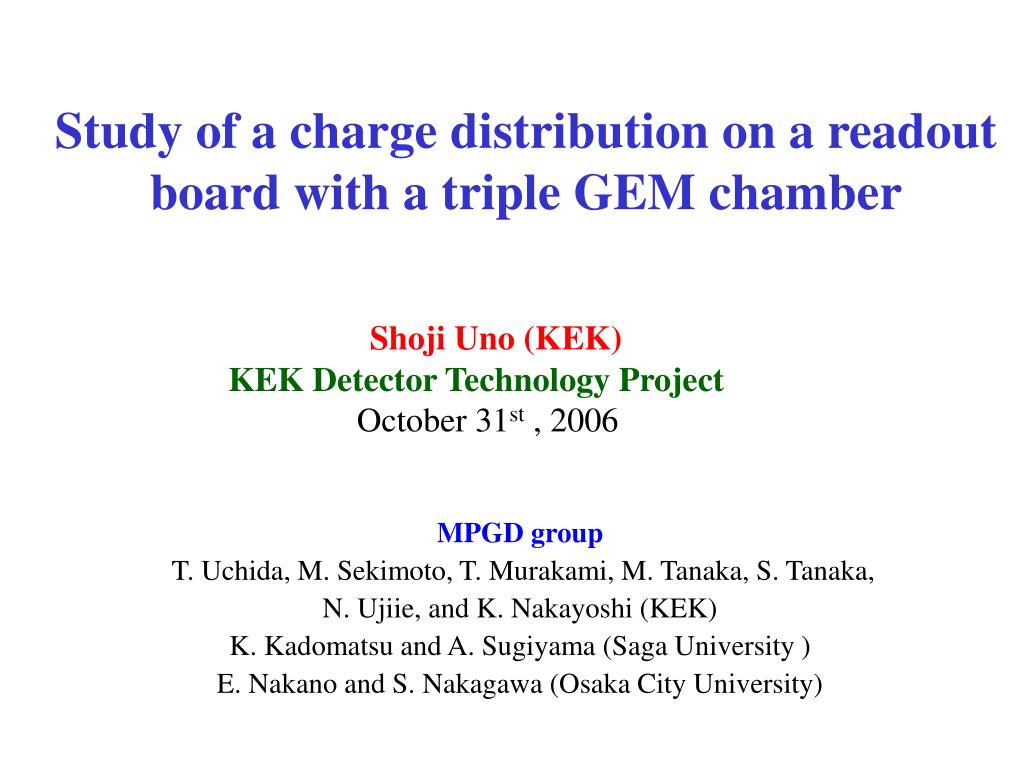

  1. Study of a charge distribution on a readout board with a triple GEM chamber Shoji Uno (KEK) KEK Detector Technology Project October 31st , 2006 MPGD group T. Uchida, M. Sekimoto, T. Murakami, M. Tanaka, S. Tanaka, N. Ujiie, and K. Nakayoshi (KEK) K. Kadomatsu and A. Sugiyama (Saga University ) E. Nakano and S. Nakagawa (Osaka City University)

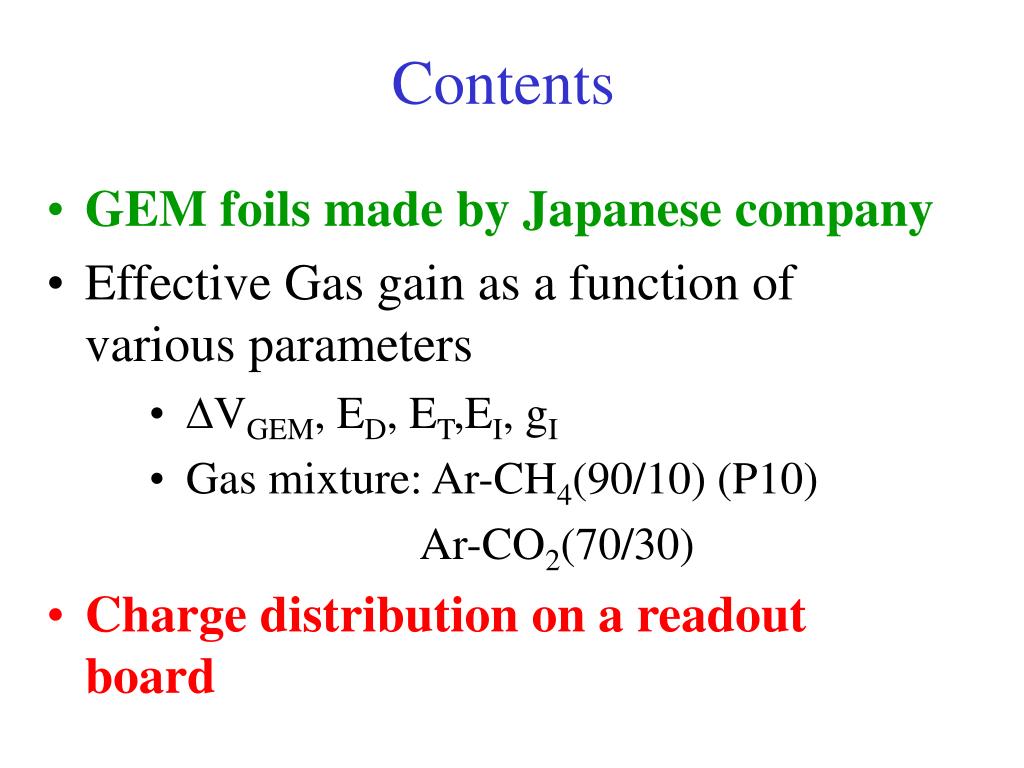

  2. Contents • GEM foils made by Japanese company • Effective Gas gain as a function of various parameters • DVGEM, ED, ET,EI, gI • Gas mixture: Ar-CH4(90/10) (P10) Ar-CO2(70/30) • Charge distribution on a readout board

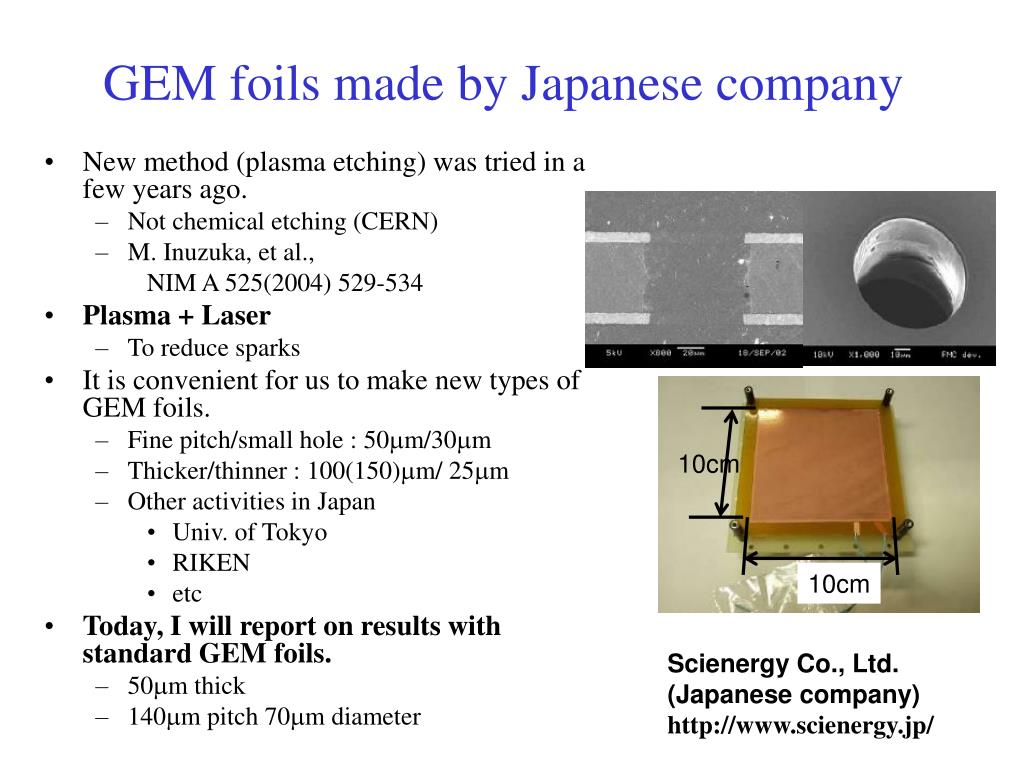

  3. 10cm 10cm GEM foils made by Japanese company • New method (plasma etching) was tried in a few years ago. • Not chemical etching (CERN) • M. Inuzuka, et al., NIM A 525(2004) 529-534 • Plasma + Laser • To reduce sparks • It is convenient for us to make new types of GEM foils. • Fine pitch/small hole : 50mm/30mm • Thicker/thinner : 100(150)mm/ 25mm • Other activities in Japan • Univ. of Tokyo • RIKEN • etc • Today, I will report on results with standard GEM foils. • 50mm thick • 140mm pitch 70mm diameter Scienergy Co., Ltd. (Japanese company) http://www.scienergy.jp/

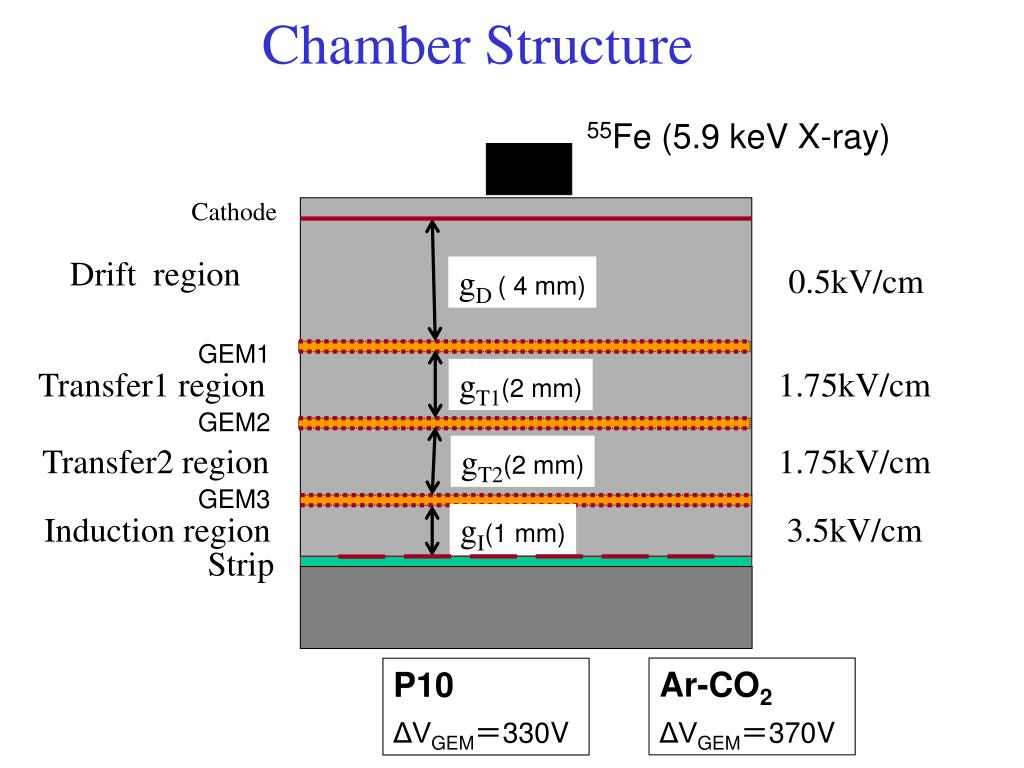

  4. Chamber Structure 55Fe (5.9 keV X-ray) Cathode Drift region 0.5kV/cm gD ( 4 mm) GEM1 Transfer1 region 1.75kV/cm gT1(2 mm) GEM2 Transfer2 region 1.75kV/cm gT2(2 mm) GEM3 Induction region 3.5kV/cm gI(1 mm) Strip Ar-CO2 ΔVGEM＝370V P10 ΔVGEM＝330V

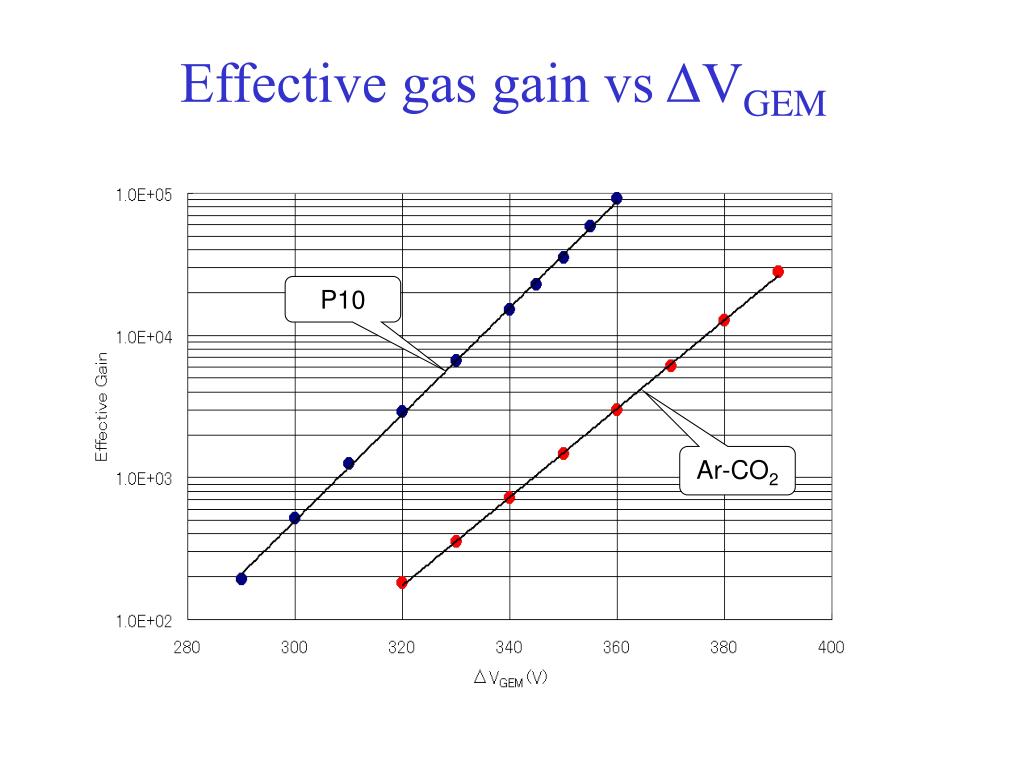

  5. P10 Ar-CO2 Effective gas gain vs ΔVGEM

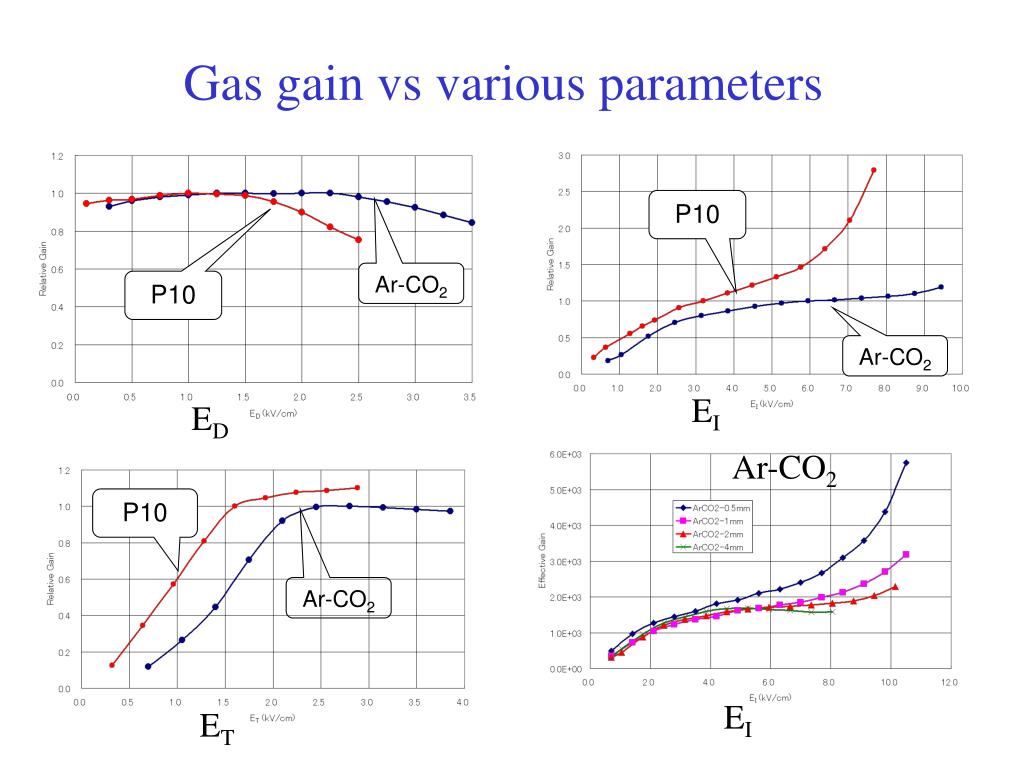

  6. Gas gain vs various parameters P10 Ar-CO2 P10 Ar-CO2 EI ED Ar-CO2 P10 Ar-CO2 EI ET

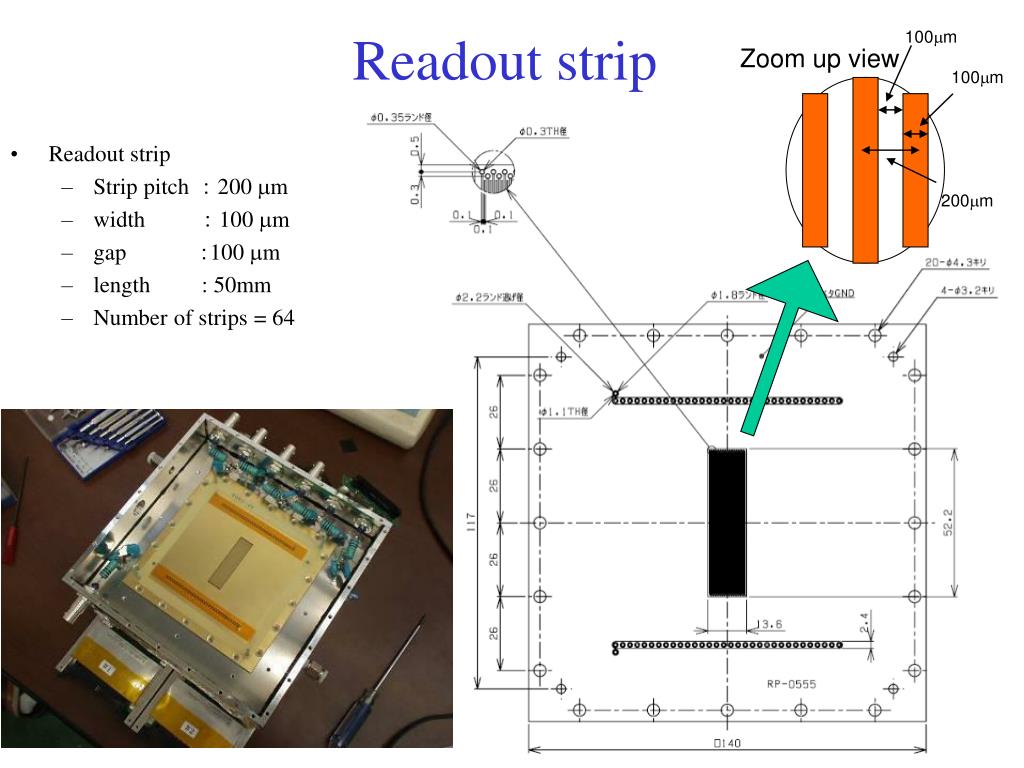

  7. 100mm Zoom up view Readout strip 100mm • Readout strip • Strip pitch ： 200 mm • width　　　 ： 100 mm • gap　 ：100 mm • length : 50mm • Number of strips = 64 200mm

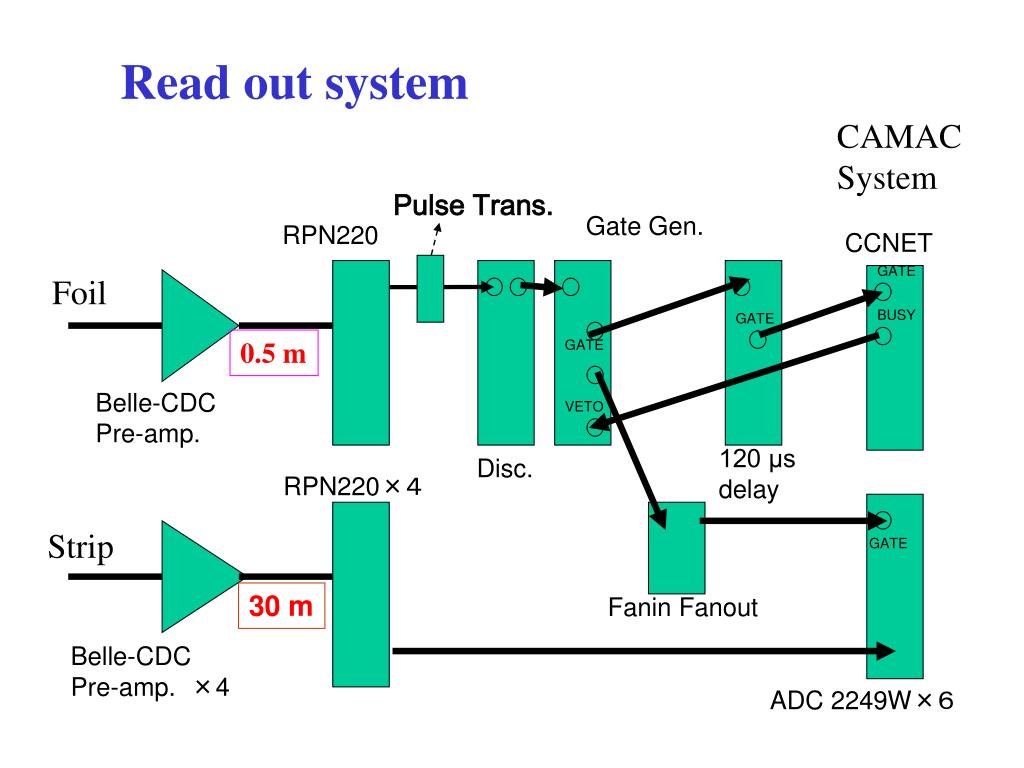

  8. Read out system CAMAC System Pulse Trans. Gate Gen. RPN220 CCNET GATE Foil BUSY GATE 0.5 m GATE Belle-CDC Pre-amp. VETO 120 μs delay Disc. RPN220×４ Strip GATE 30 m Fanin Fanout Belle-CDC Pre-amp. ×4 ADC 2249W×６

  9. OneEventDisplay ADC ADC 63 0 63 0 Channel Channel

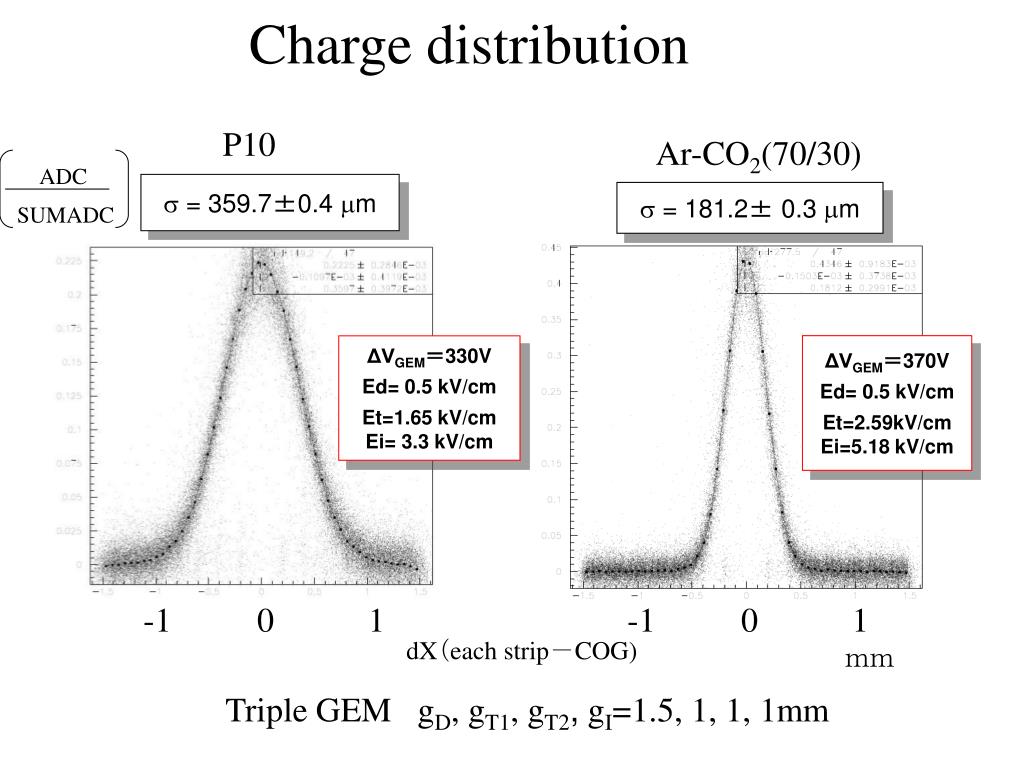

  10. Charge distribution ADC SUMADC P10 s = 359.7±0.4 mm ΔVGEM＝330V Ed= 0.5 kV/cm Et=1.65 kV/cm Ei= 3.3 kV/cm Ar-CO2(70/30) s = 181.2± 0.3 mm ΔVGEM＝370V Ed= 0.5 kV/cm Et=2.59kV/cm Ei=5.18 kV/cm -1 0 1 -1 0 1 dX（each strip－COG) ｍｍ Triple GEM gD, gT1, gT2, gI=1.5, 1, 1, 1mm

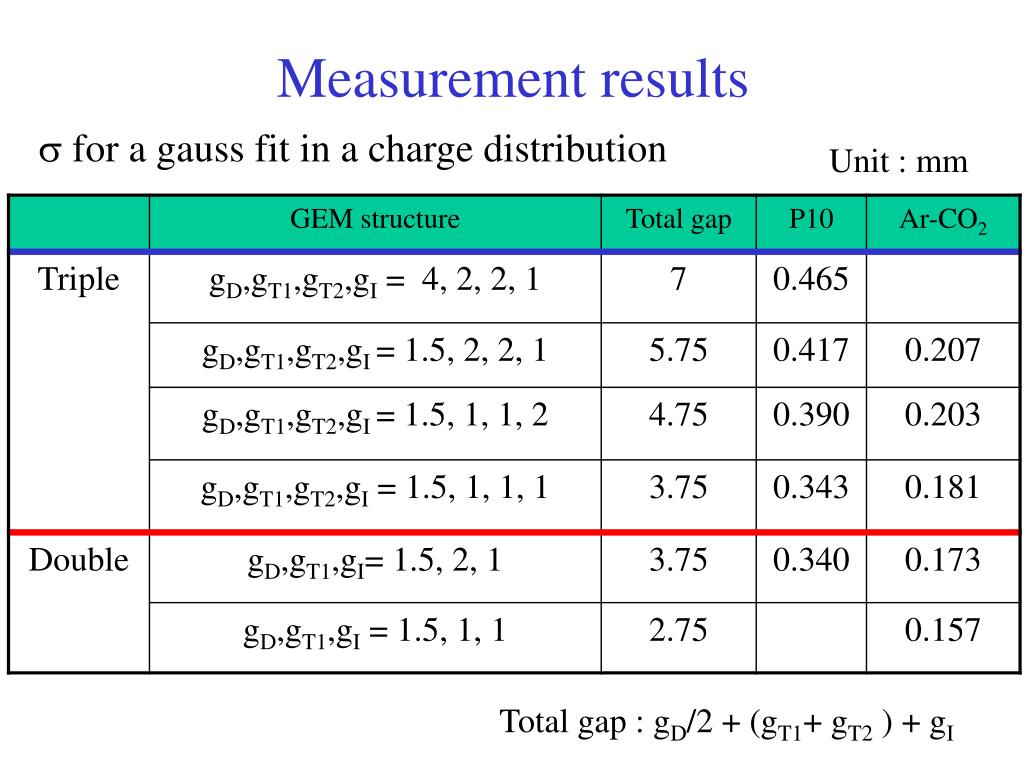

  11. Measurement results s for a gauss fit in a charge distribution Unit : mm Total gap : gD/2 + (gT1+ gT2 ) + gI

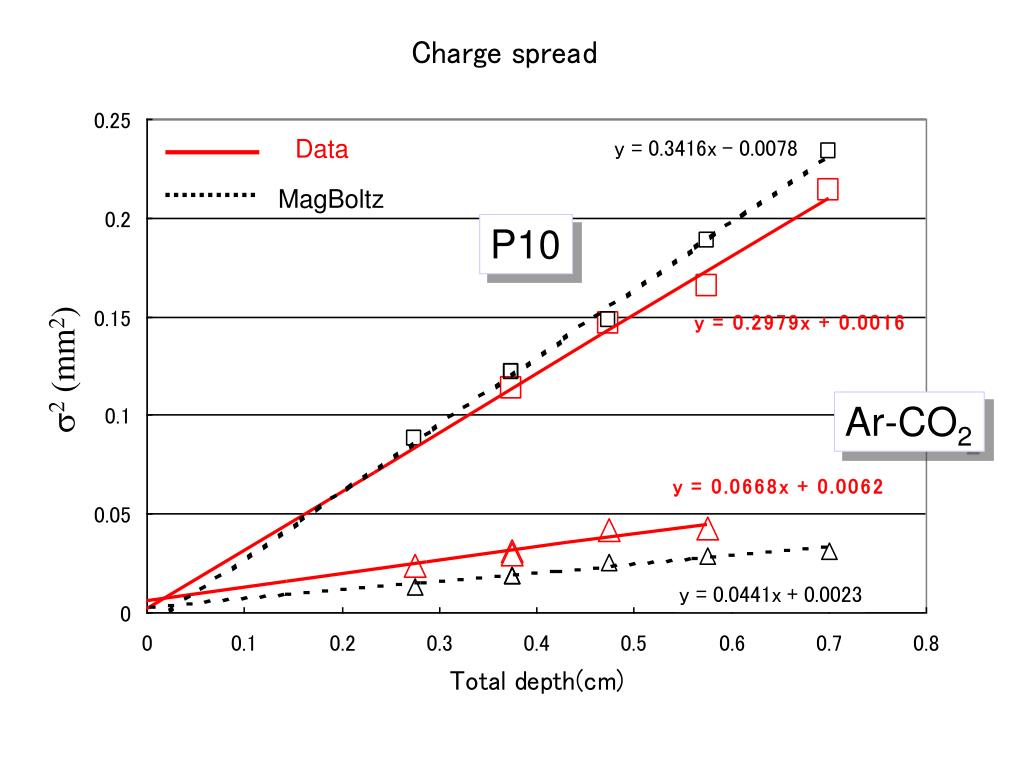

  12. Data MagBoltz P10 s2 (mm2) Ar-CO2

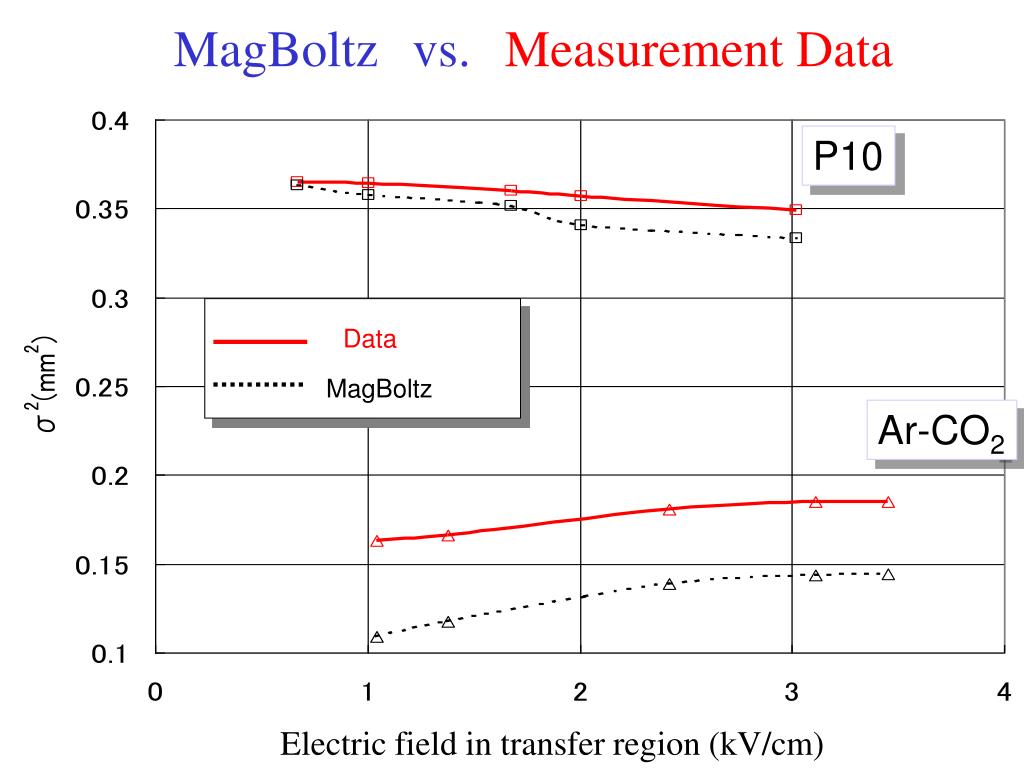

  13. MagBoltzvs.Measurement Data Data MagBoltz P10 Ar-CO2 Electric field in transfer region (kV/cm)

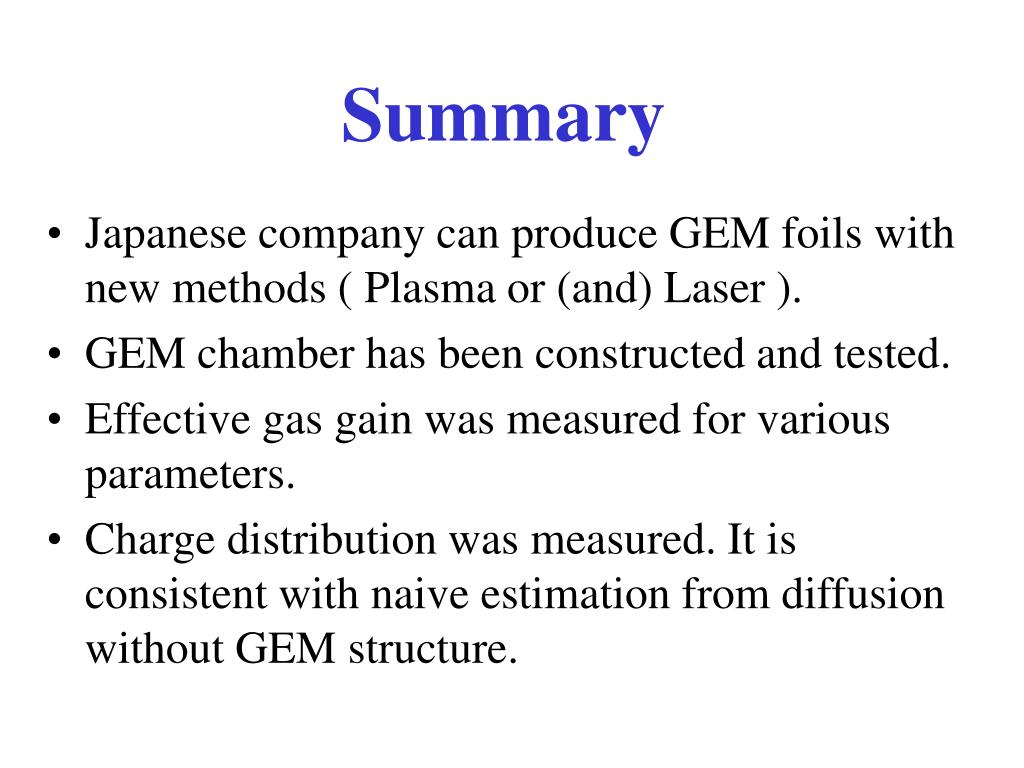

  14. Summary • Japanese company can produce GEM foils with new methods ( Plasma or (and) Laser ). • GEM chamber has been constructed and tested. • Effective gas gain was measured for various parameters. • Charge distribution was measured. It is consistent with naive estimation from diffusion without GEM structure.
