Presentation Transcript
chapter overview
Chapter 9: SHARING FILE SYSTEM RESOURCESCHAPTER OVERVIEW
  • Create and manage file system shares and work with share permissions.
  • Use NTFS file system permissions to control access to files.
  • Manage file sharing using Internet Information Services (IIS).
understanding permissions
Chapter 9: SHARING FILE SYSTEM RESOURCESUNDERSTANDING PERMISSIONS
  • File system permissions
  • Share permissions
  • Active Directory permissions
  • Registry permissions
inheritance
Chapter 9: SHARING FILE SYSTEM RESOURCESINHERITANCE
  • Allows permissions assigned at one folder to flow down to subsequent files and folders
  • Can be overridden by explicit permission assignment or inheritance blocking
  • Useful in reducing the number of permission assignments required
effective permissions
Chapter 9: SHARING FILE SYSTEM RESOURCESEFFECTIVE PERMISSIONS
  • Allowed permissions are cumulative.
  • Denied permissions override allowed permissions.
  • Explicit permissions take precedence over inherited permissions.
restrictions on creating file system shares
Chapter 9: SHARING FILE SYSTEM RESOURCESRESTRICTIONS ON CREATING FILE SYSTEM SHARES
  • On a domain controller: Administrators, Server Operators, Enterprise Admins, Domain Admins groups only
  • On a domain member server or workstation: Administrators, Server Operators, or Power Users groups only
  • On a workgroup or standalone computer: Administrators or Power Users groups only
creating a file system share using net exe
Chapter 9: SHARING FILE SYSTEM RESOURCESCREATING A FILE SYSTEM SHARE USING NET.EXE
  • Allows shares to be created from a command line
  • Lets you configure permissions during creation
  • Lets you configure offline settings for the share
using share permissions
Chapter 9: SHARING FILE SYSTEM RESOURCESUSING SHARE PERMISSIONS
  • Limited scope Can be applied only to folders and only when connecting to the share.
  • Lack of flexibility Permissions applied to the share apply to all levels below.
  • No replication Share permissions are not replicated.
  • No resiliency Share permissions cannot be backed up or restored.
using share permissions continued
Chapter 9: SHARING FILE SYSTEM RESOURCESUSING SHARE PERMISSIONS (continued)
  • Fragility Shares (and therefore share permissions) are lost when a folder is moved or renamed.
  • No auditing Share permissions do not facilitate auditing.
share permission defaults
Chapter 9: SHARING FILE SYSTEM RESOURCESSHARE PERMISSION DEFAULTS
  • When a new share is created, the following permissions are granted:
    • Everyone special identity: Read
    • Administrators: Full Control
creating a file system sharing strategy
Chapter 9: SHARING FILE SYSTEM RESOURCESCREATING A FILE SYSTEM SHARING STRATEGY
  • Create logically named shares.
  • Use nesting where necessary to reduce users’ need to navigate the directory structure.
  • Share removable drives from the root to keep the share available when media are removed and reconnected or changed.
nesting shares
Chapter 9: SHARING FILE SYSTEM RESOURCESNESTING SHARES
  • A share can be created on any folder in the file system.
  • Multiple shares on the same folder can have different permissions.
  • Permissions are applied at the share entry point.
using ntfs permissions
Chapter 9: SHARING FILE SYSTEM RESOURCESUSING NTFS PERMISSIONS
  • Scope NTFS permissions apply no matter how the file is accessed.
  • Flexibility Wide range of permissions allows assignments to be tailored.
  • Replication NTFS permissions are included when a file is replicated.
  • Resilience NTFS permissions are retained when objects are backed up.
  • Less fragile NTFS permissions are not lost if a file is moved or renamed.
  • Auditing NTFS permissions support auditing.
resource ownership
Chapter 9: SHARING FILE SYSTEM RESOURCESRESOURCE OWNERSHIP
  • Each file and folder is assigned an owner.
  • Ownership of a file makes the security principle a member of the Creator/Owner special identity.
  • Files that are owned go toward disk quota calculations.

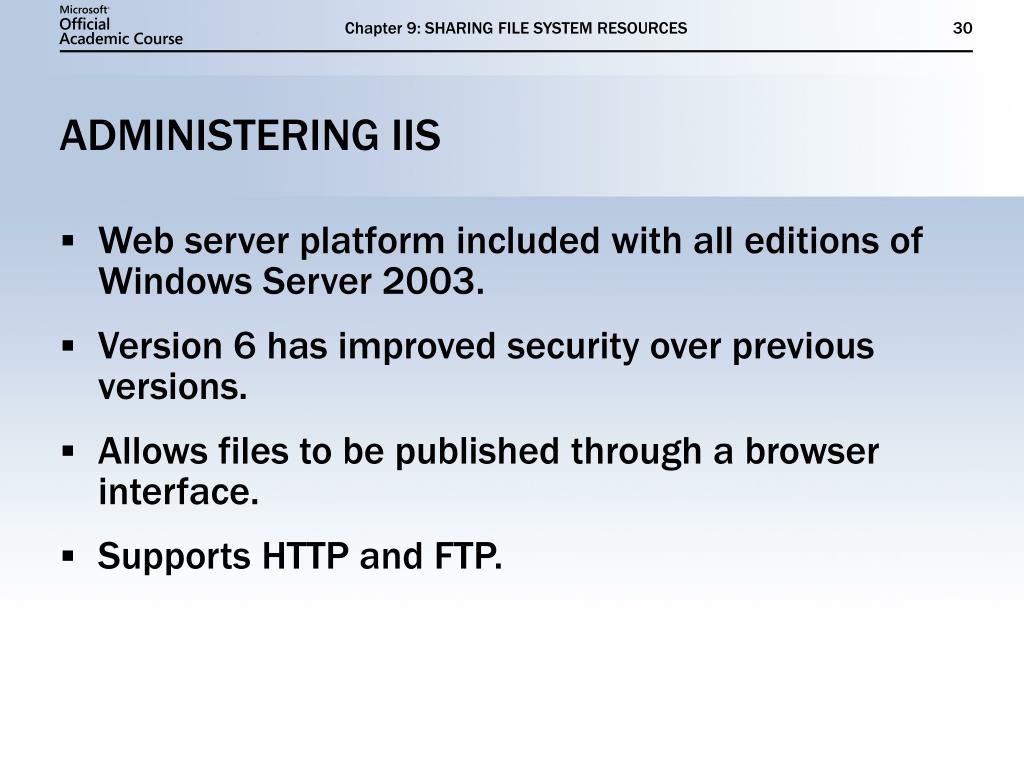

administering iis
Chapter 9: SHARING FILE SYSTEM RESOURCESADMINISTERING IIS
  • Web server platform included with all editions of Windows Server 2003.
  • Version 6 has improved security over previous versions.
  • Allows files to be published through a browser interface.
  • Supports HTTP and FTP.
installing iis
Chapter 9: SHARING FILE SYSTEM RESOURCESINSTALLING IIS
  • Not installed during operating system installation
  • Installed through the Windows Components Wizard (select Add Or Remove Programs in Control Panel, and click Add/Remove Windows Components) or through the Manage Your Server Wizard
creating virtual directories
Chapter 9: SHARING FILE SYSTEM RESOURCESCREATING VIRTUAL DIRECTORIES
  • Allows you to include a folder from anywhere on the network in your Web site
  • Appears to the Web site user as if it is a subdirectory of the main Web site folder
  • Allows management of Web content to be distributed between departments
summary
Chapter 9: SHARING FILE SYSTEM RESOURCESSUMMARY
  • Windows Server 2003 controls access to resources using a number of mechanisms, including share permissions and NTFS permissions.
  • Every object protected by permissions has an ACL, which is a list of ACEs assigned to that object. Each ACE contains a security principal and indicates the level of access they are permitted or denied to the object.
  • File system shares enable network users to access files and folders on other computers.

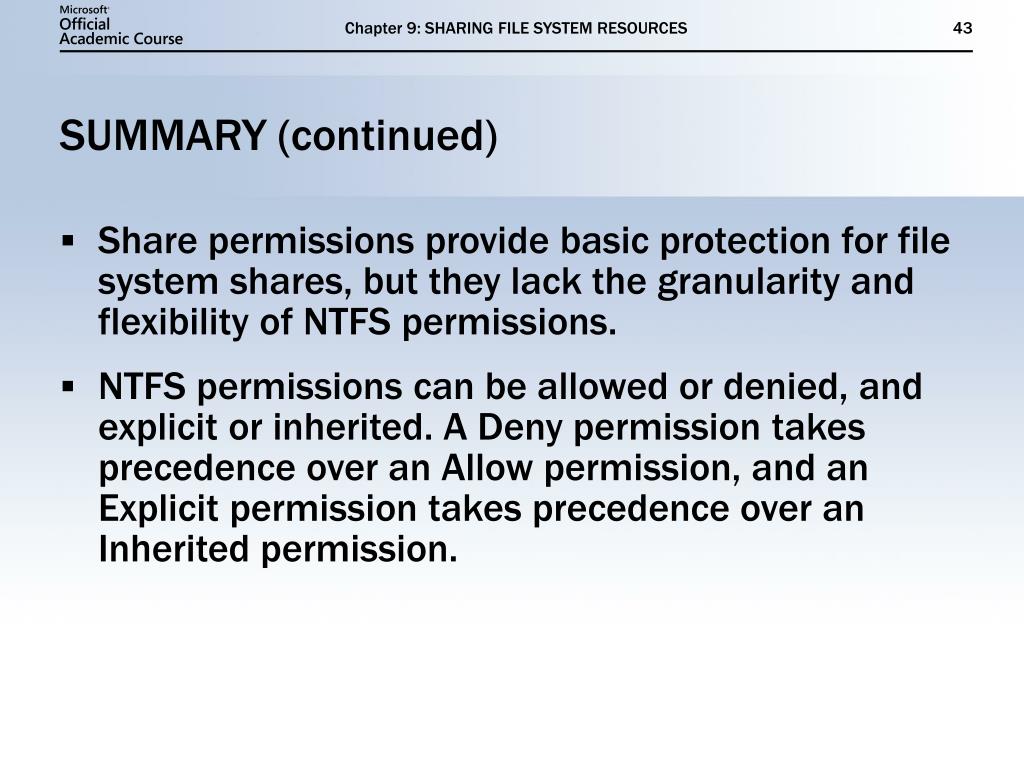

summary continued
Chapter 9: SHARING FILE SYSTEM RESOURCESSUMMARY (continued)
  • Share permissions provide basic protection for file system shares, but they lack the granularity and flexibility of NTFS permissions.
  • NTFS permissions can be allowed or denied, and explicit or inherited. A Deny permission takes precedence over an Allow permission, and an Explicit permission takes precedence over an Inherited permission.
summary continued1
Chapter 9: SHARING FILE SYSTEM RESOURCESSUMMARY (continued)
  • Access granted by NTFS permissions can be restricted by share permissions and other factors, such as IIS permissions on Web sites.
  • Whenever two permission types are assigned to a resource, you must evaluate each set of permissions and then determine which of the two is more restrictive.
  • Every NTFS file and folder has an owner. The owner of a file or folder is always permitted to modify the file or folder’s ACL.
summary continued2
Chapter 9: SHARING FILE SYSTEM RESOURCESSUMMARY (continued)
  • Any user with the Allow Take Ownership permission or the Take Ownership Of Files Or Other Objects user right can take ownership of an object.
  • IIS is a Windows Server 2003 application that allows you to share files and folders using Web and FTP server services.
