section 18 9 concurrency control by validation praveen ap
Section 18.9

Concurrency Control by Validation

Praveen AP

CS 255
validation
Validation
  • Optimistic concurrency control
  • Scheduler maintains record of active transactions
  • Concurrency Control assumes that conflicts between transactions are rare
  • Does not require locking
  • Check for conflicts just before commit
phases read validate write

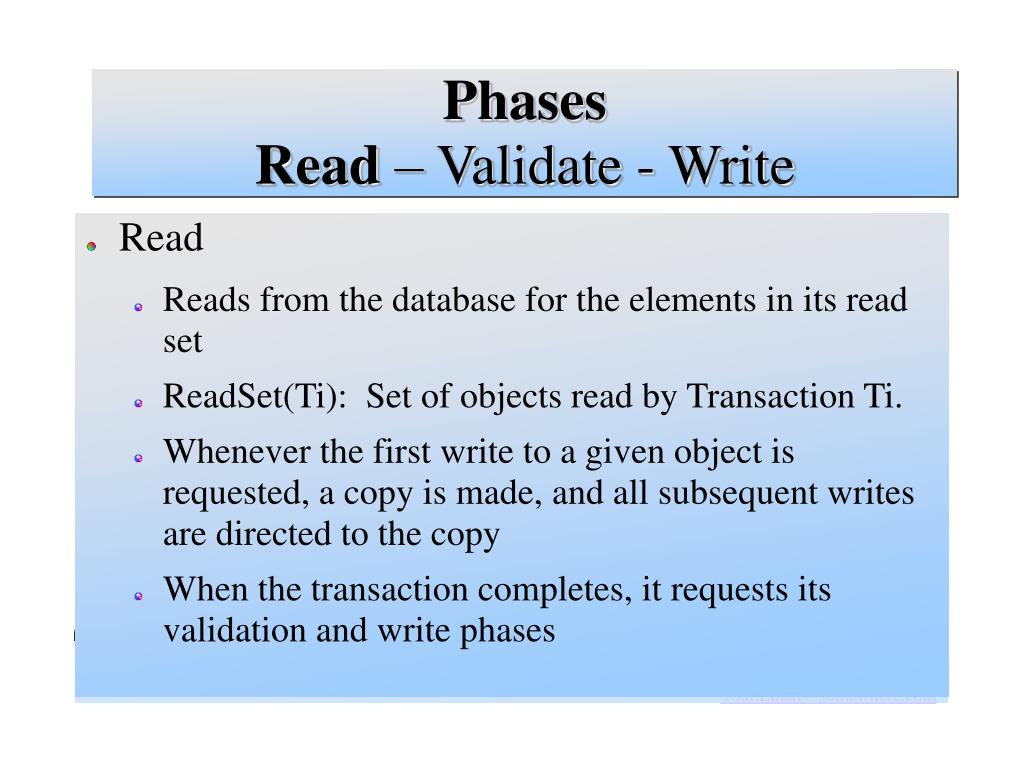

PhasesRead – Validate - Write
  • Read
    • Reads from the database for the elements in its read set
    • ReadSet(Ti): Set of objects read by Transaction Ti.
    • Whenever the first write to a given object is requested, a copy is made, and all subsequent writes are directed to the copy
    • When the transaction completes, it requests its validation and write phases
phases read validate write1

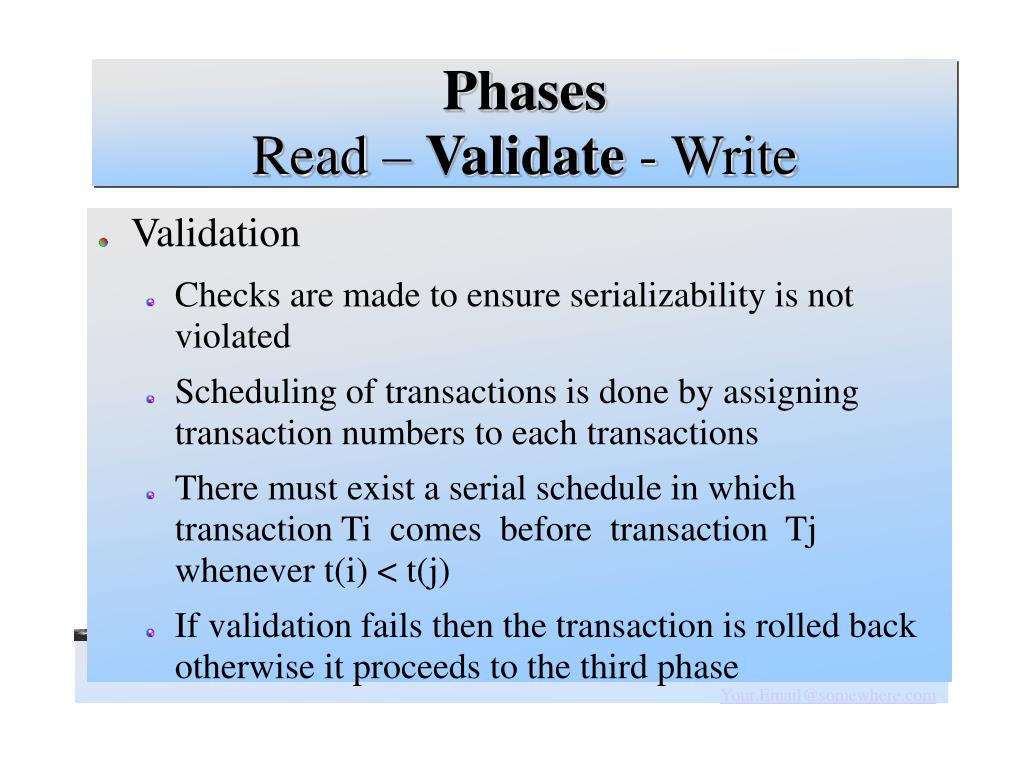

PhasesRead– Validate - Write
  • Validation
    • Checks are made to ensure serializability is not violated
    • Scheduling of transactions is done by assigning transaction numbers to each transactions
    • There must exist a serial schedule in which transaction Ti comes before transaction Tj whenever t(i) < t(j)‏
    • If validation fails then the transaction is rolled back otherwise it proceeds to the third phase
phases read validate write2
PhasesRead- Validate - Write
  • Write
    • Writes the corresponding values for the elements in its write set
    • WriteSet(Ti): Set of objects where Transaction Ti has intend to write on it.
    • Locally written data are made global
terminologies

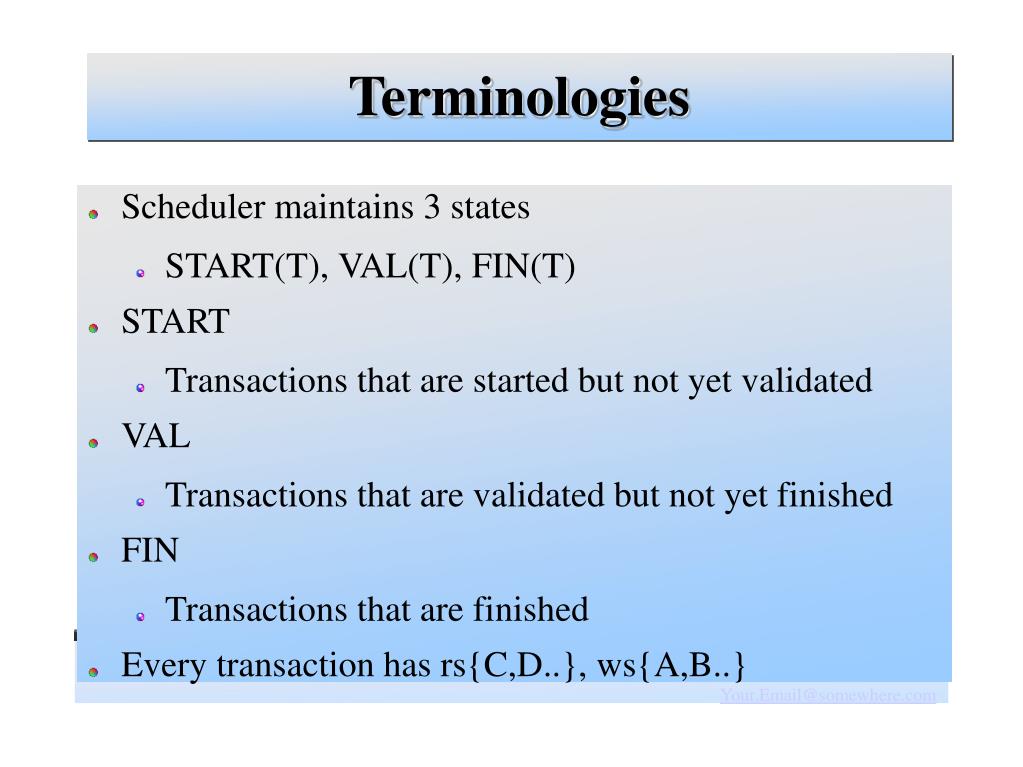

Terminologies
  • Scheduler maintains 3 states
    • START(T), VAL(T), FIN(T)‏
  • START
    • Transactions that are started but not yet validated
  • VAL
    • Transactions that are validated but not yet finished
  • FIN
    • Transactions that are finished
  • Every transaction has rs{C,D..}, ws{A,B..}
validation rule 1
Validation Rule 1
  • T1
  • T2
  • T2 starts before T1 finishes
  • FIN(T1) > START(T2)‏
  • RS(T2)  WS(T1) = 

TimeLine

Write

Validation

Read

validation rule 2

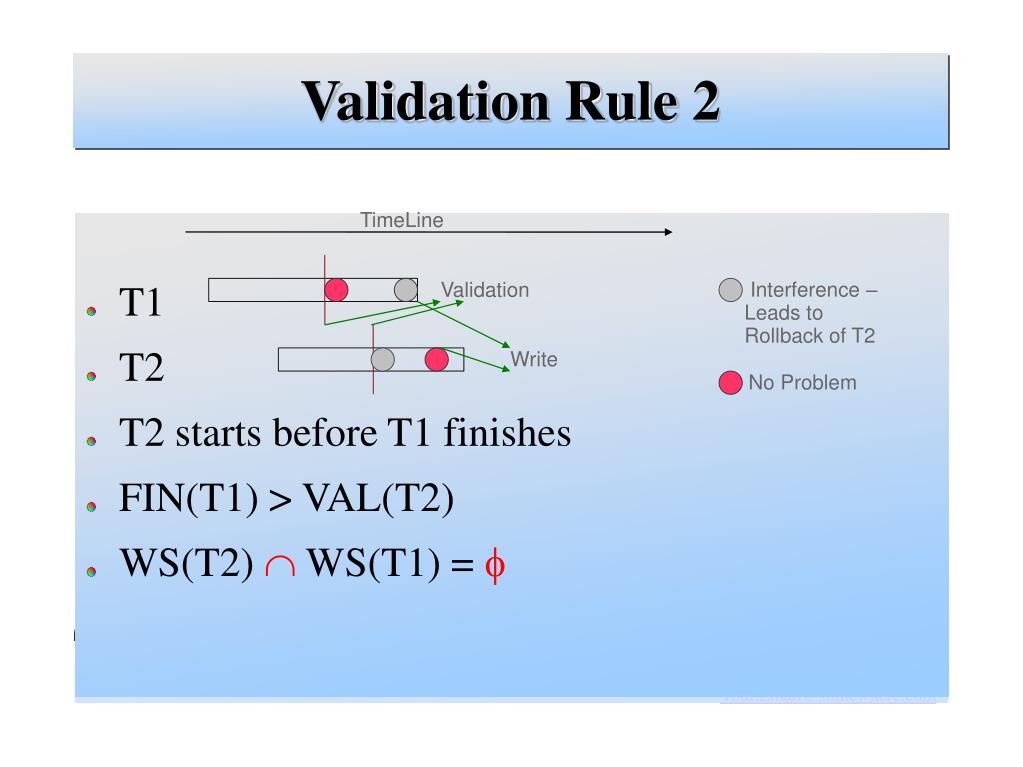

Validation Rule 2

TimeLine

T1

T2

T2 starts before T1 finishes

FIN(T1) > VAL(T2)‏

WS(T2)  WS(T1) = 

Interference – Leads to

Rollback of T2

Validation

Write

No Problem

rs t j ws t i fin t i start t j rule 1 ws t j ws t i fin t i val t j rule 2 where j i
RS(Tj)  WS(Ti) =  FIN(Ti) > START(Tj) Rule 1WS(Tj)  WS(Ti) = FIN(Ti) > VAL(Tj) Rule 2 where j > i

TimeLine

RS

Validation

WS

T1

A,B

A,C

T2

B

D

T3

B

D,E

T4

A,D

A,C

validation1
Validation
  • T2 & T1
    • RS(T2)  WS(T1) = {B}  {A,C} = 
    • WS(T2)  WS(T1) = {D}  {A,C} = 
  • T3 & T1
    • RS(T3)  WS(T1) = {B}  {A,C} = 
    • WS(T3)  WS(T1) = {D,E}  {A,C} = 
  • T3 & T2
    • RS(T3)  WS(T2) = {B}  {D} = 
    • WS(T3)  WS(T2) = {D,E}  {D} = D// Rule 2 Can't be applied; FIN(T2) < VAL(T3)
validation2
Validation
  • T4 Starts before T1 and T3 finishes. So T4 has to be checked against the sets of T1 and T3
  • T4 & T1
    • RS(T4)  WS(T1) = {A,D}  {A,C} = {A}
    • Rule 2 can not be applied
  • T4 & T3
    • RS(T4)  WS(T3) = {A,D}  {D,E} = {D}
    • WS(T4)  WS(T3) = {A,C}  {D,E} = 
comparison
Comparison
  • Validation
    • Optimistic Concurrency Control is superior to locking methods for systems where transaction conflict is highly unlikely, e.g query dominant systems.
    • Avoids locking overhead
    • Starvation: What should be done when validation repeatedly fails ?
    • Solution: If the concurrency control detects a starving transaction, it will be restarted, but without releasing the critical section semaphore, and transaction is run to the completion by write locking the database
comparison1
Comparison
  • Lock
    • Lock management overhead
    • Deadlock detection/resolution.
    • Concurrency is significantly lowered, when congested nodes are locked. Locks can not be released until the end of a transaction
    • Conflicts are rare. (We might get better performance by not locking, and instead checking for conflicts at commit time.)?
comparison2
Comparison
  • Timestamp
    • Deadlock is not possible
    • Prone to restart
questions
Questions

Thank you
