Comprehensive Radiation Simulations in CMS Using MARS: Insights and Results

This study focuses on comprehensive simulations of radiation in the CMS detector, conducted using the MARS framework. Since 2007, efforts have been made to reassess beam-induced radiation, particularly within the pixel detector, to ensure safety during potential beam accidents. Scenarios analyzed include pp collisions, machine-induced backgrounds, and beam accidents. The results are stored in a database and accessible via a web tool, which provides detailed maps and tables of radiation dose, particle fluence, and energy spectra. Recent presentations and notes detail findings crucial for CMS operations.

bozica
Download Presentation

Comprehensive Radiation Simulations in CMS Using MARS: Insights and Results

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

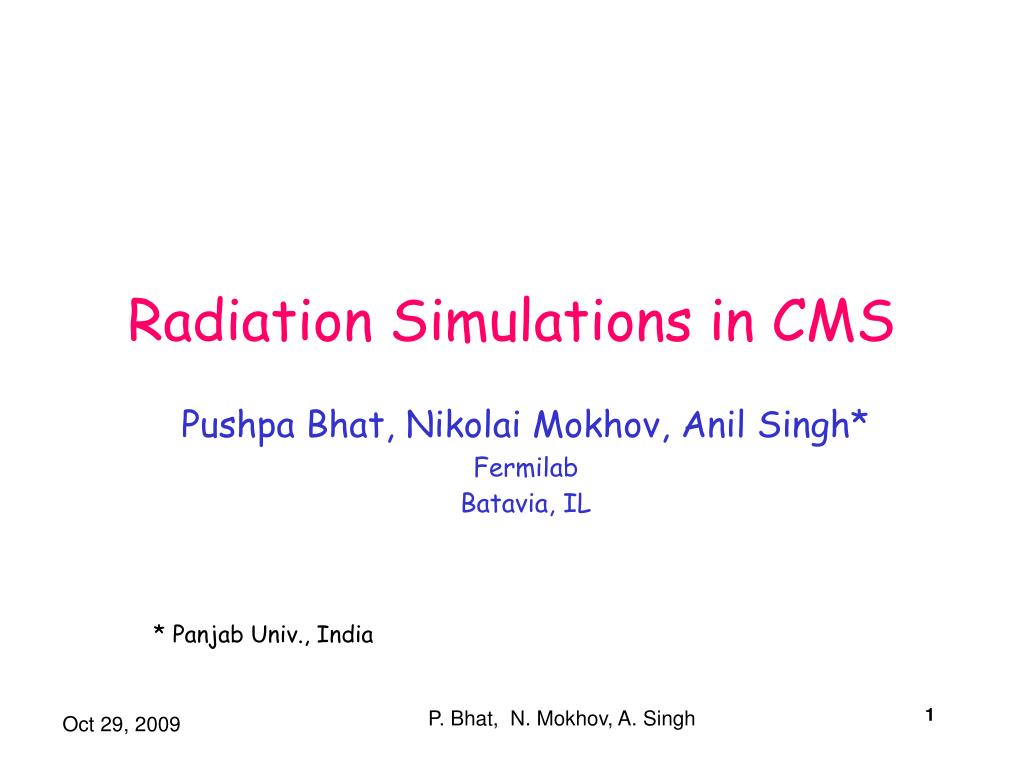

  1. Radiation Simulations in CMS Pushpa Bhat, Nikolai Mokhov, Anil Singh* Fermilab Batavia, IL * Panjab Univ., India

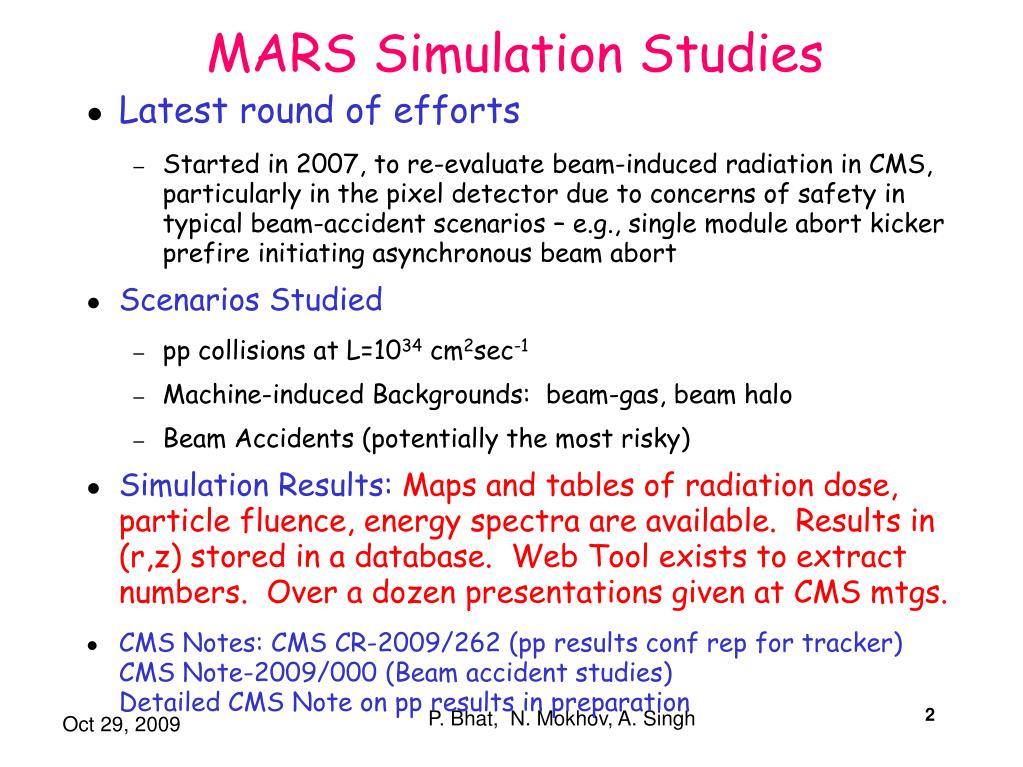

  2. MARS Simulation Studies • Latest round of efforts • Started in 2007, to re-evaluate beam-induced radiation in CMS, particularly in the pixel detector due to concerns of safety in typical beam-accident scenarios – e.g., single module abort kicker prefire initiating asynchronous beam abort • Scenarios Studied • pp collisions at L=1034 cm2sec-1 • Machine-induced Backgrounds: beam-gas, beam halo • Beam Accidents (potentially the most risky) • Simulation Results: Maps and tables of radiation dose, particle fluence, energy spectra are available. Results in (r,z) stored in a database. Web Tool exists to extract numbers. Over a dozen presentations given at CMS mtgs. • CMS Notes: CMS CR-2009/262 (pp results conf rep for tracker) CMS Note-2009/000 (Beam accident studies) Detailed CMS Note on pp results in preparation

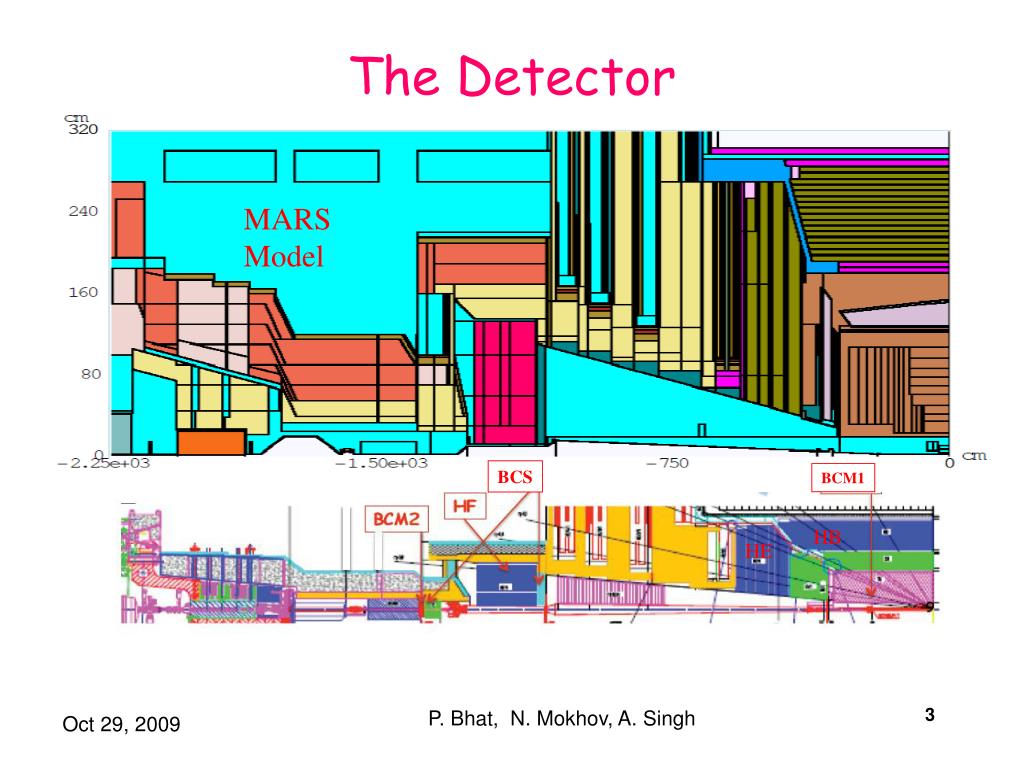

  3. The Detector MARS Model BCS BCM1 HB HE

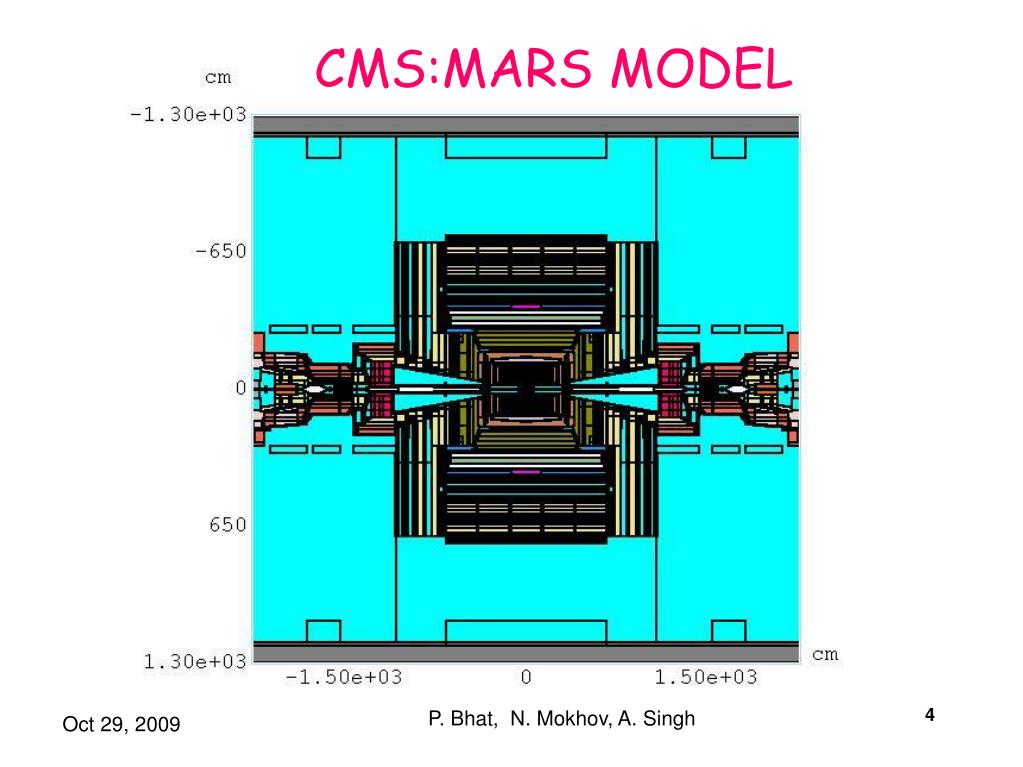

  4. CMS:MARS MODEL

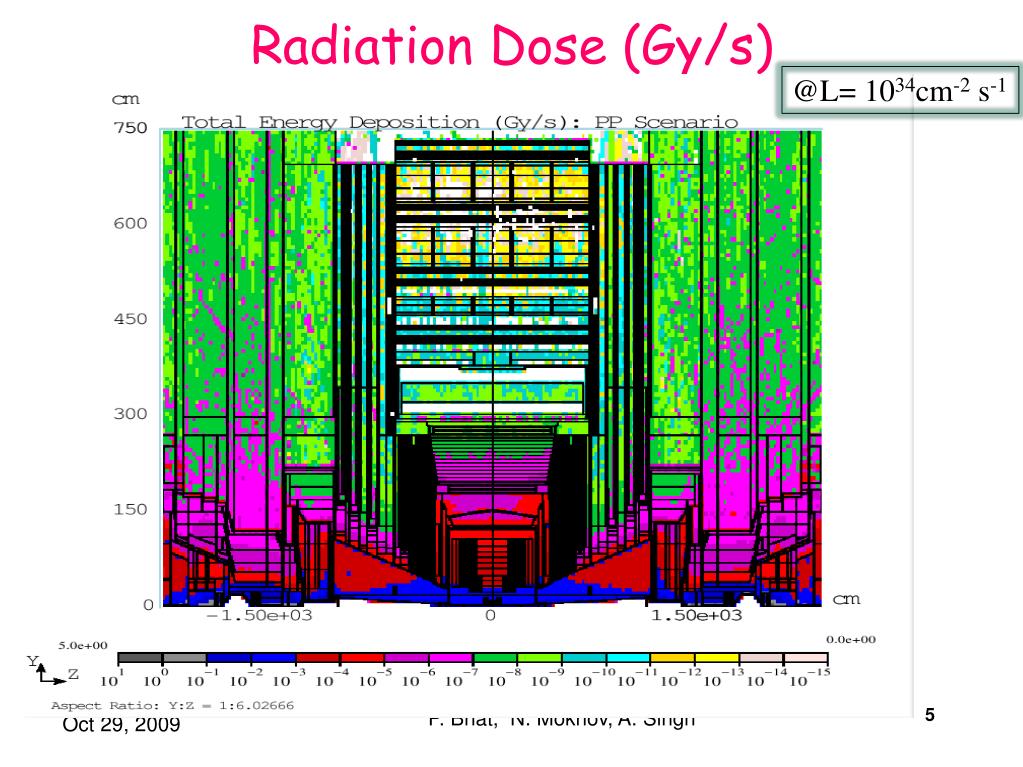

  5. Radiation Dose (Gy/s) @L= 1034cm-2 s-1

  6. Absorbed Dose (50 fb-1) 105 104 103 102 10 1 10-1 10-2

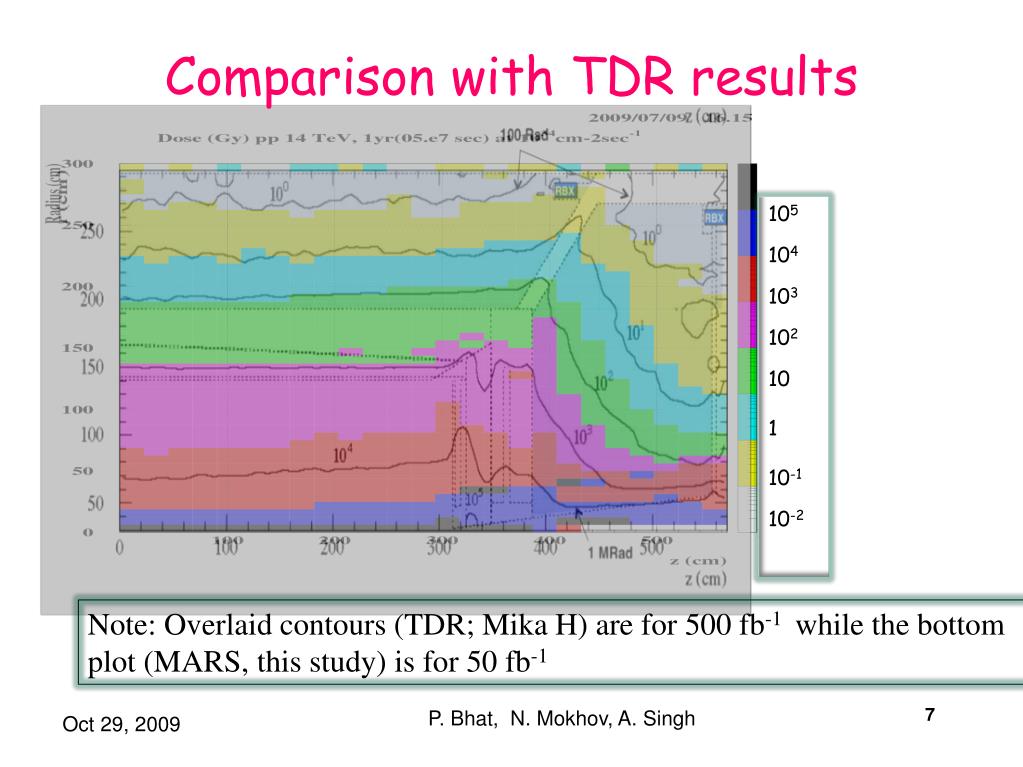

  7. Comparison with TDR results 105 104 103 102 10 1 10-1 10-2 Note: Overlaid contours (TDR; Mika H) are for 500 fb-1 while the bottom plot (MARS, this study) is for 50 fb-1

  8. HCAL (including HF)

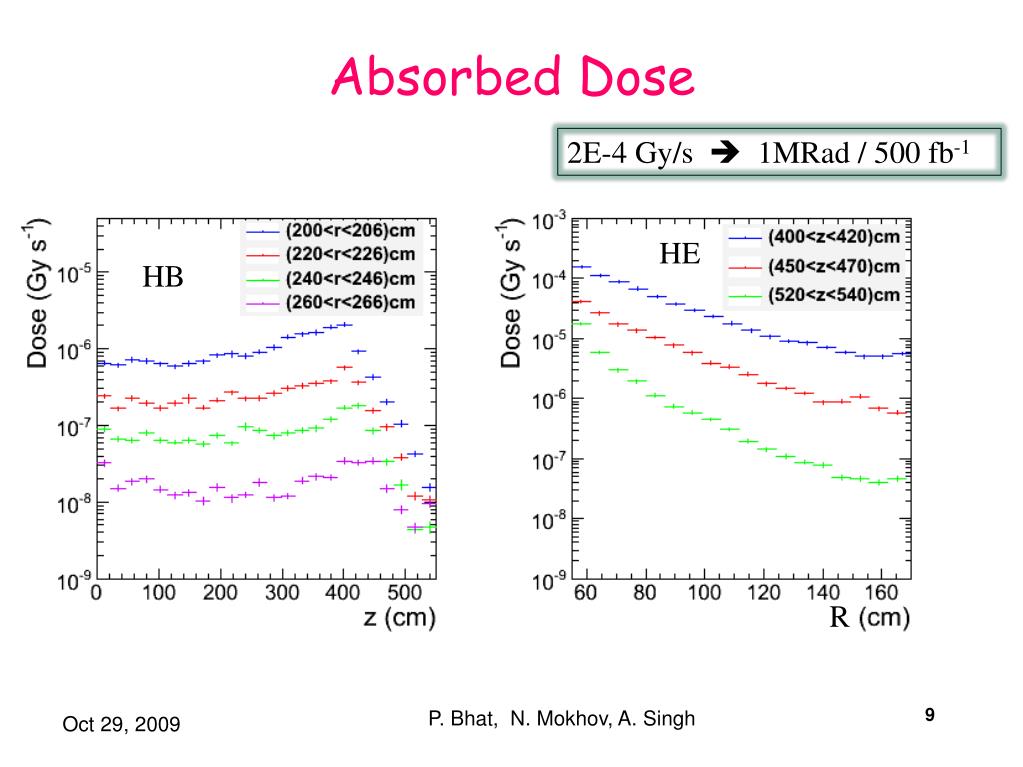

  9. Absorbed Dose 2E-4 Gy/s  1MRad / 500 fb-1 HE HB R

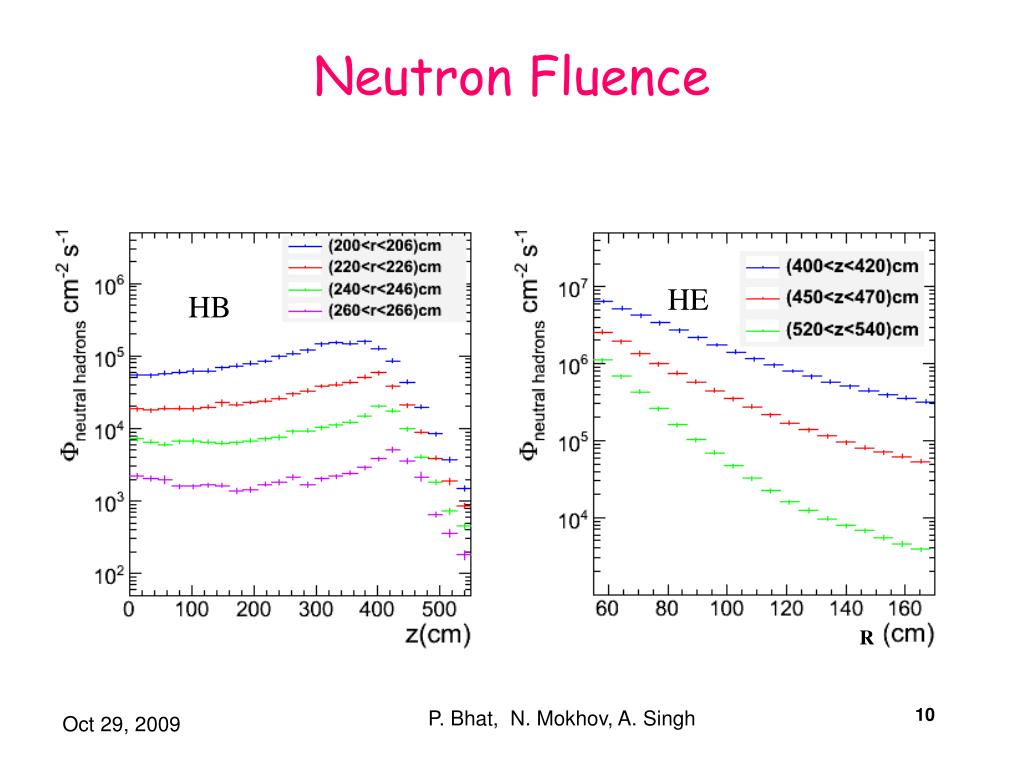

  10. Neutron Fluence HE HB R

  11. Charged Hadron Fluence R

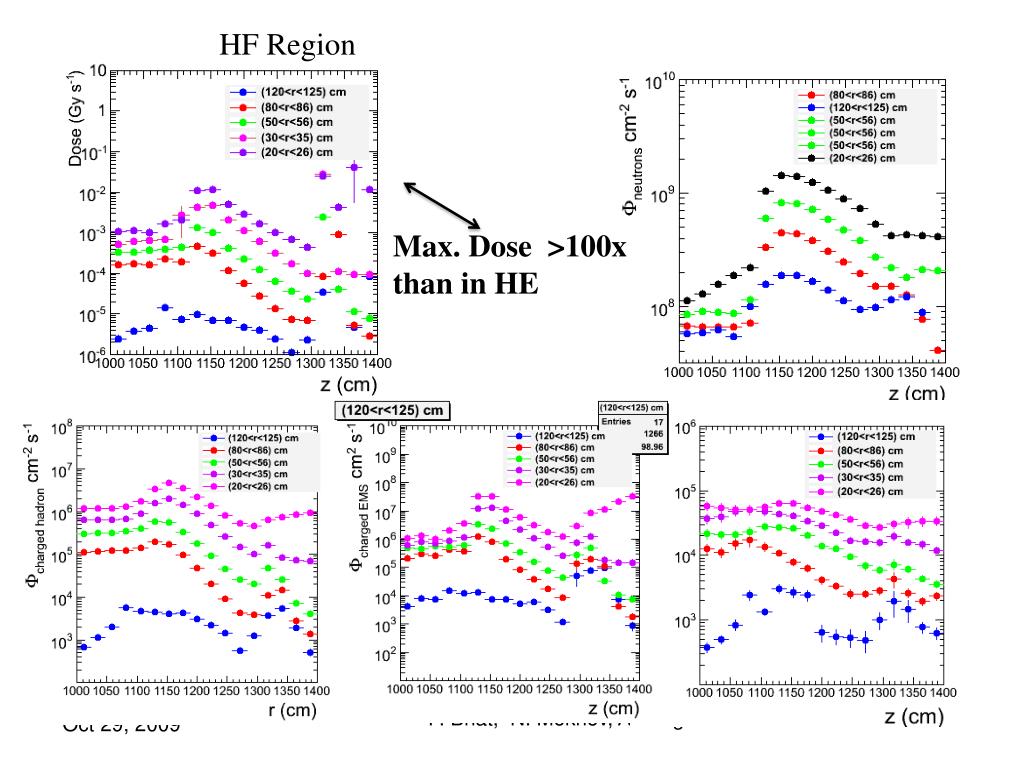

  12. HF Region Max. Dose >100x than in HE

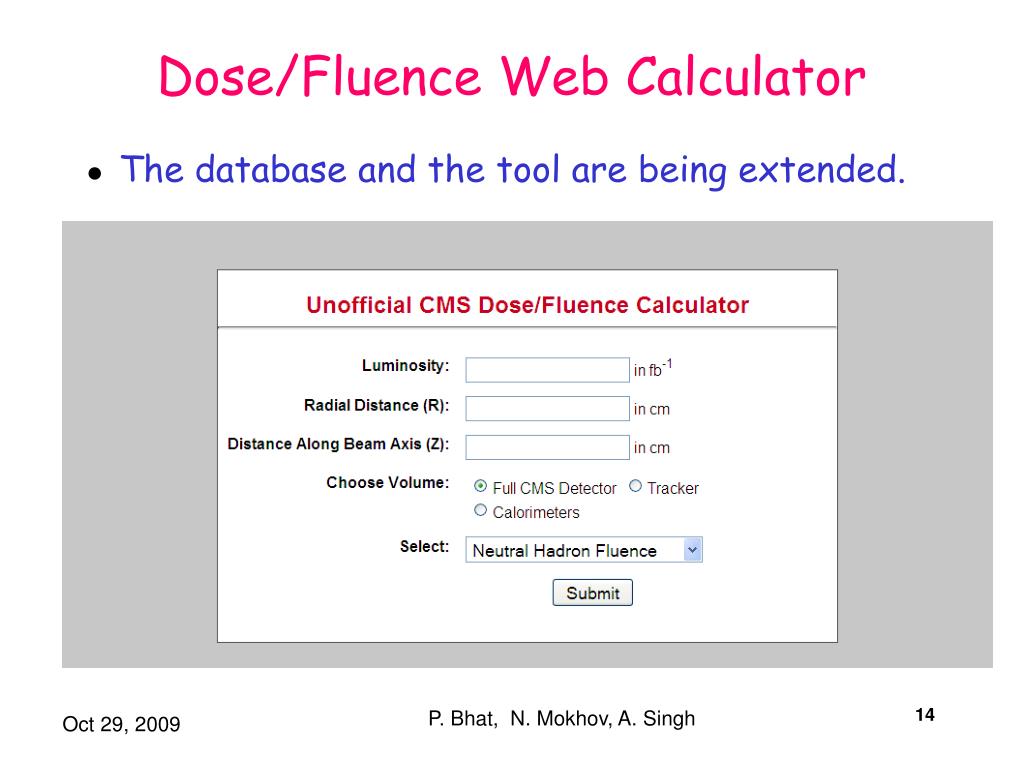

  13. Dose/Fluence Web Calculator Returns results for a given radius, z and L.dt using data in a database

  14. Dose/Fluence Web Calculator • The database and the tool are being extended.

  15. Dose (Gy) 100 fb-1 Finer granularity

  16. Summary • Extensive radiation simulations have been done for the CMS detector, over the past few years using MARS15. • pp at 14 TeV, 10 TeV, 3.8T, 0T • preliminary beam-gas, beam-halo • Beam accidents • Lots of results and tools exist!

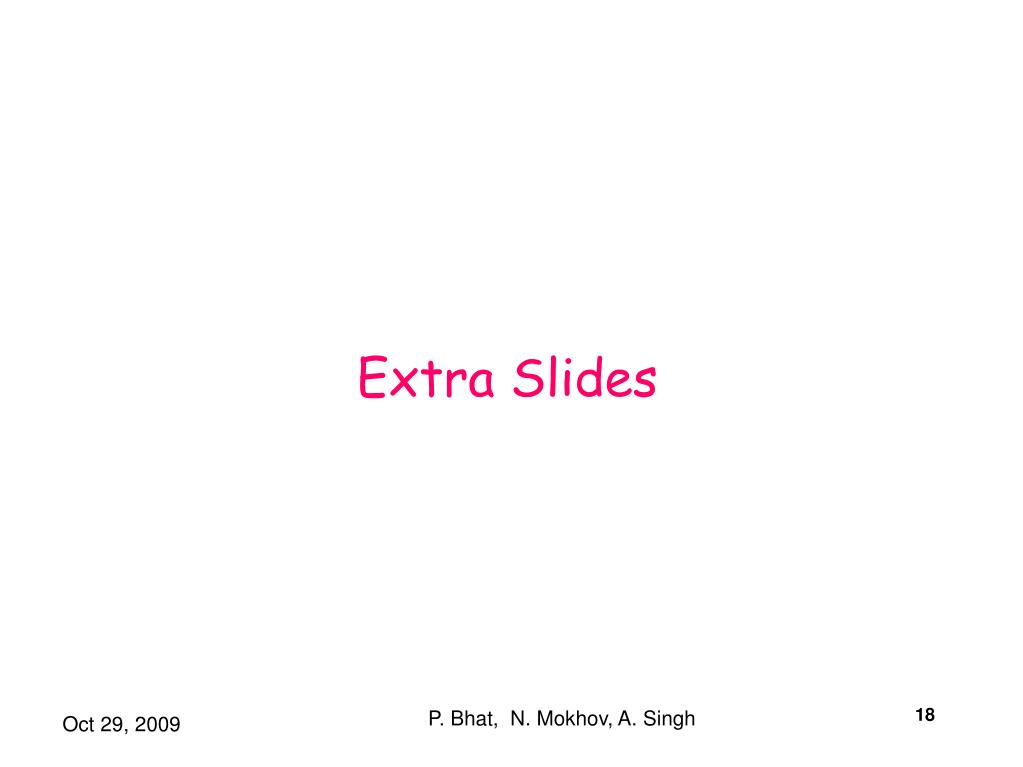

  17. Extra Slides
