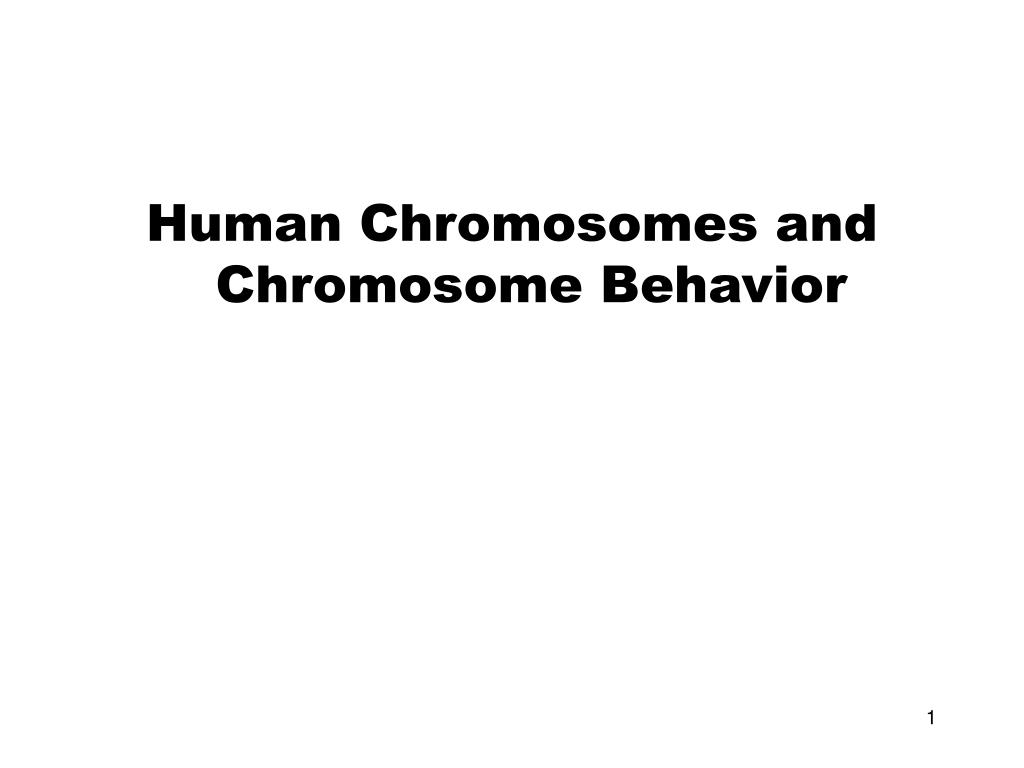

  1. Human Chromosomes and Chromosome Behavior

  2. Karyotype = stained and photographed preparation of metaphase chromosomes arranged according to their size and position of centromeres

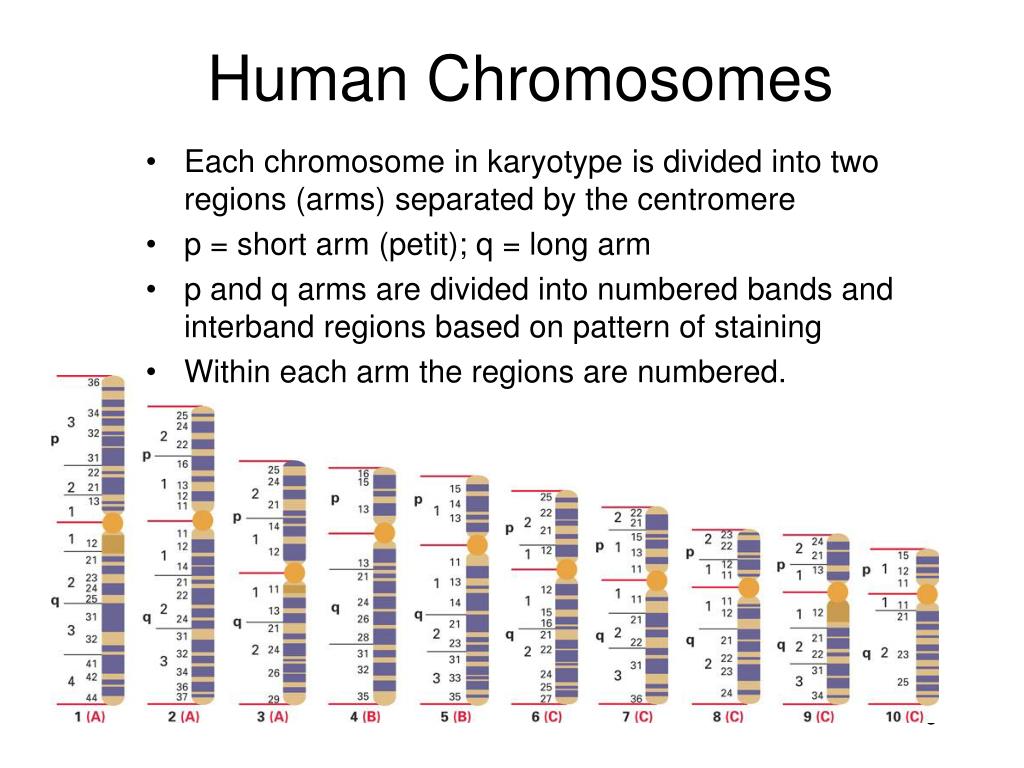

  3. Human Chromosomes • Each chromosome in karyotype is divided into two regions (arms) separated by the centromere • p = short arm (petit); q = long arm • p and q arms are divided into numbered bands and interband regions based on pattern of staining • Within each arm the regions are numbered.

  4. Centromeres • Chromosomes are classified according to the relative position of their centromeres • Chromosomes with no centromere, or with two centromeres, are genetically unstable

  5. Chromosomal Abnormalities

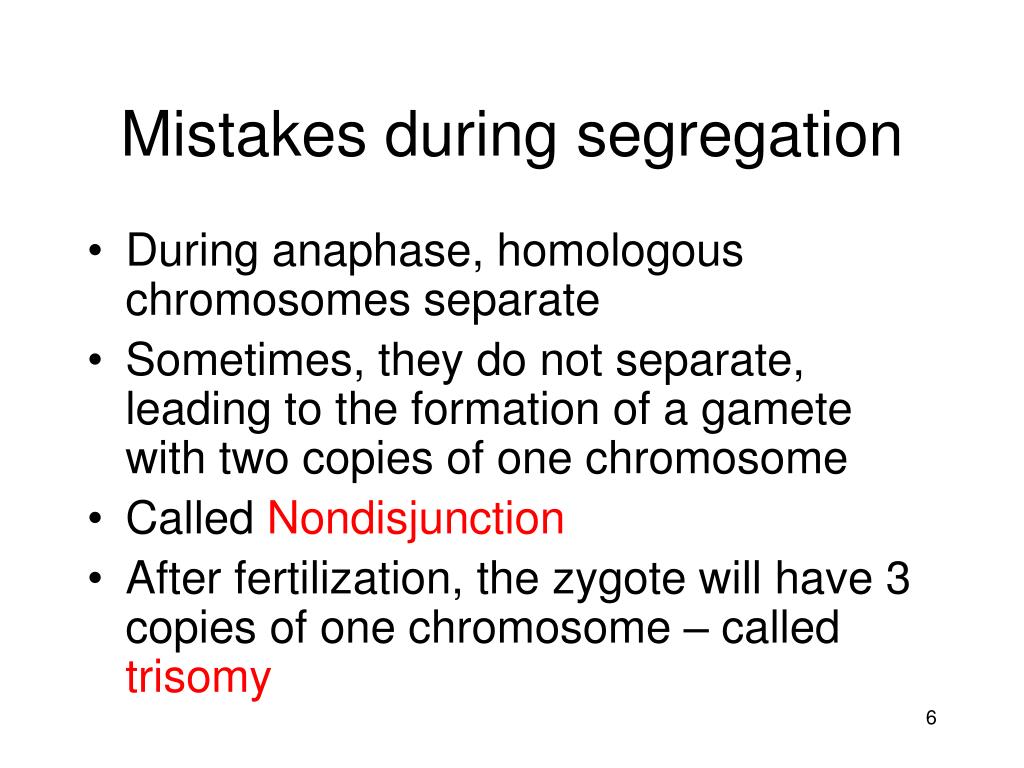

  6. Mistakes during segregation • During anaphase, homologous chromosomes separate • Sometimes, they do not separate, leading to the formation of a gamete with two copies of one chromosome • Called Nondisjunction • After fertilization, the zygote will have 3 copies of one chromosome – called trisomy

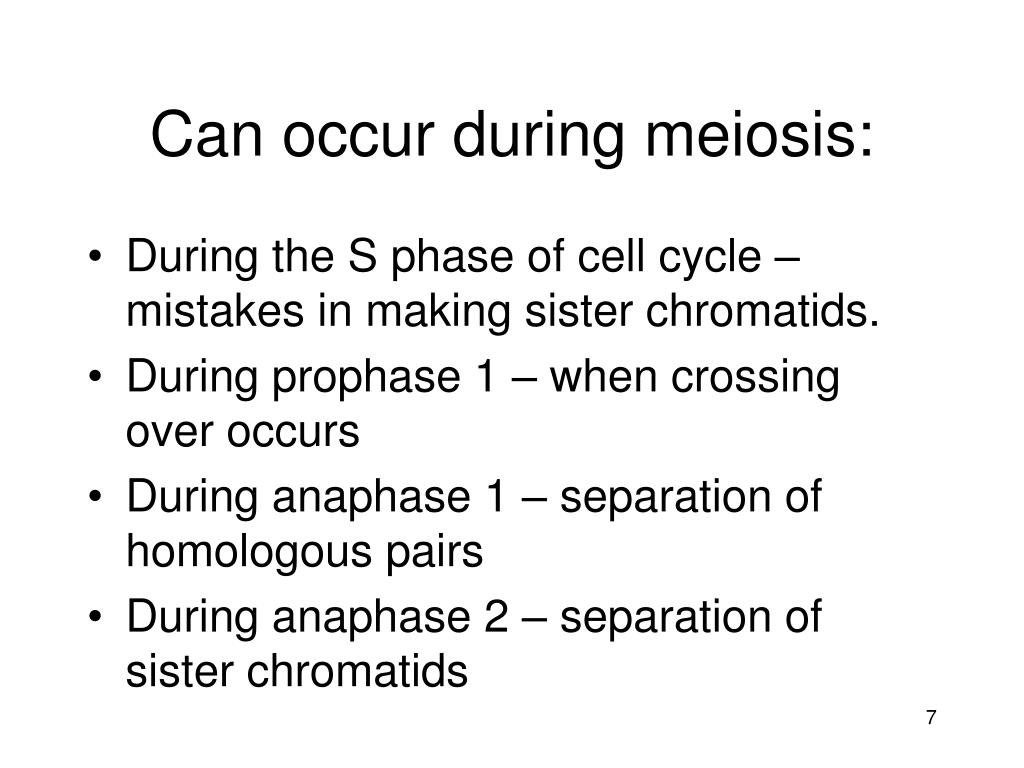

  7. Can occur during meiosis: • During the S phase of cell cycle – mistakes in making sister chromatids. • During prophase 1 – when crossing over occurs • During anaphase 1 – separation of homologous pairs • During anaphase 2 – separation of sister chromatids

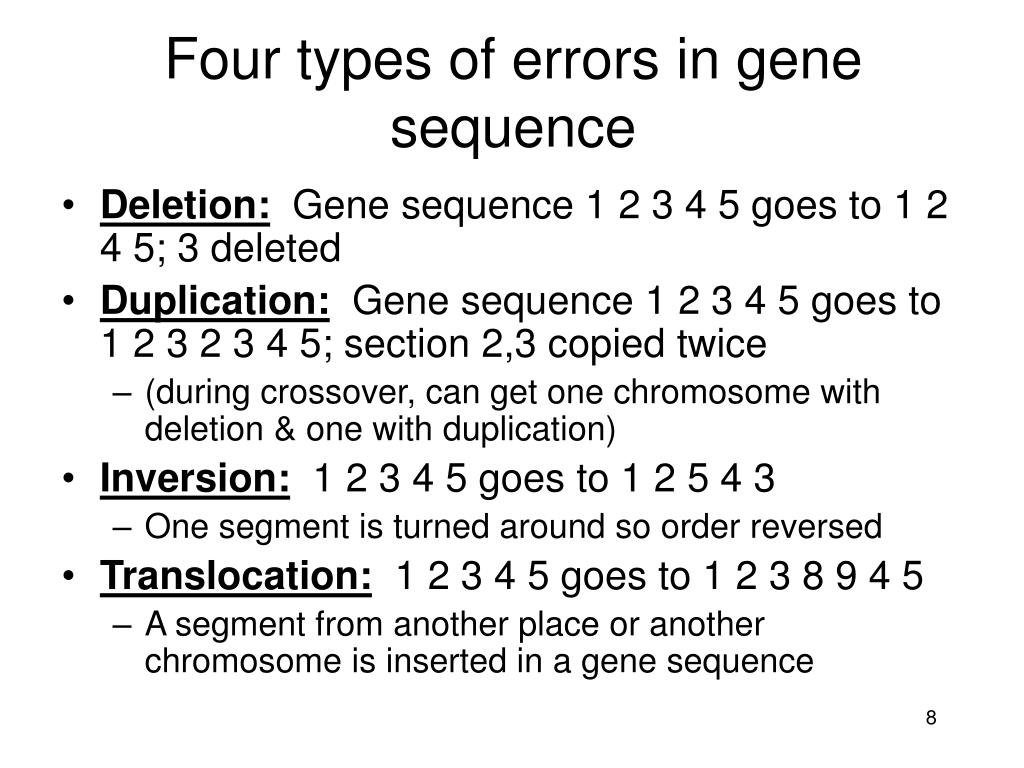

  8. Four types of errors in gene sequence • Deletion: Gene sequence 1 2 3 4 5 goes to 1 2 4 5; 3 deleted • Duplication: Gene sequence 1 2 3 4 5 goes to 1 2 3 2 3 4 5; section 2,3 copied twice • (during crossover, can get one chromosome with deletion & one with duplication) • Inversion: 1 2 3 4 5 goes to 1 2 5 4 3 • One segment is turned around so order reversed • Translocation: 1 2 3 4 5 goes to 1 2 3 8 9 4 5 • A segment from another place or another chromosome is inserted in a gene sequence

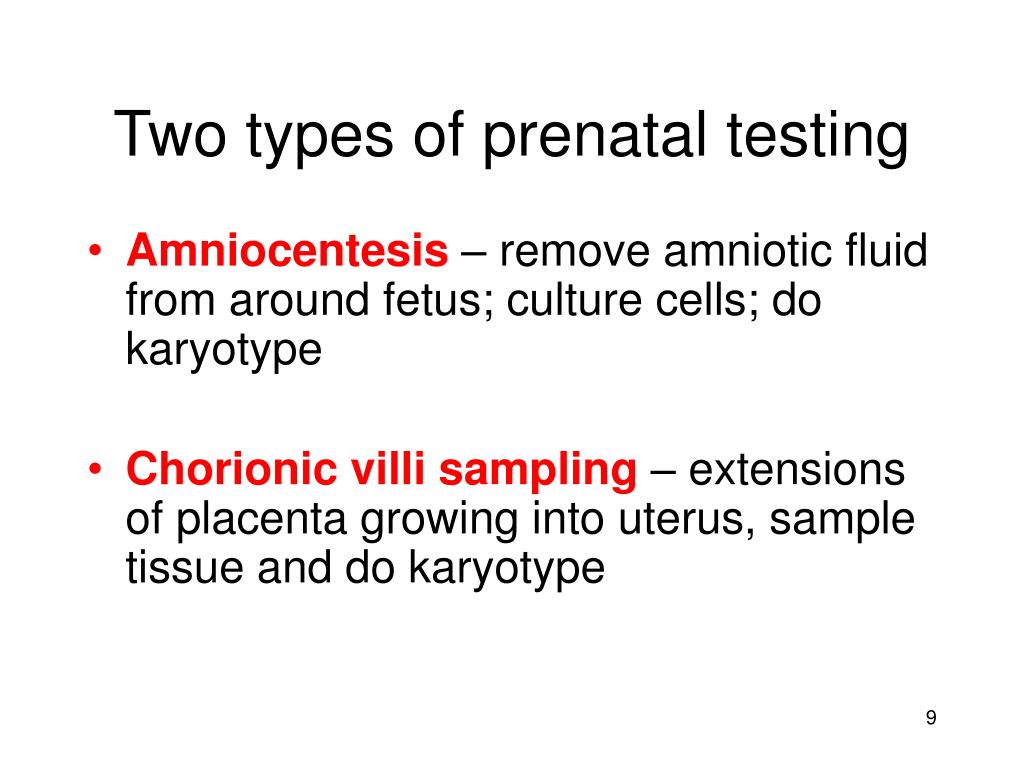

  9. Two types of prenatal testing • Amniocentesis – remove amniotic fluid from around fetus; culture cells; do karyotype • Chorionic villi sampling – extensions of placenta growing into uterus, sample tissue and do karyotype

  10. Chromosomal Disorders • Trisomy – an extra copy of one chromosome; results from non-disjunction • Trisomy 21 – Down Syndrome (mental retardation) • Trisomy 18 – Edwards Syndrome (1/10,000); thin, frail, feeding problems • Trisomy 13 – Patau Syndrome (1/5000) • Translocation Down (etc) – extra chromosome linked to another (usually 21, 13, 22, 15) – can be inherited • Mosaic – disorder appears in some body cells, but not all

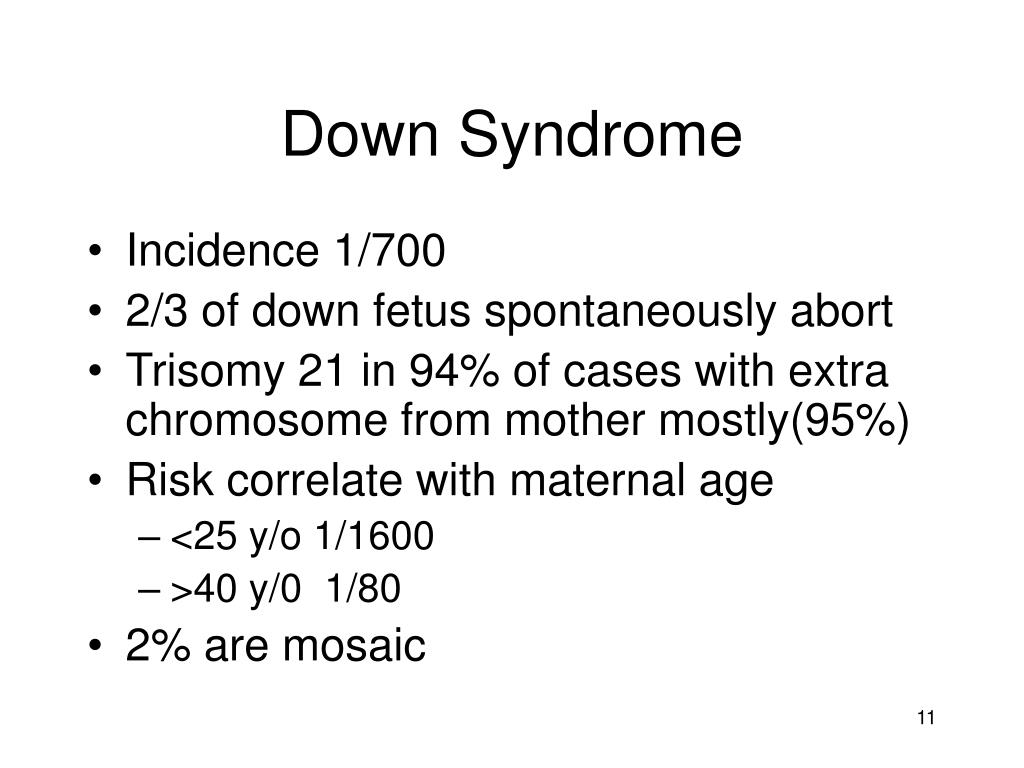

  11. Down Syndrome • Incidence 1/700 • 2/3 of down fetus spontaneously abort • Trisomy 21 in 94% of cases with extra chromosome from mother mostly(95%) • Risk correlate with maternal age • <25 y/o 1/1600 • >40 y/0 1/80 • 2% are mosaic

  12. Other Clinical features • Hypotonia without weakness • Hypotonia is a disorder that causes low muscle tone (hypotonic condition) • Clinodactaly protruded tongue,small ears,brachycephaly,small up turned nose, depressed nasal bridge. • Mental retardation, socially do better with good environment (Happy children)

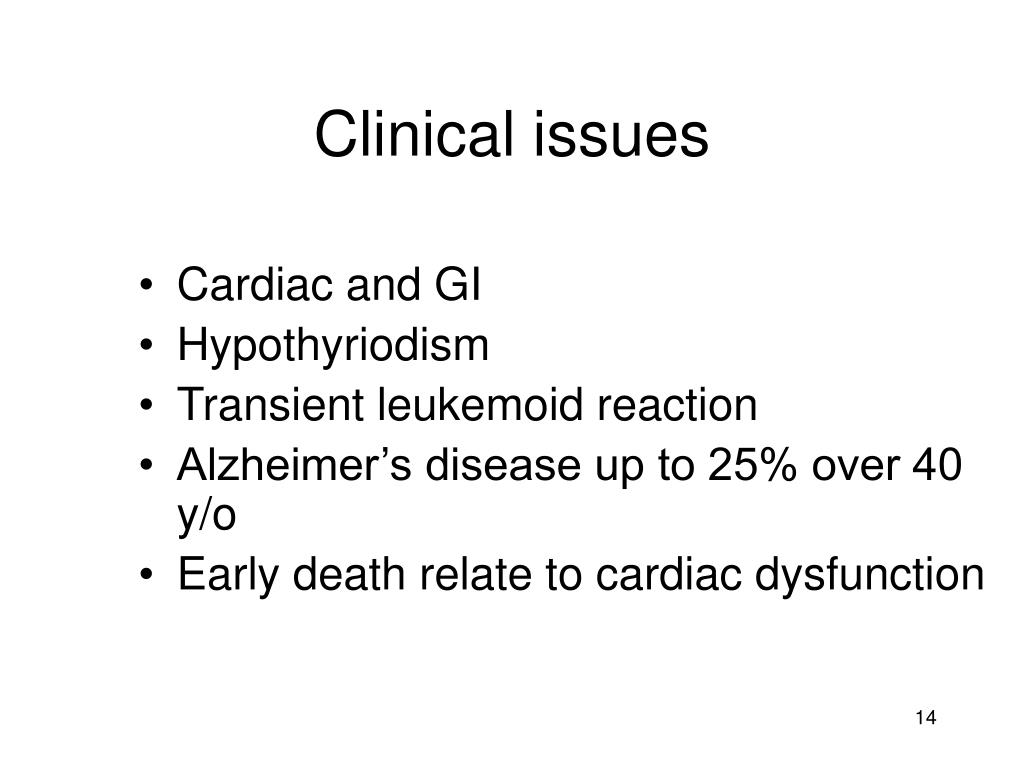

  13. Clinical issues • Cardiac and GI • Hypothyriodism • Transient leukemoid reaction • Alzheimer’s disease up to 25% over 40 y/o • Early death relate to cardiac dysfunction

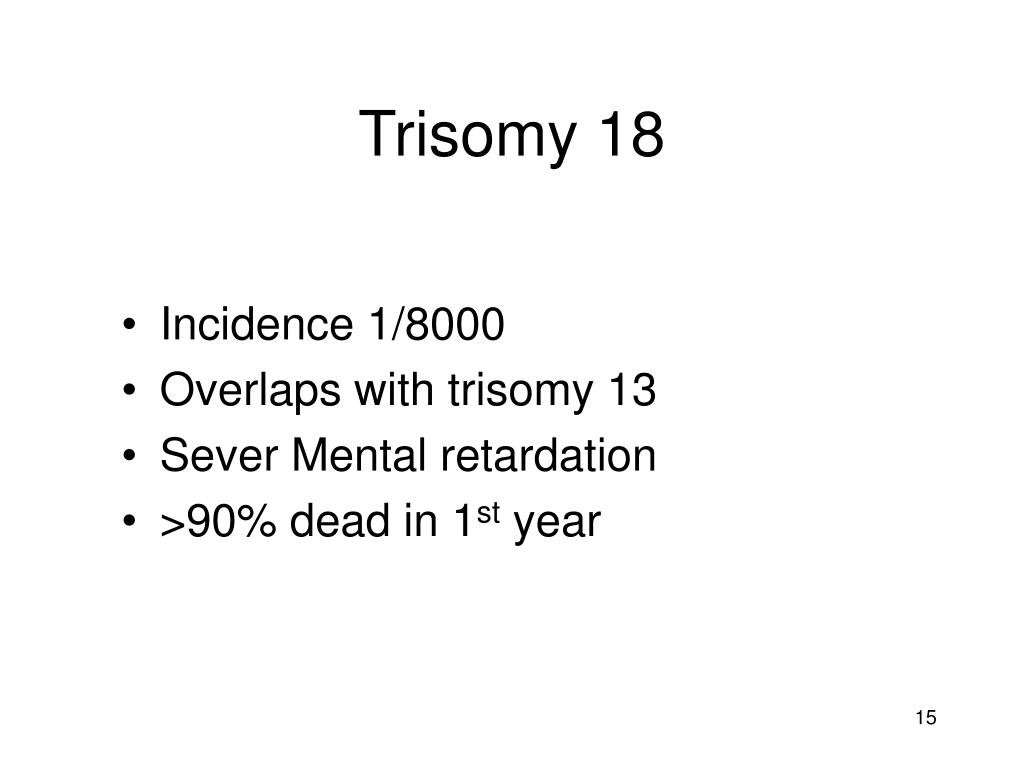

  14. Trisomy 18 • Incidence 1/8000 • Overlaps with trisomy 13 • Sever Mental retardation • >90% dead in 1st year

  15. Trisomy 18 • Small face with prominant occiput • Small sternum and pelvis • Flexion deformity of the finger • VSD and horseshoe kidney

  16. triploidy • Complete extra set of chromosomes • Mostly miscarriages • Fetal wastage skeleton more than cephalic, 2% survive to be recognized • Large hydatidiform placenta • Genital and CNS abnormalities

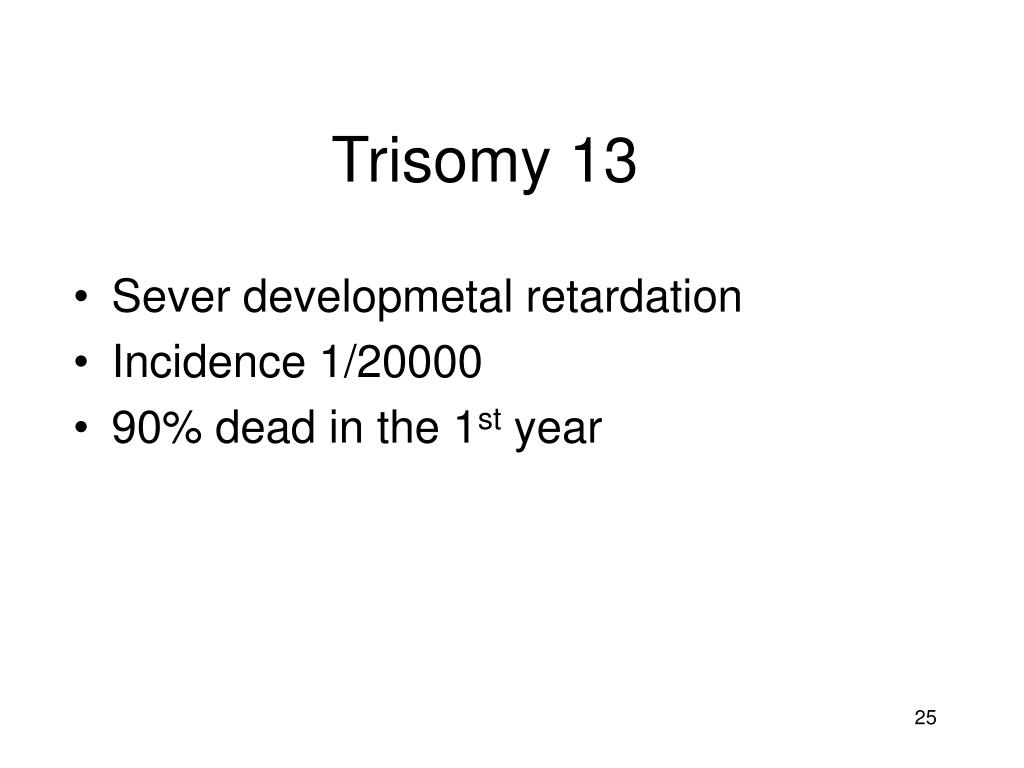

  17. Trisomy 13 • Sever developmetal retardation • Incidence 1/20000 • 90% dead in the 1st year

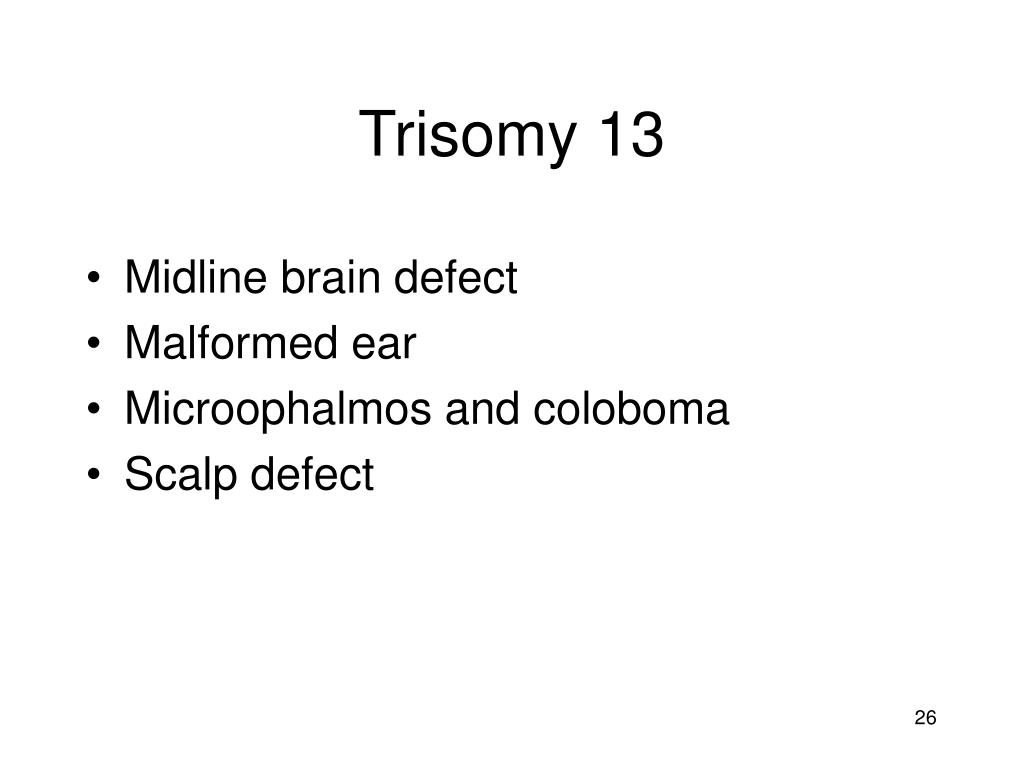

  18. Trisomy 13 • Midline brain defect • Malformed ear • Microophalmos and coloboma • Scalp defect

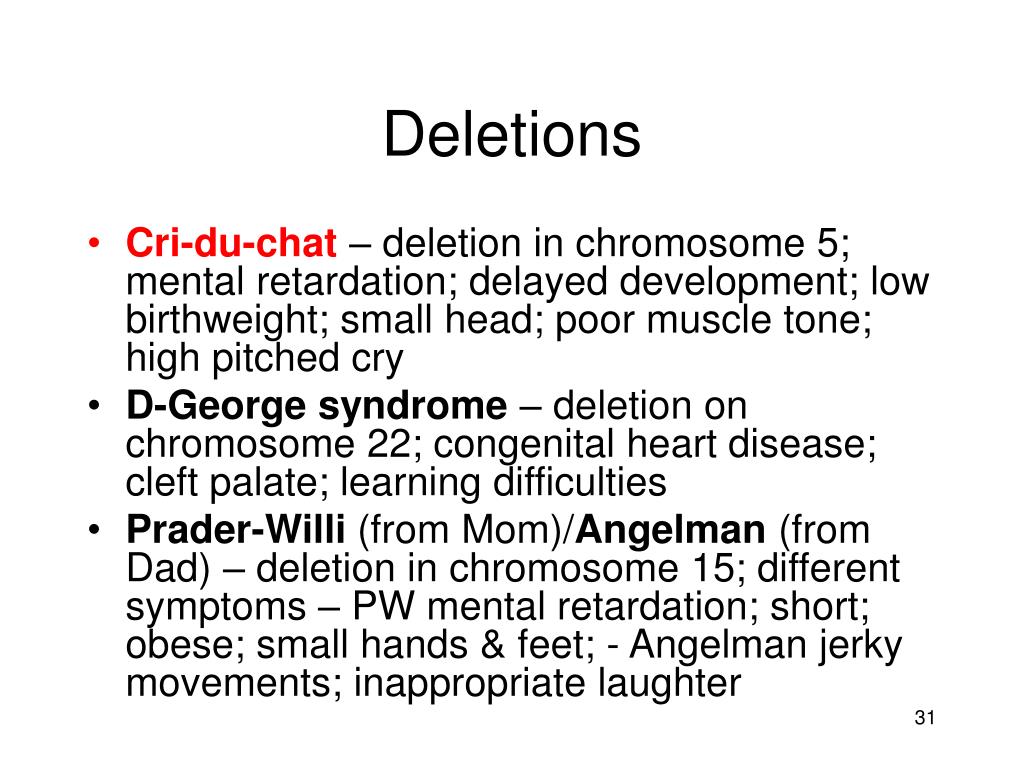

  19. Deletions • Cri-du-chat– deletion in chromosome 5; mental retardation; delayed development; low birthweight; small head; poor muscle tone; high pitched cry • D-George syndrome – deletion on chromosome 22; congenital heart disease; cleft palate; learning difficulties • Prader-Willi (from Mom)/Angelman (from Dad) – deletion in chromosome 15; different symptoms – PW mental retardation; short; obese; small hands & feet; - Angelman jerky movements; inappropriate laughter

  20. Duplications • Pallister Killian – duplication in chromosome 12; mental retardation, coarse facial features, prominent forehead, thin upper lip, thick lower lip, hearing impaired; may live until 40

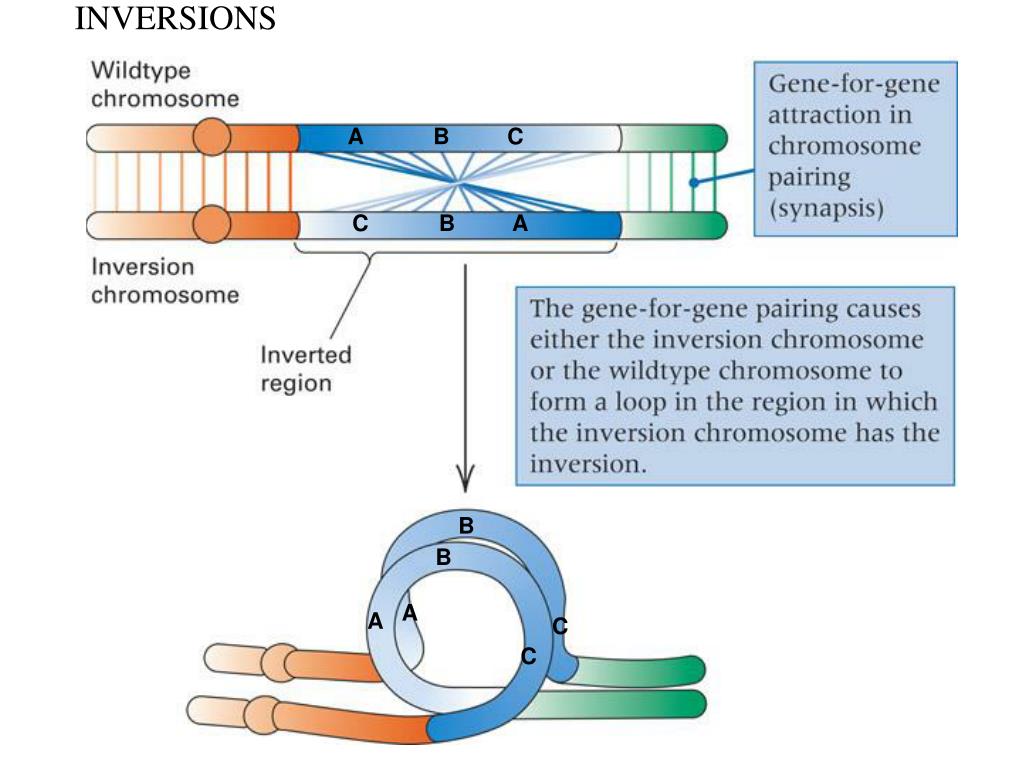

  21. INVERSIONS A B C C B A B B A A C C

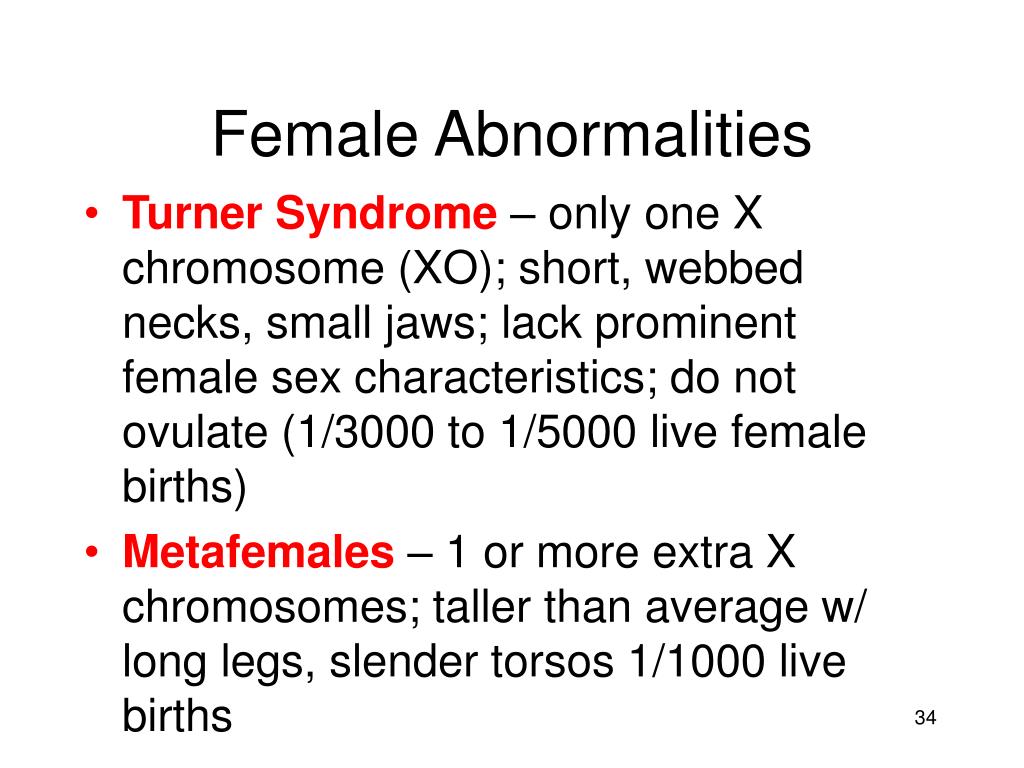

  22. Female Abnormalities • Turner Syndrome – only one X chromosome (XO); short, webbed necks, small jaws; lack prominent female sex characteristics; do not ovulate (1/3000 to 1/5000 live female births) • Metafemales – 1 or more extra X chromosomes; taller than average w/ long legs, slender torsos 1/1000 live births

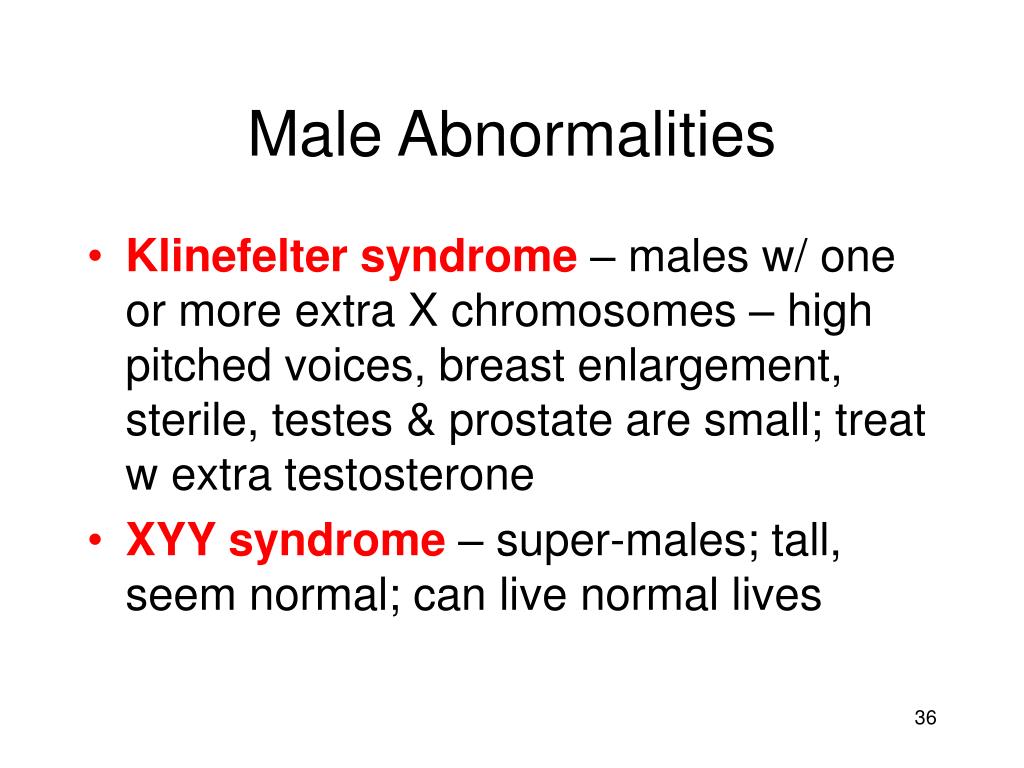

  23. Male Abnormalities • Klinefelter syndrome – males w/ one or more extra X chromosomes – high pitched voices, breast enlargement, sterile, testes & prostate are small; treat w extra testosterone • XYY syndrome – super-males; tall, seem normal; can live normal lives

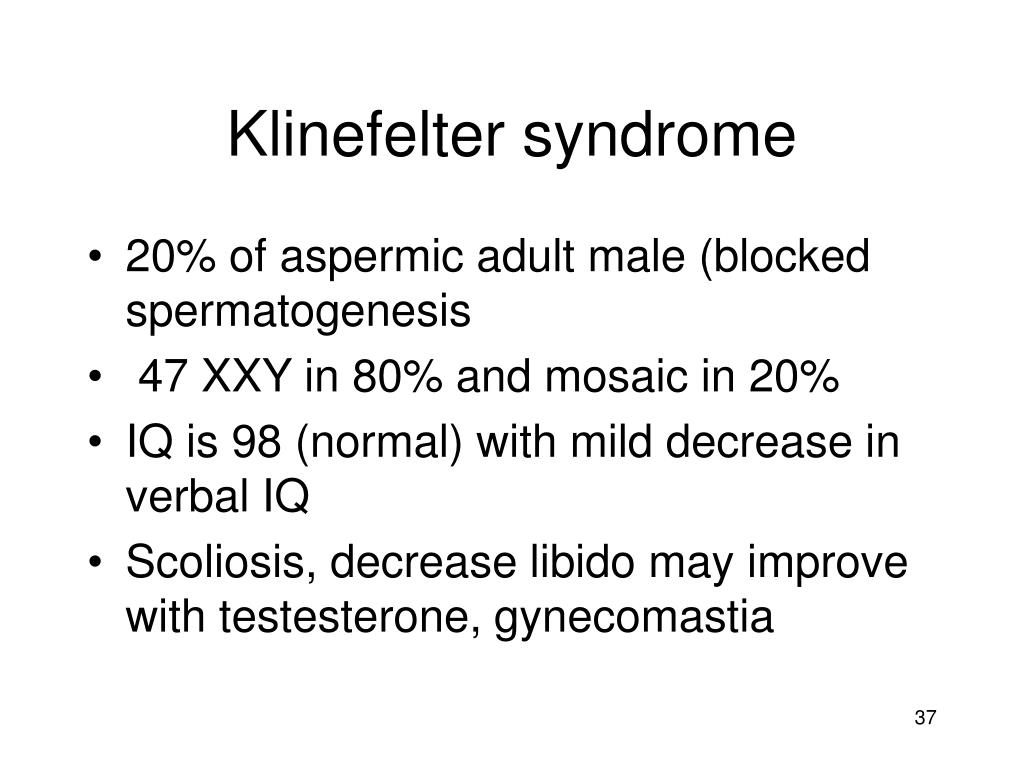

  24. Klinefelter syndrome • 20% of aspermic adult male (blocked spermatogenesis • 47 XXY in 80% and mosaic in 20% • IQ is 98 (normal) with mild decrease in verbal IQ • Scoliosis, decrease libido may improve with testesterone, gynecomastia

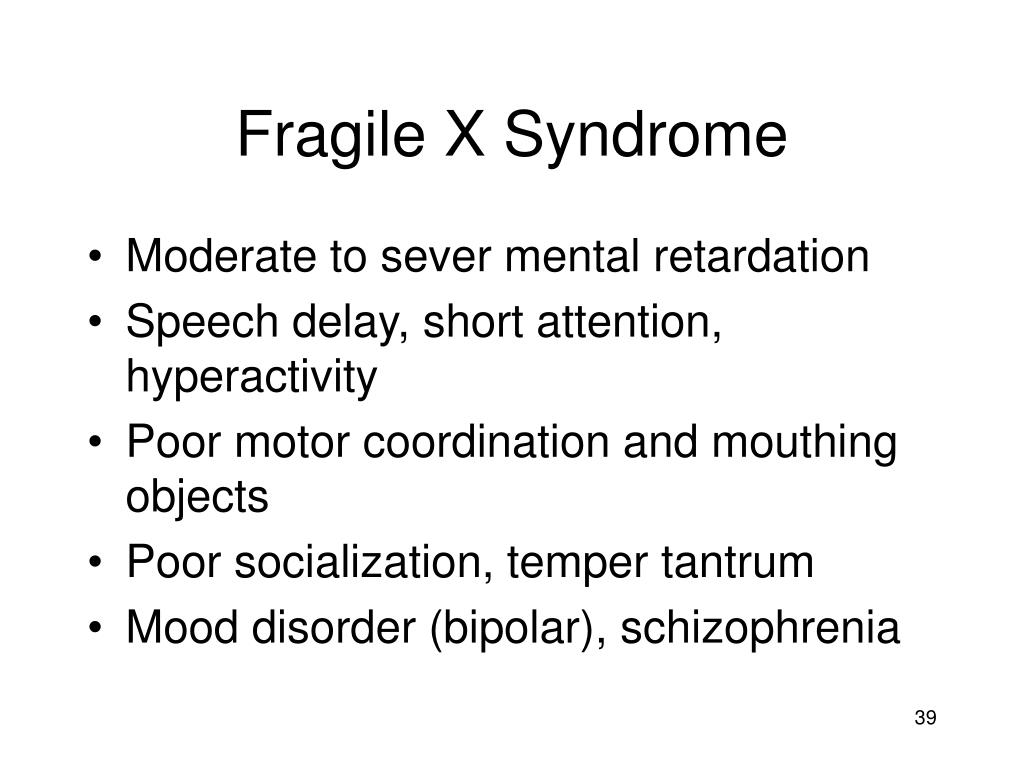

  25. Fragile X Syndrome • Moderate to sever mental retardation • Speech delay, short attention, hyperactivity • Poor motor coordination and mouthing objects • Poor socialization, temper tantrum • Mood disorder (bipolar), schizophrenia

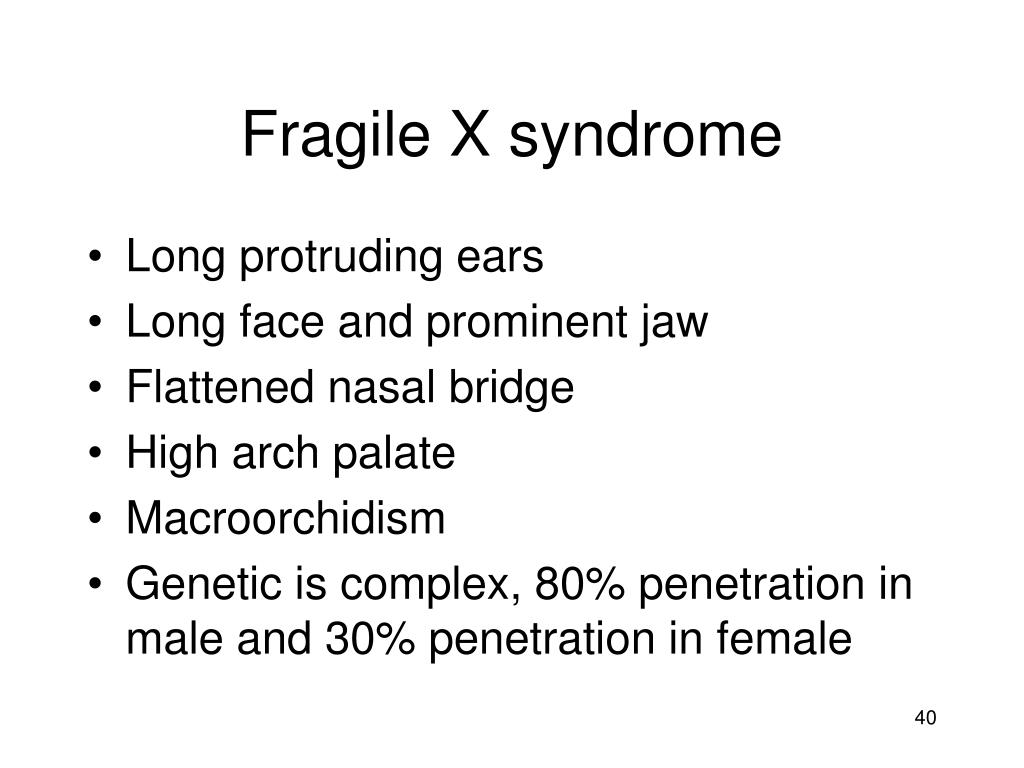

  26. Fragile X syndrome • Long protruding ears • Long face and prominent jaw • Flattened nasal bridge • High arch palate • Macroorchidism • Genetic is complex, 80% penetration in male and 30% penetration in female

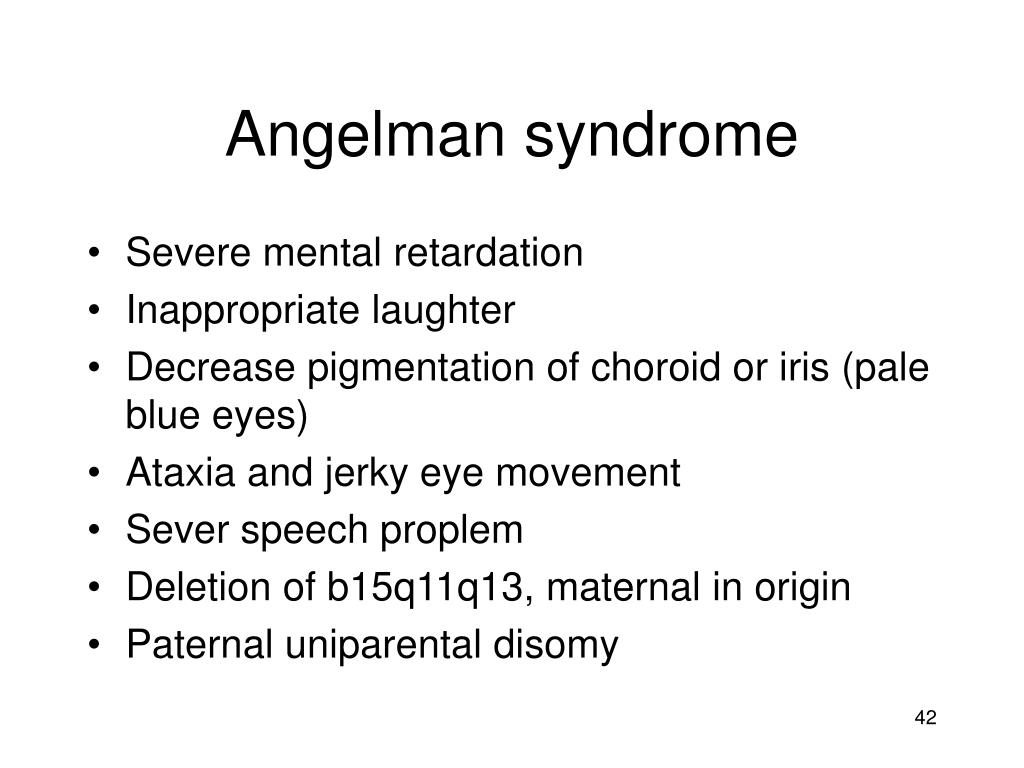

  27. Angelman syndrome • Severe mental retardation • Inappropriate laughter • Decrease pigmentation of choroid or iris (pale blue eyes) • Ataxia and jerky eye movement • Sever speech proplem • Deletion of b15q11q13, maternal in origin • Paternal uniparental disomy

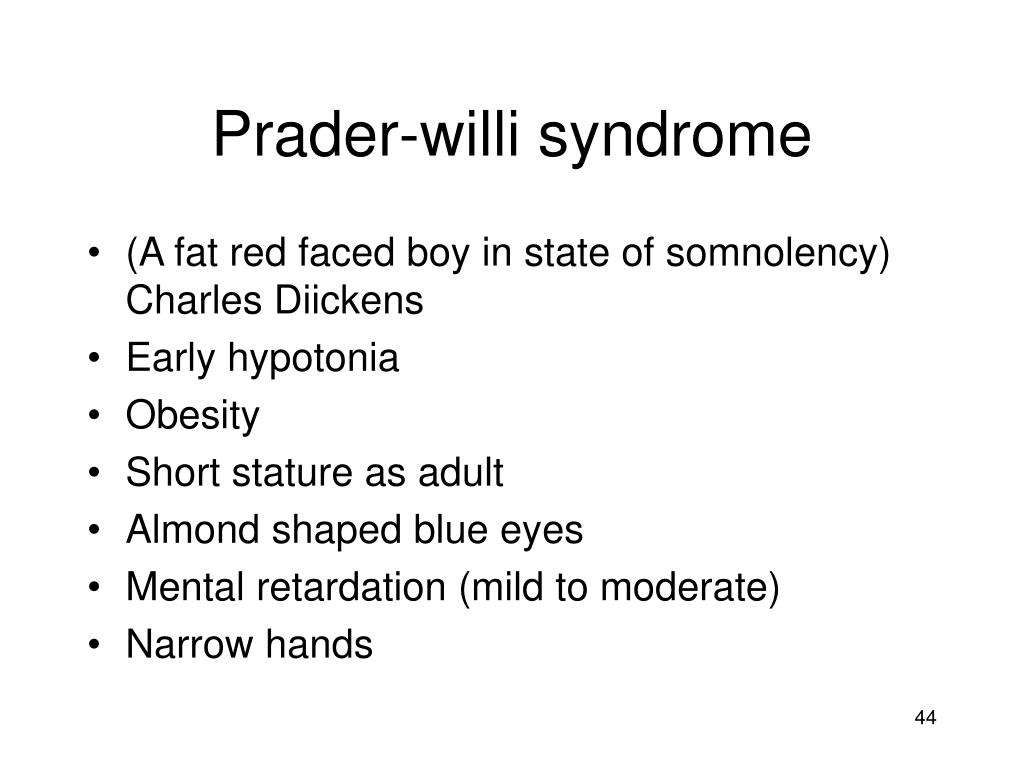

  28. Prader-willi syndrome • (A fat red faced boy in state of somnolency) Charles Diickens • Early hypotonia • Obesity • Short stature as adult • Almond shaped blue eyes • Mental retardation (mild to moderate) • Narrow hands
