Protecting Cryptographic Keys from Memory Disclosure Attacks

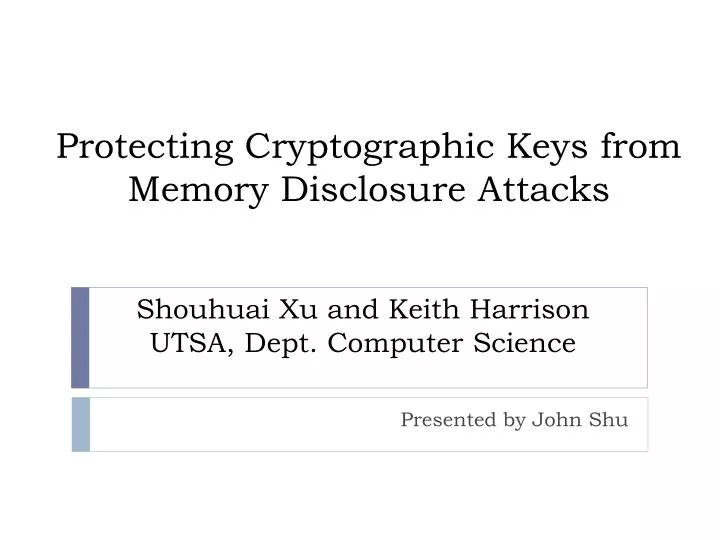

1. ShouhuaiXu and Keith Harrison UTSA, Dept. Computer Science Protecting Cryptographic Keys from Memory Disclosure Attacks Presented by John Shu

2. Outline • Introduction • Threat Assessment • Understanding the Attack • Countering Memory Disclosure Attacks • Conclusion

3. Introduction • Cryptography as an indispensable tool in security • Premise here is the security of cryptographic keys • A brief example of how it all works

4. Introduction • Cryptographic Keys (Symmetric) [source: http://securitycerts.org/images/symmetric-alice-bob.jpg]

5. Introduction • Cryptographic Keys (Asymmetric) e.g. RSA • Choose two distinct prime numbers P and Q • Calculate n=PQ • Calculate ϕ(n) = (P-1)(Q-1), ϕ is Euler totient function • Choose an integer e, 1<e< ϕ(n), e co-prime to ϕ(n) • Find d = e-1 mod ϕ(n), (i.ed is the multiplicative inverse)

6. Introduction • These cryptographic keys should be kept secret • Memory Disclosure Vulnerabilities violate this • Attacks built on this concept can access information: • Allocated Memory • Unallocated Memory These attacks can effectively expose RSA private Keys !!!

7. Threat Assessment • Initial experiments on OpenSSH and Apache HTTP servers • Memory Disclosure Vulnerabilities in Linux Kernels prior to 2.6.12, 2.4.30 and 2.6.11. • Directories created in the file system could leak 4KB • Portions of memory may be disclosed from unsigned types in certain files.

8. Recall RSA crypto system • System consist of d, e, P, Q, ϕ(n) and a PEM (.pem) file which contains the whole key. • Disclosure of either d, P, Q and the PEM encoded file can lead to compromise or private key. • Experiment included • 3.2 Intel Pentium 4 CPU • Gentoo Linux OS and 2.6.10 kernel • OpenSSH 4.3 server and Apache 2.0.55 Server

9. OpenSSH server • Procedure • Plugged in USB to machine running OpenSSH • Script performed the following function • Created large number of connections to localhost • Then script immediately closed all connections • Created a large number of directories in USB where each directory revealed less than 4072 bytes of memory onto the USB device • Device was then removed and searched for copies of private key

10. OpenSSH: # of keys found source: [4]

11. OpenSSH: success rate of attacks source: [4]

12. Understanding the Attacks • The need for a tool to take ‘snapshots’ of memory • A tool was developed in C code to • Obtain snapshots of memory • Do bookkeeping: “which processes have access to memory pages that contain private keys” • Deployed as a Loadable Kernel Module

13. Output from LKM source: [4]

14. Countering Memory Disclosure Attacks • Following Measures were proposed • Crypto key should appear in allocated memory minimal number of times • Unallocated memory should not have a copy of cryptographic key These measures were enforced at various levels of the System

15. Application Layer • Solution: • Utilize “Copy on Write management Policy” to avoid unnecessary duplication of private key • Implementation • RSA_memory_align() function was used to ensure that only one copy of private key appears in secluded region of allocated memory

16. Library Layer • Solution: • Eliminate unnecessary duplication of cryptographic keys in allocated memory using the same scheme as above • Implementation • Pages from the special region of memory are not copied or swapped.

17. Kernel Layer • Solution: • Ensure that unallocated memory does not contain any private keys by zeroing physical pages after use. • Implementation • free_hot_cold_page()function was modified to ensure that pages are cleared before being added to list of free pages in unallocated memory

18. Experimental Proof of Concept

19. Conclusion • Discovered vulnerability leading to disclosure of memory. • Proposed and tested solutions to eliminate the attack and mitigate damaged already caused. • However, complete elimination will be contingent upon extra hardware.

20. References • P.Broadwell,M.Harren,andN.Sastry.Scrash:Asys- tem for generating secure crash information. In Usenix Security Symposium’03. • J. Chow, B. Pfaff, T. Garfinkel, K. Christopher, and M. Rosenblum. Understanding data lifetime via whole system simulation. In Usenix Security Symposium’04. •  J. Chow, B. Pfaff, T. Garfinkel, and M. Rosenblum. Shredding your garbage: Reducing data lifetime. In Proc.USENIX Security Symposium’05. • Harrison K. Protecting Cryptographic Keys from Memory Disclosure Attacks. 37th Annual IEEE/IFIP International Conference on Dependable Systems and Networks, pp. 137-143, 2007.

21. QUESTIONS
