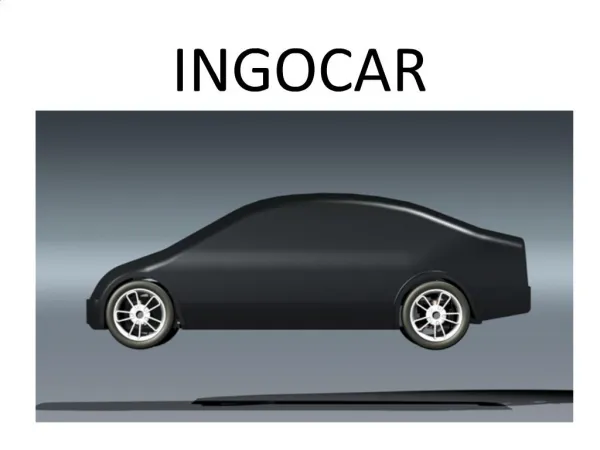

    1. INGOCAR

    2. INGOCAR Seats 5 adults Mileage 130 mpg Travel 600 miles 0 – 60 5 sec. Trunk 10 cu.ft. How it works and where the savings are coming from:

    3. Car body Independent Car platform Self-sustaining powertrain Light

    4. Car platform Engine - accumulator - tank – wheelmotors.

    5. The engine.

    6. Engine and accumulator opened.

    7. The engine charges the accumulator with fluid.

    8. Fluid from the accumulator transmits the power to the wheels.

    9. The fluid drives the hydraulic motors to turn the wheel. During braking, the wheel drives the motor and charges the accumulator with energy.

    10. The INGOCAR is driven by a new Hydrostatic Powertrain with Energy Storage. How it works: The engine pumps fluid into an accumulator to store the energy which drives the car. It will be turned off when the accumulator is charged. The pressurized fluid drives hydraulic motors, one in each wheel. During braking, the motors are reversed to pumps, recapturing the entire braking energy and recharge the accumulator with the pressurized fluid. Benefits: The small free-piston engine operates very clean and efficient at constant power and speed - and the wheelmotors recapture the entire braking energy. In addition, the powertrain is very light and small, reducing the power needed to drive the car. Both, the lower weight (-920 lb) and very efficient use of energy, reduce the fuel consumption and emissions drastically.

    11. Lower fuel consumption in % through reduced: Current car INGOCAR Weight -18% Air drag -18% Rolling (tires) -4% Accessories -8% Braking -11% Engine -19% Lower emissions: Fuel burned -80% Cleaner -10% combustion Fuel consumption Emissions

    12. Technical information. Valentin Technologies, Inc. www.valentrain.com Length x Width x Height 166 x 69 x 56 in 420 x 175 x 142 cm Wheelbase 106 in 270 cm Weight Curb 2,200 lb 1,000 kg Gross 3,230 lb 1,470 kg Power Engine 60 hp 44 kW Wheelmotors (4) 720 hp 530 kW Accumulator (2) (1.8 MJ) 0.68 hp.h 0.5 kW.h Velocity (max.) 100 mph 160 km/h Acceleration (0-60 mph) 5 sec 5 sec Fuel consumption (NEDC)* 130 mpg 1.8 L/100km * New European Driving Cycle
