Enterprise Resource Planning

Enterprise Resource Planning. Content. ERP SugarCRM System Requirement Installation Client setting. ERP. Enterprise resource planning (ERP) is the planning of how business resources (materials, employees, customers etc.) are acquired and moved from one state to another.

bond
Download Presentation

Enterprise Resource Planning

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Enterprise Resource Planning

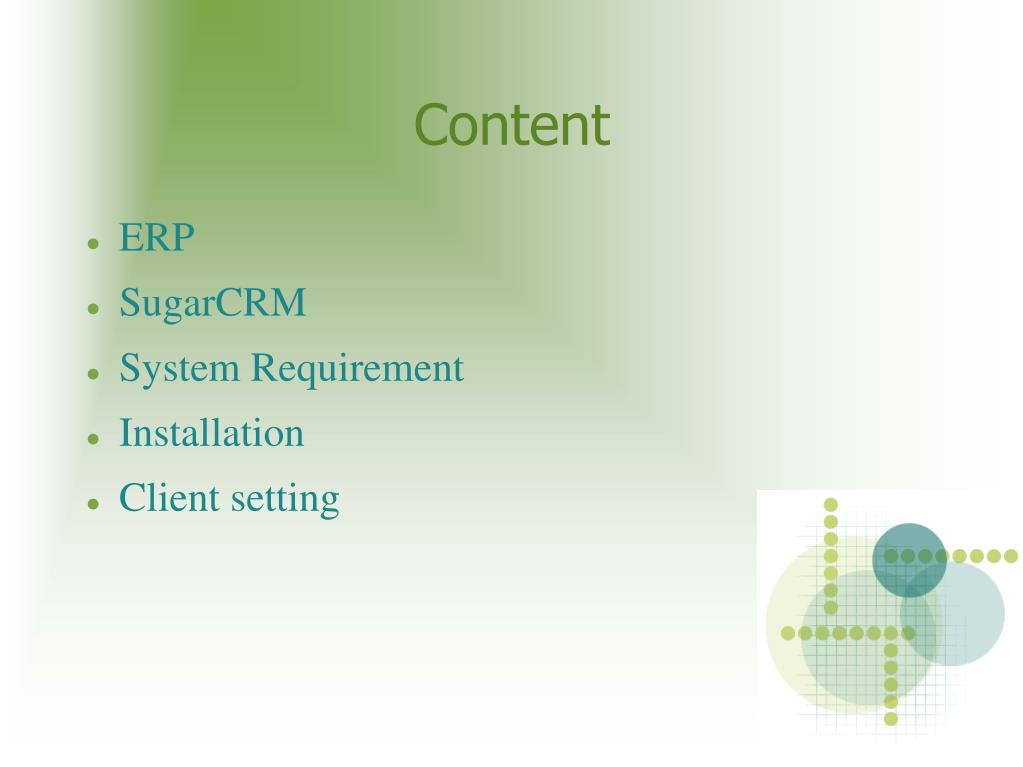

  2. Content • ERP • SugarCRM • System Requirement • Installation • Client setting

  3. ERP • Enterprise resource planning (ERP) is the planning of how business resources (materials, employees, customers etc.) are acquired and moved from one state to another. • An ERP system supports most of the business system that maintains in a single database the data needed for a variety of business functions such as Manufacturing, Supply Chain Management, Financials, Projects, Human Resources and Customer Relationship Management

  4. ERP • allow every department of a business to store and retrieve information in real-time. The information should be reliable, accessible, and easily shared.

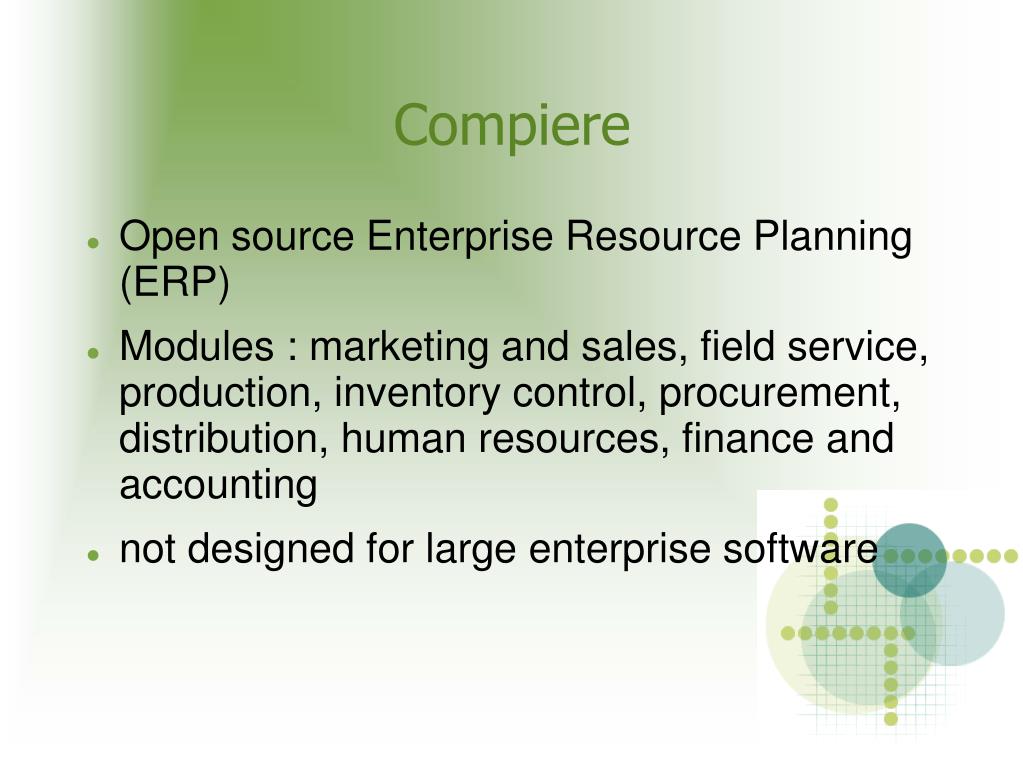

  5. Compiere • Open source Enterprise Resource Planning (ERP)‏ • Modules : marketing and sales, field service, production, inventory control, procurement, distribution, human resources, finance and accounting • not designed for large enterprise software

  6. System Requirements • Operating System: Linux, Windows 2000/XP,UNIX, BSD, or Mac OS X • Database: Postgres , Oracle • Java : JDK

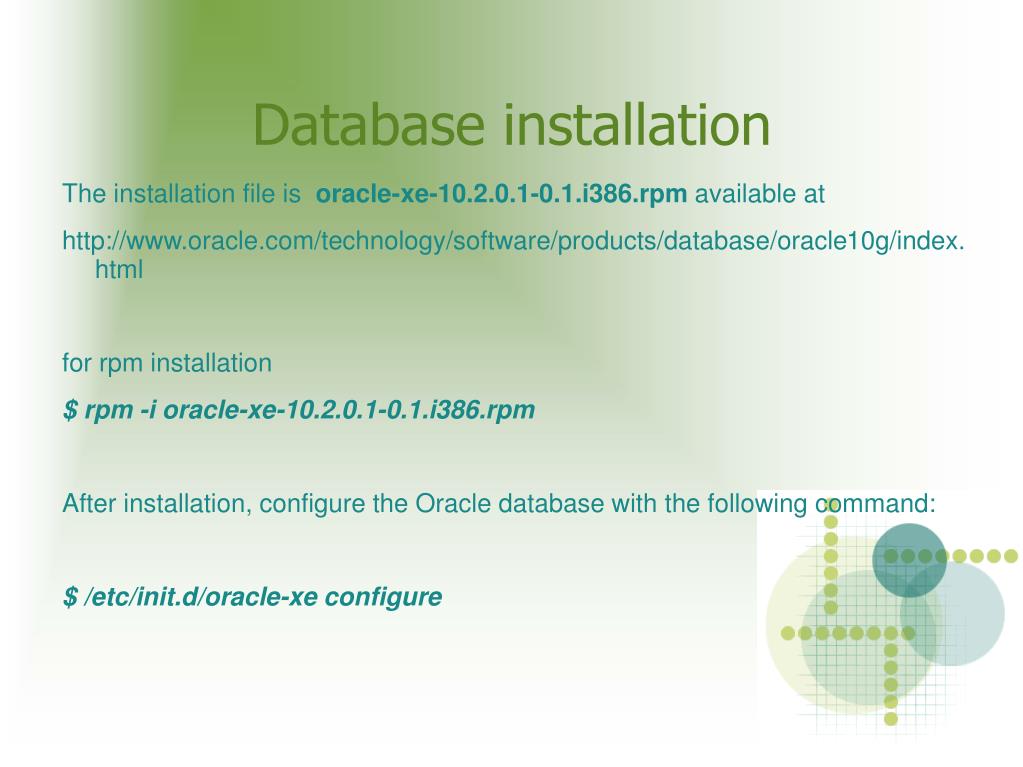

  7. Database installation The installation file is oracle-xe-10.2.0.1-0.1.i386.rpmavailable at http://www.oracle.com/technology/software/products/database/oracle10g/index.html for rpm installation $ rpm -i oracle-xe-10.2.0.1-0.1.i386.rpm After installation, configure the Oracle database with the following command: $ /etc/init.d/oracle-xe configure

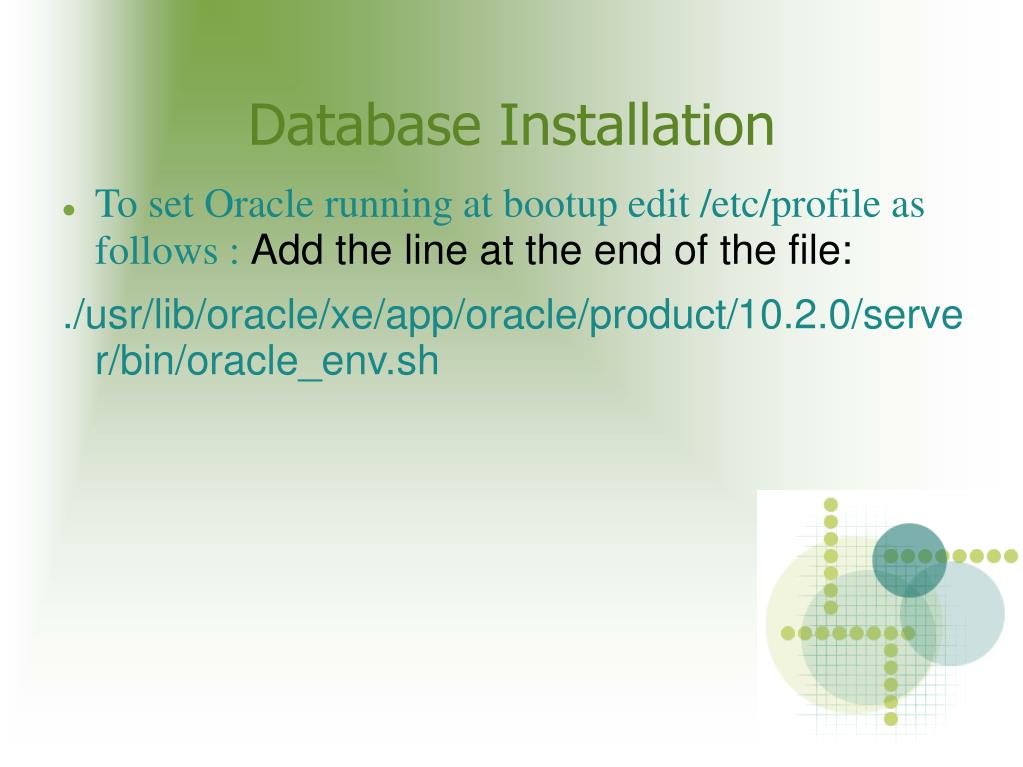

  8. Database Installation • To set Oracle running at bootup edit /etc/profile as follows : Add the line at the end of the file: ./usr/lib/oracle/xe/app/oracle/product/10.2.0/server/bin/oracle_env.sh

  9. Installing JDK • Download lastest rpm from http://java.sun.com • Run ./jdk-1_5_0_06-linux-i586.bin • Add the following lines to /etc/profile: PATH=/opt/jdk1.5.0_06/bin/:/usr/lib/oracle/xe/app/oracle/product/10.2.0/server/bin/:$PATH CLASSPATH=.:$CLASSPATH JAVA_HOME=/opt/jdk1.5.0_06/:$JAVA_HOME

  10. Compiere installation • Download from http://www.compiere.org/download/index.html • Extract files by the following command : $ tar xvfz Compiere_253a.tar.gz • Server setup/Install by running : $ cd Compiere2 $ ./RUN_setup.sh

  11. Compiere Installation

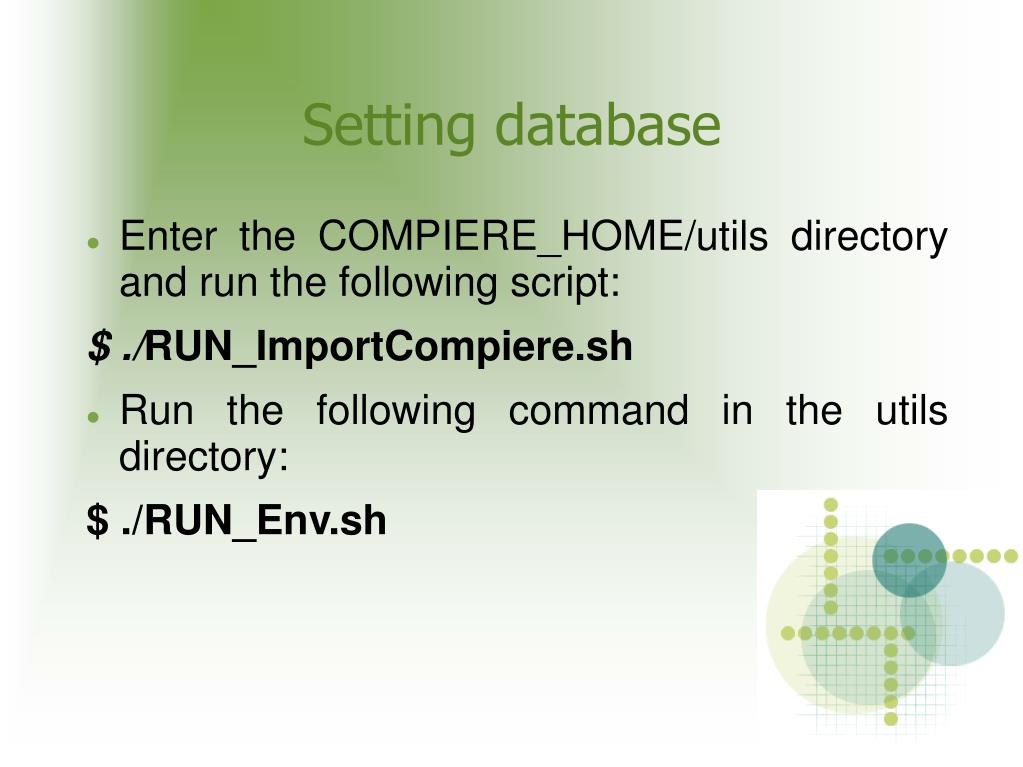

  12. Setting database • Enter the COMPIERE_HOME/utils directory and run the following script: $ ./RUN_ImportCompiere.sh • Run the following command in the utils directory: $ ./RUN_Env.sh

  13. Starting the compiere server • Enter COMPIERE_HOME/utils and run the following command: $ ./RUN_Server2.sh

  14. Client side • Setup client by running :$./RUN_Compiere2.sh

  15. Logging in

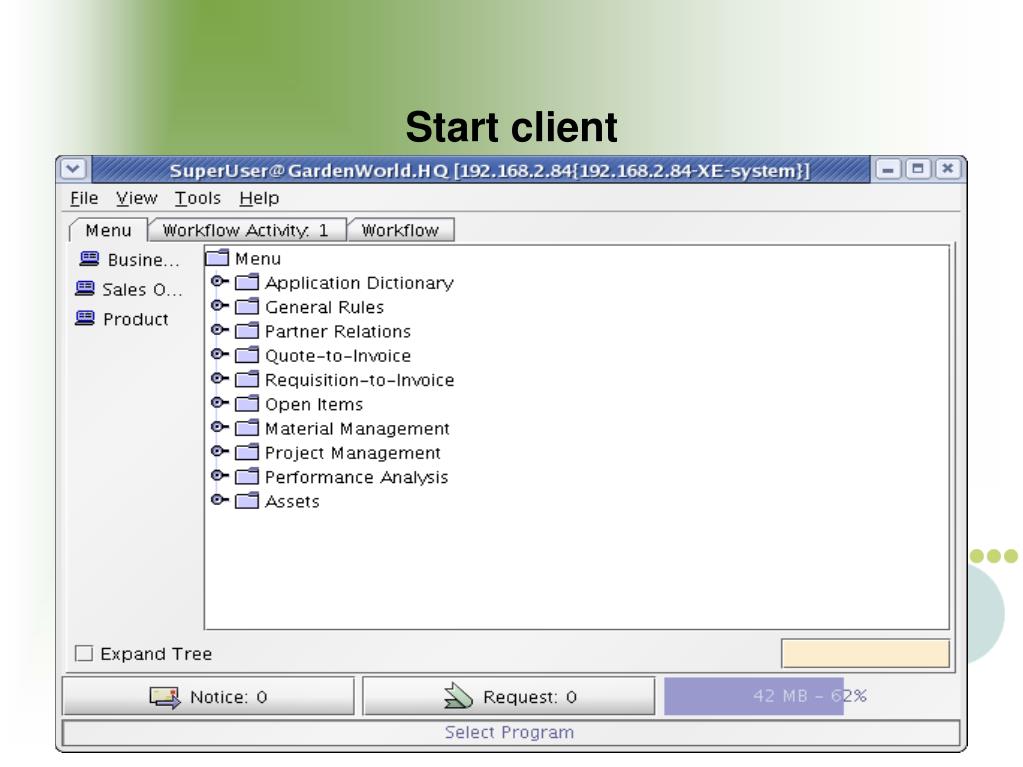

  16. Start client

  17. Compiere Users List

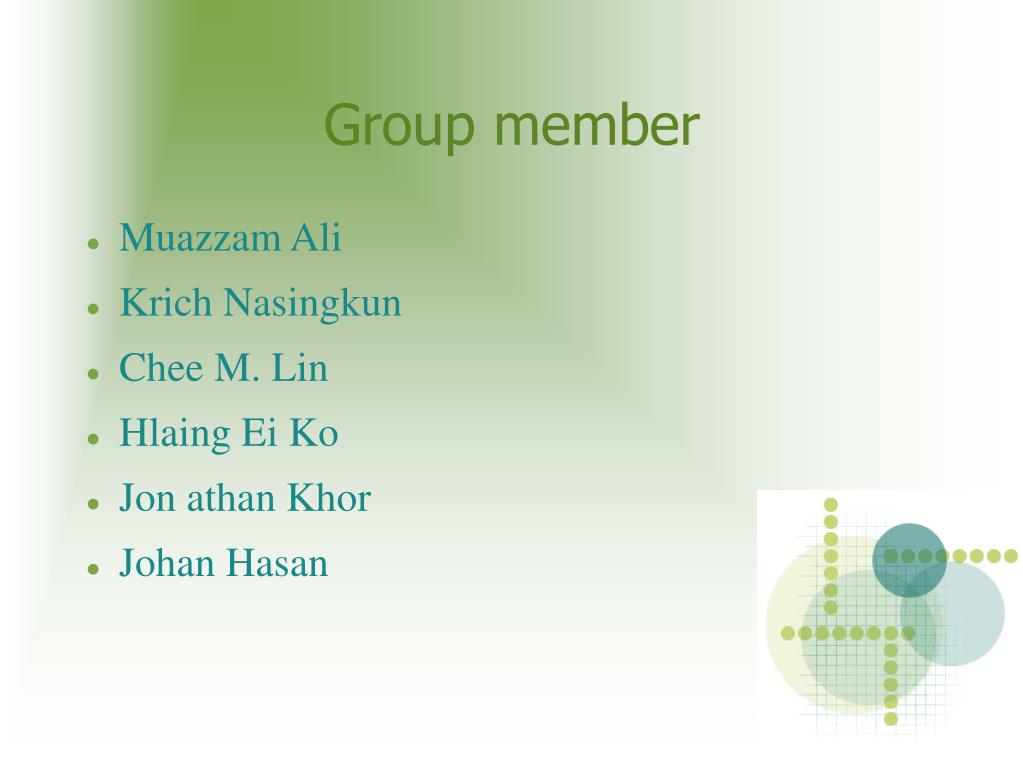

  18. Group member • Muazzam Ali • Krich Nasingkun • Chee M. Lin • Hlaing Ei Ko • Jon athan Khor • Johan Hasan
