Presentation Transcript

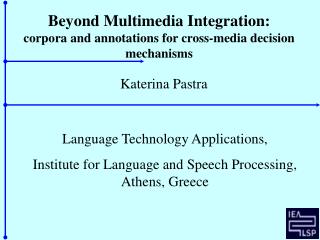

slide1

Beyond Multimedia Integration:

corpora and annotations for cross-media decision mechanisms

Katerina Pastra

Language Technology Applications,

Institute for Language and Speech Processing, Athens, Greece

slide2

The Multimedia Integration context

  • MM integration mechanisms: ones that establish associations between medium-specific representations
  • Applications: MM dialogue, MM indexing etc.
  • Need: MM corpora annotated with such associations
  • Existing collections with such annotations: IBM (Lin et al. 2003), PASCAL visual object categorization challenge (Everingham et al. 2005), and some ad hoc created collections

finite set of textual labels associated to visual medium (keyframe/image or image region)

OK, for MM integration – but, Beyond ???

slide3

Overview

  • Beyond MM integration: Cross-media decision

mechanisms

- notion and example application (cross-media indexing)

  • Corpora for cross-media mechanisms

- corpus characteristics & the REVEAL THIS corpus

  • Annotations for cross-media mechanisms

- cross-media relations

- cross-media annotation types

- annotation language requirements

- MPEG7 & EMMA: suitability for such annotations

slide4

equivalence

The notion of Cross-Media Decision Mechanisms

Mechanisms that decide on the relation that holds between medium specific pieces of information:

  • across documents (Boll et al. 1999)
  • within documents(Pastra & Piperidis 2006, EuroITV conf.)

The mechanisms decided whether medium-specific pieces of information within the same Multimedia Document are:

  • associated (multimedia integration)
  • complementary
  • semantically compatible/incompatible

complementarity

independence

slide5

Cross-media Relation Examples

Equivalence: “the yellow taxi-boats…”

Non-essential complementarity:

“…we are heading to Patmos…”

Essential complementarity:

“…[pollution has taken its toll] on that..”

Independence: “…I have finally found a place that’s not overrun by tourists…”

slide6

Cross-media relations

  • Equivalence: info expressed by different media refers to the same entity (object, state, event or property)
  • Complementarity: info in one medium is an (essential or not) complement of the info expressed in another.

Essential complementarity usually indicated through association signals (e.g. indexicals)

Non-essentially complementarity info in one medium is a modifier/adjunct of info expressed in another

  • Independence: each medium carries an independent (but coherent) part of the MM message

Incoherence due to errors in medium-specific processing or artistic/editorial reasons

slide7

Application example:

a cross-media indexer’s decisions

2 ¬choice

1) Landscape–sea/coast

1¬and

2) Landscape – people

or/and

Equivalence: “the yellow taxi-boats…”

Independence: “…I have finally found a place that’s not overrun by tourists…”

and

and

Essential complementarity:

“…[pollution has taken its toll] on this..”

Non-essential complementarity:

“…we are heading to Patmos…”

How shall we develop them?

slide8

Corpora for x-media mechanisms

Such a corpus should consist of:

  • multimedia documents(e.g. video, illustrated text)
  • multi-genre & multi-domain documents

within document algorithms!

medium-specific processor needs!

  • The Reveal – This corpus
  • Multilingual(EL-EN) – part of it parallel + rest comparable
  • Multimedia(MPEG-2 videos – TV programmes, DVD documentaries etc. but also radio and web-text (=UTF8)
  • Multi-domain(Politics, Travel, News)
  • Multi-genreto accommodate: read speech vs. spontaneous
  • speech, face-rich vs. object-rich imagery, formal vs. colloquial
  • language
slide11

Annotation types

Equivalence:

  • Association – A(X,Y)
  • Partial Association – PA(X,Y) e.g. “coloured” +

Complementarity:

  • Association Signal – AS(X,Y)
  • Adjunct – AJ(X,Y)
  • Apposition – AP(X,Y) e.g. “the president” +

Independence:

  • Coherence – CH(X,Y)

“attribute” text vs. “value” image

One unit, do not associate as if type:token

slide12

Annotation language requirements

A markup language should allow for:

  • modular description of the structure of a MM document and of media it consists of, to facilitate indication of relations between media with different levels of structural granularity (e.g. token-image region, token-set of keyframes etc.)

MPEG-7 ideally suited for such description

  • creation of a multimedia unit with re-defined properties in cases of essential conjunction of medium-specific pieces of info for forming a MM message (e.g. in essential complementarity cases….)

EMMA ideally suited for such task

slide13

MPEG-7 and EMMA

MPEG-7 ISO standard for describing MM content:

  • low-level feature descriptors (e.g. colour, motion etc.)
  • high-level feature descriptors (object, event etc.)
  • structure descriptors
  • relations between structural units (e.g. spatial, temporal etc.)
  • textual annotations for each unit (e.g. controlled vocabulary etc.)

EMMAW3C standard (working-draft) for describing the output of medium-specific processors and their integration in MM user input scenarios

  • hook element ~ asso signal
  • composite derivation  creation of MM unit e.g.

“destination” + pen pointing to Boston image region on screen

slide14

Conclusions

  • within-document cross media decisions mechanisms
  • need multimedia, multi-genre, multi-domain corpora
  • annotated with a finite set of description elements
  • that will allow for indicating the cross-media relations (equivalence, complementarity, independence) that hold in the MM documents
  • using a markup language that will have features that MPEG-7 and EMMA have in combination

A timely cooperation between the two schemes?
