Transforming out Timing Leaks (Agat’s approach)

1. Transforming out Timing Leaks(Agat’s approach) Terkel K. Tolstrup Email: tkt@imm.dtu.dk Informatics and Mathematical Modelling Technical University of Denmark

2. Security Leakage • Direct Leakage • Indirect Leakage • Termination Leakage • Special case of Timing Leakage • Timing Leakage Timing Leakage is normally considered a Covert Channel

3. Termination Leaks – Intuitively • What kind of programs leak through termination channels? • while h do skip? • if h then skip else loop?

4. Timing Leaks – Intuitively • What kind of programs leak through timing channels? • while h>0 do h:=h-1? • if h then h1:=h1+1; h1:=h1+1 … else skip?

5. Covert Channels • Unintentional leak of information (Covert Channel) • Attacker learns secrets by observing normal behavior of systems, wrt. • Timing • Power consumption • Noise, Faults/Errors, Electromagnetic… • Often used to break implementations of cryptosystems

6. Timing Channels • Timing attacks: use observations of the timing behavior of system to guess secrets • Several accounts of practical attacks: • [Kocher’96]: On Diffie-Hellman, RSA, DSS… • [Dhem et al’98]: Practical implementation on Smartcard • …

7. Timing Channels - Goals • Ultimate goal: Find the secret key, so that all cipher texts can be decrypted. • Distinguishability: Find probabilities that allows the attacker to distinguish between different plaintexts. • Made more powerful in combination with the exploitation of other side channels.

8. Time difference allows attack by varying guess Performing a timing attack • The attacker knows the first m bits of the secret key Initiate contact Public Key Guess: m+1’th bit Reply

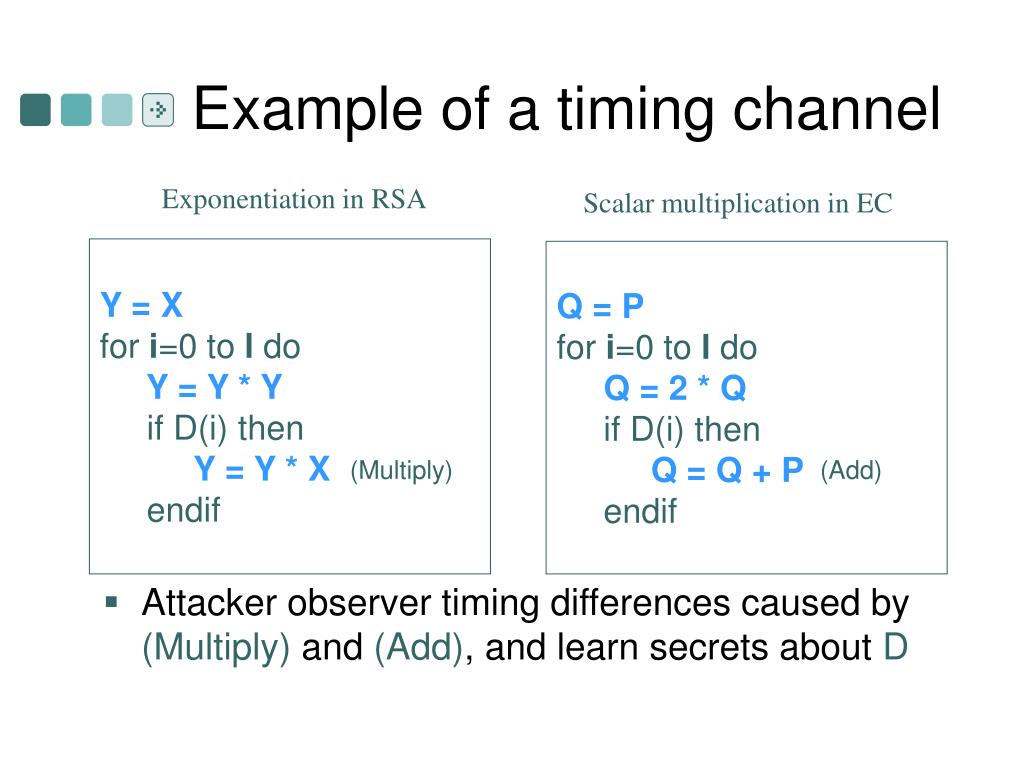

9. Example of a timing channel Exponentiation in RSA Scalar multiplication in EC Y = X for i=0 to l do Y = Y * Y if D(i) then Y = Y * X endif Q = P for i=0 to l do Q = 2 * Q if D(i) then Q = Q + P endif (Multiply) (Add) • Attacker observer timing differences caused by (Multiply) and (Add), and learn secrets about D

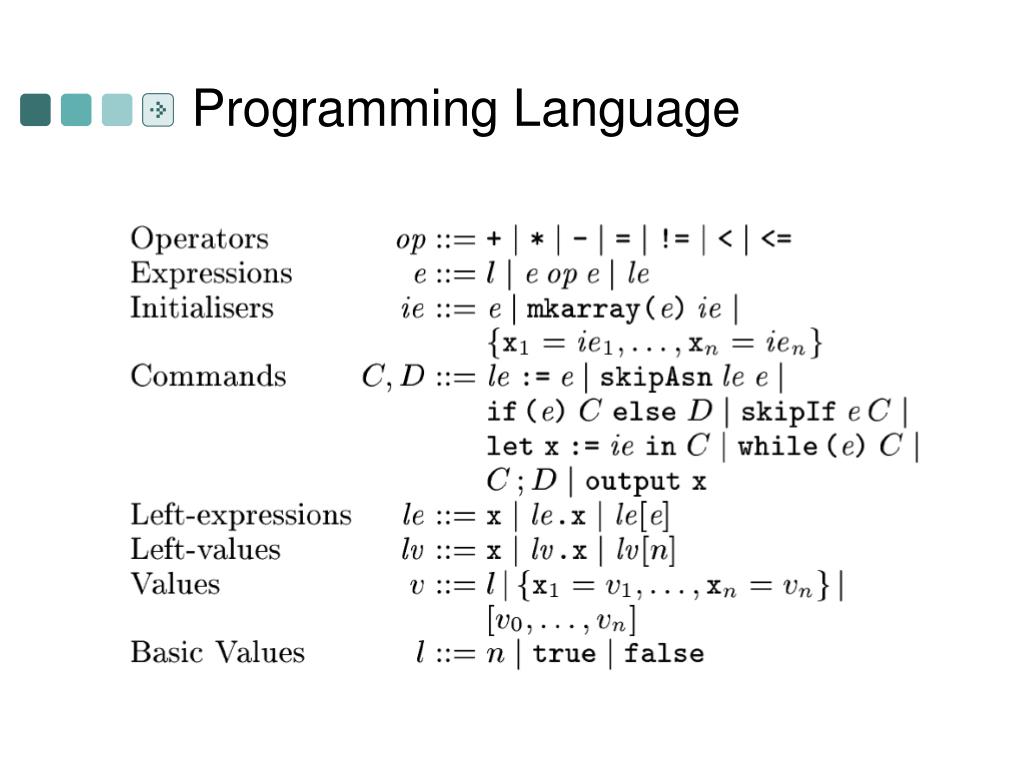

10. Programming Language

11. Getting rid of Termination Leaks – Identifying the cause

12. Getting rid of Termination Leaks– Being conservative • Let modify the inference rule • How does this work? • while h do skip? • while l do skip? • if h then while l do skip else skip? Not Allowed  Allowed  Allowed

13. Getting rid of Termination Leaks– This time for real • Let modify the inference rule • How does this work? • while h do skip? • while l do skip? • if h then while l do skip else skip? Not allowed  Allowed  Not allowed

14. Getting rid of Timing Leaks– Identifying the cause • Did we get rid of Timing Leaks while taking care of Termination Leaks? • Not caused by while loops anymore, because they are only allowed to handled non-secret information. • But what about • if h then h := h + 1; h := h + 1;… else skip?

15. Getting rid of Timing Leaks – Being conservative

16. Hold on! – We are begin too conservative • This approach results in only having secret information on the right-hand side of assignments: • x := … h … • That probably won’t allow many useful/real programs.

17. Getting rid of Timing Leaks– Identifying the cause (cont.) • The cause of the timing leaks in if statement are that the branches have different execution time • Assume we knew the worst-case execution time of any piece of program! • Then we could write program like: • if h then C1 else C2 ; … “waste time until worst-case

18. Getting rid of Timing Leaks– Agat’s approach • Transform programs such that they waste time until both branches are done • What is worst-case? • C1 ? • C2 ? • How about the running time of C1;C2?

19. Getting rid of Timing Leaks– Agat’s approach • Transform programs such that they waste time until both branches are done • if h then C1 else C2 • if h then C1;C2 else C1 ;C2 • What is Agat’s problem? S2 S1

20. Getting rid of Timing Leaks– Making the slides • Assignments (to H): • Assignments (to L):

21. Getting rid of Timing Leaks– Making the slides (cont.) • Composition (C;D): • Loop (while e do C):

22. Getting rid of Timing Leaks– Making the slides (cont.) • Conditional (on H): • Conditional (on L):

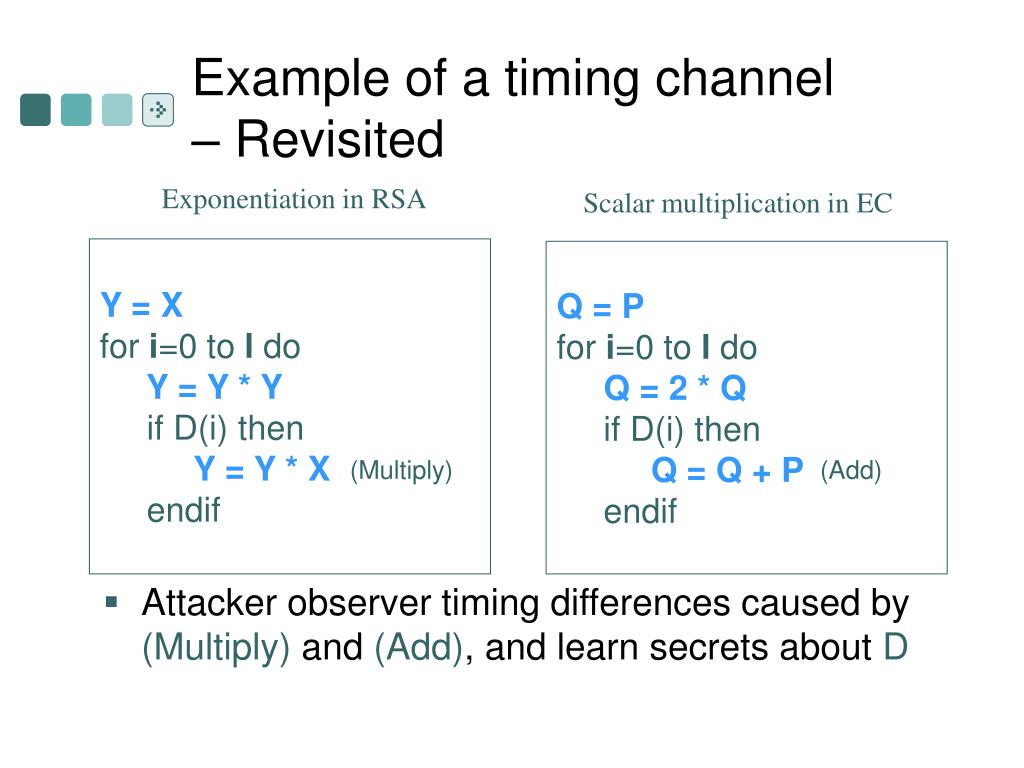

23. Example of a timing channel– Revisited Exponentiation in RSA Scalar multiplication in EC Y = X for i=0 to l do Y = Y * Y if D(i) then Y = Y * X endif Q = P for i=0 to l do Q = 2 * Q if D(i) then Q = Q + P endif (Multiply) (Add) • Attacker observer timing differences caused by (Multiply) and (Add), and learn secrets about D

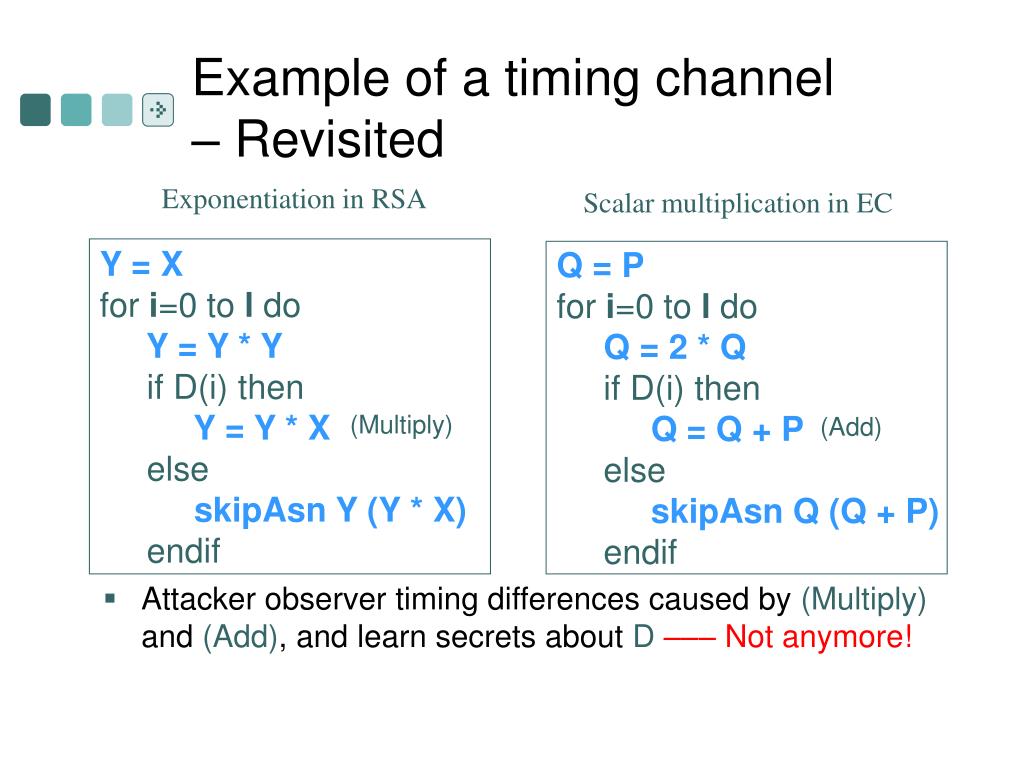

24. Example of a timing channel– Revisited Exponentiation in RSA Scalar multiplication in EC Y = X for i=0 to l do Y = Y * Y if D(i) then Y = Y * X else skipAsn Y (Y * X) endif Q = P for i=0 to l do Q = 2 * Q if D(i) then Q = Q + P else skipAsn Q (Q + P) endif (Multiply) (Add) • Attacker observer timing differences caused by (Multiply) and (Add), and learn secrets about D –––Not anymore!

25. Food for thoughtLoosening the analysis (loops) • Can we apply Agat’s approach on while loops? • Let’s unroll the loops once and try: • while h do C • if h then C; while h do C else skip • What is our problem?

26. The Information Flow Challenge • The Information Flow Challenge is a web-based game that let the player try to outsmart an information flow analysis that becomes increasingly restrictive for each challenge the player finishes. • Play with what you have learned in this course!

27. The Information Flow Challenge

28. The Information Flow Challenge

29. The Information Flow Challenge
