1. EDDI: Introduction to SDMX Arofan Gregory Open Data Foundation

2. What is SDMX? The problem space: Statistical collection, processing, and exchange is time-consuming and resource-intensive Various international and national organisations have individual approaches for their constituencies Uncertainties about how to proceed with new technologies (XML, web services …)

3. International OrganisationsRegional Organisations accountsstatistics National Statistical Organisations accountsstatistics Banks, Corporates Individual Households trans-actionsaccounts www.z.orgwww.hub.org 180 + Countries Internet, Search, Navigation www.y.org www.x.org

4. What is SDMX? The Statistical Data and Metadata Exchange (SDMX) initiative is taking steps to address these challenges and opportunities that have just been mentioned: By focusing on business practices in the field of statistical information By identifying more efficient processes for exchange and sharing of data and metadata using modern technology

5. Historical Note SDMX uses an approach based on the 10-year-long success of an earlier standard – GESMES/TS GESMES/TS was an initiative that is used today in many countries for collecting, exchanging, and updating statistical databases GESMES/TS is now SDMX-EDI Focus is on time-series, and is mostly used by central banks

6. Who is SDMX? SDMX is an initiative made up of seven international organizations: Bank for International Settlements European Central Bank Eurostat International Monetary Fund Organisation for Economic Cooperation and Development United Nations World Bank The initiative was launched in 2002

7. SDMX Products Technical standards for the formatting and exchange of aggregate statistics: SDMX Technical Specifications version 1.0 (now ISO/TS 17369 SDMX) SDMX Technical Specifications version 2.0 (submitted to ISO) SDMX Technical Specifications version 2.1 under review (will be forwarded to ISO) Content-Oriented Guidelines Common Metadata Vocabulary Cross-Domain Statistical Concepts Statistical Subject-Matter Domains

8. Detailed SDMX Goals Reduce national reporting burden to international institutions Fostering consistency, accuracy, and timeliness between data and metadata disseminated by national and international institutions, relying on what is decentrally released via national websites Enhancing national statistical processing efficiency, especially through internationally-recognised standard formats for exchanges between statistical silos within institutions and with other national statistical agencies Providing standards for web-based dissemination formats that are computer readable and facilitate updating of databases Enhancing comparison of data and metadata analysis through standard formats and content-oriented guidelines

9. Official Recommendations SDMX has been officially recommended: February 2007: SDMX endorsed by the European Union’s Statistical Programme Committee March 2008: UN Statistical Commission declares SDMX to be the preferred standard for data and metadata

10. Exchange Patterns Bilateral: Institutions exchange data according to bilateral agreements regarding format, timing, protocols, etc. Gateway: Institutions share the data they collect with their peers, in agreed formats among counterparty communities Data-sharing: standard exchange of data using standard formats and protocols

11. Bilateral Exchange

12. Gateway Exchange

13. Data-Sharing Exchange

14. Notes About Data-Sharing Data-sharing only works if there are standard formats Data-sharing works only if the data themselves are decentralized One big database doesn’t work! Like the Web itself, a data-sharing model relies on pull exchanges, not push exchanges Data consumers discover the data they need, and its location, and then go and get it Data producers don’t have to send data

15. Adopters/Interest The following are known adopters (or planning to adopt): US Federal Reserve Board and Bank of New York European Central Bank Joint External Debt Hub (WB, IMF, OECD, BIS) UN/TRADECOM at UN Statistical Division NAAWE (National Accounts from OECD/Eurostat) European Statistical System (Eurostat and National Statistical Institutes) Mexican Federal System Vietnamese Ministry of Planning and Investment Qatar Information Exchange IMF (BOP, SNA, SDDS/GDDS) Food and Agriculture Organization Millennium Development Goals (UN System, others) International Labor Organization Bank for International Settlements OECD World Bank World Development Indicators (WDI) Marchioness Islands (Spanish/Portuguese Statistical Region) UNESCO (Education) Australian Bureau of Statistics WHO (SDMX-HD) Statistics Canada There are many others!

16. OECD Data structures are specified using SDMX standards Data sets are held in SDMX-ML format and navigated “on the fly” OECD.Stat http://stats.oecd.org/WBOS/index.aspx Experimenting with graphical presentation of data Serves all OECD data as SDMX through OECD.stat web service

17. Eurostat Builds on long experience of using GESMES for data transmission (GESMES is main format for transmission of data in several important domains e.g. national accounts, balance of payments, short-term statistics) More than 50 Data Structure Definitions for GESMES developed and maintained (in partnership with ECB) Software components developed and made available as open-source software (see Tools page of SDMX website) Now creating a portal for all European Census data, collected as SDMX

18. SDMX Information Model: High level Schematic Category Scheme Data or Metadata Structure Definition comprises subject or reporting categories uses specific data/metadata structure can be linked to categories in multiple category schemes conforms to business rules of the data/metadata flow Data or Metadata Flow Data or Metadata Set Category can get data/metadata from multiple data/metadata providers publishes/reports data/metadata sets can have child categories can provide data/metadata for many data/metadata flows using agreed data/metadata structure Registered Data or Metadata Set Provision Agreement is registered for Data Provider registers existence of data and metadata

19. SDMX Technical Specs v 1.0 Information Model (data structure definitions and data formats) SDMX-ML: XML formats for data structure definitions and data SDMX-EDI: EDI formats for data structure definitions and data Web-Services Guidelines User Guide

20. Technical Notes on Version 1.0 Only numeric observations were supported Only coded key values were supported Intended to provide an XML version of the existing GESMES/TS data model GESMES/TS became SDMX-EDI XML extended the data model to provide for more types of groups and cross-sectional data Hierarchical codelists not supported

21. SDMX Technical Spec v. 2.0 Expanded data model includes Registry interfaces Metadata structures and formats Data and metadata provisioning Other advanced features (process flow, reporting taxonomy, structure mapping, etc.) Data formats now include uncoded dimensions, hierarchical codelists, and non-numeric observations

22. Technical Notes on Version 2.0 A very large expansion of scope Model covers the process of statistical exchange, not just the data formats Many cases which version 1.0 could not support were included in version 2.0 as a result of implementations Full support for the “data sharing” pattern of exchange Resulting from the inclusion of the registry

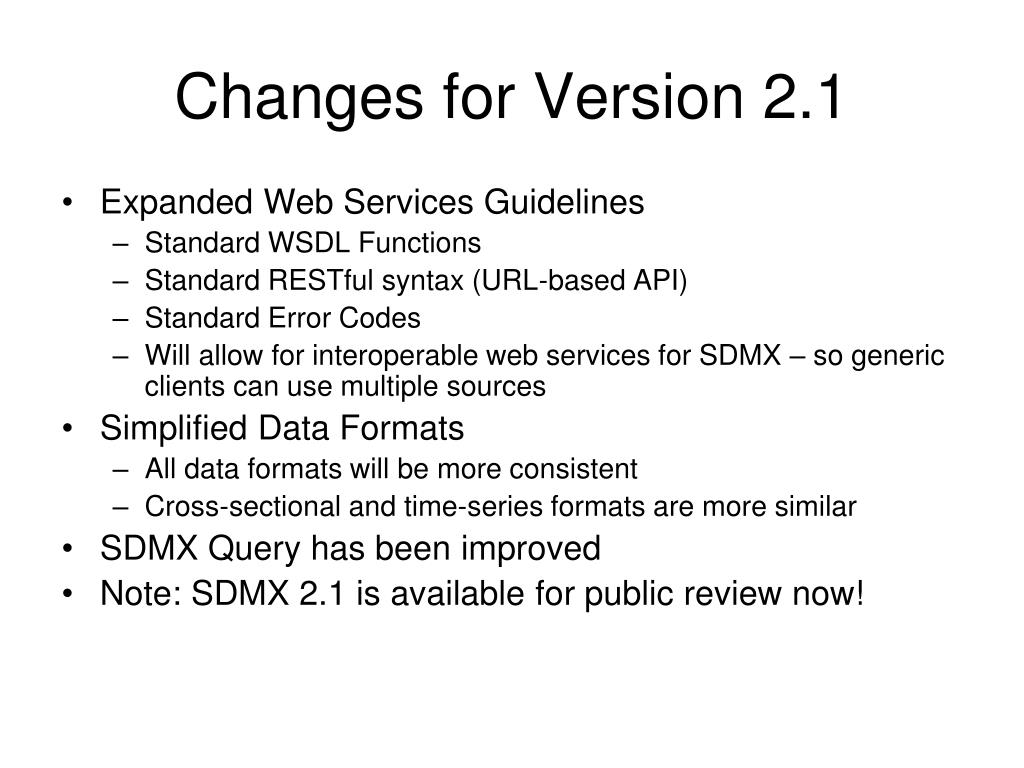

23. Changes for Version 2.1 • Expanded Web Services Guidelines • Standard WSDL Functions • Standard RESTful syntax (URL-based API) • Standard Error Codes • Will allow for interoperable web services for SDMX – so generic clients can use multiple sources • Simplified Data Formats • All data formats will be more consistent • Cross-sectional and time-series formats are more similar • SDMX Query has been improved • Note: SDMX 2.1 is available for public review now!

24. The Old JEDH (Joint External Debt Hub) Site BIS WEBSITE IMF OECD World Bank (Various Formats) (3-month production cycle)

25. JEDH with SDMX Retrieves data from sites BIS SDMX “Agent” SDMX-ML SDMX-ML Loaded into JEDH DB [Info about data is registered] IMF SDMX-ML Discover data and URLs SDMX Registry OECD SDMX-ML Data provided in real time to site World Bank SDMX-ML JEDH Site SDMX-ML (Debtor database)

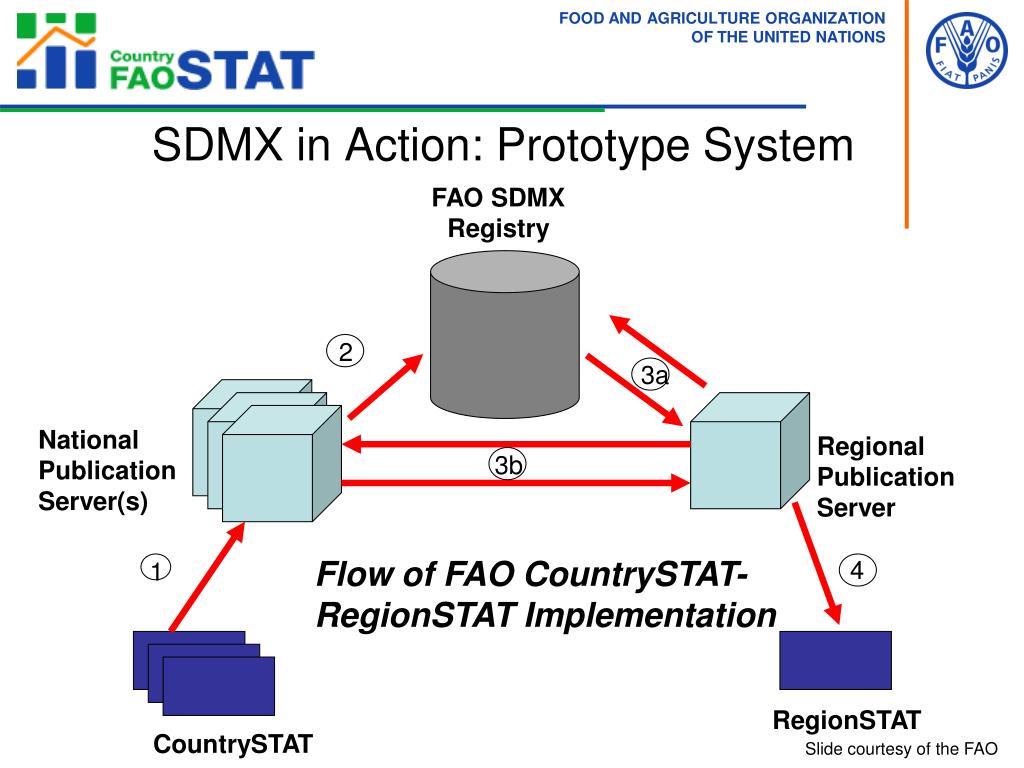

26. SDMX in Action: Prototype System FOOD AND AGRICULTURE ORGANIZATION OF THE UNITED NATIONS FAO SDMX Registry 2 3a National Publication Server(s) Regional Publication Server 3b Flow of FAO CountrySTAT- RegionSTAT Implementation 4 1 RegionSTAT CountrySTAT Slide courtesy of the FAO

27. Prototype System: Explanation FOOD AND AGRICULTURE ORGANIZATION OF THE UNITED NATIONS • CountryStat National Publication Server • The web site is published from the files in CountryStat • SDMX Publication • The new CountryStat files are converted to SDMX-ML data sets and made web accessible on the CountryStat web site • These files are registered in the FAO SDMX Registry • RegionStat Regional Publication Server • Queries the registry for new registrations which responds with registration details including the URL of the new data sets • Retrieves the new data sets from the CountryStat web site • Converts the SDMX-ML files to an internal format and integrates the new data sets with existing RegionStat data sets • Re-publishes the RegionStat web site 1 2 3a 3b 4 Slide courtesy of the FAO

28. Questions?
