  1. Internal BGP as PE-CE Protocol Pedro Marques roque@juniper.net Robert Raszuk rraszuk@cisco.com Dan Tappan tappan@cisco.com Luca Martini luca@level3.net

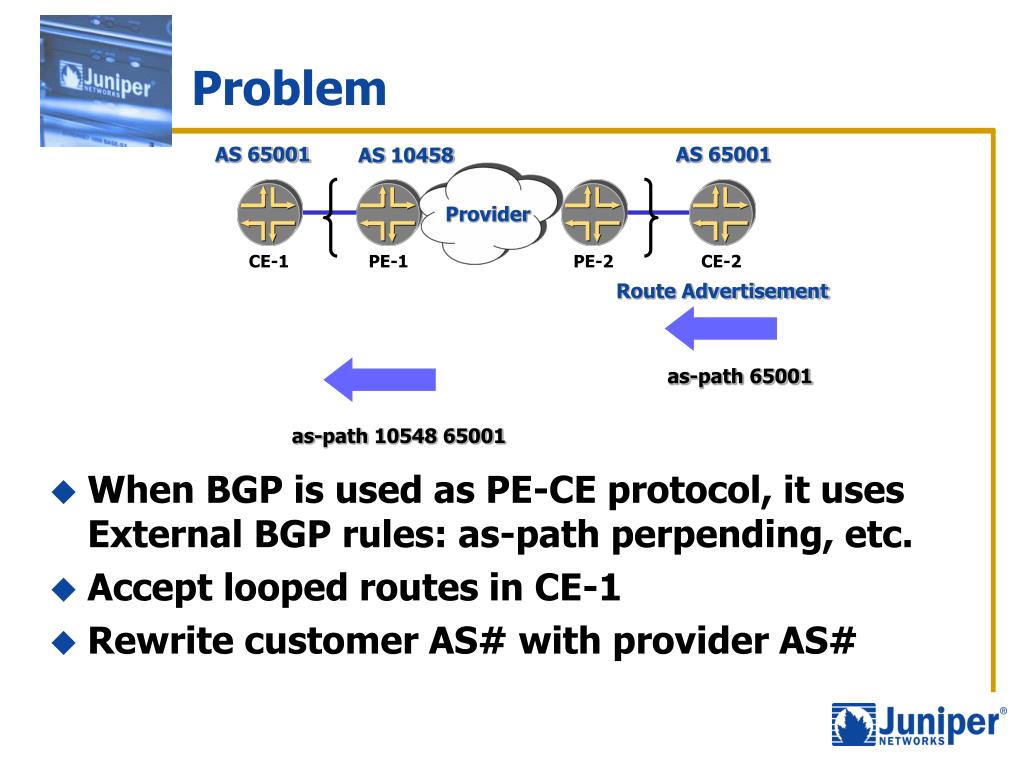

  2. CE-1 PE-1 PE-2 CE-2 Problem AS 65001 AS 65001 AS 10458 • When BGP is used as PE-CE protocol, it uses External BGP rules: as-path perpending, etc. • Accept looped routes in CE-1 • Rewrite customer AS# with provider AS# Provider Route Advertisement as-path 65001 as-path 10548 65001

  3. Continued • When CE connections are not isolated islands and exchange BGP routes with any other party, it just gets messier. • Customer island peers with the service provider (for Internet service, for instance). • Customer islands exchange routes with outside world: Provider AS# appears in the path. • Never ending requests for as-path rewrite hacks.

  4. CE-1 RR-1 RR-2 CE-2 Rent-a-core • Traditional network design: • Core distributes routing information to sites. • Reflectors participate in top level iBGP mesh. • Pop/Site routers receive routing information from their respective RRs. • IGP may be stub area if there are no backdoor links. • These are often managed independently. Core

  5. Proposed model • PE routers are route reflectors to each CE site location. • Customer network attributes are pushed into an “attribute stack” at ingress. • This deals with interference on local-preference, communities, MEDs, etc. • At egress “attribute stack” is poped. cluster is perpended when advertising to CE side. • cluster-list performs loop avoidance.

  6. IGP interaction • Shouldn’t require a single IGP between distinct sites. • Even if an IGP is running between all sites it may not be able to compare inter-site metrics (Provider assigned) and intra-site. • Perform implicit “next-hop self” on the PE/RR • when advertising to CE. • when advertising to other PEs. • PE/RR makes decisions by taking inter-cluster metrics always higher than intra-cluster.

  7. Deployment • Mix and match of eBGP and iBGP in the same VPN. • Proposed attribute (ATTR_SET) consists of customer AS# plus attributes in original path. • This allows a PE to know what to advertise to a given CE. peer origin

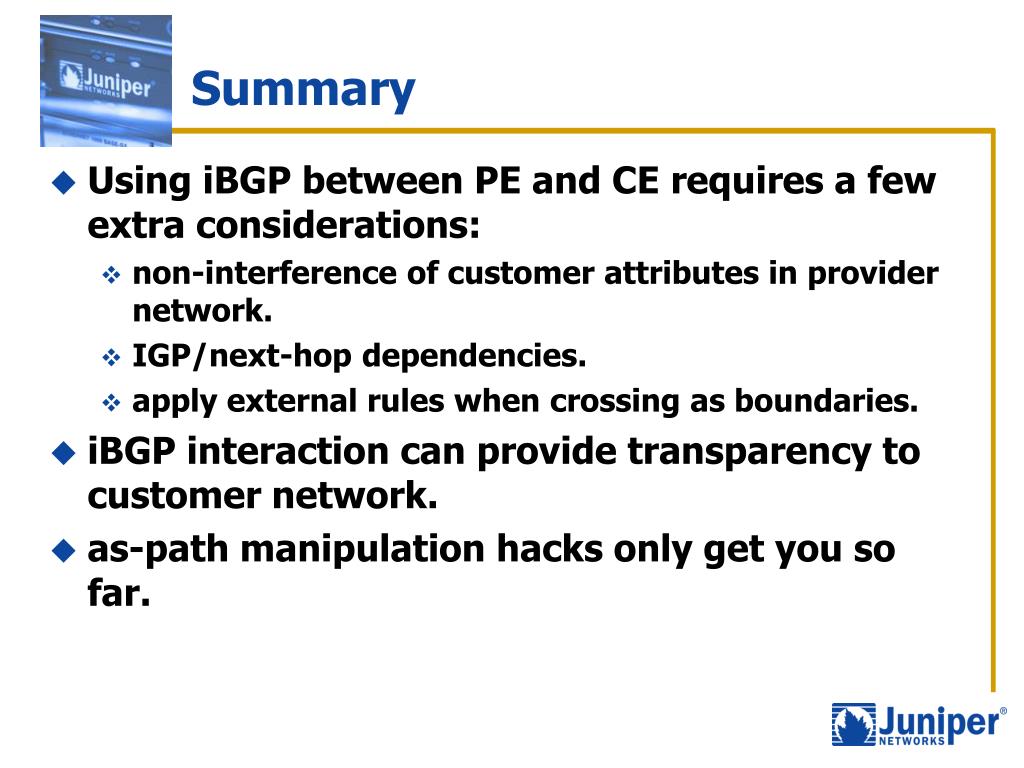

  8. Summary • Using iBGP between PE and CE requires a few extra considerations: • non-interference of customer attributes in provider network. • IGP/next-hop dependencies. • apply external rules when crossing as boundaries. • iBGP interaction can provide transparency to customer network. • as-path manipulation hacks only get you so far.

  9. Thank You For more details see: draft-marques-ppvpn-ibgp-00.txt
