  1. Automated Rivet Inspection System for Aging Aircrafts Unsang Park, Lalita Udpa, George C. Stockman Computer Science and Engineering Michigan State University

  2. Contents • Nondestructive Inspection (NDI) • Magneto-optic Imager in NDI • Motion-based Filtering (MBF) • Real-time implementation of MBF • Automated rivet inspection system • Rivet detection • Rivet classification • Results and conclusions • Future work

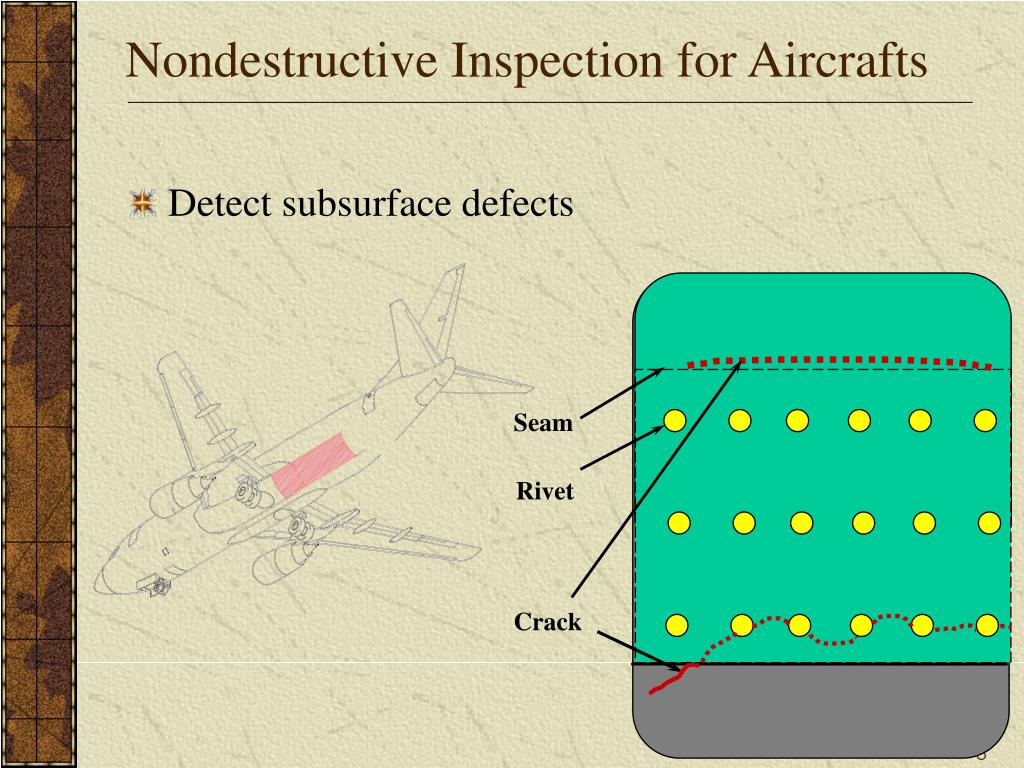

  3. Nondestructive Inspection for Aircrafts • Detect subsurface defects Seam Rivet Crack

  4. Nondestructive Inspection for Aircrafts • Increase service life of airplane • Prevent disasters Aloha Airlines B-737-200 lost part of its front fuselage during a flight in Hawaii, 1985

  5. CCD Camera Light Source Polarizer Analyzer MO Sensor Induction Sheet Bias Coil Sample Magneto-optic Imager (MOI) • Eddy current excitation • Magneto-optic sensing • Imaging

  6. Magneto-optic Imager (cont.) • Produce real-time analog images of inspected part • Images both surface breaking and subsurface cracks • Easy to interpret with minimal training • Applicable both on conducting samples as well as composites by tagging with ferromagnetic particles

  7. Sample MOI Images Crack along seam Crack between two rivets, Radial crack on a rivet Corrosion dome

  8. Drawback of MOI images • MOI image contains serpentine pattern noises due to the magnetic domain walls in magneto-optic sensor Signals due to domain walls Rivet

  9. Moving direction of objects Moving direction of MOI Motion-based Filtering (MBF) • Additive Frame Subtraction In-5 In-4 In-3 In-2 In-1 In D5 D4 D3 D2 D1  Sn

  10. Input Image Preprocessing RGB to Gray Additive Frame Subtraction Threshold Post processing Median Filter Stretch Output Image Motion-based Filtering (cont.)

  11. MB filtered images Original Filtered

  12. MB filtered images (cont.) Original Filtered

  13. Frame grabber Record to VHS Collects MOI image Data Web camera Real-time implementation of MBF • Experimental setup for proof of concept Play on a Video player Record to movie file noise Play on a PC monitor

  14. Real-time MBF MOI Max Sensing RGB to Gray Subtract Imaging Max Displaying Stretch Median Filtering Threshold Real-time implementation of MBF (cont.) • Data transfer rate • 4.6 Mbytes /sec ( 320240 pixels  16 bit  30 fps ) • Data are down sampled as the input images are dropped while an image is processed • Diagram of real-time Motion-based Filtering

  15. Image capture: 20 ms RGB to Gray: 20 ~ 23 ms Additive Frame Subtraction: 1~2 ms/image Threshold: 1 ~ 2 ms Median Filter: 200 ~ 250 ms Stretch: 1 ~ 2 ms Output Image Real-time implementation of MBF (cont.) • Optimizing MBF algorithm in C++

  16. Real-time implementation of MBF (cont.) • RGB to Gray conversion • Additive frame subtraction • MAX(I1-I3,I2-I3)  MAX(I1,I2) - I3 • Median filter

  17. Real-time implementation of MBF (cont.) • Execution time of MBF algorithm in C++

  18. Drawbacks of current MOI inspection • No measure for quantitative interpretation • Data interpretation is subjective • Manual inspection by human operator (more than 10 hours per airplane) • Expensive labor cost • Error due to fatigue

  19. Automated MOI inspection system • PRI Research and Development Corporation (PRI) • Developing and improving magneto-optic imager (MOI) • Michigan State University, ECE department • Image processing algorithm for filtering and classification • Boeing Phantom Works • Self-guided, suction cup robot – crawls over airplane skin

  20. Motion-based Filtering Rivet detection Rivet classification Automated MOI inspection (cont.) • Currently focusing on radial cracks on rivets • Quantification of defects in MOI images • Implementing real-time rivet inspection algorithm

  21. Segment out each rivet Obtain center and radius, c1, r1 Erode rivet with a circle of radius r1 yes, r1 r1-1 Area(rivet) = 0 no Obtain center and radius, c2, r2 Rivet detection • Hough transformation-based method • Circular Hough transformation • Morphological operation-based method

  22. Rivet detection (cont.) Hough transformation Original Morphological operation

  23. Rivet classification • Two-pass Hough transformation • 1st pass – Rivet detection • 2nd pass – Blob detection good bad Original image Filtered image - After 1st pass After 2nd Pass

  24. Rivet classification (cont.) • Bayesian classifier • Feature selection Original image Hough transformation Morphological op.

  25. Off-line test • Training • 10 normal, 10 defective rivet images • Obtain mean and variance of feature f1 • Testing • 222 rivet images including 66 defective rivet images Two-pass Hough Hough - Bayes Morph. - Bayes

  26. Experimental Results • Accuracies of three algorithms

  27. Conclusions • MB filtered image is optimal in image processing for automated rivet inspection • Morphological operation-based rivet detection is superior to Hough-based rivet detection both for execution time and accuracy • Bayesian classifier is superior to Hough-based classifier • Radial crack detection on rivets showed 99% accuracy in off-line test

  28. Future work • Implement MBF and rivet inspection algorithms on the Digital Signal Processing (DSP) board • Improve robustness of the algorithms with the feedback from field test • Develop MOI inspection algorithms for other types of defects in aircrafts
