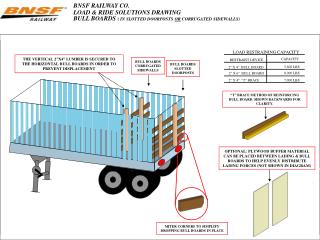

  1. BNSF RAILWAY CO. LOAD & RIDE SOLUTIONS DRAWING BULL BOARDS ( IN SLOTTED DOORPOSTS OR CORRUGATED SIDEWALLS) LOAD RESTRAINING CAPACITY CAPACITY RESTRAINT DEVICE 5,600 LBS 2” X 4” BULL BOARD 8,000 LBS 2” X 6” BULL BOARD 2” X 4” “T” BRACE 7,000 LBS THE VERTICAL 2”X4” LUMBER IS SECURED TO THE HORIZONTAL BULL BOARDS IN ORDER TO PREVENT DISPLACEMENT BULL BOARDS CORRUGATED SIDEWALLS BULL BOARDS SLOTTED DOORPOSTS “T” BRACE METHOD OF REINFORCING BULL BOARD. SHOWN BACKWARDS FOR CLARITY. OPTIONAL: PLYWOOD BUFFER MATERIAL CAN BE PLACED BETWEEN LADING & BULL BOARDS TO HELP EVENLY DISTRIBUTE LADING FORCES (NOT SHOWN IN DIAGRAM) . MITER CORNERS TO SIMPLIFY DROPPING BULL BOARDS IN PLACE
