Understanding Bandwidth Delay Product and Dealing with Buffer Bloat in Networking

Bandwidth Delay Product (BDP) is crucial in saturating network links, but buffer bloat can hinder performance by causing delays and loss. Strategies like DCTCP and BBR offer solutions to optimize throughput and reduce latency in congested networks. Addressing buffer bloat through infrastructure improvements and protocol modifications is essential for efficient data transmission.

blidar
Download Presentation

Understanding Bandwidth Delay Product and Dealing with Buffer Bloat in Networking

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. CS 1652

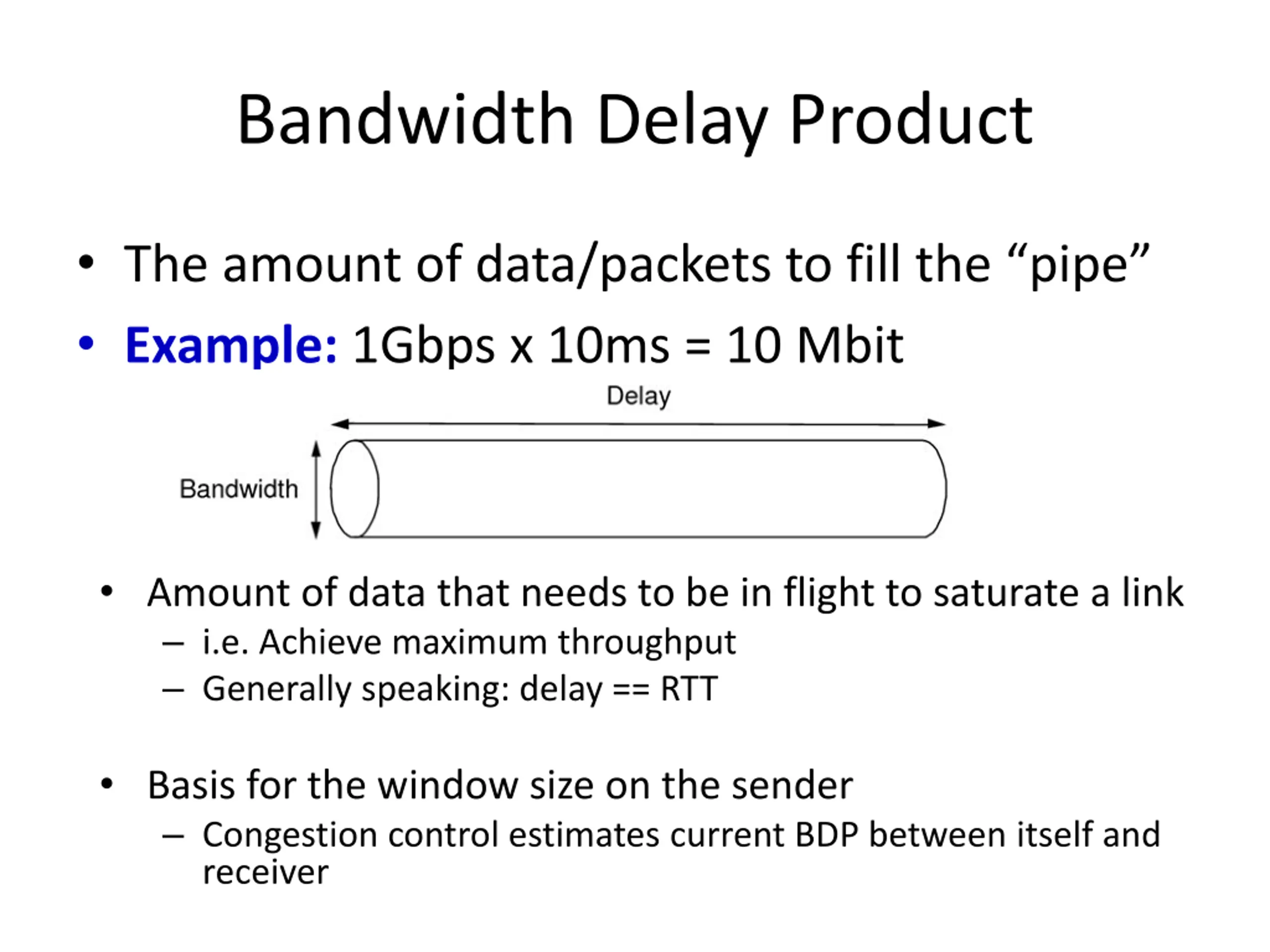

  2. Bandwidth Delay Product • The amount of data/packets to fill the “pipe” • Example: 1Gbps x 10ms = 10 Mbit • Amount of data that needs to be in flight to saturate a link – i.e. Achieve maximum throughput – Generally speaking: delay == RTT • Basis for the window size on the sender – Congestion control estimates current BDP between itself and receiver

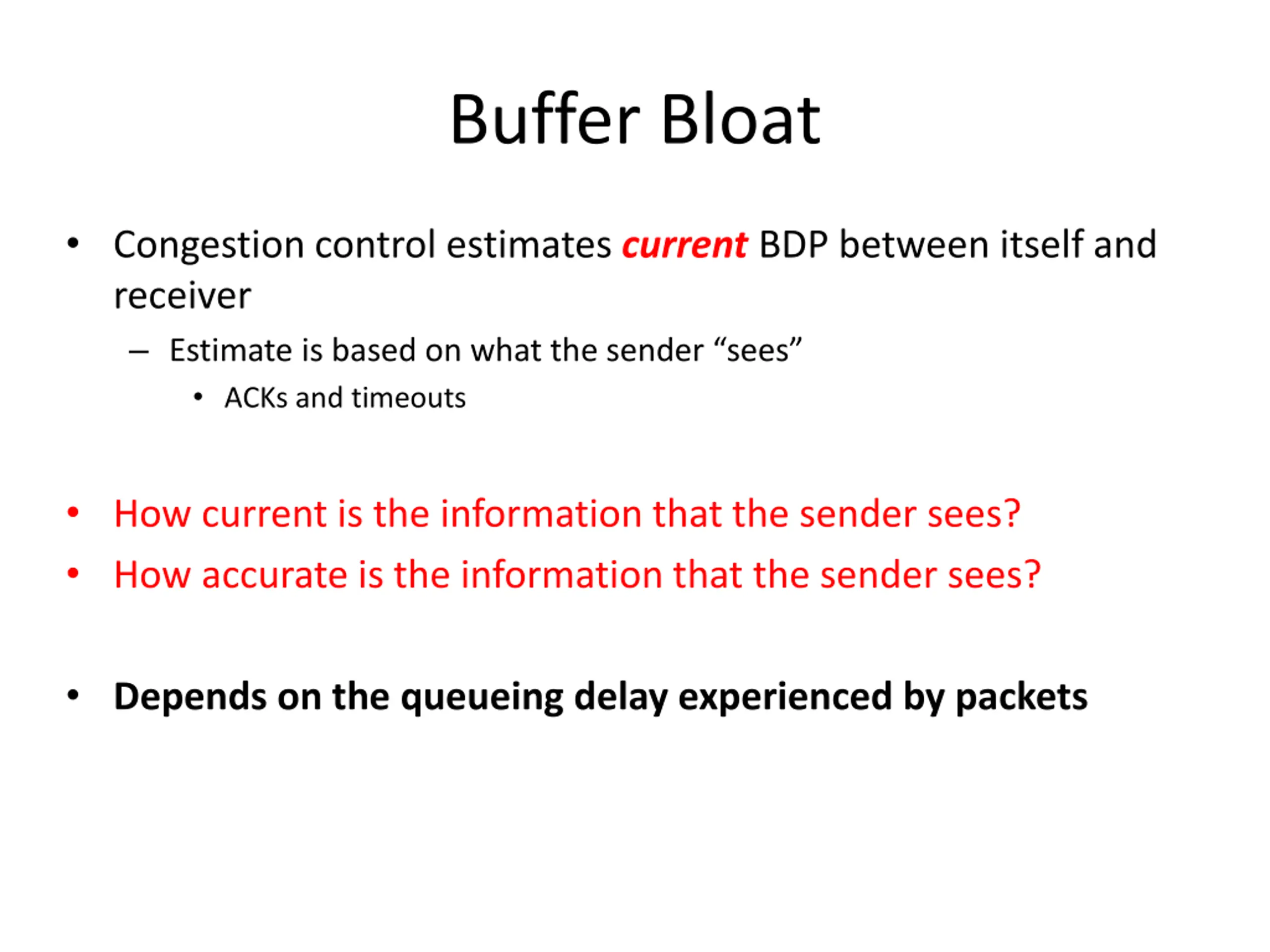

  3. Buffer Bloat • Congestion control estimates current BDP between itself and receiver – Estimate is based on what the sender “sees” • ACKs and timeouts • How current is the information that the sender sees? • How accurate is the information that the sender sees? • Depends on the queueing delay experienced by packets

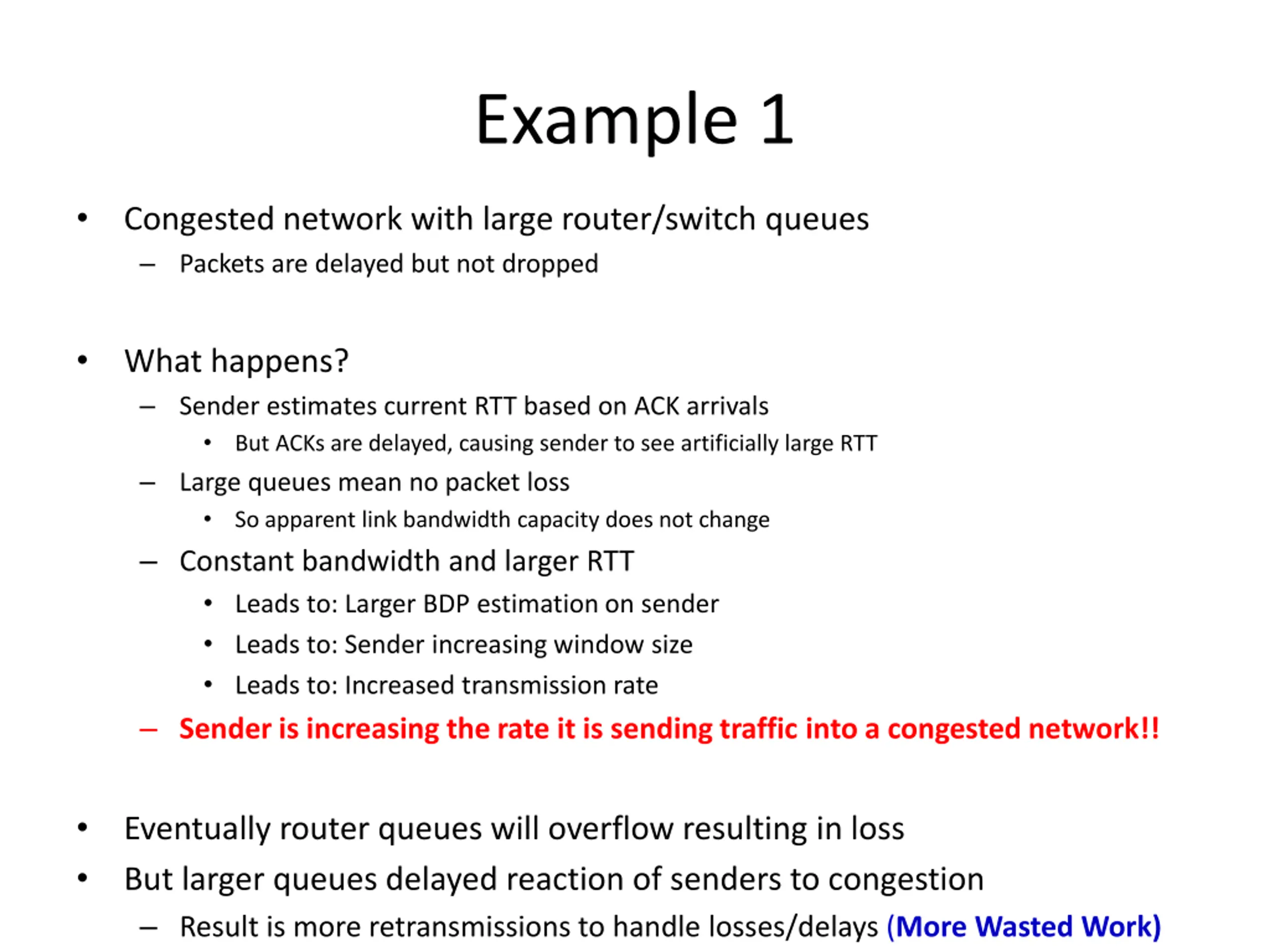

  4. Example 1 • Congested network with large router/switch queues – Packets are delayed but not dropped • What happens? – Sender estimates current RTT based on ACK arrivals • But ACKs are delayed, causing sender to see artificially large RTT – Large queues mean no packet loss • So apparent link bandwidth capacity does not change – Constant bandwidth and larger RTT • Leads to: Larger BDP estimation on sender • Leads to: Sender increasing window size • Leads to: Increased transmission rate – Sender is increasing the rate it is sending traffic into a congested network!! • • Eventually router queues will overflow resulting in loss But larger queues delayed reaction of senders to congestion – Result is more retransmissions to handle losses/delays (More Wasted Work)

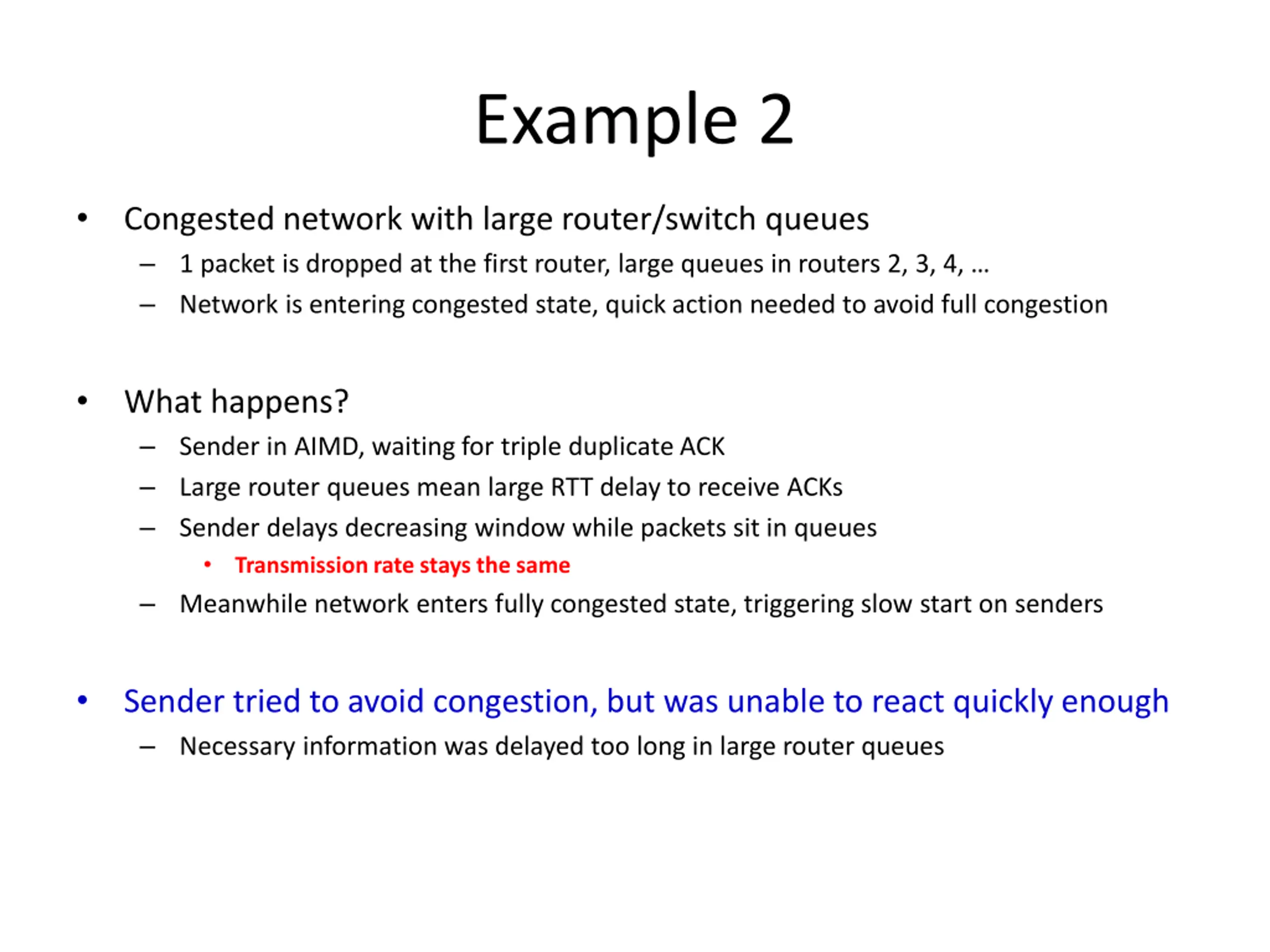

  5. Example 2 • Congested network with large router/switch queues – 1 packet is dropped at the first router, large queues in routers 2, 3, 4, … – Network is entering congested state, quick action needed to avoid full congestion • What happens? – Sender in AIMD, waiting for triple duplicate ACK – Large router queues mean large RTT delay to receive ACKs – Sender delays decreasing window while packets sit in queues • Transmission rate stays the same – Meanwhile network enters fully congested state, triggering slow start on senders • Sender tried to avoid congestion, but was unable to react quickly enough – Necessary information was delayed too long in large router queues

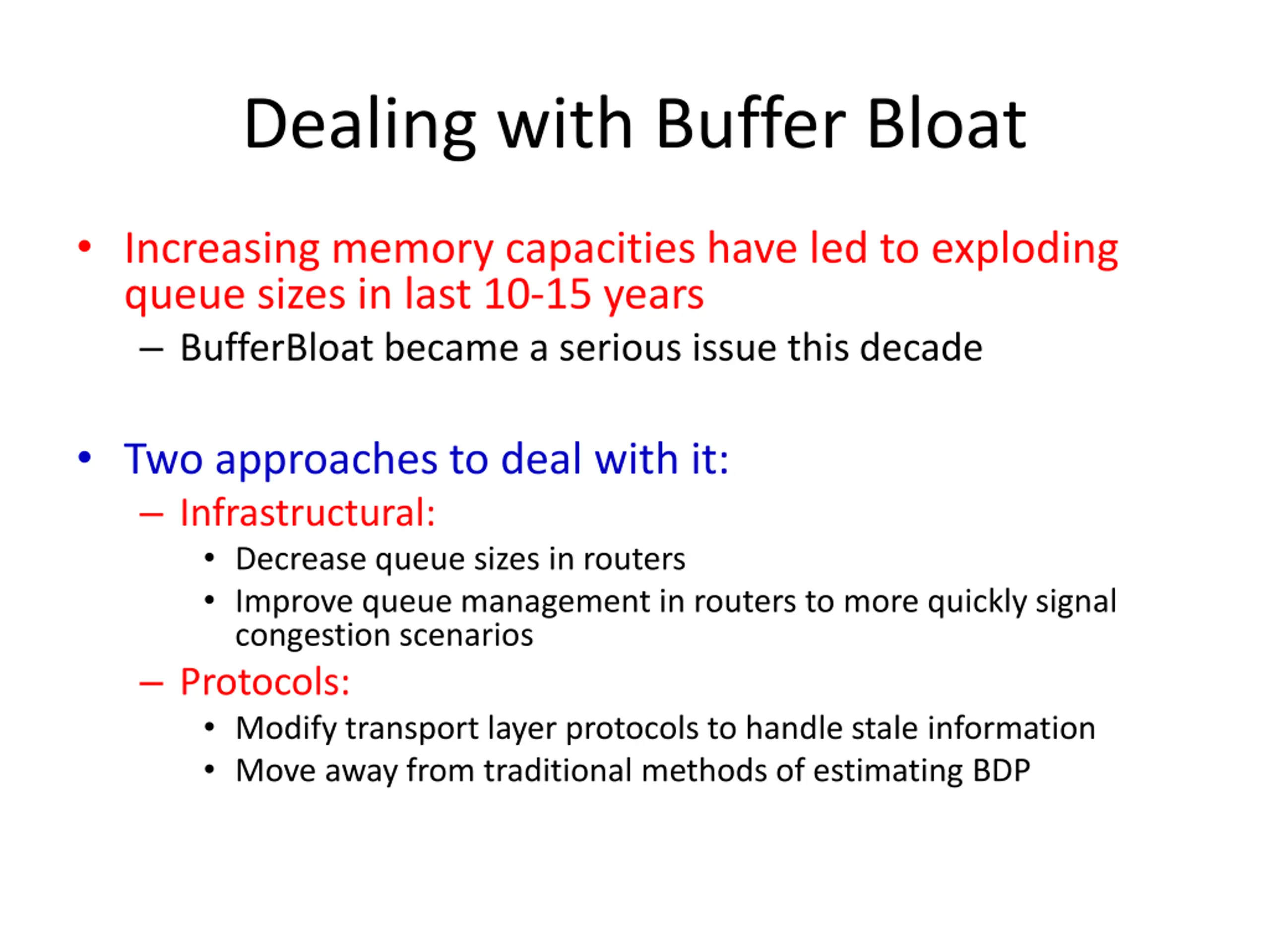

  6. Dealing with Buffer Bloat • Increasing memory capacities have led to exploding queue sizes in last 10-15 years – BufferBloat became a serious issue this decade • Two approaches to deal with it: – Infrastructural: • Decrease queue sizes in routers • Improve queue management in routers to more quickly signal congestion scenarios – Protocols: • Modify transport layer protocols to handle stale information • Move away from traditional methods of estimating BDP

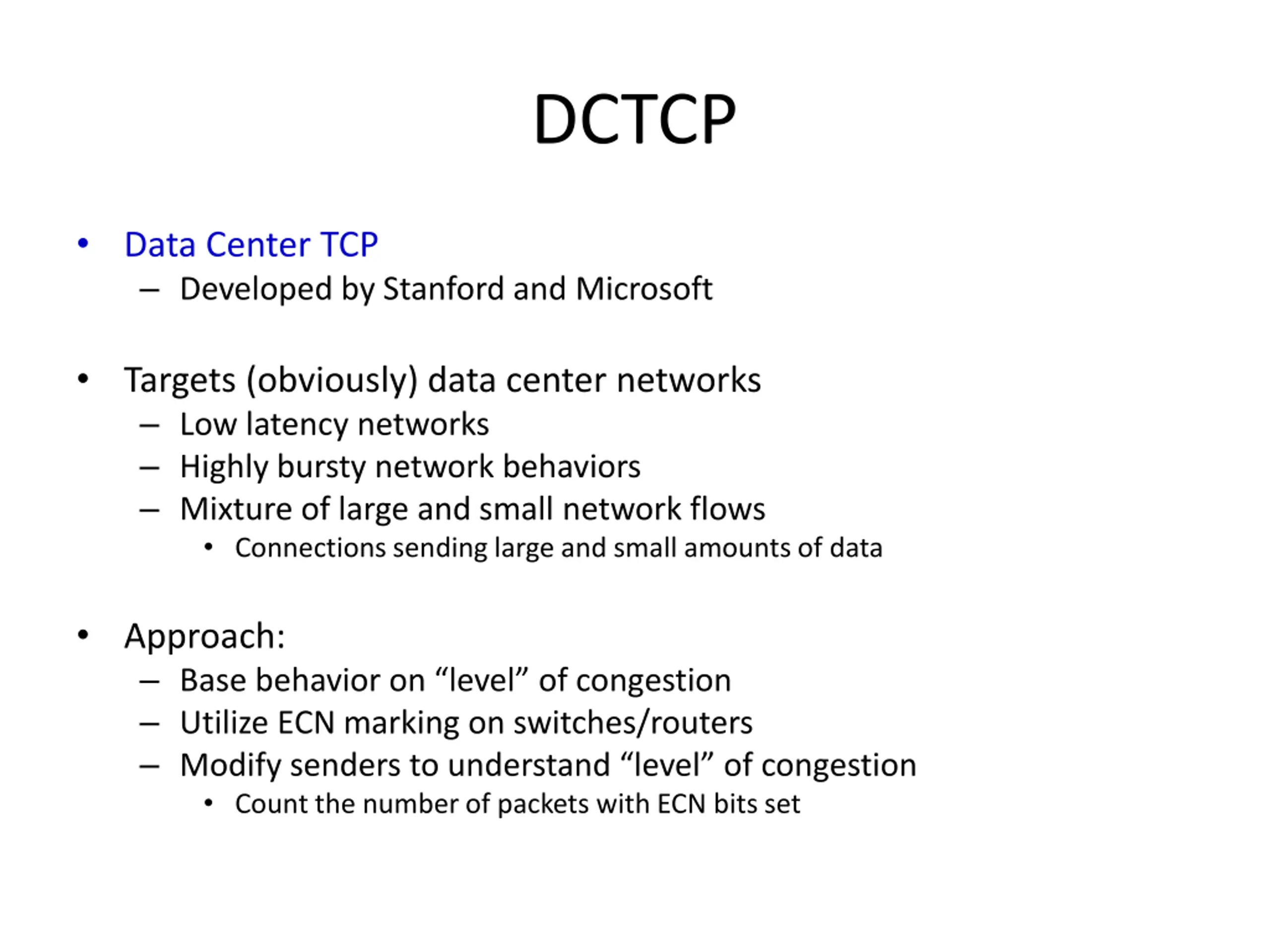

  7. DCTCP • Data Center TCP – Developed by Stanford and Microsoft • Targets (obviously) data center networks – Low latency networks – Highly bursty network behaviors – Mixture of large and small network flows • Connections sending large and small amounts of data • Approach: – Base behavior on “level” of congestion – Utilize ECN marking on switches/routers – Modify senders to understand “level” of congestion • Count the number of packets with ECN bits set

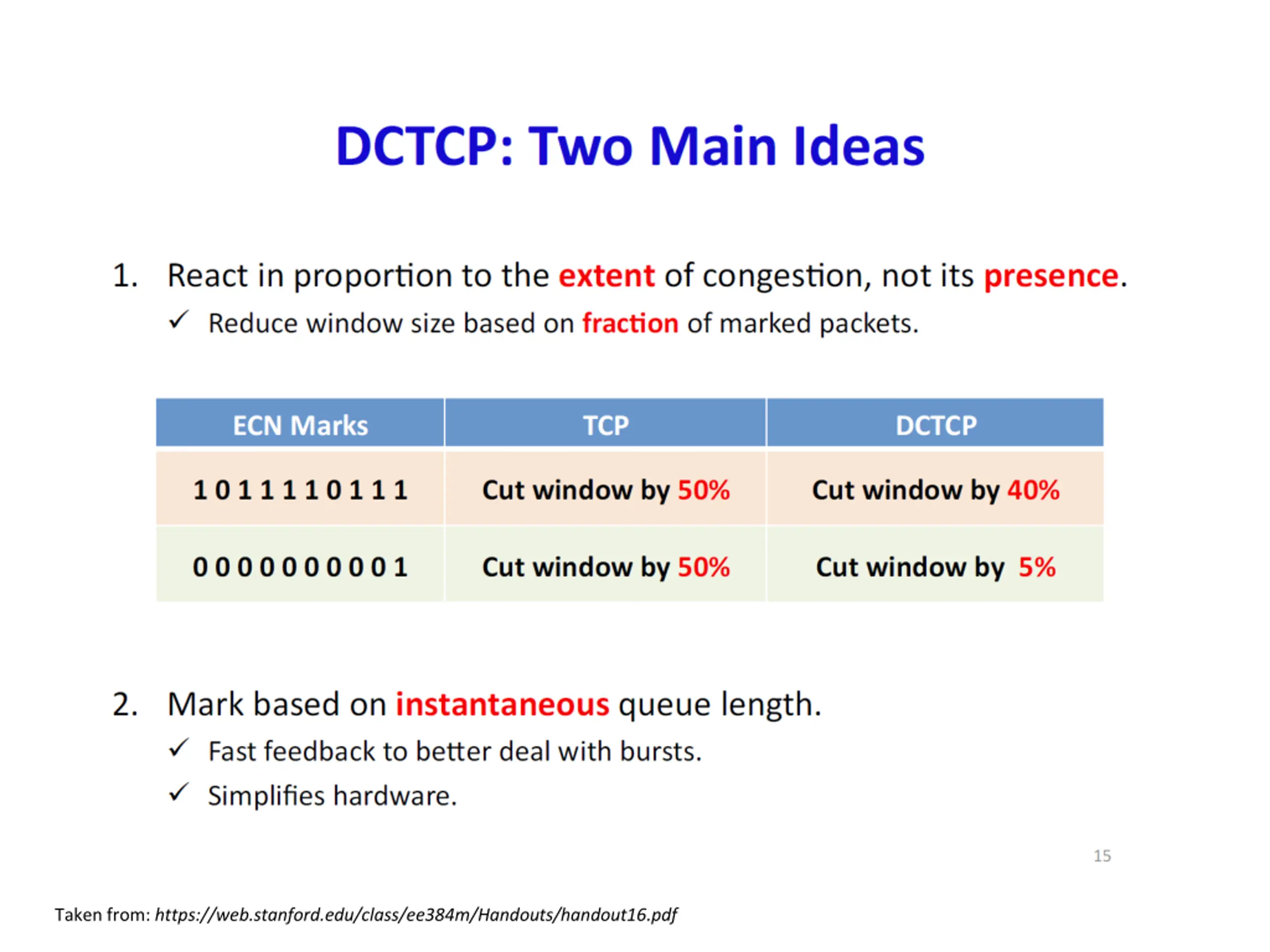

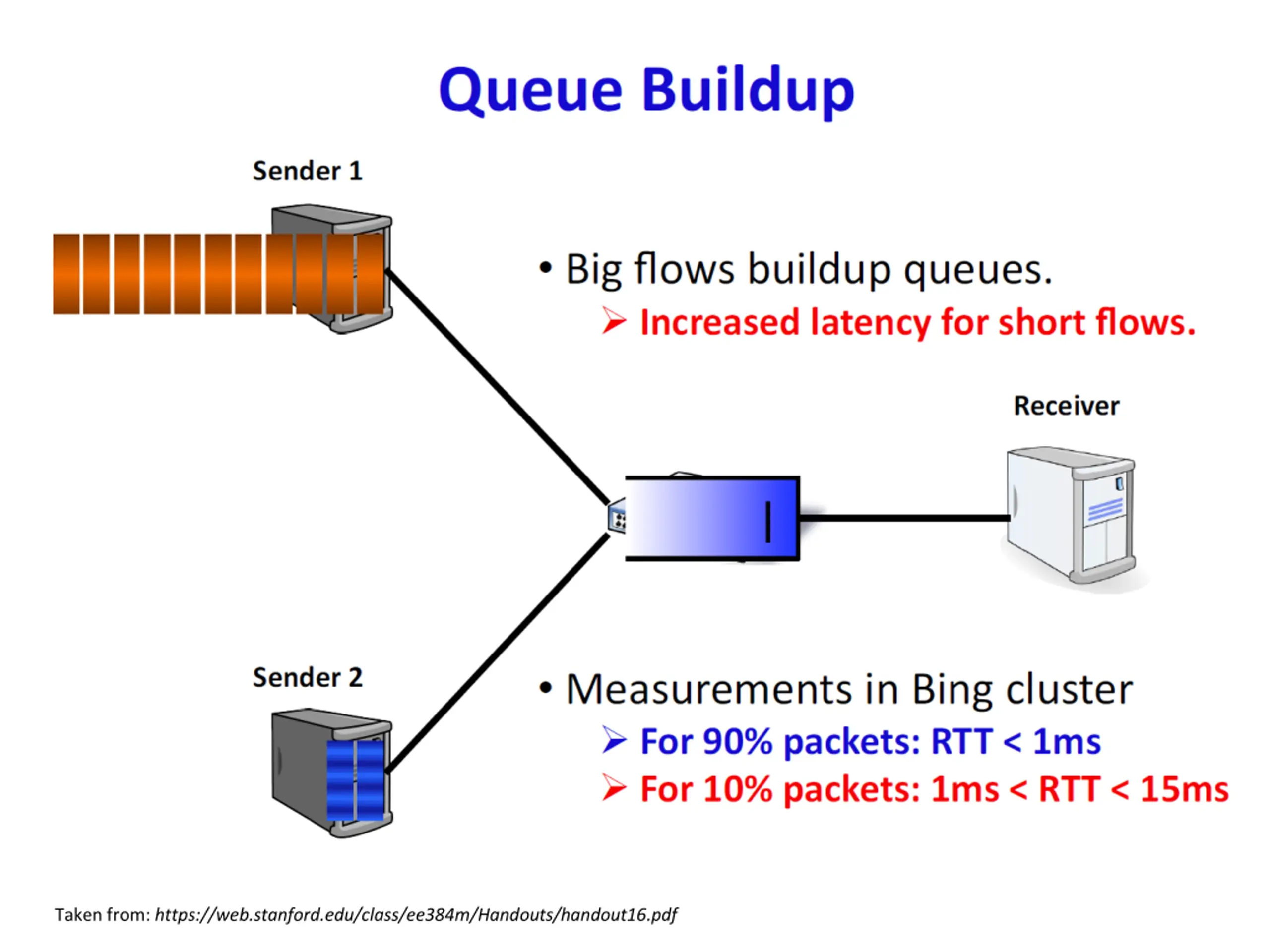

  8. Taken from: https://web.stanford.edu/class/ee384m/Handouts/handout16.pdf

  9. Taken from: https://web.stanford.edu/class/ee384m/Handouts/handout16.pdf

  10. Taken from: https://web.stanford.edu/class/ee384m/Handouts/handout16.pdf

  11. Taken from: https://web.stanford.edu/class/ee384m/Handouts/handout16.pdf

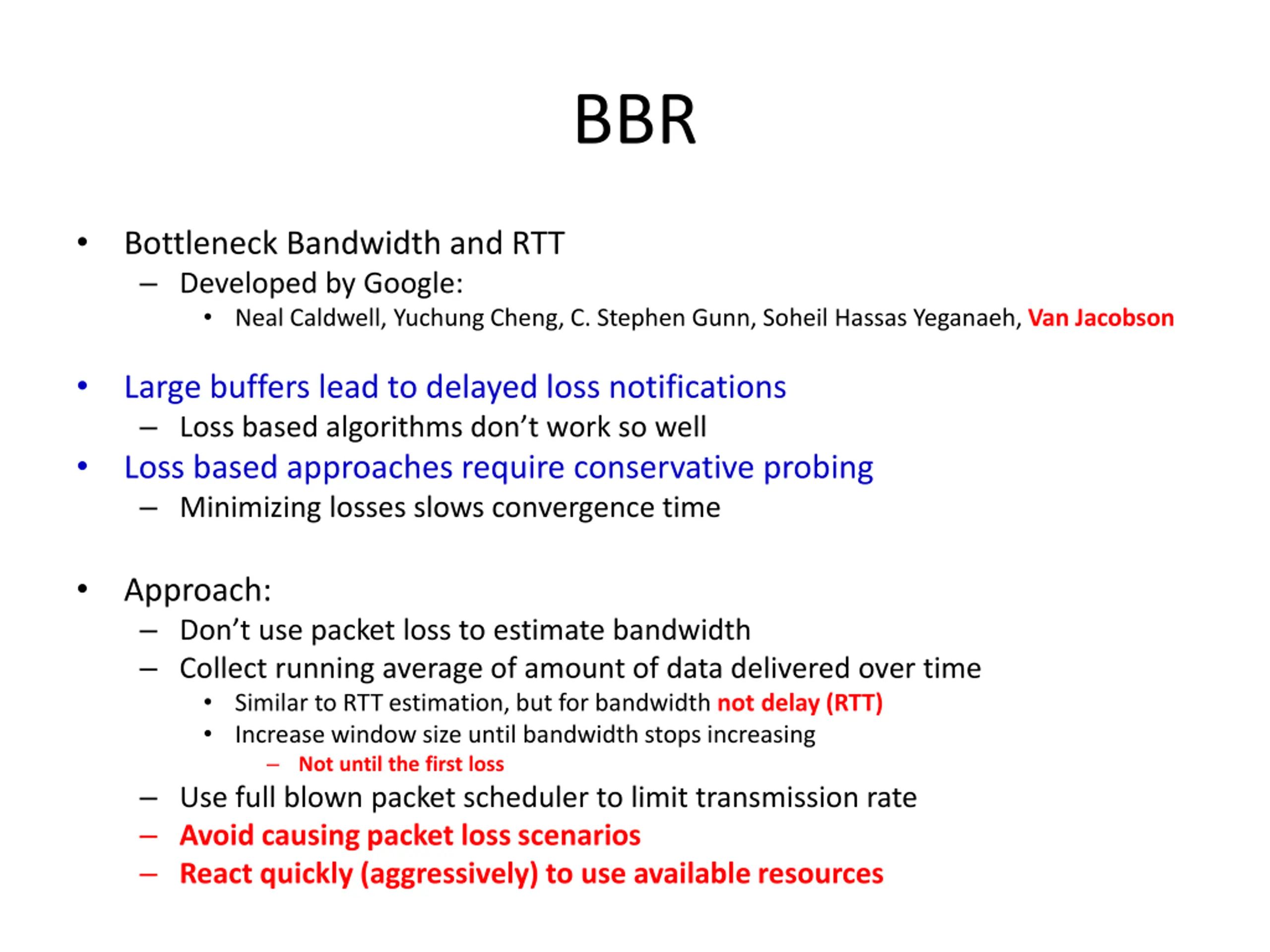

  12. BBR • Bottleneck Bandwidth and RTT – Developed by Google: • Neal Caldwell, Yuchung Cheng, C. Stephen Gunn, Soheil Hassas Yeganaeh, Van Jacobson • Large buffers lead to delayed loss notifications – Loss based algorithms don’t work so well Loss based approaches require conservative probing – Minimizing losses slows convergence time • • Approach: – Don’t use packet loss to estimate bandwidth – Collect running average of amount of data delivered over time • Similar to RTT estimation, but for bandwidth not delay (RTT) • Increase window size until bandwidth stops increasing – Not until the first loss – Use full blown packet scheduler to limit transmission rate – Avoid causing packet loss scenarios – React quickly (aggressively) to use available resources

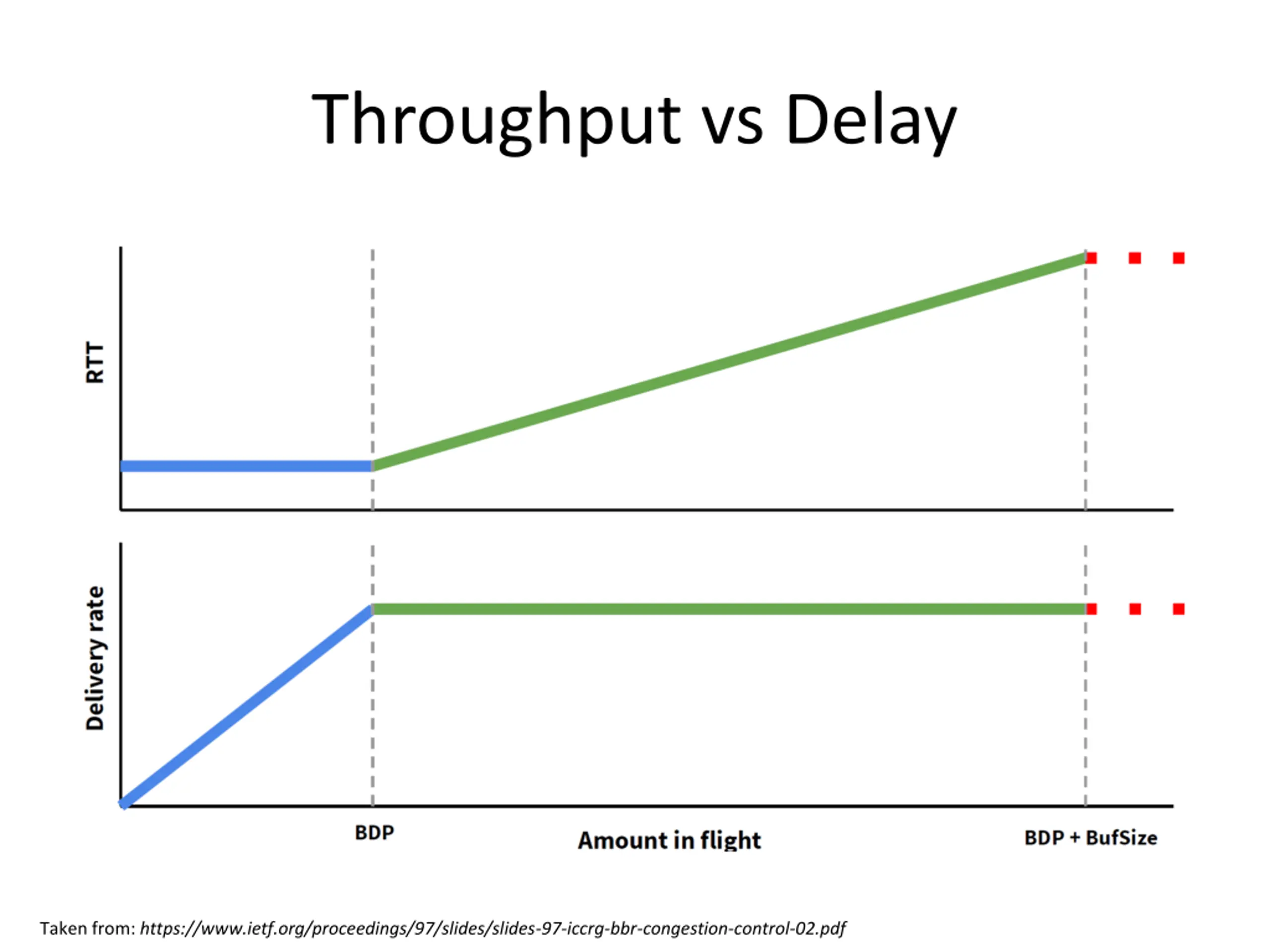

  13. Throughput vs Delay Taken from: https://www.ietf.org/proceedings/97/slides/slides-97-iccrg-bbr-congestion-control-02.pdf

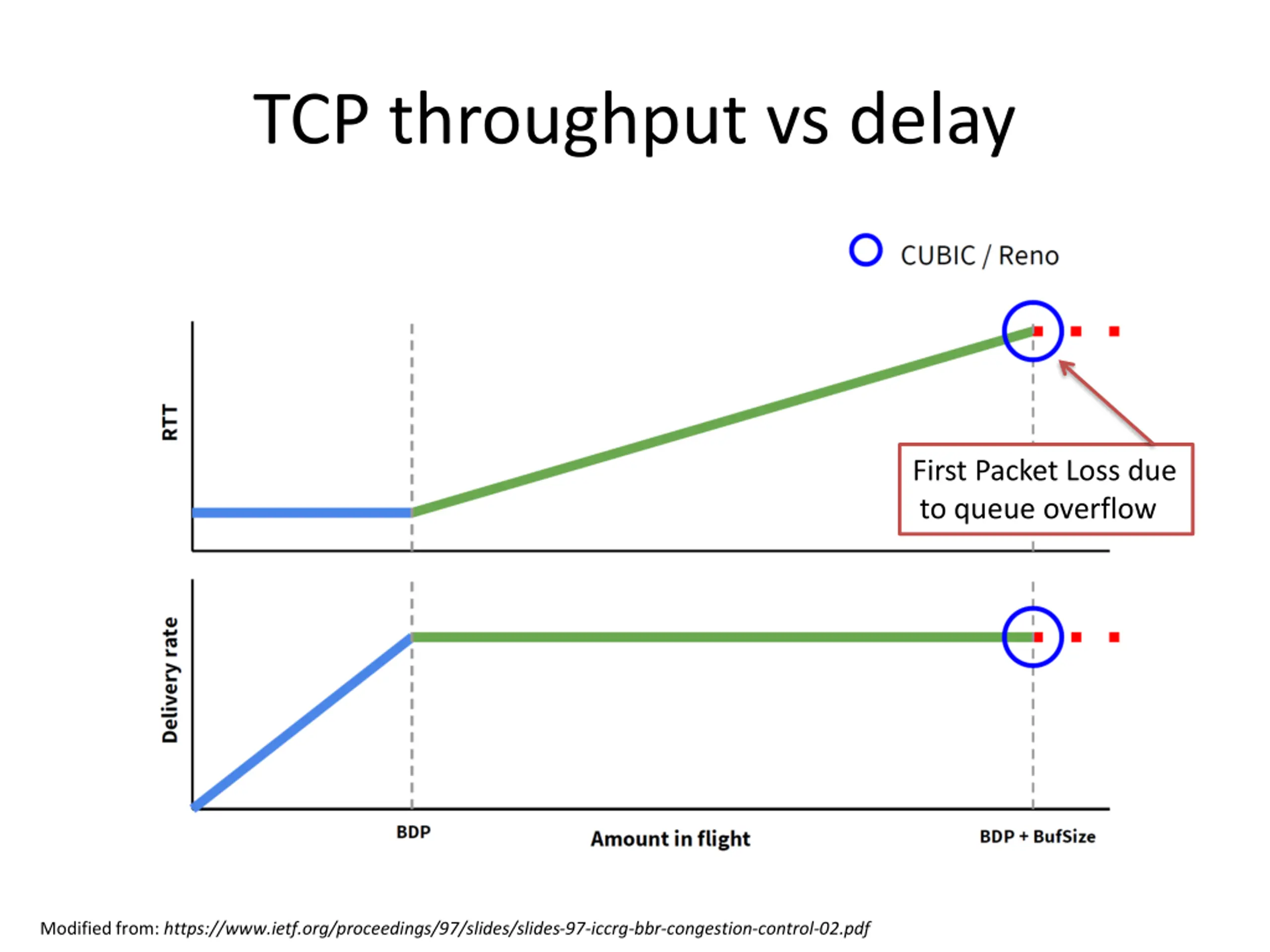

  14. TCP throughput vs delay First Packet Loss due to queue overflow Modified from: https://www.ietf.org/proceedings/97/slides/slides-97-iccrg-bbr-congestion-control-02.pdf

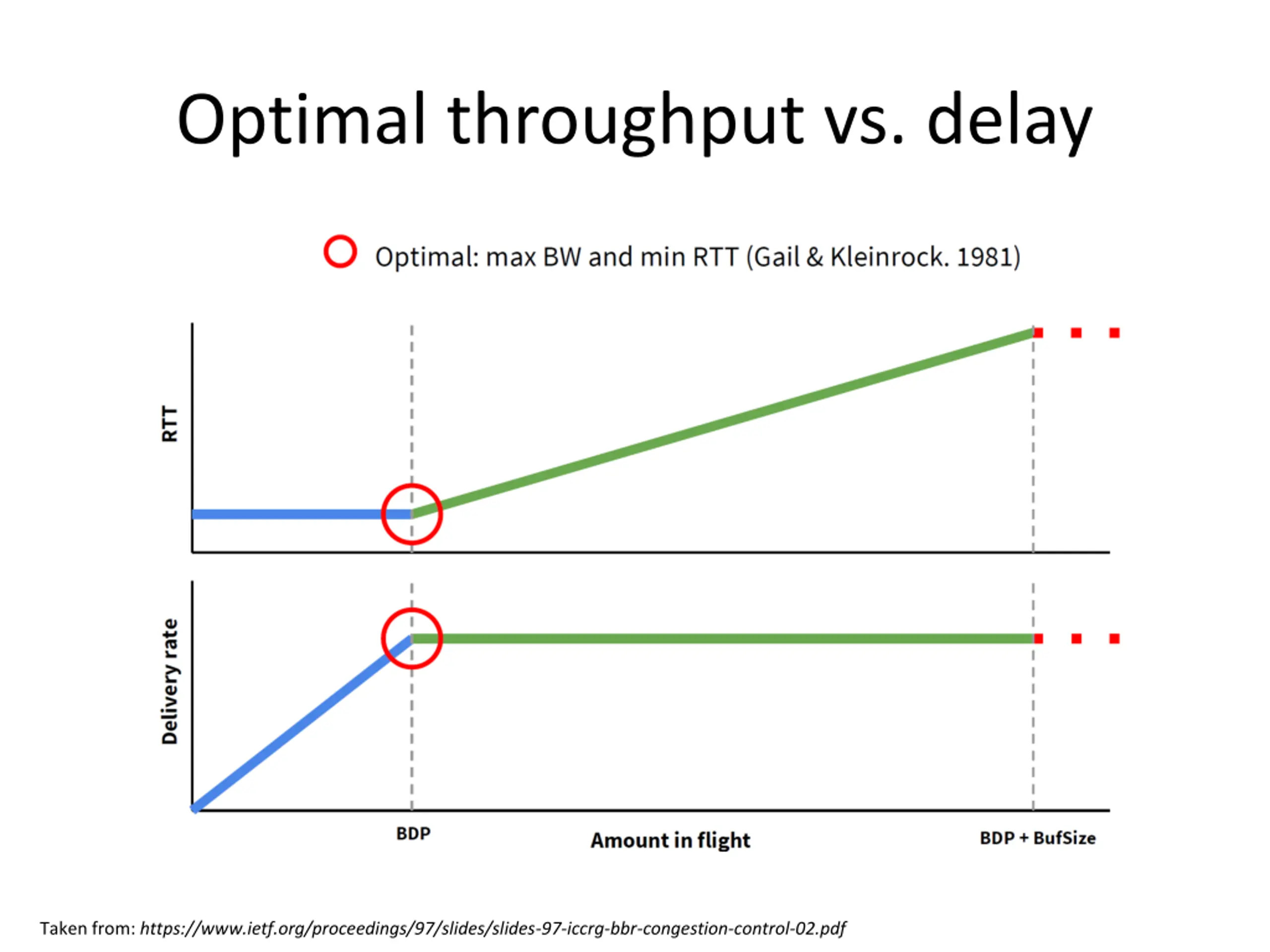

  15. Optimal throughput vs. delay Taken from: https://www.ietf.org/proceedings/97/slides/slides-97-iccrg-bbr-congestion-control-02.pdf

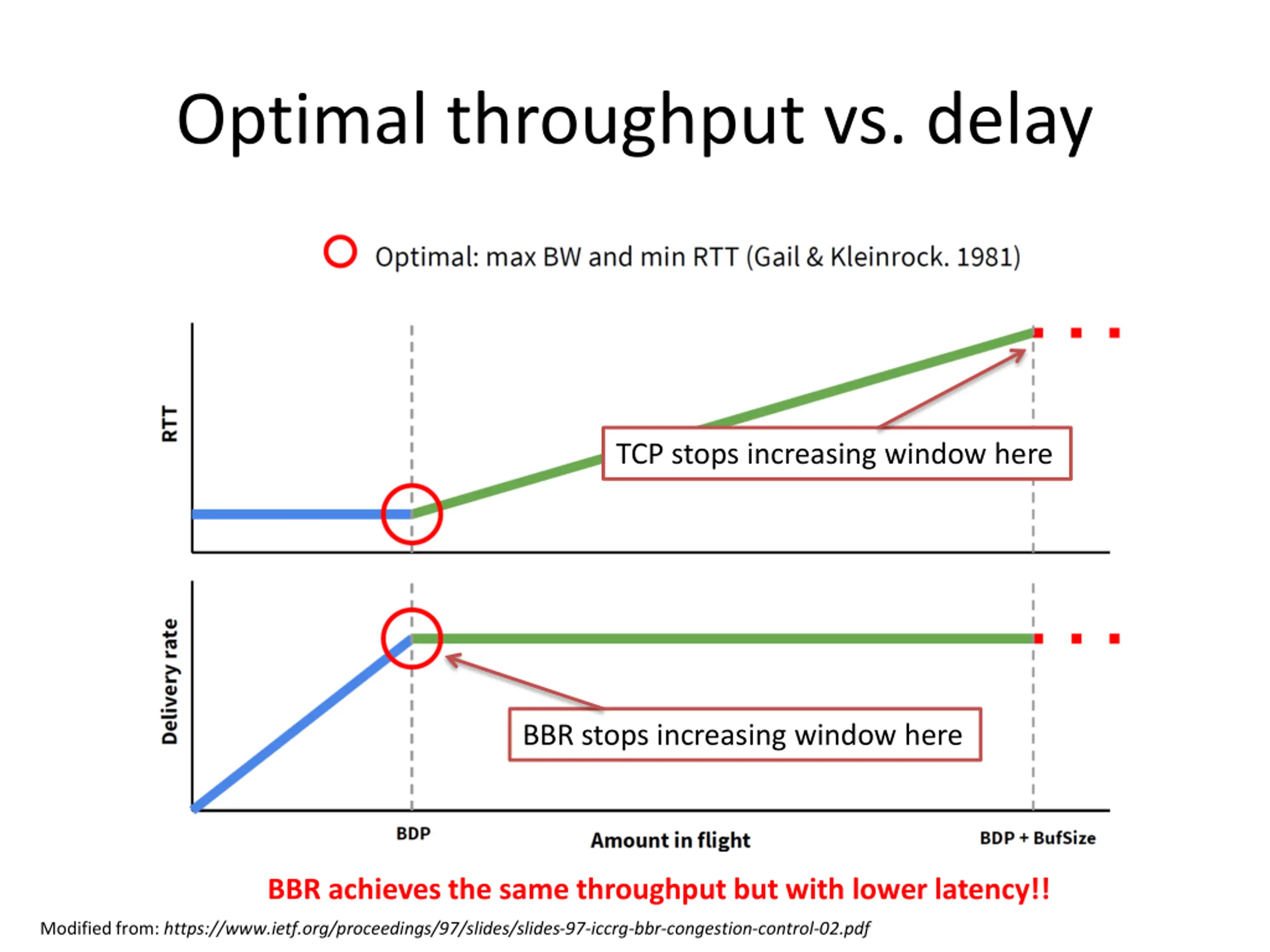

  16. Optimal throughput vs. delay TCP stops increasing window here BBR stops increasing window here BBR achieves the same throughput but with lower latency!! Modified from: https://www.ietf.org/proceedings/97/slides/slides-97-iccrg-bbr-congestion-control-02.pdf

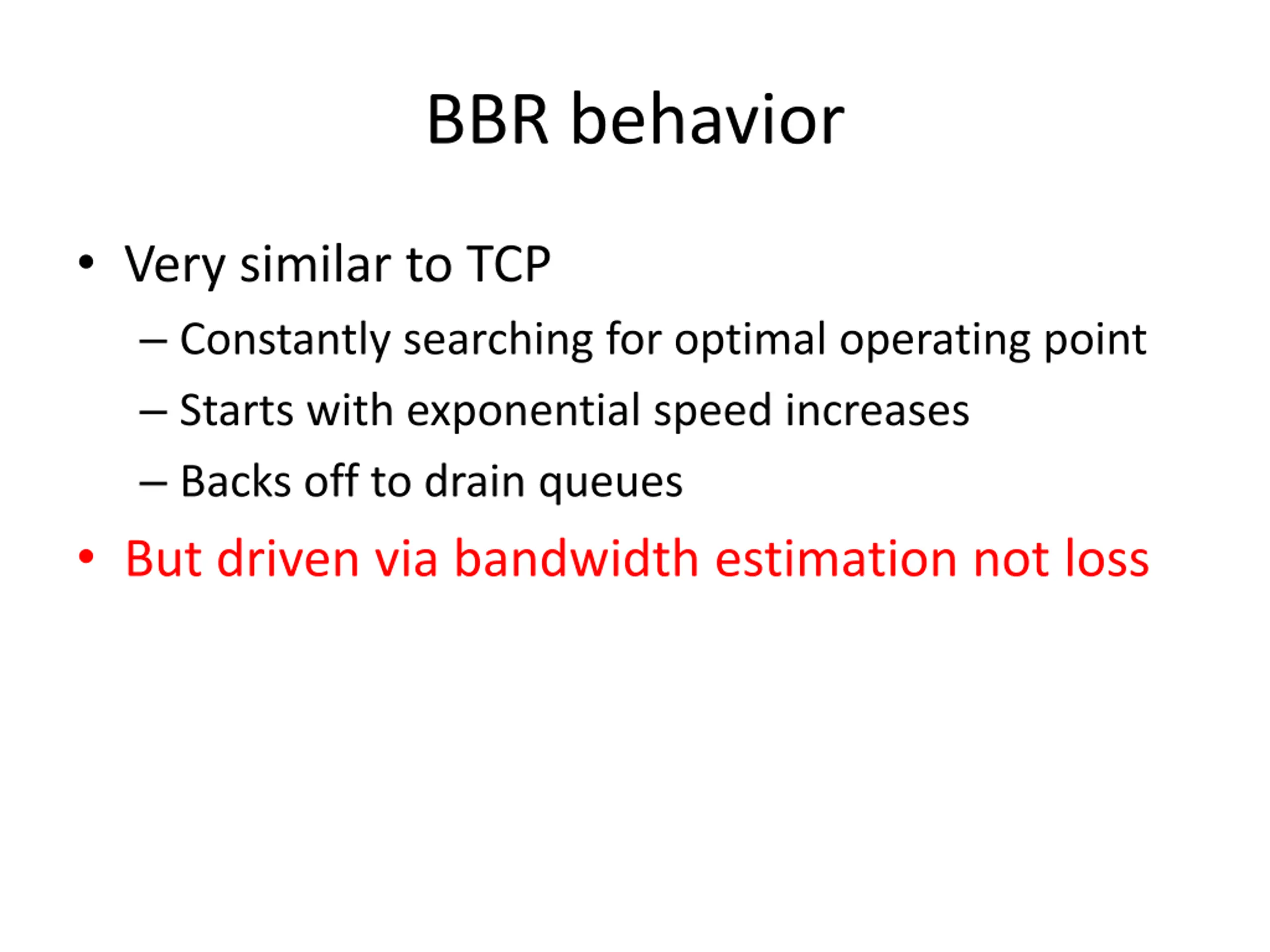

  17. BBR behavior • Very similar to TCP – Constantly searching for optimal operating point – Starts with exponential speed increases – Backs off to drain queues • But driven via bandwidth estimation not loss

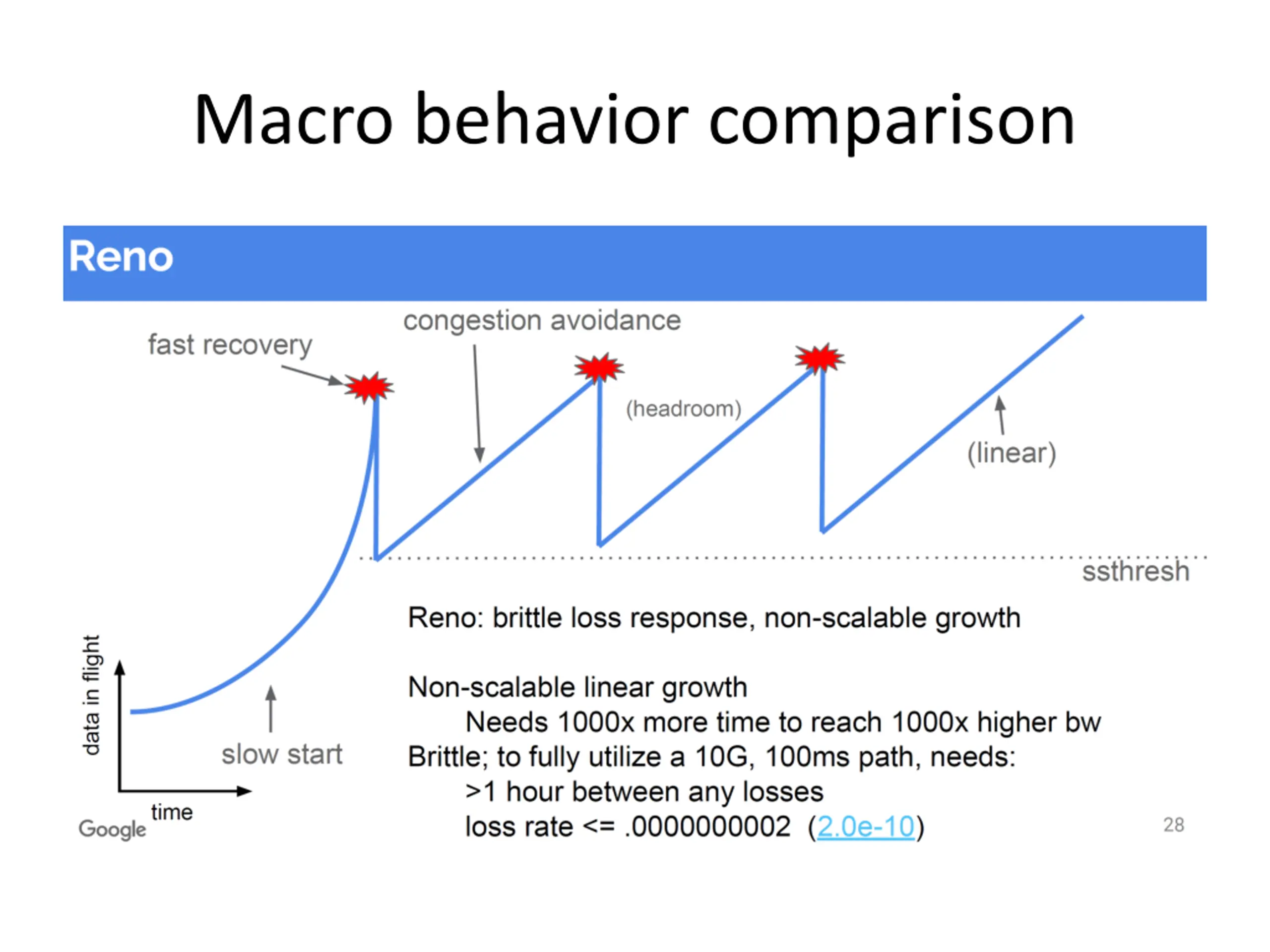

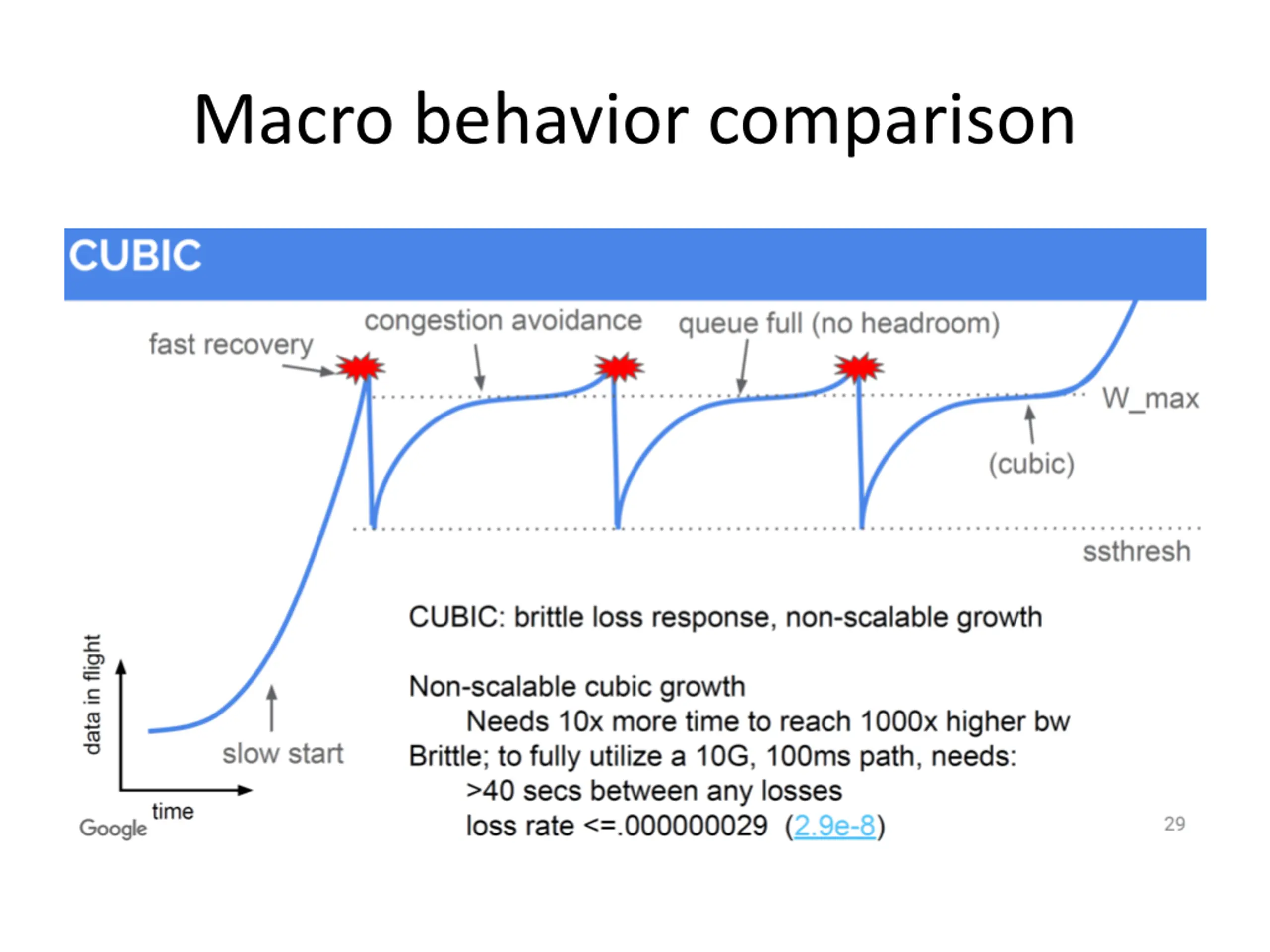

  18. Macro behavior comparison

  19. Macro behavior comparison

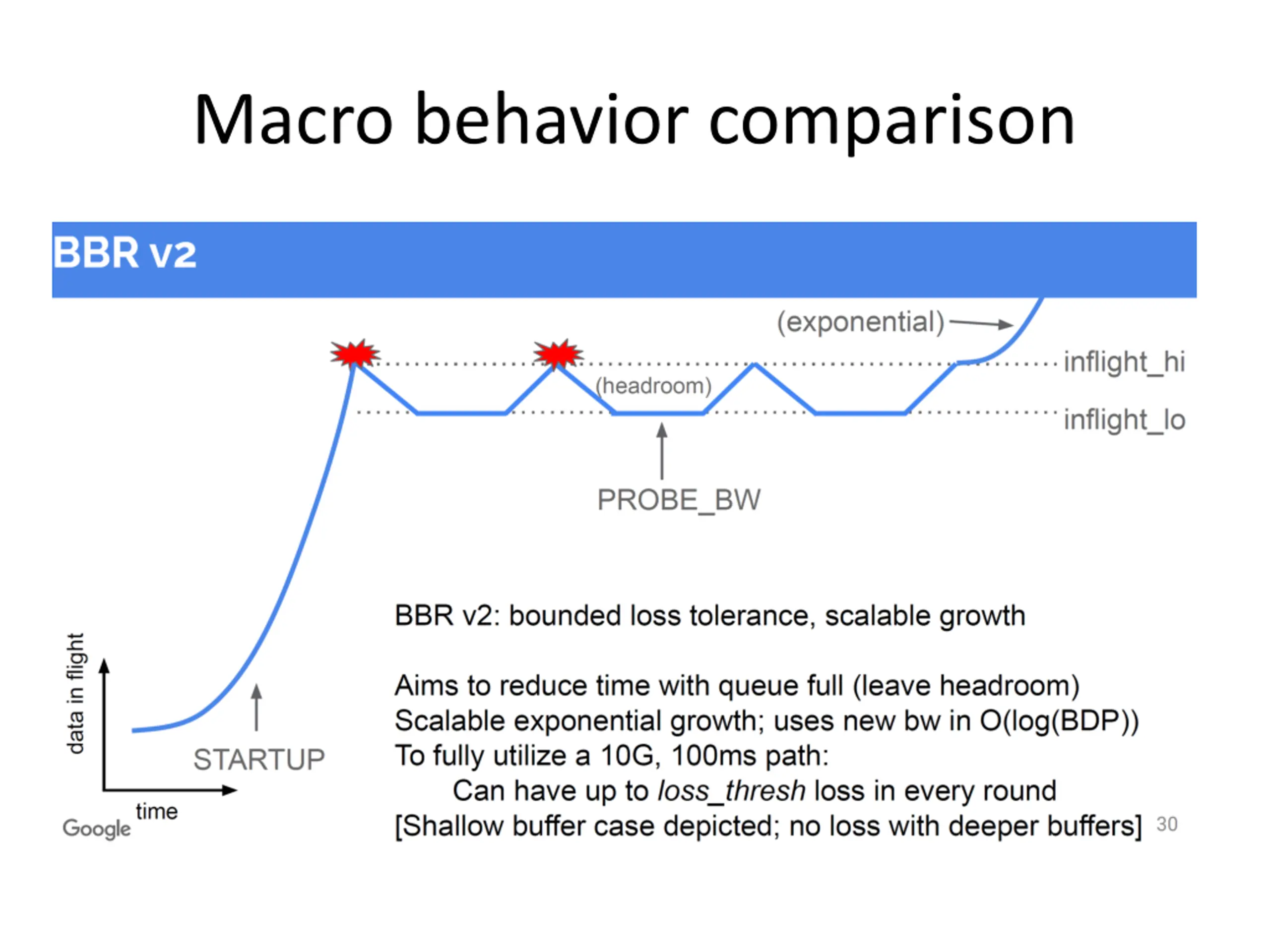

  20. Macro behavior comparison

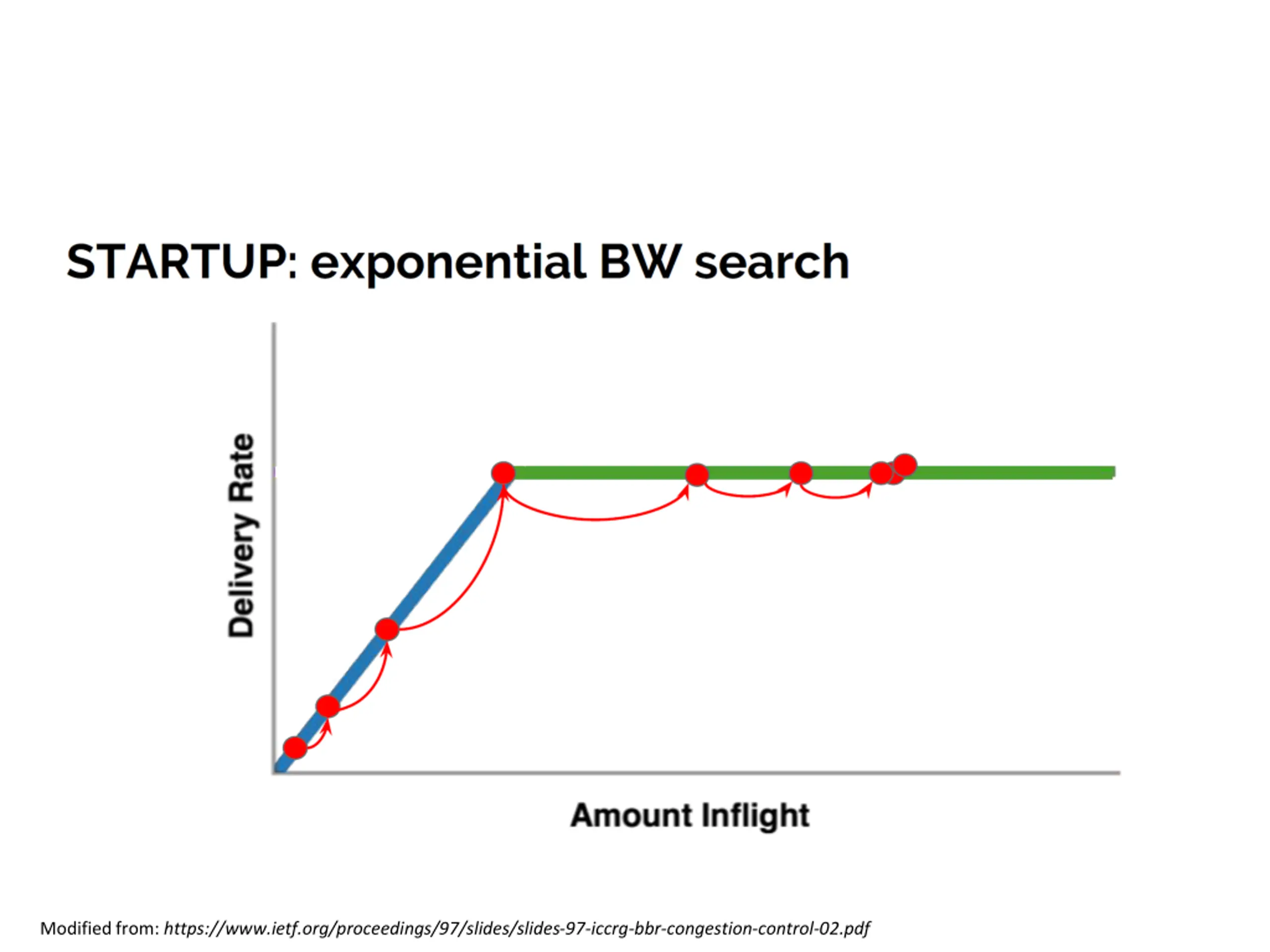

  21. Modified from: https://www.ietf.org/proceedings/97/slides/slides-97-iccrg-bbr-congestion-control-02.pdf

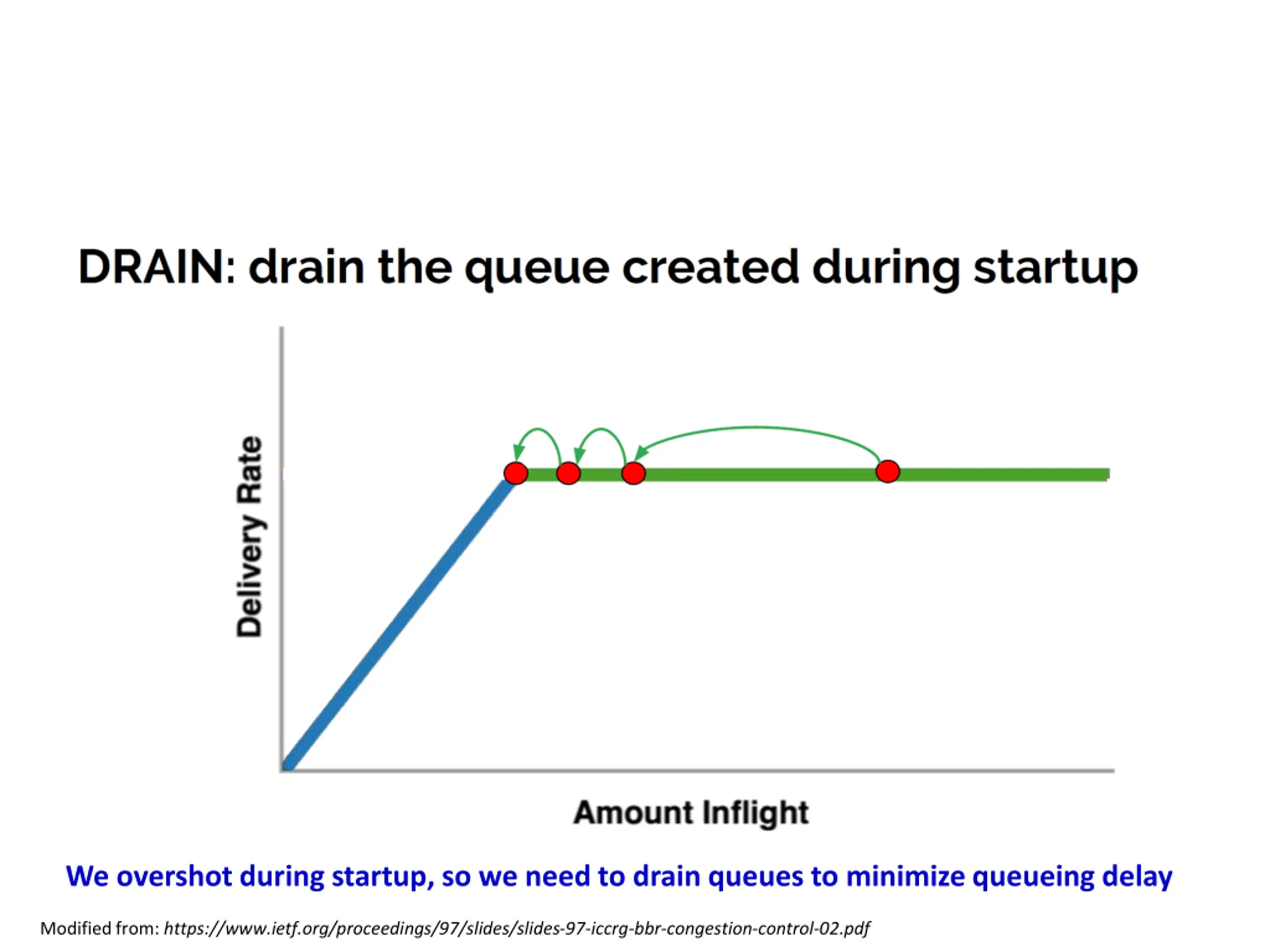

  22. We overshot during startup, so we need to drain queues to minimize queueing delay Modified from: https://www.ietf.org/proceedings/97/slides/slides-97-iccrg-bbr-congestion-control-02.pdf

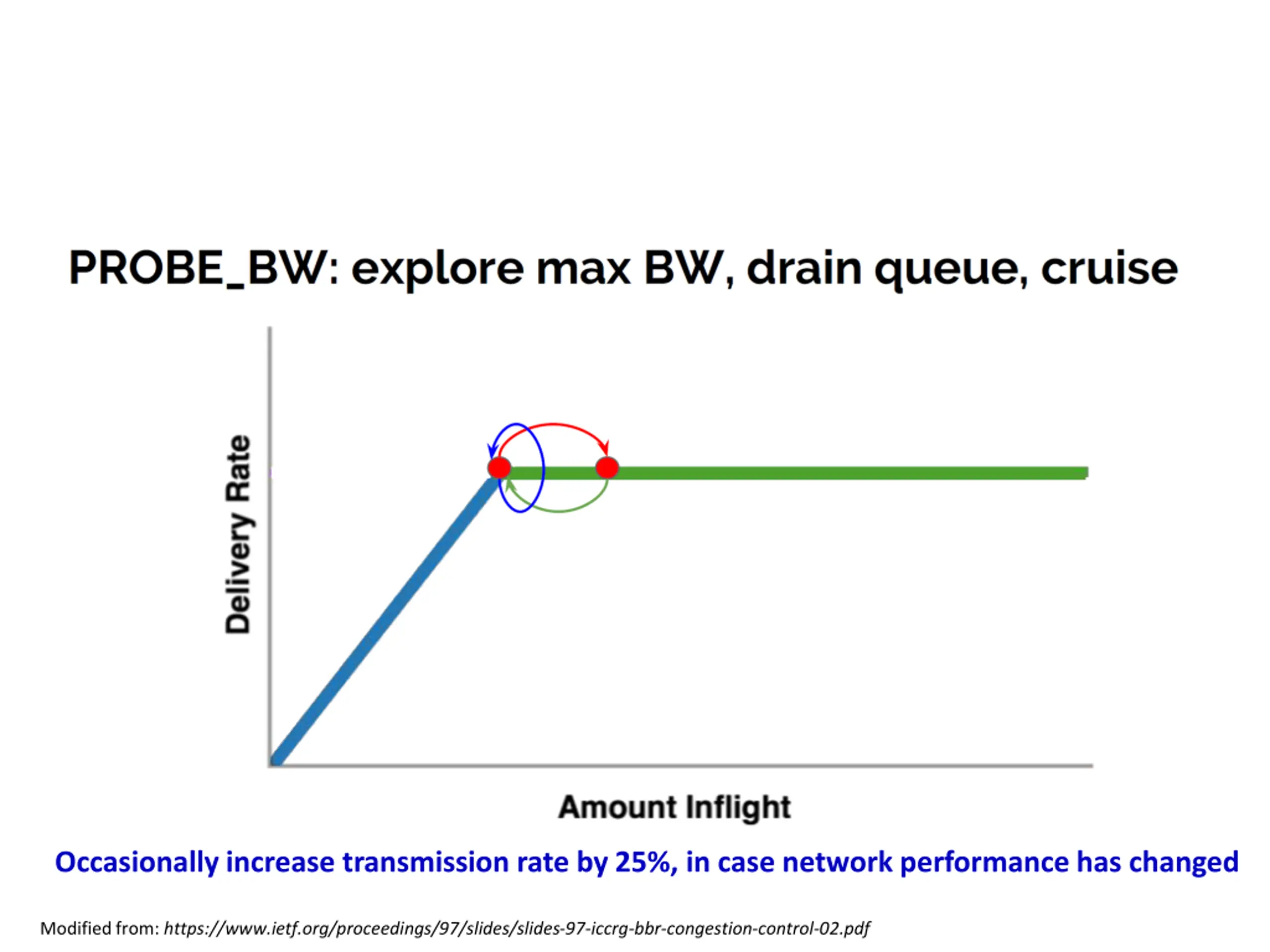

  23. Occasionally increase transmission rate by 25%, in case network performance has changed Modified from: https://www.ietf.org/proceedings/97/slides/slides-97-iccrg-bbr-congestion-control-02.pdf

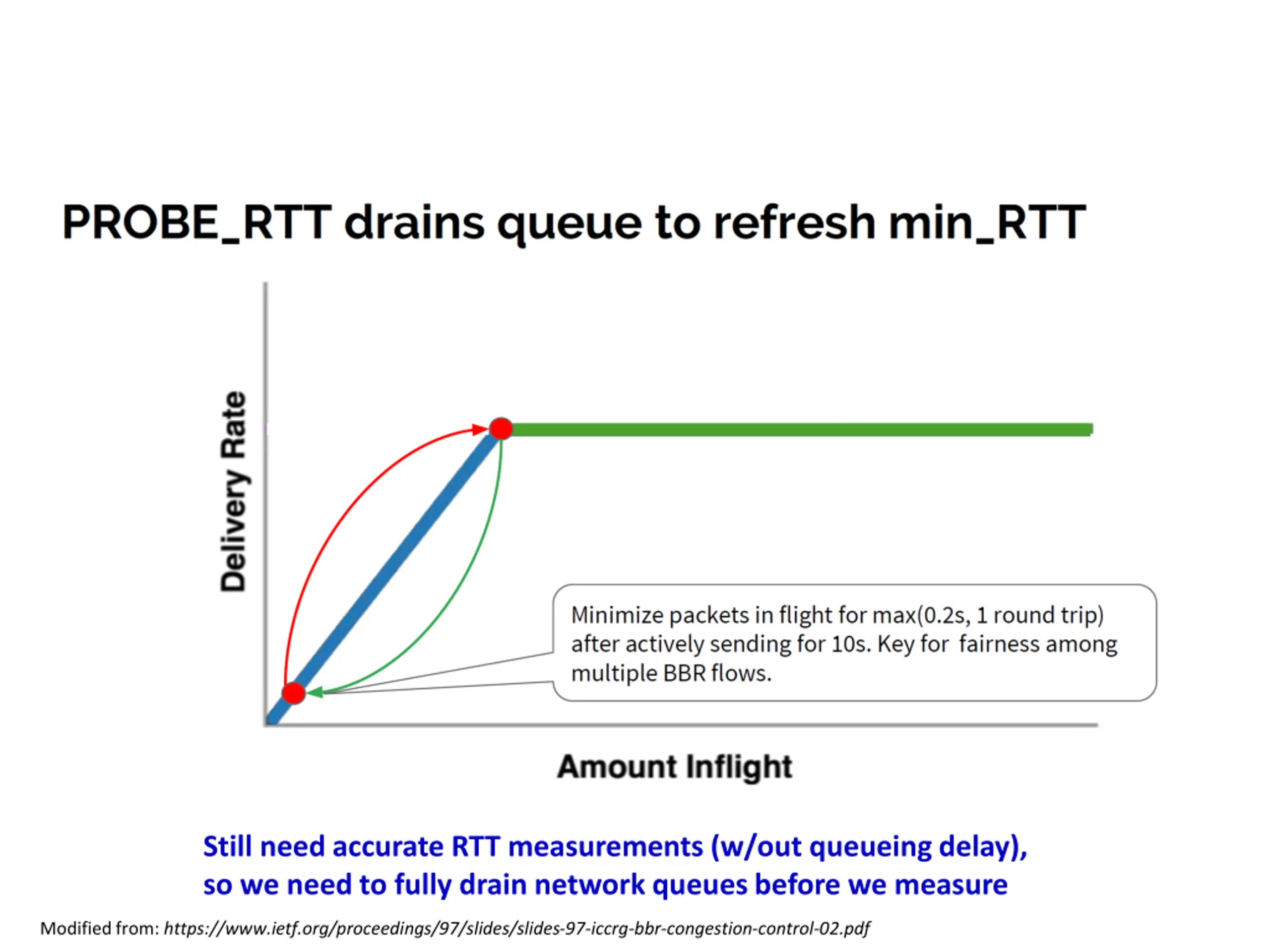

  24. Still need accurate RTT measurements (w/out queueing delay), so we need to fully drain network queues before we measure Modified from: https://www.ietf.org/proceedings/97/slides/slides-97-iccrg-bbr-congestion-control-02.pdf

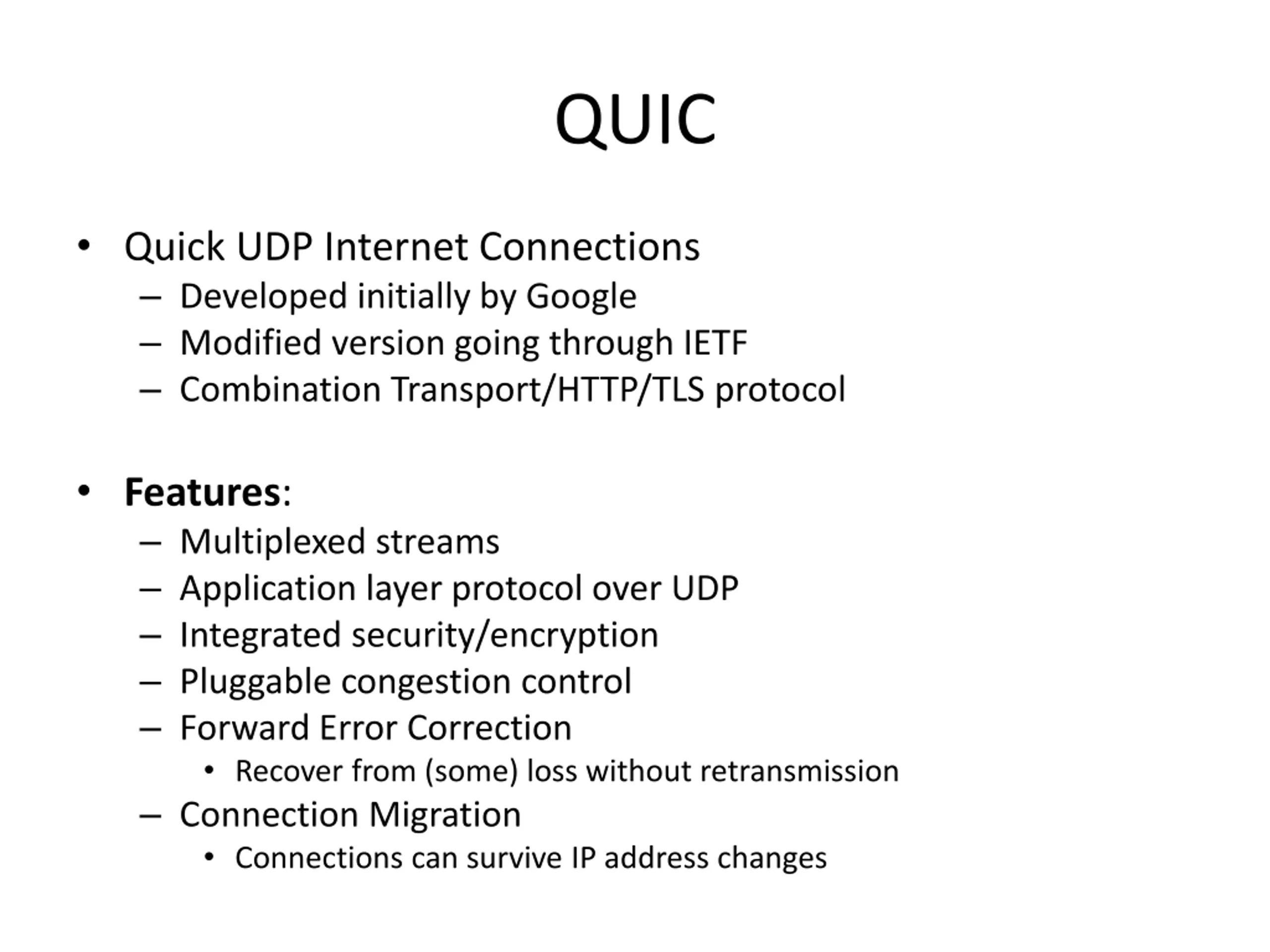

  25. QUIC • Quick UDP Internet Connections – Developed initially by Google – Modified version going through IETF – Combination Transport/HTTP/TLS protocol • Features: – Multiplexed streams – Application layer protocol over UDP – Integrated security/encryption – Pluggable congestion control – Forward Error Correction • Recover from (some) loss without retransmission – Connection Migration • Connections can survive IP address changes

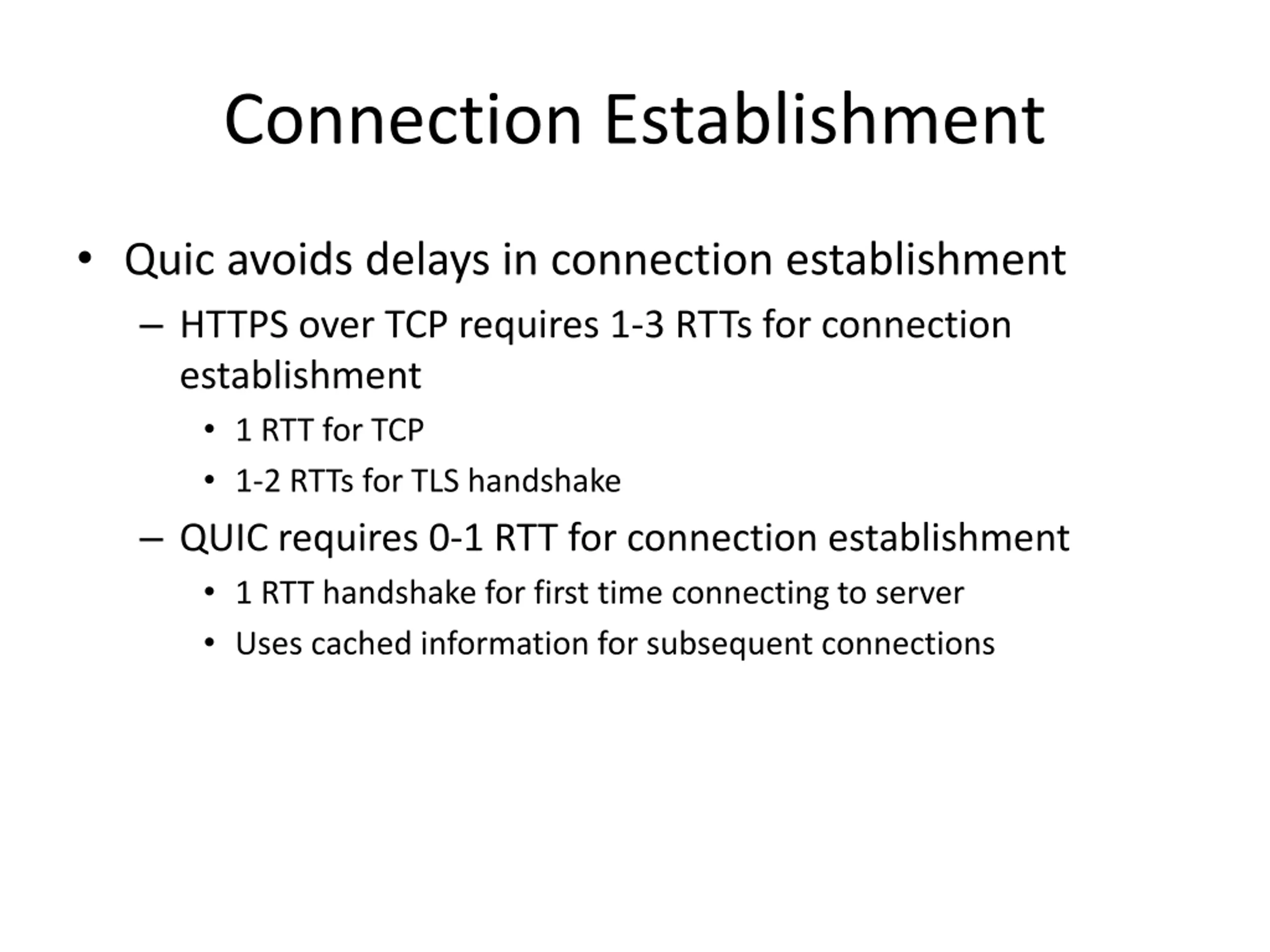

  26. Connection Establishment • Quic avoids delays in connection establishment – HTTPS over TCP requires 1-3 RTTs for connection establishment • 1 RTT for TCP • 1-2 RTTs for TLS handshake – QUIC requires 0-1 RTT for connection establishment • 1 RTT handshake for first time connecting to server • Uses cached information for subsequent connections

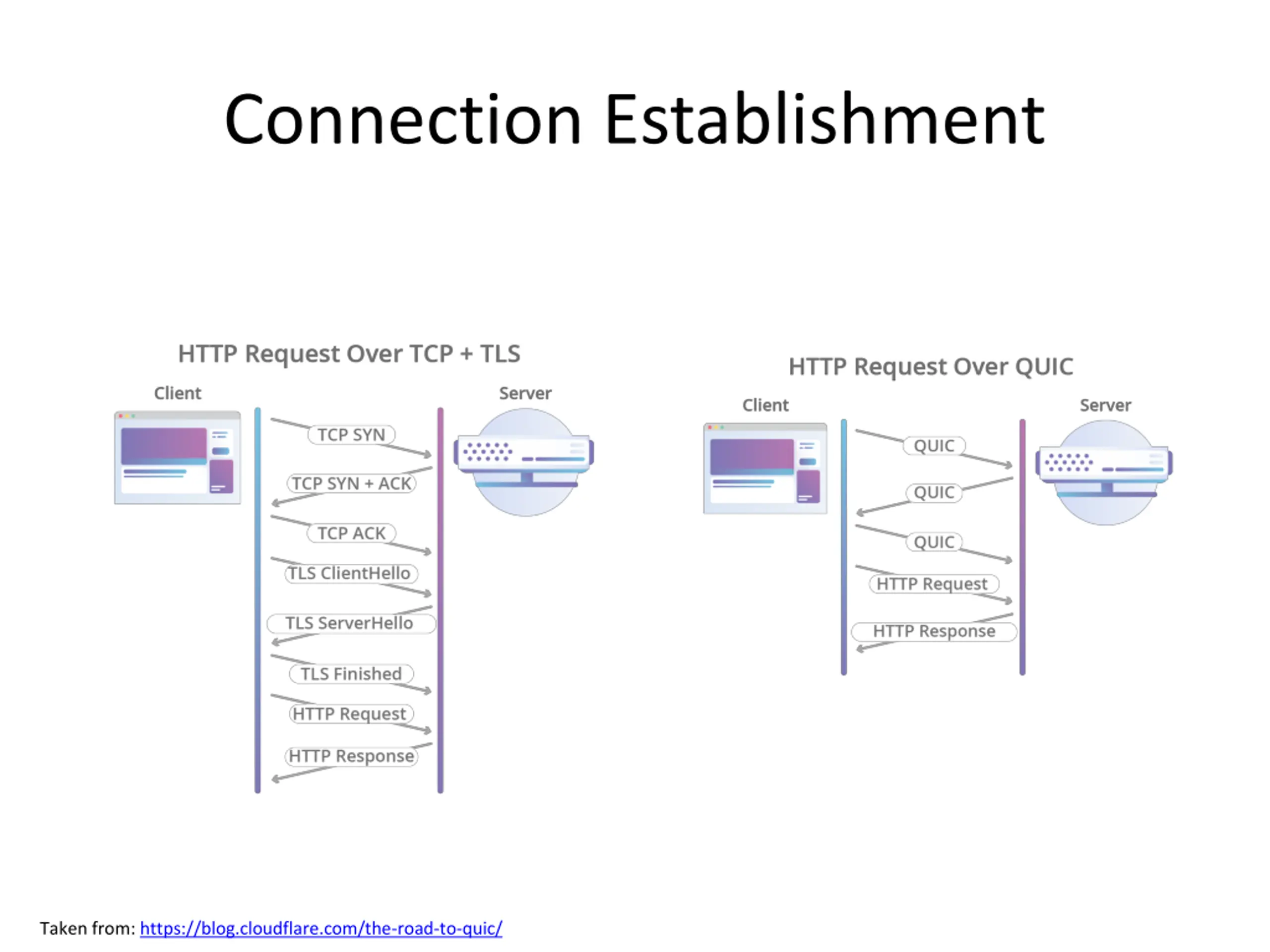

  27. Connection Establishment Taken from: https://blog.cloudflare.com/the-road-to-quic/

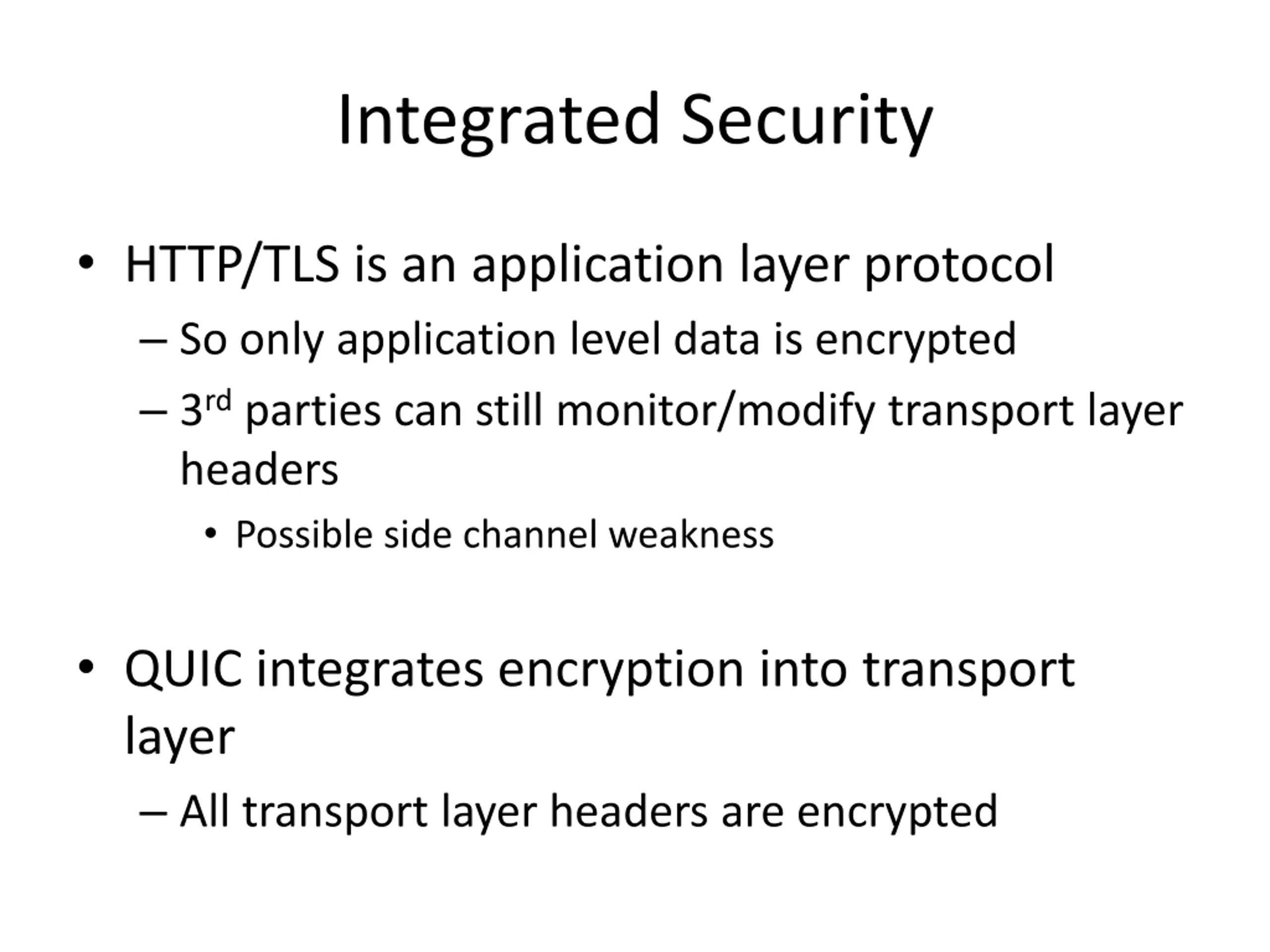

  28. Integrated Security • HTTP/TLS is an application layer protocol – So only application level data is encrypted – 3rdparties can still monitor/modify transport layer headers • Possible side channel weakness • QUIC integrates encryption into transport layer – All transport layer headers are encrypted

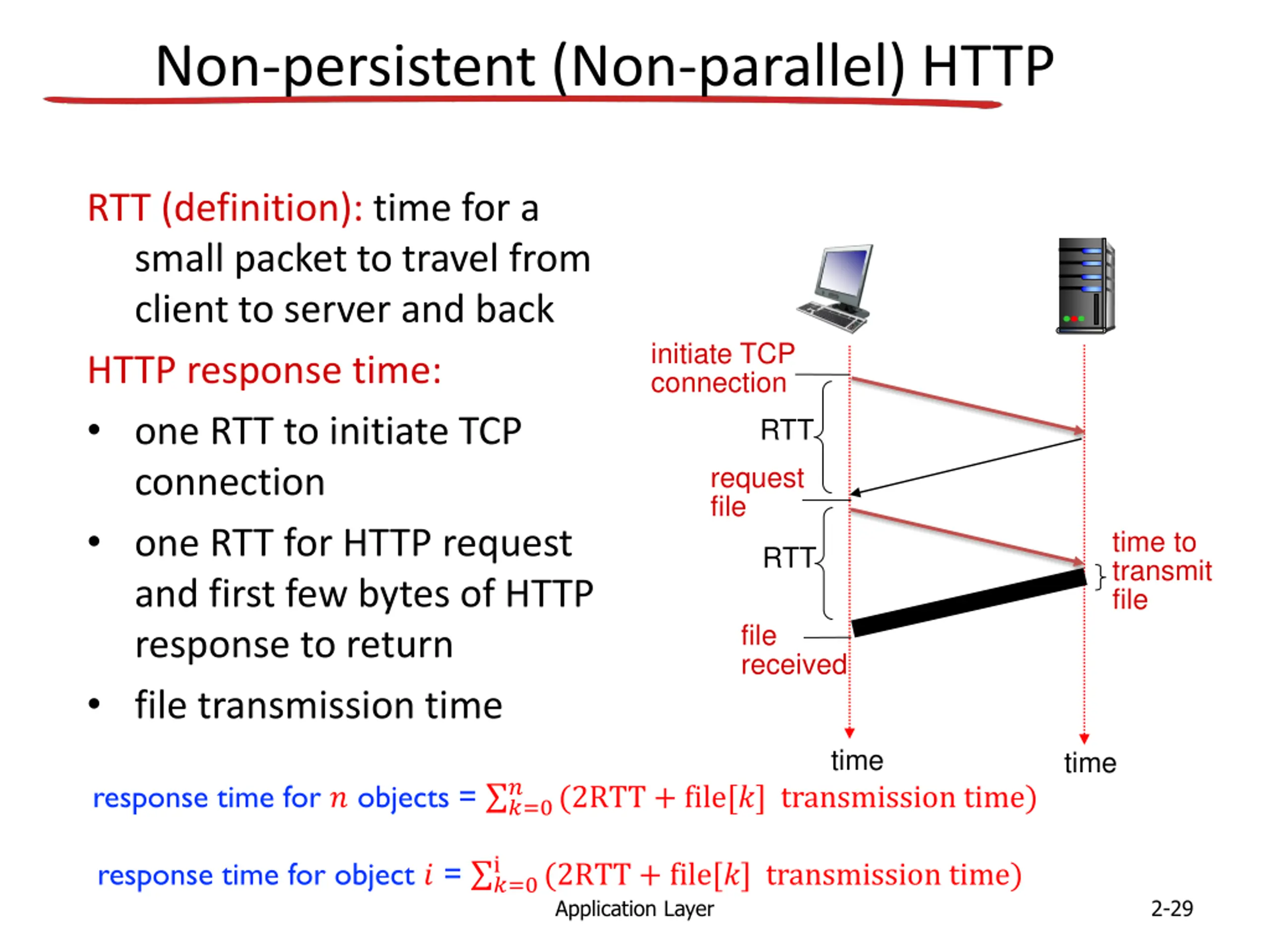

  29. Non-persistent (Non-parallel) HTTP RTT (definition): time for a small packet to travel from client to server and back HTTP response time: • one RTT to initiate TCP connection • one RTT for HTTP request and first few bytes of HTTP response to return • file transmission time initiate TCP connection RTT request file time to transmit file RTT file received time time ? response time for ? objects = ?=0 (2RTT + file[?] transmission time) i response time for object ? = ?=0 (2RTT + file[?] transmission time) Application Layer 2-29

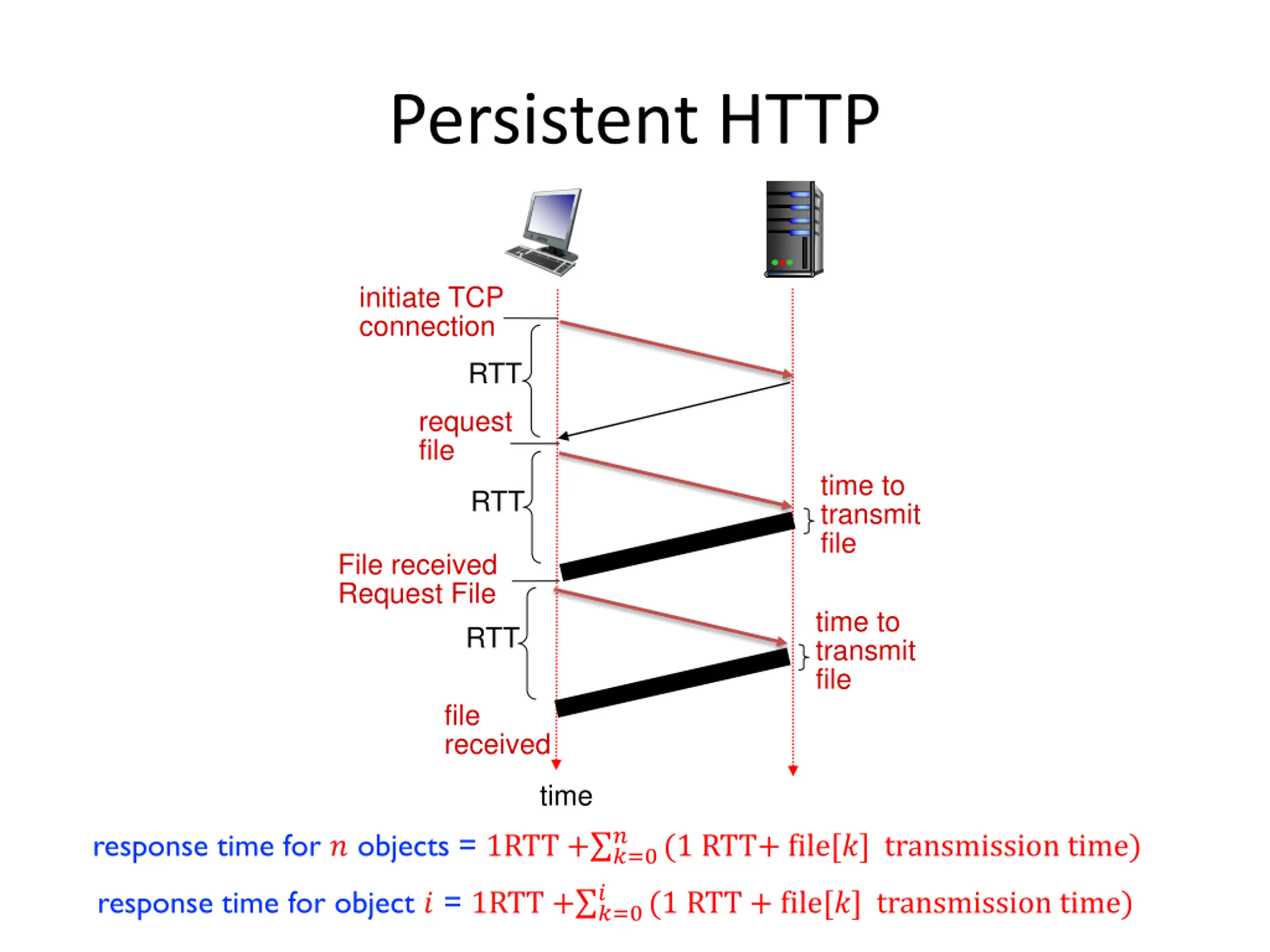

  30. Persistent HTTP initiate TCP connection RTT request file time to transmit file RTT File received Request File time to transmit file RTT file received time ? response time for ? objects = 1RTT +?=0 response time for object ? = 1RTT +?=0 (1 RTT+ file[?] transmission time) ? (1 RTT + file[?] transmission time)

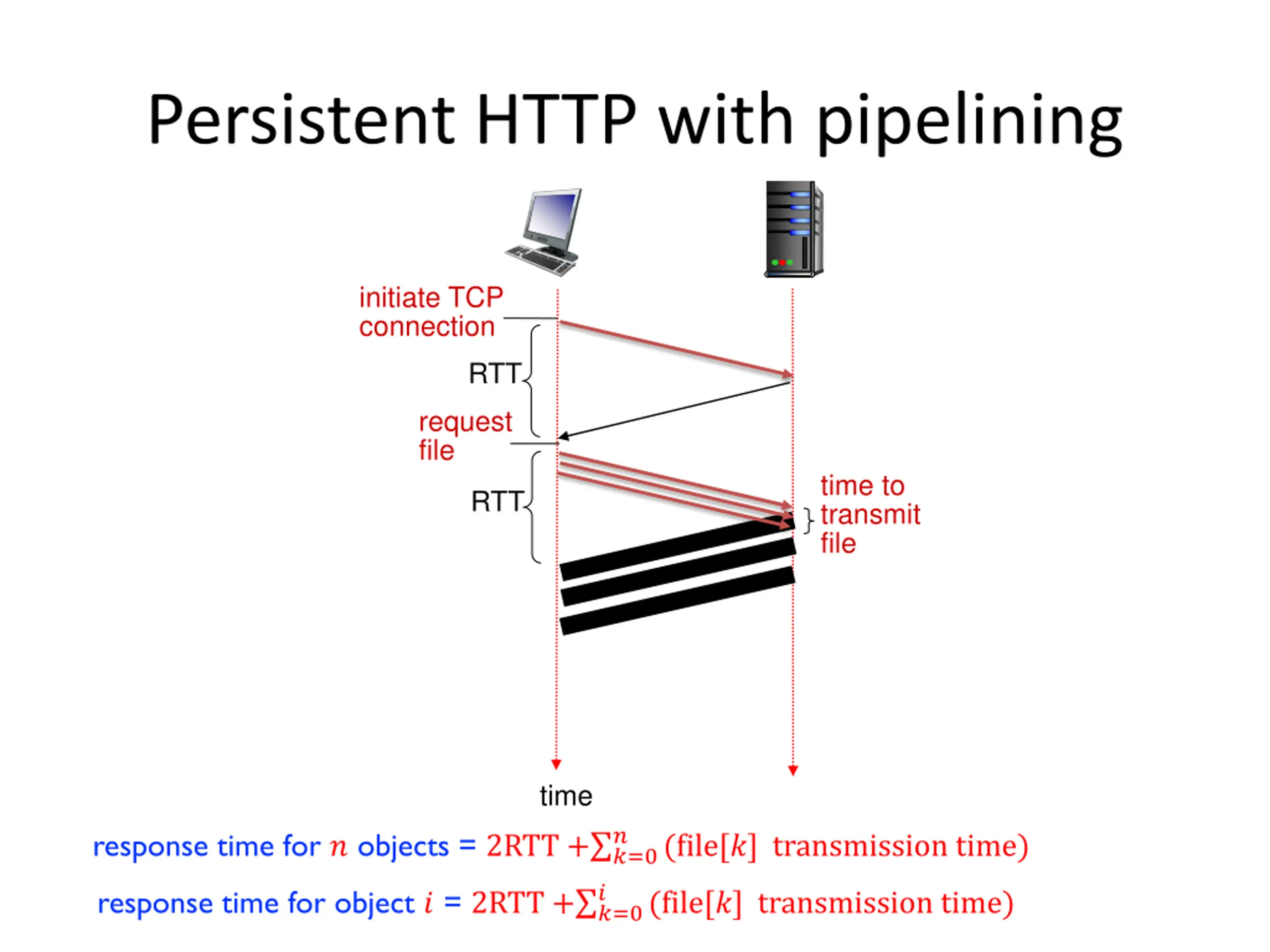

  31. Persistent HTTP with pipelining initiate TCP connection RTT request file time to transmit file RTT time ? response time for ? objects = 2RTT +?=0 response time for object ? = 2RTT +?=0 (file[?] transmission time) ? (file[?] transmission time)

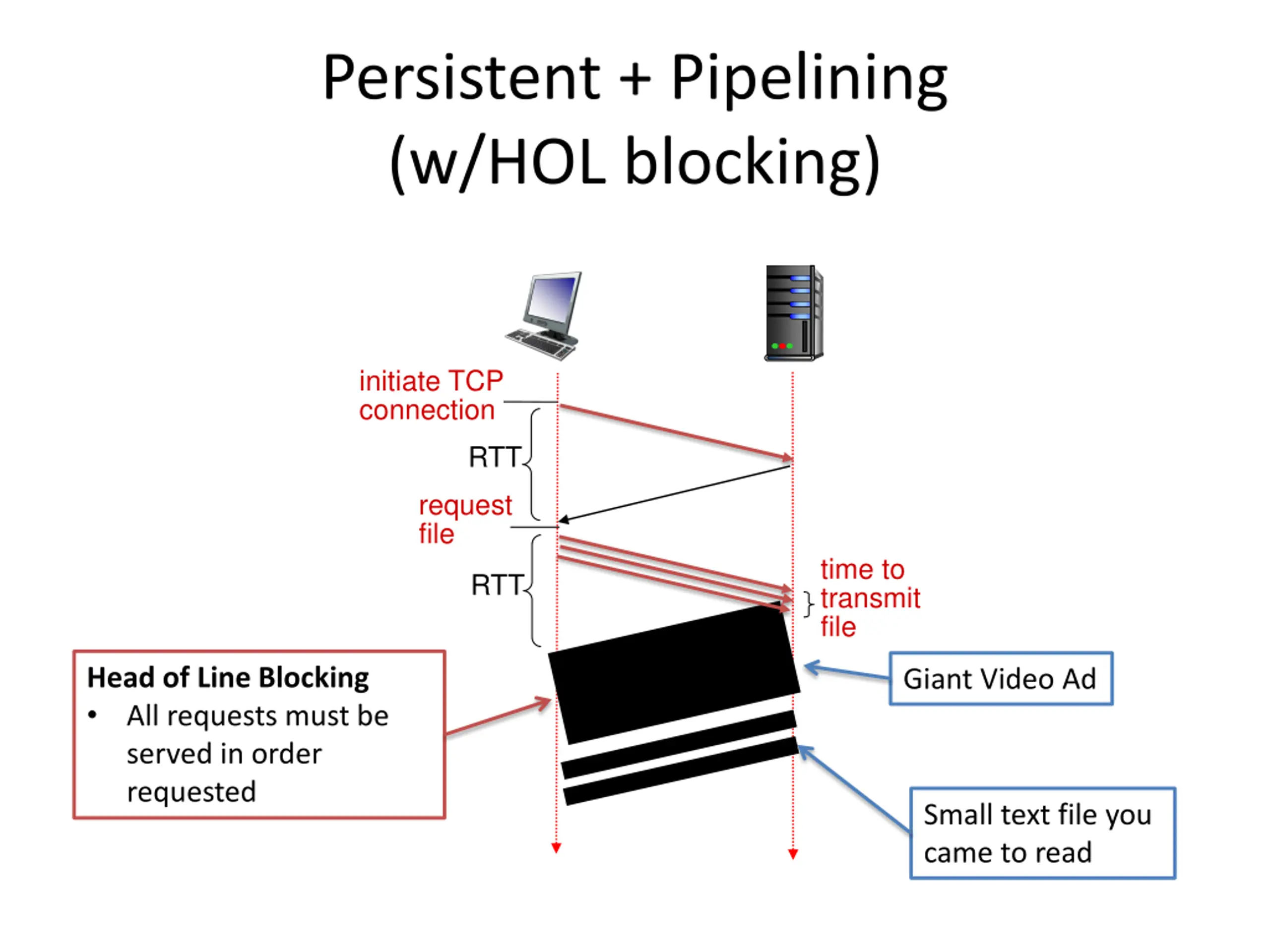

  32. Persistent + Pipelining (w/HOL blocking) initiate TCP connection RTT request file time to transmit file RTT Head of Line Blocking • All requests must be served in order requested Giant Video Ad Small text file you came to read

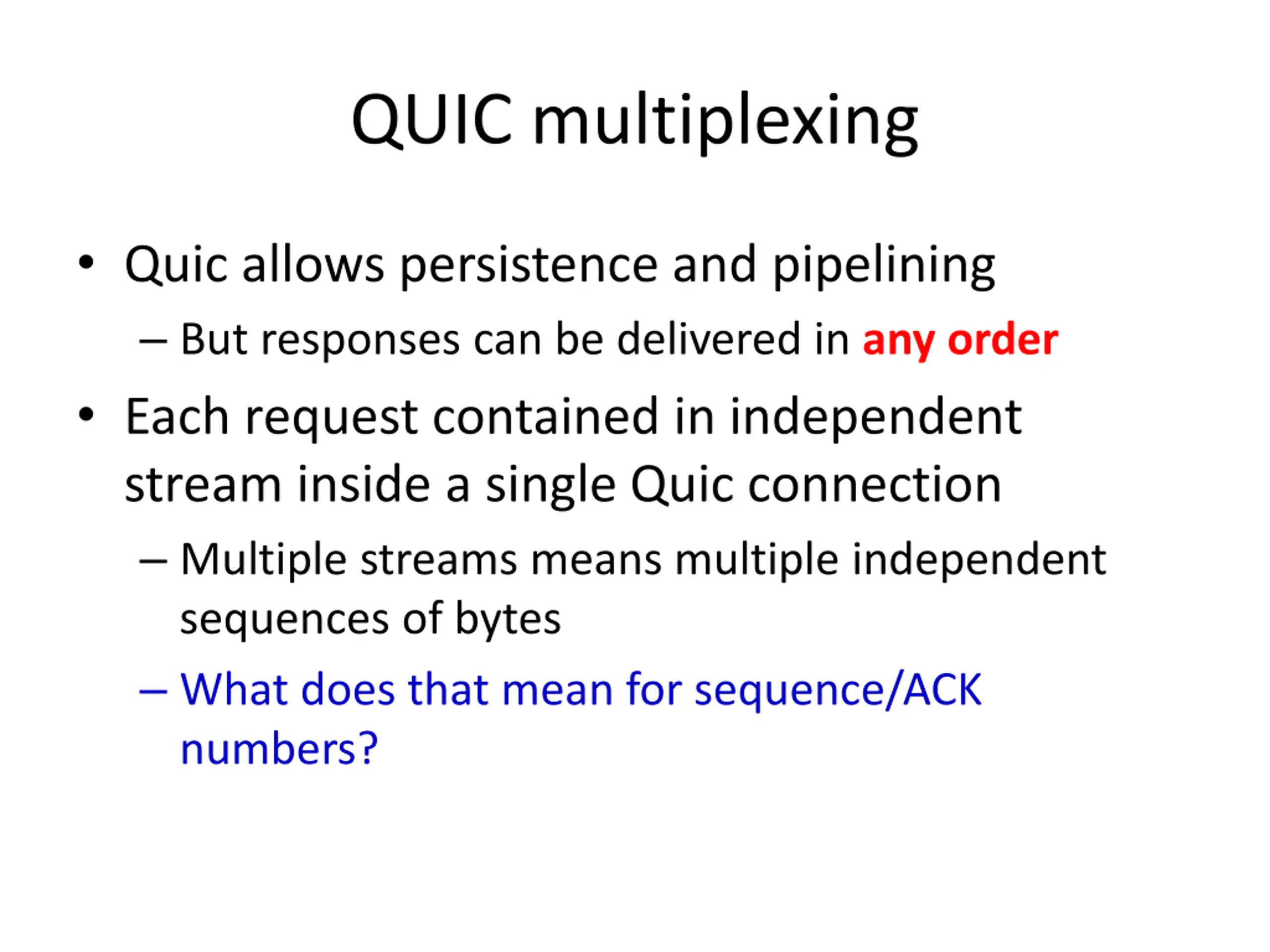

  33. QUIC multiplexing • Quic allows persistence and pipelining – But responses can be delivered in any order • Each request contained in independent stream inside a single Quic connection – Multiple streams means multiple independent sequences of bytes – What does that mean for sequence/ACK numbers?
