The arc data client in emi 1

The ARC data client in EMI-1

Jon Kerr Nilsen

Dept. of Physics, Univ. of Oslo

On behalf of the ARC Data PT


  • Why ARC data libs?

  • ARC data in production

  • ARC data Architecture

  • ARC client tools

  • ARC data in EMI

  • Plans / way forward

Jon Kerr Nilsen

Why use arc data libs
Why use ARC data libs?

  • Can be used on different platforms (Linux, Windows, Mac, Solaris)

  • Can be used from different languages (C++, Python, java)

  • Pluggable infrastructure which allows for a very limited set of dependencies from other libraries

  • Plugins exist for several widely used data transfer and management protocols (GridFTP, SRM, LFC, https, stdio, …)

  • Light-weight and user-friendly, with easy client-side configuration (the default config would work in most cases)

Jon Kerr Nilsen

Arc ddm in production

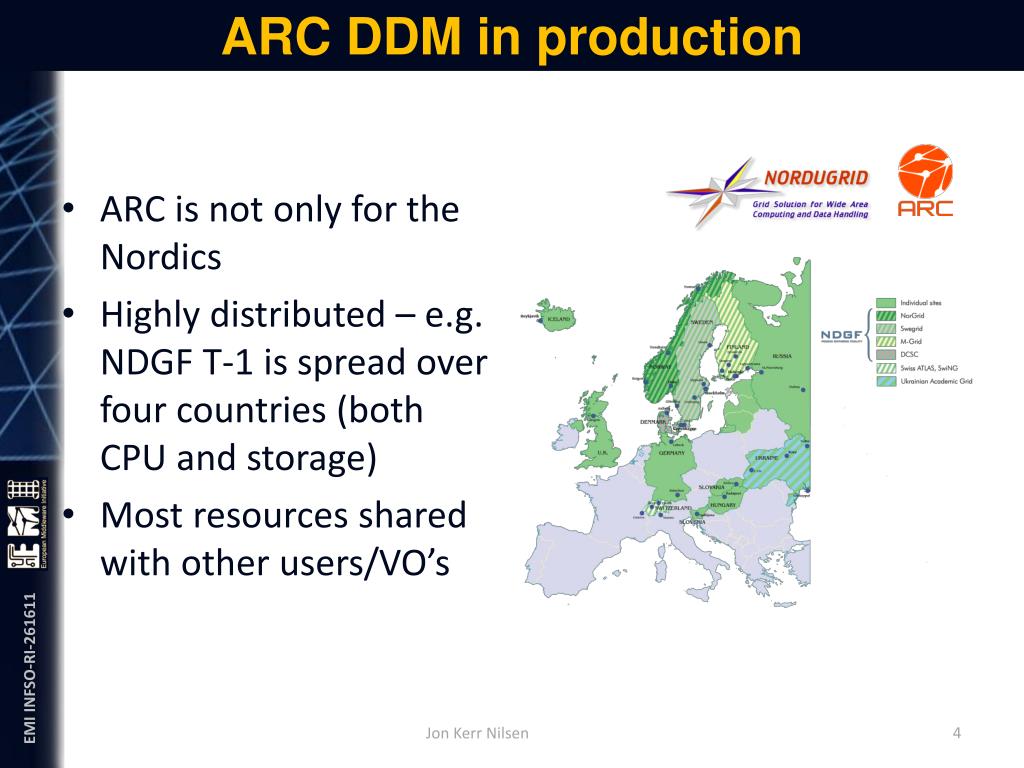

ARC DDM in production

  • ARC is not only for the Nordics

  • Highly distributed – e.g. NDGF T-1 is spread over four countries (both CPU and storage)

  • Most resources shared with other users/VO’s

Jon Kerr Nilsen

Arc ddm in production1
ARC DDM in production

  • 4-6k cores being used

  • 20-40k jobs per day

  • Transfering500MB/s on average for downloads and uploads–> ~100TB/day

  • Approx. half of it on NDGF T-1

    • Not very big but very efficient

Jon Kerr Nilsen

Arc internals
ARC Internals

  • Clients can submit jobs using WS interface or to ARC classic and other legacy services via specialized adaptors

  • HED handles communication between services and with outside world

  • A-REX handles data staging (through libarcdata2) and batch job submission (through LRMS)

  • No middleware on compute-nodes

Jon Kerr Nilsen

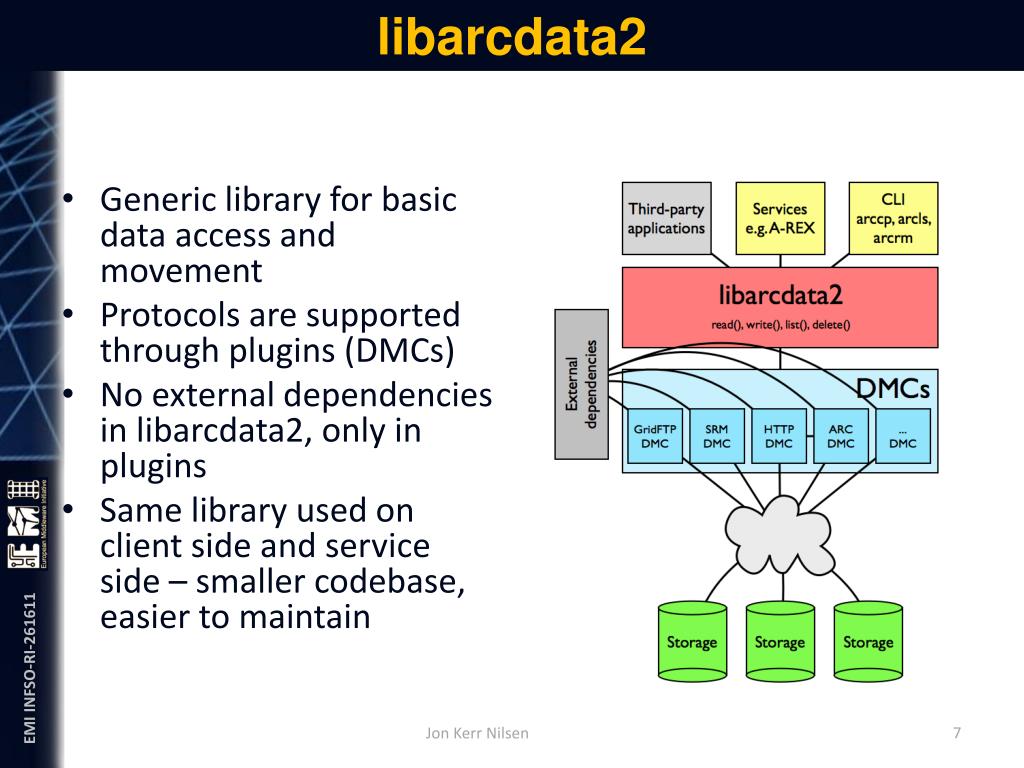

  • Generic library for basic data access and movement

  • Protocols are supported through plugins (DMCs)

  • No external dependencies in libarcdata2, only in plugins

  • Same library used on client side and service side – smaller codebase, easier to maintain

Jon Kerr Nilsen

Data client functionality

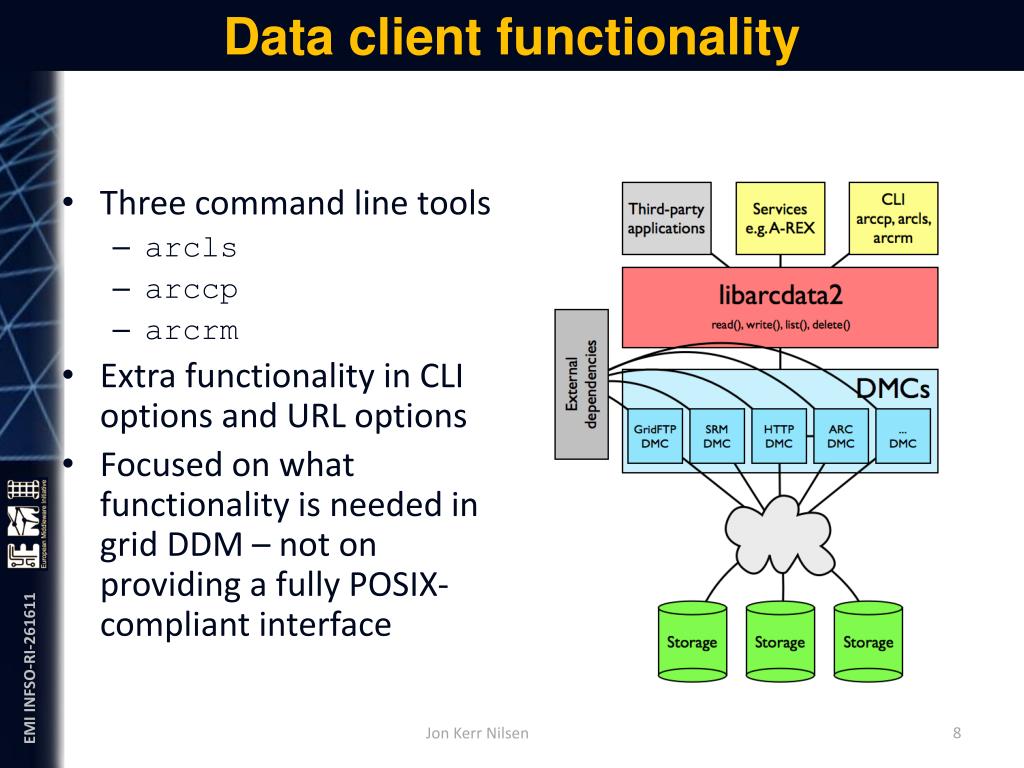

Data client functionality

  • Three command line tools

    • arcls

    • arccp

    • arcrm

  • Extra functionality in CLI options and URL options

  • Focused on what functionality is needed in grid DDM – not on providing a fully POSIX-compliant interface

Jon Kerr Nilsen

Data client functionality1

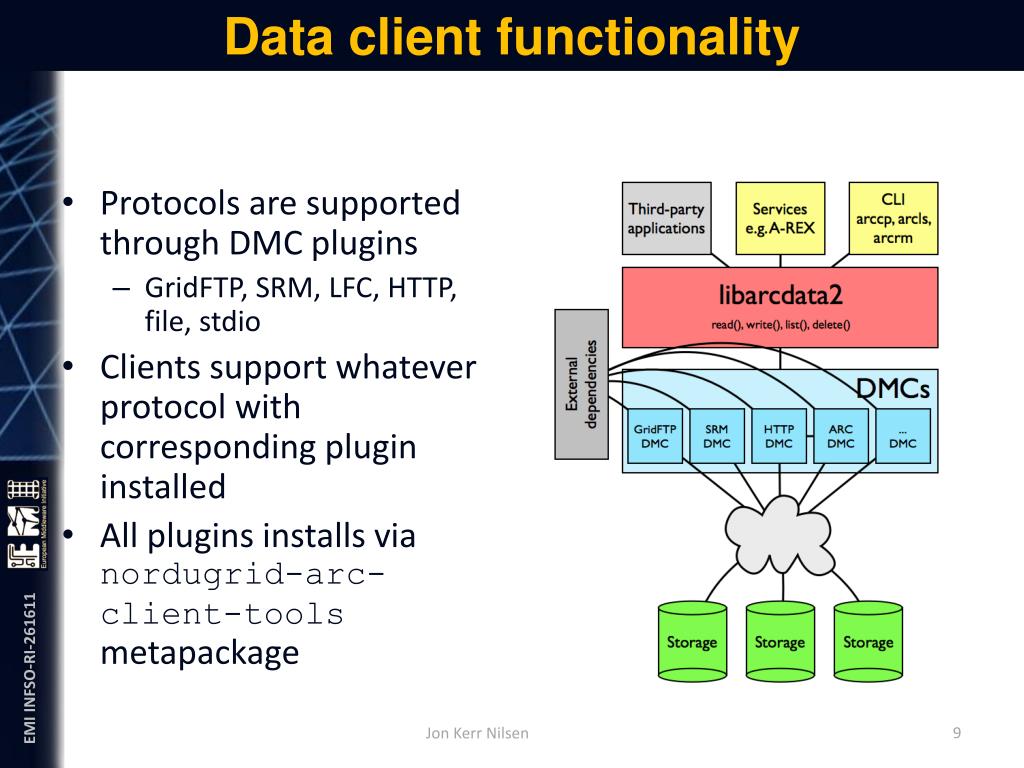

Data client functionality

  • Protocols are supported through DMC plugins

    • GridFTP, SRM, LFC, HTTP, file, stdio

  • Clients support whatever protocol with corresponding plugin installed

  • All plugins installs via nordugrid-arc-client-toolsmetapackage

Jon Kerr Nilsen

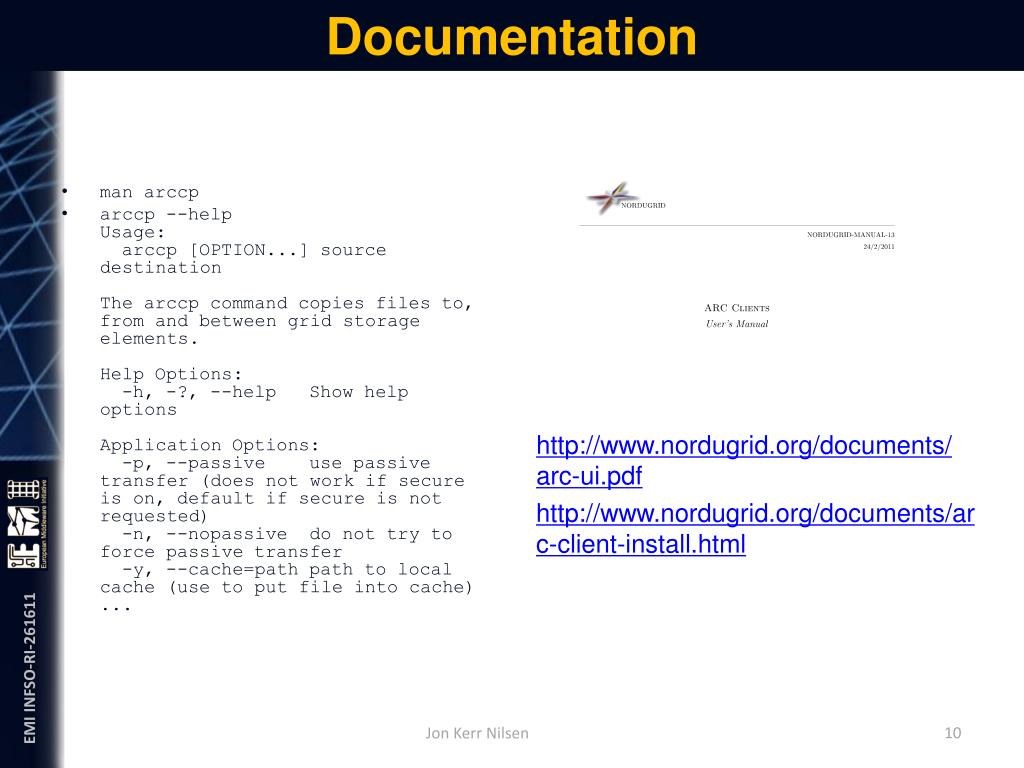

  • man arccp

  • arccp --helpUsage:arccp[OPTION...] source destinationThe arccp command copies files to, from and between grid storage elements.Help Options:-h, -?, --help Show help optionsApplication Options:-p, --passive use passive transfer (does not work if secure is on, default if secure is not requested)-n, --nopassivedo not try to force passive transfer-y, --cache=path path to local cache (use to put file into cache)...

Jon Kerr Nilsen

Example lfc

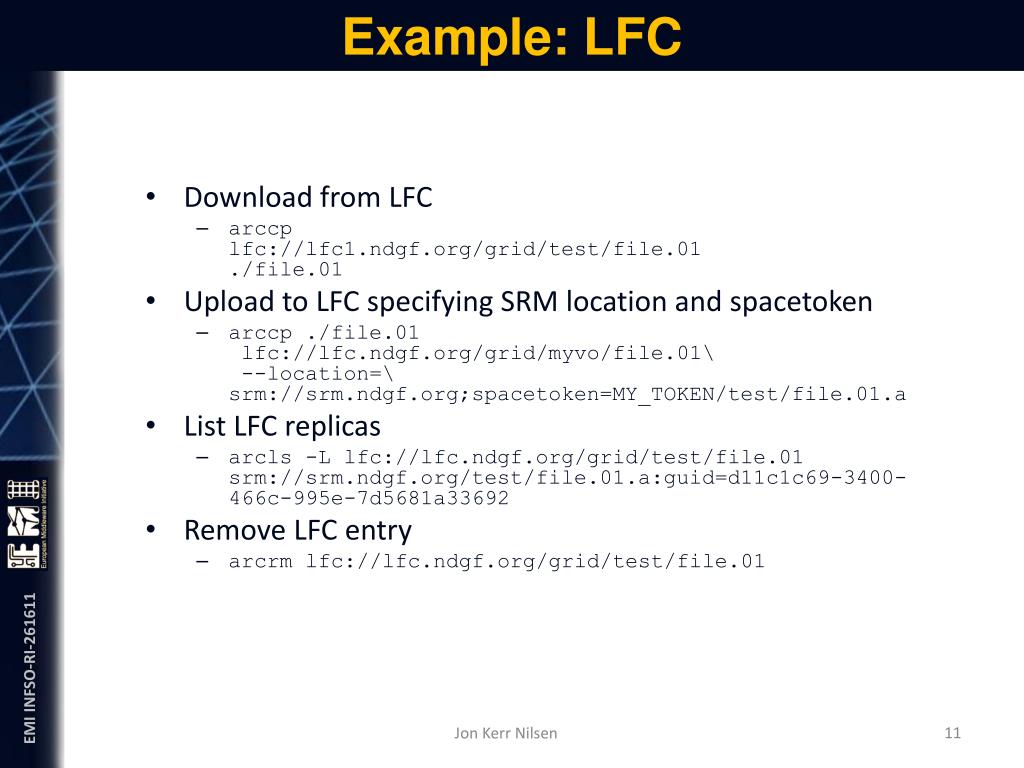

Example: LFC

  • Download from LFC

    • arccplfc:// ./file.01

  • Upload to LFC specifying SRM location and spacetoken

    • arccp ./file.01 lfc://\ --location=\srm://;spacetoken=MY_TOKEN/test/file.01.a

  • List LFC replicas

    • arcls-L lfc://

  • Remove LFC entry

    • arcrmlfc://

Jon Kerr Nilsen

Example stdio
Example: stdio

  • Copying to/from stdio

    • arccpgsi

    • arccpgsi–hello

    • arccp - -hellohello

Jon Kerr Nilsen

Python api
Python API

  • libarcdata2 API available in Python

  • import arcfromarcomimportdatapoint_from_urlsrc= datapoint_from_url(turl, ssl_config)dst= datapoint_from_url( = arc.DataMover()mover.verbose(verbose)mover.retry(False)mover.passive(True)status = mover.Transfer(src, dst, arc.FileCache(),arc.URLMap())ifstatus != status.Success:raiseException, ”””Failedto download file. Try again!”””returnstr(status)

Jon Kerr Nilsen

Arc data in emi

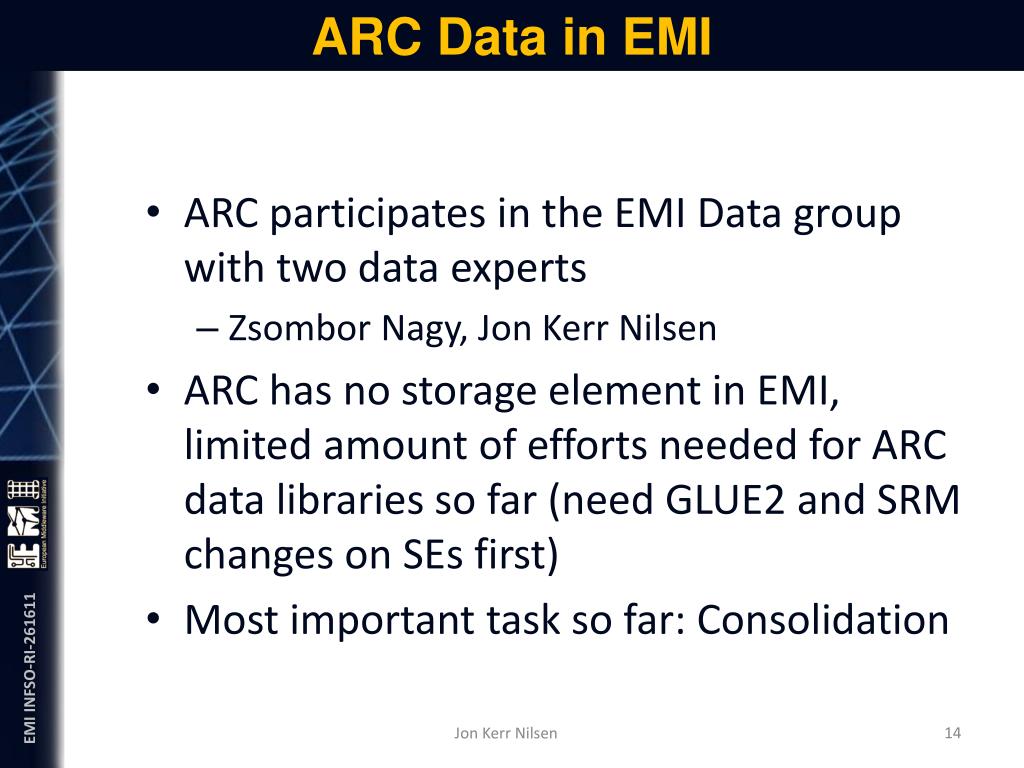

ARC Data in EMI

  • ARC participates in the EMI Data group with two data experts

    • Zsombor Nagy, Jon Kerr Nilsen

  • ARC has no storage element in EMI, limited amount of efforts needed for ARC data libraries so far (need GLUE2 and SRM changes on SEs first)

  • Most important task so far: Consolidation

Jon Kerr Nilsen

Data lib consolidation

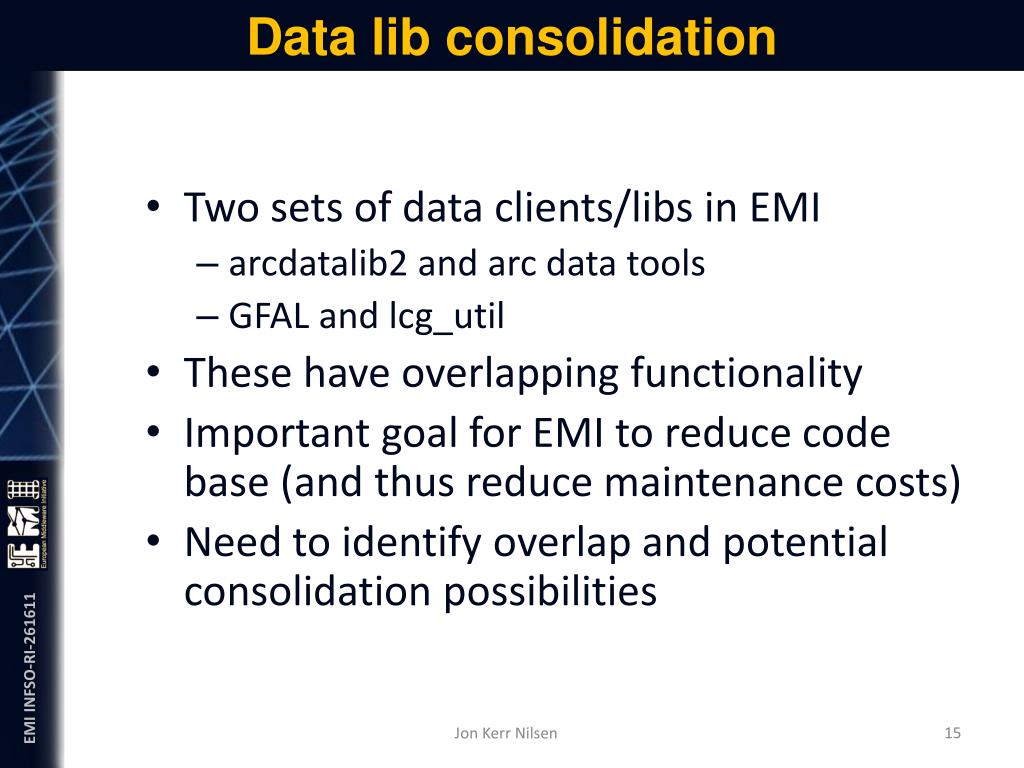

Data lib consolidation

  • Two sets of data clients/libs in EMI

    • arcdatalib2 and arc data tools

    • GFAL and lcg_util

  • These have overlapping functionality

  • Important goal for EMI to reduce code base (and thus reduce maintenance costs)

  • Need to identify overlap and potential consolidation possibilities

Jon Kerr Nilsen

Data lib consolidation1
Data lib consolidation

  • High-level plan

    • Evaluate current libs/clients

    • Investigate what features in the libs/clients are used/needed

    • Identify scenarios and analyze

      • Efforts, costs, benefits, risks, dependencies…

    • Suggest a decision for the best solution

    • Implement this solution

Jon Kerr Nilsen

Data lib consolidation2

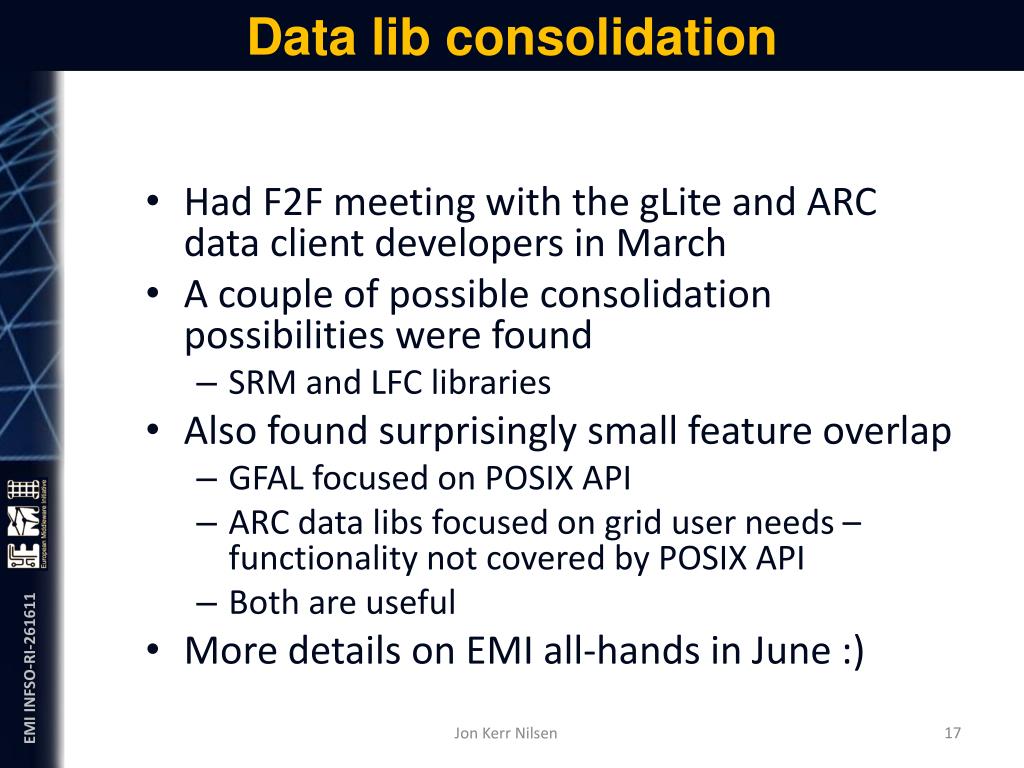

Data lib consolidation

  • Had F2F meeting with the gLite and ARC data client developers in March

  • A couple of possible consolidation possibilities were found

    • SRM and LFC libraries

  • Also found surprisingly small feature overlap

    • GFAL focused on POSIX API

    • ARC data libs focused on grid user needs – functionality not covered by POSIX API

    • Both are useful

  • More details on EMI all-hands in June :)

Jon Kerr Nilsen

Way forward

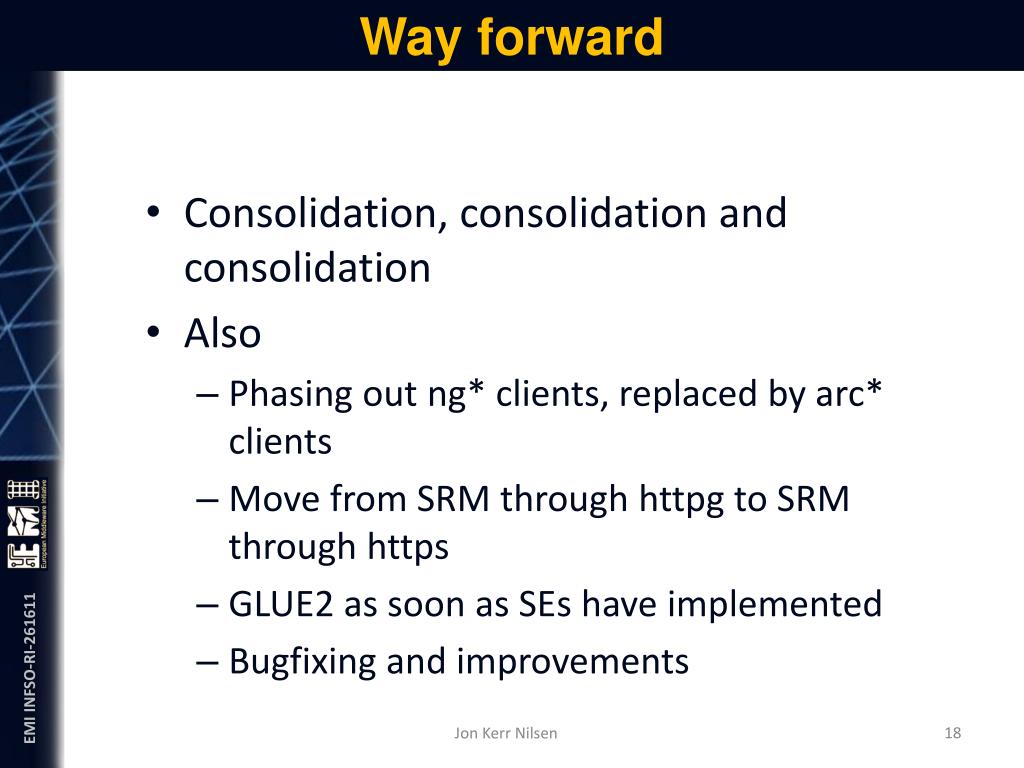

Way forward

  • Consolidation, consolidation and consolidation

  • Also

    • Phasing out ng* clients, replaced by arc* clients

    • Move from SRM through httpg to SRM through https

    • GLUE2 as soon as SEs have implemented

    • Bugfixing and improvements

Jon Kerr Nilsen

The arc data client in emi 1

Thank you!



Bugs and feature requests:


Jon Kerr Nilsen
