  1. Relational algebra SHIRAJ MOHAMED M | MIS

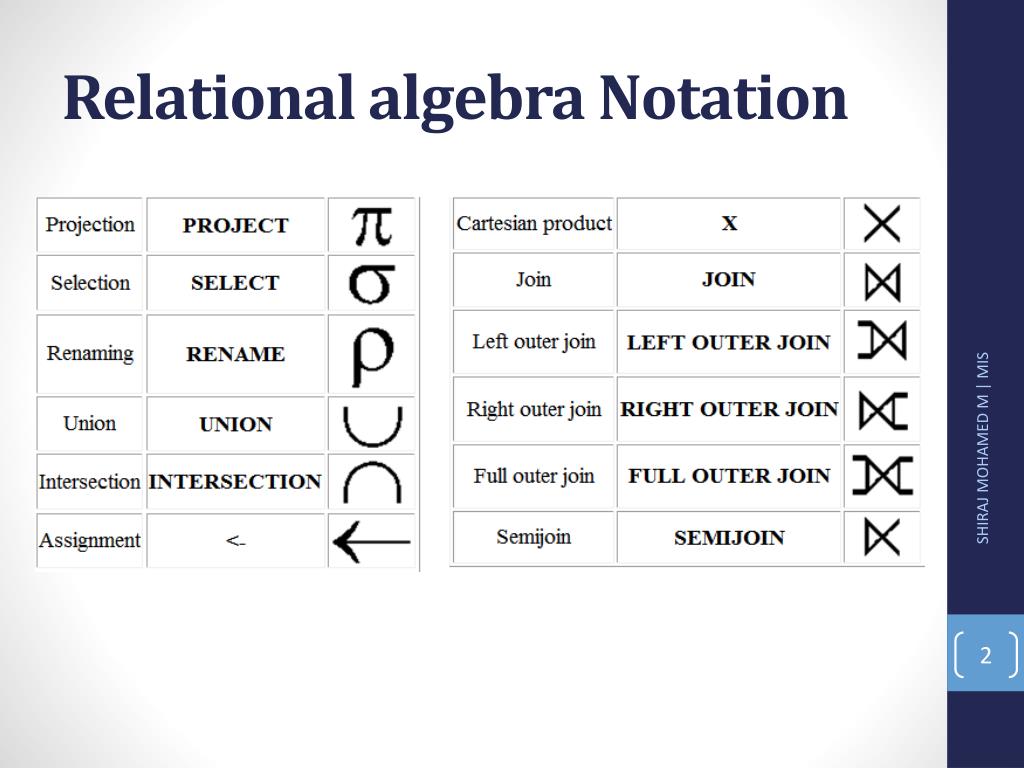

  2. Relational algebra Notation SHIRAJ MOHAMED M | MIS

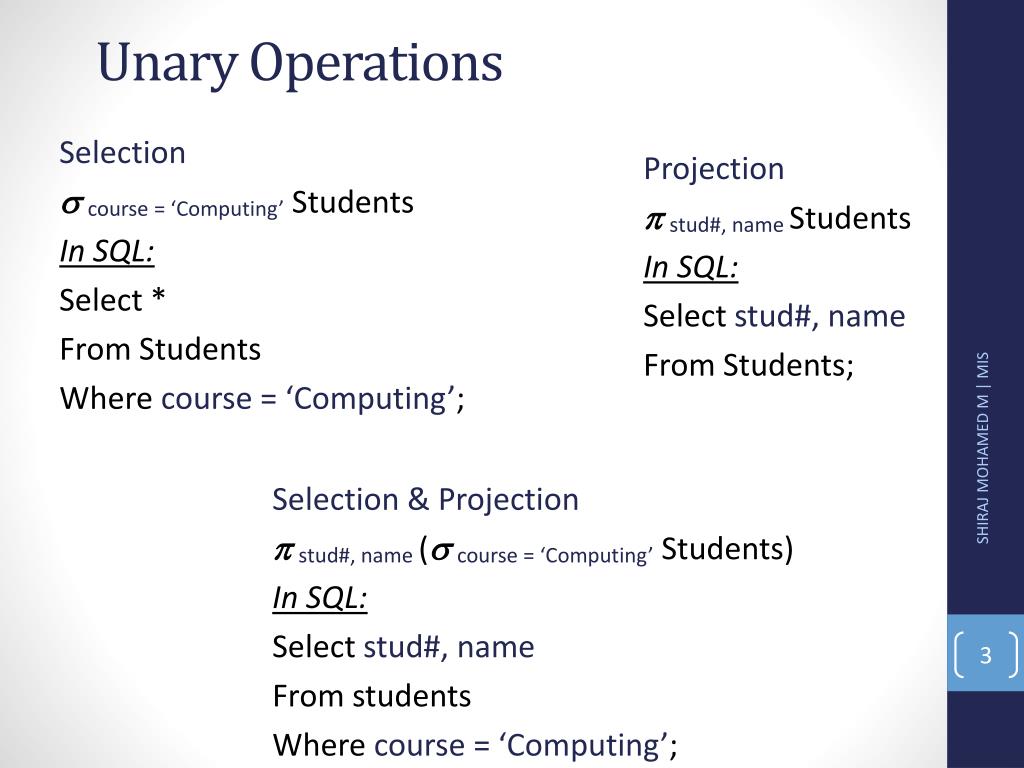

  3. Unary Operations Projection stud#, nameStudents In SQL: Select stud#, name From Students; Selection course = ‘Computing’Students In SQL: Select * From Students Where course = ‘Computing’; SHIRAJ MOHAMED M | MIS Selection & Projection stud#, name(course = ‘Computing’Students) In SQL: Select stud#, name From students Where course = ‘Computing’;

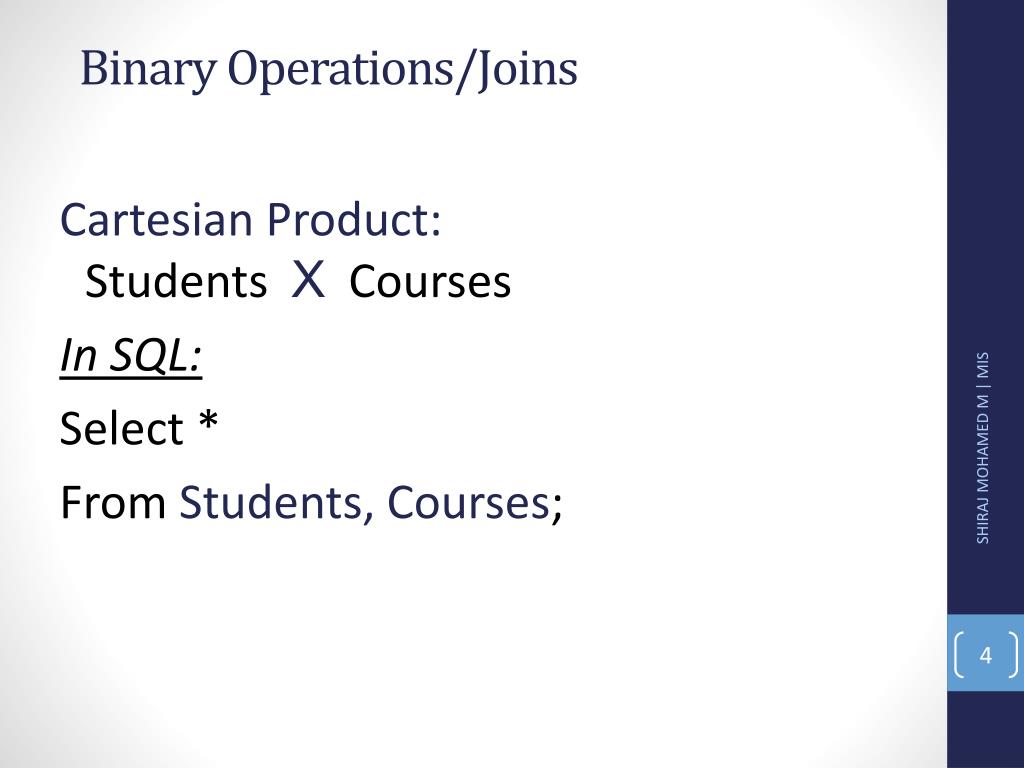

  4. Binary Operations/Joins Cartesian Product: Students X Courses In SQL: Select * From Students, Courses; SHIRAJ MOHAMED M | MIS

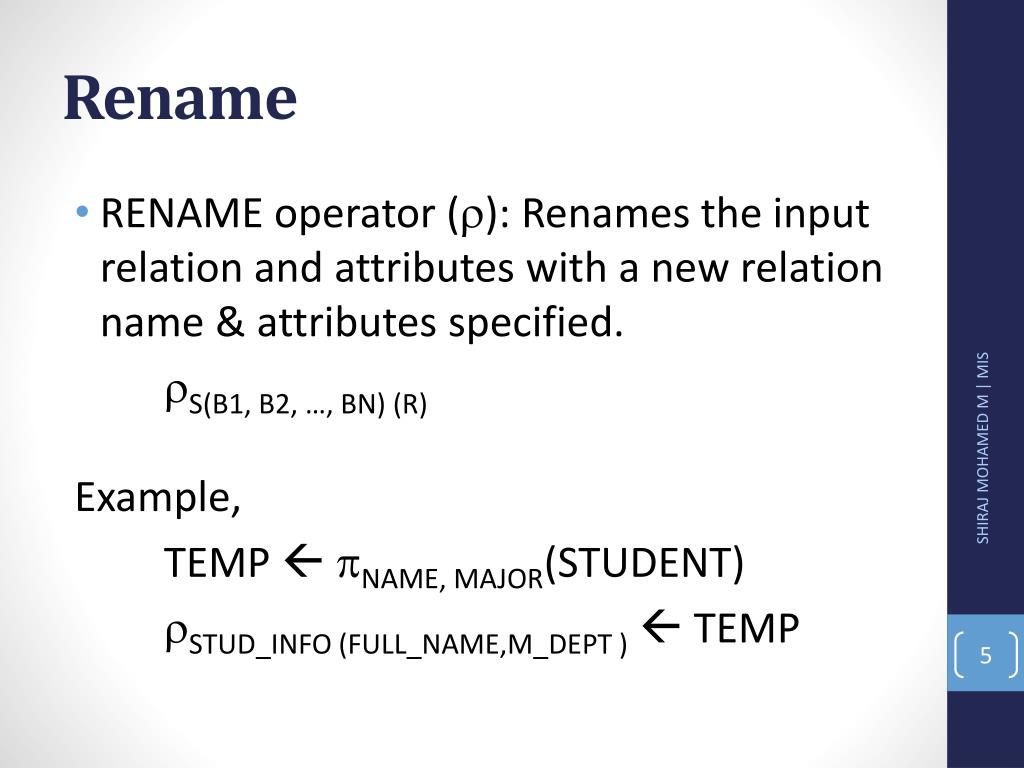

  5. Rename • RENAME operator (): Renames the input relation and attributes with a new relation name & attributes specified. S(B1, B2, …, BN) (R) Example, TEMP  NAME, MAJOR(STUDENT) STUD_INFO (FULL_NAME,M_DEPT ) TEMP SHIRAJ MOHAMED M | MIS

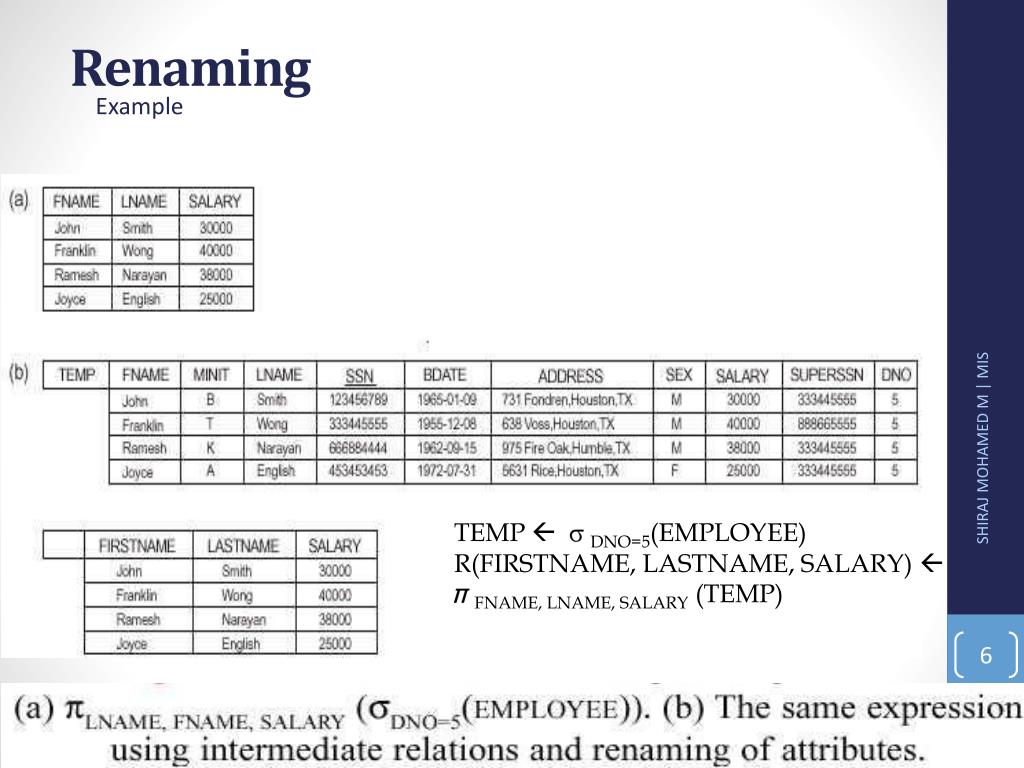

  6. Renaming Example SHIRAJ MOHAMED M | MIS • TEMP  DNO=5(EMPLOYEE) • R(FIRSTNAME, LASTNAME, SALARY)  • FNAME, LNAME, SALARY (TEMP)

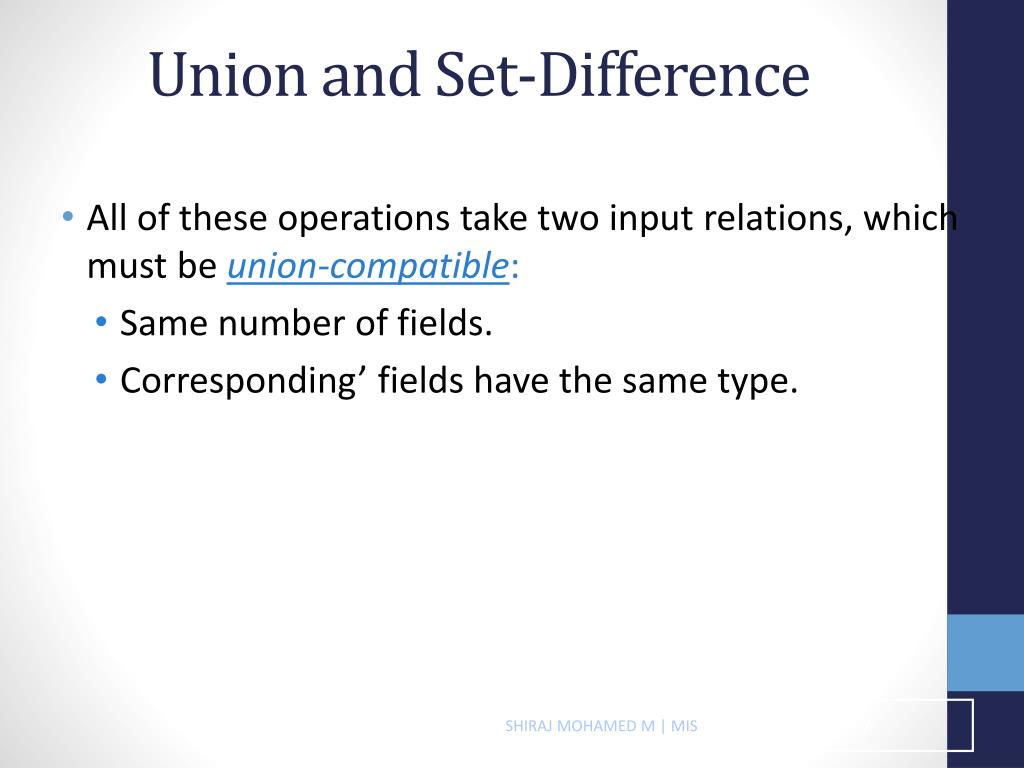

  7. Union and Set-Difference • All of these operations take two input relations, which must be union-compatible: • Same number of fields. • Corresponding’ fields have the same type. SHIRAJ MOHAMED M | MIS

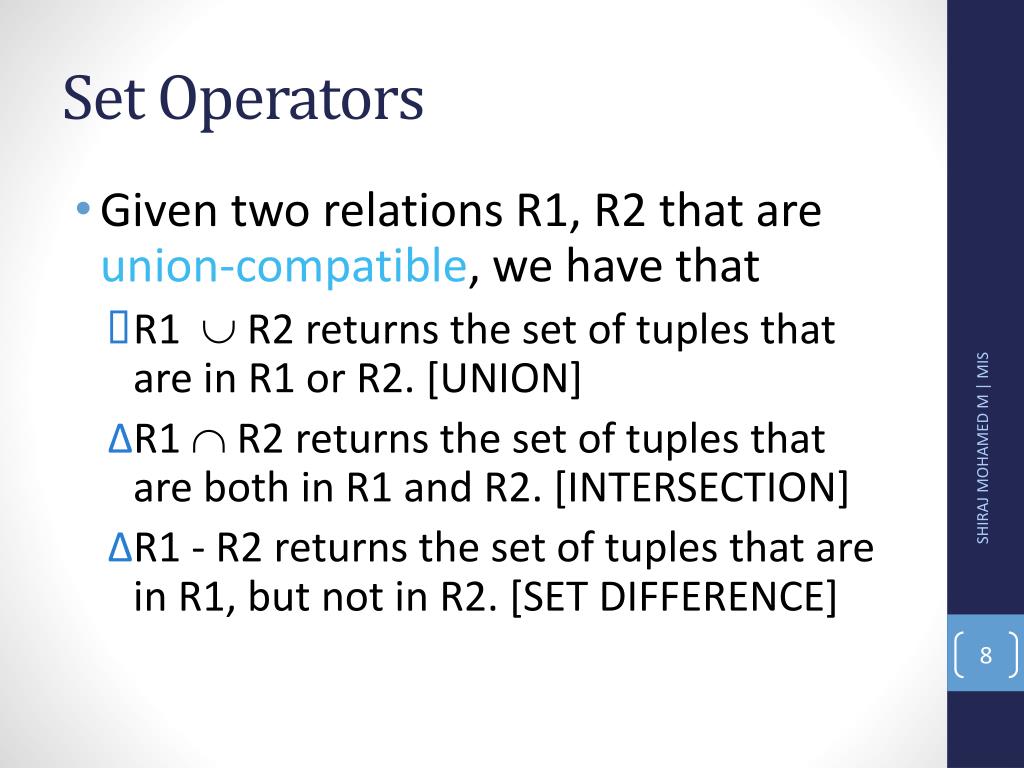

  8. Set Operators • Given two relations R1, R2 that are union-compatible, we have that • R1  R2 returns the set of tuples that are in R1 or R2. [UNION] • R1  R2 returns the set of tuples that are both in R1 and R2. [INTERSECTION] • R1 - R2 returns the set of tuples that are in R1, but not in R2. [SET DIFFERENCE] SHIRAJ MOHAMED M | MIS

  9. Set Operators •  Name (FACULY)   Name (STUDENT) •  Address (FACULY)   Address (STUDENT) •  CrsCode (CLASS) -  CrsCode (TRANSCRIPT) SHIRAJ MOHAMED M | MIS

  10. Union S1 S2 SHIRAJ MOHAMED M | MIS

  11. Set Difference S1 S2 – S1 S2 SHIRAJ MOHAMED M | MIS

  12. Joins Three new join operators are introduced: • Left Outer Join (denoted as ) • Right Outer Join (denoted as ) • Full Outer Join (denoted as ) SHIRAJ MOHAMED M | MIS

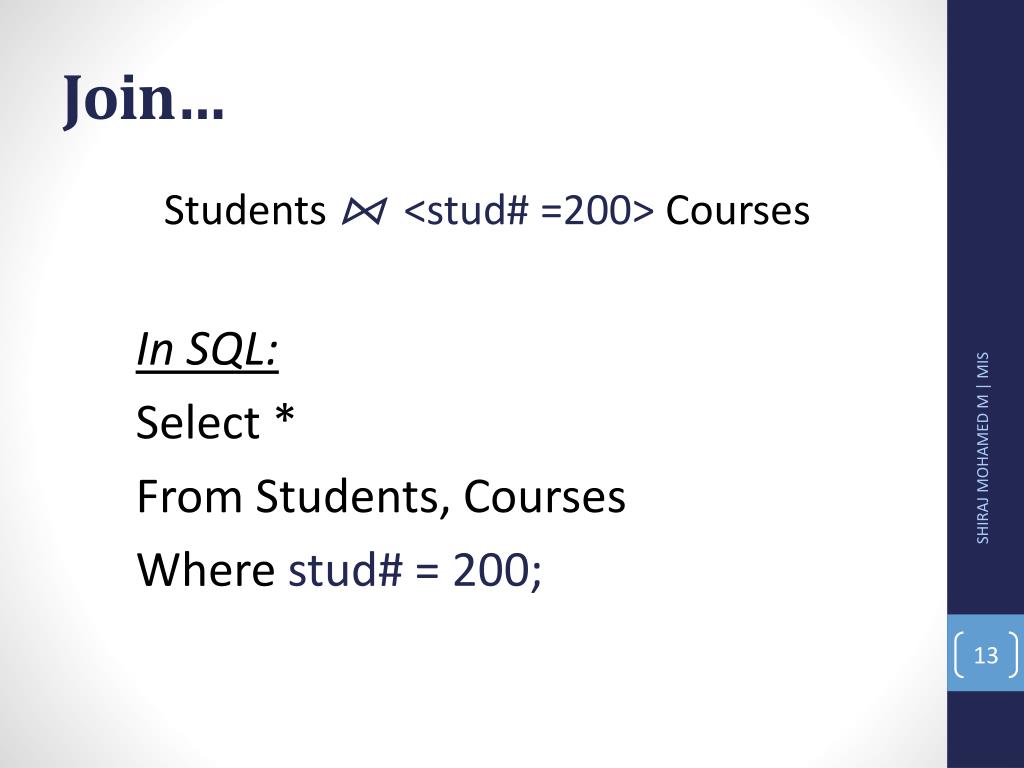

  13. Join… Students ⋈ <stud# =200> Courses In SQL: Select * From Students, Courses Where stud# = 200; SHIRAJ MOHAMED M | MIS

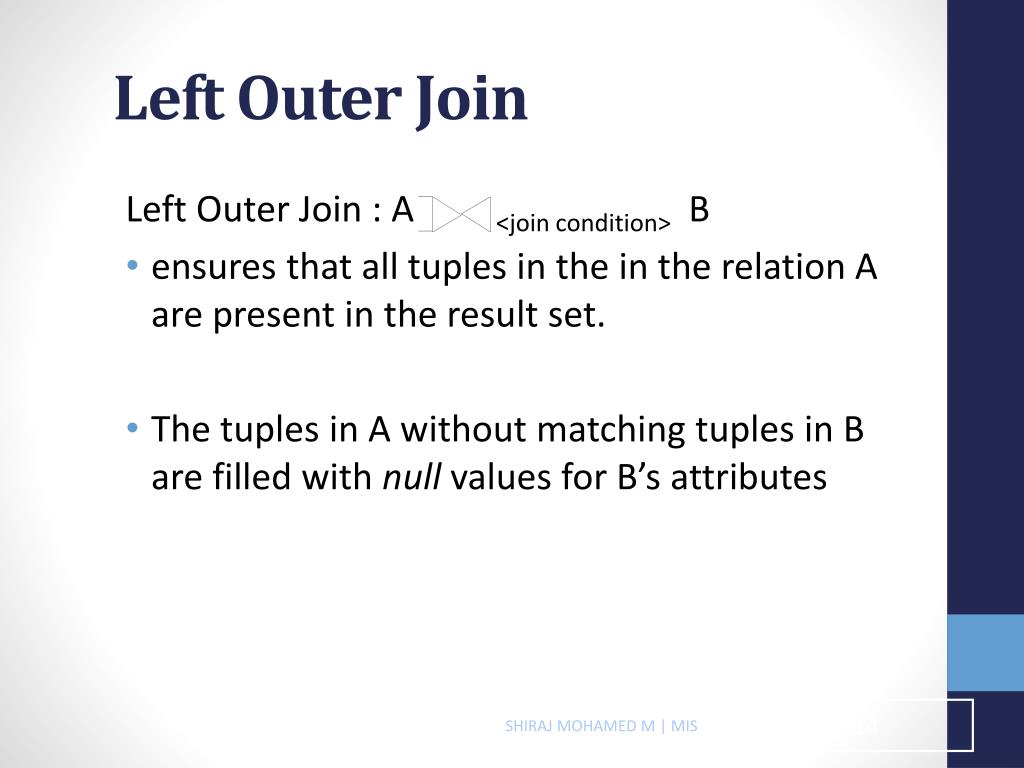

  14. Left Outer Join Left Outer Join : A <join condition> B • ensures that all tuples in the in the relation A are present in the result set. • The tuples in A without matching tuples in B are filled with null values for B’s attributes SHIRAJ MOHAMED M | MIS

  15. Left Outer Join - Example StudentsCourses stud# namecoursecourse# name 100Fred PH PH Pharmacy 200 Dave CM CM Computing 400 Peter EN CH Chemistry Students<course = course#>Courses stud# Students.name course course# Courses.name 100 Fred PH PH Pharmacy 200 Dave CM CM Computing • Peter EN NULL NULL SHIRAJ MOHAMED M | MIS

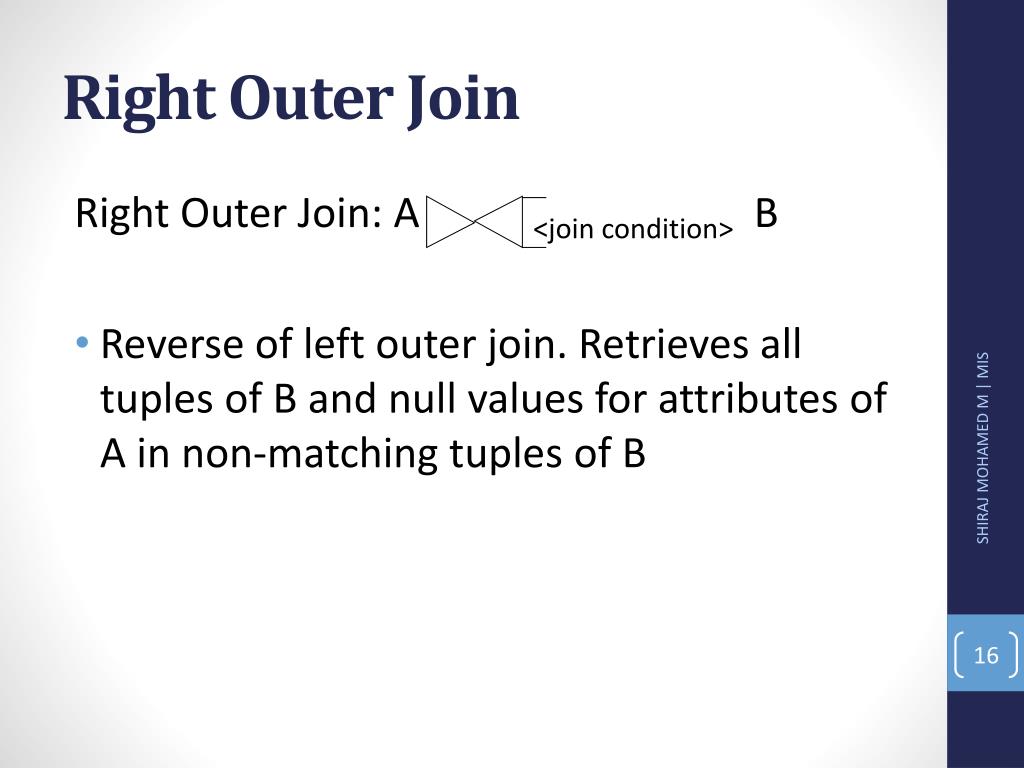

  16. Right Outer Join Right Outer Join: A <join condition> B • Reverse of left outer join. Retrieves all tuples of B and null values for attributes of A in non-matching tuples of B SHIRAJ MOHAMED M | MIS

  17. Right Outer Join - Example StudentsCourses stud# namecoursecourse# name 100Fred PH PH Pharmacy 200 Dave CM CM Computing 400 Peter EN CH Chemistry Students<course = course#>Courses stud# Students.name course course# Courses.name 100 Fred PH PH Pharmacy 200 Dave CM CM Computing NULL NULL NULL CH Chemistry SHIRAJ MOHAMED M | MIS

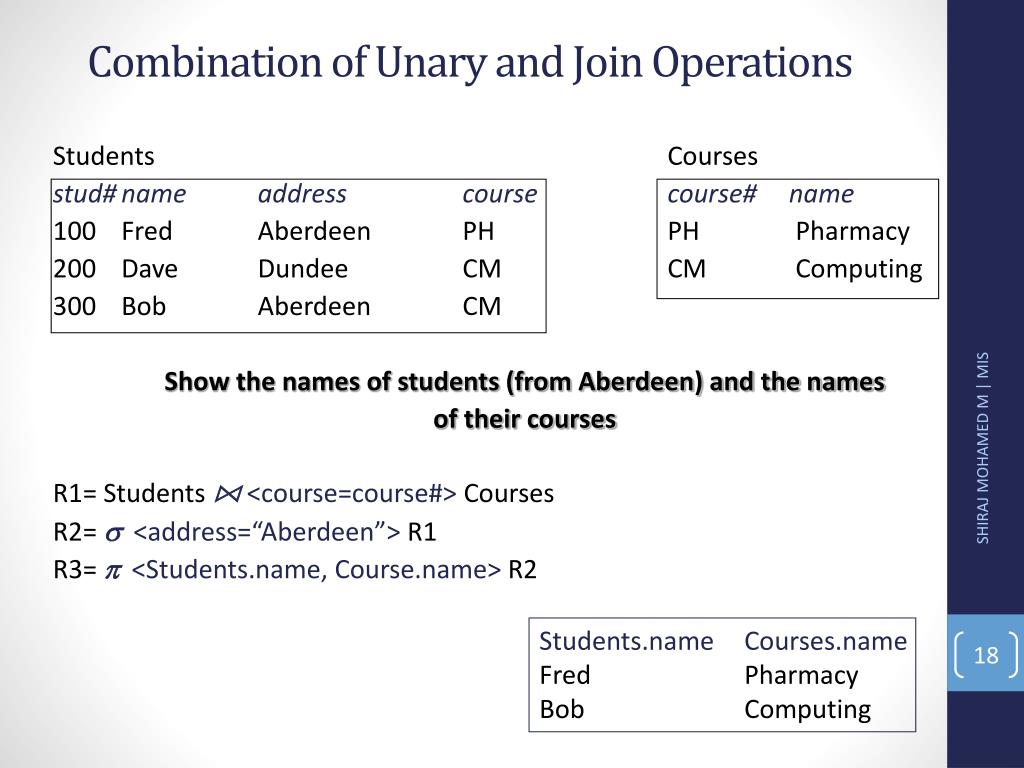

  18. Combination of Unary and Join Operations StudentsCourses stud# name address course course# name 100Fred Aberdeen PH PH Pharmacy 200 Dave Dundee CM CM Computing 300 Bob Aberdeen CM Show the names of students (from Aberdeen) and the names of their courses R1= Students ⋈<course=course#> Courses R2= <address=“Aberdeen”> R1 R3= <Students.name, Course.name> R2 SHIRAJ MOHAMED M | MIS Students.name Courses.name Fred Pharmacy Bob Computing

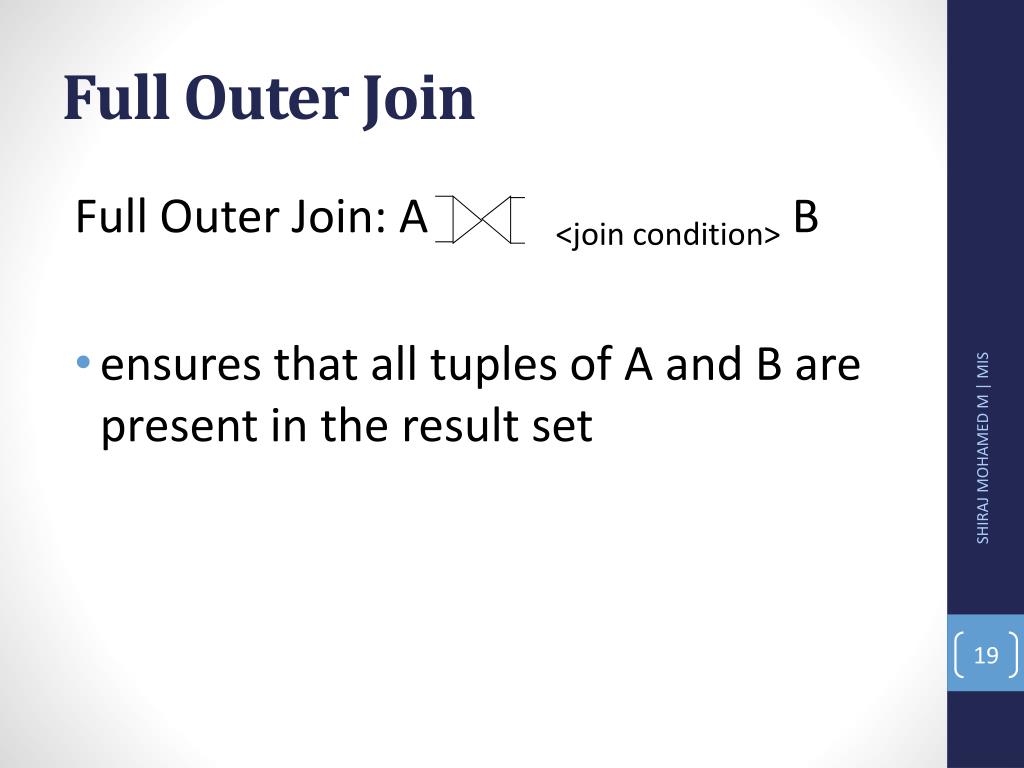

  19. Full Outer Join Full Outer Join: A <join condition> B • ensures that all tuples of A and B are present in the result set SHIRAJ MOHAMED M | MIS

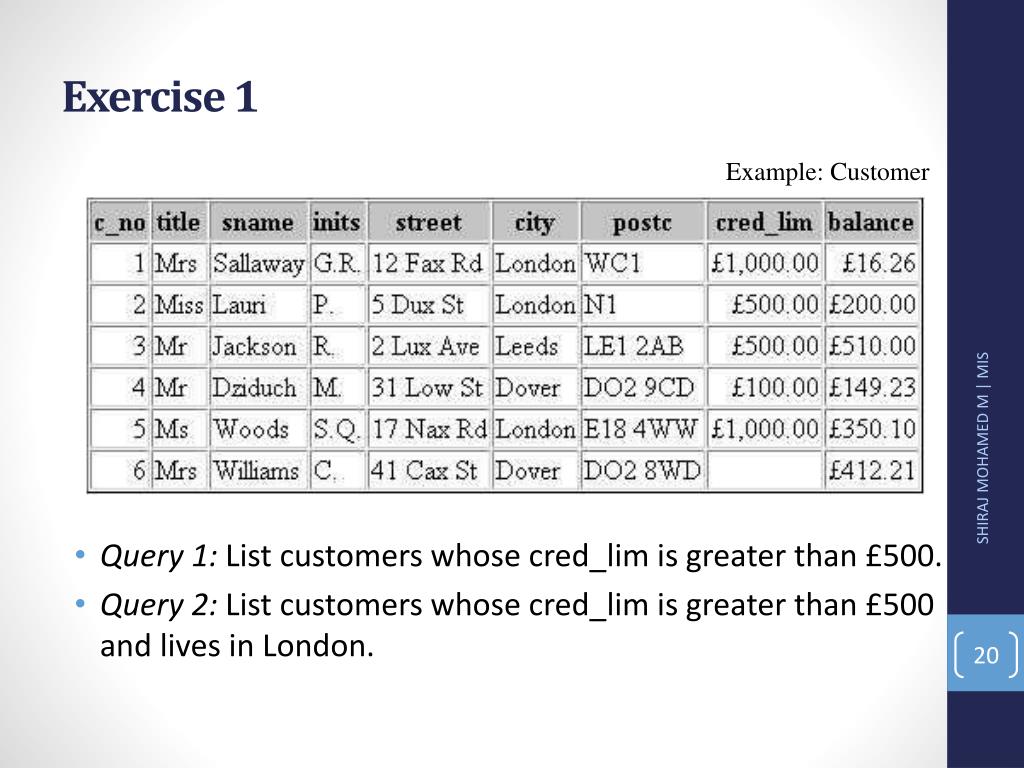

  20. Exercise 1 Example: Customer • Query 1: List customers whose cred_lim is greater than £500. • Query 2: List customers whose cred_lim is greater than £500 and lives in London. SHIRAJ MOHAMED M | MIS

  21. Answers • Query 1: List customers whose cred_lim is greater than £500. (cred_lim > 500)(customer) • Query 2: List customers whose cred_lim is greater than £500 and lives in London. (cred_lim>500) AND (city=London)(customer) SHIRAJ MOHAMED M | MIS

  22. Exercise 2 Reserves Sailors Boats 1.Find names of sailors who’ve reserved boat #103 2.Find names of sailors who’ve reserved a red boat 3.Find sailors who’ve reserved a red or a green boat 4.Find sailors who’ve reserved a red and a green boat 5. Find the names of sailors who’ve reserved all boats SHIRAJ MOHAMED M | MIS

  23. Solution 2: 1.Find names of sailors who’ve reserved boat #103 • Solution 1: SHIRAJ MOHAMED M | MIS

  24. A more efficient (???) solution: 2.Find names of sailors who’ve reserved a red boat • Information about boat color only available in Boats; so need an extra join: SHIRAJ MOHAMED M | MIS

  25. 3.Find sailors who’ve reserved a red or a green boat • Can identify all red or green boats, then find sailors who’ve reserved one of these boats: SHIRAJ MOHAMED M | MIS

  26. 4.Find sailors who’ve reserved a red and a green boat • Previous approach won’t work! Must identify sailors who’ve reserved red boats, sailors who’ve reserved green boats, then find the intersection (note that sid is a key for Sailors): SHIRAJ MOHAMED M | MIS

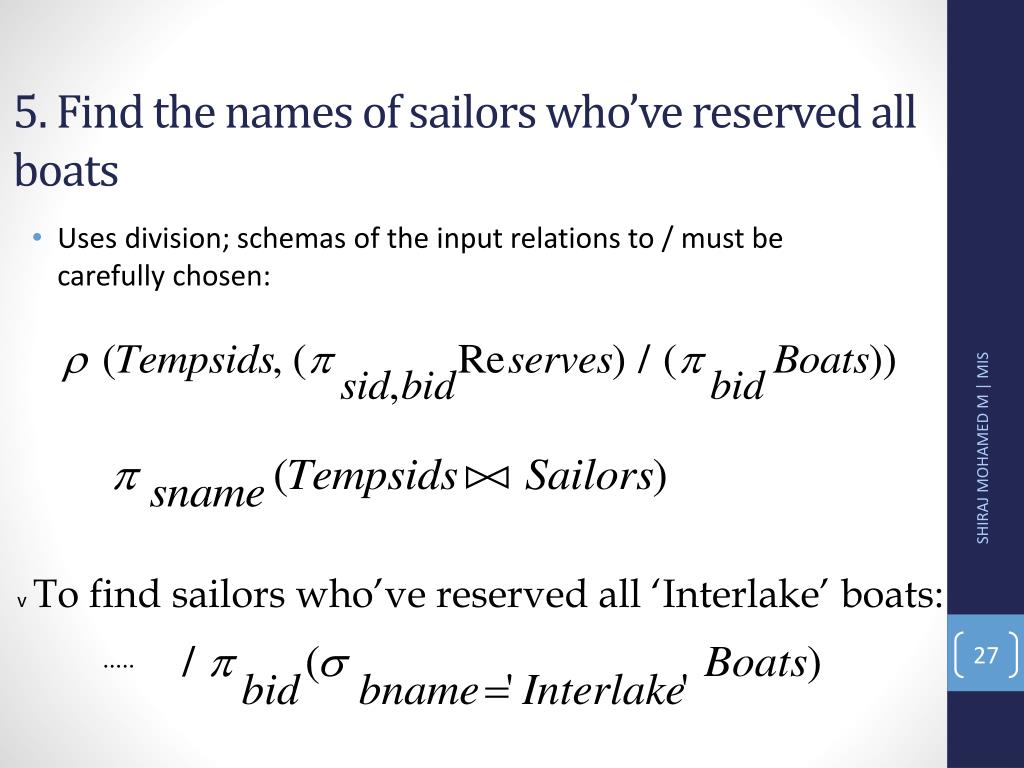

  27. 5. Find the names of sailors who’ve reserved all boats • Uses division; schemas of the input relations to / must be carefully chosen: SHIRAJ MOHAMED M | MIS • To find sailors who’ve reserved all ‘Interlake’ boats: .....

  28. Aggregate Functions and Operations • Aggregation function takes a collection of values and returns a single value as a result. avg: average valuemin: minimum valuemax: maximum valuesum: sum of valuescount: number of values • Aggregate operation in relational algebra G1, G2, …, GngF1( A1), F2( A2),…, Fn( An) (E) • E is any relational-algebra expression • G1, G2 …, Gn is a list of attributes on which to group (can be empty) • Each Fiis an aggregate function • Each Aiis an attribute name

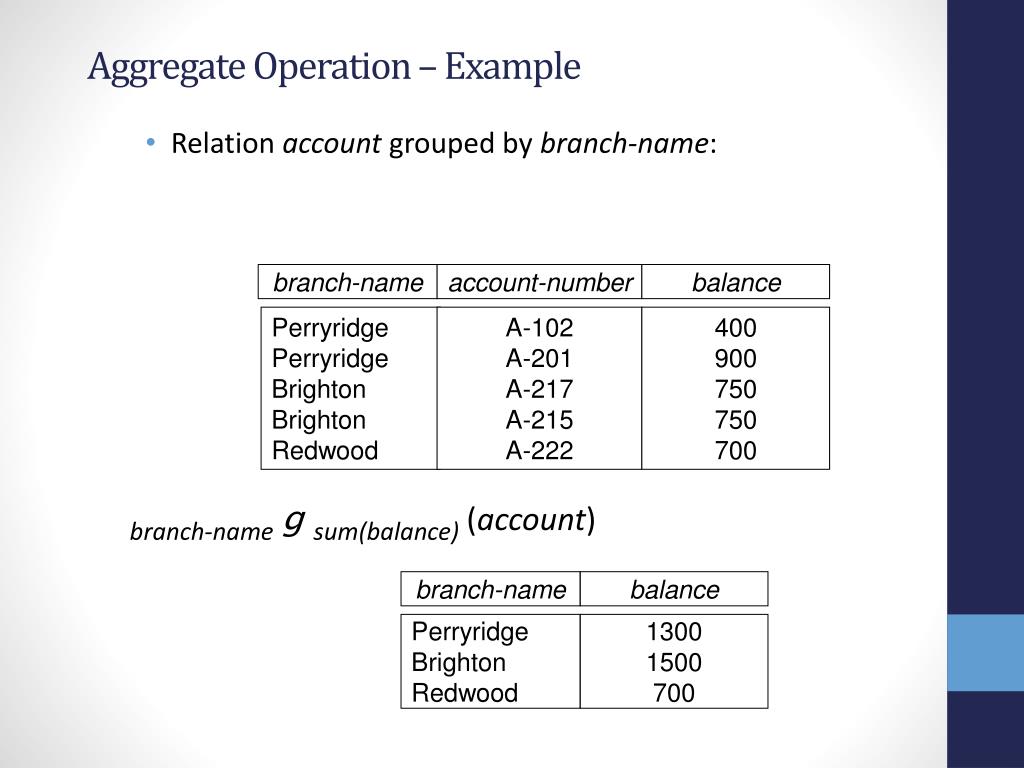

  29. Aggregate Operation – Example • Relation account grouped by branch-name: branch-name account-number balance Perryridge Perryridge Brighton Brighton Redwood A-102 A-201 A-217 A-215 A-222 400 900 750 750 700 branch-nameg sum(balance) (account) branch-name balance Perryridge Brighton Redwood 1300 1500 700

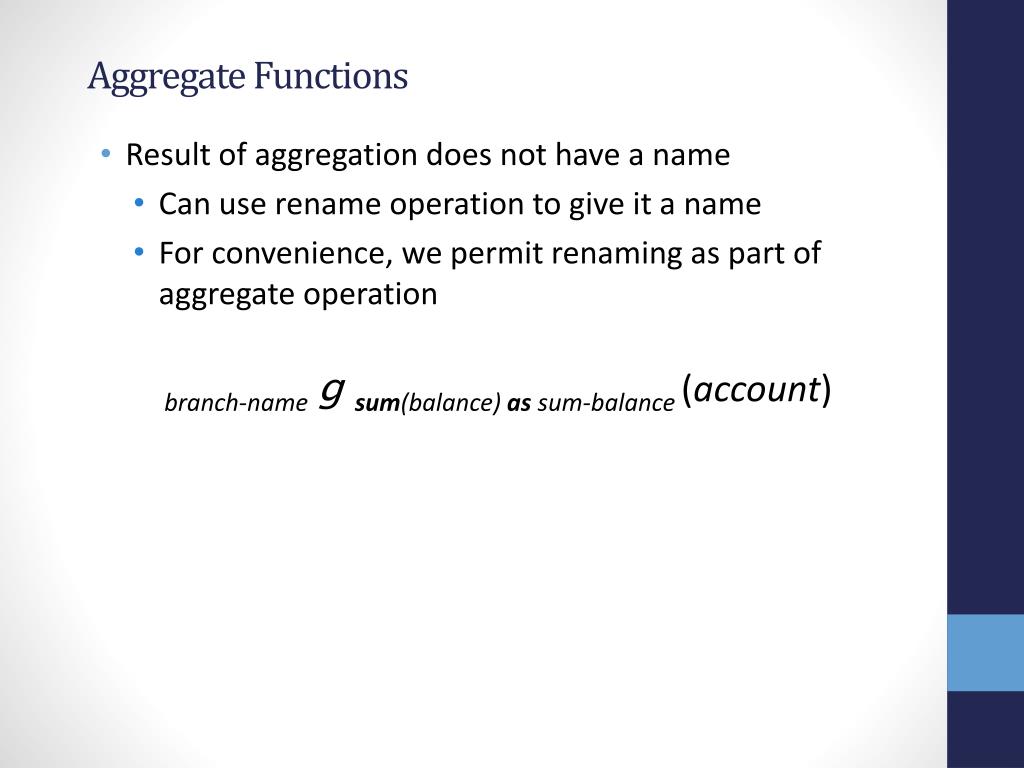

  30. Aggregate Functions • Result of aggregation does not have a name • Can use rename operation to give it a name • For convenience, we permit renaming as part of aggregate operation branch-nameg sum(balance) as sum-balance (account)

  31. End… SHIRAJ MOHAMED M | MIS
