Presentation Transcript
slide3

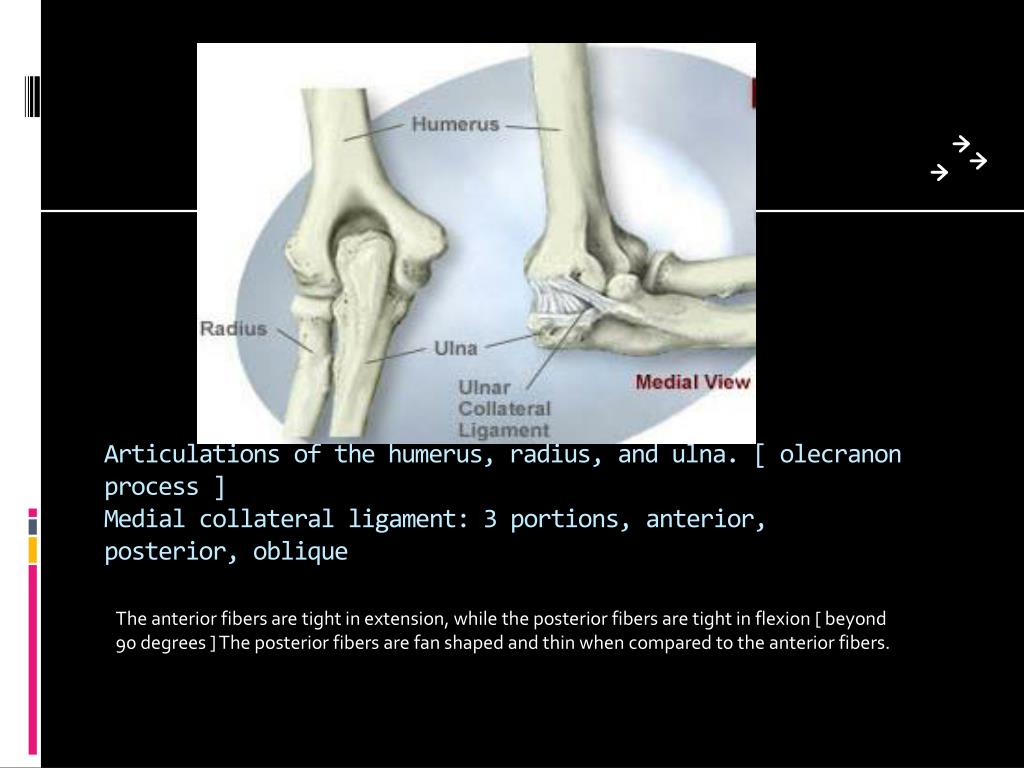

Articulations of the humerus, radius, and ulna. [ olecranon process ]Medial collateral ligament: 3 portions, anterior, posterior, oblique

The anterior fibers are tight in extension, while the posterior fibers are tight in flexion [ beyond 90 degrees ] The posterior fibers are fan shaped and thin when compared to the anterior fibers.

lateral epicondylitis

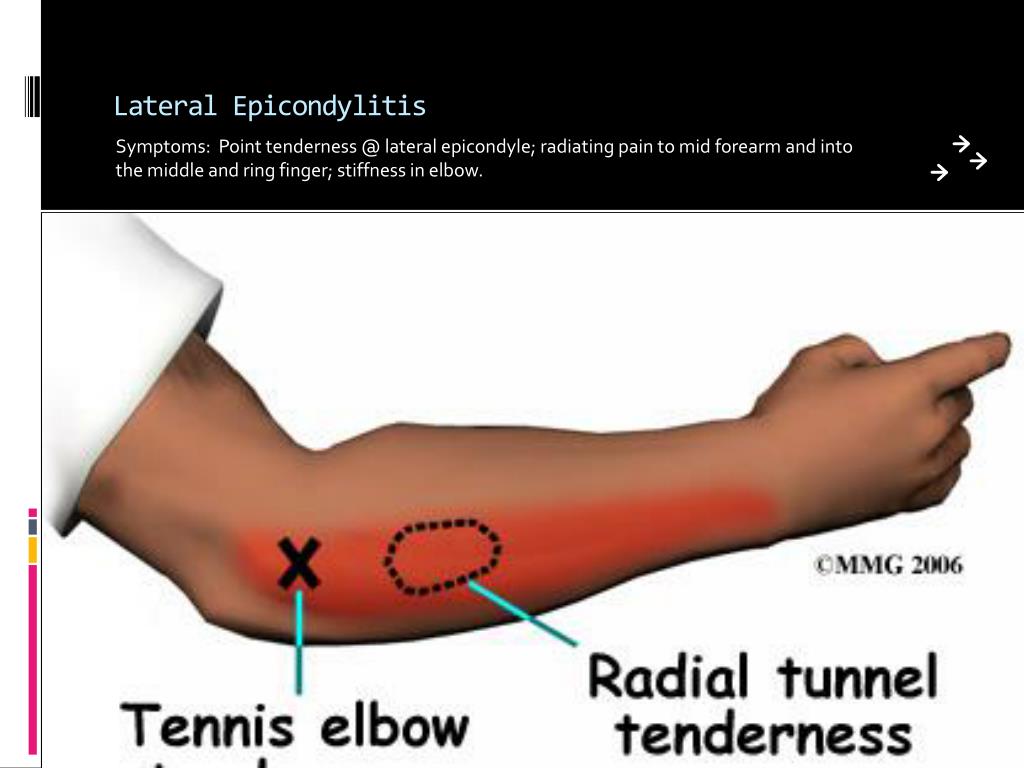

Lateral Epicondylitis

Symptoms: Point tenderness @ lateral epicondyle; radiating pain to mid forearm and into the middle and ring finger; stiffness in elbow.

movements of elbow

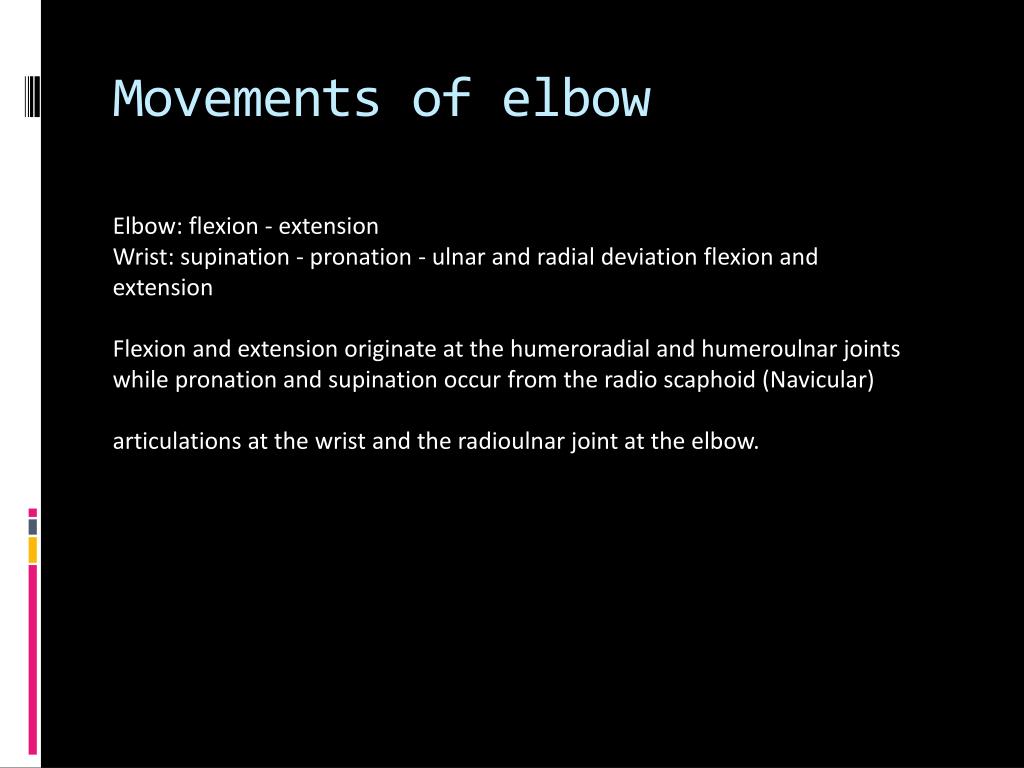

Movements of elbow

Elbow: flexion - extension

Wrist: supination - pronation - ulnar and radial deviation flexion and extension

Flexion and extension originate at the humeroradial and humeroulnar joints while pronation and supination occur from the radio scaphoid (Navicular)

articulations at the wrist and the radioulnar joint at the elbow.

elbow dislocations
Elbow Dislocations

6. Dislocations (fractures of the coronoid process occur in approx. 35-40% of elbow dislocations)

Dislocations of the elbow are infrequent occurrences in intercollegiate athletics.

However, when they do occur, the are often serious injuries due to the potential for fractures and impaired distal circulation.

muscles of elbow wrist hand

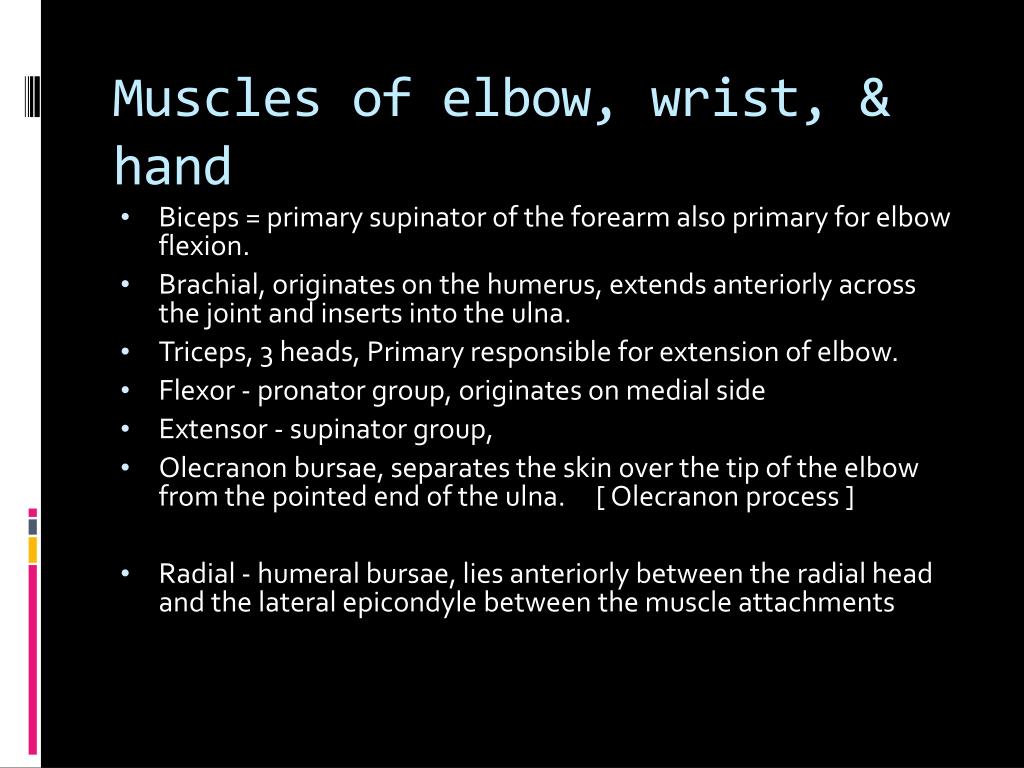

Muscles of elbow, wrist, & hand
  • Biceps = primary supinator of the forearm also primary for elbow flexion.
  • Brachial, originates on the humerus, extends anteriorly across the joint and inserts into the ulna.
  • Triceps, 3 heads, Primary responsible for extension of elbow.
  • Flexor - pronator group, originates on medial side
  • Extensor - supinator group,
  • Olecranonbursae, separates the skin over the tip of the elbow from the pointed end of the ulna. [ Olecranon process ]
  • Radial - humeral bursae, lies anteriorly between the radial head and the lateral epicondyle between the muscle attachments
hand wrist injuries

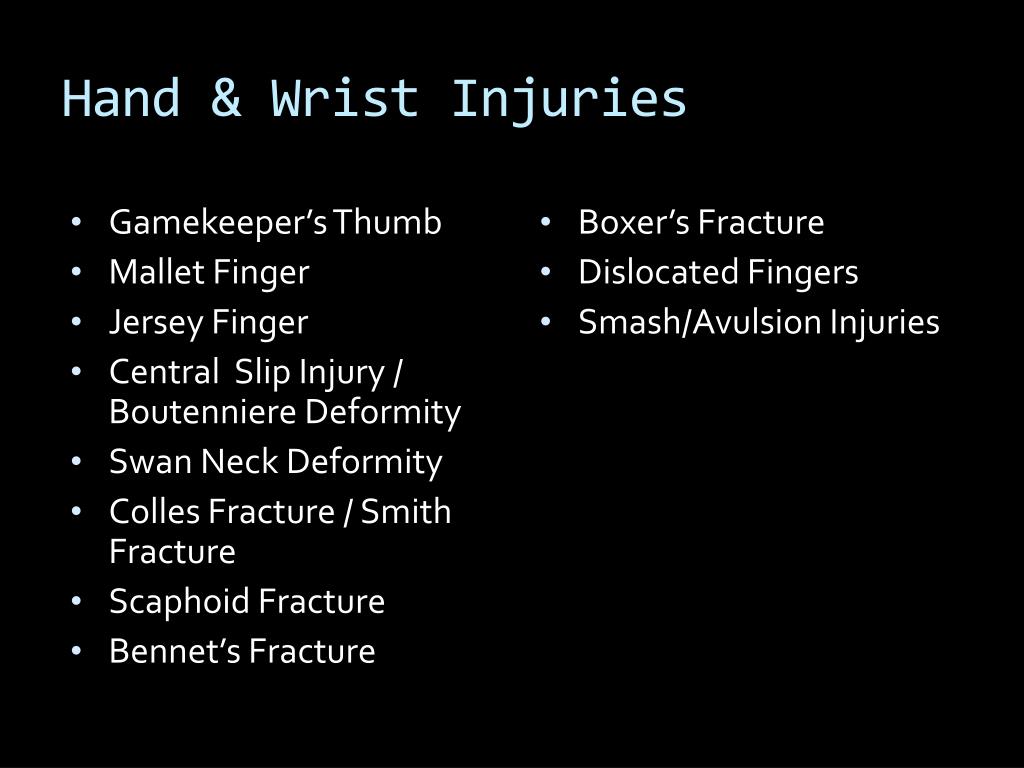

Hand & Wrist Injuries
  • Gamekeeper’s Thumb
  • Mallet Finger
  • Jersey Finger
  • Central Slip Injury / Boutenniere Deformity
  • Swan Neck Deformity
  • Colles Fracture / Smith Fracture
  • Scaphoid Fracture
  • Bennet’s Fracture
  • Boxer’s Fracture
  • Dislocated Fingers
  • Smash/Avulsion Injuries
gamekeeper s thumb
Gamekeeper’s Thumb

Normal thumb

Normal Carrying Angle

Gamekeeper’s Sprain

(Notice the opening of joint

mallet finger

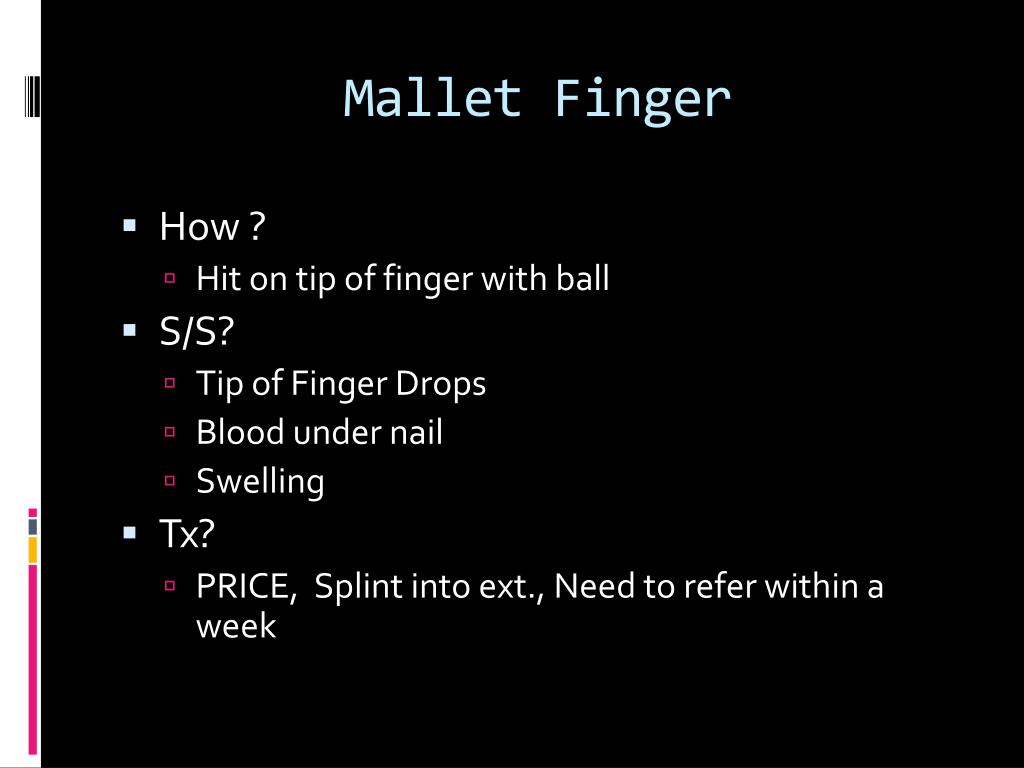

Mallet Finger
  • How ?
    • Hit on tip of finger with ball
  • S/S?
    • Tip of Finger Drops
    • Blood under nail
    • Swelling
  • Tx?
    • PRICE, Splint into ext., Need to refer within a week
jersey finger

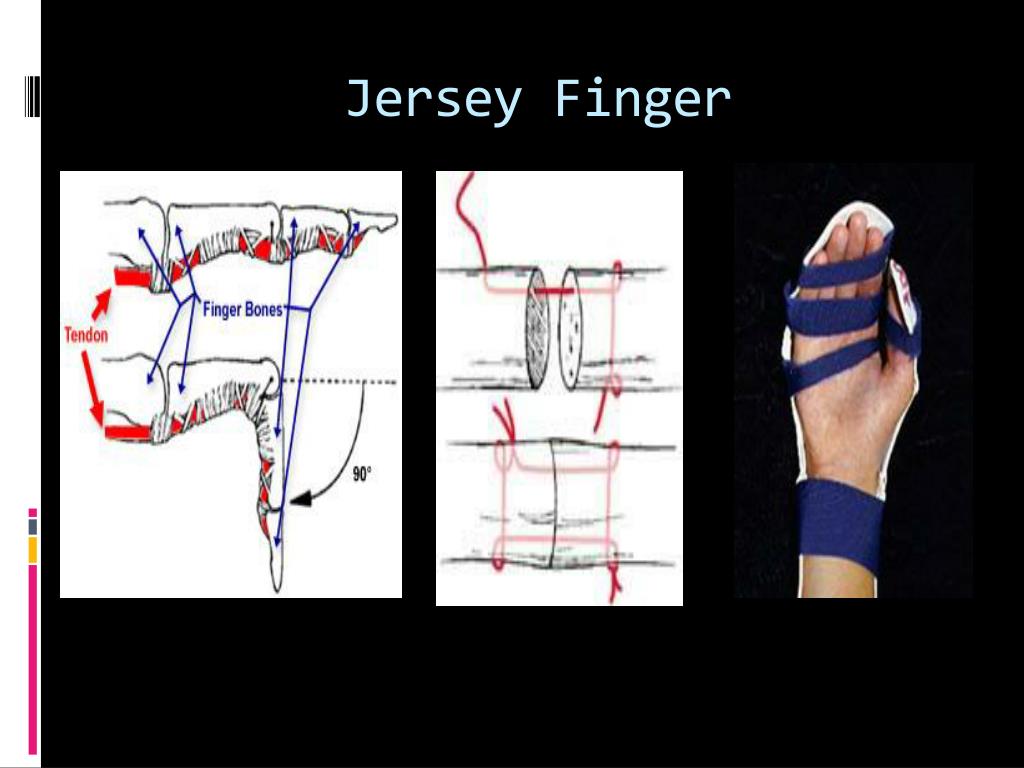

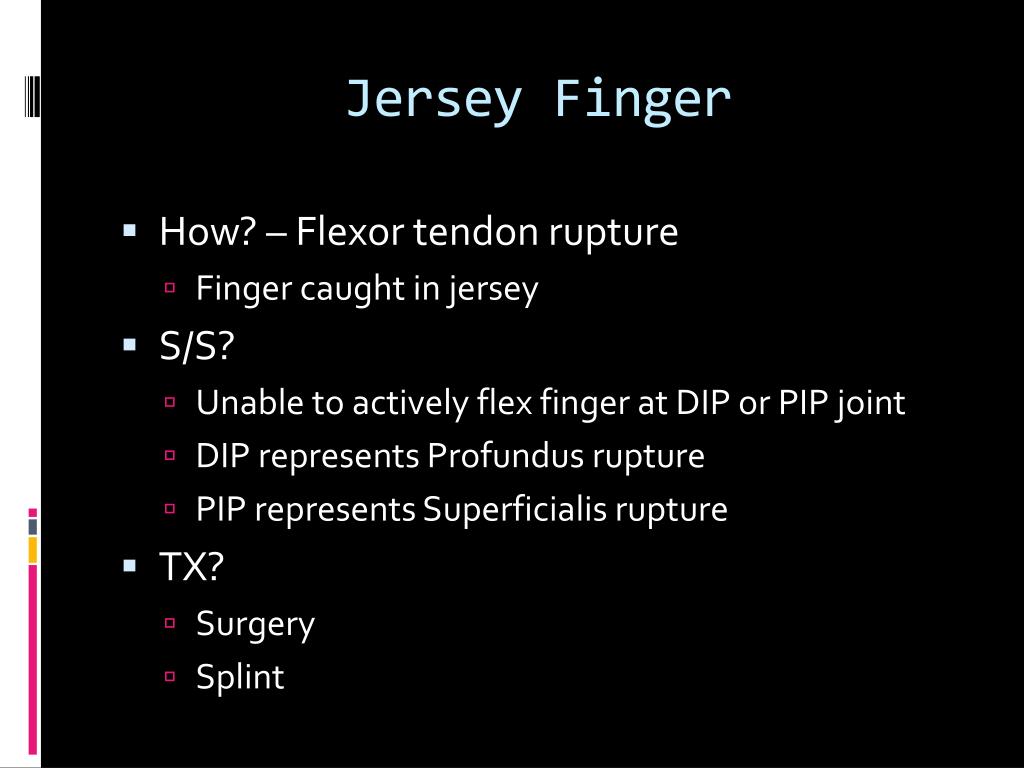

Jersey Finger
  • How? – Flexor tendon rupture
    • Finger caught in jersey
  • S/S?
    • Unable to actively flex finger at DIP or PIP joint
    • DIP represents Profundus rupture
    • PIP represents Superficialis rupture
  • TX?
    • Surgery
    • Splint
swan neck deformity1

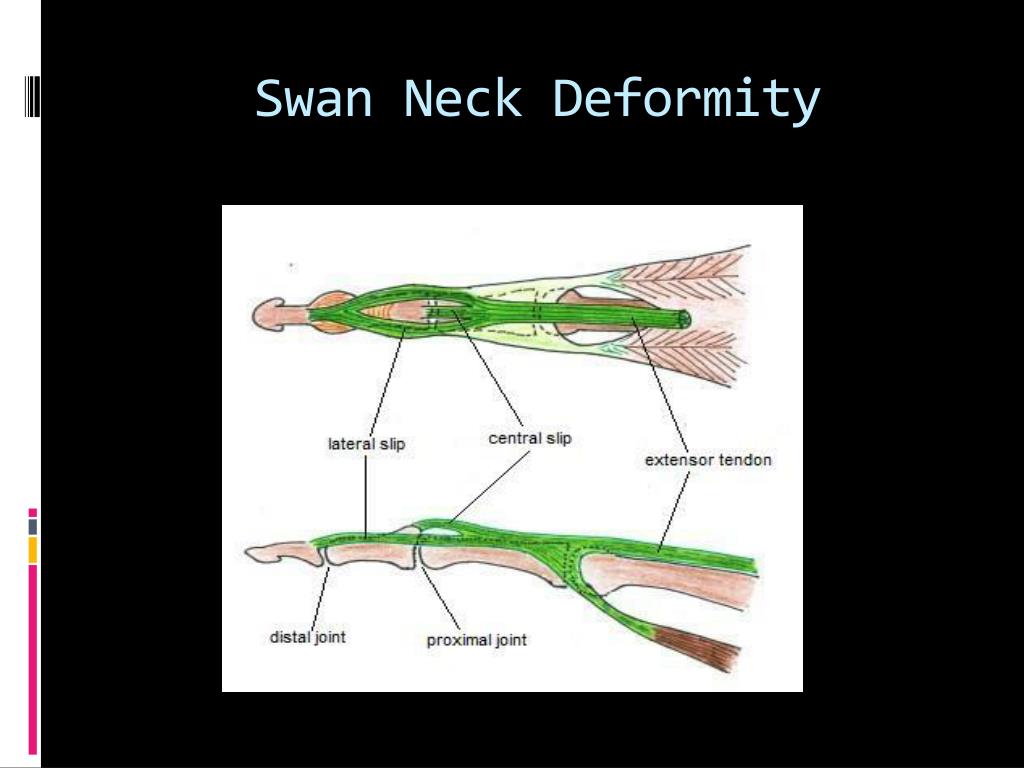

Swan Neck Deformity

DIP goes into extension

PIP goes into flexion

central slip injury boutenniere deformity

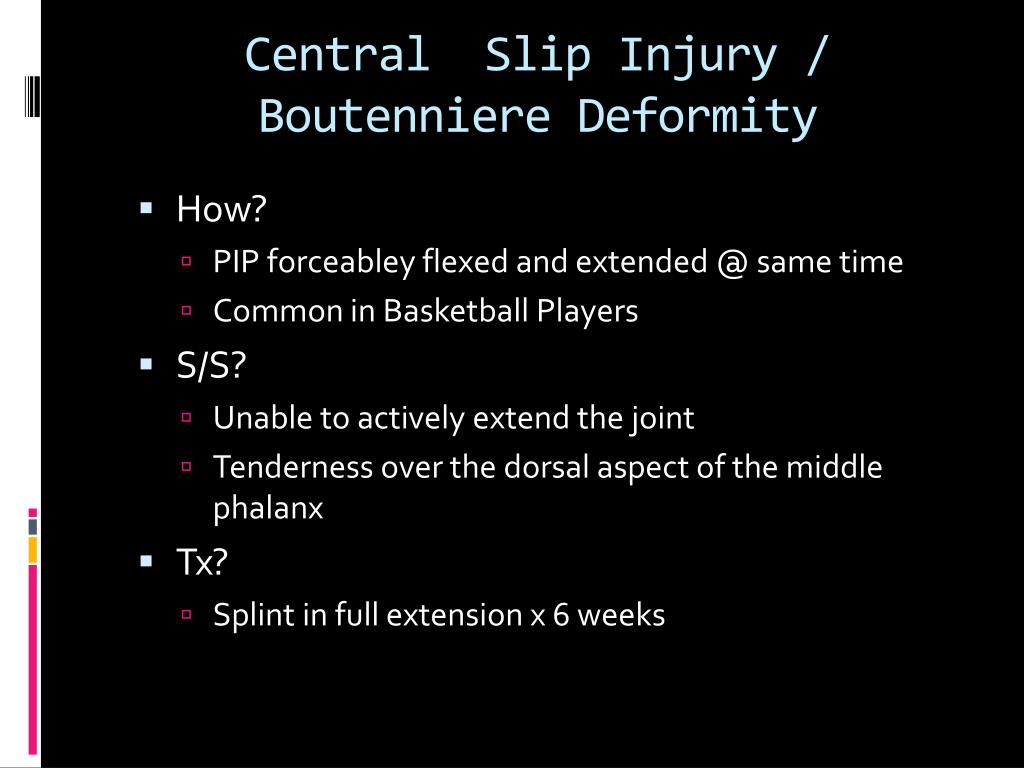

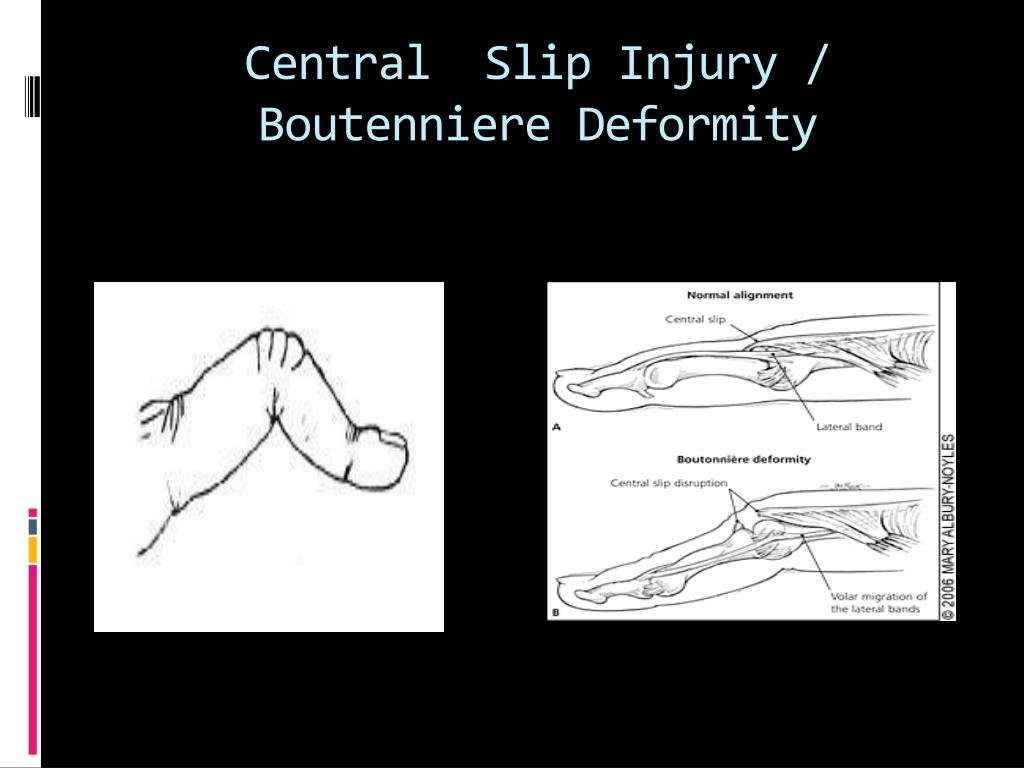

Central Slip Injury / Boutenniere Deformity
  • How?
    • PIP forceabley flexed and extended @ same time
    • Common in Basketball Players
  • S/S?
    • Unable to actively extend the joint
    • Tenderness over the dorsal aspect of the middle phalanx
  • Tx?
    • Splint in full extension x 6 weeks
colles fracture

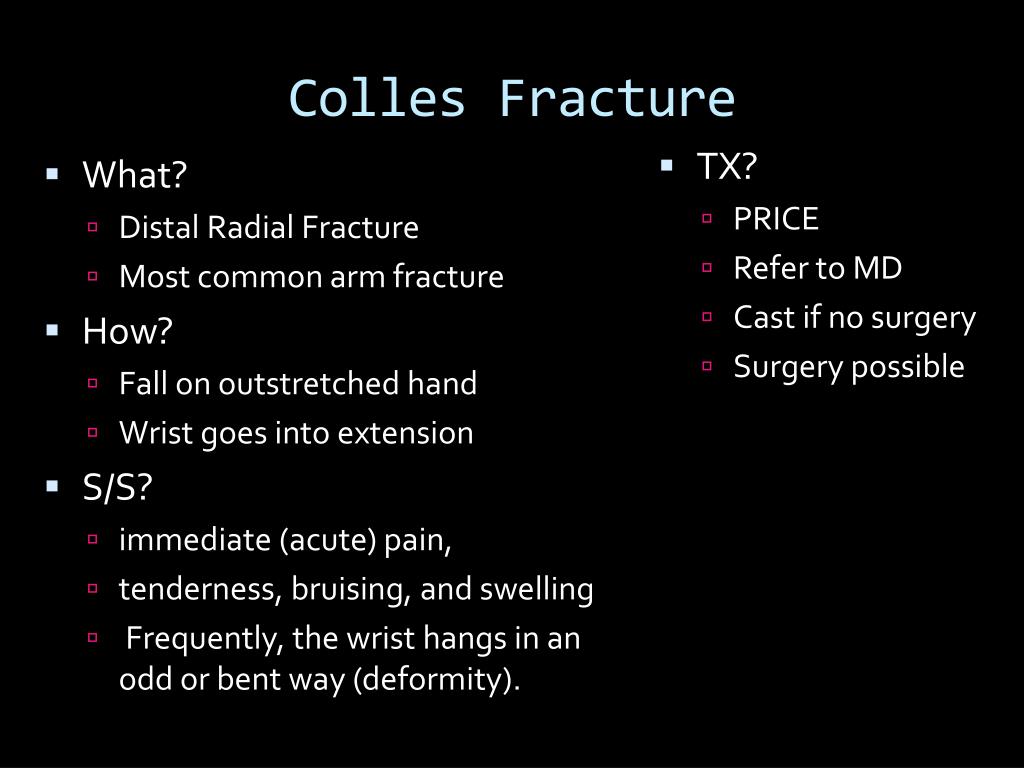

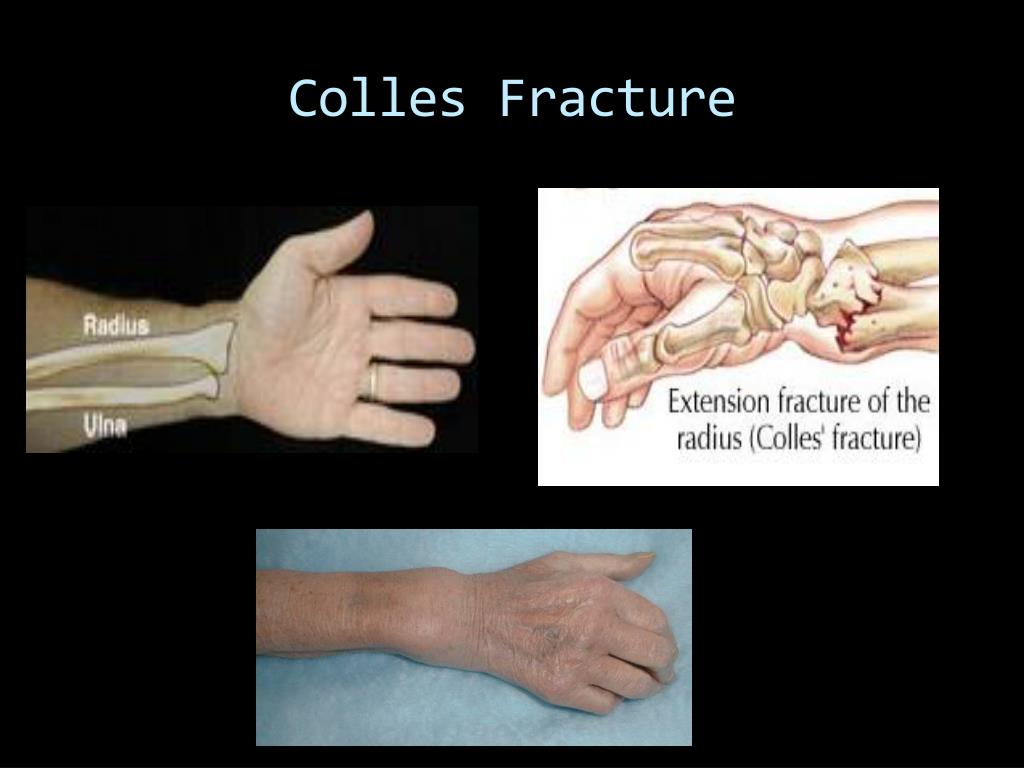

Colles Fracture
  • What?
    • Distal Radial Fracture
    • Most common arm fracture
  • How?
    • Fall on outstretched hand
    • Wrist goes into extension
  • S/S?
    • immediate (acute) pain,
    • tenderness, bruising, and swelling
    • Frequently, the wrist hangs in an odd or bent way (deformity).
  • TX?
    • PRICE
    • Refer to MD
    • Cast if no surgery
    • Surgery possible
smith fracture

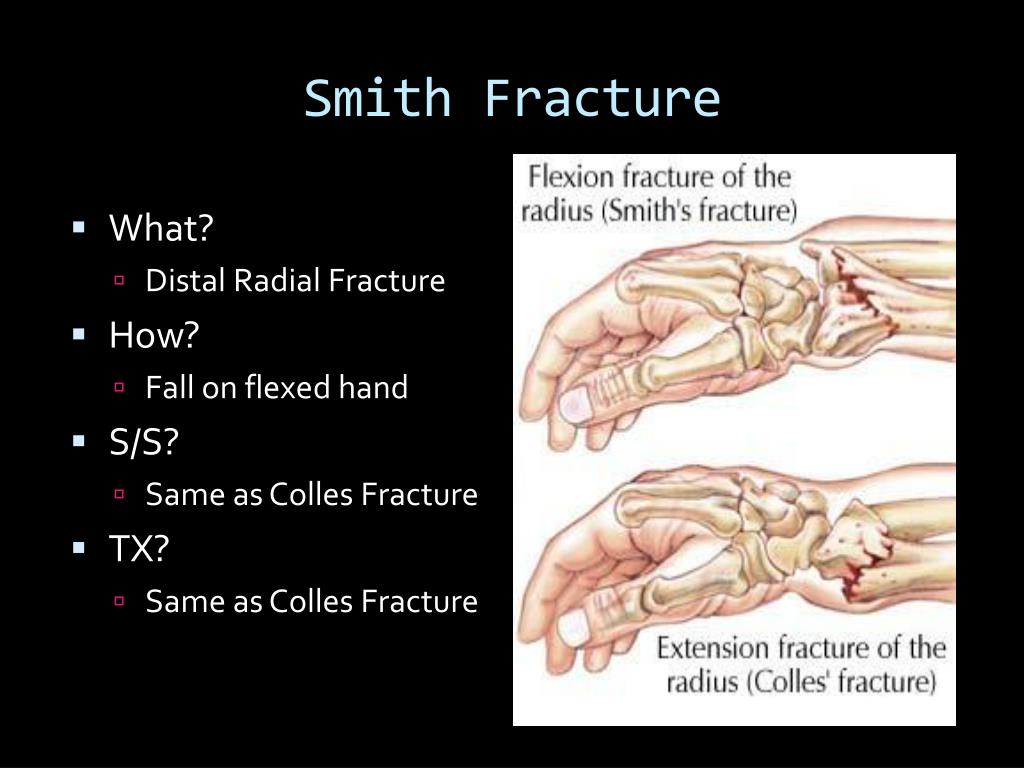

Smith Fracture
  • What?
    • Distal Radial Fracture
  • How?
    • Fall on flexed hand
  • S/S?
    • Same as Colles Fracture
  • TX?
    • Same as Colles Fracture
scaphoid fracture
Scaphoid Fracture
  • What?
    • Fracture small carpal bone
    • 2nd most common wrist fracture
  • How?
    • Fall on outstretched hand
  • S/S?
    • Swelling
    • Point tenderness (anatomical

snuff box)

  • TX?
    • Refer for xray – CYA!!!
bennett s fracture

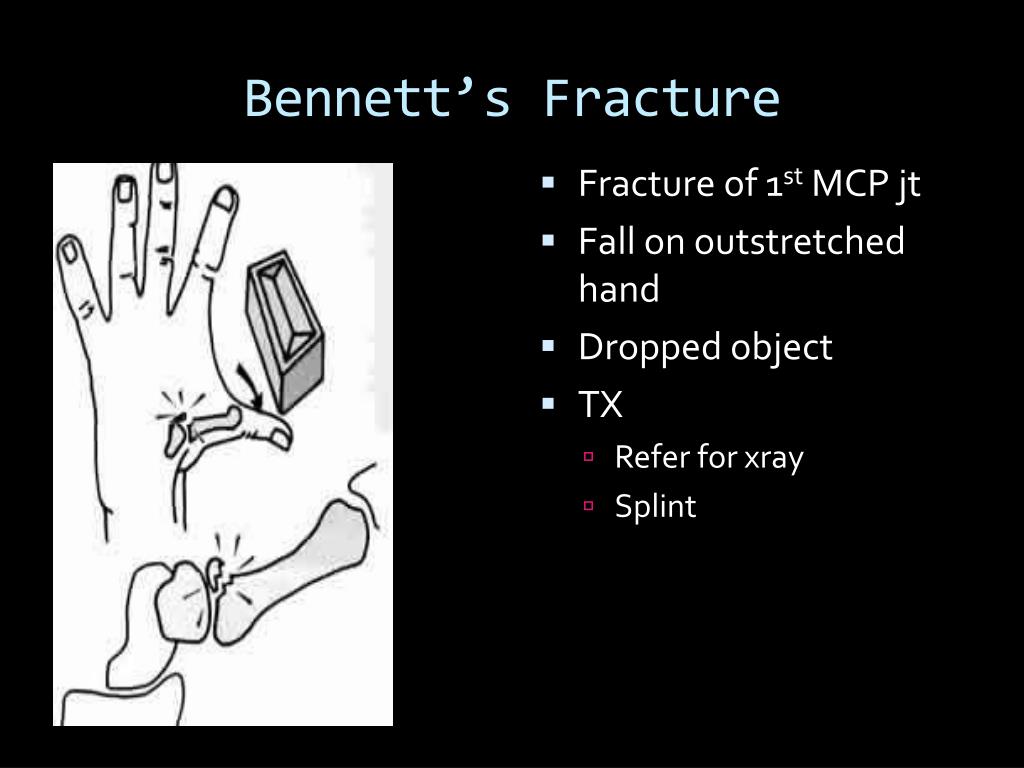

Bennett’s Fracture
  • Fracture of 1st MCP jt
  • Fall on outstretched hand
  • Dropped object
  • TX
    • Refer for xray
    • Splint
boxer s fracture

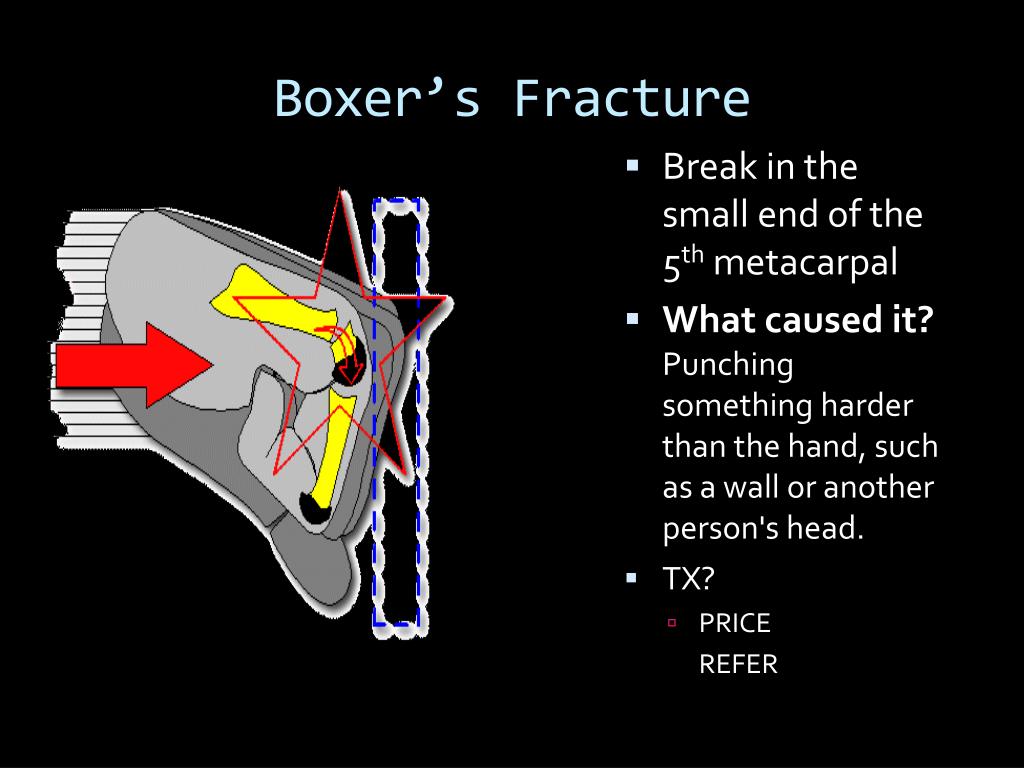

Boxer’s Fracture
  • Break in the small end of the 5th metacarpal
  • What caused it? Punching something harder than the hand, such as a wall or another person's head.
  • TX?
    • PRICE

REFER

dislocated fingers

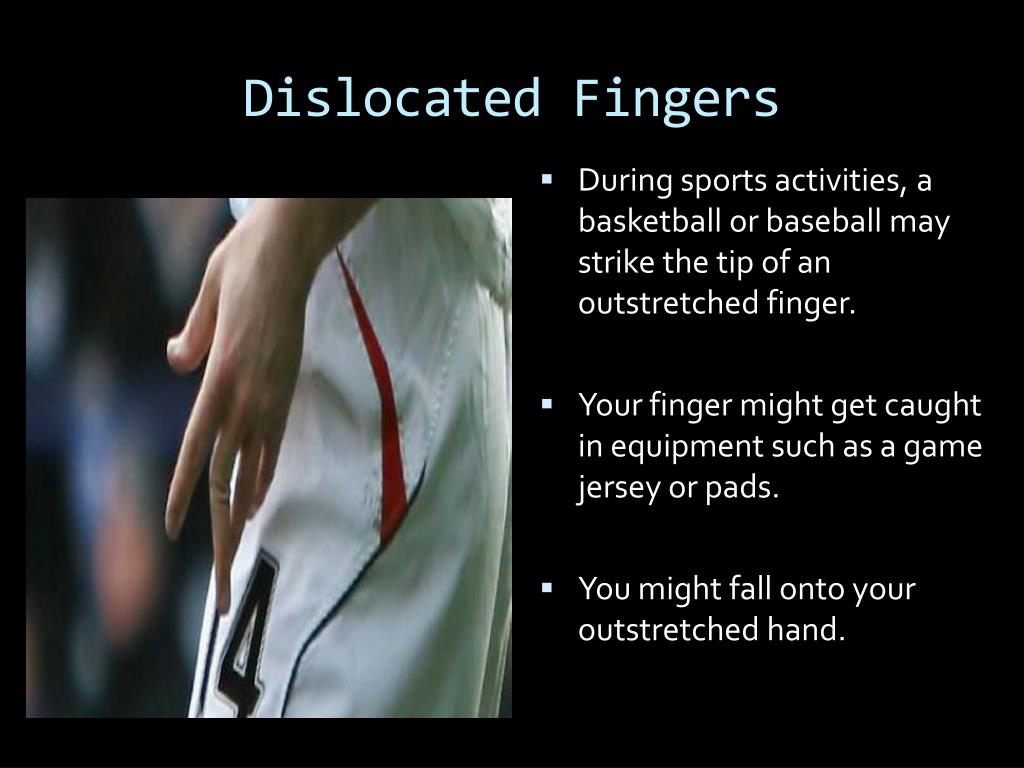

Dislocated Fingers
  • During sports activities, a basketball or baseball may strike the tip of an outstretched finger.
  • Your finger might get caught in equipment such as a game jersey or pads.
  • You might fall onto your outstretched hand.
dislocated finger

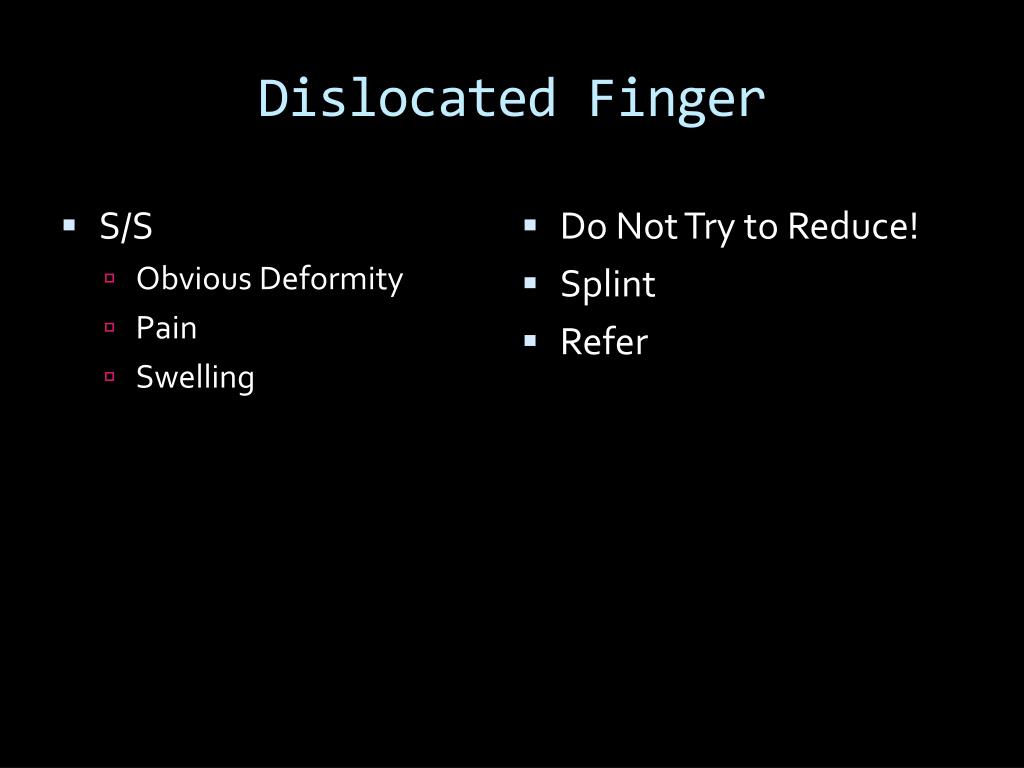

Dislocated Finger
  • Do Not Try to Reduce!
  • Splint
  • Refer
  • S/S
    • Obvious Deformity
    • Pain
    • Swelling
smash avulsion injury1
Smash / Avulsion Injury

3 months post op
