autonomic computing model architecture infrastructure

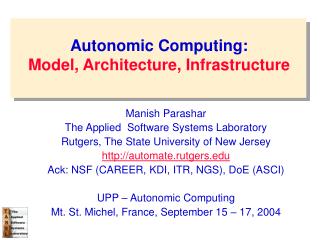

Autonomic Computing:Model, Architecture, Infrastructure

Manish Parashar

The Applied Software Systems Laboratory

Rutgers, The State University of New Jersey

http://automate.rutgers.edu

Ack: NSF (CAREER, KDI, ITR, NGS), DoE (ASCI)

UPP – Autonomic Computing

Mt. St. Michel, France, September 15 – 17, 2004

unprecedented complexity uncertainty
Unprecedented Complexity, Uncertainty …
  • Very large scales
    • million of entities
  • Ad hoc (amorphous) structures/behaviors
    • p2p/hierarchical architecture
  • Dynamic
    • entities join, leave, move, change behavior
  • Heterogeneous
    • capability, connectivity, reliability, guarantees, QoS
  • Unreliable
    • components, communication
  • Lack of common/complete knowledge
    • number, type, location, availability, connectivity, protocols, semantics, etc.

UPP, September 15-17, 2004

autonomic computing
Autonomic Computing
  • Our system programming paradigms, methods and management tools seem to be inadequate for handling the scale, complexity, dynamism and heterogeneity of emerging systems
    • requirements and objectives are dynamic and not know a priori
    • requirements, objectives and solutions (algorithms, behaviors, interactions, etc.) depend on state, context, and content
  • Nature has evolved to cope with scale, complexity, heterogeneity, dynamism and unpredictability, lack of guarantees
    • self configuring, self adapting, self optimizing, self healing, self protecting, highly decentralized, heterogeneous architectures that work !!!
  • The goal of autonomic computing is to build self-managing system address these challenges using high level policies

UPP, September 15-17, 2004

ashby s ultrastable system model of the human autonomic nervous system
Ashby’s Ultrastable System Model of the Human Autonomic Nervous System

UPP, September 15-17, 2004

programming distributed systems
Programming Distributed Systems
  • A distributed system is a collections of logically or physically disjoint entities which have established a processing for making collective decisions.

if (Decision(CurrentState,Request)) then

TransitionState(CurrentState,Request)

    • Central/Distributed Decision & Transition
    • Programming System
      • programming model, languages/abstraction – syntax + semantics
        • entities, operations, rules of composition, models of coordination/communication
      • abstract machine, execution context and assumptions
      • infrastructure, middleware and runtime
    • Conceptual and Implementation Models

UPP, September 15-17, 2004

upp 2004 autonomic computing
UPP 2004 – Autonomic Computing
  • Objective: Investigate conceptual and implementation models for Autonomic Computing
    • Models, Architectures and Infrastructures for Autonomic Computing
      • Manish Parashar et al.
    • Grassroots Approach to Self-Management in Large-Scale Distributed Systems
      • Ozalp Babaoglu et al.
    • Autonomic Runtime System for Large Scale Applications
      • Salim Hariri et al.

UPP, September 15-17, 2004

outline
Outline
  • Programming emerging distributed systems
  • Project AutoMate and the Accord programming system
  • Sample applications in science and engineering
  • Conclusion

UPP, September 15-17, 2004

autonomic computing architecture
Autonomic Computing Architecture
  • Autonomic elements (components/services)
    • Responsible for policy-driven self-management of individual components
  • Relationships among autonomic elements
    • Based on agreements established/maintained by autonomic elements
    • Governed by policies
    • Give rise to resiliency, robustness, self-management of system

UPP, September 15-17, 2004

project automate enabling autonomic applications http automate rutgers edu
Project AutoMate: Enabling Autonomic Applications(http://automate.rutgers.edu)
  • Conceptual models and implementation architectures for autonomic computing
    • programming models, frameworks and middleware services
      • autonomic elements
      • dynamic and opportunistic composition
      • policy, content and context driven execution and management

UPP, September 15-17, 2004

accord a programming system for autonomic applications
Accord: A Programming System for Autonomic Applications
  • Specification of applications that can detect and dynamically respond during execution to changes in both, the execution environment and application states
    • applications composed from discrete, self-managing components which incorporate separate specifications for all of functional, non-functional and interaction-coordination behaviors
    • separations of the specifications of computational (functional) behaviors, interaction and coordination behaviors and non-functional behaviors (e.g. performance, fault detection and recovery, etc.) so that their combinations are composable
    • separation of policy and mechanism – policies in the form of rules are used to orchestrate a repertoire of mechanisms to achieve context-aware adaptive runtime computational behaviors and coordination and interaction relationships based on functional, performance, and QoS requirements
    • extends existing distributed programming systems

UPP, September 15-17, 2004

autonomic elements in accord
Autonomic Elements in Accord
  • Functional port defines set of functional behaviors provided and used
  • Control port defines sensors/actuators for externally monitoring and controlling the autonomic element, and a set of guards to control the access to the sensors and actuators
  • Operational port defines interfaces to formulate, inject and manage rules used to manage the runtime behaviors and interactions of the element
  • Autonomic element embeds an element manager that is delegated to evaluate and execute rules in order to manage the execution of the element, and cooperates with other element managers to fulfill application objectives.

UPP, September 15-17, 2004

rules in accord
Rules In Accord
  • Behavior rules  manage the runtime behaviors of a component
  • Interaction rules  manage the interactions between components, between components and environments, and the coordination within an application.
    • control structure, interaction pattern, communication mechanism
  • Security rules  control access to the functional interfaces, sensors/actuators and rule interfaces
  • Conflicts are resolved using a simple priority mechanism

IF condition THEN then_actions ELSE else_actions

A logic combination of sensors, events, and functional interfaces

A sequence of sensors, actuators and functional interfaces

UPP, September 15-17, 2004

dynamic composition coordination in accord
Dynamic Composition/Coordination In Accord
  • Relationship is defined by control structure (e.g., loop, branch) and/or communication mechanism (e.g., RPC, shared-space)
    • composition manager translates workflow into a suite of interaction rules injected into element managers
    • element managers execute rules to establish control and communication relationships among elements in a decentralized manner
      • rules can be used to add or delete elements
      • a library of rule-sets defined for common control and communications relationships between elements.
    • interaction rules must be based on the core primitives provided by the system.

Workflow

Manager(s)

Interaction

rules

Interaction

rules

Interaction

rules

Interaction

rules

UPP, September 15-17, 2004

accord implementation issues
Accord Implementation Issues
  • Current implementations
    • C++ + MPI, DoE CCA, XCAT/OGSA
    • XML used for control/operational ports and rules
    • common ontology for specifying interfaces, sensors/actuators, rule, content, context, …
    • timed behavior, fail-stop semantics
    • of course, these is a performance impact but in our experience this have not been a show stoppers
  • Accord assumes an execution environment that provides
    • agent-based control network
    • supports for associative coordination
    • service for content-based discovery and messaging,
    • support of context-based access control
    • execution environment of the underlying programming system

UPP, September 15-17, 2004

accord neo cca
Accord Neo-CCA

An original Neo-CCA application

GoPort

usePort

providePort

providePort

usePort

Driver component

Component B

Component A

The Neo-CCA based Accord application

providePort

providePort

usePort

usePort

GoPort

Component B

Component A

Driver component

providePort

providePort

usePort

Element Manager

Composition Agent

UPP, September 15-17, 2004

accord neo cca1
Accord Neo-CCA

A

Driver

B

EM

CA

Neo-CCA framework

A

Driver

Node y

B

EM

CA

A

Driver

B

Neo-CCA framework

Node x

EM

CA

Neo-CCA framework

Node z

UPP, September 15-17, 2004

accord application infrastructure
Accord Application Infrastructure
  • Rudder Decentralized Coordination Framework
    • support autonomic compositions, adaptations, optimizations, and fault-tolerance.
      • context-aware software agents
      • decentralized tuple space coordination model
  • Meteor Content-based Middleware
    • services for content routing, content discovery and associative interactions
      • a self-organizing content overlay
      • content-based routing engine and decentralized information discovery service
        • flexible routing and querying with guarantees and bounded costs
      • Associative Rendezvous messaging
        • content-based decoupled interactions with programmable reactive behaviors.
  • Details in IEEE IC 05/04, ICAC 04, SMC 05

UPP, September 15-17, 2004

autonomic oil well placement vfsa
AutonomicOilWell Placement (VFSA)

Contours of NEval(y,z,500)(10)

Pressure contours

3 wells, 2D profile

permeability

Requires NYxNZ (450)

evaluations. Minimum

appears here.

VFSA solution: “walk”:

found after 20 (81) evaluations

UPP, September 15-17, 2004

autonomic oil well placement vfsa1
AutonomicOilWell Placement (VFSA)

UPP, September 15-17, 2004

autonomic oil well placement spsa

Search space response surface: Expected revenue - f(p) for all possible well locations p. White marks indicate optimal well locations found by SPSA for 7 different starting points of the algorithm.

Permeability field showing the positioning of current wells. The symbols “*” and “+” indicate injection and producer wells, respectively.

AutonomicOilWell Placement (SPSA)

UPP, September 15-17, 2004

autonomic oil well placement spsa1
AutonomicOilWell Placement (SPSA)

UPP, September 15-17, 2004

ch4air h2air simulations
CH4Air/H2Air Simulations
  • Simulate the chemical reaction with the elements O, H, C, N, and AR under dynamic conditions
    • CRL/SNL, Livermore, CA
  • Objective is to use current sensor date and simulation state to choose “best” algorithm the accelerates convergence
    • i.e., decreases nfe

UPP, September 15-17, 2004

rule generation for ch4air problem
Rule Generation for CH4Air Problem

UPP, September 15-17, 2004

rules for ch4air problem
Rules for CH4Air Problem
  • IF 1000 <= temperature < 2000 THEN BDF 3
  • IF 2000 <= temperature < 2200 THEN BDF 4
  • IF 2200 <= temperature < 3000 THEN BDF 3
  • IF 3000 <= temperature THEN BDF 3

UPP, September 15-17, 2004

experiment results of ch4air problem
Experiment Results of CH4Air Problem

UPP, September 15-17, 2004

rule generation for h2air problem
Rule Generation for H2Air Problem

UPP, September 15-17, 2004

rules for h2air problem
Rules for H2Air Problem
  • IF 1000 <= temperature < 1200 THEN BDF 2
  • IF 1200 <= temperature < 1800 THEN BDF 4
  • IF 1800 <= temperature < 2400 THEN BDF 3
  • IF 2400 <= temperature THEN BDF 4

UPP, September 15-17, 2004

experiment results of h2air problem
Experiment Results of H2Air Problem

UPP, September 15-17, 2004

computational modeling of physical phenomenon
Computational Modeling of Physical Phenomenon
  • Realistic, physically accurate computational modeling
    • Large computation requirements
      • e.g. simulation of the core-collapse of supernovae in 3D with reasonable resolution (5003) would require ~ 10-20 teraflops for 1.5 months (i.e. ~100 Million CPUs!) and about 200 terabytes of storage
      • e.g. turbulent flow simulations using active flow control in aerospace and biomedical engineering requires 5000x1000x500=2.5∙109 points and approximately 107 time steps, i.e. with 1GFlop processors requires a runtime of ~7∙106 CPU hours, or about one month on 10,000 CPUs! (with perfect speedup). Also with 700B/pt the memory requirement is ~1.75TB of run time memory and ~800TB of storage.
    • Dynamically adaptive behaviors
    • Complex couplings
      • multi-physics, multi-model, multi-resolution, ….
    • Complex interactions
      • application – application, application – resource, application – data, application – user, …
    • Software/systems engineering/programmability
      • volume and complexity of code, community of developers, …
        • scores of models, hundreds of components, millions of lines of code, …

UPP, September 15-17, 2004

a selection of samr applications

Multi-block grid structure and oil concentrations contours (IPARS, M. Peszynska, UT Austin)

Blast wave in the presence of a uniform magnetic field) – 3 levels of refinement. (Zeus + GrACE + Cactus, P. Li, NCSA, UCSD)

Richtmyer-Meshkov- detonation in a deforming tube - 3 levels. Z=0 plane visualized on the right (VTF + GrACE, R. Samtaney, CIT)

Mixture of H2 and Air in stoichiometric proportions with a non-uniform temperature field (GrACE + CCA, Jaideep Ray, SNL, Livermore)

A Selection of SAMR Applications

UPP, September 15-17, 2004

autonomic runtime management

Self-

Observation

& Analysis

Application State Characterization

Dynamic Driver Application

Computation/

Communication

Application

Dynamics

Nature of

Adaptation

Monitoring &

Context-Aware

Services

Natural Region Characterization

Current Application State

Self-Optimization

& Execution

Deduction

Engine

Normalized Work Metric

Objective

Function

Synthesizer

Deduction

Engine

Deduction

Engine

Prescriptions

Resource

Monitoring

Service

Application

Monitoring

Service

Normalized

NRM

CPU

NWM

Resource Metric

Current System State

System

Capability

Module

Memory

Autonomic

Partitioning

Bandwidth

Availability

Access Policy

Partition/Compose

Repartition/Recompose

System State

Synthesizer

Virtual Grid

Autonomic

Runtime

Manager

VCU

Heterogeneous, Dynamic

Computational Environment

VCU

Resource History Module

Virtual Computation Unit

Performance

Prediction

Module

Autonomic Scheduling

Mapping

Distribution

Redistribution

Global Grid

Scheduling

Local Grid

Scheduling

VCU

Virtual

Resource

Unit

VGSS

VGTS

VGSS

VGTS

Execution

VGTS: Virtual Grid Time Scheduling

VGSS: Virtual Grid Space Scheduling

Autonomic Runtime Management

UPP, September 15-17, 2004

autonomic forest fire simulation
Autonomic Forest Fire Simulation

Predicts fire spread (the speed, direction and intensity of forest fire front) as the fire propagates, based on both dynamic and static environmental and vegetation conditions.

High computation

zone

UPP, September 15-17, 2004

conclusion
Conclusion
  • Autonomic applications are necessary to address scale/complexity/heterogeneity/dynamism/reliability challenges
  • Project AutoMate and the Accord programming system addresses key issues to enable the development of autonomic applications
    • conceptual and implementation
  • More Information, publications, software, conference
    • http://automate.rutgers.edu
    • automate@caip.rutgers.edu / parashar@caip.rutgers.edu
    • http://www.autonomic-conference.org

UPP, September 15-17, 2004

the team
TASSL Rutgers University

Autonomic Computing Research Group

Viraj Bhat

Nanyan Jiang

Hua Liu (Maria)

Zhen Li (Jenny)

Vincent Matossian

Cristina Schmidt

Guangsen Zhang

Autonomic Applications Research Group

Sumir Chandra

Xiaolin Li

Li Zhang

CS Collaborators

HPDC, University of Arizona

Salim Hariri

Biomedical Informatics, The Ohio State University

Tahsin Kurc, Joel Saltz

CS, University of Maryland

Alan Sussman, Christian Hansen

Applications Collaborators

CSM, University of Texas at Austin

Malgorzata Peszynska, Mary Wheeler

IG, University of Texas at Austin

Mrinal Sen, Paul Stoffa

ASCI/CACR, Caltech

Michael Aivazis, Julian Cummings, Dan Meiron

CRL, Sandia National Laboratory, Livermore

Jaideep Ray, Johan Steensland

The Team

UPP, September 15-17, 2004
