  1. Fixing TCP in Datacenters Costin Raiciu Advanced Topics in Distributed Systems 2011

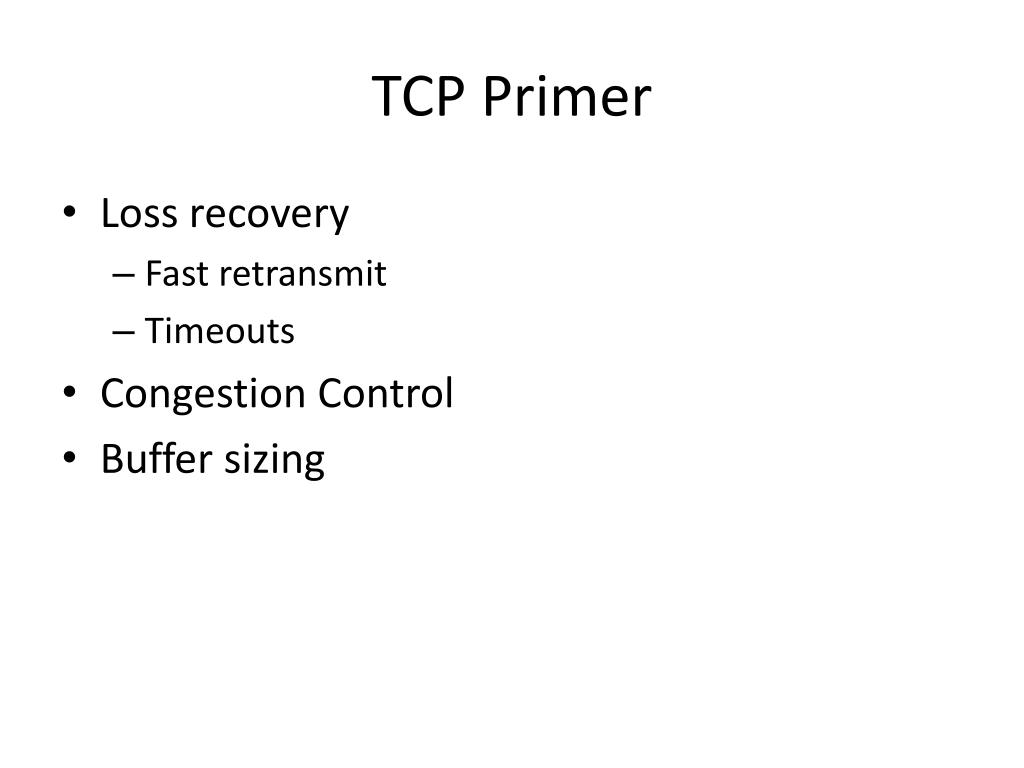

  2. TCP Primer • Loss recovery • Fast retransmit • Timeouts • Congestion Control • Buffer sizing

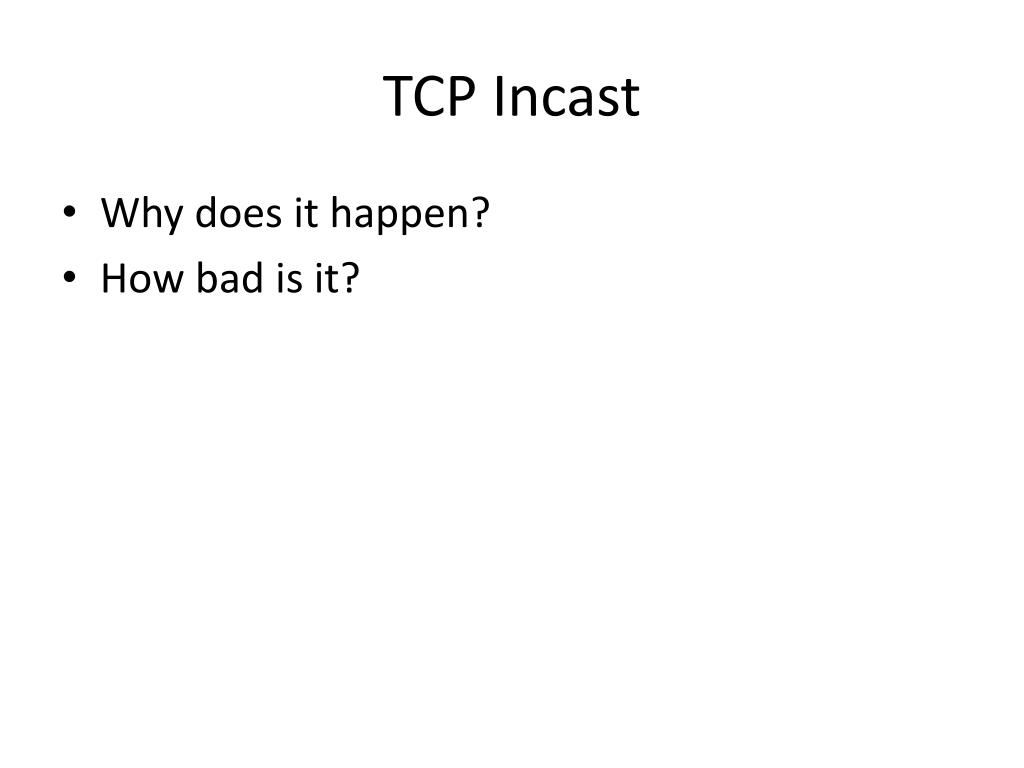

  3. TCP Incast • Why does it happen? • How bad is it?

  4. TCP Incast Kills ThroughputLab Setup, Artifical Synchronization

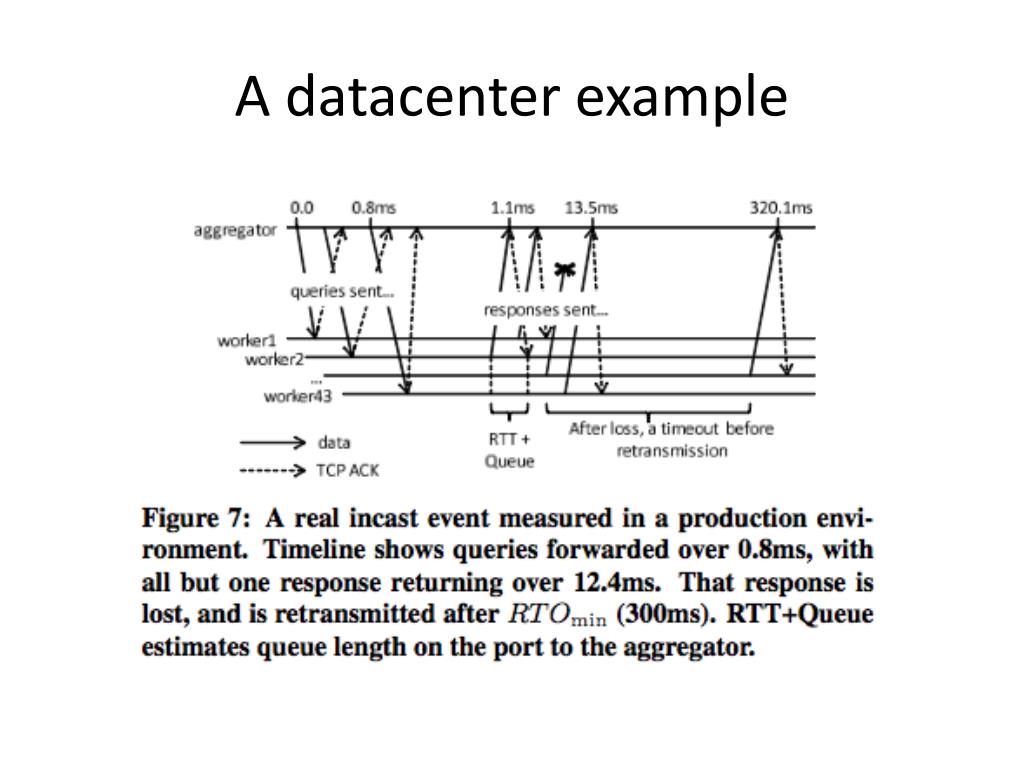

  5. A datacenter example

  6. How can we fix it? • Application level • Add jitter • Reduce response size • Use aggregation

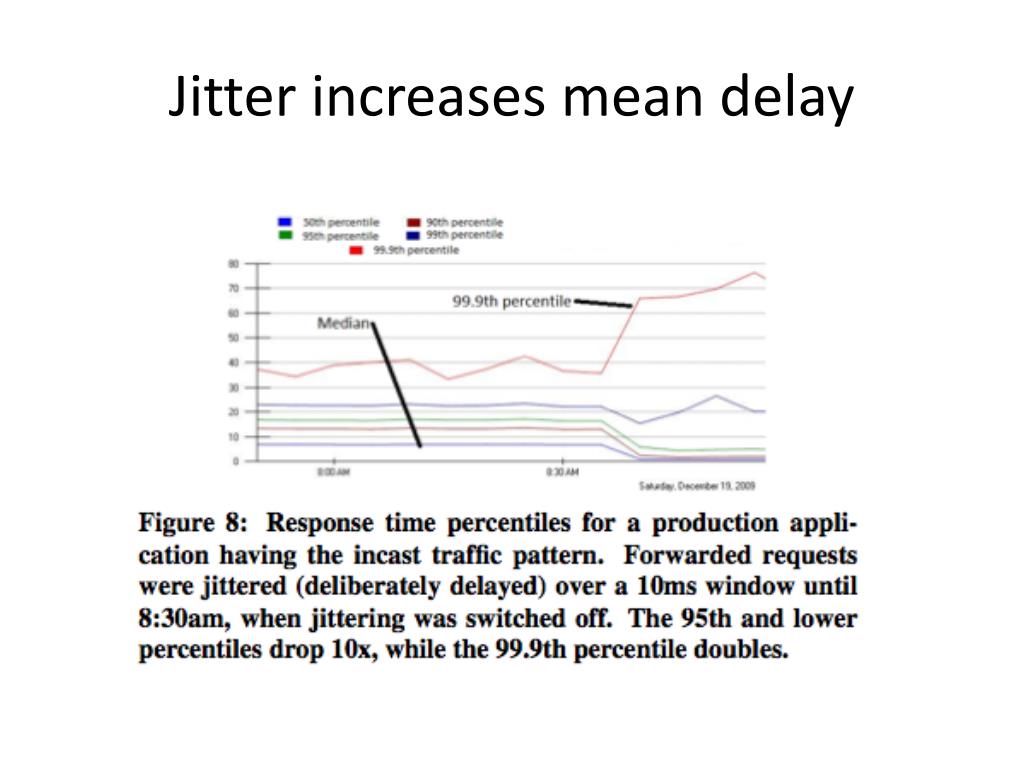

  7. Jitter increases mean delay

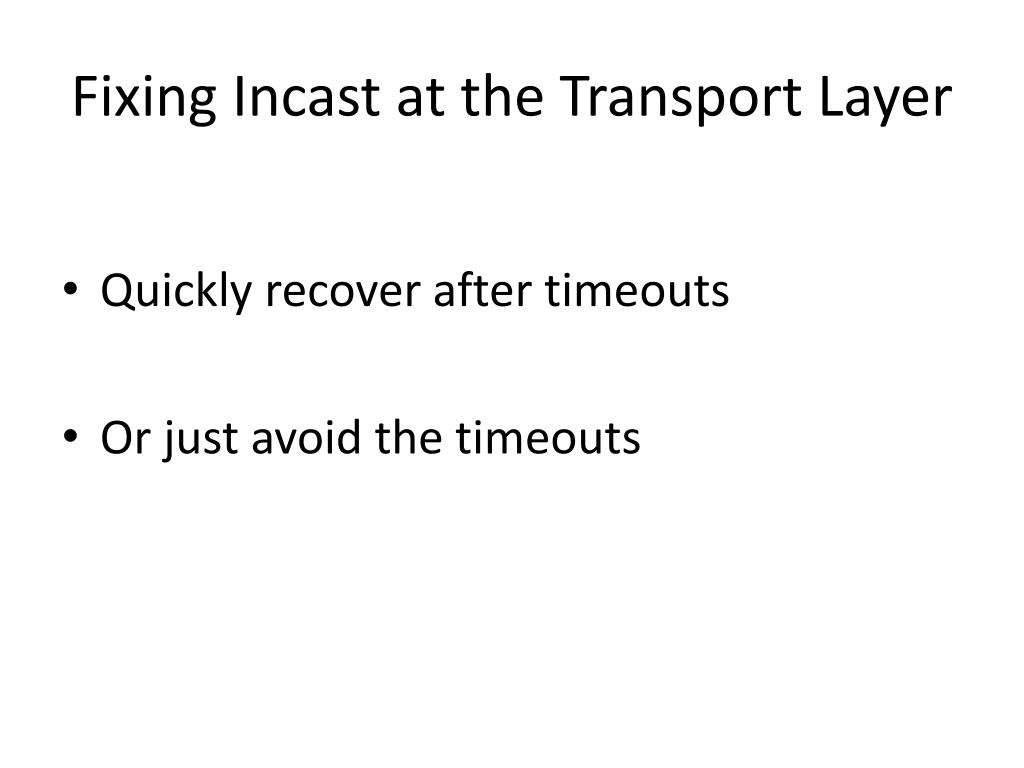

  8. Fixing Incast at the Transport Layer • Quickly recover after timeouts • Or just avoid the timeouts

  9. Quickly recover the timeouts • Remove RTOminbound • Millisecond or lower time resolution • A whole paper about this in Sigcomm 2009 • But is this enough?

  10. Fixing Incast at Lower Layers • Add more buffering to switches? • Expensive • Add shared buffering?

  11. Datacenter Traffic

  12. Datacenter Traffic (2)

  13. DCTCP • Want to be robust to incast • Want to avoid interference between short and long flows • Want to avoid buffer pressure • We can do all this with small buffer usage

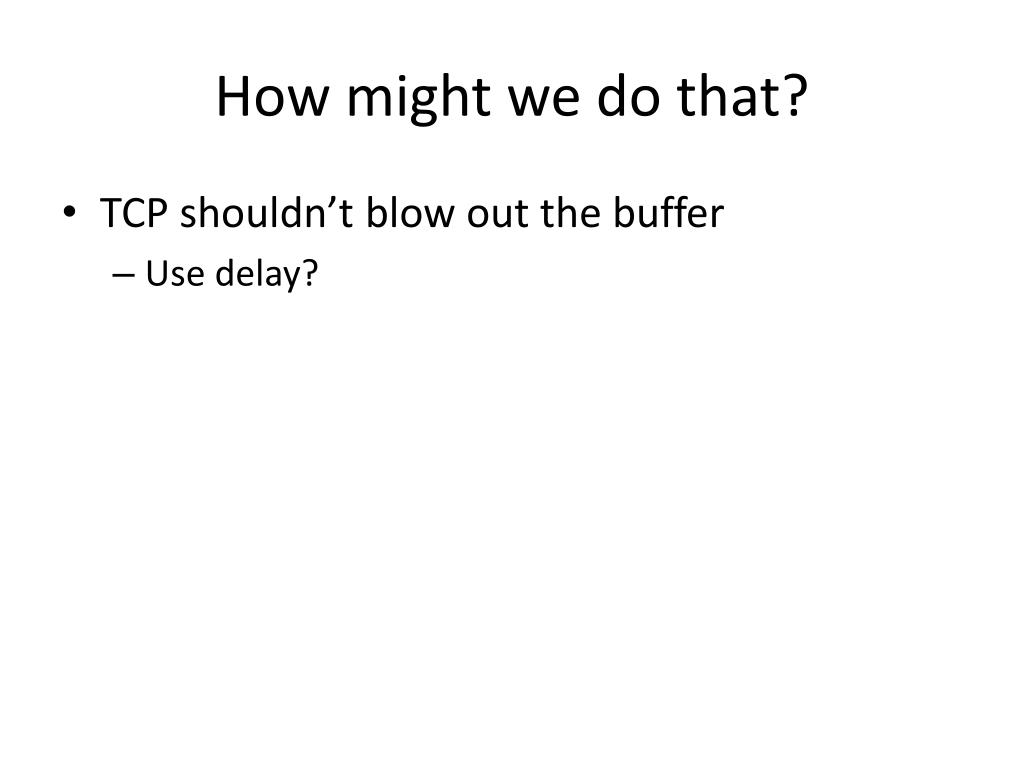

  14. How might we do that? • TCP shouldn’t blow out the buffer • Use delay?

  15. How might we do that? • TCP shouldn’t blow out the buffer • Use delay? • Explicit Congestion Notification in switches • Switches tell you when to back off

  16. How might we do that? • TCP shouldn’t blow out the buffer • Use delay? • Explicit Congestion Notification in switches • Switches tell you when to back off • But TCP will underutilize the network if CWND<2*BDP

  17. DCTCP • Find out alpha fraction of packets that saw congestion • Set cwnd = cwnd * (1-alpha/2) • Alpha is estimated using ECN signals • EWMA

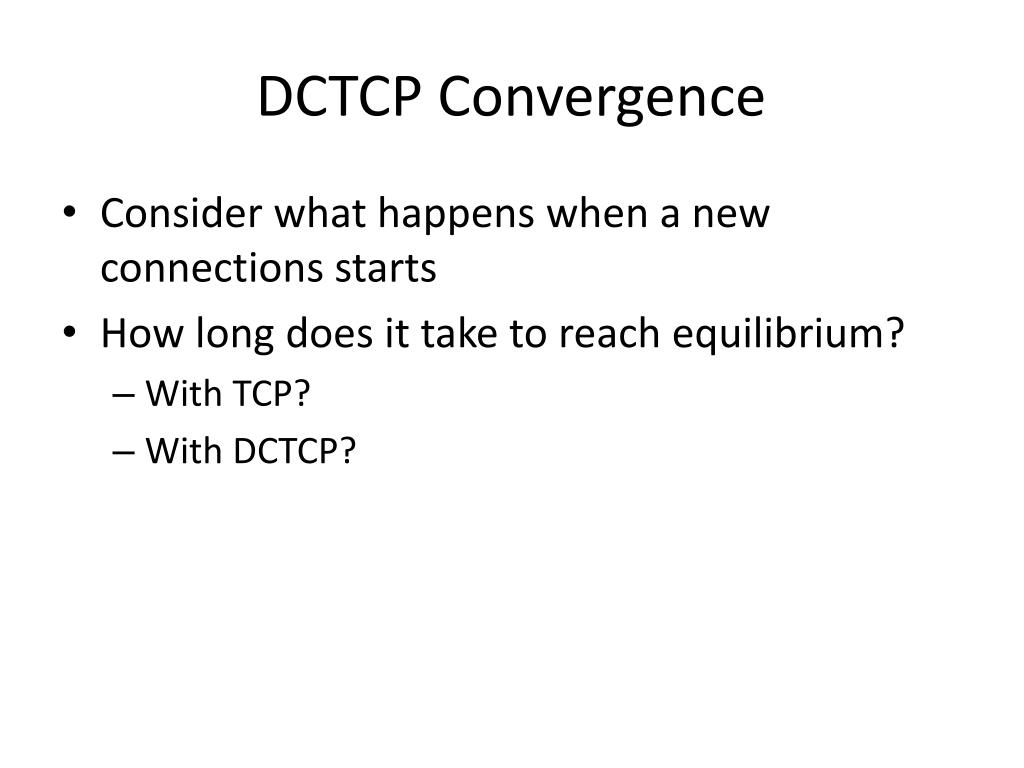

  18. DCTCP Convergence • Consider what happens when a new connections starts • How long does it take to reach equilibrium? • With TCP? • With DCTCP?

  19. Conclusions • TCP is heavily used in DCs • But sometimes its not ideal • Simple changes can fix its shortcomings • The same problem (incast) can be fixed at many layers

  20. Your Presentations • Read your article very carefully, several times • Tried to understand the “gist” of it • What differentiates it from previous work • What is good about it • What is less good • Did they achieve their goals? • How would you design a solution to their problem?

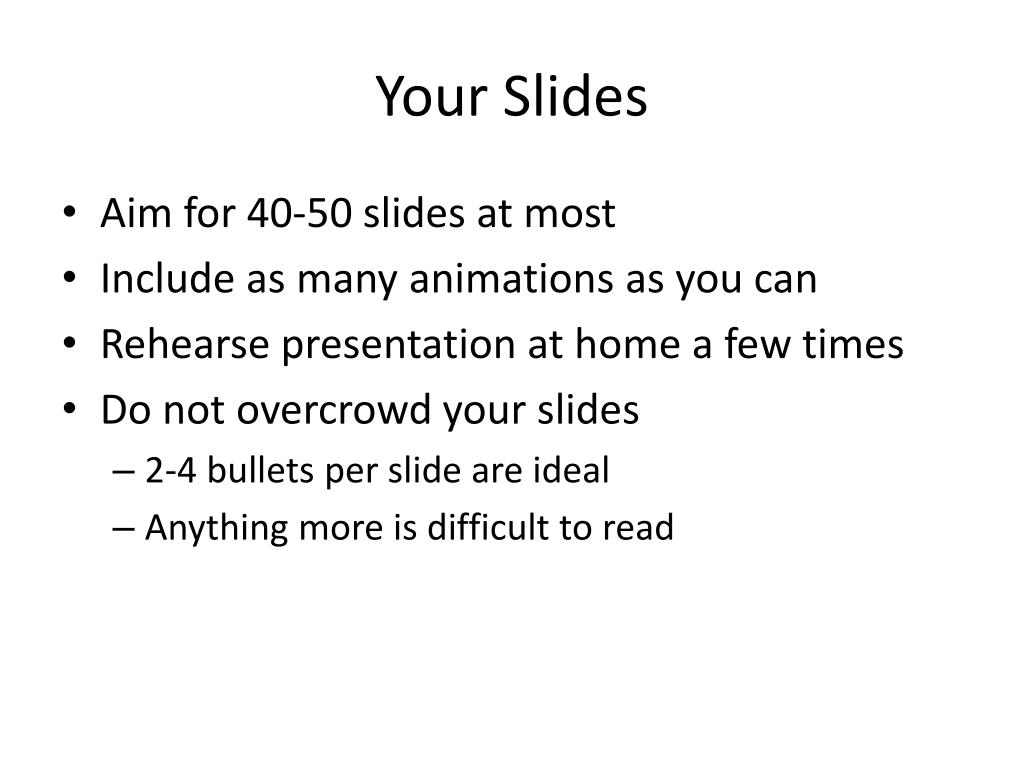

  21. Your Slides • Aim for 40-50 slides at most • Include as many animations as you can • Rehearse presentation at home a few times • Do not overcrowd your slides • 2-4 bullets per slide are ideal • Anything more is difficult to read

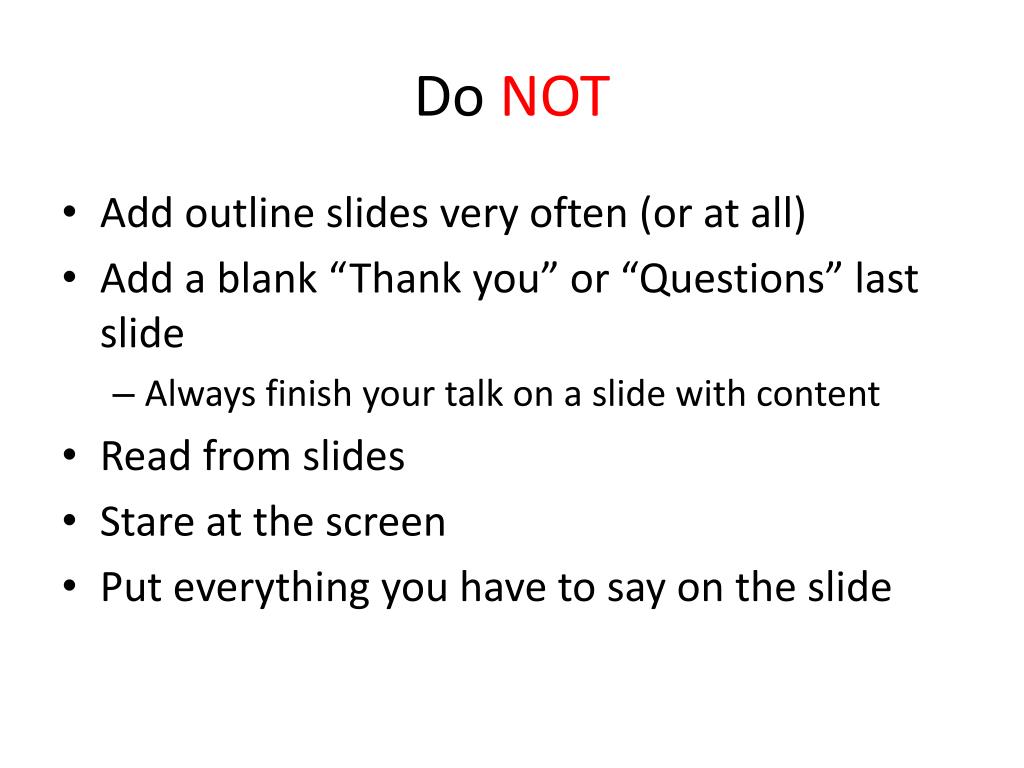

  22. Do NOT • Add outline slides very often (or at all) • Add a blank “Thank you” or “Questions” last slide • Always finish your talk on a slide with content • Read from slides • Stare at the screen • Put everything you have to say on the slide
