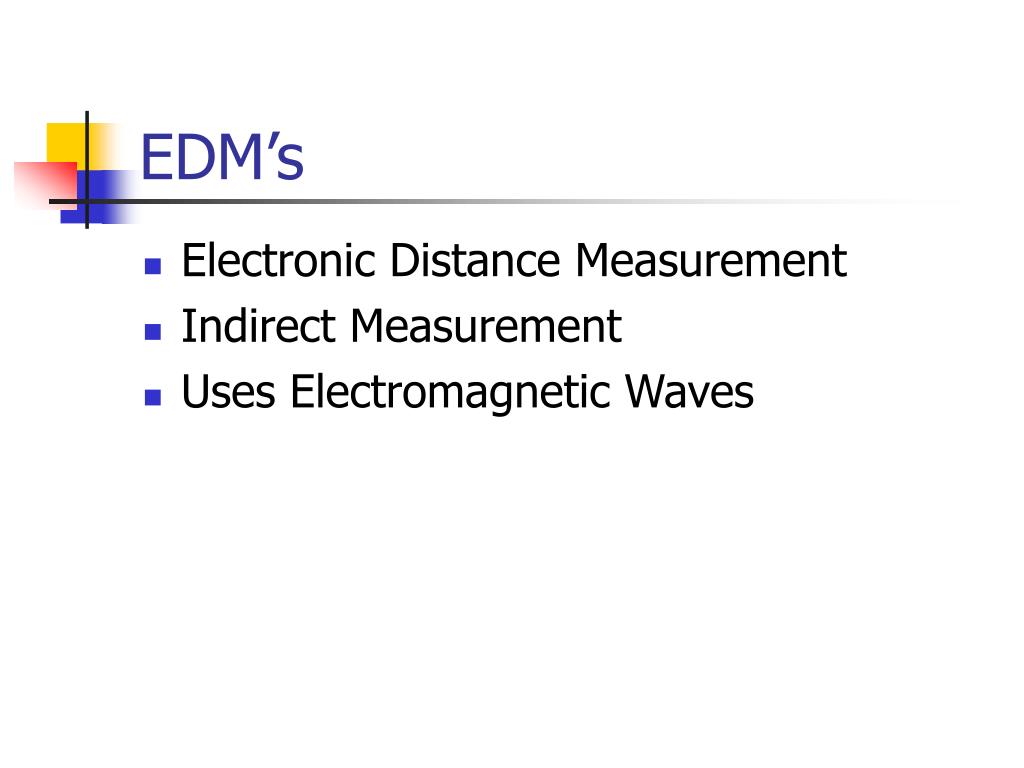

  1. EDM’s • Electronic Distance Measurement • Indirect Measurement • Uses Electromagnetic Waves

  2. Classes of EDM • Infrared • Microwave • Requires transmitter at each end • Communicate through them • Laser • Total Station

  3. Improvements Over Time • Decreased Size • Decreased Power Usage • Smaller Batteries • On-board Microprocessor

  4. Method of Measurement • Not time-based • Speed of light = 186,000 mi/sec • We measure to 0.01’ • Need exact time to 1/1011 sec • Light “Waves” • Intensity of light varies • At any point, find intensity, rise or fall

  5. Phase Angle • Sine wave • 0°<x<360° • -1<sin(x)<1 • Observe wave intensity, I • Scale so Imax = 1, Imin = -1 • If I = 0.5 and is falling, sin-1(I) = 150°

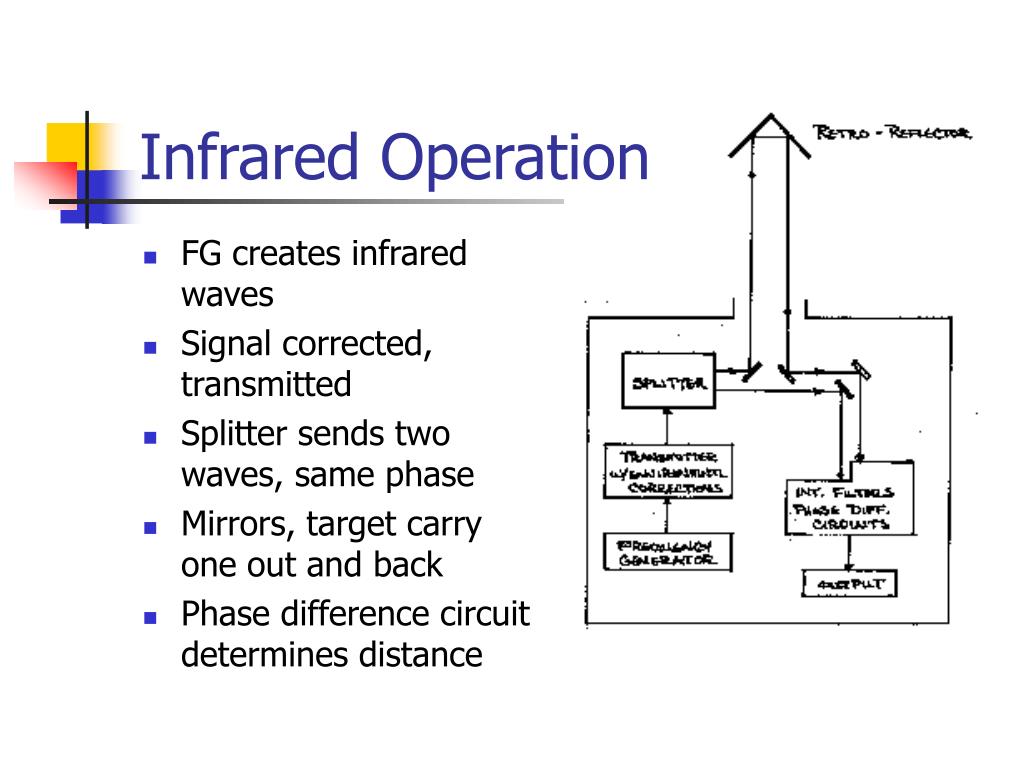

  6. Infrared Operation • FG creates infrared waves • Signal corrected, transmitted • Splitter sends two waves, same phase • Mirrors, target carry one out and back • Phase difference circuit determines distance

  7. Decade Modulation • EDM’s generate light waves at different frequencies • Frequencies selected to yield practical values • Choose f1 so that 1 = 100’/cycle • Choose f2 = f1/10, 2 = 1000’/cycle • Phase detector determines change in the cycle

  8. Decade Modulation Example • Set 1 = 10,000’/cycle • Phase detector reads  = 40.2° out of 360°/cycle • Phase distance = 10,000*40.2/360 = 1117’ • Set 2 = 1000’/cycle • Phase detector reads  = 42.1° out of 360°/cycle • Phase distance = 1000*42.1/360 = 116.9’ • Set 3 = 100’/cycle,  = 60.7°, D =16.86’ • Wave traveled 1116.86’ out and back • Measured distance = 558.43’

  9. Corrections • Light waves affected by • Humidity • Atmospheric Pressure • Temperature • Reflector Constant • Vertical Angle
