Presentation Transcript
Janica e walden md neuroradiology university of north carolina l.jpg

Janica E. Walden, MD

Neuroradiology

University of North Carolina


Holoprosencephaly hpe l.jpg
Holoprosencephaly (HPE)

  • Spectrum of congenital structural forebrain anomalies defined by different degrees of frontal lobe fusion

  • Impaired midline cleavage of the embryonic forebrain

  • “Face predicts brain”: severe midline anomaly = severe HPE

  • Clinical severity relates to degree of hemispheric and deep gray nuclei fusion


Etiology pathology l.jpg
Etiology & Pathology

  • Normal prosencephalic cleavage occurs at 4-6 weeks

  • HPE: disruption in dorsoventral axis patterning of secondary prosencephalon,

    • Result of mutations affecting signaling genes (Sonic hedgehog gene) which regulate neural tube patterning.

  • Extreme hypoplasia of neocortex

  • Dorsal cyst (especially in association with non-cleaved thalami) thought to represent expansion of partially blocked posterodorsal 3rd ventricle

  • Variable degree of fusion of diencephalon & basal ganglia/thalamus with incorporation into upper brainstem


Epidemiology l.jpg
Epidemiology

  • Occurs in 1 to 1.4 per 10,000 live births

    • More common in early embryogenesis with high spontaneous miscarriage rates

  • Maternal factors include alcohol use, diabetes, retinoic acid

    • 1% risk to infants of diabetic mothers (200-fold increased risk than that of general population)

  • Male: female ratio = 1.4: 1


Facial anomalies l.jpg
Facial Anomalies

  • Severe facial anomalies correlate with severity of HPE in 80%

    • +/- midline clefting

    • premaxillary agenesis if severe

    • absent superior frenulum

    • +/- central incisor

    • proboscis

    • single nare; single nasal bone/absent inter-nasal sutures

    • caudal metopic suture

    • infants of diabetic mothers may have alobar HPE with near-normal facies



Clinical features l.jpg
Clinical Features nostril, small low set ears.

  • Most severe (classic alobar HPE) features include: cyclopia, proboscis, midline facial clefting, microcephaly

  • Severe of pituitary/hypothalamic dysfunction (75% especially diabetes insipidus) & disturbed body temperature regulation

    • Correlates with degree of hypothalamic non-separation

  • Seizures (50%) & mental retardation

    • Most severe with cortical malformations

  • Dystonia & hypotonia

    • Severity correlates with degree basal ganglia non-separation


Classification l.jpg

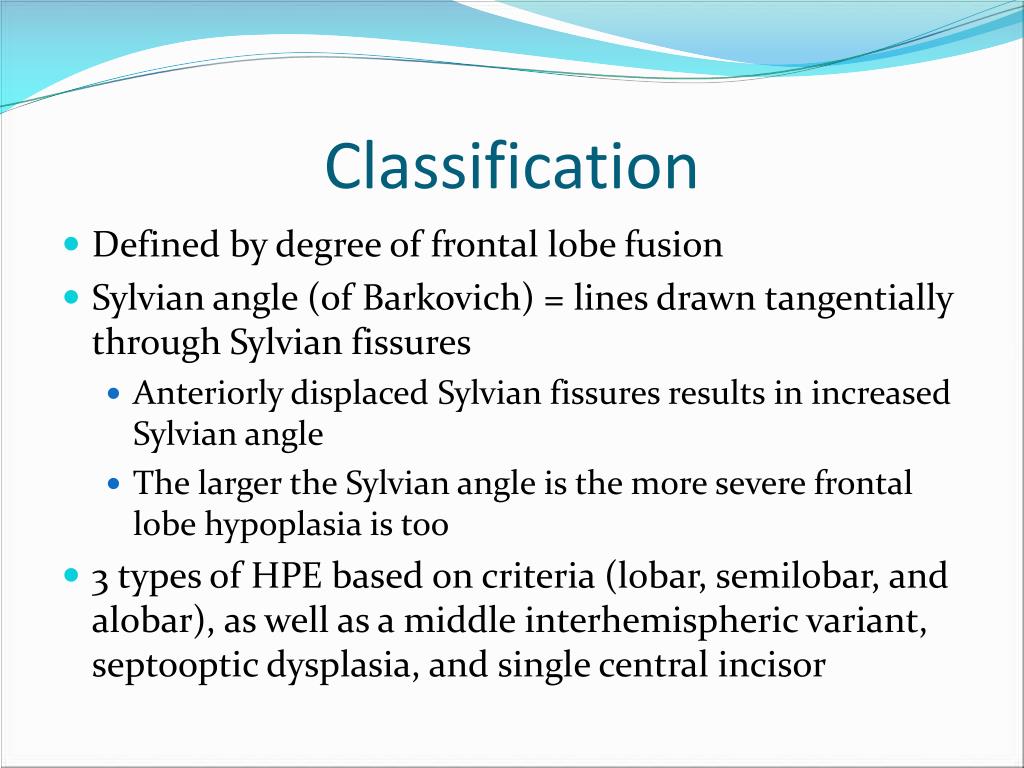

Classification nostril, small low set ears.

  • Defined by degree of frontal lobe fusion

  • Sylvian angle (of Barkovich) = lines drawn tangentially through Sylvian fissures

    • Anteriorly displaced Sylvian fissures results in increased Sylvian angle

    • The larger the Sylvian angle is the more severe frontal lobe hypoplasia is too

  • 3 types of HPE based on criteria (lobar, semilobar, and alobar), as well as a middle interhemispheric variant, septooptic dysplasia, and single central incisor


Alobar holoprosencephaly l.jpg
Alobar Holoprosencephaly nostril, small low set ears.

  • “Pancake” or “horseshoe” brain

  • Monoventricle

  • Large dorsal cyst

  • Fused diencephalon

  • Basal ganglia & thalami may form gray matter fusion mass

  • No interhemispheric fissure

  • No olfactory nerves


Slide10 l.jpg

Alobar HPE: note fused thalamic & hemispheres, monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.


Slide11 l.jpg

Fetal MRI shows alobar HPE. monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.


Slide12 l.jpg

MR T1 images in alobar HPE. monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.


Diagnosis of hpe by ultrasound l.jpg

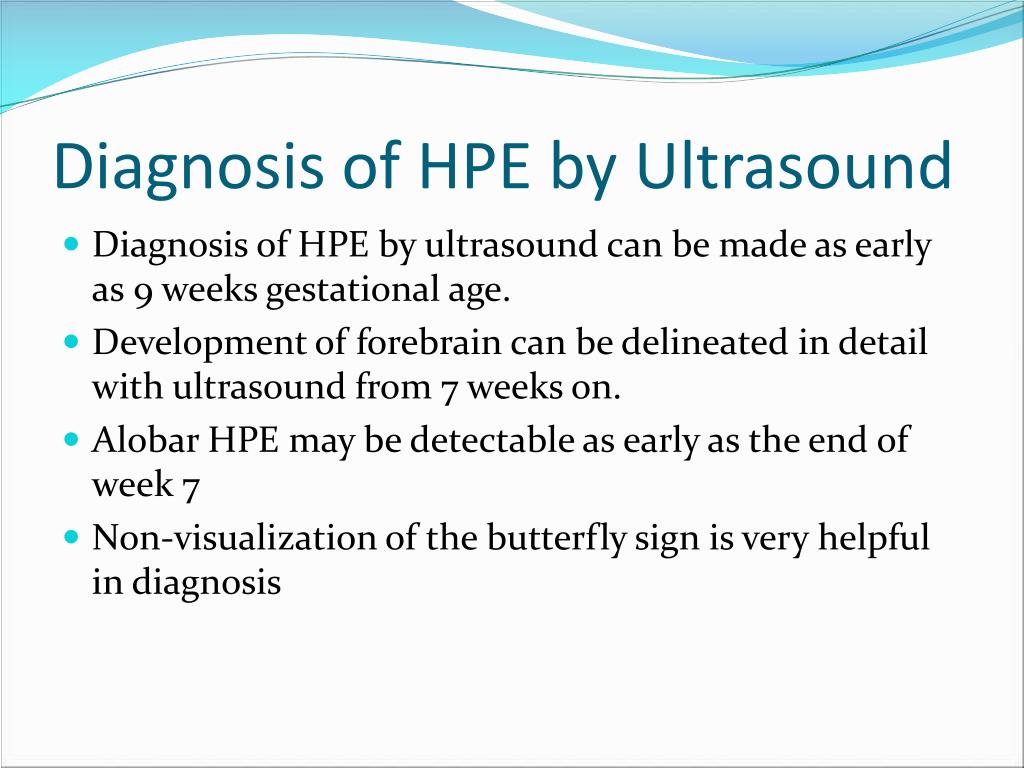

Diagnosis of HPE by Ultrasound monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.

  • Diagnosis of HPE by ultrasound can be made as early as 9 weeks gestational age.

  • Development of forebrain can be delineated in detail with ultrasound from 7 weeks on.

  • Alobar HPE may be detectable as early as the end of week 7

  • Non-visualization of the butterfly sign is very helpful in diagnosis


Semilobar holoprosencephaly l.jpg
Semilobar Holoprosencephaly monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.

  • Partial occipital/temporal horns

  • Moderate sized dorsal cyst

  • Fused diencephalon

  • Partial fusion of basal ganglia > thalami

  • Interhemipheric fissure present posteriorly

  • Absent of hypoplastic olfactory tracts and bulbs

  • Corpus callosum is rudimentary


Slide15 l.jpg

CT in semilobar HPE. monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.


Slide16 l.jpg

MRI in semilobar HPE. monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.


Lobar holoprosencephaly l.jpg

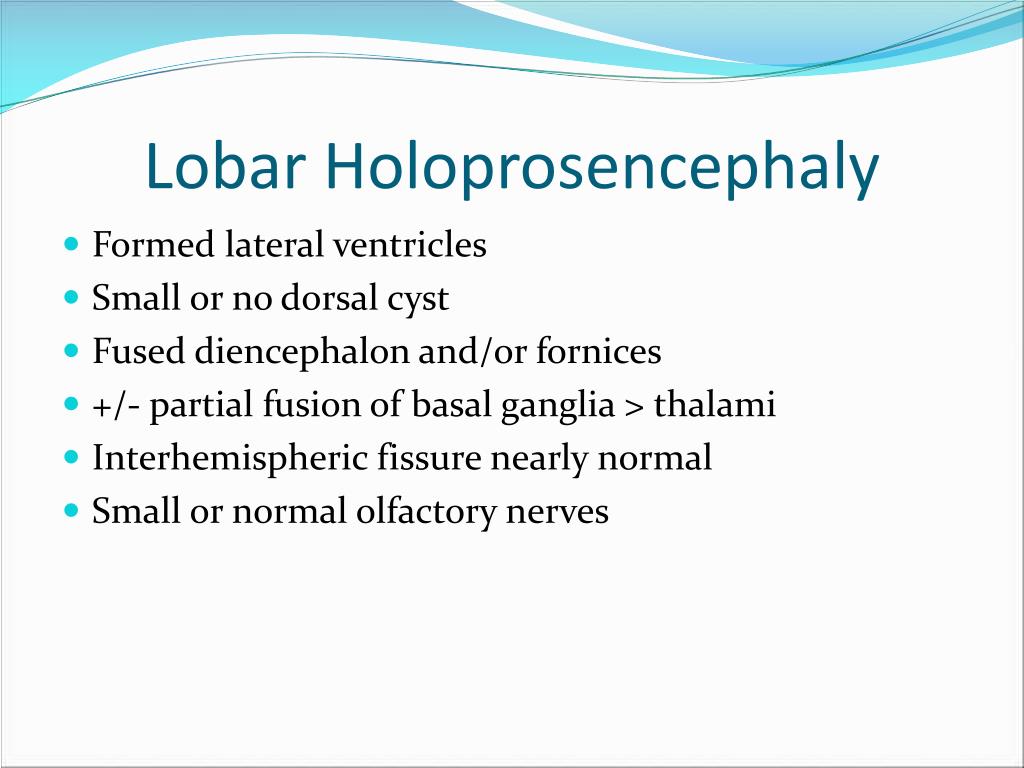

Lobar Holoprosencephaly monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.

  • Formed lateral ventricles

  • Small or no dorsal cyst

  • Fused diencephalon and/or fornices

  • +/- partial fusion of basal ganglia > thalami

  • Interhemispheric fissure nearly normal

  • Small or normal olfactory nerves


Slide18 l.jpg

MRI in lobar HPE. monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.


Middle interhemispheric variant l.jpg

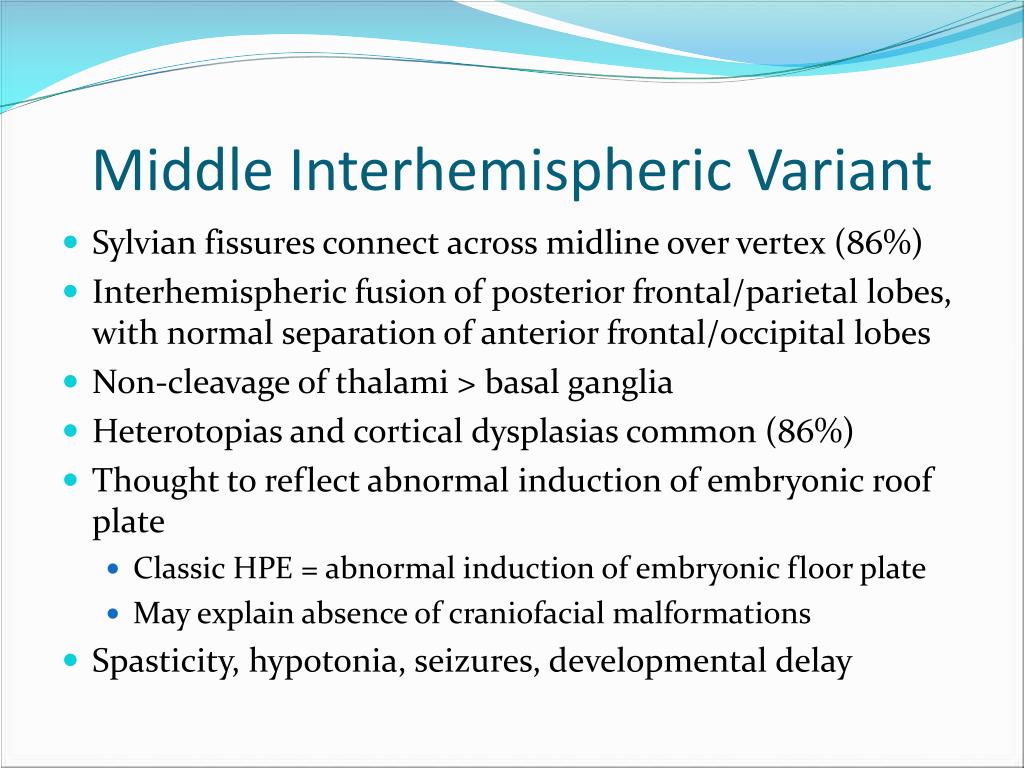

Middle monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.Interhemispheric Variant

  • Sylvian fissures connect across midline over vertex (86%)

  • Interhemispheric fusion of posterior frontal/parietal lobes, with normal separation of anterior frontal/occipital lobes

  • Non-cleavage of thalami > basal ganglia

  • Heterotopias and cortical dysplasias common (86%)

  • Thought to reflect abnormal induction of embryonic roof plate

    • Classic HPE = abnormal induction of embryonic floor plate

    • May explain absence of craniofacial malformations

  • Spasticity, hypotonia, seizures, developmental delay


Slide20 l.jpg

MRI in midline intehemispheris variant of HPE. monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.


References l.jpg
References monoventricle, absent interhemispheric fissure and venous sinsues, & azygous ACA.

  • Sepulveda Waldo, Dezerega Victor, Be Cecilia. First-Trimester Sonographic Diagnosis of Holoprosencephaly. Journal of Ultrasound in Medicine 23: 761-765.

  • Hahn Jin, Barnes Patrick. Neuroimaging Advances in Holoprosencephaly: Refining the Spectrum of the Midline Malformation. American Journal of Medical Genetics 154C: 120-132.

  • Blaas H., Eriksson A., Salvesen K., et al. Brains and faces in holoprosencephaly: pre- and postnatal description in 30 cases. Ultrasound ObstetGynecol 2002; 19: 24-38.

  • Takanashi Jun-ichi, Barkovich A. James, Clegg Nancy, Delgado Mauricio. Middle InterhemisphericBariant of Holoprosencephaly Associated with Diffuse Polymicrogyria. AJNR 2003; 24: 394-397.

  • Simon Erin, Hevner Robert, Pinter Joseph, et al. The Middle Interhemispheric Variant of Holoprosencephaly. AJNR 2002; 23: 151-155.
