  1. Vcollab:Technology for CAE Data Reduction, & Collaboration

  2. Agenda • Introduction • Technology & Product • Demo • VcollabImplementation • Q&A • Discussion and Next Step

  3. 公司简介 • Vcollab was form by a group of CAE and Visualization enthusiasts with goal to provide most capable and cost effective means to connect CAE to the larger world. • Head Quartered in Tory, Michigan USA. • First Vcollab release in 20o5. • Major Products: • Vcollab (Viewer) • VcollabVmove (Converter) • Vcollab Pro (Editor)

  4. Major Customers • Aerospace • Avio • AleniaAeronautica • GE • Honeywell • Lockheed • Pratt & Whitney • Hamilton Sundstrand • AVIC • Auto & Railroad • GM • Toyota • Brembo • Tang Shan Railroad • Hi-tech • Ricoh

  5. The CAE Communication challenges • Many many CAE/CFD output formats • Requires many tools to process results. • No single system to view them all easily and cost-effectively. • Bottleneck for communication and collaboration. .CASE .ODB .OUT .OUT .bdf .CAS .ENCASE .CCM .ODB .D3PLOT .FIL .CAS .RTH .PAT .ODB .FIL .ODB .RTH .CCM .D3PLOT .ENCASE .CASE .RTH .CCM .RTH .PAT .D3PLOT .FIL .FIL .bdf .CAS .OUT .CCM .ENCASE .OUT .PAT .bdf .CAS .bdf .PAT .CASE .D3PLOT .ENCASE

  6. The CAE Communication challenges • More and more big files 10GBto 100+GB each! • Difficult to move/transfer • Difficult to manage • High percentage content in the output are not used/useful. .RTH .D3PLOT BIG! .ODB .OP2 .CCM

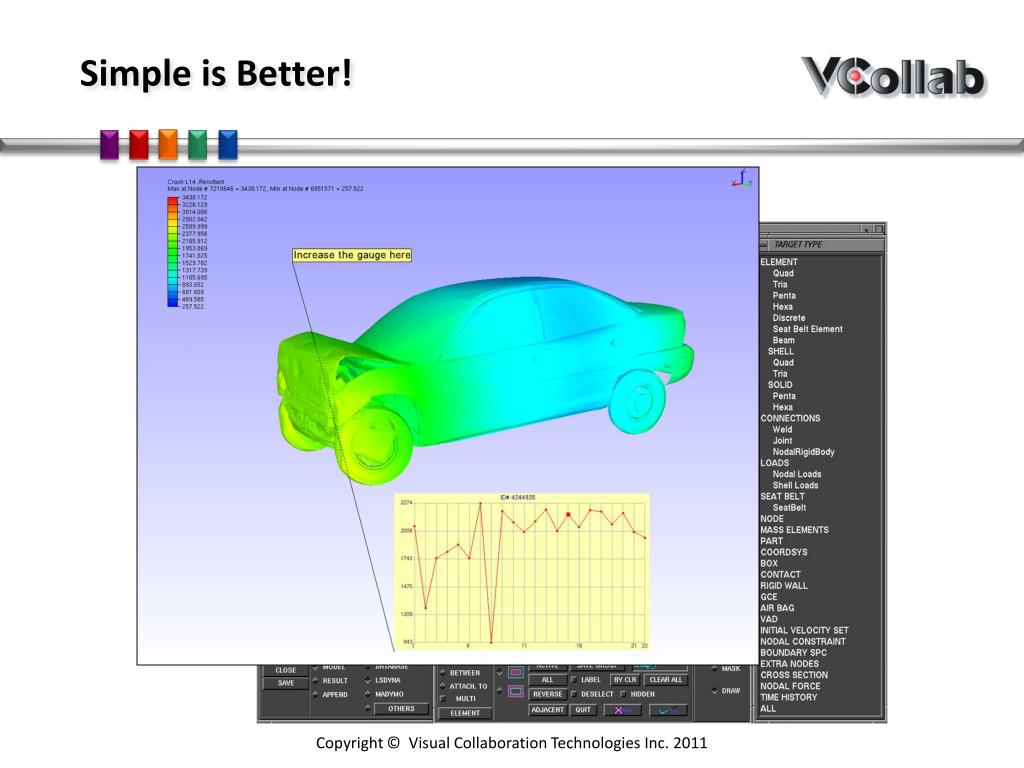

  7. Simple is Better! Or

  8. Simple is better! Or

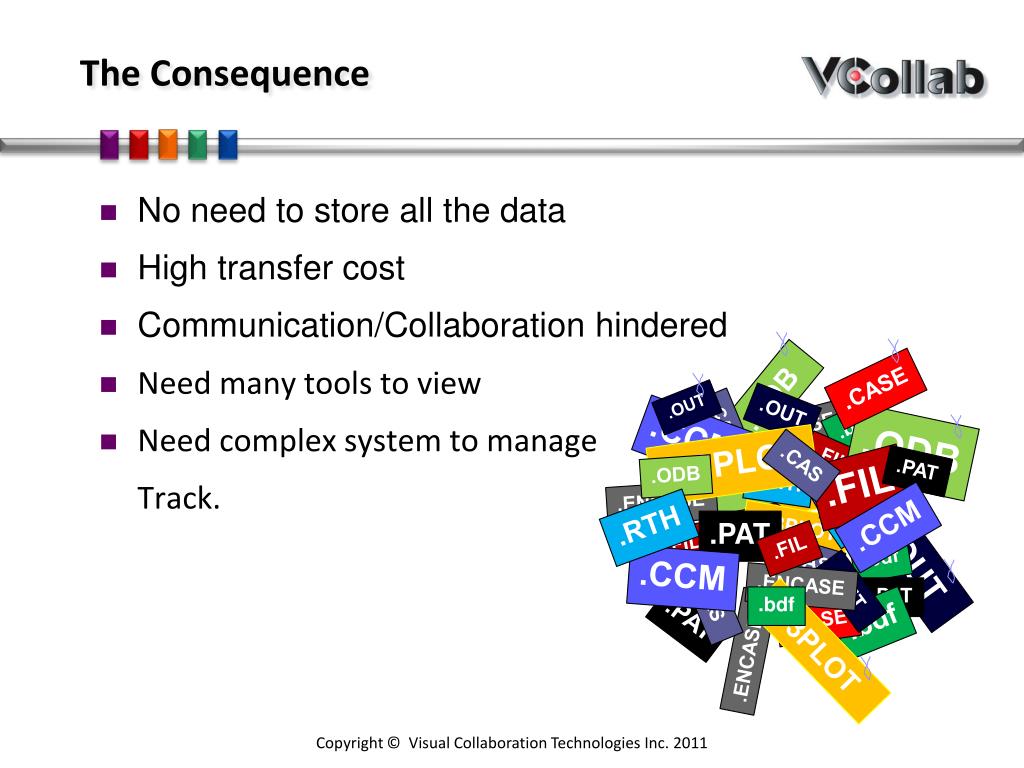

  9. The Consequence • No need to store all the data • High transfer cost • Communication/Collaboration hindered • Need many tools to view • Need complex system to manage Track. .CASE .ODB .OUT .OUT .bdf .CAS .CCM .ENCASE .ODB .D3PLOT .FIL .CAS .RTH .PAT .FIL .ODB .ODB .RTH .CCM .D3PLOT .ENCASE .CASE .RTH .CCM .RTH .D3PLOT .PAT .FIL .FIL .bdf .CAS .OUT .CCM .ENCASE .OUT .PAT .CAS .bdf .PAT .bdf .CASE .D3PLOT .ENCASE

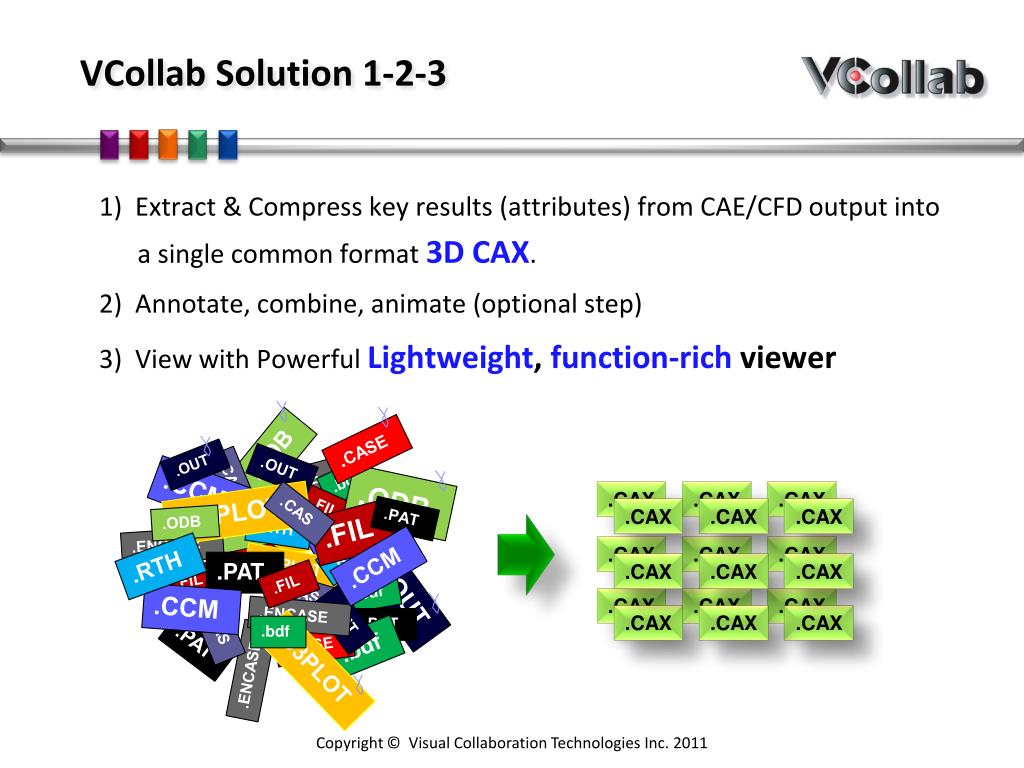

  10. VCollab Solution 1-2-3 1) Extract & Compress key results (attributes) from CAE/CFD output into a single common format 3D CAX. 2) Annotate, combine, animate (optional step) 3) View with Powerful Lightweight, function-rich viewer .CASE .ODB .OUT .OUT .bdf .CAS .ENCASE .CCM .ODB .D3PLOT .FIL .CAS .RTH .PAT .ODB .FIL .ODB .RTH .CCM .D3PLOT .ENCASE .CASE .RTH .CCM .RTH .D3PLOT .PAT .FIL .FIL .bdf .CAS .OUT .CCM .ENCASE .OUT .PAT .CAS .CAX .CAX .CAX .bdf .PAT .CAX .CAX .CAX .bdf .CASE .D3PLOT .CAX .CAX .CAX .ENCASE .CAX .CAX .CAX .CAX .CAX .CAX .CAX .CAX .CAX

  11. VCollab Technology Components CAE Durability ABAQUS/ MARC Thermal ANSYS NVH Nastran/ NX CFD StarCCM+ Fluent Impact Ls-Dyna … … VMoveCAE.exe *.CAX VCollab Presenter VCollab Professional VCollab Lite

  12. VCollabProduct • VMoveCAE • To extract and compress CAE/CFD outputs. • VMoveCAD for CAD data. • Can be used as shared utility, implemented with workflow etc. • Vcollab Pro • Annotate, combine multiple CAXs into one CAX, • Animate with view points, save back to CAX. • Vcollab • Function-rich, light-weight viewer/post-processor. • Can be inserted to MS documents and managed as a simulation archive by data management systems.

  13. VCollabBeneifts • Key and small size CAE results file. • Reduce storage and data transfer • Enable collaboration • Single viewer for multiple discipline • Allow non-expert to view results. • 3D CAX document can be used as long term archive. • Support Simulation Data Management
