work and power
Work and Power

Work is done when a force is exerted on an object and the object moves a distance x.

Work = force ·distance

W = F · d

units: N·m = Joule

Work is a scalar quantity. For work to be done, Force exerted must be in same linear plane as distance.

slide2
Work

When you hold something, are you exerting a force on the object?

When you hold something, are you doing work?

If you set the object on a table, does the table exert a force on the object? Does the table do any work?

Yes.

No.

Yes.

No.

When you hold something, then, you are not doing work either.

slide4
Work

Work is only done by a force on an object if the force causes the object to move in the direction of the force.

slide5
Work

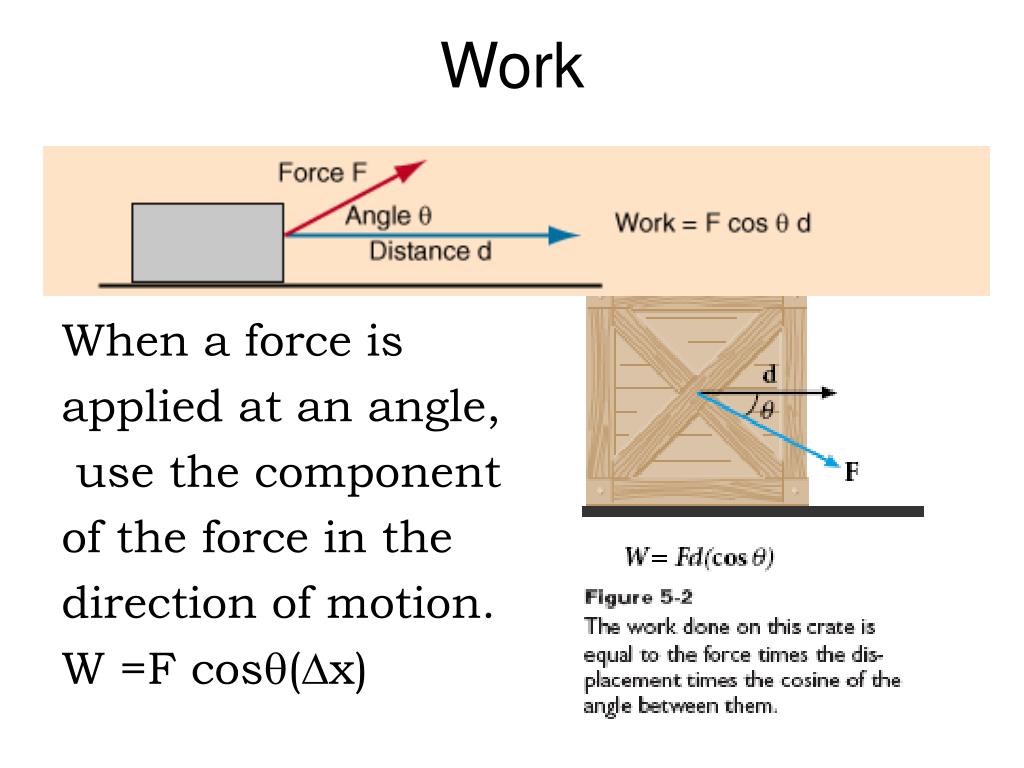

When a force is

applied at an angle,

use the component

of the force in the

direction of motion.

W =F cosq(Dx)
