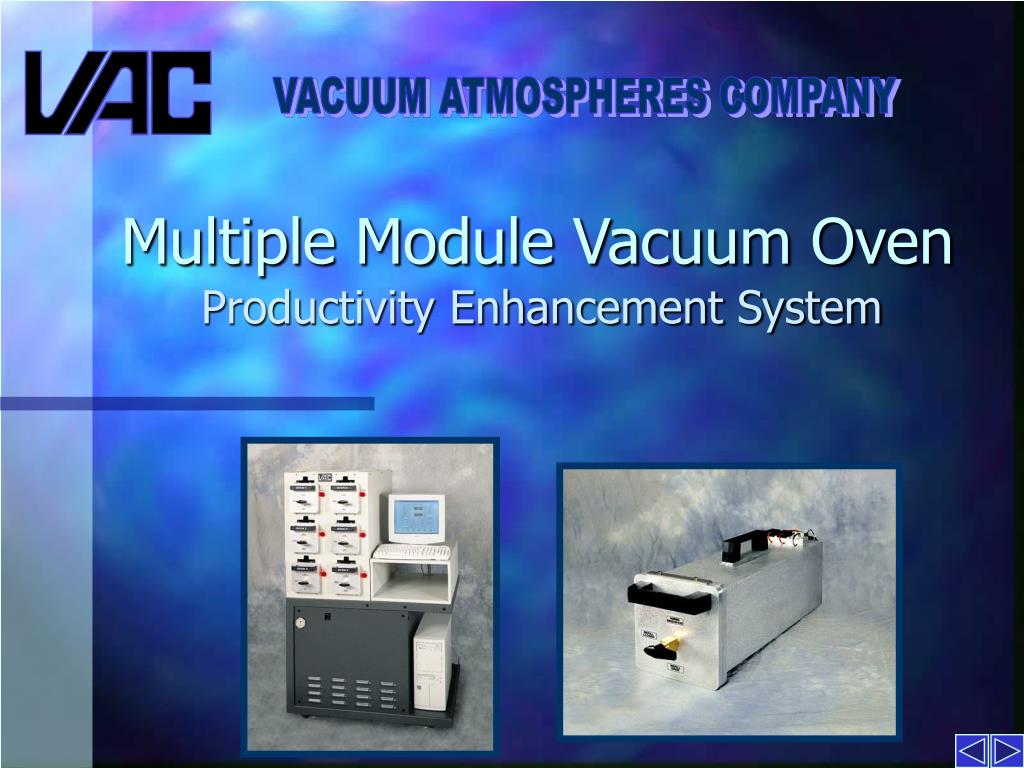

multiple module vacuum oven

Multiple Module Vacuum Oven

Productivity Enhancement System

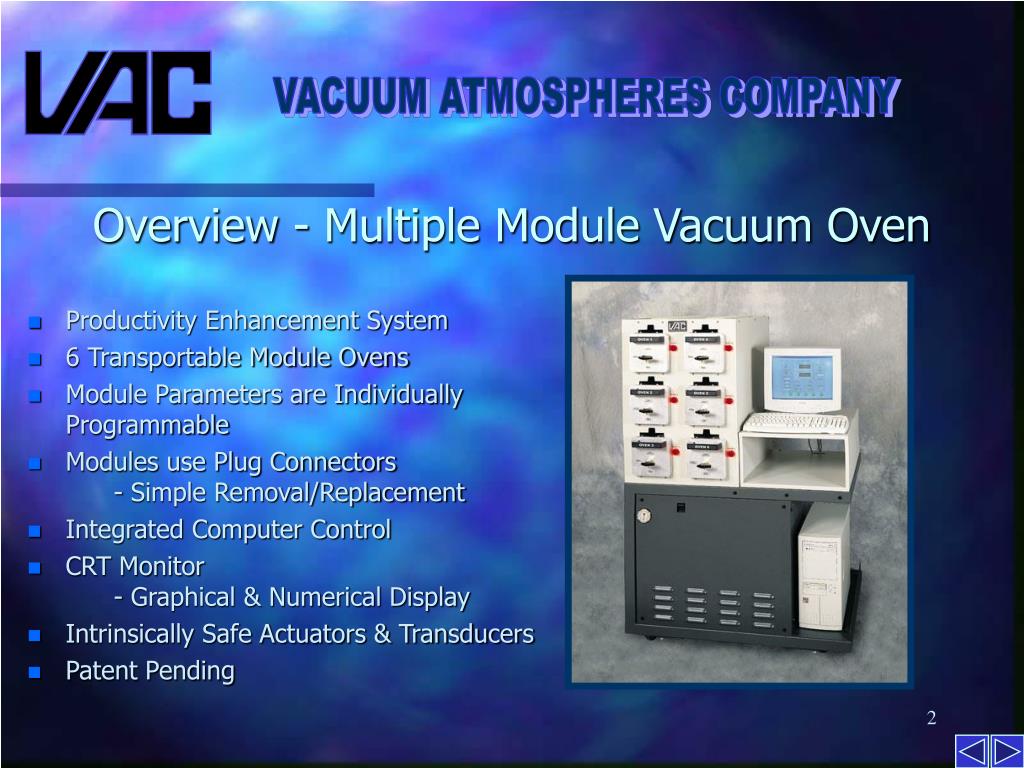

overview multiple module vacuum oven
Productivity Enhancement System

6 Transportable Module Ovens

Module Parameters are Individually Programmable

Modules use Plug Connectors - Simple Removal/Replacement

Integrated Computer Control

CRT Monitor - Graphical & Numerical Display

Intrinsically Safe Actuators & Transducers

Patent Pending

Overview - Multiple Module Vacuum Oven
benefits multiple module vacuum oven
Independent Control Increases Product Throughput

Eliminates Bottle-necking in Glove Box Batch Transfers

Allows Constant Flow of Product

Product Transfer Protection - Carry Product under Vacuum

Module Passes Through Antechamber

Speeds Materials Research via Concurrent Multiple Settings

Reduces need for Clean Room Space - Load inside Clean Room - Process Externally

Benefits - Multiple Module Vacuum Oven
product flow diagram
Product Flow Diagram
  • Facilitate Continuos Product Flow - 6 Independent Modules - Independent Operation - Independent Settings

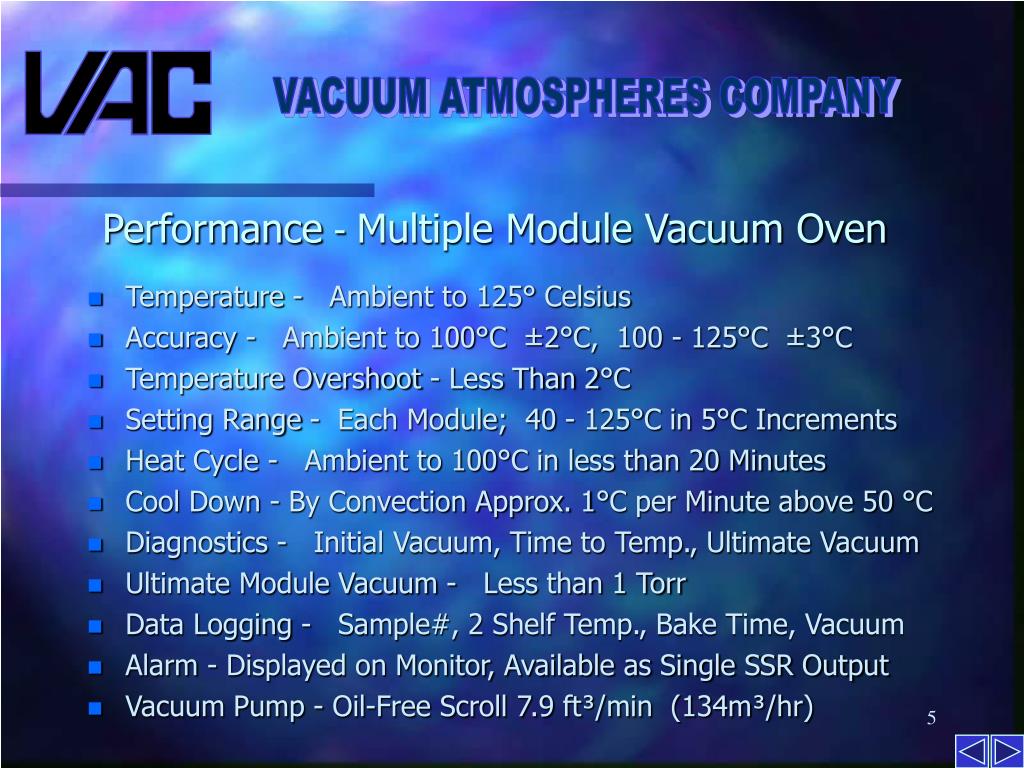

performance multiple module vacuum oven
Performance - Multiple Module Vacuum Oven
  • Temperature - Ambient to 125° Celsius
  • Accuracy - Ambient to 100°C ±2°C, 100 - 125°C ±3°C
  • Temperature Overshoot - Less Than 2°C
  • Setting Range - Each Module; 40 - 125°C in 5°C Increments
  • Heat Cycle - Ambient to 100°C in less than 20 Minutes
  • Cool Down - By Convection Approx. 1°C per Minute above 50 °C
  • Diagnostics - Initial Vacuum, Time to Temp., Ultimate Vacuum
  • Ultimate Module Vacuum - Less than 1 Torr
  • Data Logging - Sample#, 2 Shelf Temp., Bake Time, Vacuum
  • Alarm - Displayed on Monitor, Available as Single SSR Output
  • Vacuum Pump - Oil-Free Scroll 7.9 ft³/min (134m³/hr)

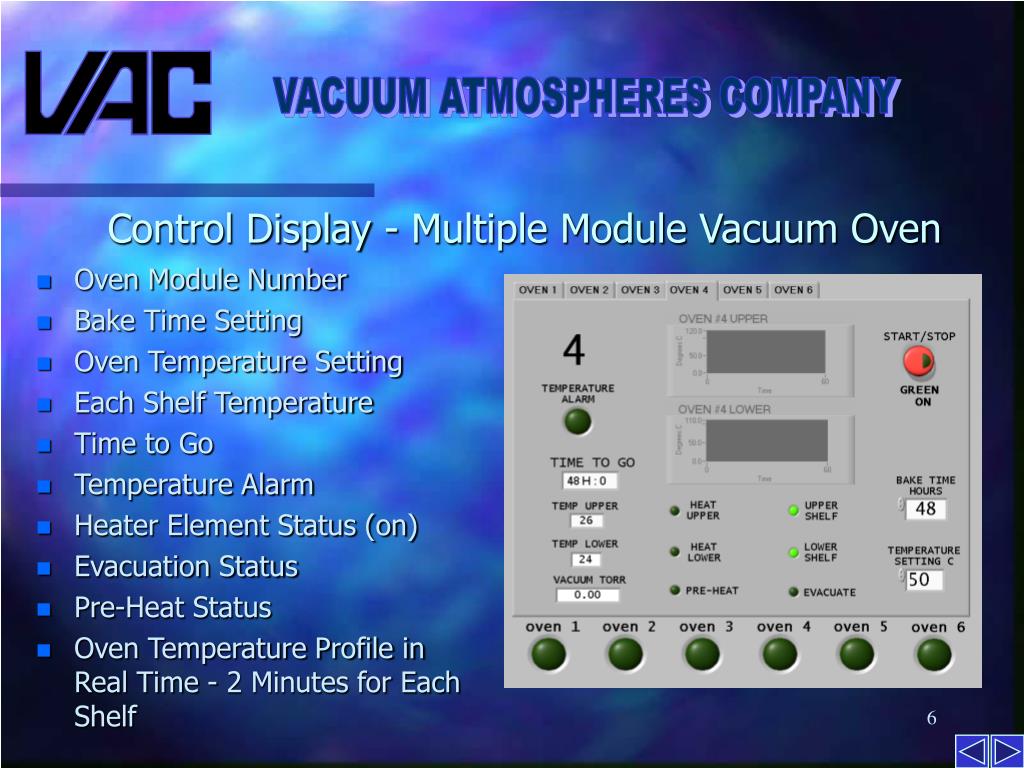

control display multiple module vacuum oven
Control Display - Multiple Module Vacuum Oven
  • Oven Module Number
  • Bake Time Setting
  • Oven Temperature Setting
  • Each Shelf Temperature
  • Time to Go
  • Temperature Alarm
  • Heater Element Status (on)
  • Evacuation Status
  • Pre-Heat Status
  • Oven Temperature Profile in Real Time - 2 Minutes for Each Shelf
configuration multiple module vacuum oven
Configuration - Multiple Module Vacuum Oven
  • 1) Vacuum Oven Module
  • 2) Display CRT Monitor
  • 3) Computer
  • 4) Module Storage Bay
  • 5) Oven Base Cover
  • 6) Main Power Switch - Power 208/230 Vac 50-60 Hz
  • 7) Individual Module Status Lamp
  • Overall Size - W 40” x D 31” x H 61” (1016mm x 787mm x 1549mm)
module construction multiple module vacuum oven
Module Construction - Multiple Module Vacuum Oven
  • Module/Shelf Material - Aluminum
  • Module Weight - 22 lbs. (10 kg)
  • Module Size - W 7” x H 7” x D 22” (177mm x 177mm x 559mm)
  • Shelf Size - 2 Each - 5.5” x 18” (139mm x 457mm)
  • Top Shelf Volume - H 1.87” (47mm) 185 in³ (3043 cm³)
  • Lower Shelf Volume - H 2” (50mm) 198 in³ (3246 cm³)
  • Heating Element - Two 400 Watt Flexible Elements per Module
  • No Detectable Leaks - Tested to 3 x 10-7 std cc/sec
module assembly multiple module vacuum oven
Module Assembly - Multiple Module Vacuum Oven
  • 1) Refill Valve
  • 2) Handle
  • 3) Hinge Bar
  • 4) Teflon Shelf Support
  • 5) Heater Shelf
  • 6) Nylon Slide Buttons
  • 7) Thermocouple Connectors
  • 8) Solenoid Power Connection
  • 9) Solenoid Valve, 2 Way
  • 10) Vacuum Interface Disc
  • 11) Removable Door
