building antennas from everyday materials

Building Antennas from Everyday Materials

by Marc C. Tarplee Ph.D., NCE

N4UFP

the problem
The Problem
  • We’ve all seen commercially built antennas or construction plans for antennas in magazines like QST or CQ
  • We’ve also seen wire models of antennas that are used by simulation software.
  • In every case we usually ask ourselves the following question:
    • How to I build the #@$% thing??
  • Many projects call for aluminum tubing, stainless steel hardware, fiberglass insulators, gamma matches, etc. and require the use of tools such as a drill press or lathe for construction.
the solution
The Solution
  • See what materials are available locally.
    • Home improvement stores
    • The local hardware store
    • Auto parts stores
  • Use designs that can be constructed from those materials.
    • Loops with wire elements
    • Wire yagi designs (Moxon, Hex-Beam, etc.)
conductors radiators

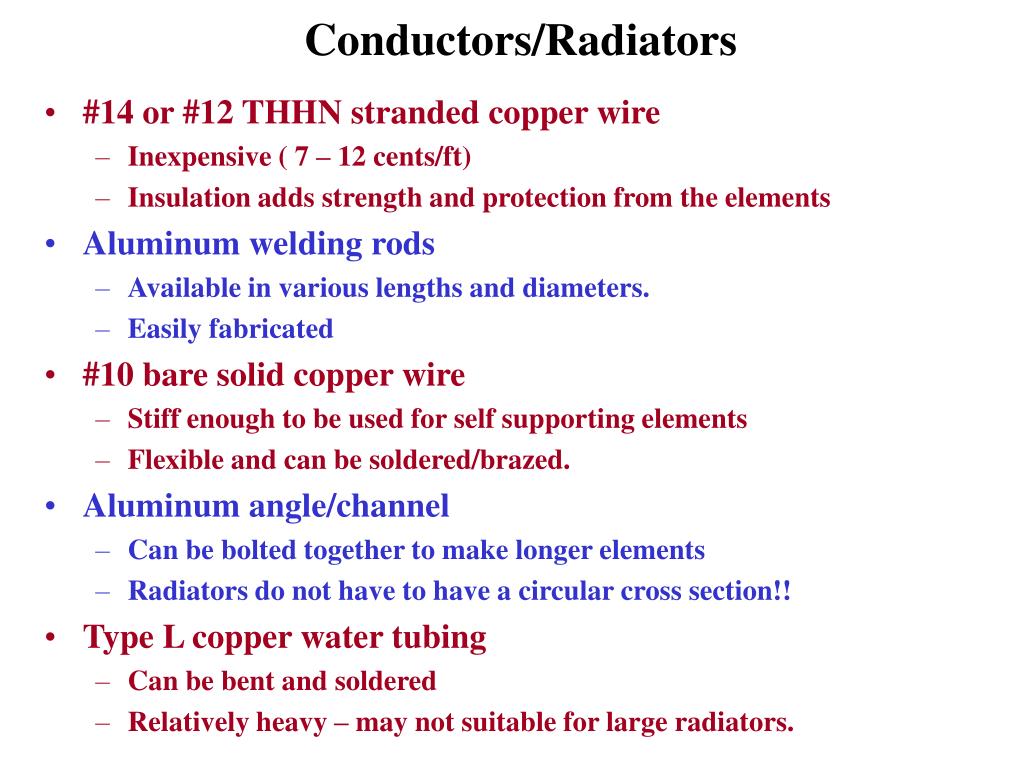

Conductors/Radiators
  • #14 or #12 THHN stranded copper wire
    • Inexpensive ( 7 – 12 cents/ft)
    • Insulation adds strength and protection from the elements
  • Aluminum welding rods
    • Available in various lengths and diameters.
    • Easily fabricated
  • #10 bare solid copper wire
    • Stiff enough to be used for self supporting elements
    • Flexible and can be soldered/brazed.
  • Aluminum angle/channel
    • Can be bolted together to make longer elements
    • Radiators do not have to have a circular cross section!!
  • Type L copper water tubing
    • Can be bent and soldered
    • Relatively heavy – may not suitable for large radiators.
insulators
Insulators
  • Acrylic sheet
    • Can be cut by scoring and drilled
    • Good dielectric strength
  • PET (polyethylene terephthalate).
    • Used to make soda bottles
    • Good dielectric strength
    • Can be cut with scissors
    • Non-biodegradeable
  • Wood
    • Available in many sizes and shapes
    • Easily drilled and cut
    • Should be painted to prevent water absorption
  • PVC pipe
    • Easily worked with hand tools
    • Good dielectric strength
    • Non-biodegradeable
booms and spreaders
Booms and Spreaders
  • Screen Molding (0.375x0.75 inch)
    • Can be used for lengths up to ~ 8 feet
    • Should be painted
  • Bamboo fishing poles
    • Can be used for lengths up to ~15 feet
    • Should be varnished to prevent deterioration
  • Fiberglass fishing pole blanks
    • Lighter and stiffer than bamboo
    • Non biodegradeable
  • PVC pipe
    • Many varieties of pipe and fittings available
    • Combination of high density and flexibility make it unsuitable for long booms/spreaders.
example 6m moxon rectangle
Example: 6m Moxon Rectangle
  • Wire used for elements
  • Screen molding used for spreaders
  • Insulators were made from a 2 liter Coke bottle.
  • Everything fastened with standard #6-32 hardware
  • Weight < 5 lbs
example 8 element 222 mhz yagi
Example: 8 element 222 MHz Yagi
  • Boom – screen molding
  • Parasitic elements – 1/8 inch diameter aluminum welding rod
  • Driven element - #10 bare solid copper wire.
