1 6 angle pair relationships

1.6 Angle Pair Relationships

Geometry

Mrs. Spitz

Fall 2005

standards objectives
Standards/Objectives:

Standard 3: Students will understand geometric concepts and applications.

Objectives:

  • Identify vertical angles and linear pairs.
  • Identify complementary and supplementary angles.
assignment
Assignment:
  • pp. 47-49 #4-36 all; 41-51 odd
which angles are adjacent

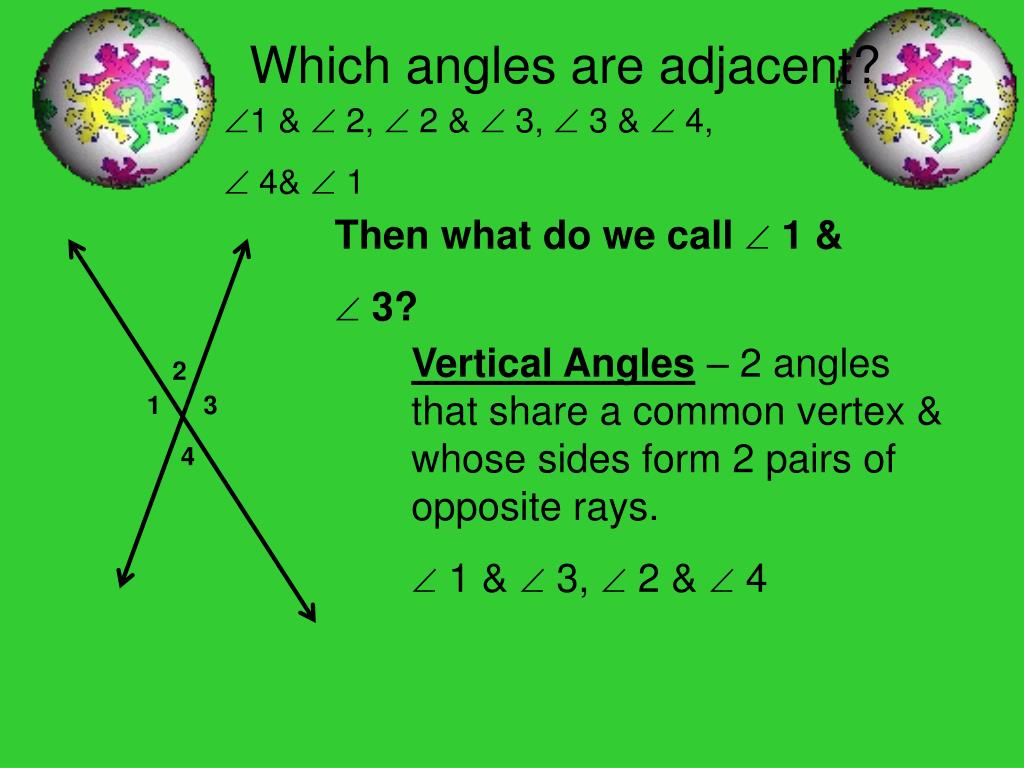

Which angles are adjacent?

1 &  2,  2 &  3,  3 &  4,

 4&  1

Then what do we call  1 &

 3?

Vertical Angles – 2 angles that share a common vertex & whose sides form 2 pairs of opposite rays.

 1 &  3,  2 &  4

2

1 3

4

linear pair of angles
Linear Pair (of angles)
  • 2 adjacent angles whose non-common sides are opposite rays.

1 2

example

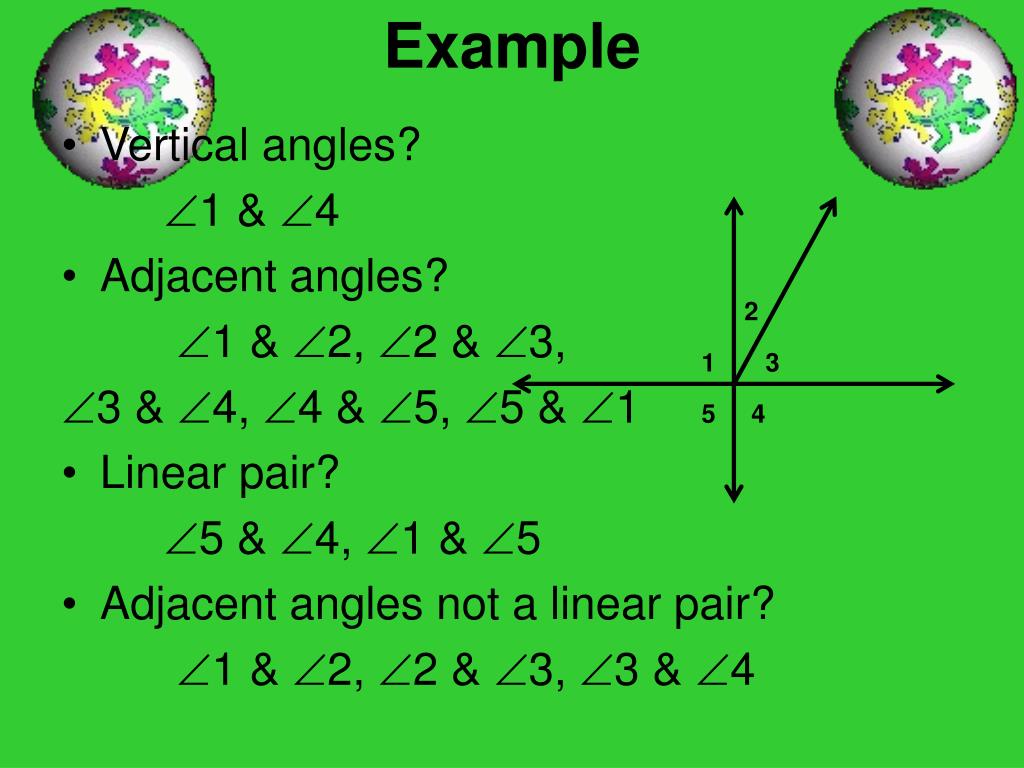

Example
  • Vertical angles?

1 & 4

  • Adjacent angles?

1 & 2, 2 & 3,

3 & 4, 4 & 5, 5 & 1

  • Linear pair?

5 & 4, 1 & 5

  • Adjacent angles not a linear pair?

1 & 2, 2 & 3, 3 & 4

2

1 3

5 4

important facts

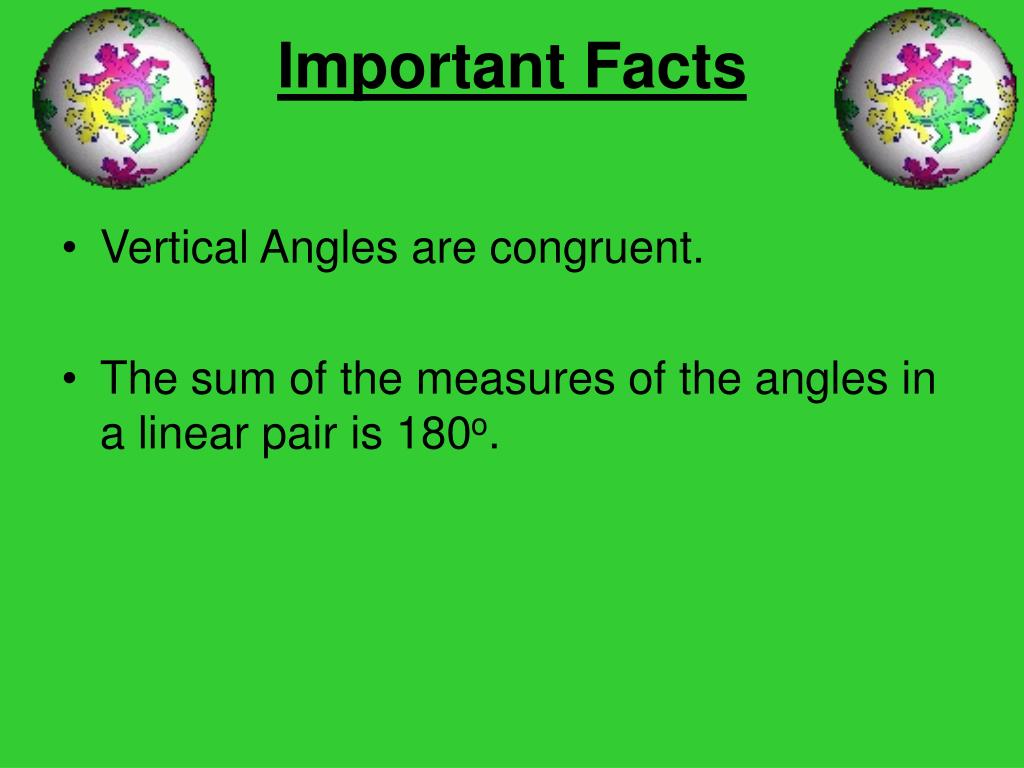

Important Facts
  • Vertical Angles are congruent.
  • The sum of the measures of the angles in a linear pair is 180o.
example1
Example:
  • If m 5=130o, find

m 3 = 130°

m 6 = 50°

m 4 = 50°

4

5 3

6

example2

A

Example:

E

3x+5o y+20o

B

x+15o 4y-15o

D

  • Find x

y

m ABE

m ABD

m DBC

m EBC

C

x=40

y=35

m ABE=125o

m ABD=55o

m DBC=125o

m EBC=55o

complementary angles
Complementary Angles
  • 2 angles whose sum is 90o

35o

1

2

55o

A

1 & 2 are complementary

A & B are complementary

B

supplementary angles
Supplementary Angles
  • 2 angles whose sum is 180o

1 & 2 are supplementary.

X & Y are supplementary.

1 2

130o 50o

X Y

ex a b are supplementary m a is 5 times m b find m a m b
Ex: A & B are supplementary. mA is 5 times mB. Find mA & mB.

mA + mB = 180o

mA = 5(mB)

Now substitute!

5(mB) + mB = 180o

6(mB)=180o

mB=30o

mA=150o
