lecture 6 other distributed systems

Lecture 6 - Other Distributed Systems

CSE 490h – Introduction to Distributed Computing, Spring 2007

Except as otherwise noted, the content of this presentation is licensed under the Creative Commons Attribution 2.5 License.

outline
Outline
  • DNS
  • BOINC
  • PlanetLab
  • OLPC & Ad-hoc Mesh Networks
  • Lecture content wrap-up
domain name system
Domain Name System
  • Mnemonic identifiers work considerably better for humans than IP addresses

“www.google.com? Surely you mean 66.102.7.99!”

  • Who maintains the mappings from nameIP?
a manageable problem
A Manageable Problem

© 2006 Computer History Museum. All rights reserved.

www.computerhistory.org

in the beginning
In the beginning…
  • Every machine had a file named hosts.txt
  • Each line contained a name/IP mapping
  • New hosts files were updated and distributed via email

… This clearly wasn’t going to scale

dns implementations
DNS Implementations
  • Modern DNS system first proposed in 1983
  • First implementation in 1984 (Paul Mockapetris)
  • BIND (Berkeley Internet Name Domain) written by four Berkeley students in 1985.
  • Many other implementations today
hierarchical naming
Hierarchical Naming
  • DNS names are arranged in a hierarchy:

www.cs.washington.edu

  • Entries are either subdomains or hostnames
  • subdomains contain more subdomains, or hosts (up to 127 levels deep!)
  • Hosts have individual IP addresses
mechanics theory

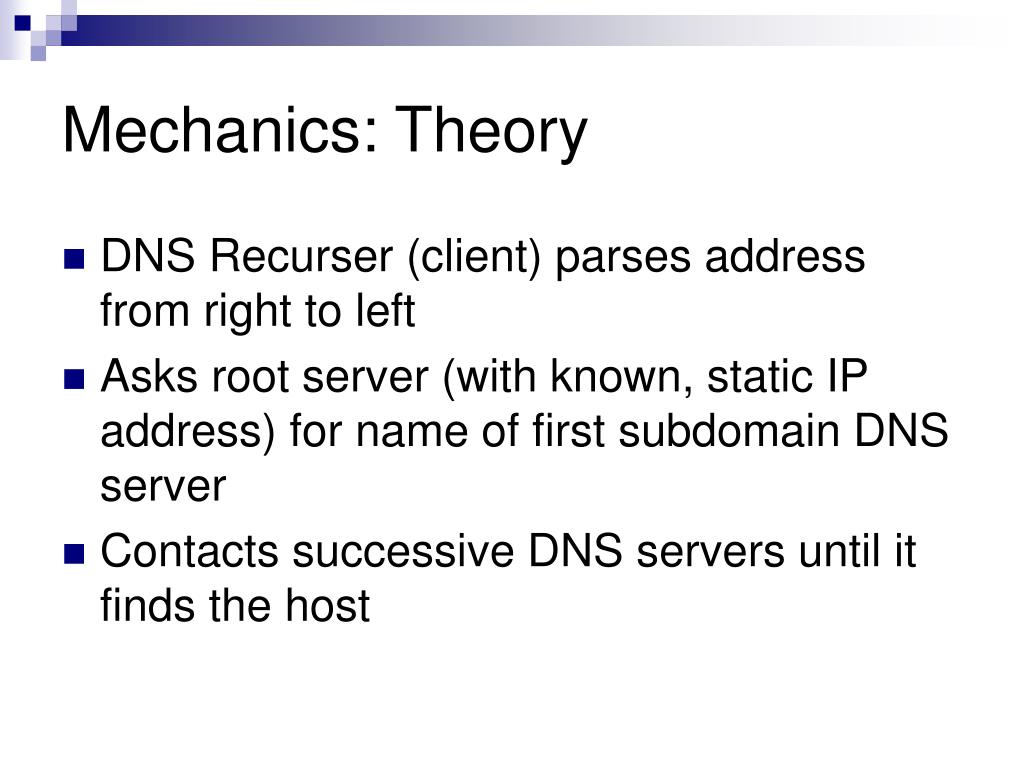

Mechanics: Theory
  • DNS Recurser (client) parses address from right to left
  • Asks root server (with known, static IP address) for name of first subdomain DNS server
  • Contacts successive DNS servers until it finds the host
mechanics in practice

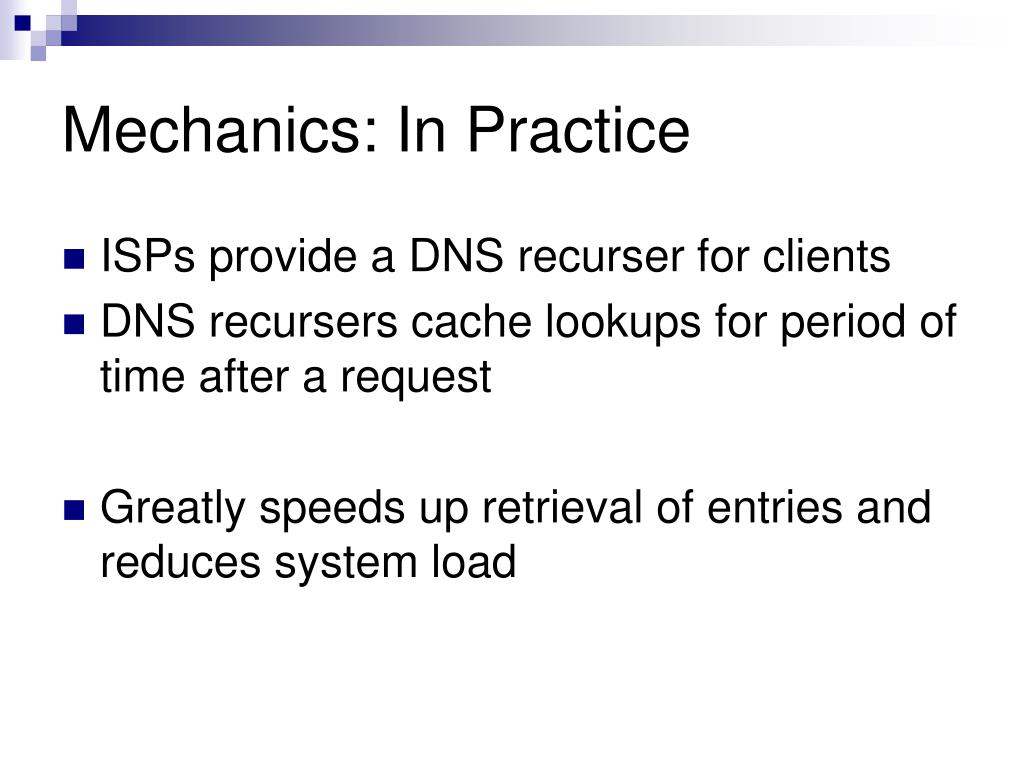

Mechanics: In Practice
  • ISPs provide a DNS recurser for clients
  • DNS recursers cache lookups for period of time after a request
  • Greatly speeds up retrieval of entries and reduces system load
what is boinc
What is BOINC?
  • “Berkeley Open Infrastructure for Network Computing”
  • Platform for Internet-wide distributed applications
  • Volunteer computing infrastructure
    • Relies on many far-flung users volunteering spare CPU power
some facts

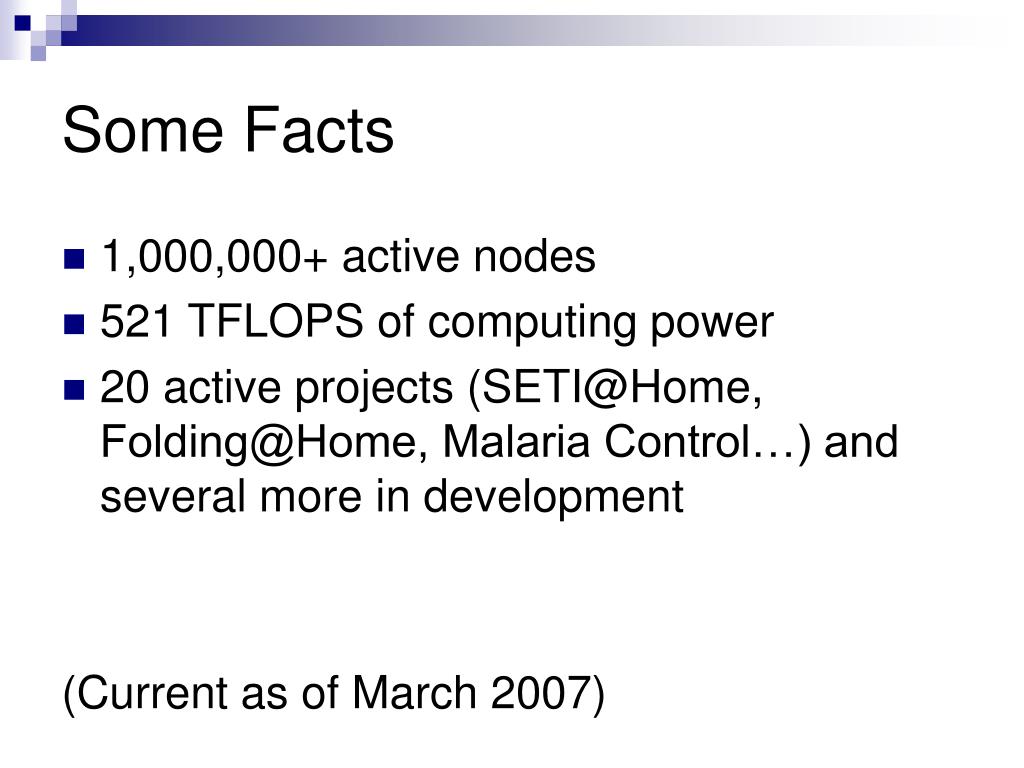

Some Facts
  • 1,000,000+ active nodes
  • 521 TFLOPS of computing power
  • 20 active projects (SETI@Home, Folding@Home, Malaria Control…) and several more in development

(Current as of March 2007)

comparison to mapreduce
Comparison to MapReduce
  • Both are frameworks on which “useful” systems can be built
  • Does not prescribe particular programming style
  • Much more heterogeneous architecture
  • Does not have a formal aggregation step
  • Designed for much longer-running systems (months/years vs. minutes/hours)
architecture
Architecture
  • Central server runs LAMP architecture for web + database
  • End-users run client application with modules for actual computation
  • BitTorrent used to distribute data elements efficiently
system features
System Features
  • Homogenous redundancy
  • Work unit “trickling”
  • Locality scheduling
  • Distribution based on host parameters
client software
Client software
  • Available as regular application, background “service”, or screensaver
  • Can be administered locally or LAN-administered via RPC
  • Can be configured to use only “low priority” cycles
client task interaction
Client/Task Interaction
  • Client software runs on variety of operating systems, each with different IPC
  • Uses shared memory message passing to transmit information from “manager” to actual tasks and vice versa
why participate
Why Participate?
  • Sense of accomplishment, community involvement, or scientific duty
  • Stress testing machines/networks
  • Potential for fame (if your computer “finds” an alien planet, you can name it!)
  • “Bragging rights” for computing more units
    • “BOINC Credits”
credit cobblestones

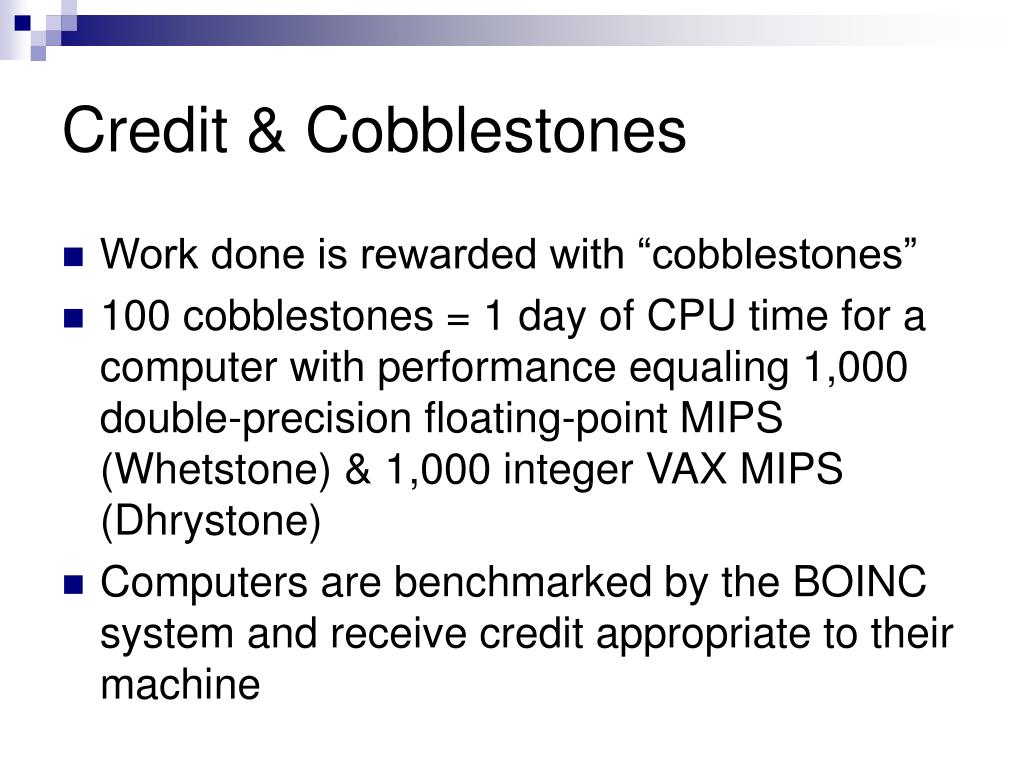

Credit & Cobblestones
  • Work done is rewarded with “cobblestones”
  • 100 cobblestones = 1 day of CPU time for a computer with performance equaling 1,000 double-precision floating-point MIPS (Whetstone) & 1,000 integer VAX MIPS (Dhrystone)
  • Computers are benchmarked by the BOINC system and receive credit appropriate to their machine
anti cheating measures
Anti-Cheating Measures
  • Work units are computed redundantly by several different machines, and results are compared by the central server for consistency
  • Credit is awarded after the internal server validates the returned work units
  • Work units must be returned before a deadline
conclusions

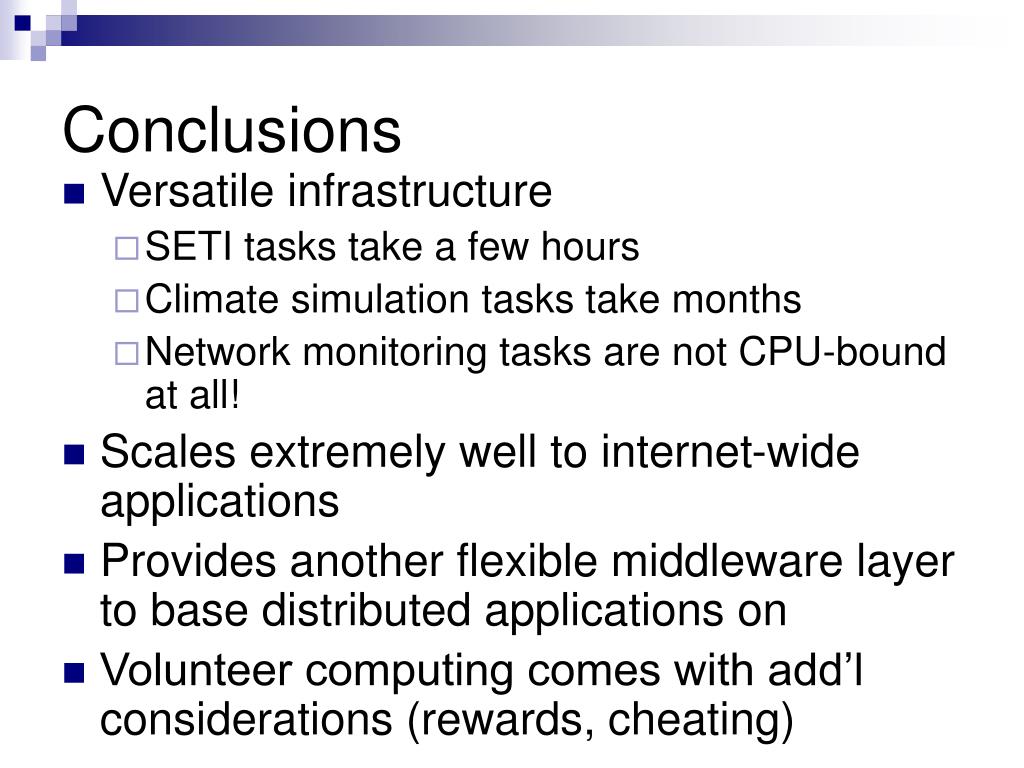

Conclusions
  • Versatile infrastructure
    • SETI tasks take a few hours
    • Climate simulation tasks take months
    • Network monitoring tasks are not CPU-bound at all!
  • Scales extremely well to internet-wide applications
  • Provides another flexible middleware layer to base distributed applications on
  • Volunteer computing comes with add’l considerations (rewards, cheating)
what if you wanted to
What if you wanted to:
  • Test a new version of Bittorrent that might generate GB’s and GB’s of data?
  • Design a new distributed hashtable algorithm for thousands of nodes?
  • Create a gigantic caching structure that mirrored web pages in several sites across the USA?
problem similarities

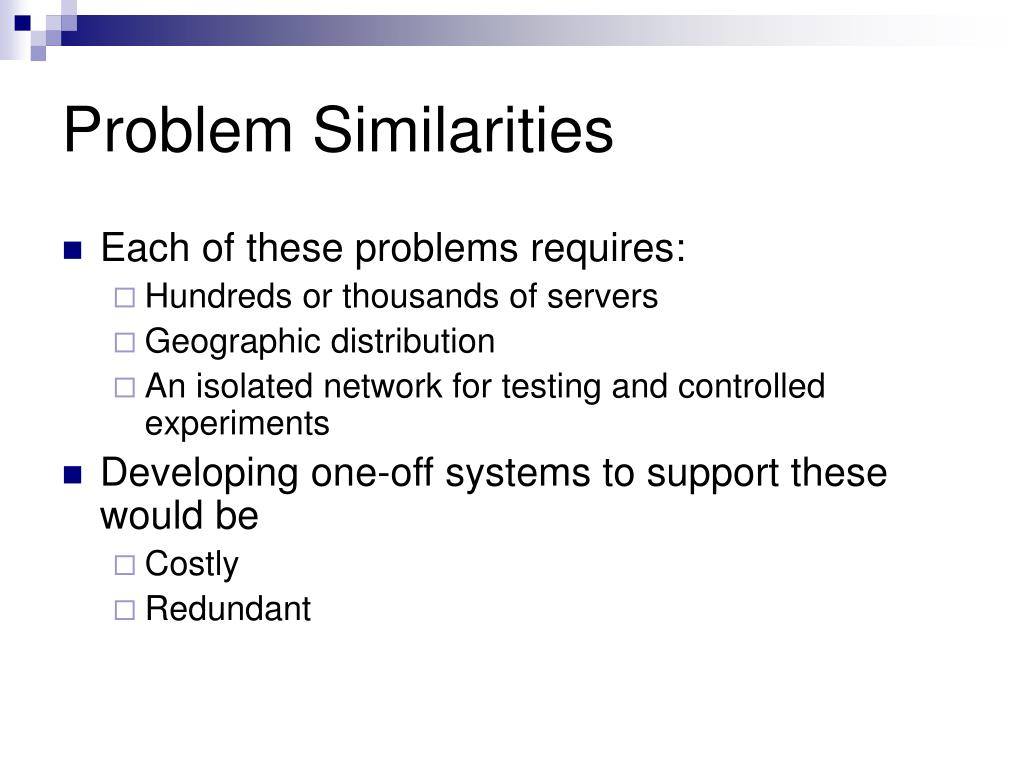

Problem Similarities
  • Each of these problems requires:
    • Hundreds or thousands of servers
    • Geographic distribution
    • An isolated network for testing and controlled experiments
  • Developing one-off systems to support these would be
    • Costly
    • Redundant
planetlab26

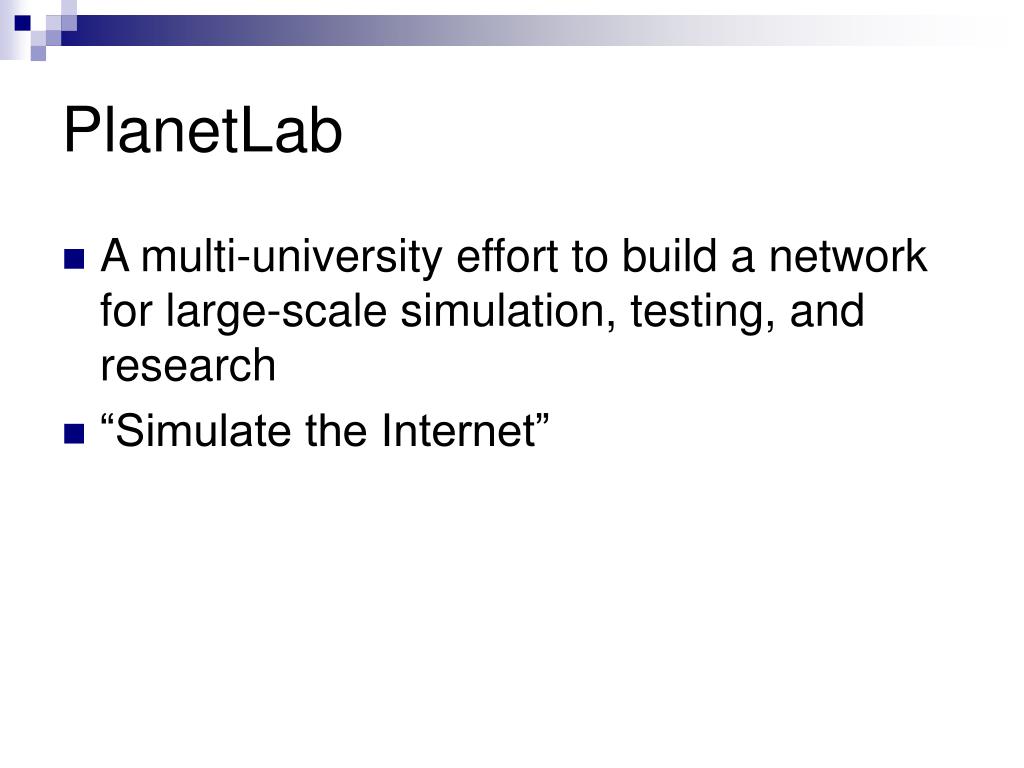

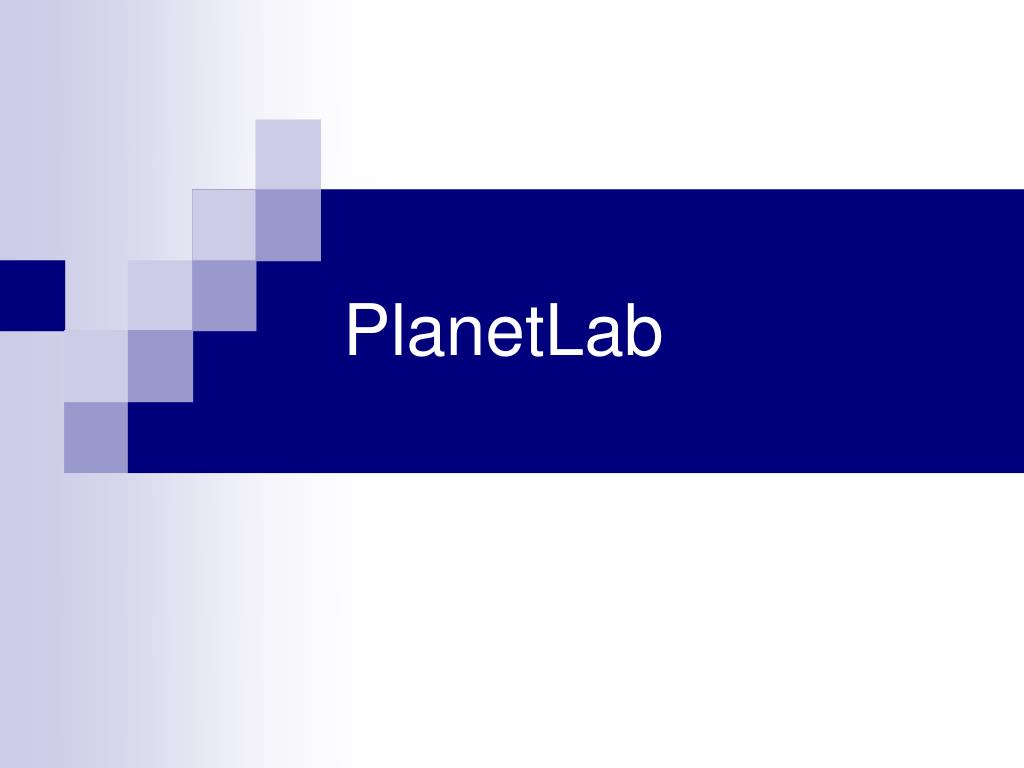

PlanetLab
  • A multi-university effort to build a network for large-scale simulation, testing, and research
  • “Simulate the Internet”
usage stats
Usage Stats
  • Servers: 722+
  • Slices: 600+
  • Users: 2500+
  • Bytes-per-day: 3 - 4 TB
  • IP-flows-per-day: 190M
  • Unique IP-addrs-per-day: 1M

As of Fall, 2006

project goals
Project Goals
  • Supports short- and long-term research goals
  • System put up “as fast as possible” – PlanetLab design evolves over time to meet changing needs
    • PlanetLab is a process, not a result
simultaneous research

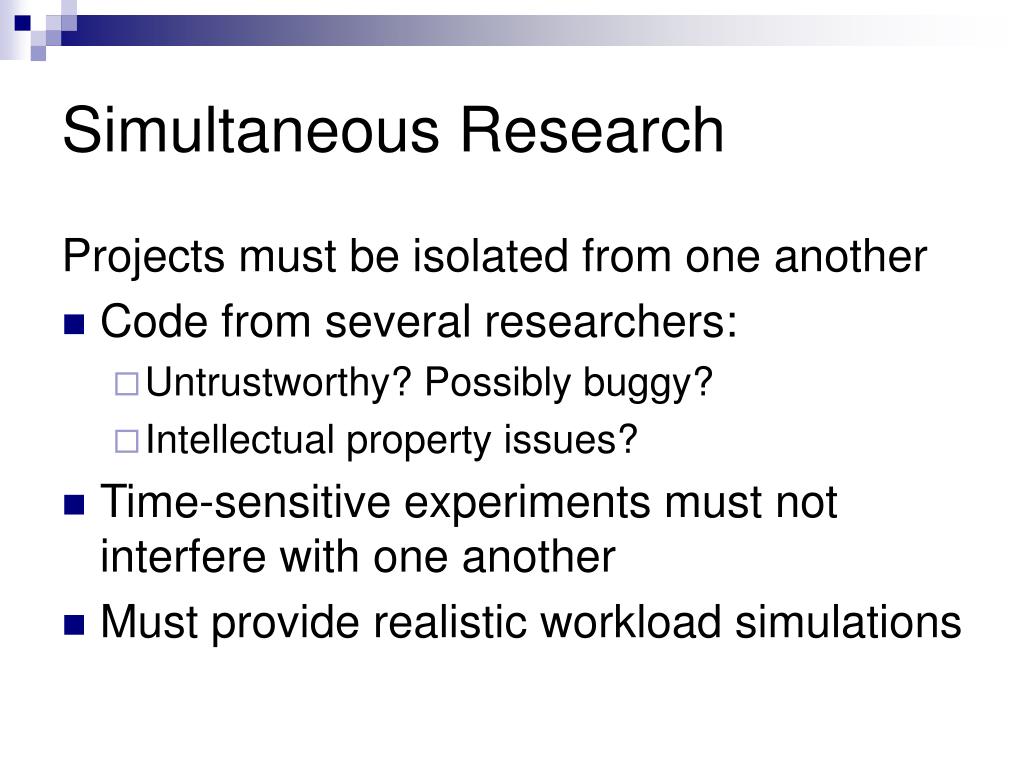

Simultaneous Research

Projects must be isolated from one another

  • Code from several researchers:
    • Untrustworthy? Possibly buggy?
    • Intellectual property issues?
  • Time-sensitive experiments must not interfere with one another
  • Must provide realistic workload simulations
architecture30
Architecture
  • Built on Linux, ssh, other standard tools
    • Provides “normal” environment for application development
  • Hosted at multiple universities w/ separate admins
    • Requires trust relationships with respect to previous goals
architecture cont
Architecture (cont.)
  • Network is divided into “slices” – server pools created out of virtual machines
  • Trusted intermediary “PLC” system grants access to network resources
    • Allows universities to specify who can use slices at each site
    • Distributed trust relationships
    • Central system control  Federated control
resource allocation
Resource allocation
  • PLC authenticates users and understands relationships between principals; issues tickets
  • SHARP system at site validates ticket + returns lease
user verification
User Verification
  • Public-key cryptography used to sign modules entered into PlanetLab
    • X.509 + SSL keys are used by PLC + slices to verify user authenticity
    • Keys distributed “out of band” ahead of time
final thoughts
Final Thoughts
  • Large system with complex relationships
  • Currently upgrading to version 4.0
  • New systems (GENI) are being proposed
  • Still provides lots of resources to researchers
    • CoralCache, several other projects run on PlanetLab
slide35

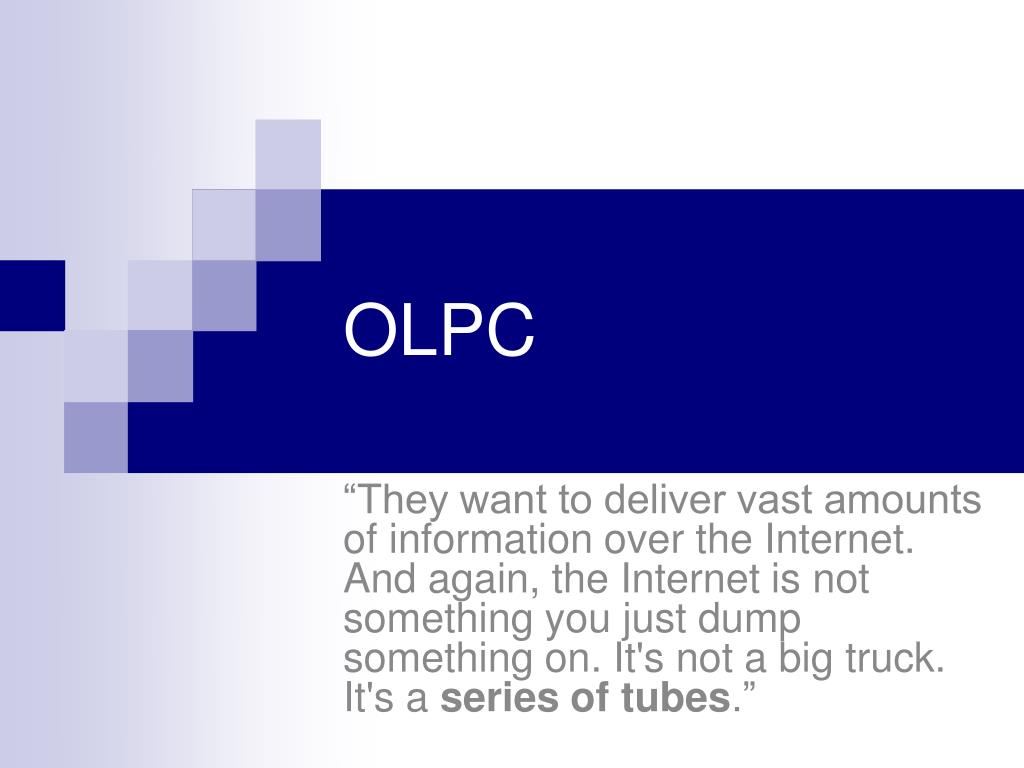

OLPC

“They want to deliver vast amounts of information over the Internet. And again, the Internet is not something you just dump something on. It's not a big truck. It's a series of tubes.”

the internet is a series of tubes

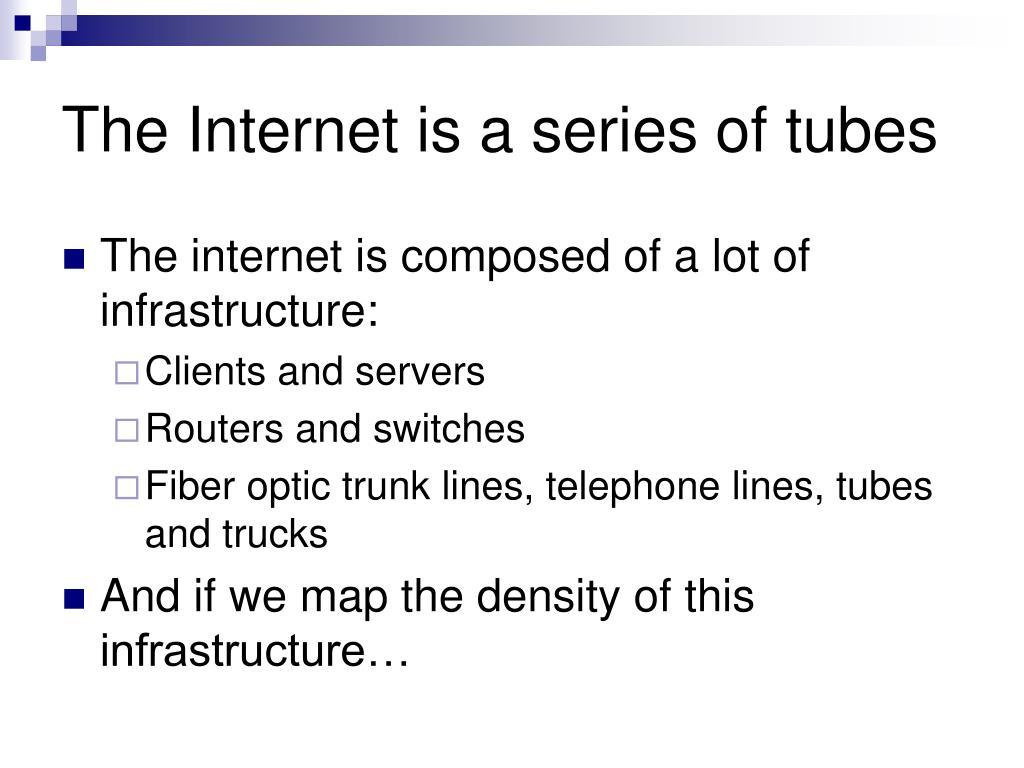

The Internet is a series of tubes
  • The internet is composed of a lot of infrastructure:
    • Clients and servers
    • Routers and switches
    • Fiber optic trunk lines, telephone lines, tubes and trucks
  • And if we map the density of this infrastructure…
how do we distribute knowledge when there are no tubes

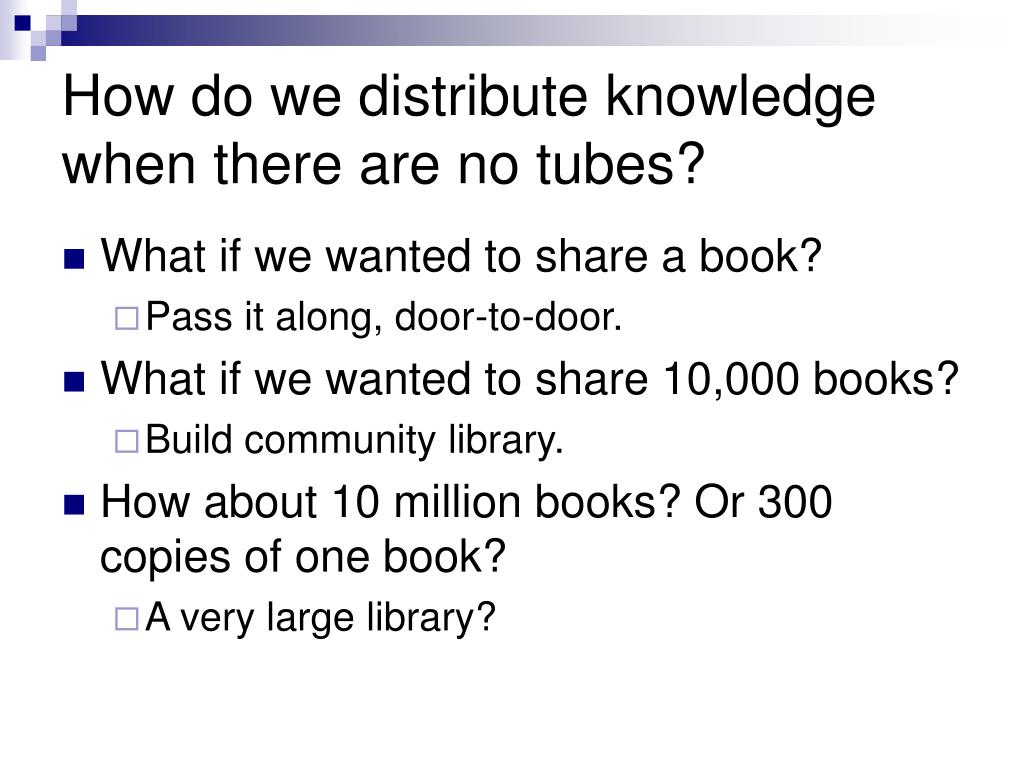

How do we distribute knowledge when there are no tubes?
  • What if we wanted to share a book?
    • Pass it along, door-to-door.
  • What if we wanted to share 10,000 books?
    • Build community library.
  • How about 10 million books? Or 300 copies of one book?
    • A very large library?
solutions
Solutions
  • We need to build infrastructure to make large-scale distribution easy (i.e., computers and networking equipment)
  • We need to be cheap
    • Most of those dark spots don’t have much money
  • We need reliability where reliable power is costly
    • Again, did you notice that there weren’t so many lights? It’s because there’s no electricity!
the traditional solution a shared computer with internet
The traditional solution: a shared computer with Internet
  • India
    • 75% of people in rural villages
    • 90% of phones in urban areas
  • Many villagers share a single phone, usually located in the town post office
  • Likewise, villages typically share a few computers, located at the school (or somewhere with reliable power)
  • What’s the downside to this model?
    • It might provide shared access to a lot of information, but it doesn’t solve the “300 copies of a book” case
the distributed solution the xo
The distributed solution: the XO
  • OLPC = One Laptop Per Child.

AKA: Children’s Machine, OLPC, $100 laptop

A cheap (~$150) laptop designed for children in developing countries

Photo: laptop.org

xo design
XO design
  • Low power consumption
    • No moving parts (flash memory, passive cooling)
    • Dual-mode display
      • In color, the XO consumes 2-3 watts
      • In high-contrast monochrome, less than 1 watt
    • Can be human powered by a foot-pedal
  • Rugged, child-friendly design
  • Low material costs
  • Open-source software
xo networking

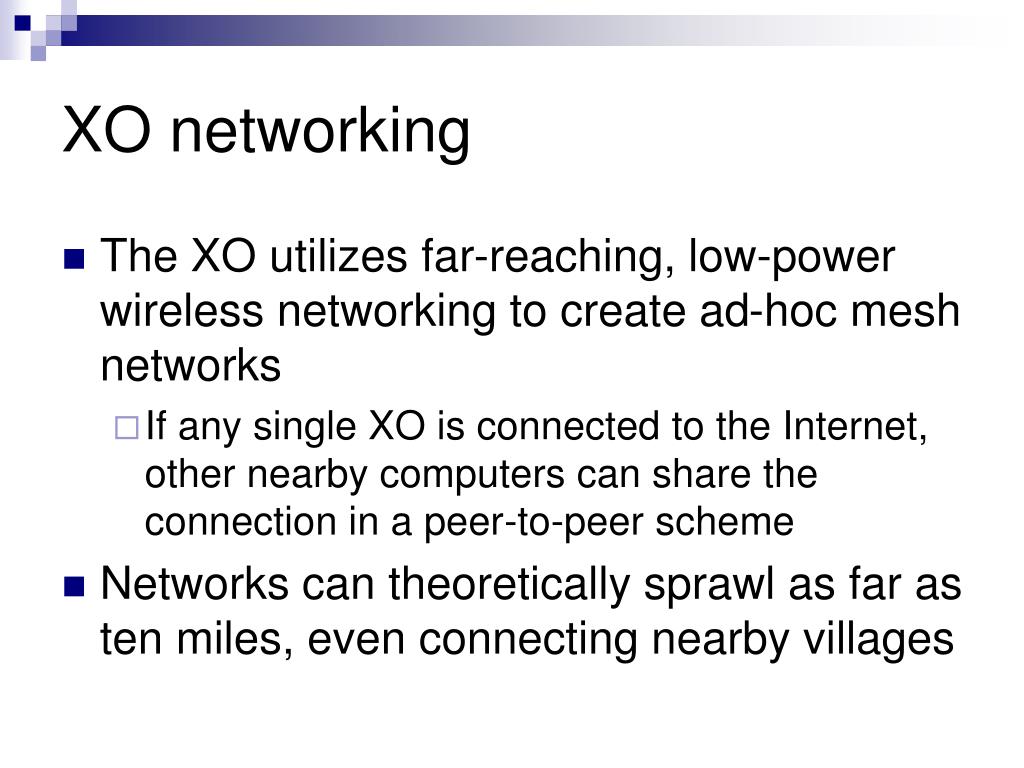

XO networking
  • The XO utilizes far-reaching, low-power wireless networking to create ad-hoc mesh networks
    • If any single XO is connected to the Internet, other nearby computers can share the connection in a peer-to-peer scheme
  • Networks can theoretically sprawl as far as ten miles, even connecting nearby villages
xo storage and sharing
XO storage and sharing
  • XO relies on network for content and collaboration
    • Content is stored on a central servers
      • Textbooks
      • Cached websites (Wikipedia)
      • User content
    • Software makes it easy to see other users on the network and share content
xo distribution
XO distribution

XO must be purchased in orders of 1 million units by governments in developing nations (economies of scale help to lower costs)

Governments are responsible for distribution of laptops

Laptops are only for children, designed solely as a tool for learning

xo downfalls
XO downfalls
  • Distribution downfalls
    • What about children in developed nations?
      • Sell to developed markets at a higher price to subsidize costs for developing nations.
    • Can governments effectively distribute? What about black markets?
      • OLPC could perhaps partner with local schools and other NGOs to aid in distribution, training and maintenance
  • Too expensive?
    • Some nations can only afford as much $20 per child per year. How can we cater to them?
what can the xo achieve
What can the XO achieve?
  • Today, only 16 percent of the world’s population is estimated to have access to the Internet
  • Develop new markets
    • Microcredit
      • Make small loans to the impoverished without requiring collateral
      • Muhammad Yunus and the Grameen Bank won the 2006 Nobel Peace Prize for their work here
    • The power of the village economy
      • As millions of users come online in developing nations, there will be many new opportunities for commerce.
      • Helps those in developing nations to advance their economies and develop stronger economic models
why give the xo to children
Why give the XO to children?
  • UN Millennium Development Goal #2: “achieve universal primary education”
  • Empower children to think and compete in a global space
    • Children are a nations greatest resource
    • Backed by a bolstered economy, they will grow to solve other issues (infrastructure, poverty, famine)
the course again in 5 minutes

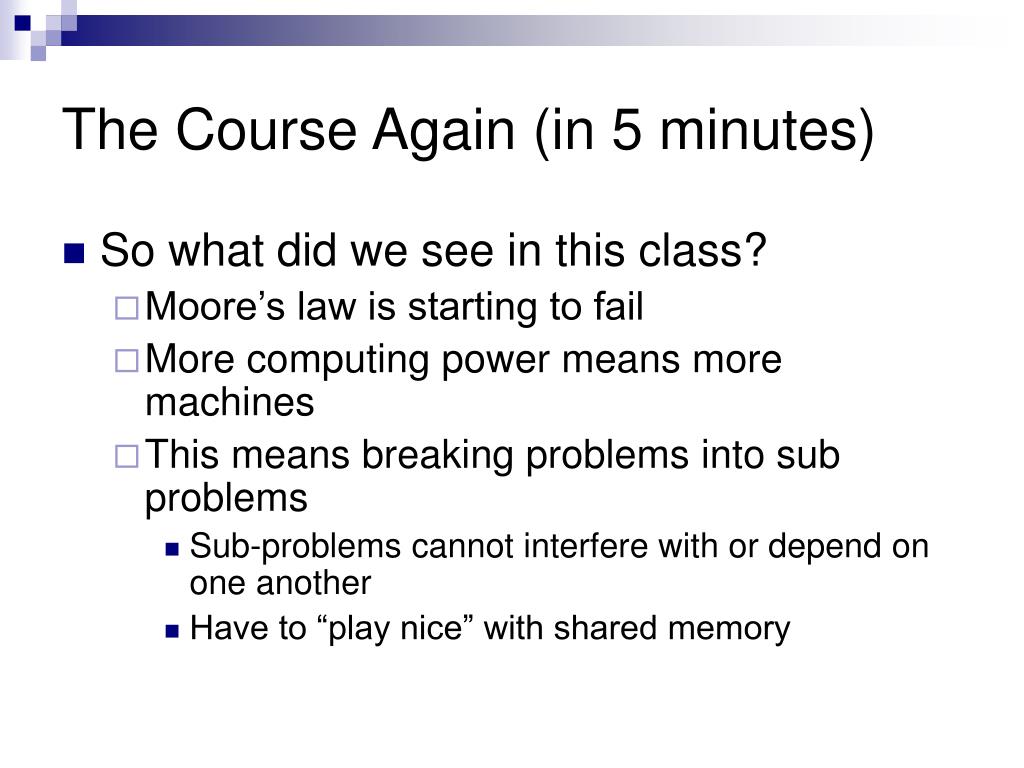

The Course Again (in 5 minutes)
  • So what did we see in this class?
    • Moore’s law is starting to fail
    • More computing power means more machines
    • This means breaking problems into sub problems
      • Sub-problems cannot interfere with or depend on one another
      • Have to “play nice” with shared memory
mapreduce
MapReduce
  • MapReduce is one paradigm for breaking problems up
    • Makes the “playing nice” easy by enforcing a decoupled programming model
    • Handles lots of the behind-the-scenes work
distributed systems networks
Distributed Systems & Networks
  • The network is a fundamental part of a distributed system
    • Have to plan for bandwidth, latency, etc
  • We’d like to think of the network as an abstraction
    • Sockets = pipes
    • RPC looks like a normal procedure call, handles tricky stuff under the hood
  • Still have to plan for failures of all kinds
distributed filesystems
Distributed Filesystems
  • The network allows us to make data available across many machines
    • Network file systems can hook into existing infrastructure
    • Specialized file systems (like GFS) can offer better performance with loss of generality
  • Raises issues of concurrency, process isolation, and how to combat stale data
and finally
And finally…
  • There are lots of distributed systems out there
  • MapReduce, BOINC, MPI, several other architectures, styles, problems to solve
  • You might be designing an important one soon yourself!
