Introduction to SCREEN3

SCREEN3 is a dispersion modeling tool designed to estimate ground-level concentrations of pollutants emitted from single sources under steady-state meteorological conditions. It uses Gaussian distribution principles to represent concentration profiles, allowing users to determine maximum concentrations, distances from emission sources, and effects of atmospheric stability. The model accounts for various input factors such as emission data, receptor locations, and local meteorology. Suitable for point, area, and flare sources, SCREEN3 aids in analyzing air quality impacts effectively.

beth
Download Presentation

Introduction to SCREEN3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Introduction to SCREEN3 Marti Blad smokestacks image from Univ. of Waterloo Environmental Sciences

  2. Historically Image from collection of Pittsburgh Photographic Library, Carnegie Library of Pittsburgh

  3. Gaussian Dispersion z ¤ Dh = plume rise h = stack height Dh H = effective stack height H = h + Dh H h x C(x,y,z) Downwind at (x,y,z) ? y

  4. SCREEN3 Model Assumptions • Continuous pollutant emissions • Conservation of mass in atmosphere • Steady-state meteorological conditions • Concentration profiles are represented by Gaussian distribution—bell curve shape

  5. SCREEN3 designed for… • Single source, short-term calculations • Estimate maximum ground level concentrations • Distance to max. concentration from source • Concentrations at user defined distances • Simple downwash algorithm • Max. concentrations in near & far wake • Estimate concentrations in cavity recirculation zone • Source types • All options for point & flare

  6. SCREEN3 designed for…(cont.) • Full range of meteorological conditions accepted • Stability classes • Wind speeds • Inversion break up • Shoreline fumigation • Determine plume rise for flare releases • Includes effects of BID • Buoyancy induced dispersion • Simple area & volume sources

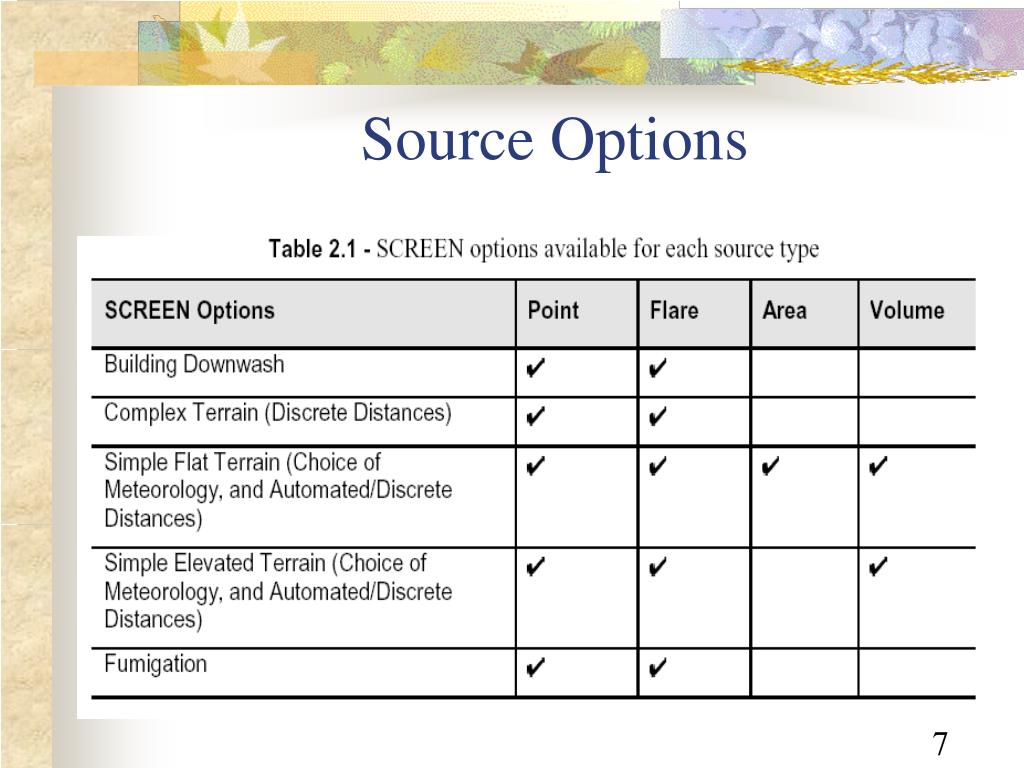

  7. Source Options

  8. Dispersion Model Structure INPUT DATA: Operator experience EMISSIONS METEROLOGY RECEPTORS Model does calculations Model Output: Estimates of Concentrations at Receptors

  9. Model Input Considerations • Source type • Point, area, volume, flare • Stack or source emission data • Pollutant emission data • Stack- or source-specific data • Temperature in stack • Velocity out of stack • Receptor data

  10. Input screen 1

  11. Input Considerations • Actual pattern of dispersion depends on atmospheric conditions prevailing during release • Major meteorological factors that influence dispersion of pollutants • Atmospheric stability (& temperature) • Mixing height • Wind speed & direction

  12. Meteorological inputs • Appropriate meteorological conditions • Appropriate for location • Appropriate for averaging time period • Wind stability and speed • Flat terrain or complex terrain • Distances to points of interest • Receptors

  13. Input screen: met data

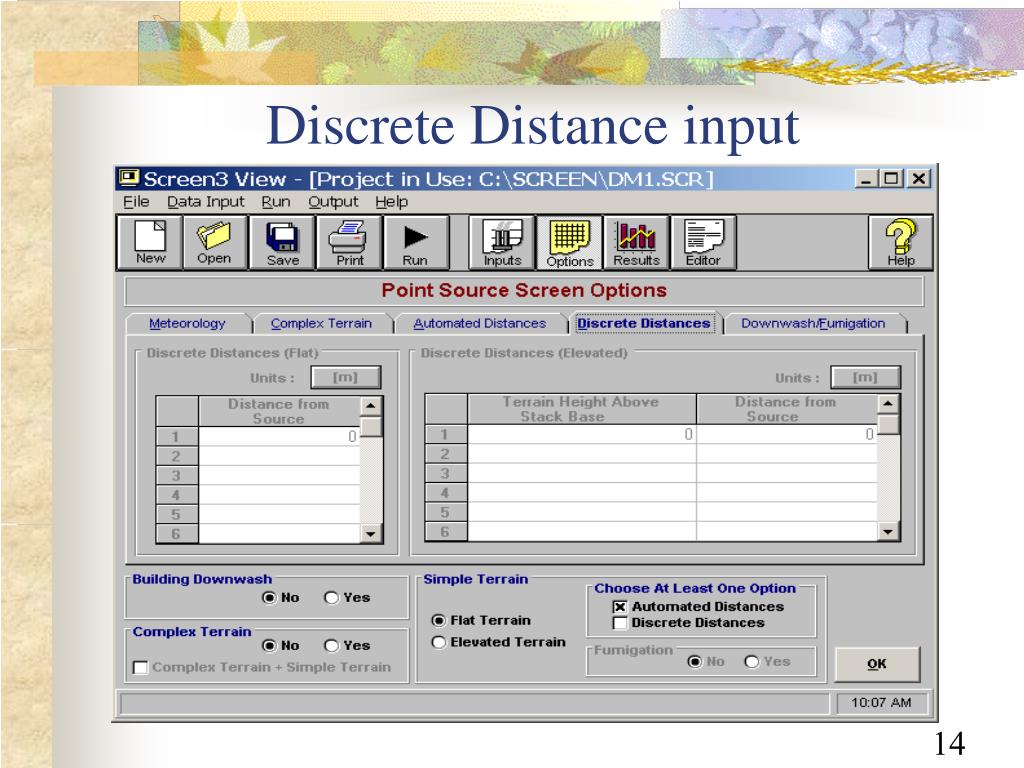

  14. Discrete Distance input

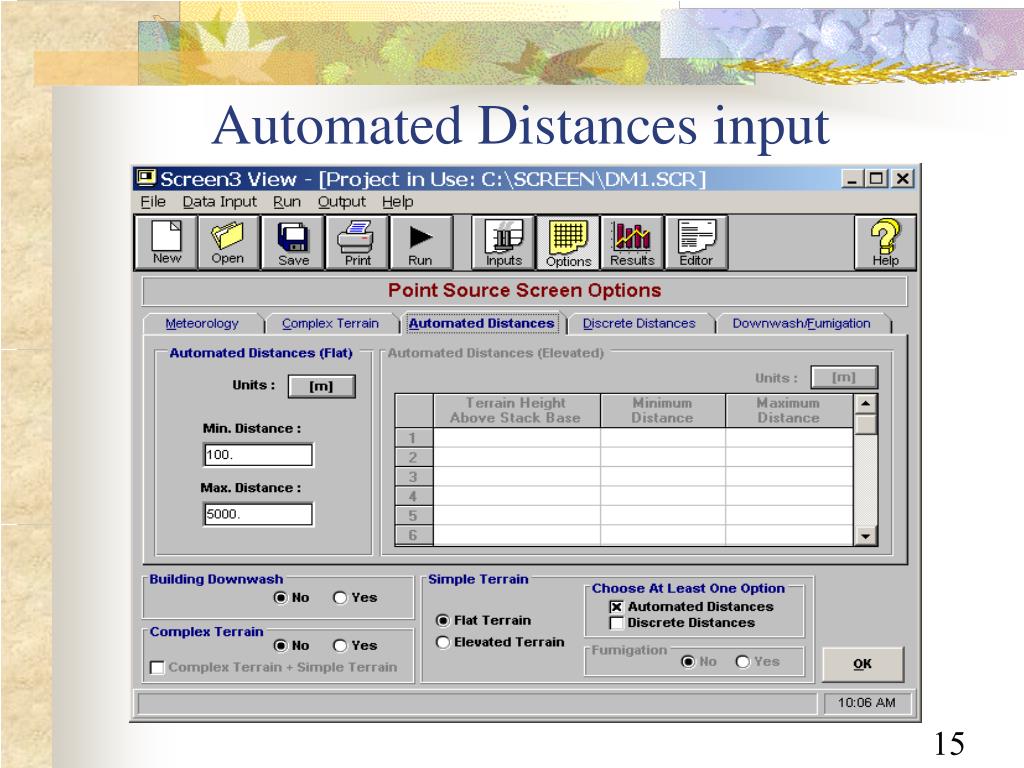

  15. Automated Distances input

  16. Building downwash option

  17. Run: screen update

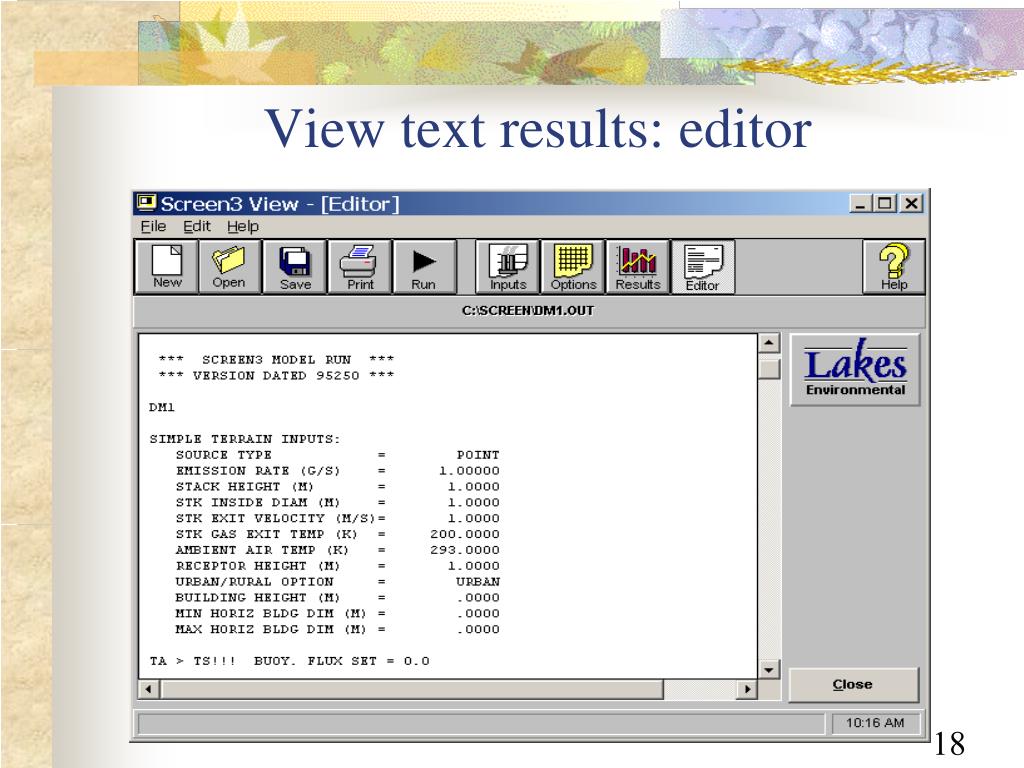

  18. View text results: editor

  19. Model results: graphs

  20. Evaluate graph

  21. Shape of picture

  22. Review • Dispersion = expand & diffuse • Picture • Gaussian = even spreading directions • Highest along axis • Input data quality critical • Screen3 limitation for reactive chemicals • No reactions assumed to create or destroy

  23. SCREEN3DEMONSTRATION Software provided courtesy of a division of Lakes Environmental Consultants Inc.
