Key Considerations When Choosing a Data Acquisition System

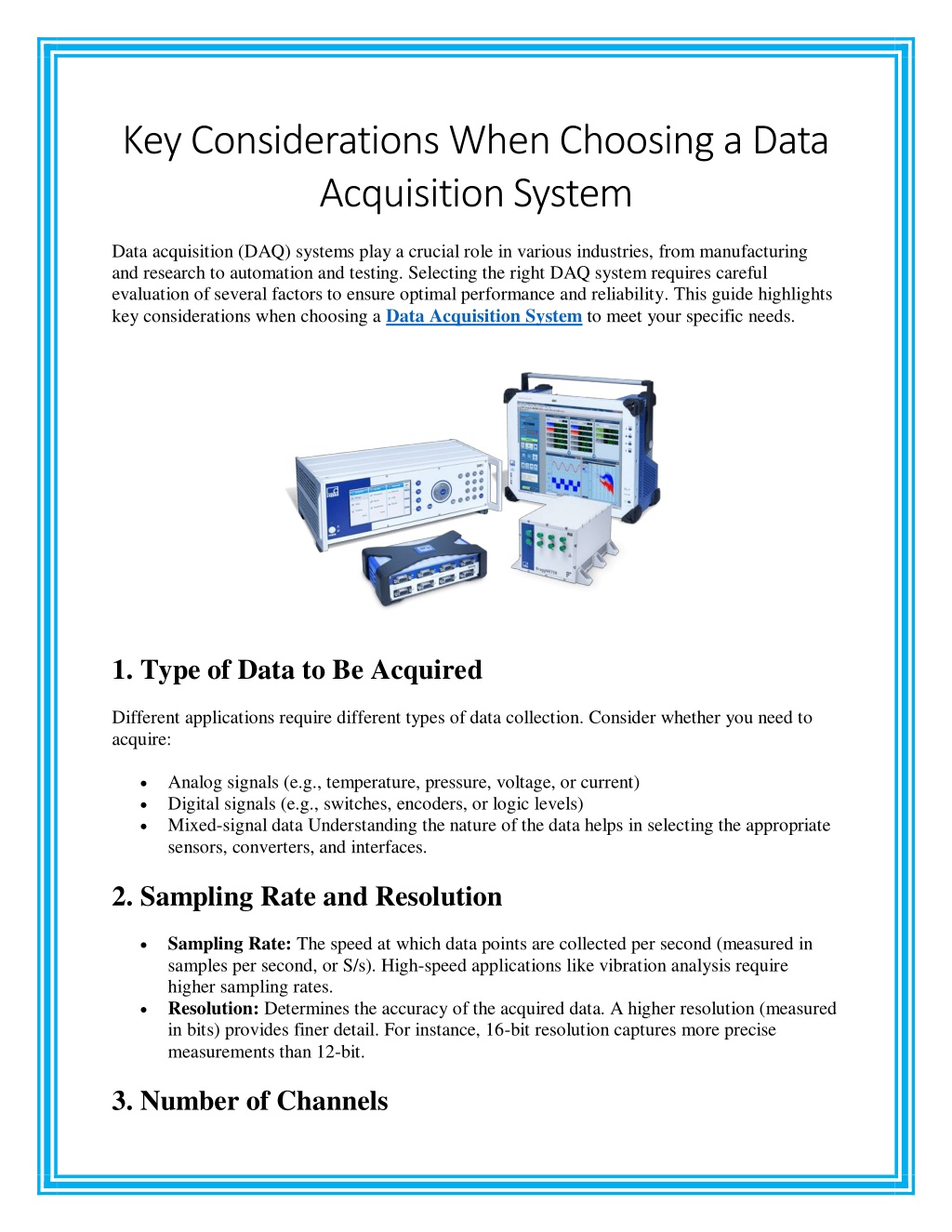

1. Key Considerations When Choosing a Data Acquisition System Data acquisition (DAQ) systems play a crucial role in various industries, from manufacturing and research to automation and testing. Selecting the right DAQ system requires careful evaluation of several factors to ensure optimal performance and reliability. This guide highlights key considerations when choosing a Data Acquisition System to meet your specific needs. 1. Type of Data to Be Acquired Different applications require different types of data collection. Consider whether you need to acquire: Analog signals (e.g., temperature, pressure, voltage, or current) Digital signals (e.g., switches, encoders, or logic levels) Mixed-signal data Understanding the nature of the data helps in selecting the appropriate sensors, converters, and interfaces. 2. Sampling Rate and Resolution Sampling Rate: The speed at which data points are collected per second (measured in samples per second, or S/s). High-speed applications like vibration analysis require higher sampling rates. Resolution: Determines the accuracy of the acquired data. A higher resolution (measured in bits) provides finer detail. For instance, 16-bit resolution captures more precise measurements than 12-bit. 3. Number of Channels

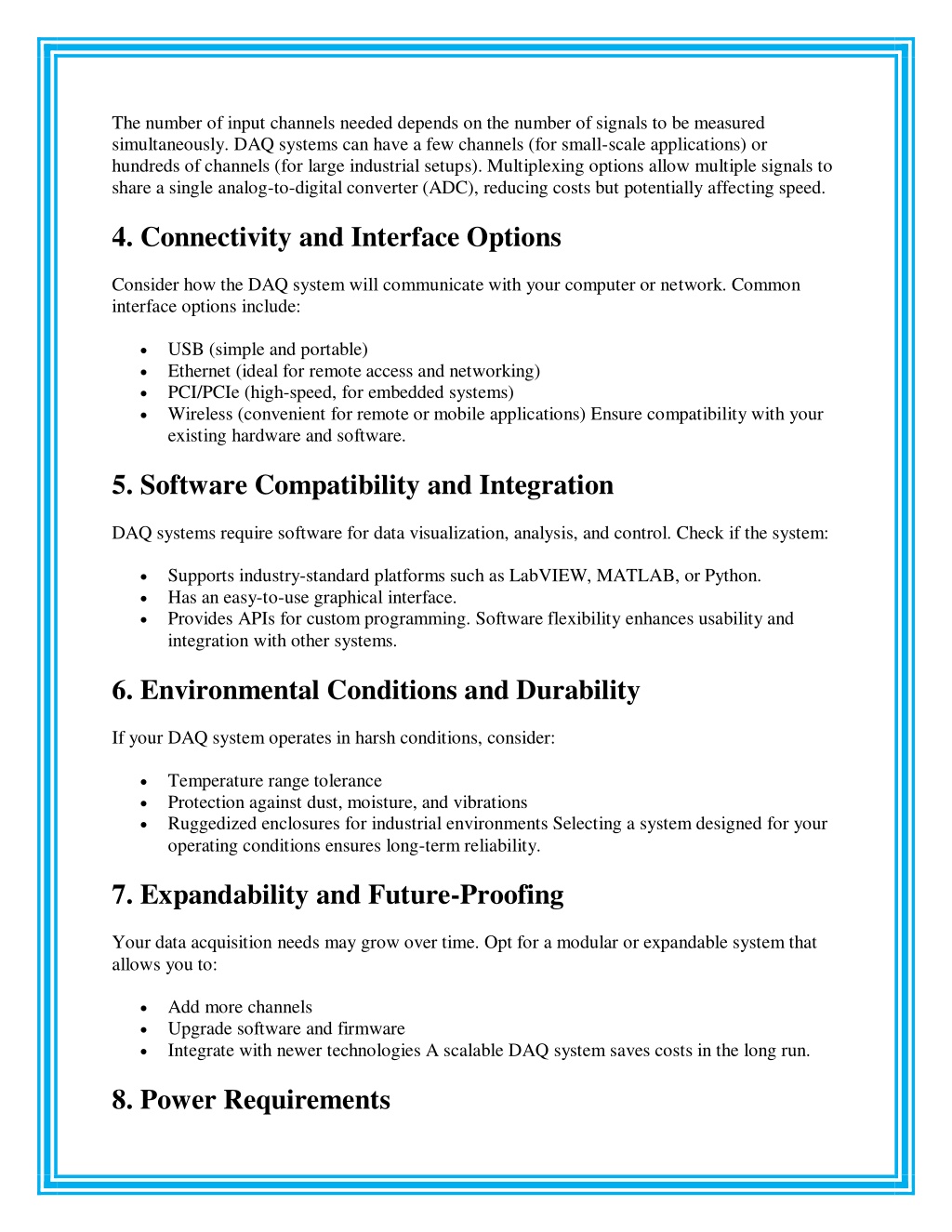

2. The number of input channels needed depends on the number of signals to be measured simultaneously. DAQ systems can have a few channels (for small-scale applications) or hundreds of channels (for large industrial setups). Multiplexing options allow multiple signals to share a single analog-to-digital converter (ADC), reducing costs but potentially affecting speed. 4. Connectivity and Interface Options Consider how the DAQ system will communicate with your computer or network. Common interface options include: USB (simple and portable) Ethernet (ideal for remote access and networking) PCI/PCIe (high-speed, for embedded systems) Wireless (convenient for remote or mobile applications) Ensure compatibility with your existing hardware and software. 5. Software Compatibility and Integration DAQ systems require software for data visualization, analysis, and control. Check if the system: Supports industry-standard platforms such as LabVIEW, MATLAB, or Python. Has an easy-to-use graphical interface. Provides APIs for custom programming. Software flexibility enhances usability and integration with other systems. 6. Environmental Conditions and Durability If your DAQ system operates in harsh conditions, consider: Temperature range tolerance Protection against dust, moisture, and vibrations Ruggedized enclosures for industrial environments Selecting a system designed for your operating conditions ensures long-term reliability. 7. Expandability and Future-Proofing Your data acquisition needs may grow over time. Opt for a modular or expandable system that allows you to: Add more channels Upgrade software and firmware Integrate with newer technologies A scalable DAQ system saves costs in the long run. 8. Power Requirements

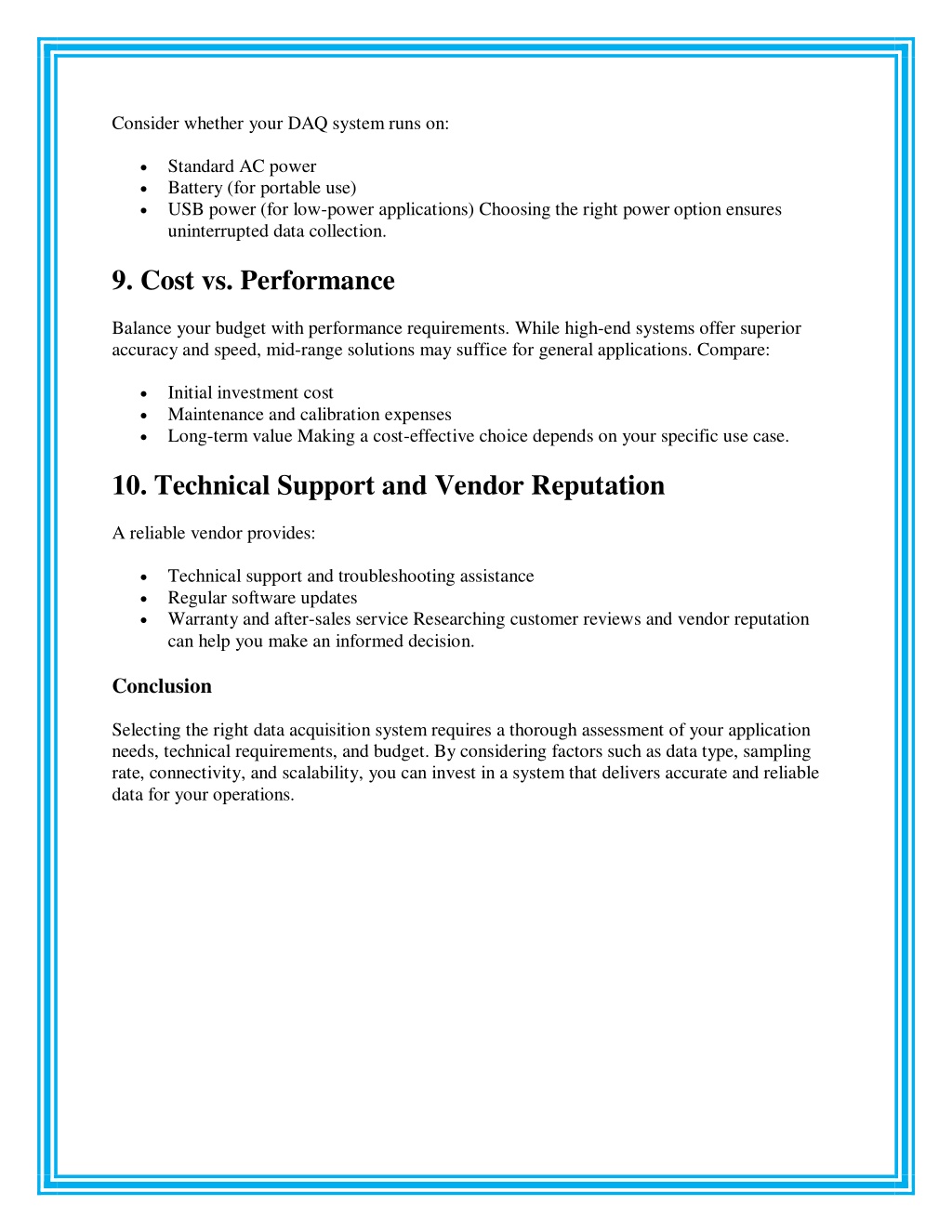

3. Consider whether your DAQ system runs on: Standard AC power Battery (for portable use) USB power (for low-power applications) Choosing the right power option ensures uninterrupted data collection. 9. Cost vs. Performance Balance your budget with performance requirements. While high-end systems offer superior accuracy and speed, mid-range solutions may suffice for general applications. Compare: Initial investment cost Maintenance and calibration expenses Long-term value Making a cost-effective choice depends on your specific use case. 10. Technical Support and Vendor Reputation A reliable vendor provides: Technical support and troubleshooting assistance Regular software updates Warranty and after-sales service Researching customer reviews and vendor reputation can help you make an informed decision. Conclusion Selecting the right data acquisition system requires a thorough assessment of your application needs, technical requirements, and budget. By considering factors such as data type, sampling rate, connectivity, and scalability, you can invest in a system that delivers accurate and reliable data for your operations.
