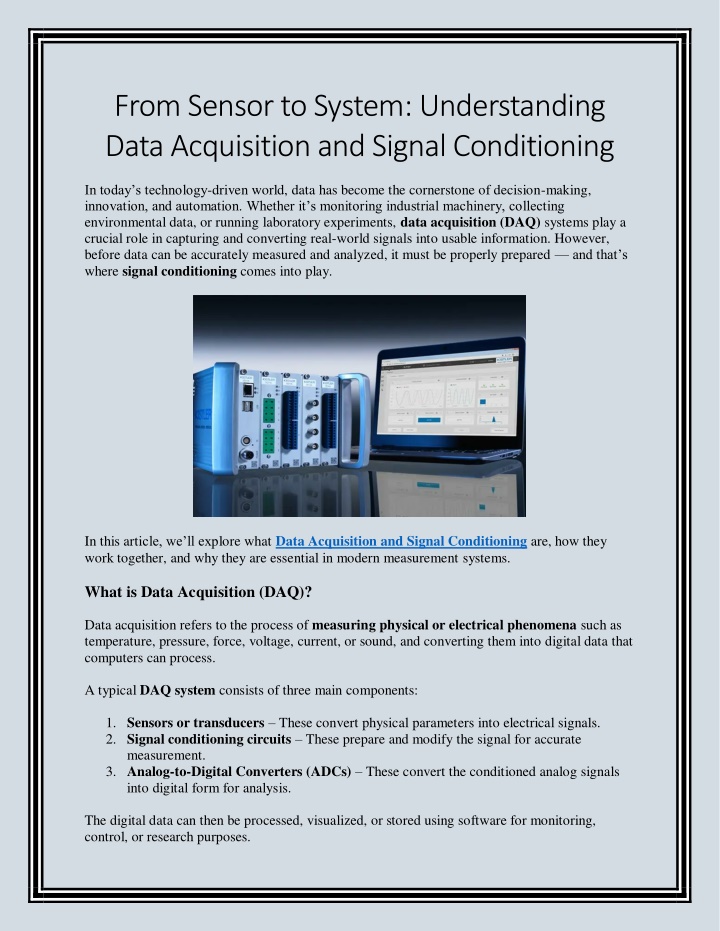

1. From Sensor to System: Understanding Data Acquisition and Signal Conditioning In today’s technology-driven world, data has become the cornerstone of decision-making, innovation, and automation. Whether it’s monitoring industrial machinery, collecting environmental data, or running laboratory experiments, data acquisition (DAQ) systems play a crucial role in capturing and converting real-world signals into usable information. However, before data can be accurately measured and analyzed, it must be properly prepared —and that’s where signal conditioning comes into play. In this article, we’ll explore what Data Acquisition and Signal Conditioning are, how they work together, and why they are essential in modern measurement systems. What is Data Acquisition (DAQ)? Data acquisition refers to the process of measuring physical or electrical phenomena such as temperature, pressure, force, voltage, current, or sound, and converting them into digital data that computers can process. A typical DAQ system consists of three main components: 1.Sensors or transducers– These convert physical parameters into electrical signals. 2.Signal conditioning circuits– These prepare and modify the signal for accurate measurement. 3.Analog-to-Digital Converters (ADCs)– These convert the conditioned analog signals into digital form for analysis. The digital data can then be processed, visualized, or stored using software for monitoring, control, or research purposes.

2. Why Signal Conditioning is Important Raw signals coming from sensors are often too weak, noisy, or incompatible with data acquisition hardware. For example, a thermocouple used for temperature measurement might produce a voltage in the microvolt range — far too small for an ADC to read accurately. Signal conditioning resolves this problem by amplifying, filtering, and isolating signals so that they can be accurately interpreted by the DAQ system. Without proper conditioning, data could be distorted, leading to incorrect readings and unreliable results. Key Functions of Signal Conditioning Signal conditioning can involve several processes depending on the type of sensor and the measurement requirements. The most common include: 1.Amplification Low-level signals need to be boosted to a measurable range. Amplifiers increase the voltage without adding noise, ensuring that even small changes in the signal are detectable. 2.Filtering Filters remove unwanted noise and interference from signals. For instance, a low-pass filter might eliminate high-frequency noise from an industrial environment, improving data accuracy. 3.Isolation Electrical isolation protects both equipment and operators from voltage spikes and prevents ground loops. Isolation ensures signal integrity across long distances or in environments with multiple electrical systems. 4.Linearization Some sensors produce non-linear outputs, meaning their signal doesn’t directly correspond to the measured variable. Linearization corrects this to ensure accurate readings. 5.Excitation Certain sensors, such as strain gauges or RTDs, require an external power source to operate. Signal conditioning provides the necessary excitation voltage or current. How Data Acquisition and Signal Conditioning Work Together In a typical setup, sensors first detect physical changes (such as pressure or temperature) and produce analog electrical signals. These signals are then passed through signal conditioning circuits, which prepare them for accurate conversion. The ADC then digitizes the conditioned signal, which can be processed by a computer or controller. Without signal conditioning, the DAQ system could misinterpret weak, noisy, or distorted signals — compromising the entire measurement process. Therefore, signal conditioning and data acquisition are inseparable components of reliable data measurement systems.

3. Applications Across Industries Data acquisition and signal conditioning are used in a wide range of fields: Industrial Automation: Monitoring machinery performance, vibration, and temperature for predictive maintenance. Automotive Testing: Measuring torque, acceleration, and engine parameters during design and testing. Environmental Monitoring: Recording air quality, humidity, and temperature over time. Biomedical Engineering: Capturing physiological signals like ECG, EEG, or blood pressure for diagnosis and research. Aerospace and Defence: Collecting flight test data and ensuring structural safety through real-time monitoring. These examples show how critical accurate data is for optimizing performance, improving safety, and driving innovation. Choosing the Right DAQ System Selecting a suitable data acquisition system depends on several factors: Number of input channels required for the application. Sampling rate, which determines how quickly data is recorded. Resolution of the ADC, which affects accuracy. Compatibility with various sensors and conditioning modules. Software integration for data visualization and analysis. A well-designed system ensures high accuracy, reliability, and efficiency, making it an invaluable tool in both research and industry. Conclusion Data acquisition and signal conditioning together form the backbone of any modern measurement and monitoring system. While data acquisition systems capture valuable real-world information, it is the signal conditioning that ensures that data is clean, accurate, and ready for analysis. By understanding how these two components work hand in hand, engineers and researchers can build systems that deliver precise insights — paving the way for smarter technologies and data- driven innovations across every field.
