Useful Applications of Wire Earth Resistance Testers

1. Besantek USEFUL APPLICATIONS OF WIRE EARTH RESISTANCE TESTERS

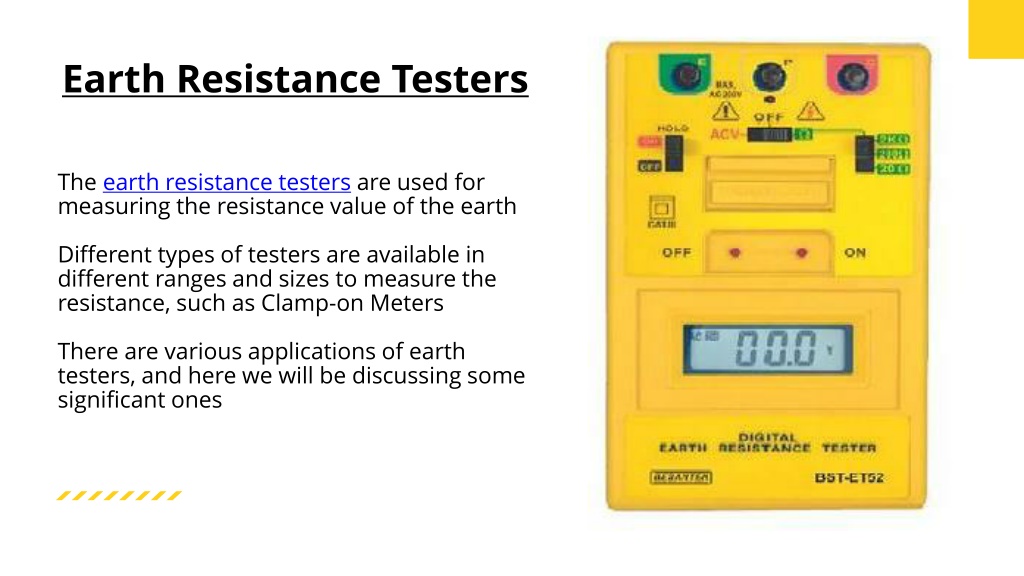

2. Earth Resistance Testers The earth resistance testers are used for measuring the resistance value of the earth Different types of testers are available in different ranges and sizes to measure the resistance, such as Clamp-on Meters There are various applications of earth testers, and here we will be discussing some significant ones

3. What are the Main Applications of Earth Resistance Testers? Besantek

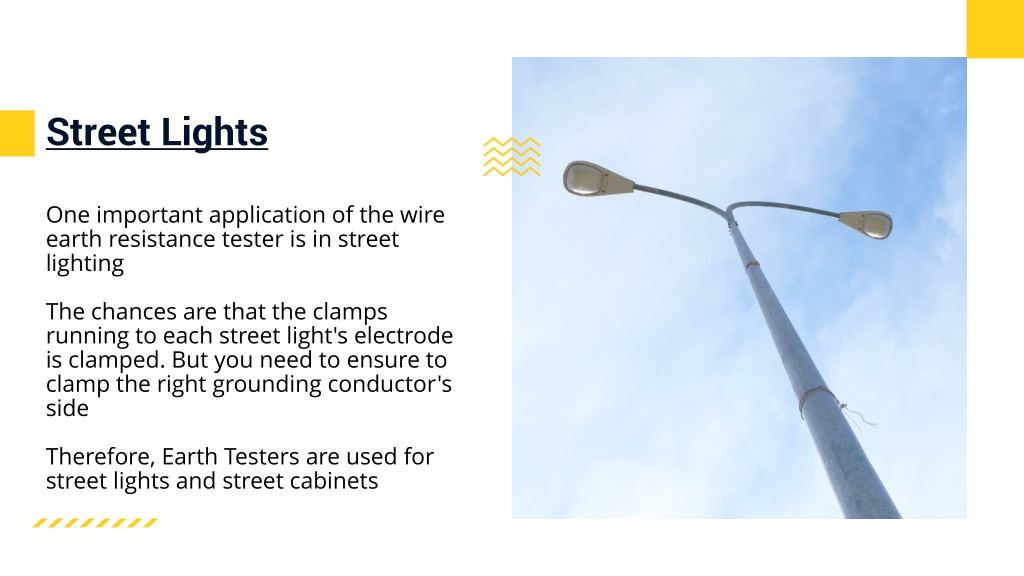

4. Street Lights One important application of the wire earth resistance tester is in street lighting The chances are that the clamps running to each street light's electrode is clamped. But you need to ensure to clamp the right grounding conductor's side Therefore, Earth Testers are used for street lights and street cabinets

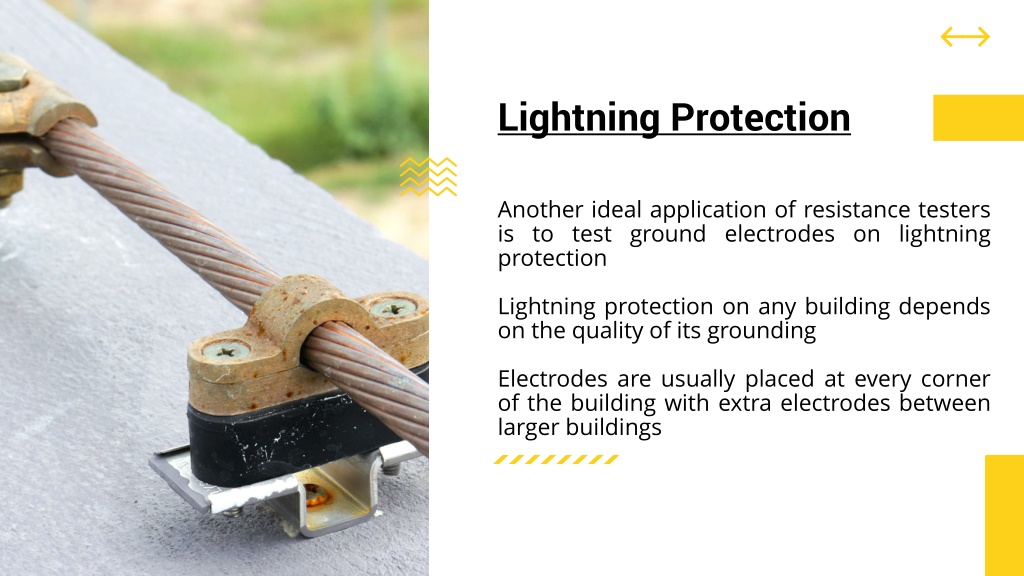

5. Lightning Protection Another ideal application of resistance testers is to test ground electrodes on lightning protection Lightning protection on any building depends on the quality of its grounding Electrodes are usually placed at every corner of the building with extra electrodes between larger buildings

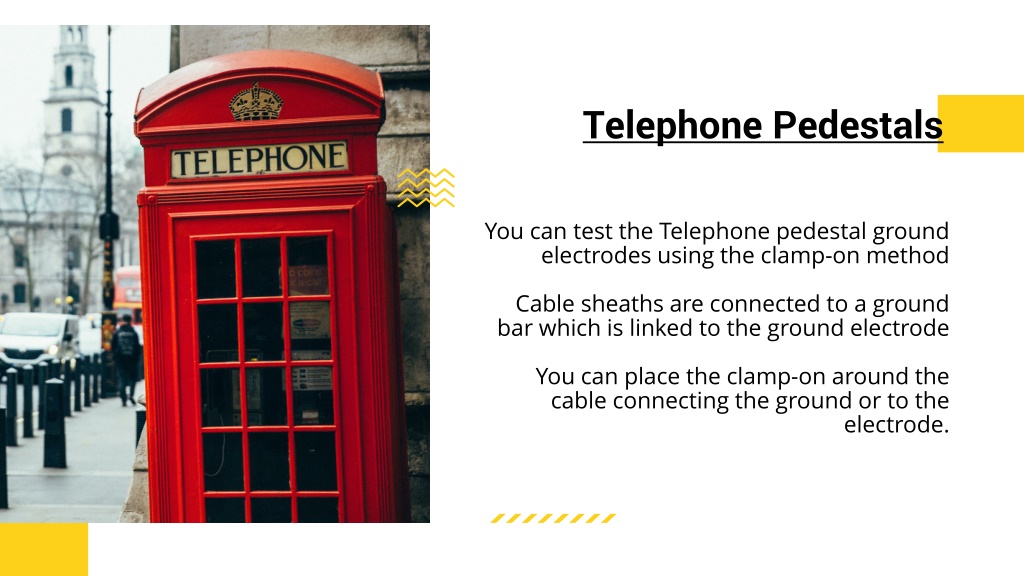

6. Telephone Pedestals You can test the Telephone pedestal ground electrodes using the clamp-on method Cable sheaths are connected to a ground bar which is linked to the ground electrode You can place the clamp-on around the cable connecting the ground or to the electrode.

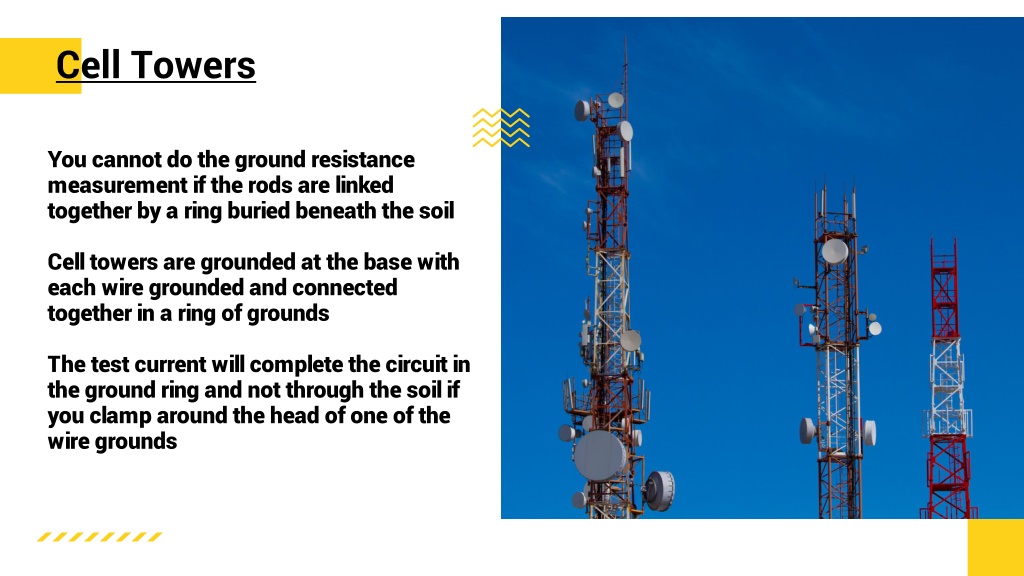

7. Cell Towers You cannot do the ground resistance measurement if the rods are linked together by a ring buried beneath the soil Cell towers are grounded at the base with each wire grounded and connected together in a ring of grounds The test current will complete the circuit in the ground ring and not through the soil if you clamp around the head of one of the wire grounds

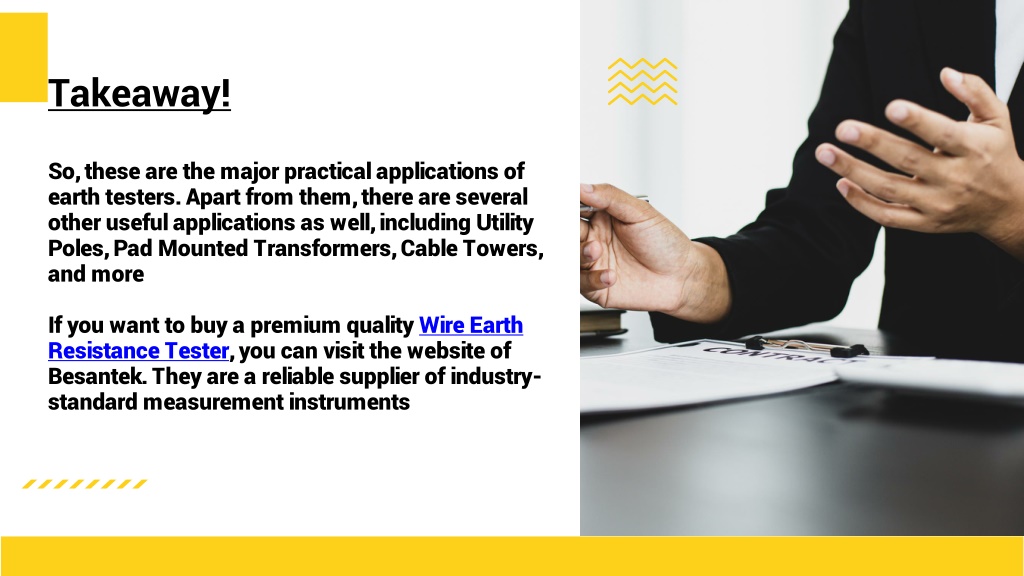

8. Takeaway! So, these are the major practical applications of earth testers. Apart from them, there are several other useful applications as well, including Utility Poles, Pad Mounted Transformers, Cable Towers, and more If you want to buy a premium quality Wire Earth Resistance Tester, you can visit the website of Besantek. They are a reliable supplier of industry-standard measurement instruments

9. About Besantek Corporation BESANTEK Corporation is a Canadian Manufacturer in providing industry standard specialized full series of Test & Measurement Instruments, Tools, and High Voltage Phase Comparators. • WEBSITE • PHONE • www.besantek.com • 613-482-8375 • LOCATION • EMAIL • 2350 Stevenage drive, • Ottawa, Ontario, CA • cc@besantek.com
