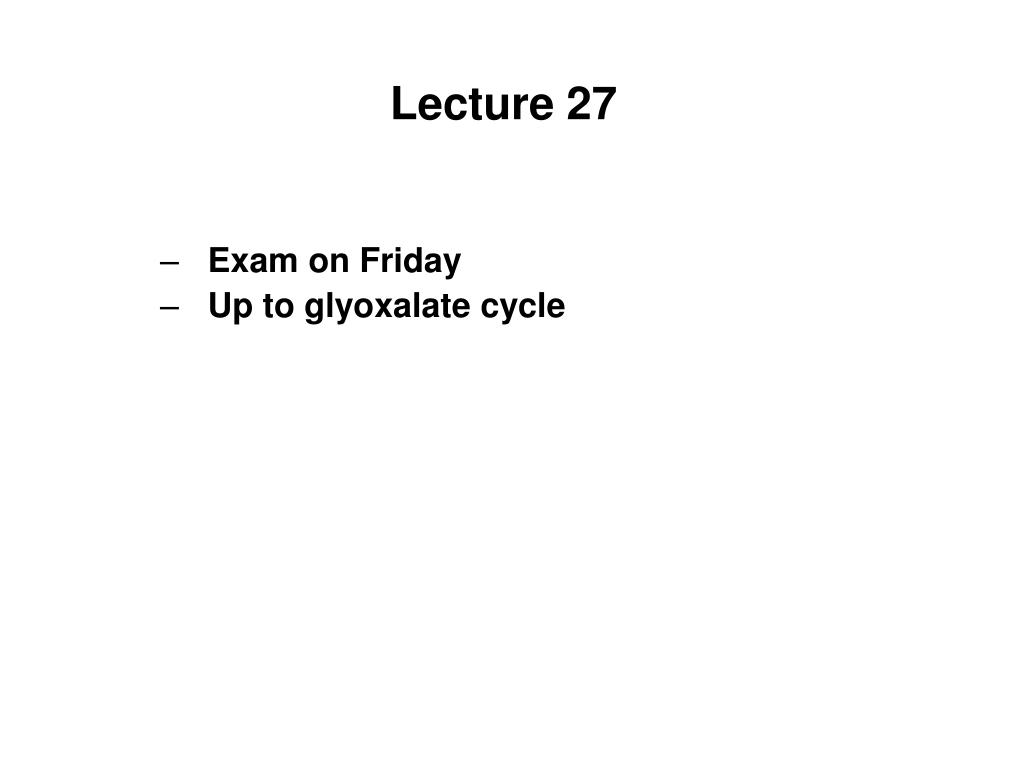

  1. Lecture 27 • Exam on Friday • Up to glyoxalate cycle

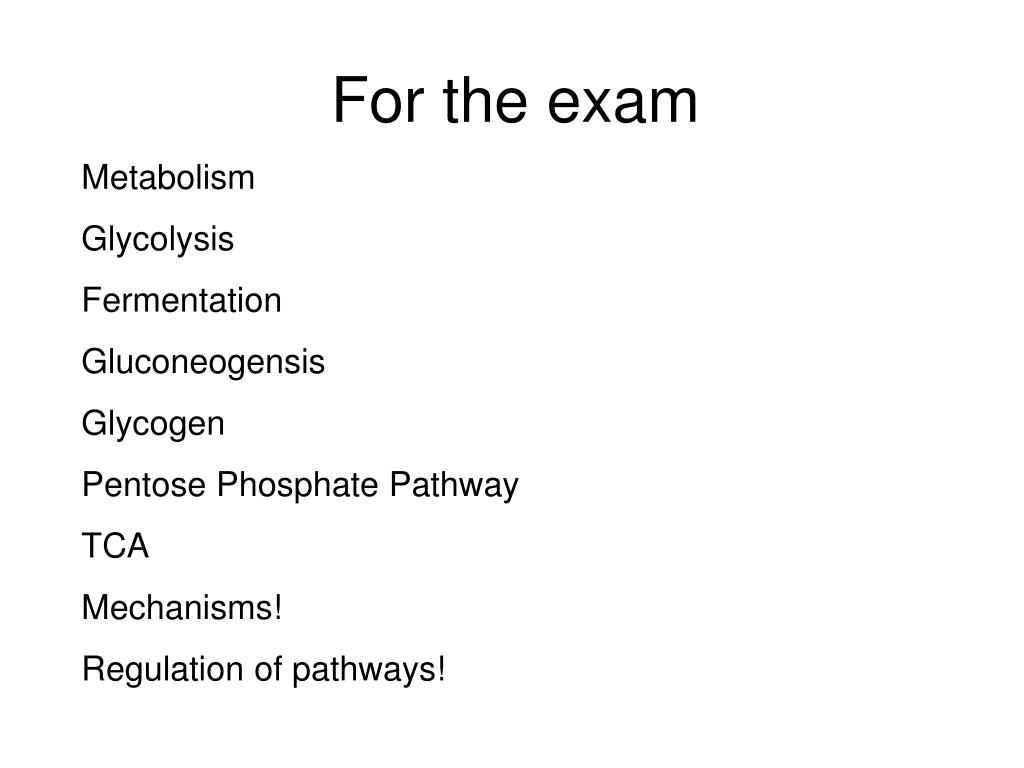

  2. For the exam Metabolism Glycolysis Fermentation Gluconeogensis Glycogen Pentose Phosphate Pathway TCA Mechanisms! Regulation of pathways!

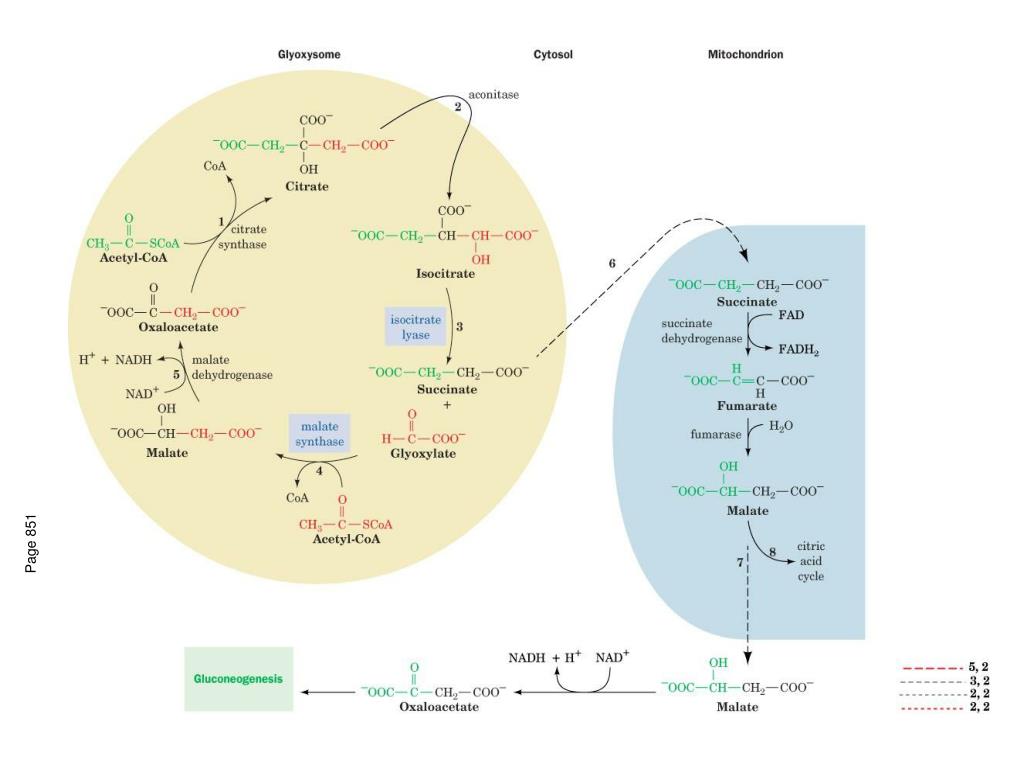

  3. Page 851

  4. 2Ac-CoA + 2NAD+ + FAD OAA + 2CoA + 2NADH +FADH2 + 2H+ Glyoxylate cycle • The glyoxylate cycle results in the net conversion of two acetyl-CoA to succinate instead of 4 CO2 in citric acid cycle. • Succinate is transferred to mitochondrion where it can be converted to OAA (TCA) • Can go to cytosol where it is converted to oxaloacetate for gluconeogenesis. Net reaction Plants are able to convert fatty acids to glucose through this pathway

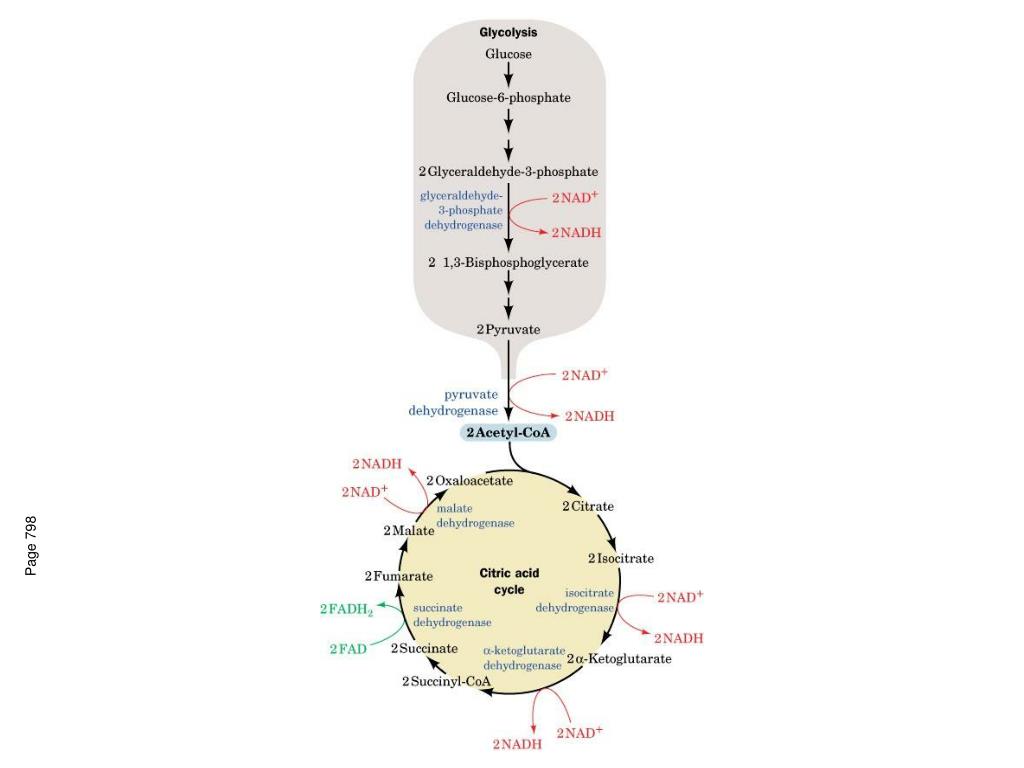

  5. Page 798

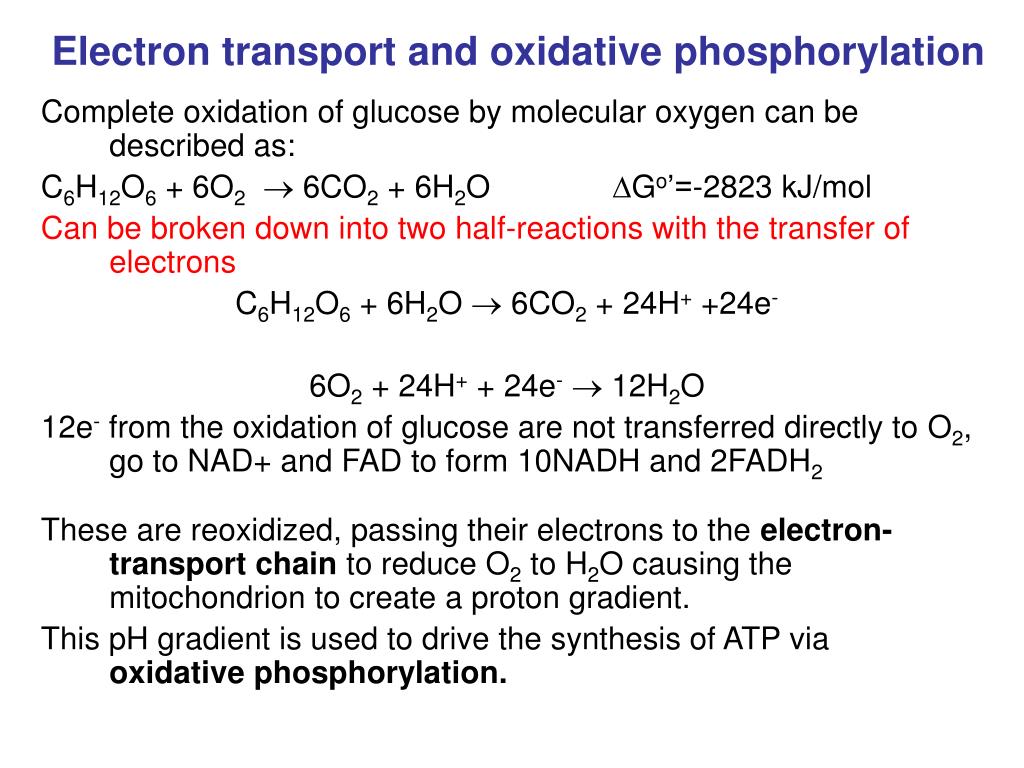

  6. Electron transport and oxidative phosphorylation Complete oxidation of glucose by molecular oxygen can be described as: C6H12O6 + 6O2 6CO2 + 6H2O Go’=-2823 kJ/mol Can be broken down into two half-reactions with the transfer of electrons C6H12O6 + 6H2O  6CO2 + 24H+ +24e- 6O2 + 24H+ + 24e-  12H2O 12e- from the oxidation of glucose are not transferred directly to O2, go to NAD+ and FAD to form 10NADH and 2FADH2 These are reoxidized, passing their electrons to the electron- transport chain to reduce O2to H2O causing the mitochondrion to create a proton gradient. This pH gradient is used to drive the synthesis of ATP via oxidative phosphorylation.

  7. Chemiosmotic Theory • Electron Transport: Electrons carried by reduced coenzymes are passed through a chain of proteins and coenzymes to drive the generation of a proton gradient across the inner mitochondrial membrane • Oxidative Phosphorylation: The proton gradient runs downhill to drive the synthesis of ATP • Electron transport is coupled with oxidative phosphorylation • It all happens in or at the inner mitochondrial membrane

  8. Outer Membrane – Freely permeable to small molecules and ions. Contains porins with 10 kDa limit Inner membrane – Protein rich (4:1 protein:lipid). Impermeable. Contains ETR, ATP synthase, transporters. Cristae – Highly folded inner membrane structure. Increase surface area. Matrix- “cytosol” of the mitochondria. Protein rich (500 mg/ml) Contains TCA cycle enzymes, pyruvate dehydrogenase, fatty and amino acid oxidation pathway, DNA, RNA, ribosomes Intermembrane Space – composition similar to cytosol

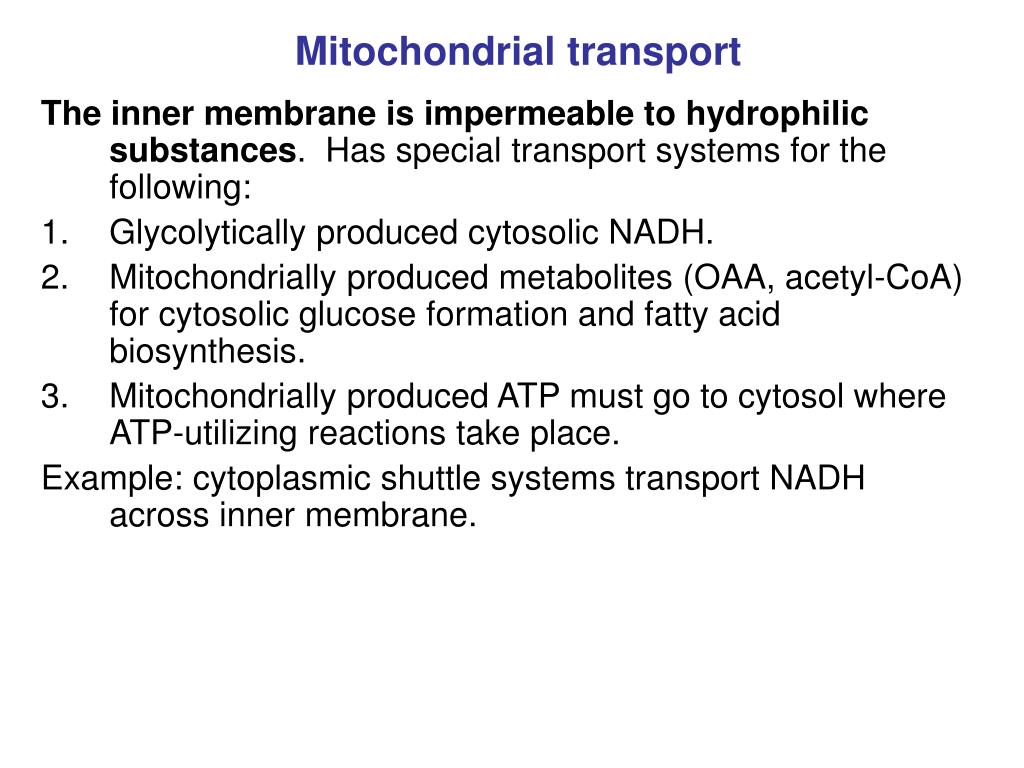

  9. Mitochondrial transport The inner membrane is impermeable to hydrophilic substances. Has special transport systems for the following: • Glycolytically produced cytosolic NADH. • Mitochondrially produced metabolites (OAA, acetyl-CoA) for cytosolic glucose formation and fatty acid biosynthesis. • Mitochondrially produced ATP must go to cytosol where ATP-utilizing reactions take place. Example: cytoplasmic shuttle systems transport NADH across inner membrane.

  10. “Transport” of NADH across inner mito membrane

  11. Malate-aspartate shuttle 2 phases Phase A • Cytosolic NADH reduces OAA to malate (malate DH). • Malate--ketoglutarate carrier transports malate from cytosol to mitochondrial matrix, exchanged for -KG • In the matrix, NAD+ reoxidizes malate to make OAA and yield NADH. Phase B 4. Transaminase converts OAA to Asp and Glu to -KG. • The glutamate-apartate carrier transports Asp from the matrix in exchange for Glu. • Transaminase in cytosol converts Glu to Asp. 3 ATPs for every NADH but loses 0.3 ATP because each NADH enters matrix with proton (yield 2.7 ATP).

  12. Glycerol phosphate shuttle

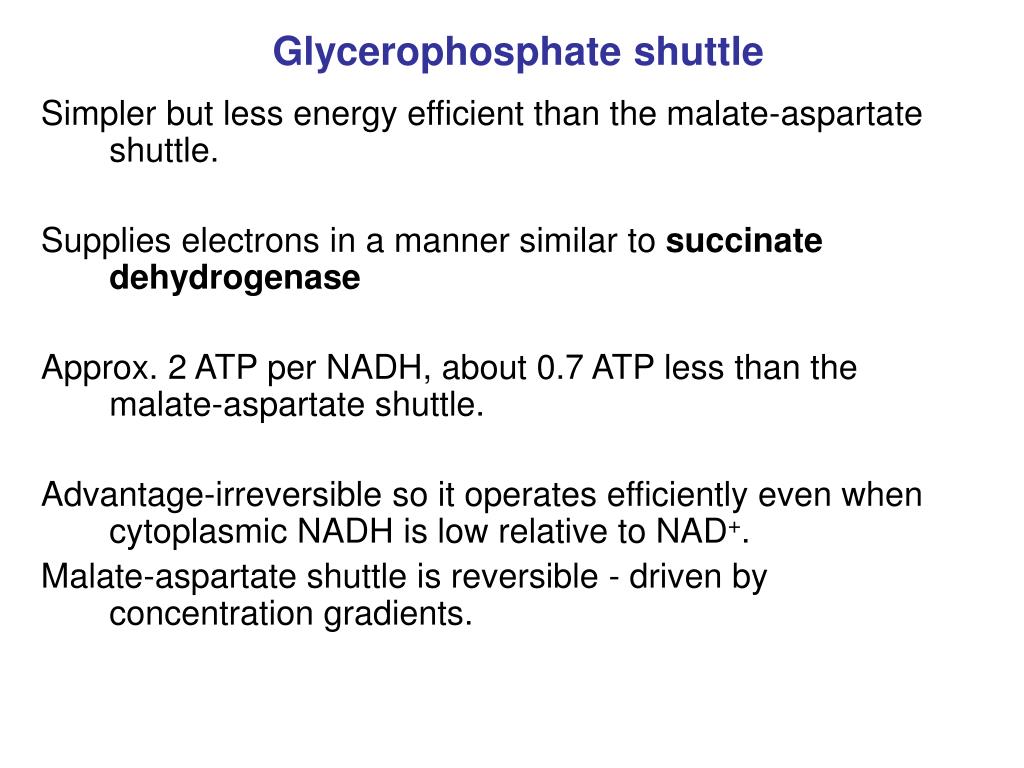

  13. Glycerophosphate shuttle Simpler but less energy efficient than the malate-aspartate shuttle. Supplies electrons in a manner similar to succinate dehydrogenase Approx. 2 ATP per NADH, about 0.7 ATP less than the malate-aspartate shuttle. Advantage-irreversible so it operates efficiently even when cytoplasmic NADH is low relative to NAD+. Malate-aspartate shuttle is reversible - driven by concentration gradients.

  14. Reduction Potentials • High Eo' indicates a strong tendency to be reduced • Crucial equation:Go' = -nFEo' • Eo' = Eo'(acceptor) - Eo'(donor) • NADH + ½ O2 + H+  NAD++ H+ + H2O • n=# of e- transferred per mol reactants, F=Faraday constant • NAD++ H+ + 2e- NADH Eo’ = -0.32 • ½ O2 + 2e- + 2H+  H2O Eo’ = 0.816 V • Go‘= -nF(Eo'(O2) - Eo'(NADH)) • Go‘= -nF(0.82 –(-0.32)) = -nF(1.14) • = -2(96.5 kJ mol-1V-1)(1.136) = -220 kJ mol-1

  15. Figure 22-9 The mitochondrial electron-transport chain. Page 803

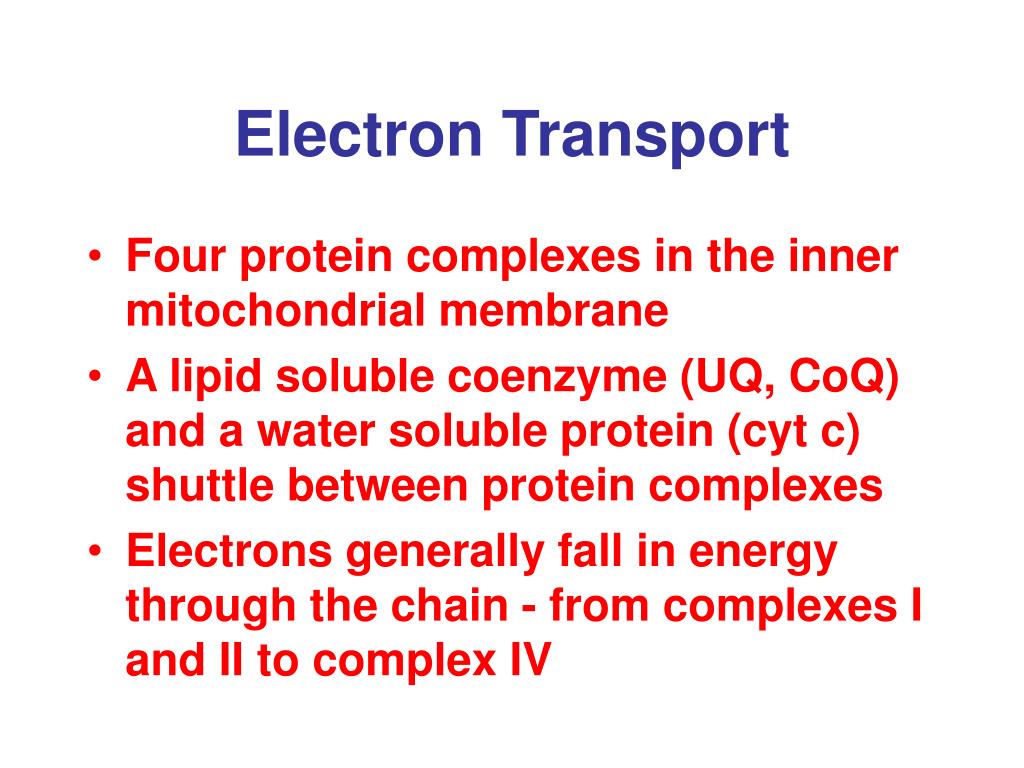

  16. Electron Transport • Four protein complexes in the inner mitochondrial membrane • A lipid soluble coenzyme (UQ, CoQ) and a water soluble protein (cyt c) shuttle between protein complexes • Electrons generally fall in energy through the chain - from complexes I and II to complex IV

  17. Standard reduction potentials of the major respiratory electron carriers.

  18. Cofactors of the electron transport chain • Fe-S clusters • Coenzyme Q (ubiquinone) • Flavin mononucleotide • FAD • Cytochrome a • Cytochrome b • Cytochrome c • CuA • CuB

  19. Iron-sulfur clusters • 4 main types of iron sulfur clusters • [2Fe-2S] and [4Fe-4S] cluster coordinated by 4 Cys SH • [3Fe-4S] is a [4Fe-4S] lacking one Fe atom. • [Fe-S] is only found in bacteria, liganded to 4 Cys • Rieske iron-sulfur proteins [2Fe-2S] cluster but 1 Fe is coordinated by 2 His. • Oxidized and reduced states of all Fe-S clusters differ by one formal charge.

  20. Figure 22-15a Structures of the common iron–sulfur clusters. (a) [Fe–S] cluster. Page 808

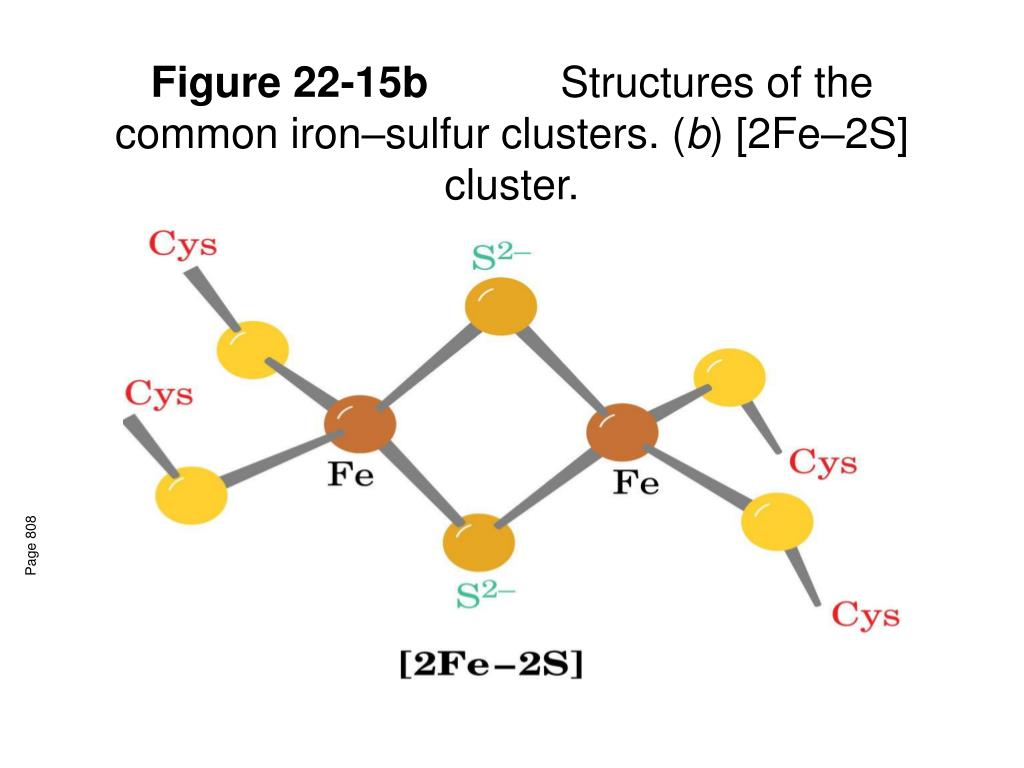

  21. Figure 22-15b Structures of the common iron–sulfur clusters. (b) [2Fe–2S] cluster. Page 808

  22. Figure 22-15c Structures of the common iron–sulfur clusters. (c) [4Fe–4S] cluster. Page 808

  23. Figure 22-16 X-Ray structure of ferredoxin from Peptococcus aerogenes. Page 809

  24. Figure 22-17a Oxidation states of the coenzymes of complex I. (a) FMN. Can accept or donate 1 or 2 e- Page 810

  25. Figure 22-17b Oxidation states of the coenzymes of complex I. (b) CoQ. Coenzyme Q’s hydrophobic tail allows it to be soluble in the inner membrane lipid bilayer. Page 810

  26. Figure 22-21a Visible absorption spectra of cytochromes. (a) Absorption spectrum of reduced cytochrome c showing its characteristic a, b, and g (Soret) absorption bands. Page 813

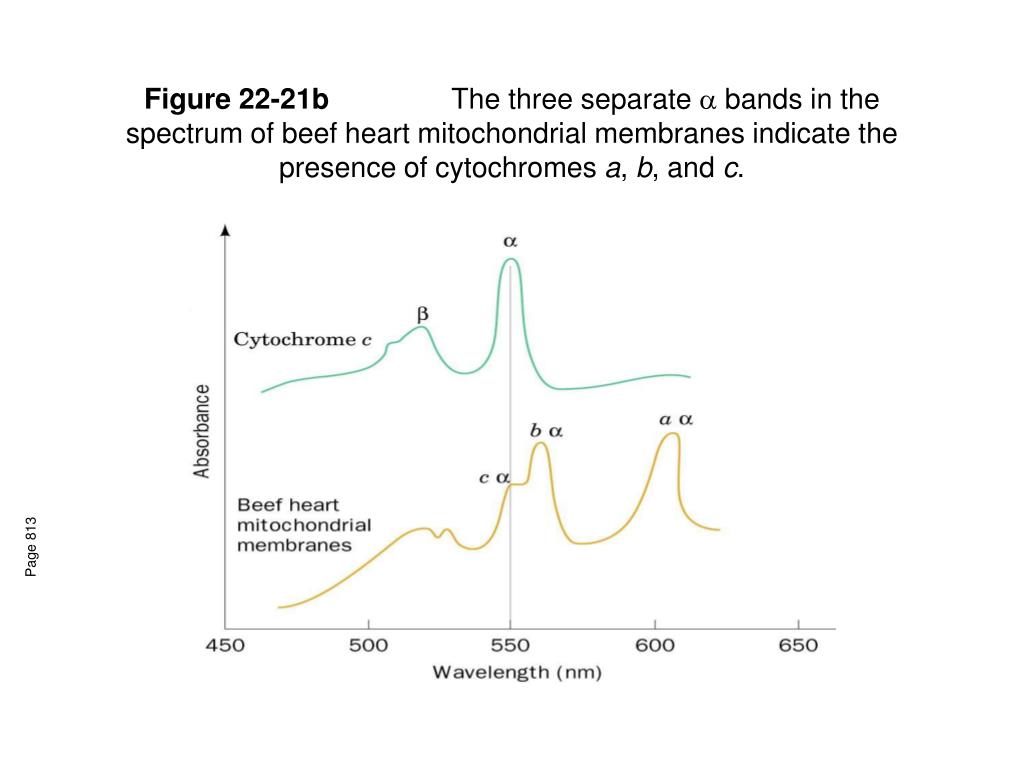

  27. Figure 22-21b The three separate  bands in the spectrum of beef heart mitochondrial membranes indicate the presence of cytochromes a, b, and c. Page 813

  28. Figure 22-22a Porphyrin rings in cytochromes. (a) Chemical structures. Page 813

  29. Figure 22-22b Porphyrin rings in cytochromes. (b) Axial liganding of the heme groups contained in cytochromes a, b, and c are shown. Page 813

  30. NADH + H+ CoQ NAD+ CoQH2 Complex I • NADH-CoQ Oxidoreductase (NADH dehydrogenase) • Electron transfer from NADH to CoQ • More than 30 protein subunits - mass of 850 kD • 1st step is 2 e- transfer from NADH to FMN • FMNH2 converts 2 e- to 1 e- transfer • 6-7 FeS clusters. • Four H+ transported out per 2 e- FMN Fe2+S FMNH2 Fe3+S

  31. Succinate CoQ Fumarate CoQH2 FAD Fe2+S FADH2 Fe3+S Complex II • Succinate-CoQ Reductase • Contains the succinate dehydrogenase (from TCA cycle!) • four subunits • Two largest subunits contain 2 Fe-S proteins • Other subunits involved in binding succinate dehydrogenase to membrane and passing e- to Ubiquinone • FAD accepts 2 e- and then passes 1 e- at a time to Fe-S protein • No protons pumped from this step

  32. Q-Cycle UQ • Transfer from the 2 e- carrier ubiquinone (QH2) to Complex III must occur 1 e- at a time. • Works by two single electron transfer steps taking advantage of the stable semiquinone intermediate • Also allows for the pumping of 4 protons out of mitochondria at Complex III • Myxothiazol (antifungal agent) inhibits electron transfer from UQH2 and Complex III. UQ.- UQH2
