  1. Module 4 Introduction ADO.NET

  2. Objective • Explain the role of ADO.NET • Describe data access architecture in .NET • Differentiate between DAO, RDO, ADO and ADO.NET • List the benefits of ADO.NET 2.0 • Describe the disconnected data access approach

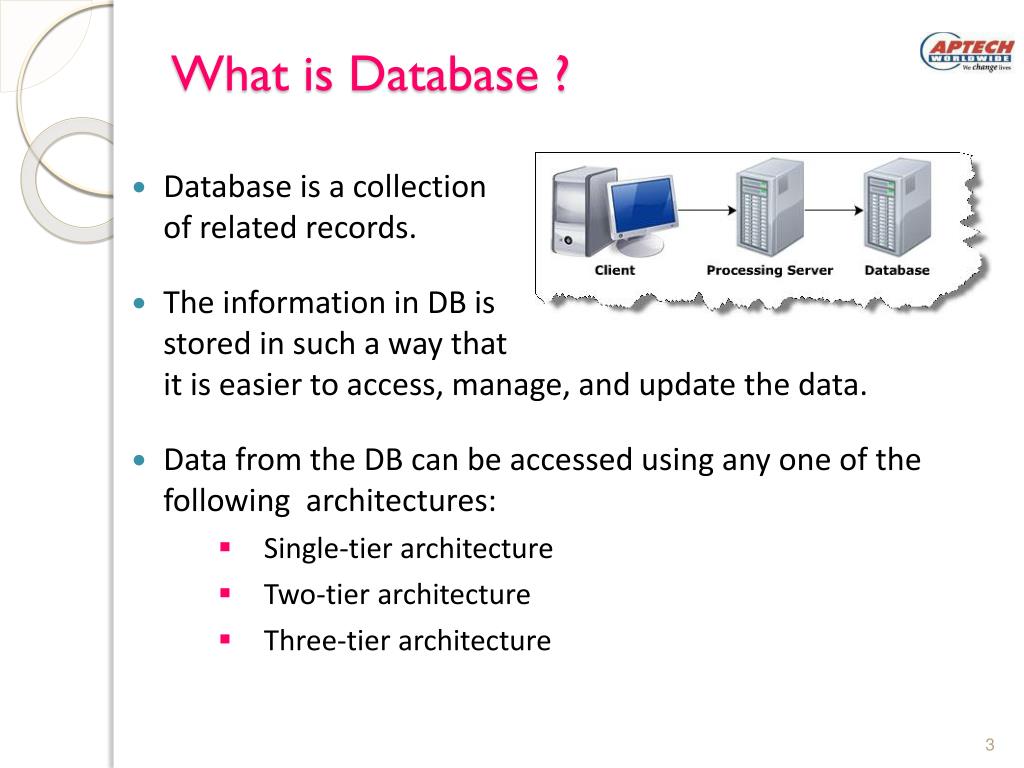

  3. What is Database ? • Database is a collection of related records. • The information in DB is stored in such a way that it is easier to access, manage, and update the data. • Data from the DB can be accessed using any one of the following architectures: • Single-tier architecture • Two-tier architecture • Three-tier architecture

  4. ADO.NET • Is the data access technology,which allows to access data from various data sources. • Is a part of .NET Framework: • The technology can be used for all .NET-base applications. • Supports disconnected data architecture: • Connection to the data source is established only required. • Use XML to interact with the DB: • All the data in the DB is converted into XML format for DB related operations.

  5. ADO.NET Features • Asynchronous processing: • Enable time-consuming application running in the background. • Multiple Active Result Sets (MARS): • Allow to execute multiple batches in a connection. • XML Data support • Bulk copy operations: • Allow to copy large files into tables or views • Batch processing • Tracing: • Monitor the excution of code  identify problems when executing code and fix them. • Connection pooling control: • Collects all the opened DB connections in a connection pool. • Get a connection from the pool for client rather than create new one.

  6. Data Access Architecture • The two important components of ADO.NET used for processing the data in DB are: • Data providers: • Provide and maintain connection to the DB • Dataset : • Is the required portion in database that is extracted and maintained in the form of a table as a local copy in the client system.

  7. Data Access Models

  8. Benefits of ADO.NET • Simplified Programming Model • Interoperability: • XML is the default format used for transmitting datasets across network, any component can read XML format is able to process data. • Maintainability • Programmability • Performance • Does not require data-type conversion while transmitting data through the tier. • Scalability

  9. Data Access Models of ADO.NET • Connected data access: • Connection to the DB is established when requested by an application. • This connection is kept open till the application is closed. • Disconnected data access: • Connection to the DB is established when the application forwards a request. • Once the request is processed, connection is automatically closed.

  10. Data Access Components • ADO.NET provides two components to access and manipulate data: • .NET Framework data provider • The DataSet • The objects associated withADO.NET technology are: • Command • Connection • DataAdapter • DataReader • DataSet • DataProvider

  11. Data Provider • Used for providing and maintaining connection to the database • Allows to perform different operations in the database: • .NET Framework Data Provider for SQL Server • .NET Framework Data Provider for OLE DB • .NET Framework Data Provider for ODBC • .NET Framework Data Provider for Oracle

  12. DataSet • Used to display and update data. • Used for retrieving data from multiple sources. • Can perform extensive processing on the data without having openconnection to the server.

  13. Connection • Allows to create a connection between application & DB. • In ADO.NET, a connection to SQL Server and OLE DB data source is established using the following connection class: • SqlConnection • OleDbConnection string strConnect = “server=(local);database=pubs;uid=sa;pwd=sa”; SqlConnection con = new SqlConnection(strConnect);

  14. Command • Enable to execute a command against a data source: • Make a call to a stored procedure • Execute SQL statements: INSERT, DELETE, UPDATE and SELECT • Is specific to the data provider used in a connection: • SqlComand: • Specifies the types of operation performed with the SQL Server. • OleDbCommand: • Specifies statements, stored procedures performed with any data source by using OLE DB provider.

  15. DataAdapter • A bridge between a DataSet and a DataSource: • Fill() method: fill DataSet from DataSource • Update() method: INSERT,UPDATE or DELETE data from data source • There are many kinds of DataAdapter: • OleDbDataAdapter • SqlDataAdapter • OdbcDataAdapter • OracleDataAdapter

  16. DataReader • Reads a stream of data from the DB. • Provides a forward-only, read-only stream of data : • Increases the application performace. • However, the DataReader object requires an exclusive use of an open connection object fot its whole life span. • SqlDataReader reader = commandObj . ExecuteReader();

  17. Summary • ADO.NET is a data access technology – supports disconnected data architecture • A data provider establishes and maintains connection to the database. The .NET Framework provides various data providers which are used for SQL Server, OLE DB, ODBC, Oracle data sources. • .NET Framework Data Providers and Dataset are used for accessing data source and then storing the retrieved records into tables : Connection, Command, DataAdapter, DataReader
