  1. COST 286 Workshop 'Impact of Communications Technology to EMC' PLC - Measurement of Mains Characteristics Sven Battermann, Heyno Garbe Institut für Grundlagen der Elektrotechnik und Messtechnik Universität Hannover E-mail: battermann@ieee.org

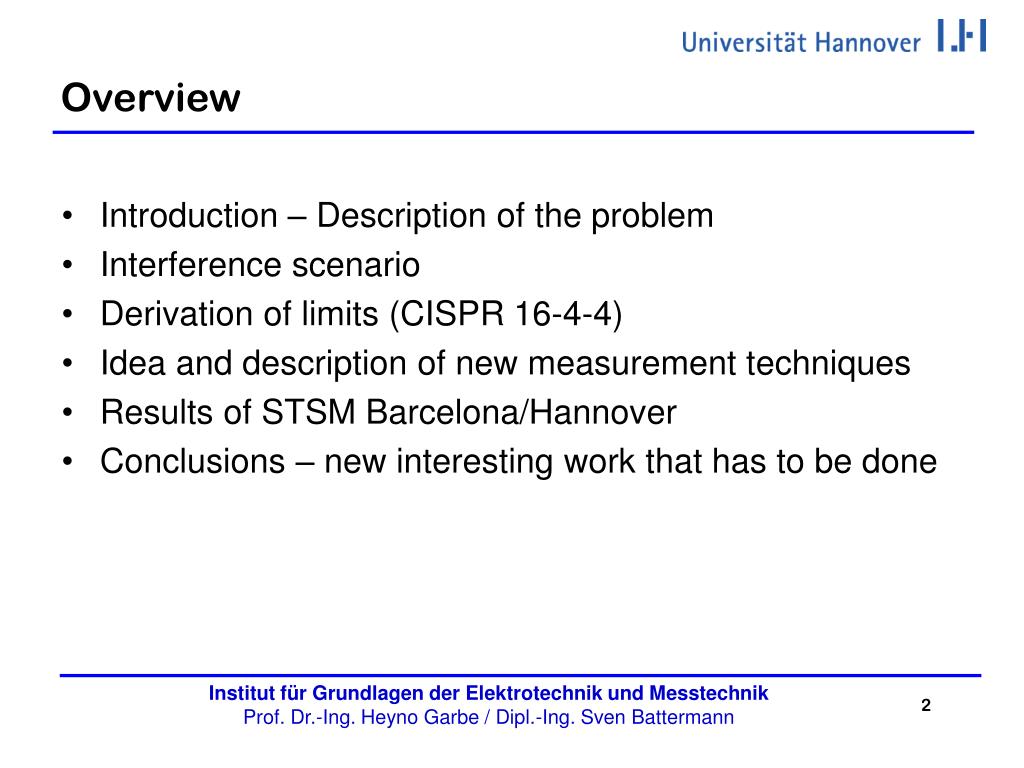

  2. Overview • Introduction – Description of the problem • Interference scenario • Derivation of limits (CISPR 16-4-4) • Idea and description of new measurement techniques • Results of STSM Barcelona/Hannover • Conclusions – new interesting work that has to be done

  3. Broadband communication networks • with Primary task => Data transmission • LAN • DSL / ADSL / VDSL • ... • with Secondary task => Data transmission • PLC • ISM-Applications – e.g. configuration of power drives • ... • Totally different electrical characteristics of the used cables / lines!

  4. Mains used for telecommunication network Conversion to CM Fed with DM-Mode 220 V Netz RJ-45 or USB to PC Modem RJ-45 or USB to PC Modem Conversion to CM

  5. Problems and known effects Observations: • For EMC: Radiation • data rate decreases with distance from feed point • Different data rates in different rooms • influence of load condition (used devices) • Operation of “special” devices also decreases data rate Questions: • What are the reasons for this phenomenal experiences? • What is the particular disturbance scenario? • Quantification of mains influence possible?

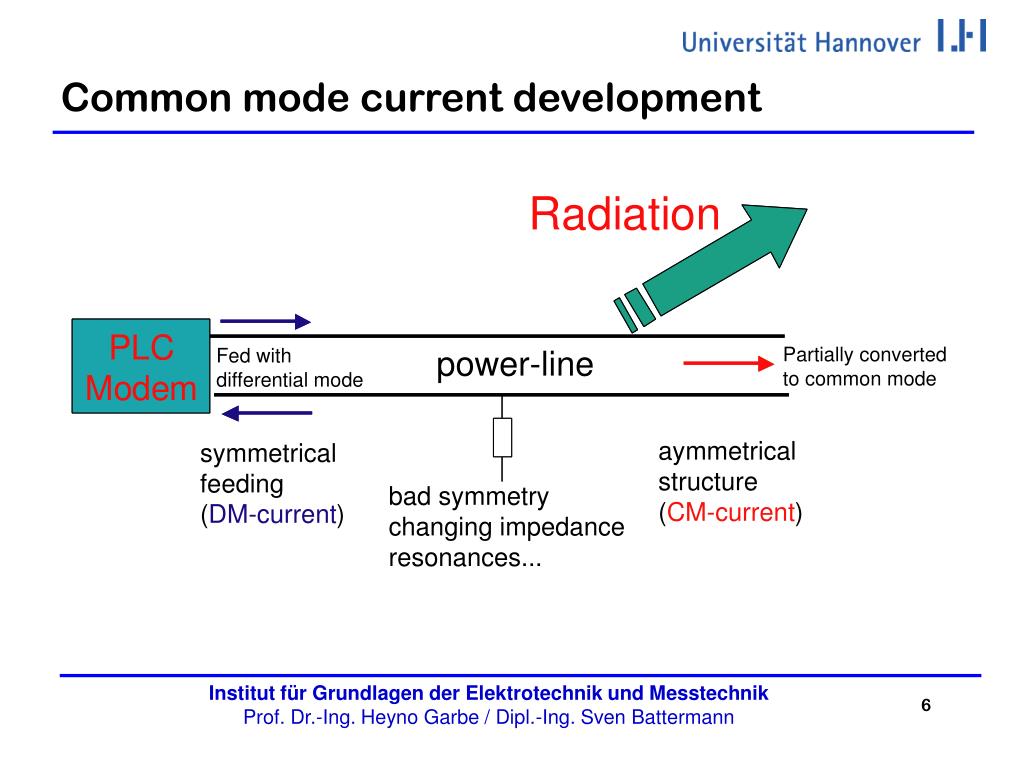

  6. Common mode current development

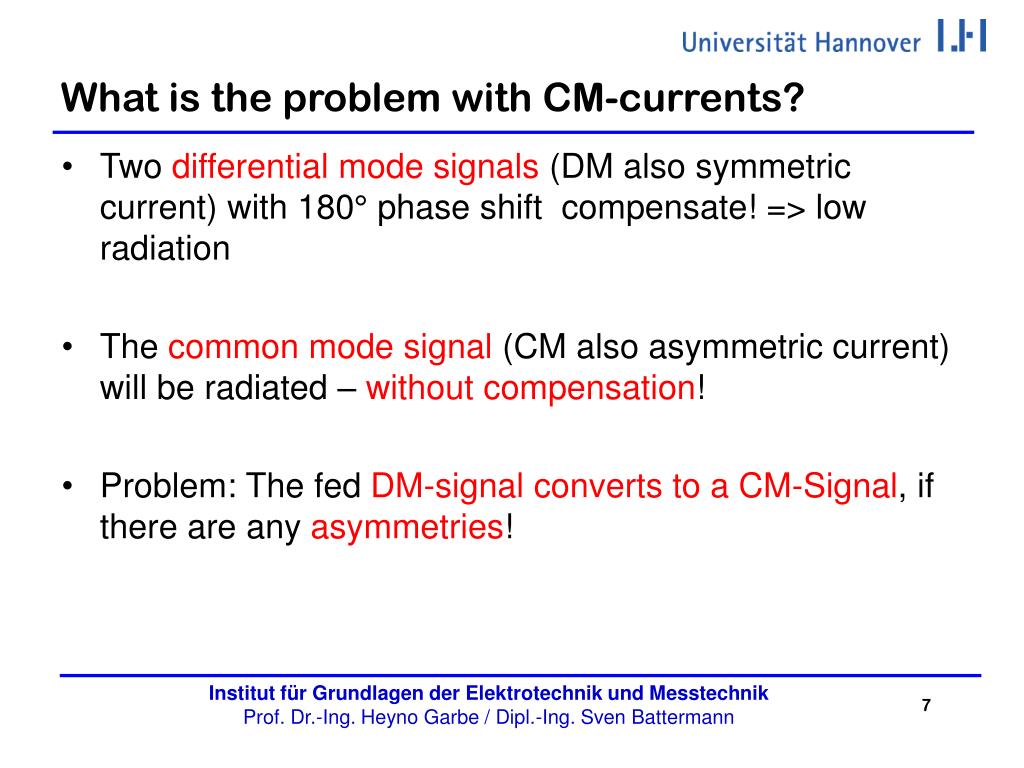

  7. What is the problem with CM-currents? • Two differential mode signals (DM also symmetric current) with 180° phase shift compensate! => low radiation • The common mode signal (CM also asymmetric current) will be radiated – without compensation! • Problem: The fed DM-signal converts to a CM-Signal, if there are any asymmetries!

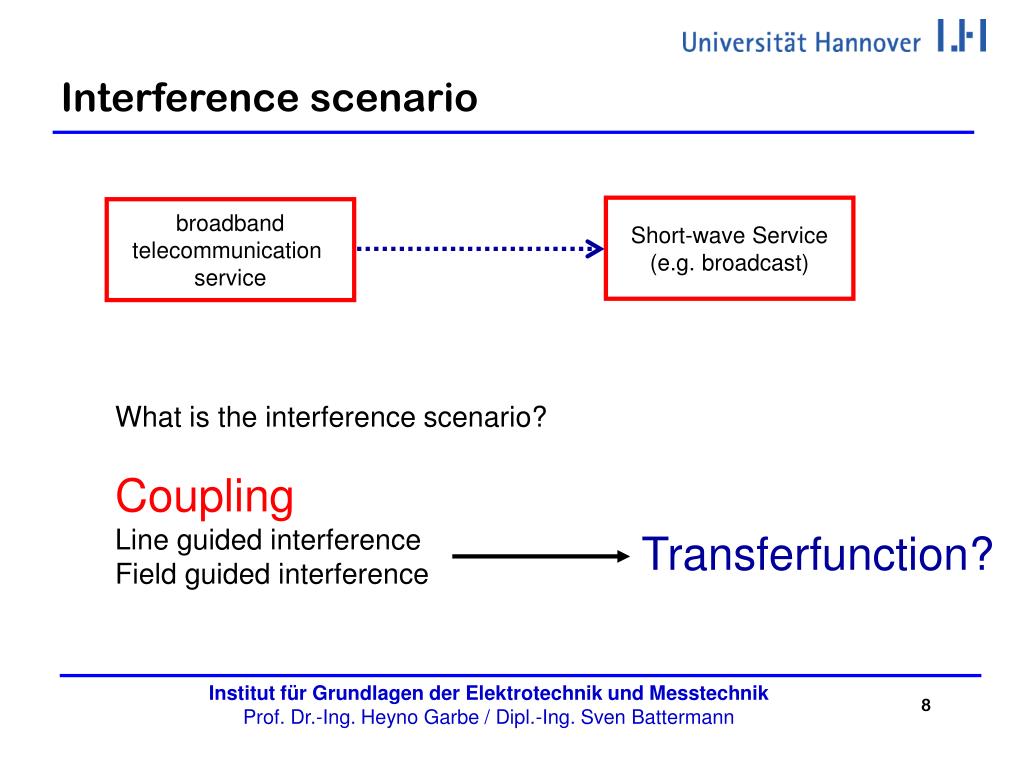

  8. Interference scenario Short-wave Service (e.g. broadcast) broadband telecommunication service What is the interference scenario? Coupling Line guided interference Field guided interference Transferfunction?

  9. Interference scenario - victim • What is the impact of a common mode current on a connected device (receiver)? Power Supply – mains network Ed Hare: Radio frequency interference

  10. CM-current in the input circuit The common mode current flows through the input circuit of the receiver -> voltage drop at the input resistor -> interference

  11. Problem • The limits used today have partially been defined in 1930. • At that time narrowband interferers (transmitter) and stochastic broadband interferers (e. g. electric motors) have been known. • Different situation today: • Many telecommunication-services use a broadband spectrum up to the short-wave band. • Different services are always on, therefore they are no stochastic interferers anymore.

  12. Influence on the limits? • The limits (1930) are derived from the old interference scenario. • The interference scenario changed significantly. Questions: • Is it possible to model the situation today (with broadband telecommunication services) with the old interference scenario? • It is reasoned to use the old limits, based on a different scenario for the interference scenario today? • Is it possible to safeguard the radio services?

  13. Derivation of Limits • It has to be expected that the use of the full limits of CISPR 22 cannot safeguard the protection of radio services anymore! What has to be done: • For a valid protection of radio services a detailed analysis of the interference scenario is necessary. • CISPR 16-4-4 gives hints for the derivation of limits based on 10 influencing factors even under consideration of broadband services => Rational derivation of limits.

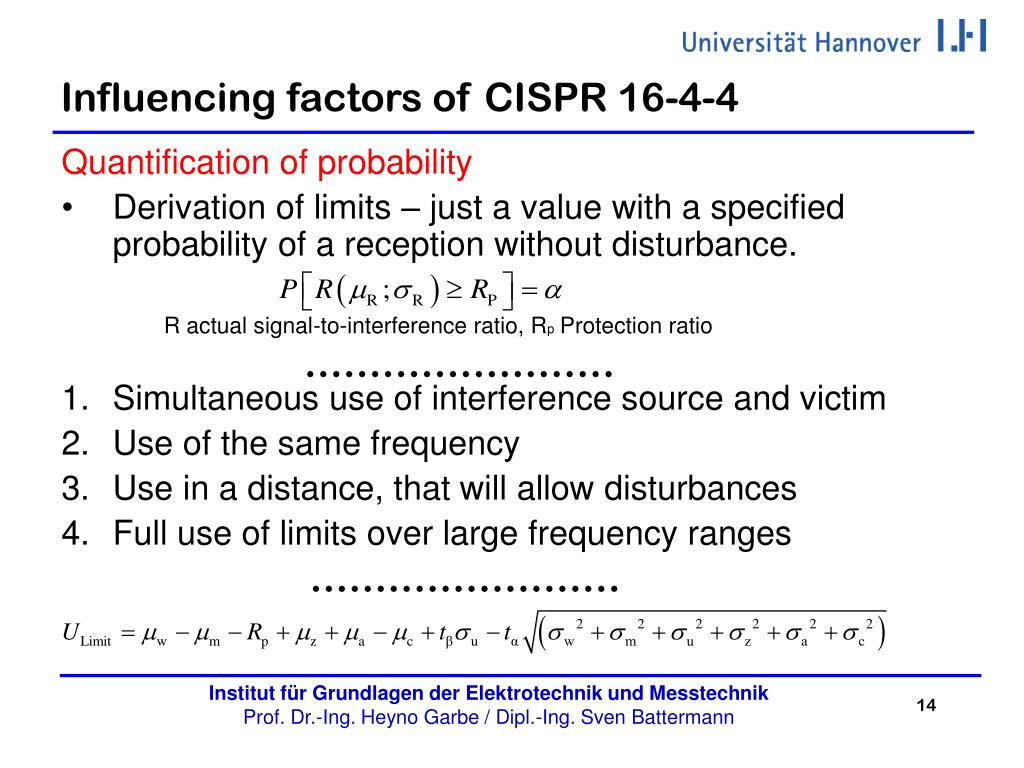

  14. Influencing factors of CISPR 16-4-4 Quantification of probability • Derivation of limits – just a value with a specified probability of a reception without disturbance. R actual signal-to-interference ratio, RpProtection ratio • Simultaneous use of interference source and victim • Use of the same frequency • Use in a distance, that will allow disturbances • Full use of limits over large frequency ranges

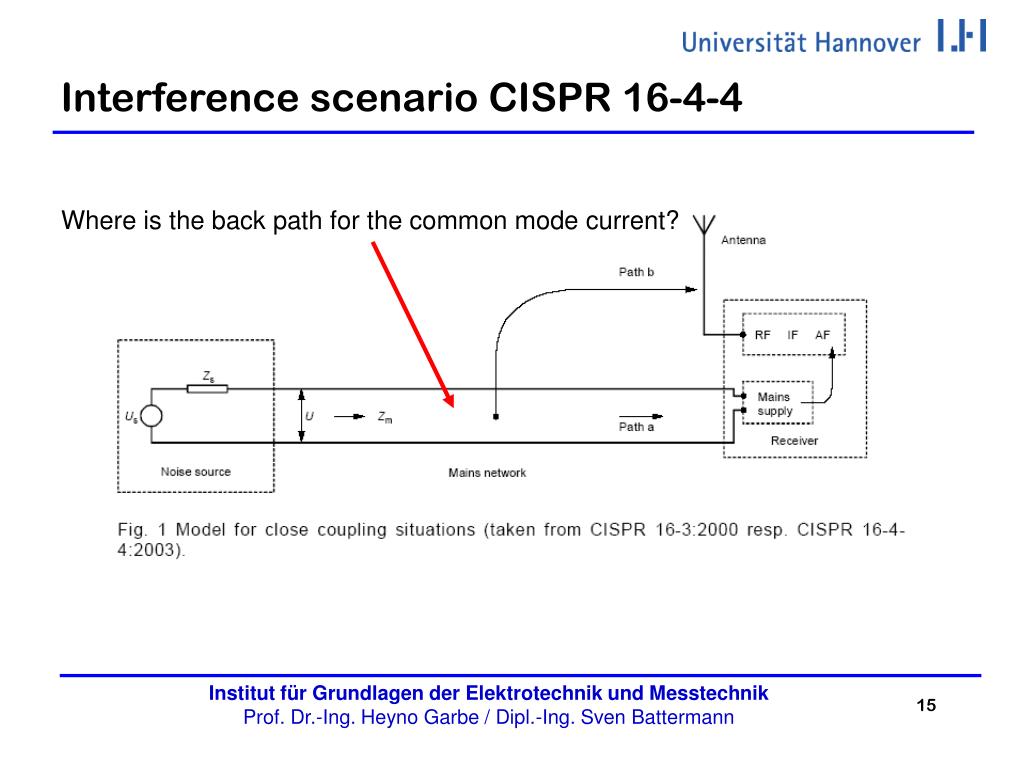

  15. Interference scenario CISPR 16-4-4 Where is the back path for the common mode current?

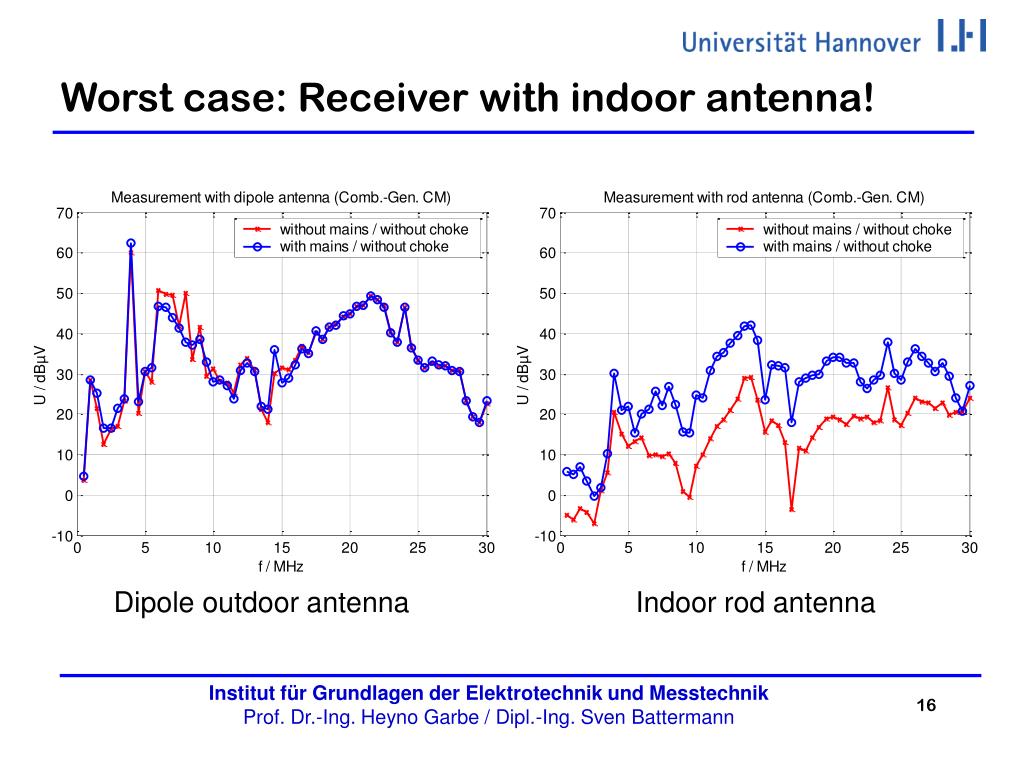

  16. Worst case: Receiver with indoor antenna! Dipole outdoor antenna Indoor rod antenna

  17. Model of the transmission (channel model) Description with 2- and 4 port devices

  18. Measurements to be performed… • What is a reasonable measurement setup? • It is a „simple“ measurement problem – we just want to know the attenuation of the mains network between source and victim -> Mains Decoupling Factor -> Mains Attenuation Factor Two port network analyser -> that’s it! – Really?

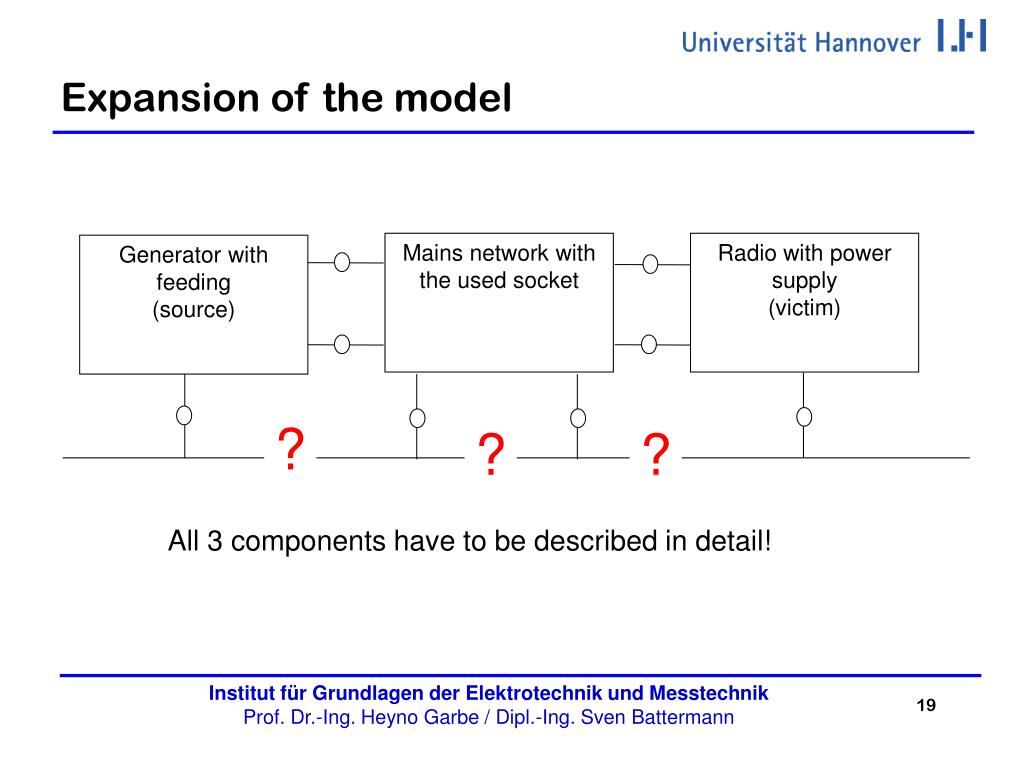

  19. Mains network with the used socket Radio with power supply (victim) Generator with feeding (source) Expansion of the model ? ? ? All 3 components have to be described in detail!

  20. Expansion of the model

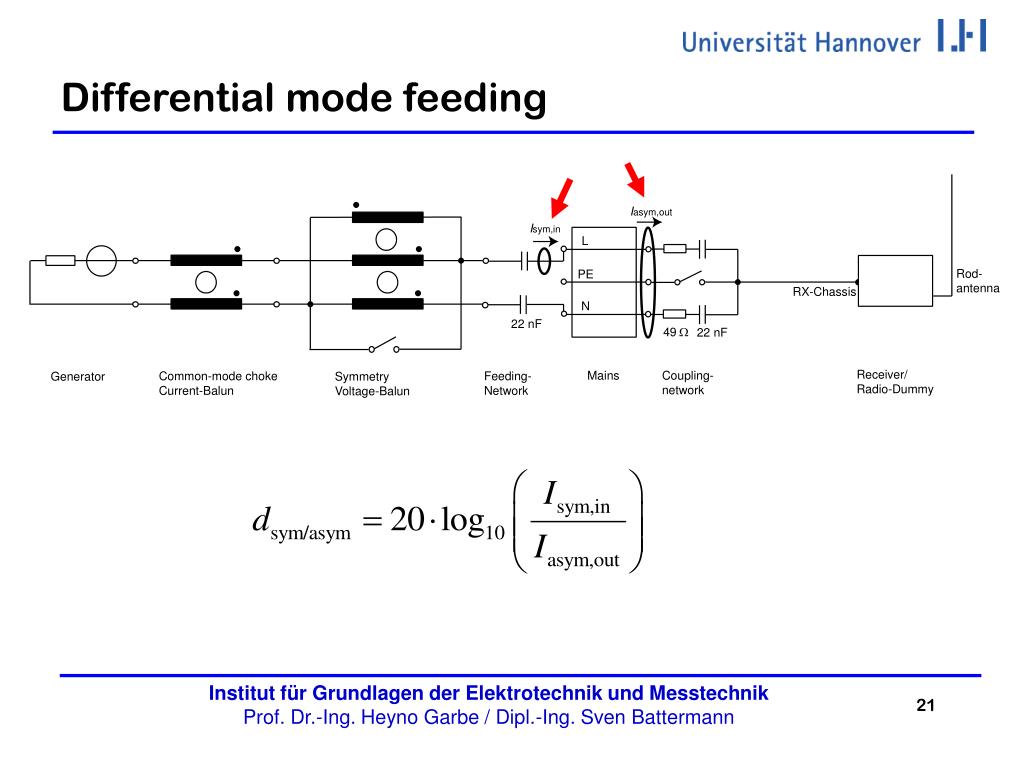

  21. Differential mode feeding

  22. Common mode feeding

  23. Reasons for these measurements • Why currents – what about well known CDNs with disturbance voltage measurement? • Is the voltage the reason for the disturbance? • What is the influence of the difference between CDN impedance against real mains impedance? • Why don‘t you use a typical balun for telecommunication lines? • Do we have 120 Ohm? • Have you ever checked the characteristics of your balun with other loads than 120 Ohm?

  24. Receiver chassis: Flow of current Rod antenna Coupling network to mains Receiver

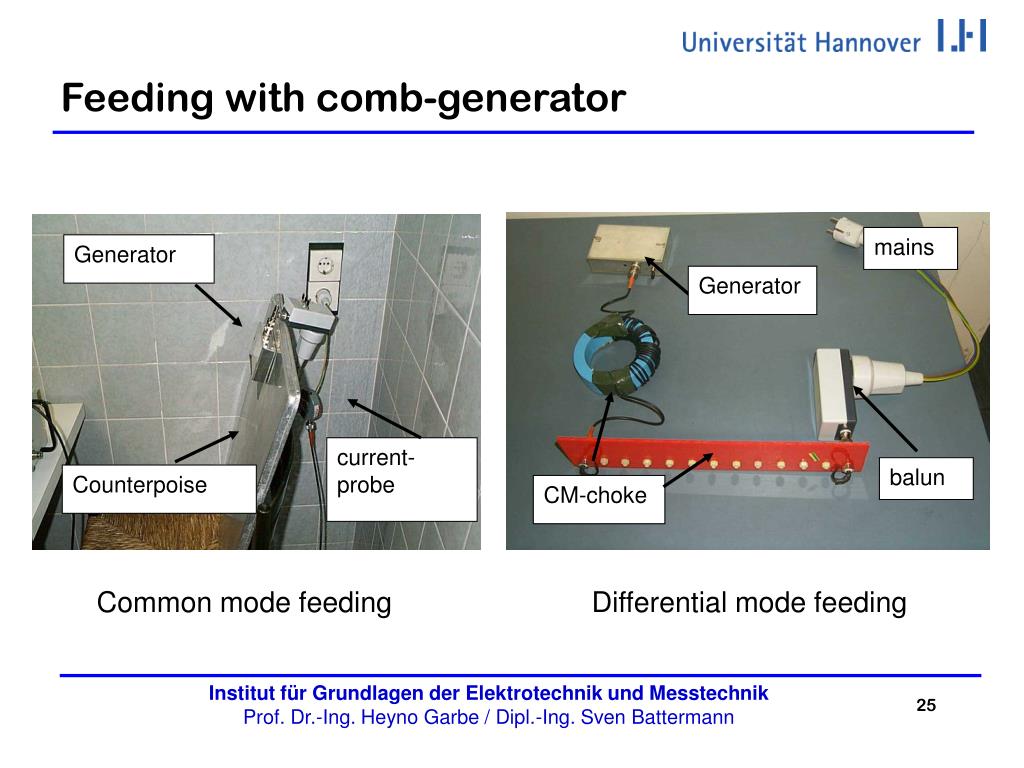

  25. mains Generator Generator current- probe balun Counterpoise CM-choke Feeding with comb-generator Common mode feeding Differential mode feeding

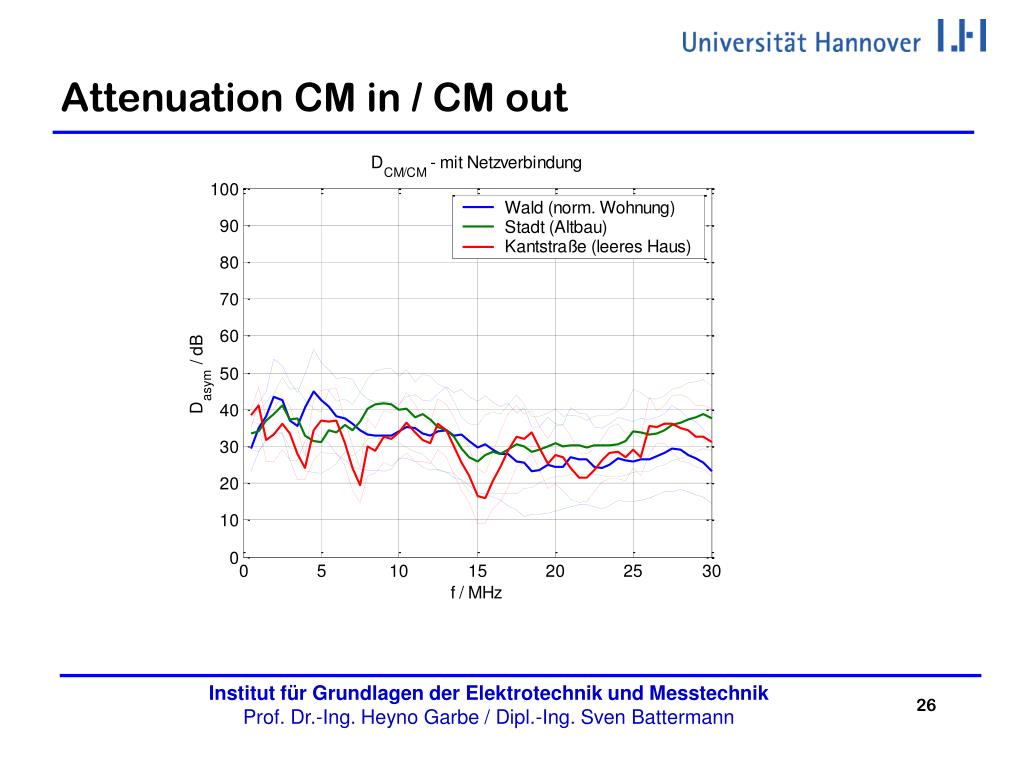

  26. Attenuation CM in / CM out

  27. Attenuation DM in / CM out

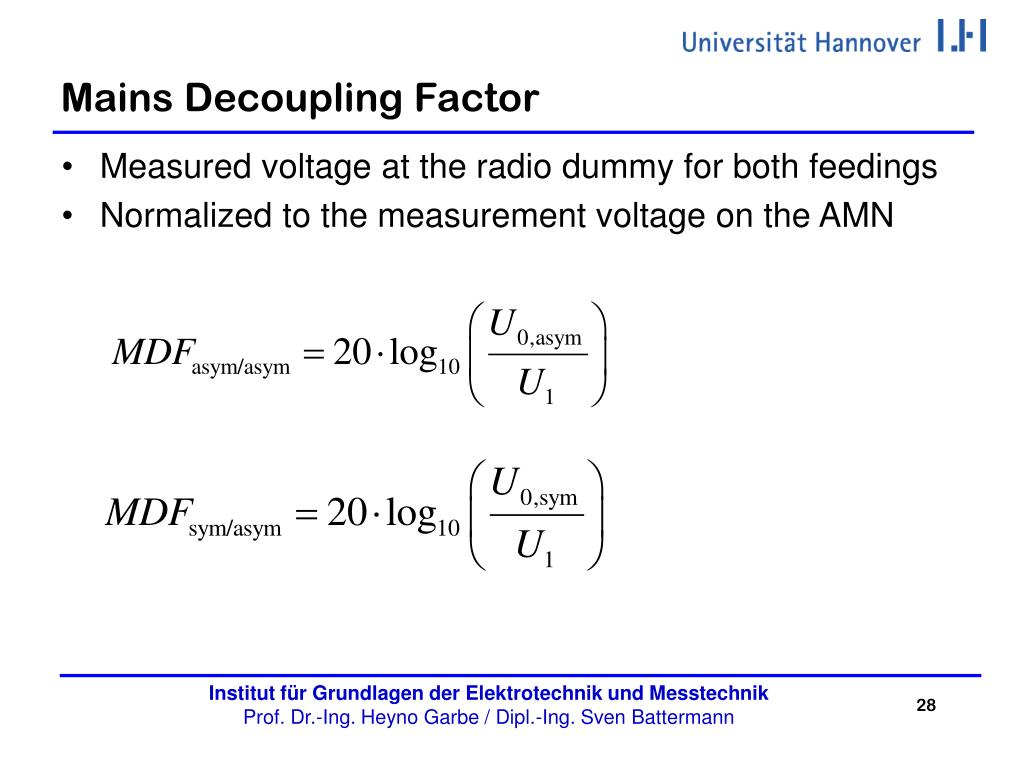

  28. Mains Decoupling Factor • Measured voltage at the radio dummy for both feedings • Normalized to the measurement voltage on the AMN

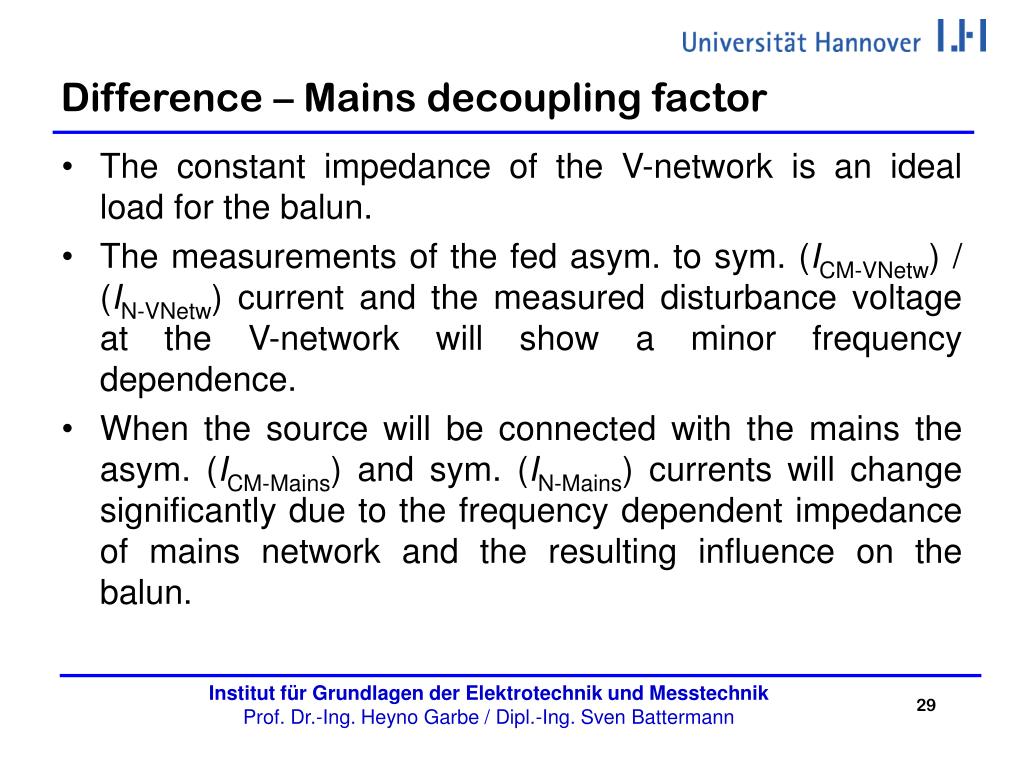

  29. Difference – Mains decoupling factor • The constant impedance of the V-network is an ideal load for the balun. • The measurements of the fed asym. to sym. (ICM‑VNetw) / (IN‑VNetw) current and the measured disturbance voltage at the V-network will show a minor frequency dependence. • When the source will be connected with the mains the asym. (ICM-Mains) and sym. (IN-Mains) currents will change significantly due to the frequency dependent impedance of mains network and the resulting influence on the balun.

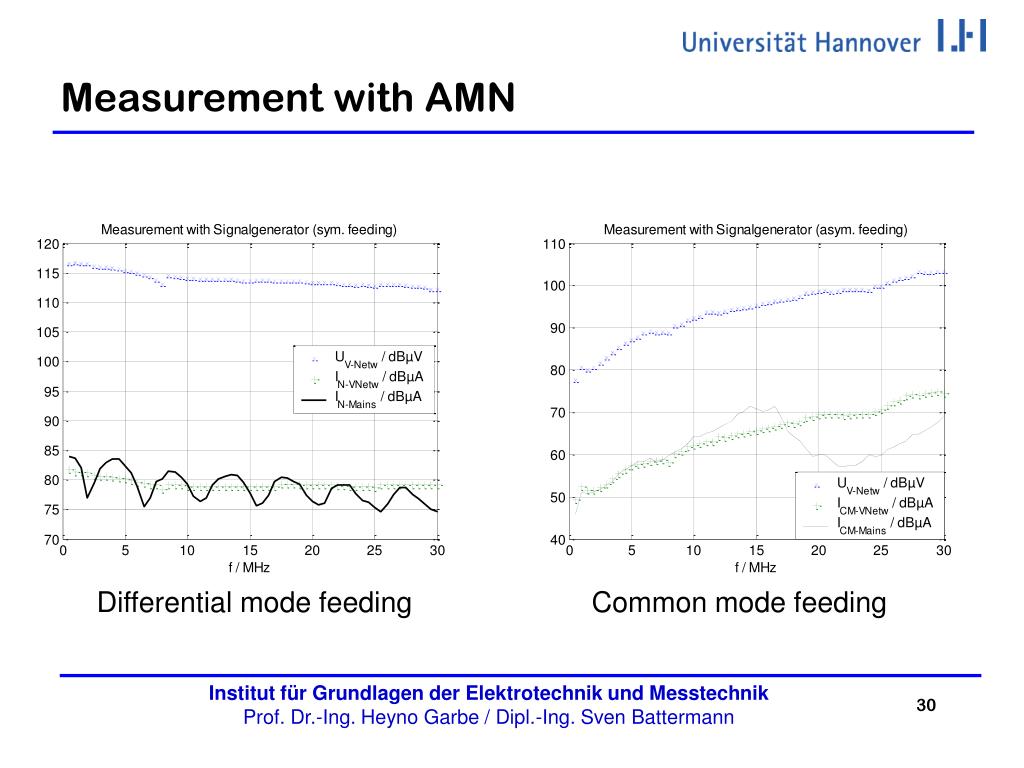

  30. Measurement with AMN Differential mode feeding Common mode feeding

  31. STSM - Measurement Setup

  32. Common mode currents on cabling

  33. Impedance measurement with VNA

  34. Conclusions • Why doing near field measurements? – try to measure the most important quantity for the disturbance -> Current • Measurement Setup was presented during CISPR meeting in South Africa – (-> accepted! - Draft) • What has to be done: • noise floor measurements with radio dummy • more attenuation measurements of mains networks

  35. Long term – Mains – Country side/City Country side City

  36. Long term – Mains – Country side/City Median

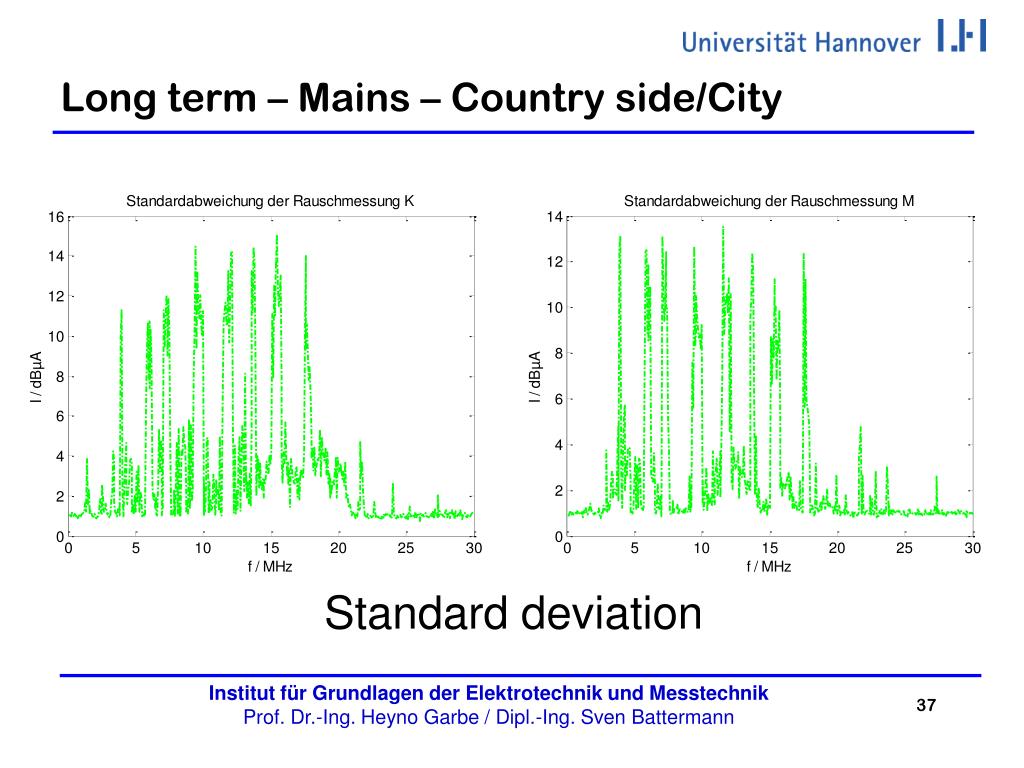

  37. Long term – Mains – Country side/City Standard deviation

  38. Long term – Mains – Country side

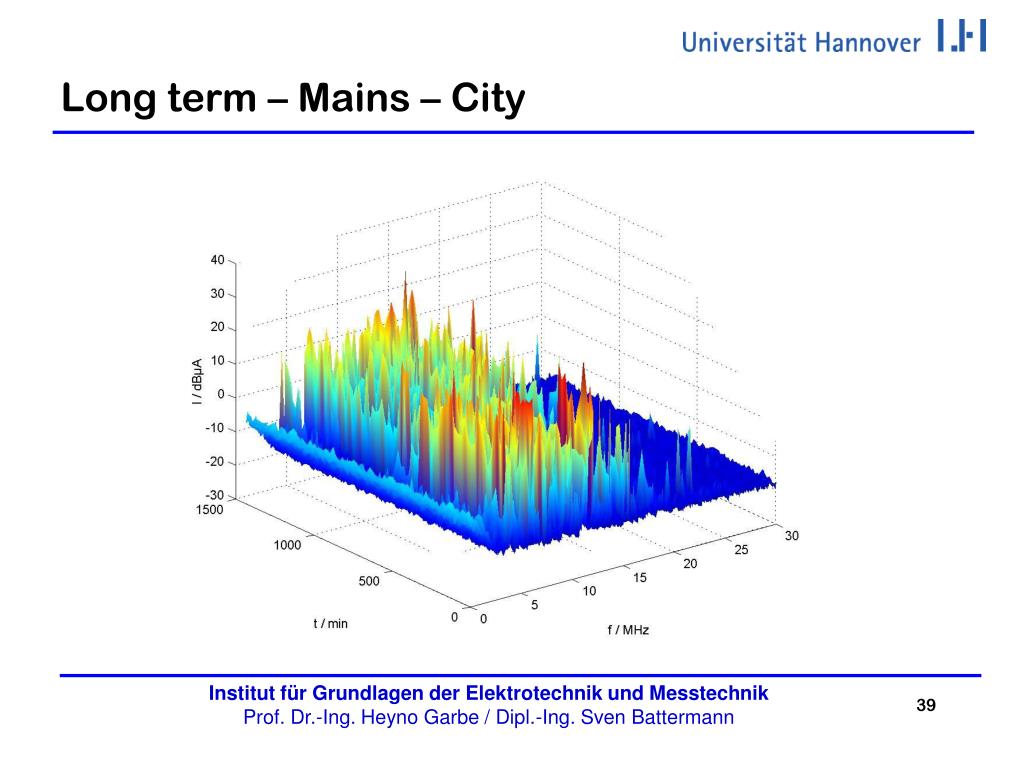

  39. Long term – Mains – City

  40. Measurement with outdoor antenna Country side City

  41. A lot of work has to be done!  • But a real interesting one! 

  42. Used frequency ranges - ISDN VDSL => will even use 20-30 MHz!

  43. Used frequency ranges - PLC Measured antenna feed-point voltage

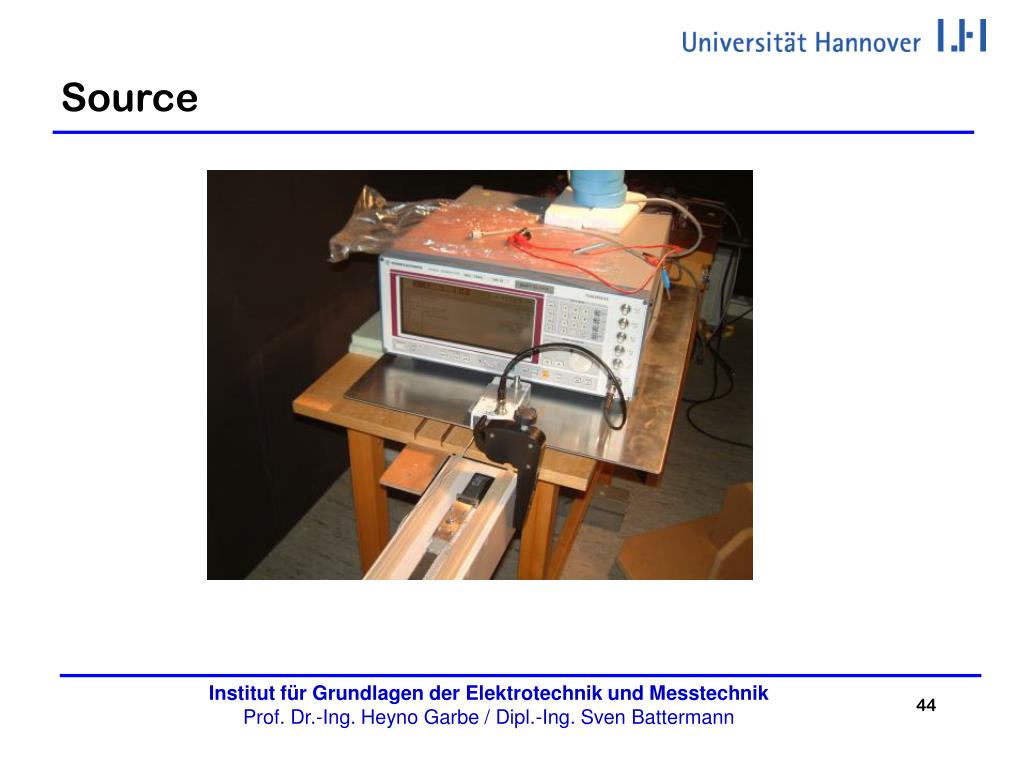

  44. Source

  45. Connection – the line

  46. victim

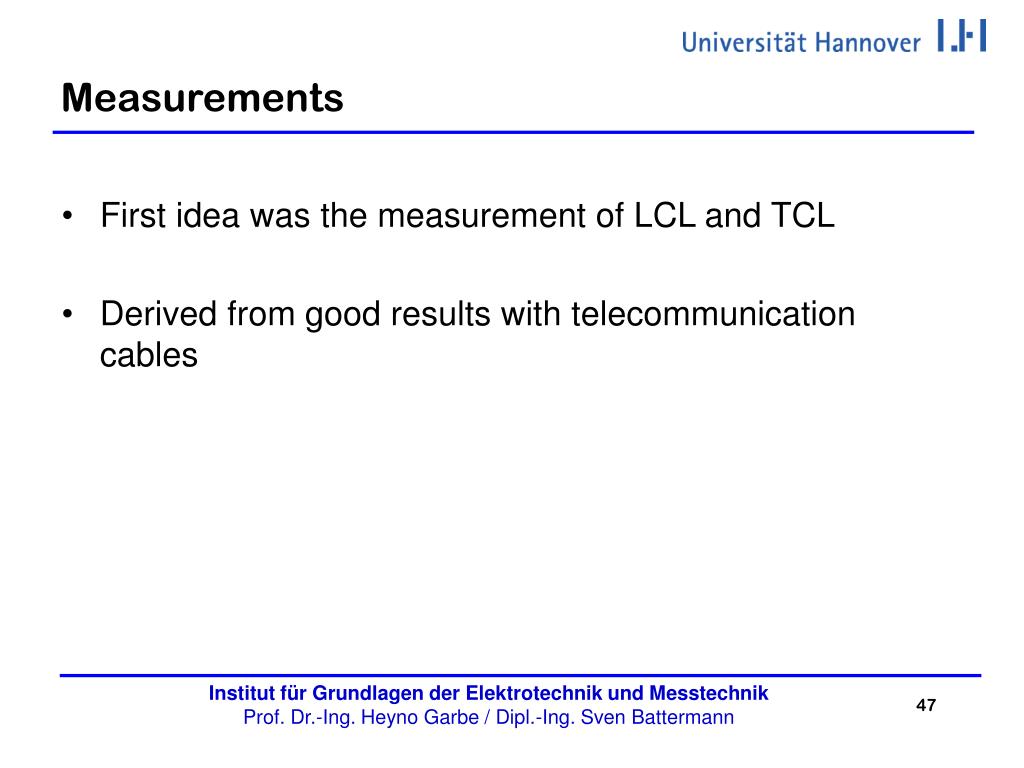

  47. Measurements • First idea was the measurement of LCL and TCL • Derived from good results with telecommunication cables

  48. Longitudinal Conversion Loss Measurement ? Feed the voltage EL and Measure VT.

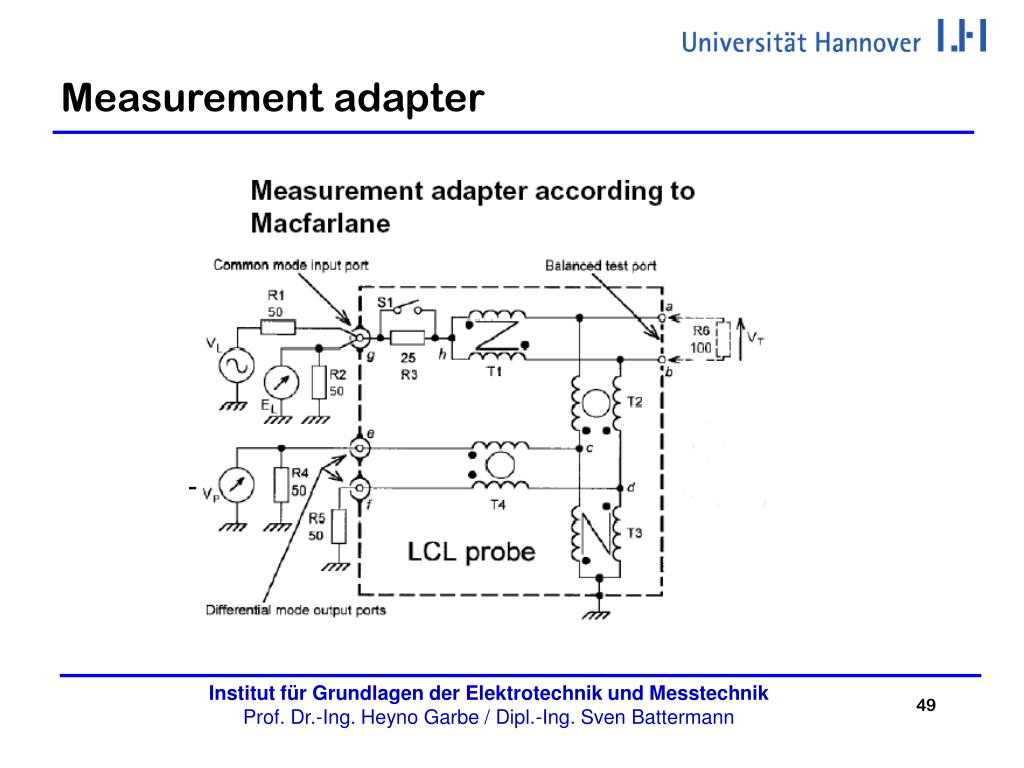

  49. Measurement adapter

  50. Old house installation Industry area Longitudinal Conversion Loss
