WinTXU™ Twin-Screw Extruder Configuration Manager

North American Distributor:

Extrusioneering International, Inc.

www.b4uextrude.com

slide2

WinTXU™ Twin-Screw Extruder Configuration Manager

Screw design for co-rotating intermeshing twin screws:

  • Design/layout elements to align with barrel openings
  • Document configuration for archiving, reporting
slide3

WinTXU™ Twin-Screw Extruder Configuration Manager

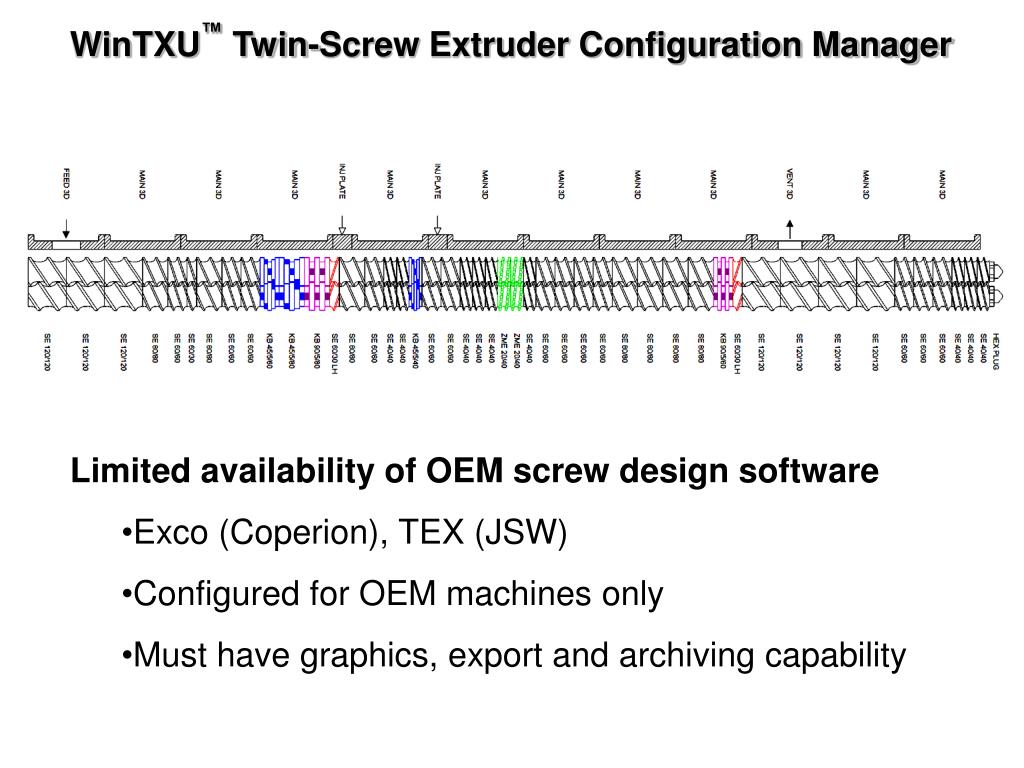

  • Limited availability of OEM screw design software
    • Exco (Coperion), TEX (JSW)
    • Configured for OEM machines only
    • Must have graphics, export and archiving capability
slide4

WinTXU™ Twin-Screw Extruder Configuration Manager

  • Cost of one screw design ‘error’
    • Kneading block mistakenly positioned within vent port
    • Error occurs since graphic image not available
    • Lost production to identify error (estimate @$350/hr)
    • Downtime to reconfigure screw (estimate 4 hours @$350/hr)
    • Cost of materials (scrap produced to identify ‘error’)

WinTXU can pay for itself if one ‘error’ is avoided !

slide5

WinTXU™ Twin-Screw Extruder Configuration Manager

  • WinTXU database
    • All co-rotating intermeshing, modular twin-screws
    • All barrel types (including custom designs)
    • All screw types (including custom designs)
slide6

WinTXU™ Twin-Screw Extruder Configuration Manager

Current extruder database:

  • Coperion (ZSK, ZSK-SC, ZSK-MC)
  • Berstorff (ZE, ZE-A, UT)
  • Leistritz (ZSE, includes HP series)
  • Theysohn (TSK)
  • Prism (TSE, KX series)
  • Buhler
  • Clextral
  • Sino-Alloy (PSM)
  • Farrel (FTX)
  • Baker Perkins (MP series)

Add your extruder to WinTXU database if not already included!

slide7

WinTXU™ Twin-Screw Extruder Configuration Manager

  • System requirements
  • IBM-PC® (or compatible personal computer)
  • 150MHz processor speed (minimum)
  • 16MB RAM (minimum)
  • 32MB free hard disk space
  • SVGA color monitor (256 color minimum)
  • Mouse (or compatible pointing device)
  • CD-ROM drive (or network connection)
  • USB port
  • Microsoft Windows® 95, 98, Me, 2000 or XP
  • Adobe Acrobat® Reader 5 (or later version)
slide11

…or select custom shaft (specify actual shaft length or number of barrels/spacer plates and let WinTXU calculate length of shaft)

slide13

Assemble screw configuration from component library (either click on component name or drag and drop using mouse)

Inventory feature keeps track of elements on-hand, warning message when you exceed inventory level

slide19

Export screw configuration (with or without operating conditions, with or without element identification) as bitmap images, then paste into any Windows application (i.e. PowerPoint, Word, etc.)

slide20

Output of Program WinTXU Version 3.0 Date: 08/07/06

Project: Example Screw Summary

Extruder: KWP ZSK-90

Project File: C:\Program Files\example2.XPF

Bore Diameter: 89.55 mm 90 mm (Nominal)

Shaft Length: 3010.00 mm 33.44 L/D

Barrel Length: 3000.00 mm 33.33 L/D

Screw Length: 3030.00 mm 33.67 L/D

Screw Offset: 0.00 mm

Configuration Complete

Barrel: 14 Sections Configured L(mm) L/D Ports

01 FEED 3D 240.00 2.67 FP1

02 MAIN 3D 480.00 5.33

03 MAIN 3D 720.00 8.00

04 MAIN 3D 960.00 10.67

05 INJ PLATE 1020.00 11.33 IP1

06 MAIN 3D 1260.00 14.00

07 INJ PLATE 1320.00 14.67 IP2

08 MAIN 3D 1560.00 17.33

09 MAIN 3D 1800.00 20.00

10 MAIN 3D 2040.00 22.67

11 MAIN 3D 2280.00 25.33

12 VENT 3D 2520.00 28.00 VP1

13 MAIN 3D 2760.00 30.67

14 MAIN 3D 3000.00 33.33

Save/export Summary as text file: complete listing of barrel/screw/die configuration (and operating conditions)

slide21

WinTXU™ Twin-Screw Extruder Configuration Manager

  • Single-User License
  • Permanent, single-user license (via USB hardware key)
  • Database contains up to three extruder models
  • Fee to add extruders to database
  • Fee for each additional user license (i.e. additional hardware keys)
  • Network License
  • Permanent, password-protected license
  • Database contains up to three extruder models
  • Fee to add extruders to database
slide22

Click on image to see animation

Export .avi files from rotating screw image
