Presentation Transcript

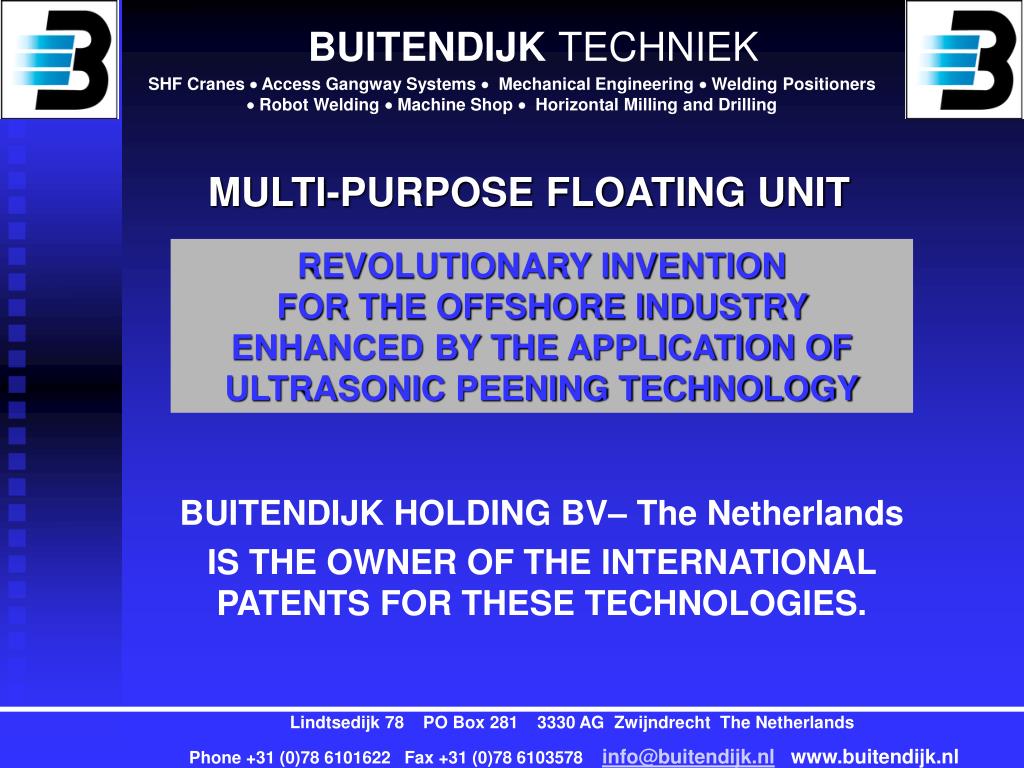

slide1

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

MULTI-PURPOSE FLOATING UNIT

REVOLUTIONARY INVENTION FOR THE OFFSHORE INDUSTRY ENHANCED BY THE APPLICATION OFULTRASONIC PEENING TECHNOLOGY

BUITENDIJK HOLDING BV– The Netherlands

IS THE OWNER OFTHE INTERNATIONAL PATENTS FOR THESE TECHNOLOGIES.

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide2

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

MULTI-PURPOSE FLOATING UNIT

TRANSIT MODE

OPERATIONAL MODE

VESSEL HULL CONSISTING OF 2 COLUMNS AT EACH BOW GUIDING A JACKING DECKHOUSE

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide3

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

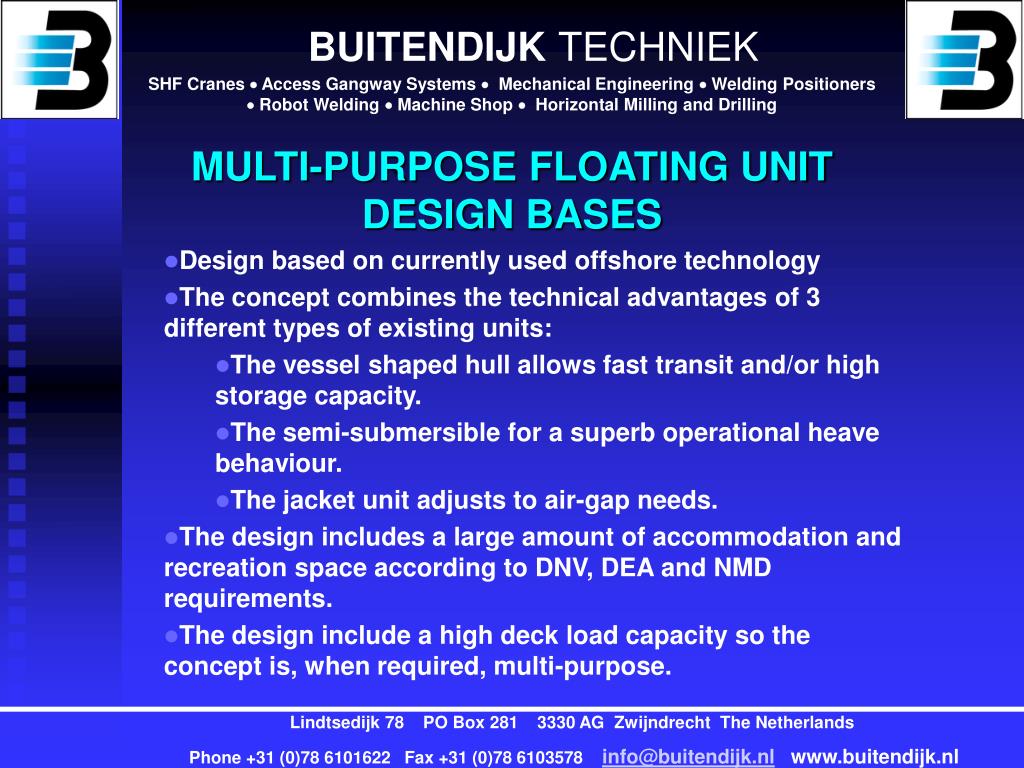

MULTI-PURPOSE FLOATING UNIT DESIGN BASES

  • Design based on currently used offshore technology
  • The concept combines the technical advantages of 3 different types of existing units:
    • The vessel shaped hull allows fast transit and/or high storage capacity.
    • The semi-submersible for a superb operational heave behaviour.
    • The jacket unit adjusts to air-gap needs.
  • The design includes a large amount of accommodation and recreation space according to DNV, DEA and NMD requirements.
  • The design include a high deck load capacity so the concept is, when required, multi-purpose.

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide4

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

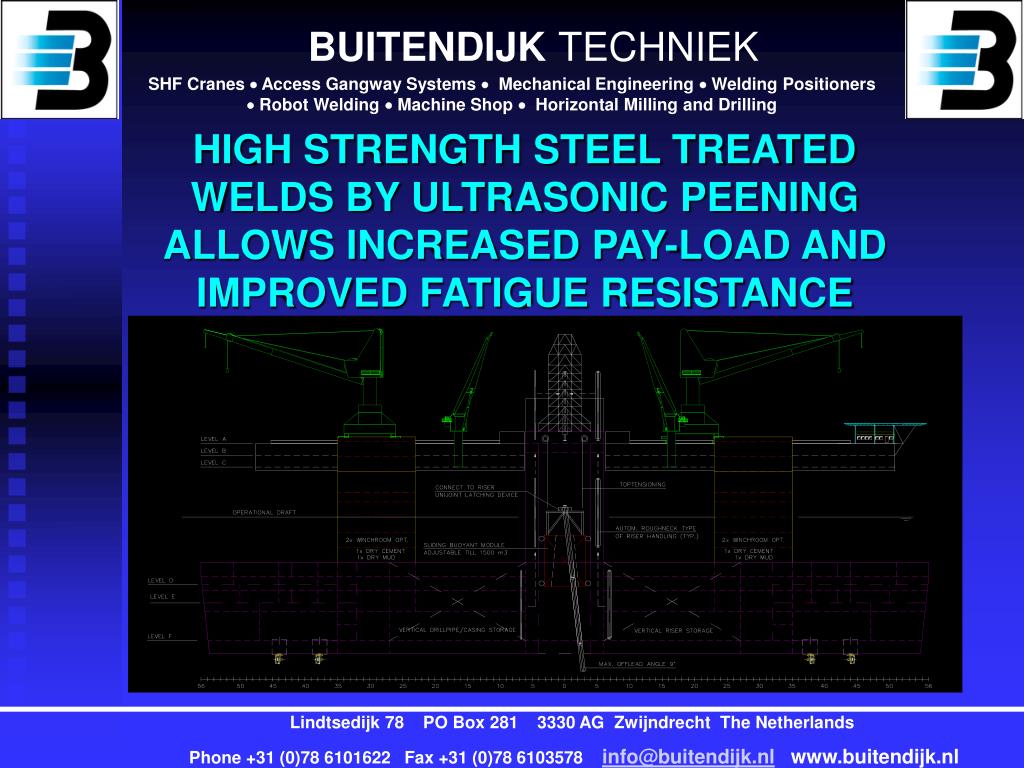

HIGH STRENGTH STEEL TREATED WELDS BY ULTRASONIC PEENING ALLOWS INCREASED PAY-LOAD AND IMPROVED FATIGUE RESISTANCE

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide5

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

Standard High Tensile Steel parts:

Hull

Bottom

Side

Top

Bulkheads

Decks

Girders

Ultra High Tensile Steel parts:

Deckhouse

4x Columns

Mid column

Derrick

Helideck

Inside hull: doublebottom deck

Stiffening

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide6

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

MULTI-PURPOSE EXPLORATION VESSEL

OPTIMUM REQUIREMENTS FOR DEEPWATER

  • Own propulsion: In transit it would be able to sail with speed up to 15 knots and in operational mode full stationkeeping capabilities.
  • In operational mode the motion behaviour would be equal or better as in a semi-submersible; a system which allows to work with a fixed Riser system able to operate in heavy weather reducing dramaticaly the occurrence of operational downtime.
  • High storage area’s to reduce logistical cost and preferably have a relative low Vertical Center of Gravity to maintain stability requirements.
  • Vessel must be outfitted with sufficient equipment to handle all standard operations.

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide7

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

MULTI-PURPOSE VESSEL FOR ULTRA DEEPWATER OPERATIONS

IT COULD BENEFIT:

  • Oil Company’s
  • Drilling Company’s
  • FSO and FPSO company’s

DUE TO THE DIVERSIFIED CHARACTER OF THECONCEPT

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide8

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

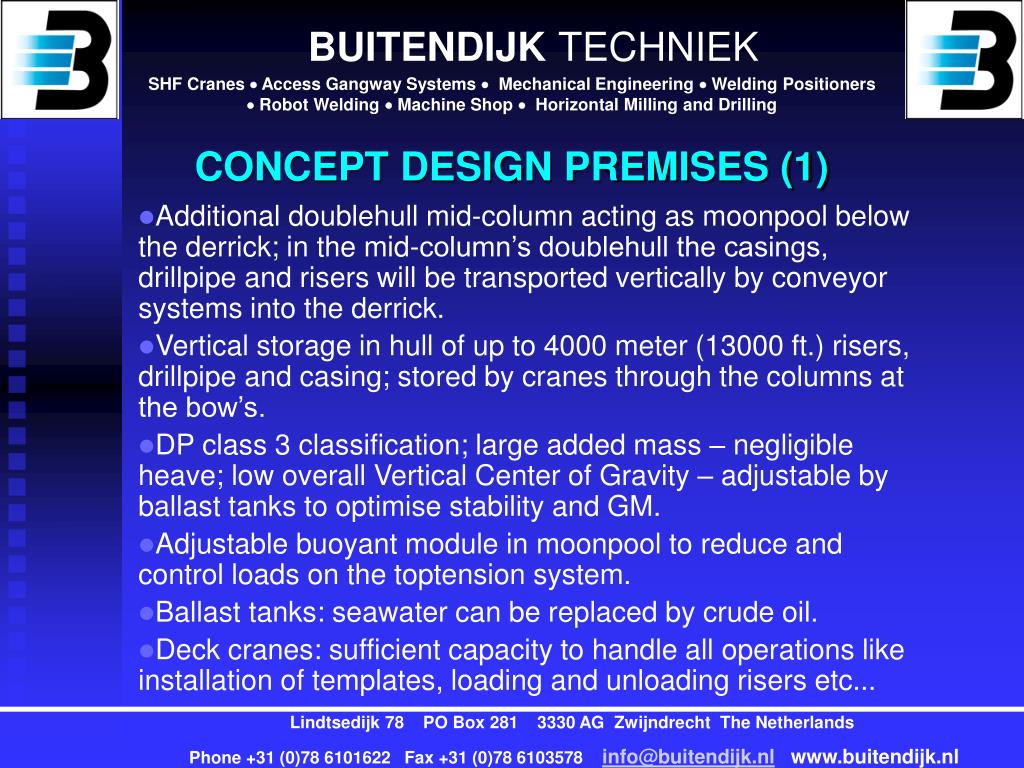

CONCEPT DESIGN PREMISES (1)

  • Additional doublehull mid-column acting as moonpool below the derrick; in the mid-column’s doublehull the casings, drillpipe and risers will be transported vertically by conveyor systems into the derrick.
  • Vertical storage in hull of up to 4000 meter (13000 ft.) risers, drillpipe and casing; stored by cranes through the columns at the bow’s.
  • DP class 3 classification; large added mass – negligible heave; low overall Vertical Center of Gravity – adjustable by ballast tanks to optimise stability and GM.
  • Adjustable buoyant module in moonpool to reduce and control loads on the toptension system.
  • Ballast tanks: seawater can be replaced by crude oil.
  • Deck cranes: sufficient capacity to handle all operations like installation of templates, loading and unloading risers etc...

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide9

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

CONCEPT DESIGN PREMISES (2)

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide10

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

DIMENSIONS (1)

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide11

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

DIMENSIONS (2)

Length (m): 240

Width (m): 52

Depth hull (m): 31

Transit Draft (m): 15-24

Drydock draft (m): 11

Adjustable GM (m): 1-3

Airgap (m): 15-20

Cranes: 2x 150 Ton-45 m.

4x 70 Ton-25 m.

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide12

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

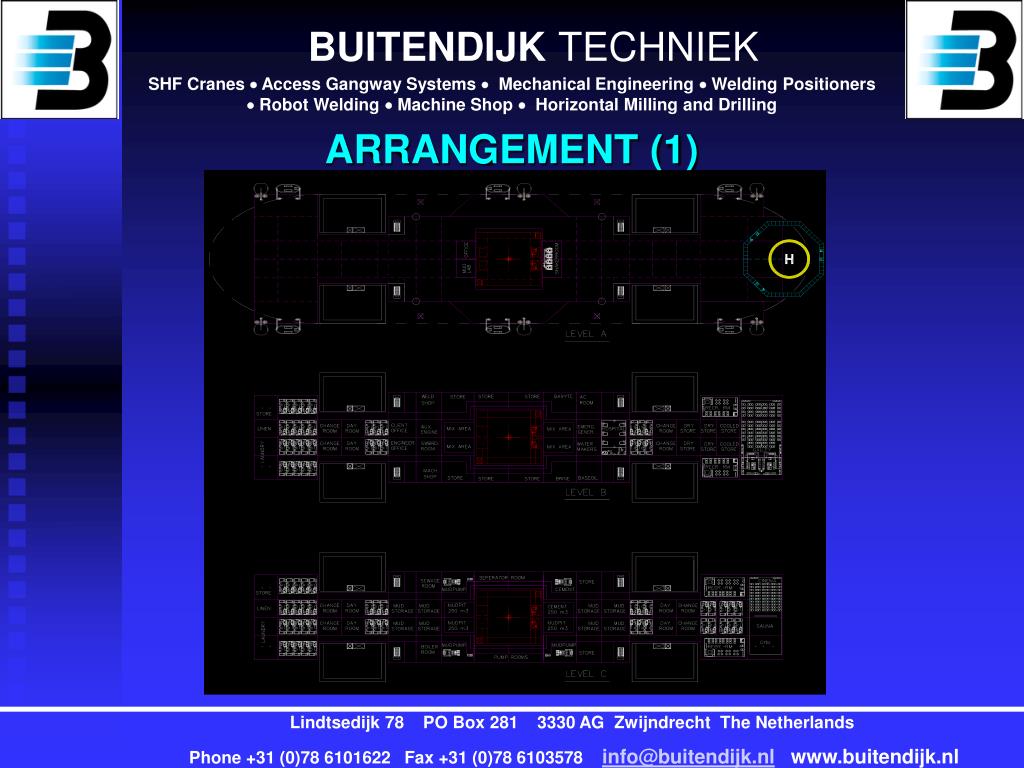

ARRANGEMENT (1)

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide13

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

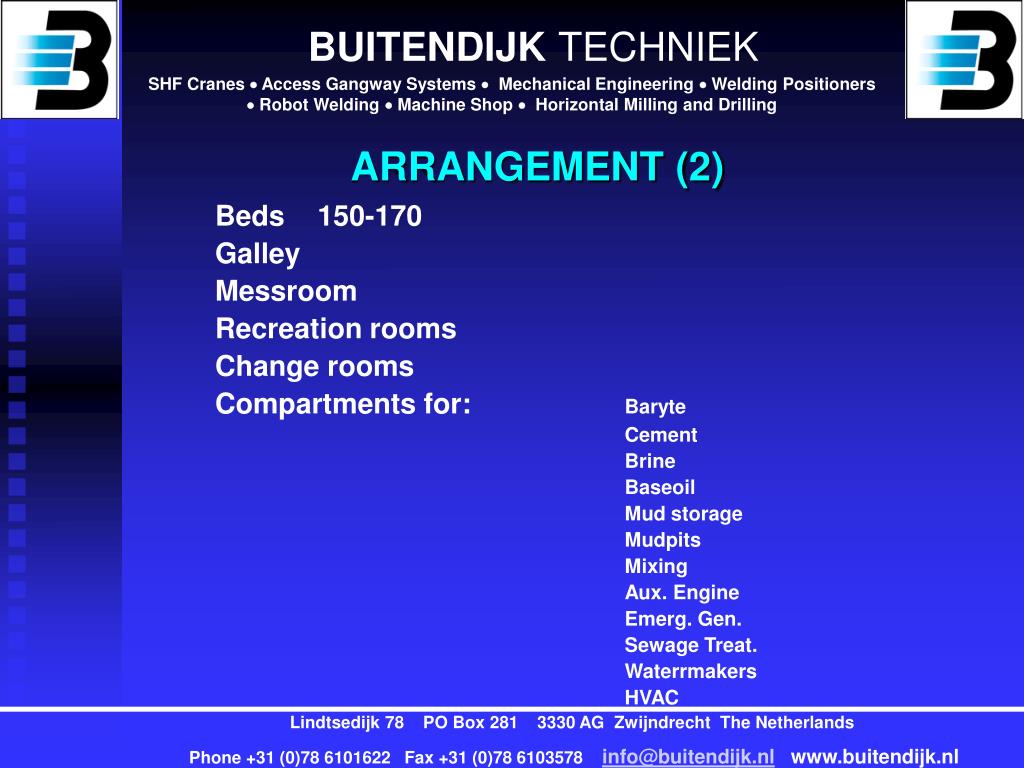

ARRANGEMENT (2)

Beds 150-170

Galley

Messroom

Recreation rooms

Change rooms

Compartments for: Baryte

Cement

Brine

Baseoil

Mud storage

Mudpits

Mixing

Aux. Engine

Emerg. Gen.

Sewage Treat.

Waterrmakers

HVAC

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide14

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

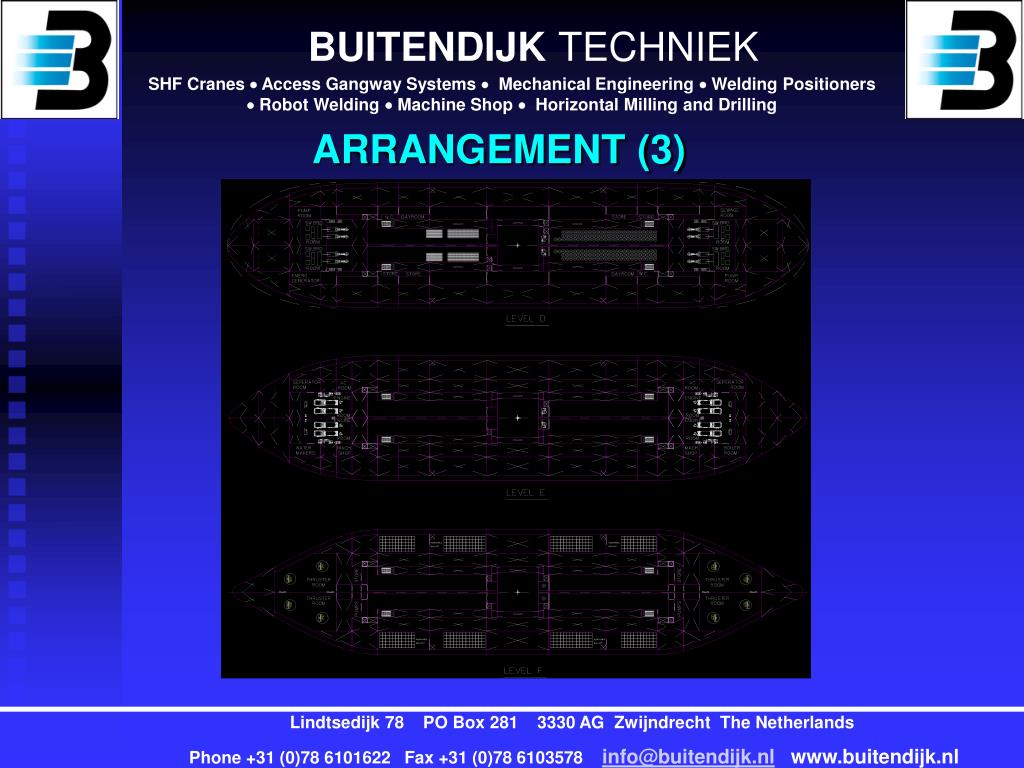

ARRANGEMENT (3)

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide15

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

ARRANGEMENT (4)

Compartments in hull for:

4x engine room

2x pumproom

4x switchboardroom

4x thruster room

Sewage treatment

Watermakers

HVAC

Recreation

Sewage treatment

Machine shops

Stores

Separator rooms + tanks

Ballast water: 1 million barrel

Vertical storage of :Casing/Drillpipe

4000 mtr. riser

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide16

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

CAPACITIES

Design speed: 12-15 Knots

Workdeck storage: *8.000Ton

Lightweight appr. 82.000 Ton

Submerged appr. 300.000Ton

Engine rooms: 4 x 10M

Thrusters: 8 x

Station keeping by DP class 3.

Vessel operating in headseas.

Controlable load on Toptension syst. Operational at 10 year storm

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide17

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

MOTION BEHAVIOUR TEST (1)

submerged mass in relation

to the relative small waterline

area results in negligible

heave motion

Basin at UNO-USA

The model scale 1:150

Hooked up and ready for test

ANorth Sea 10 year storm was used as wave spectra as well as random waves and soft-moored in headseas to determine RAO’s. Results were compared with results

from regular waves.

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide18

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

MOTION BEHAVIOUR TEST (2)

Slow-motion presentation

of 10 year storm

  • HEAVE RAO: HEAVE IN 10YEAR STORM UP TO WAVEPERIODS OF 12 SEC. NEGLIGIBLE < 0.1 m/m
  • IN STORMS PERIODS ARE SELDOM LARGER THAN 12 SEC NO SIGNIFICANT OPERATIONAL DOWNTIME DUE TO WEATHER WILL OCCUR
  • HEAVE IS NEGLIGIBLE AND PITCH IS MODERATE
  • SLAMING AGAINST MID- AND BOW COLUMNS AS PREDICTED
  • IMPROVED SHAPE OF THE COLUMNS TO “ WAVEBREAKERS”

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide19

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

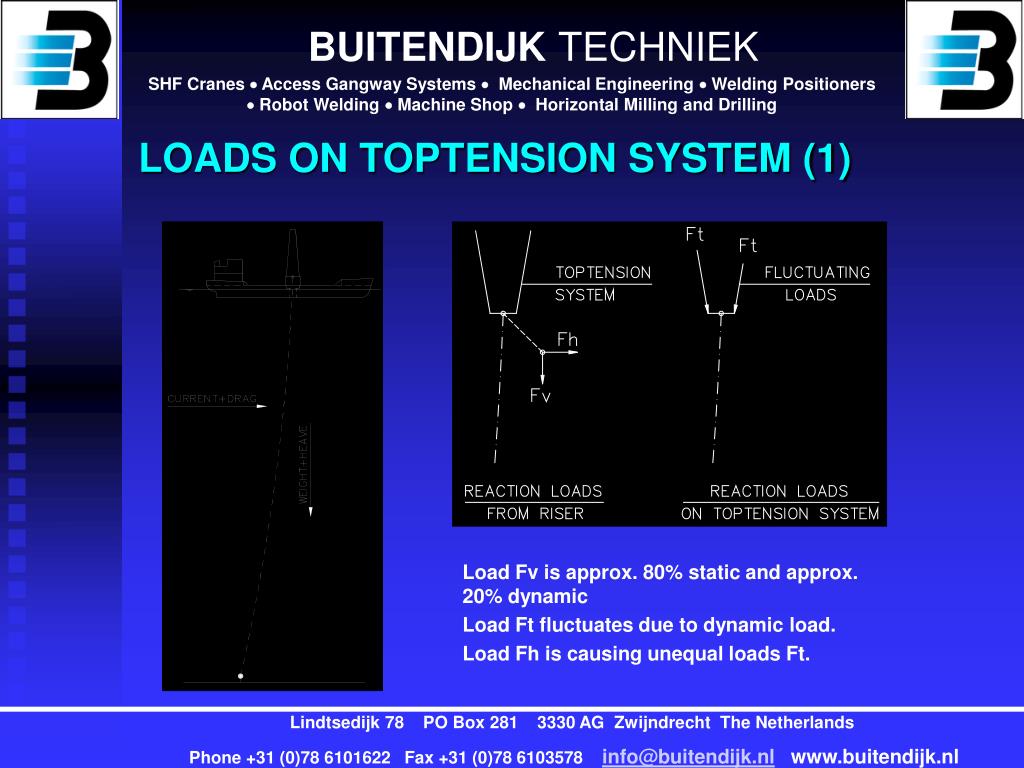

LOADS ON TOPTENSION SYSTEM (1)

Load Fv is approx. 80% static and approx. 20% dynamic

Load Ft fluctuates due to dynamic load.

Load Fh is causing unequal loads Ft.

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide20

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

LOADS ON TOPTENSION SYSTEM (2)

The sum of fluctuating load Ft results in the need for atoptension system which is able to react fast on load changes.Taking into account the always action static load a hugepowerconsuming toptension system is required.

It would be ideal to reduce the static load and Fh.

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide21

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

TOPTENSION CONTROLABLELOAD DEVICE (1)

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide22

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

TOPTENSION CONTROLABLE LOAD DEVICE (2)

  • THE RISER SYSTEM IS CONNECTED TO THE BOUYANT MODULE
  • BOUYANT MODULE IS ABLE TO SLIDE VERTICAL BY WHEELS THROUGH THE MOONPOOL
  • HORIZONTAL REACTION FORCES Fh FROM THE RISER SYSTEM WILL FLOW INTO VESSELS HULL THROUGH THE WHEELS
  • RESULTING IN PERFECT LINEAR VERTICAL LOAD FOR TOPTENSION SYSTEM
  • AS THE BOUYANT MODULE IS PERMANENTLY SUBMERGED THE RESULTING OF IT’S BOUYANCY WILL CONSIDERABLY REDUCE THE OPERATIONAL VERTICAL TOPTENSION LOAD
  • THE BOUYANT LOAD COULD BE ADJUSTED AS IN A BALLAST TANK

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide23

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

BALLAST TANK OPTIONS – FSO/FPSO

  • -APPROXIMATE CAPACITY OF FILLED BALLAST TANKS 1.000.000 BARRELS OF SEAWATER
  • -THE VESSEL WOULD BE ABLE TOWORK AS EXPLORING DRILLING UNIT AND AS STORAGE OR PRSTORAGE AND PRODUCTION UNIT: FSO/FPSO – ALLOWING A STORAGE CAPACITY OF 600.000 BARRELS OF CRUDE OIL.
  • -IMPLEMENTATION OF SUBMARINE TECHNOLOGY WILL ALLOWS MULTIPLE USE OF BALLAST TANKS.

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide24

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

MULTIPLE OPTIONS

  • EXPLORATION DRILLING UNIT
  • PRODUCTION DRILLING UNIT
  • FSO
  • FPSO – By installation of production facilities on the workdeck
  • PIPELAY VESSEL S-lay or J-lay
  • CRANE VESSEL

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl

slide25

BUITENDIJK TECHNIEK

SHF Cranes  Access Gangway Systems Mechanical Engineering  Welding Positioners  Robot Welding  Machine Shop Horizontal Milling and Drilling

SUMMARY

  • EXCELLENT MOTIONBEHAVIOUR
  • NEGLIGIBLE OPERATIONAL DOWNTIME
  • MULTIPLE OPTIONS
  • DOUBLE HULL DESIGN
  • SELF-SUPPORTING EQUIPPED
  • HIGH STORAGE FACILITIES

Lindtsedijk 78 PO Box 281 3330 AG Zwijndrecht The Netherlands

Phone +31 (0)78 6101622 Fax +31 (0)78 6103578 info@buitendijk.nl www.buitendijk.nl
